IEC 62619: Safety for industrial lithium batteries, testing under abuse conditions.
UL 9540: Overall safety evaluation for complete energy storage systems.
IEEE 1547: Grid interconnection requirements including voltage, frequency, and anti-islanding protection.

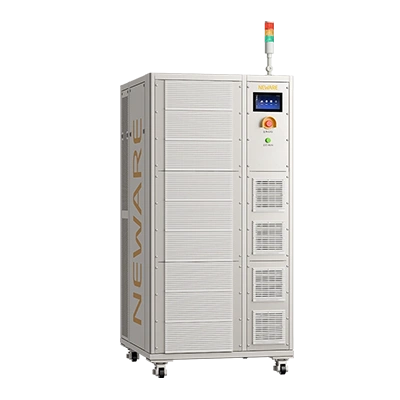

High-precision cell and 1500V/3000V ultra-high voltage pack testing systems provide full-scenario testing for home energy storage, from cell to pack.
1. Programmable charging/discharging: supports CC, CV, CP modes and complex sequence editing.
2. Precise performance evaluation: ±0.02% of F.S accuracy, 24-bit resolution, and multi-range design for testing from standby power to high-power discharge.
3. High dynamic response: ≤1ms current response simulates real-world load changes. Supports BMS comms to verify over-charge/discharge and balancing protections.
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 100Hz
Current Conversion Time: ≤6ms
Current Response Time: ≤3ms
Minimum Pulse Width: 100ms
Feedback Efficiency (Max): 75%
Current Accuracy: ±0.05% F.S.
Voltage Accuracy: ±0.02% F.S.
Recording Frequency: 100Hz
Current Conversion Time: ≤6ms
Current Response Time: ≤3ms
Minimum Pulse Width: 100ms
Feedback Efficiency (Max): 90%
Voltage & Current Accuracy: ±0.02% F.S.
High-Frequency Sampling: 200Hz
Current Conversion Time: ≤2ms
Current Response Time: ≤1ms
Minimum Pulse Width: 10ms
Feedback Efficiency (Max): 75%
Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 100Hz
Current Conversion Time: ≤20ms
Current Response Time: ≤10ms
Minimum Pulse Width: 50ms
Feedback Efficiency (Max): 96%

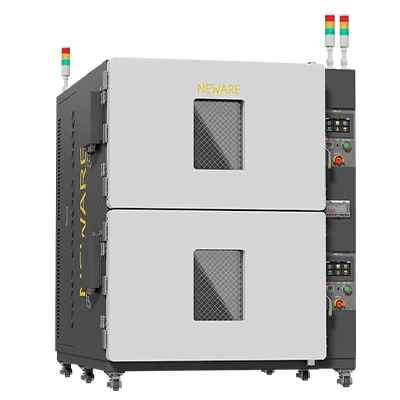

The All-in-One Series integrates charge/discharge control with high/low-temperature environmental simulation in a single device. This greatly simplifies test setup, saves lab space, and reduces the operational complexity of managing multiple devices.
1. Wide temperature range: covers -70℃ to +150℃, verifying product performance and charge acceptance under extreme conditions.
2. Precise data synchronization: BTS software automatically synchronizes charge/discharge data with temperature data in real-time, ensuring accurate analysis and consistent assessment of temperature's impact on battery performance.
Volume: 200L
Space for Test System: 6U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F ~ 302°F≤60min
(20℃ ~ 150℃≤60min)
Cooling Time: 68°F ~ -40°F≤60min
(20℃ ~ -40℃≤60min)
Volume: 200L*2
Space for Test System: 12U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F ~ 302°F≤60min
(20℃ ~ 150℃≤60min)
Cooling Time: 68°F ~ -40°F≤60min
(20℃ ~ -40℃≤60min)
Volume: 400L*2
Space for Test System: 32U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F ~ 302°F≤60min
(20℃ ~ 150℃≤60min)
Cooling Time: 68°F ~ -40°F≤60min
(20℃ ~ -40℃≤60min)
Volume: 400L*2
Space for Test System: 32U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F ~ 302°F≤60min
(20℃ ~ 150℃≤60min)
Cooling Time: 68°F ~ -40°F≤60min
(20℃ ~ -40℃≤60min)
