Used for testing polymer pouch cells in terms of charge/discharge cycles, formation capacity, and other tests.
Features
Tech Specs

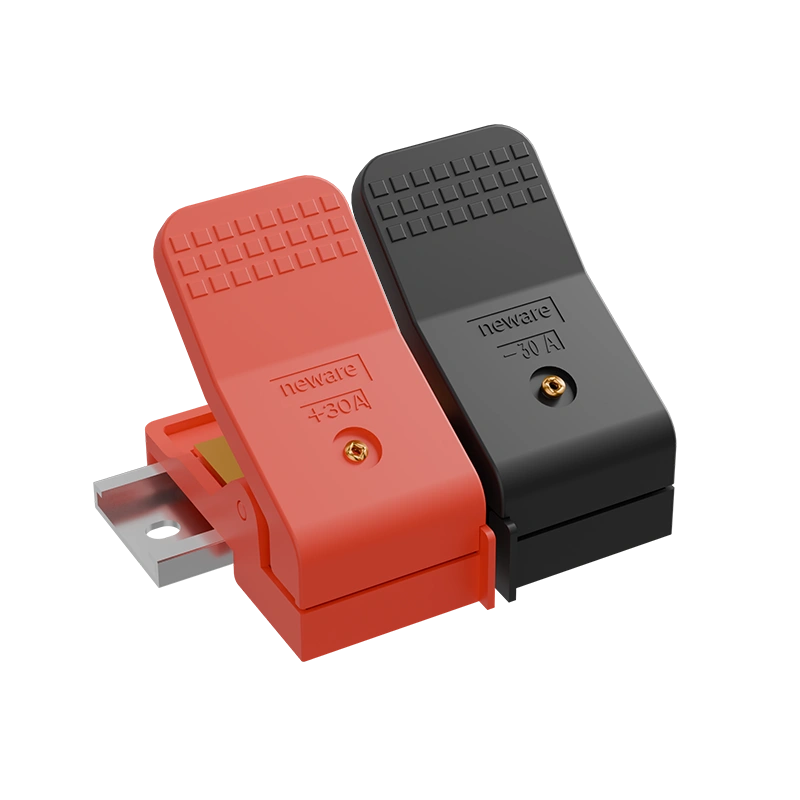

Used in conjunction with C-type rails, customizable rails can be provided to meet the testing needs of batteries with different electrode spacing. The fixed rack platform simplifies battery arrangement, making it easy to quickly and neatly arrange the batteries.

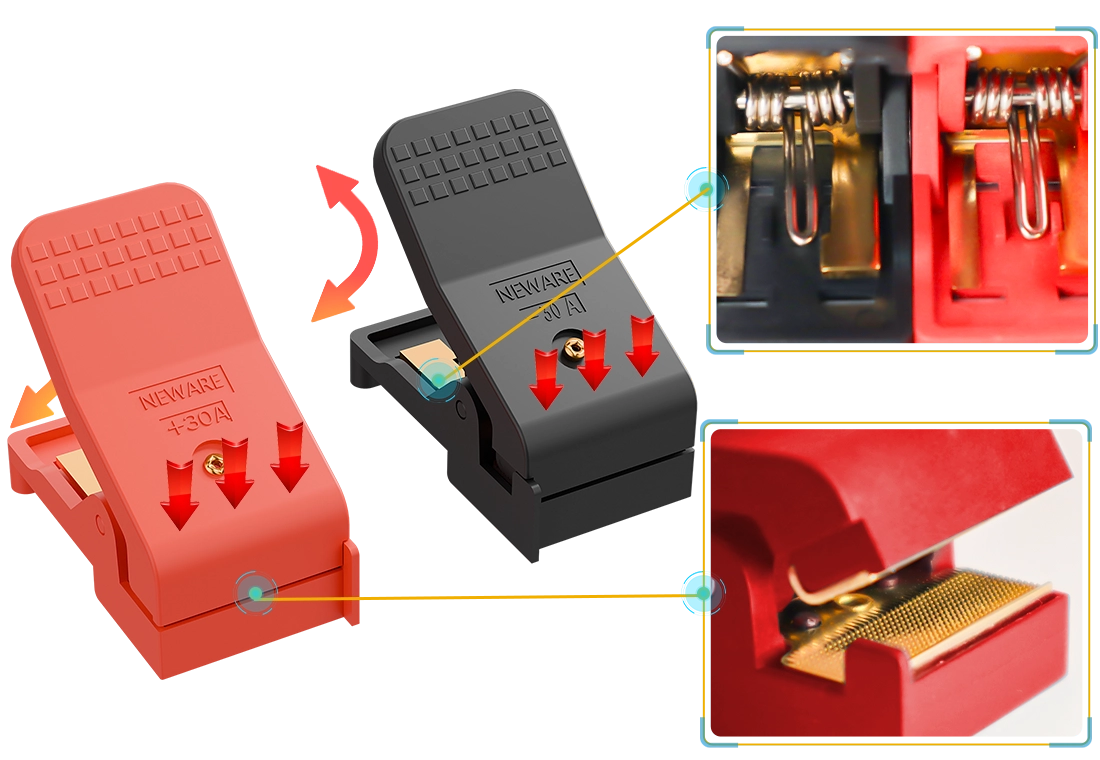

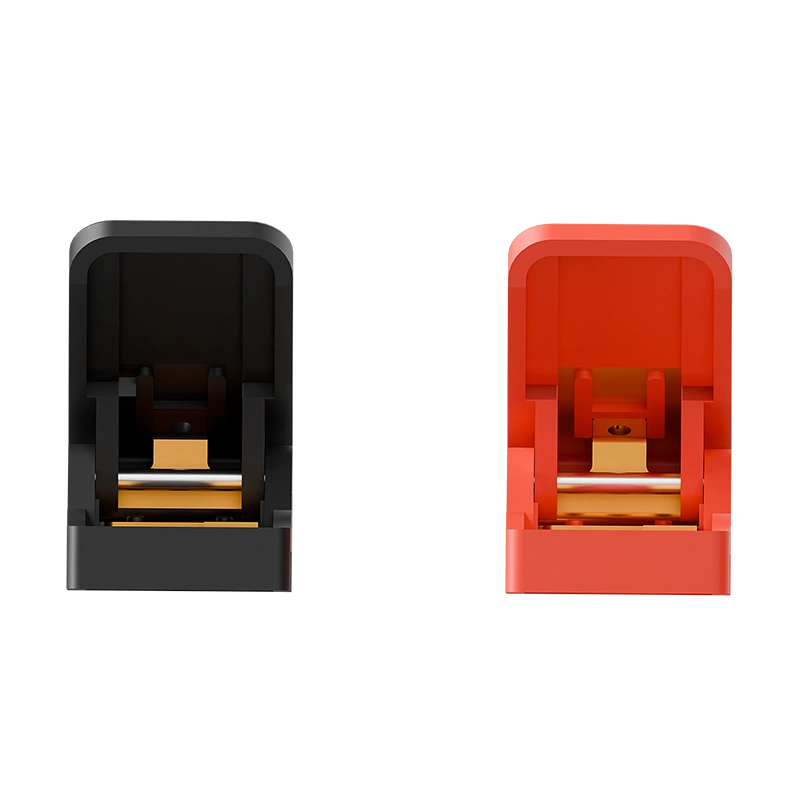

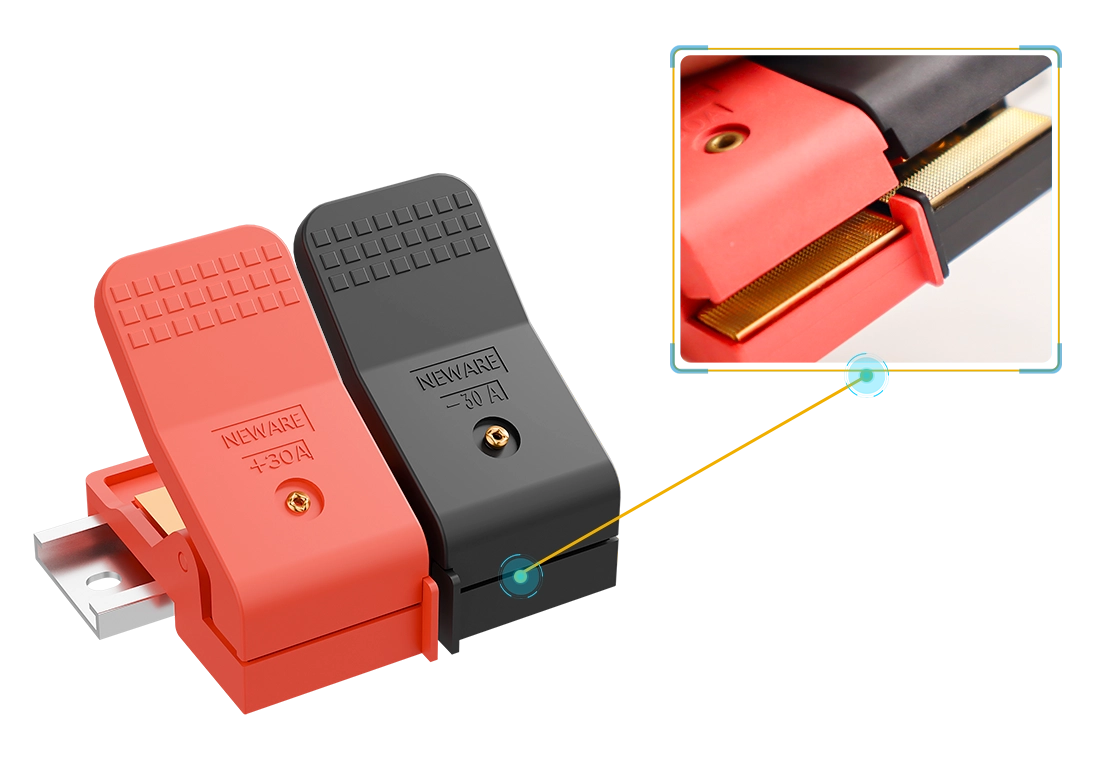

Special Tooth Design: the current clips feature a clear and neat tooth design, enhancing the clamping force, effectively preventing slippage, and ensuring battery safety.

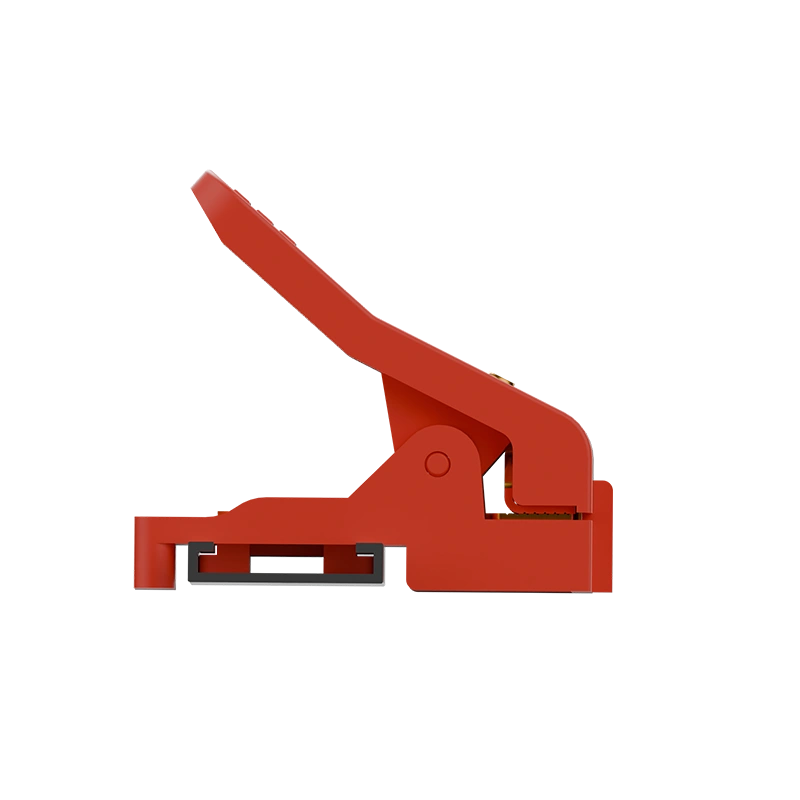

Strong Clamping: after clamping force testing, the clips can lift a 2kg weight without dropping, firmly holding and preventing the electrode ears from shifting or falling off during the testing process.

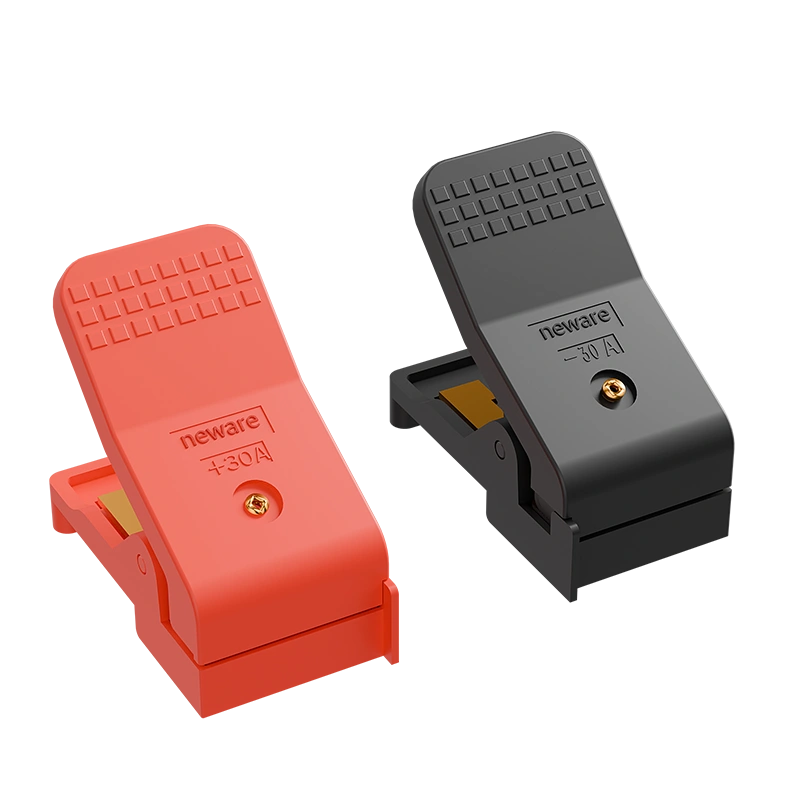

Meets the testing requirements of 15A to 30A current, with gold-plated conductive clips, anti-oxidation treatment, and contact resistance less than 1mΩ, ensuring efficient current transfer, reducing energy loss, and enhancing the conductivity of the clamps to assist in battery testing.

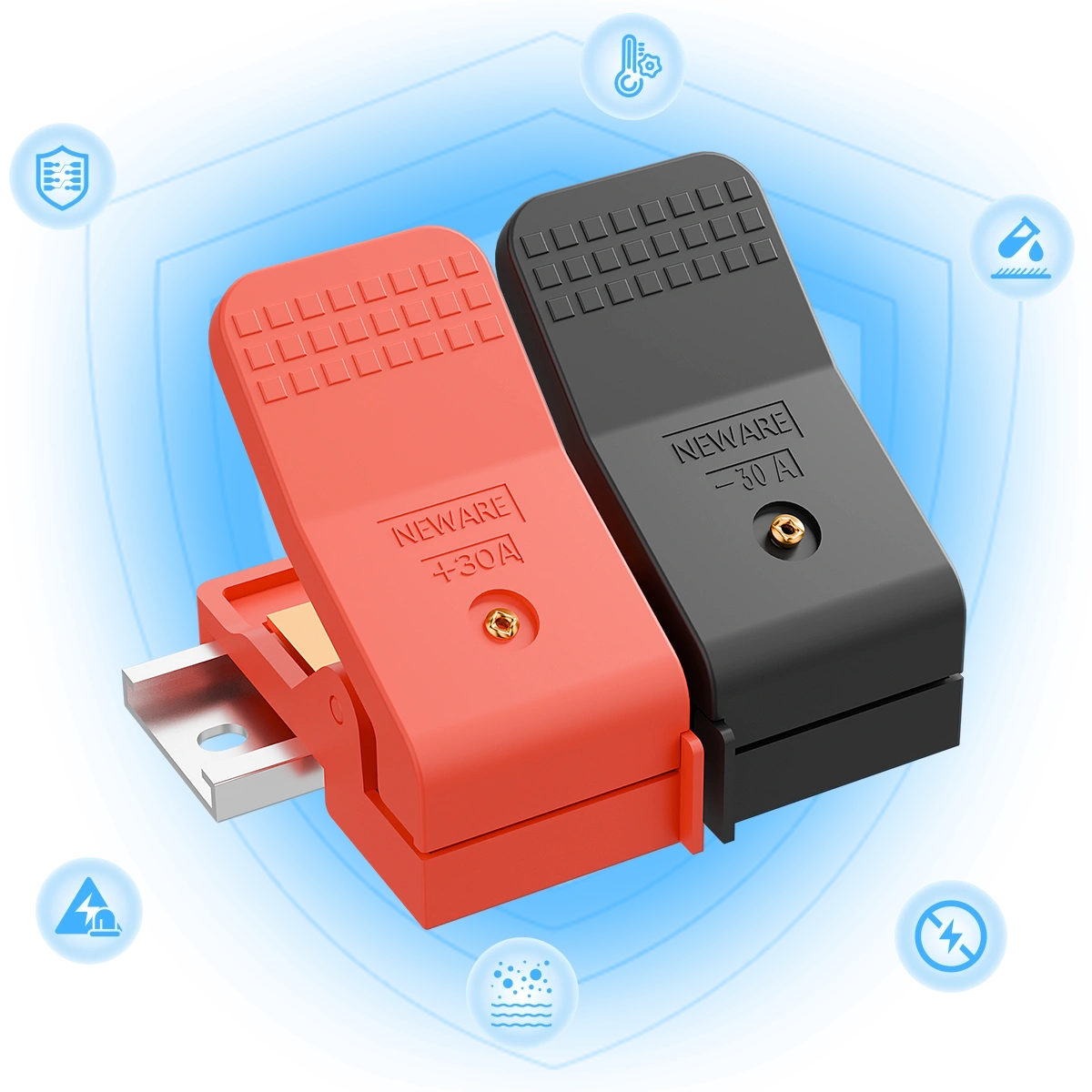

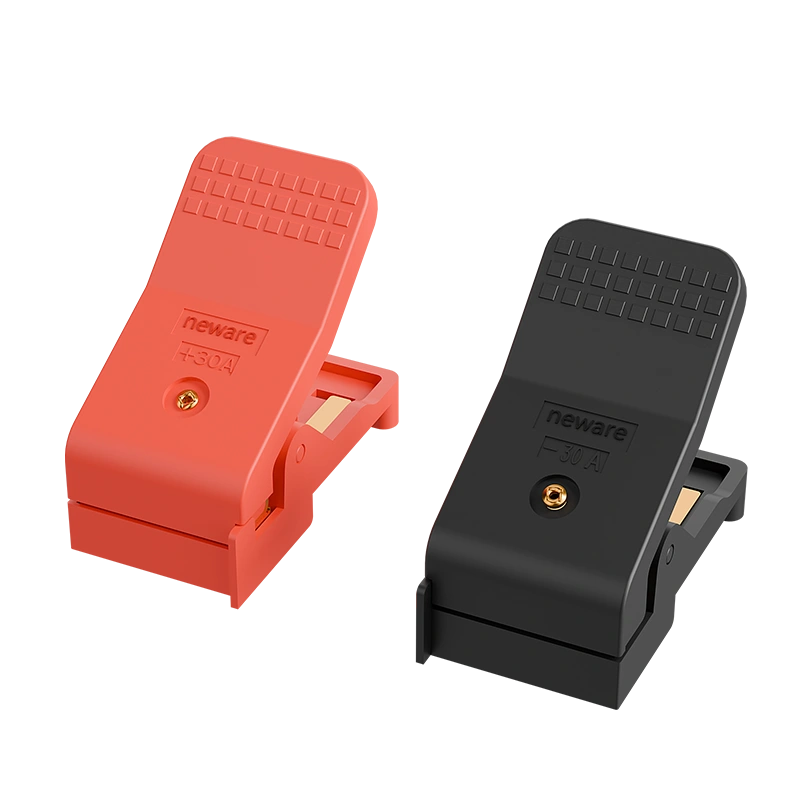

The clamps are wrapped with high-temperature plastic on the outside, providing heat insulation and resistance to temperatures up to 150℃, corrosion, and rust. They have undergone salt spray testing, short-circuit testing, and multiple safety inspections to ensure comprehensive stability and safety in testing.
| Equipment name | 30A Polymer Clamp |
|---|---|
| Current | 15A ~ 30A |
| Rail Size | Length: 2.8" (70mm)
Hole Spacing: 2.4" (60mm) Diameter: 0.1" (3.5mm) |
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
