IEC 62133-2: Specifies safety tests for rechargeable batteries, including thermal runaway and mechanical shock scenarios for cells/modules.
UL 1642: U.S. standard for lithium battery safety, covering overcharge, short circuit, and crush abuse tests.
UN 38.3: Ensures battery safety during transportation by addressing vibration, shock, and thermal stability.

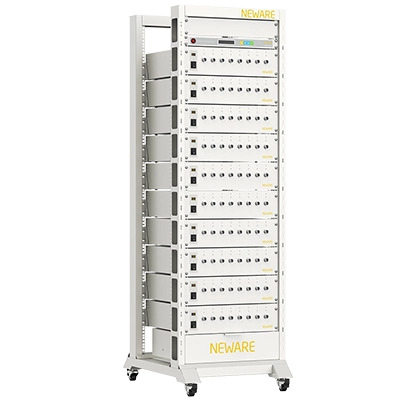

NEWARE's 4th generation testing system is tailored for small/medium power batteries, offering charge/discharge cycle analysis and data-driven insights for desk lamp lithium cells and modules.
Flexible compatibility: supports cylindrical, pouch, and polymer batteries, addressing diverse desk lamp power requirements.
Advanced analysis: integrates OCV and GITT tests to optimize energy density evaluation. Safety-first design: Built-in overtemperature protection and voltage fluctuation monitoring for low-power applications.
Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1.5ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1.5ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
* This product model has been updated.
Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1.5ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1.5ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
* This product model has been updated.
NEWARE's integrated solution combines charge/discharge testing with precise temperature control to simulate extreme environmental conditions for desk lamp batteries.
Temperature precision: ±0.5℃ stability for evaluating battery performance at 60℃ (high) and -20℃ (low).
Data synergy: RS485 protocol synchronizes temperature and test data to optimize weather resistance.
Volume: 100L
Space for Test System: 5U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min)
Cooling Time: 68°F→-94°F≤75min
(20℃→-70℃≤75min)
Volume: 200L
Space for Test System: 6U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min)
Cooling Time: 68°F→-40°F≤60min
(20℃→-40℃≤60min)
Volume: 100L*2
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
