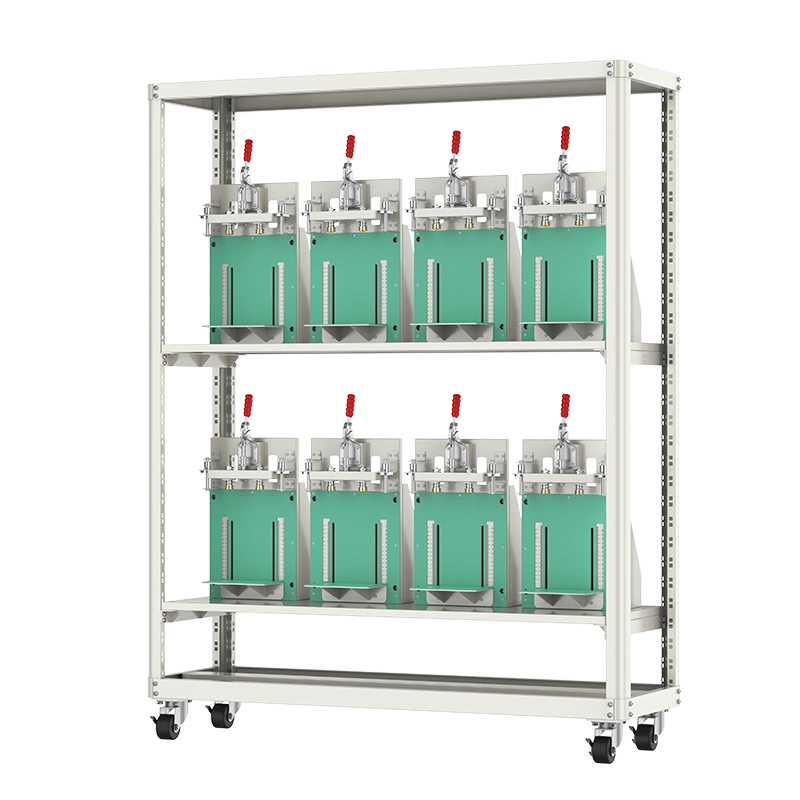

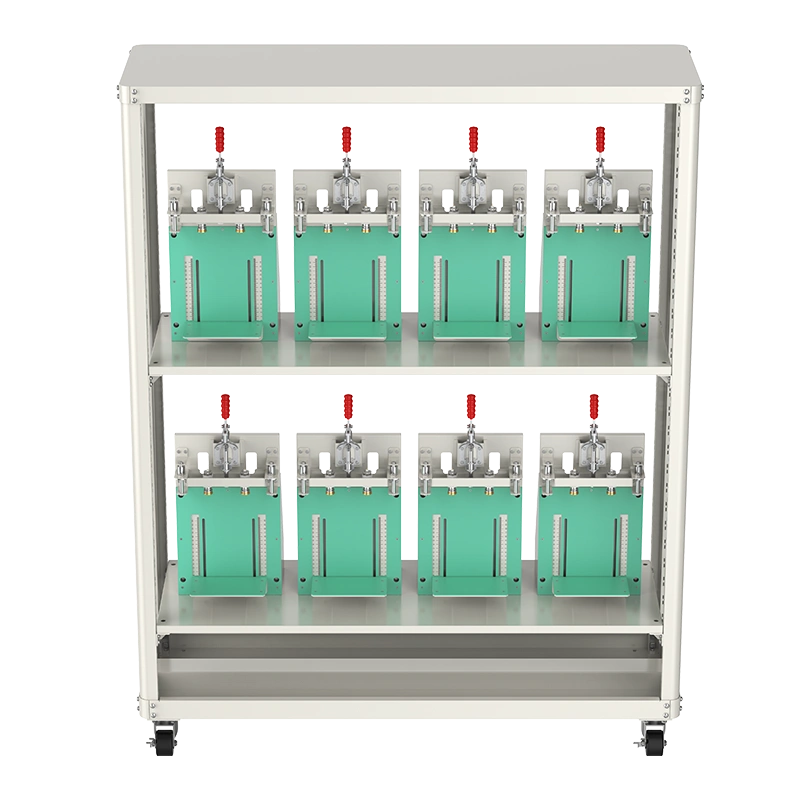

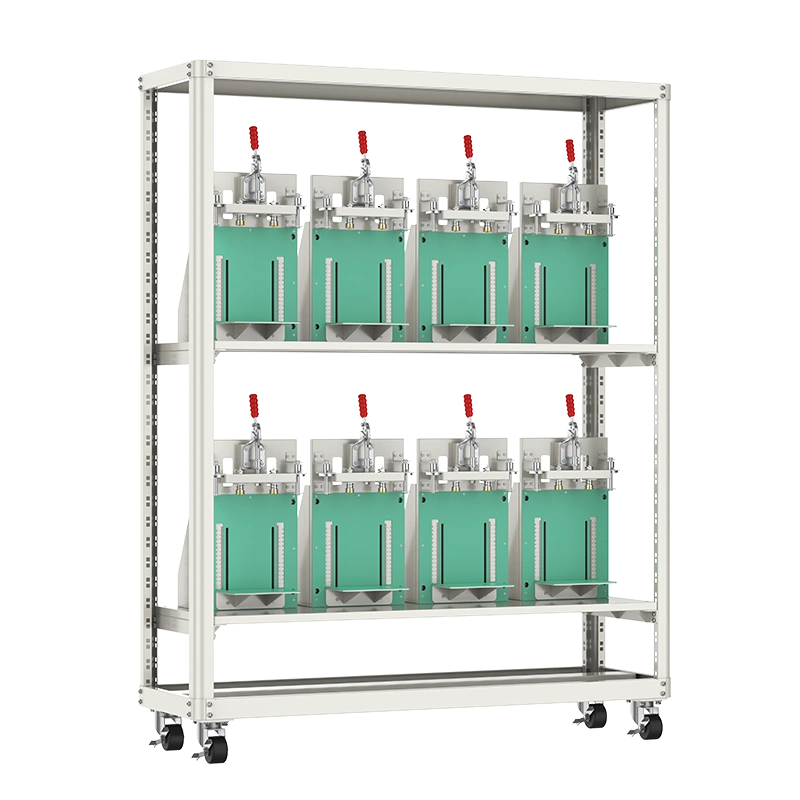

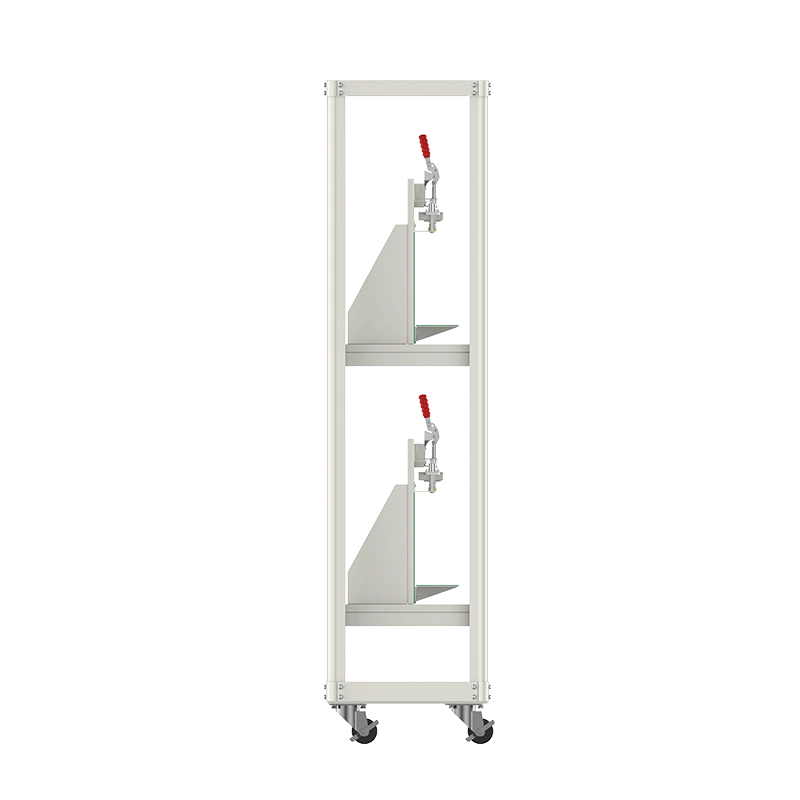

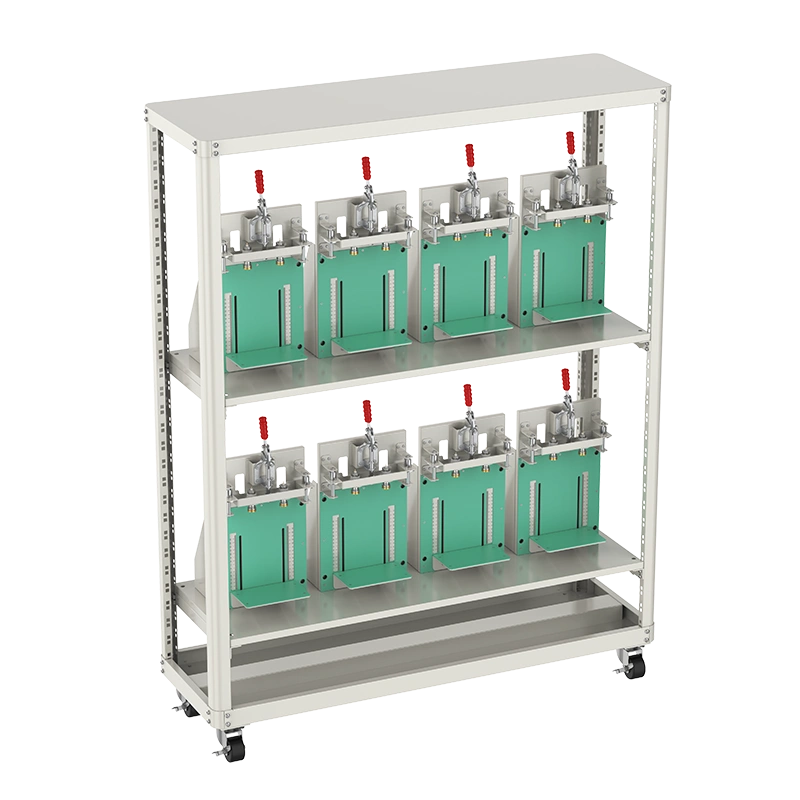

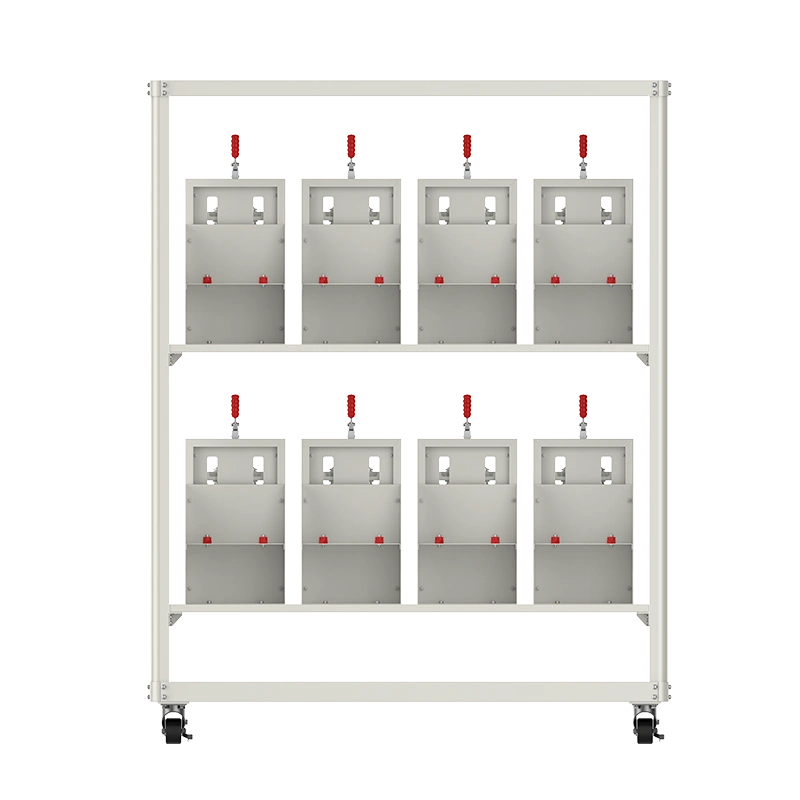

Prismatic cells testing rack.
Features
Tech Specs

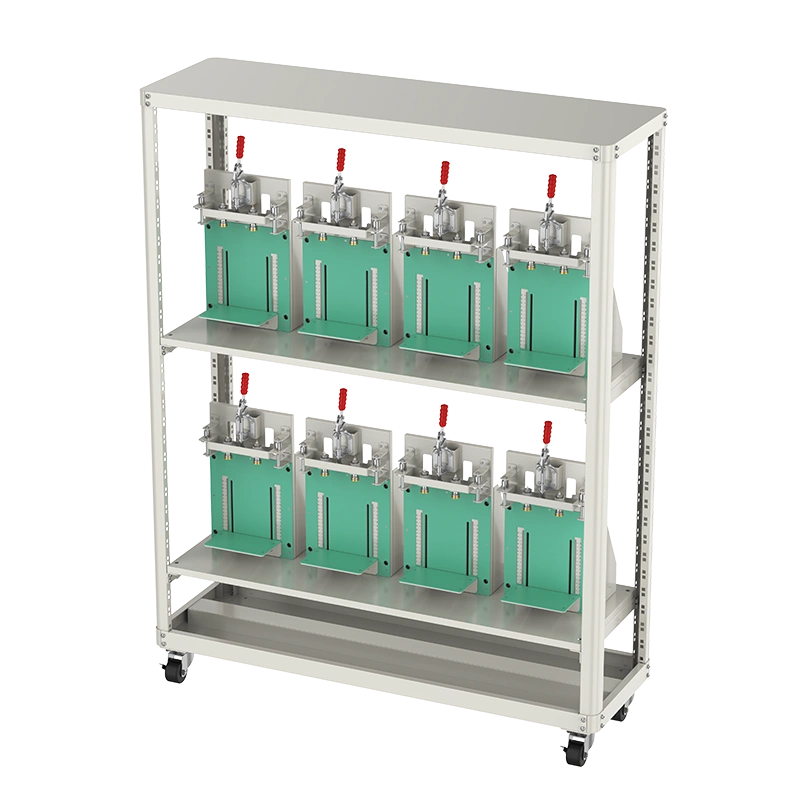

Green insulation coating, safeguarding battery safety. Equipped with bottom swivel wheels for free movement and secured with tight locking fasteners.

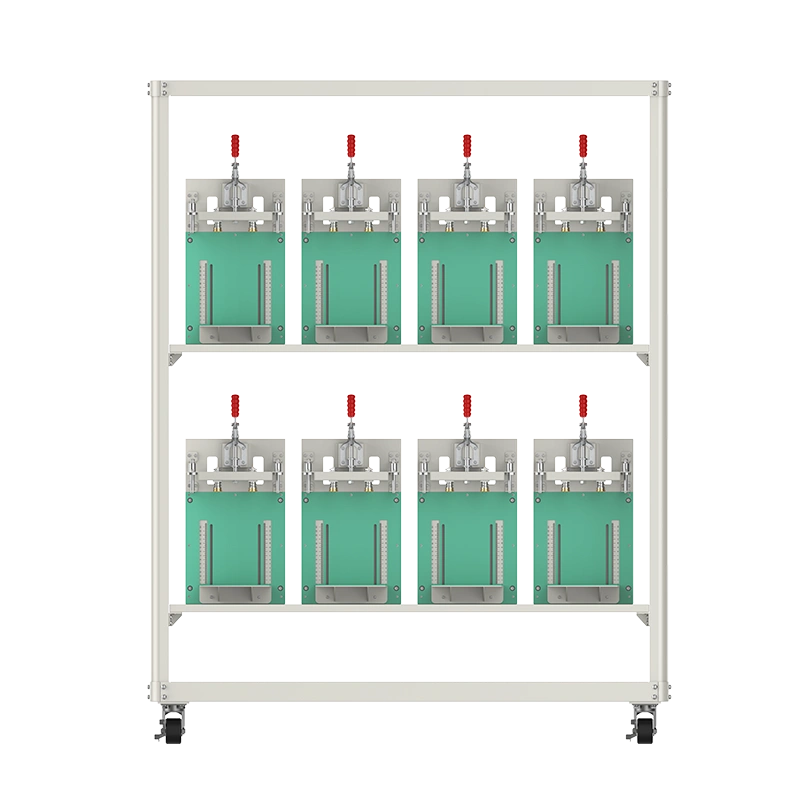

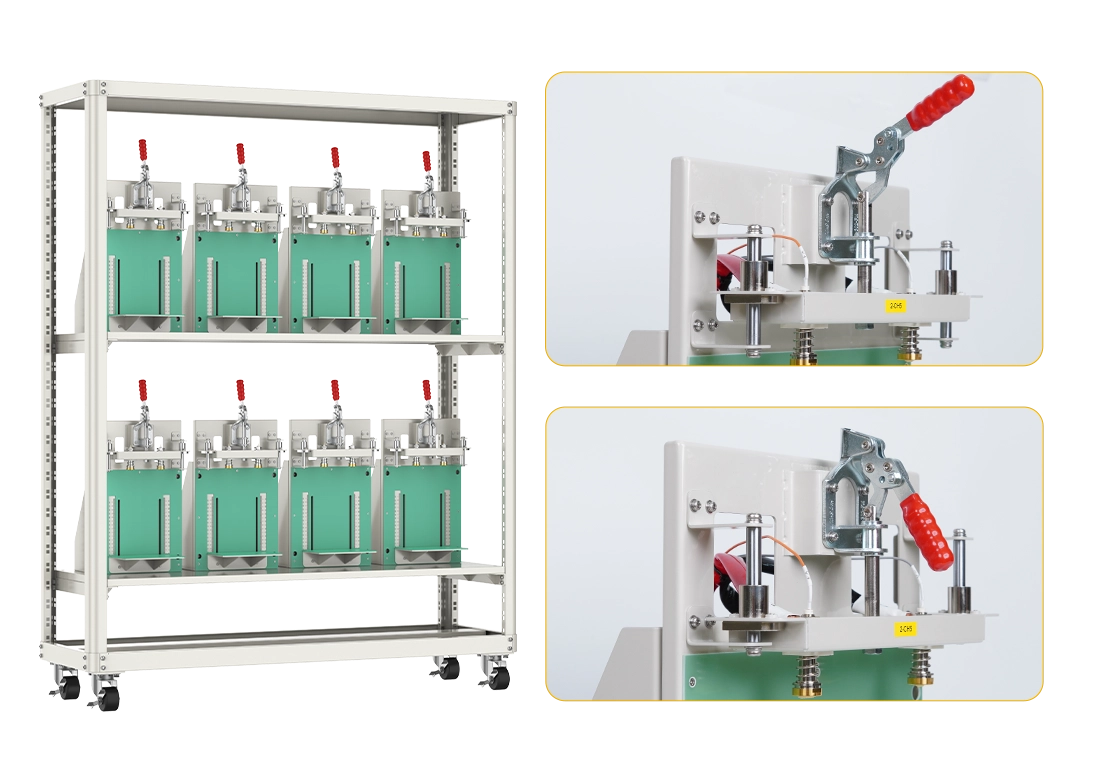

To maximize the fulfillment of various testing needs, the rack offers 8 testing channels, adjustable probe spacing with toggle clamps, vertical tray movement for easy adjustment, flexible battery capacity space, and a detachable panel that can be used independently.

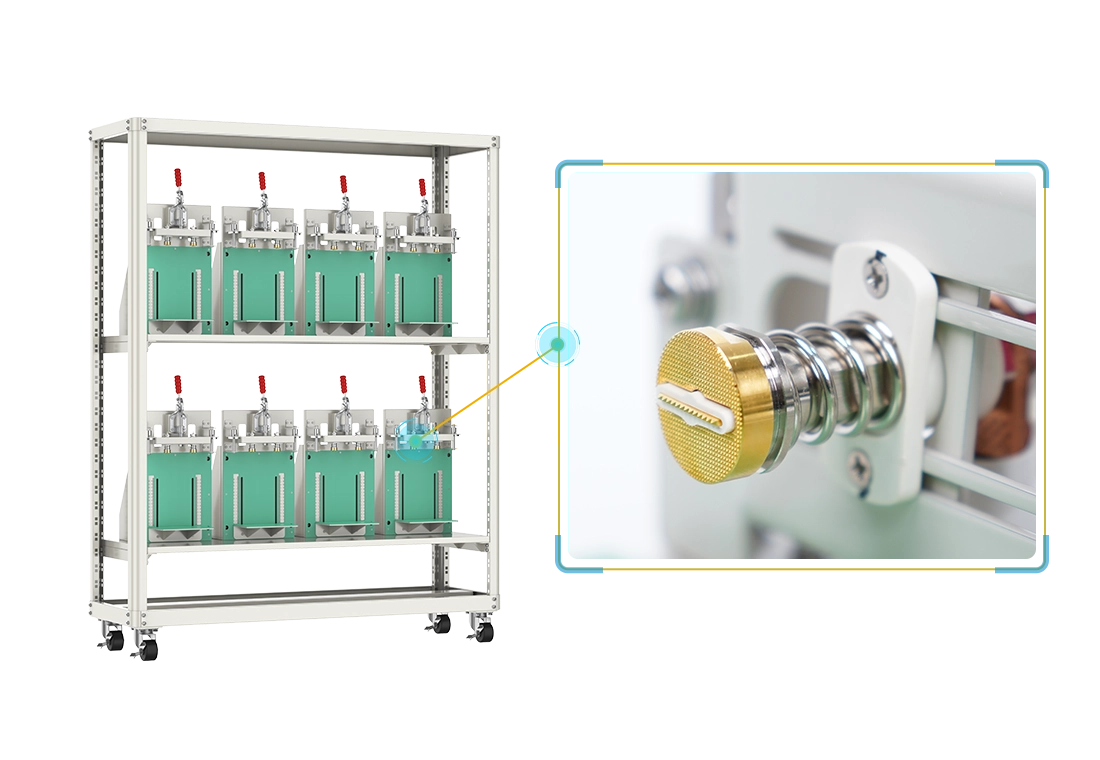

Crafted from beryllium copper, probes are enveloped in a dual-layer plating of nickel and gold, ensuring uniform and smooth coating. This enhances conductivity, guaranteeing stability and reliability for battery testing.

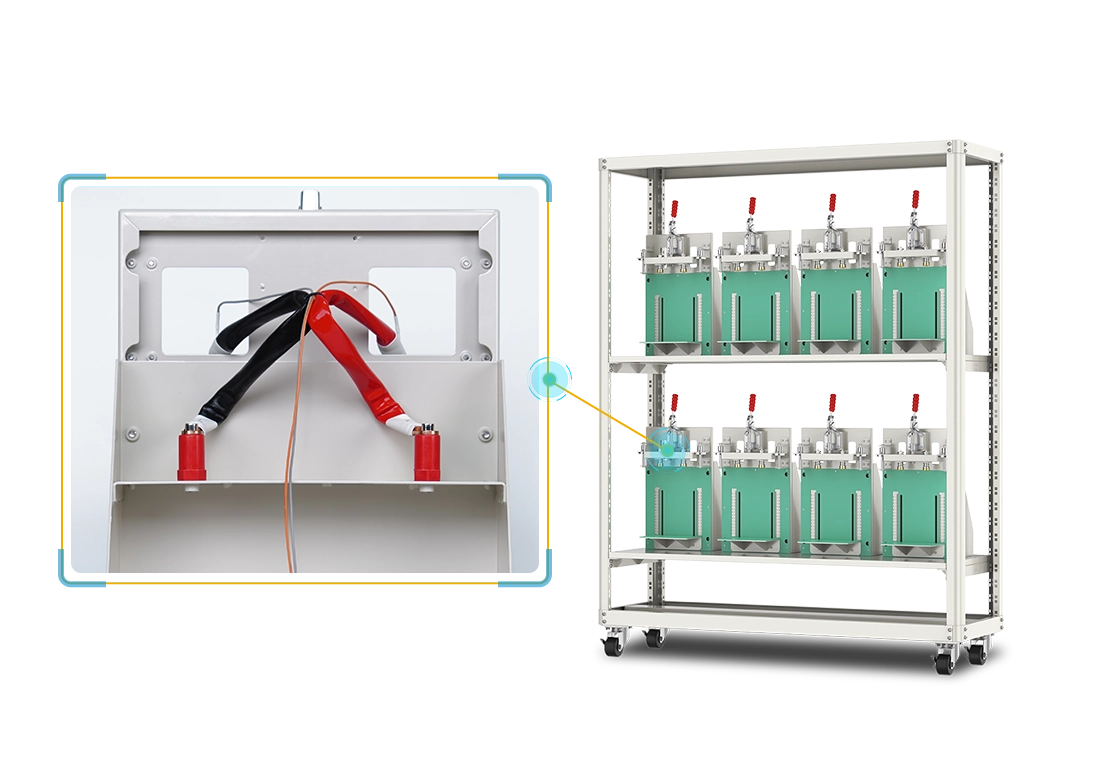

Crafted with black and red dual-color fiberglass silicone sleeves, our design cleverly distinguishes positive and negative pole connections. These sleeves not only possess the characteristics of simplicity and easy maintenance but also withstand high-temperature environments, with a temperature resistance of up to 200°C.
| Equipment name | 200A Prismatic Cell Rack |
|---|---|
| Current | 200A |
| Battery Size | Length: 3.9"~9.8" (100~250mm)
Width: 0.4"~3.8" (10~96mm) Height: 1.4"~8.3" (35~210mm) |
| Tabs Distance | 2.4"~5.7" (60~146mm) |
| Number of Channels | 8 |
| Clamp Size | 9.8"×11.0"×20.7"
250mm×278.5mm×527m |
| External Size | 51.1"×16.0"×65.4"
1299mm×407mm×1660mm |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：1000Hz
● Current Response Time：≤30μs
● CV Testing
● Type-C Power Port
● 6-Range Current Measurement
