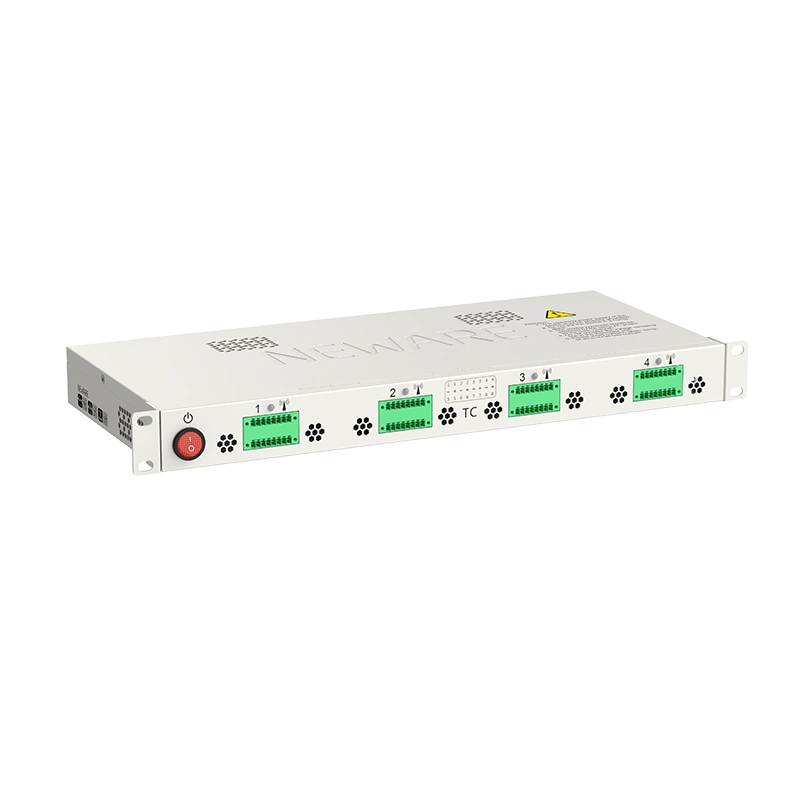

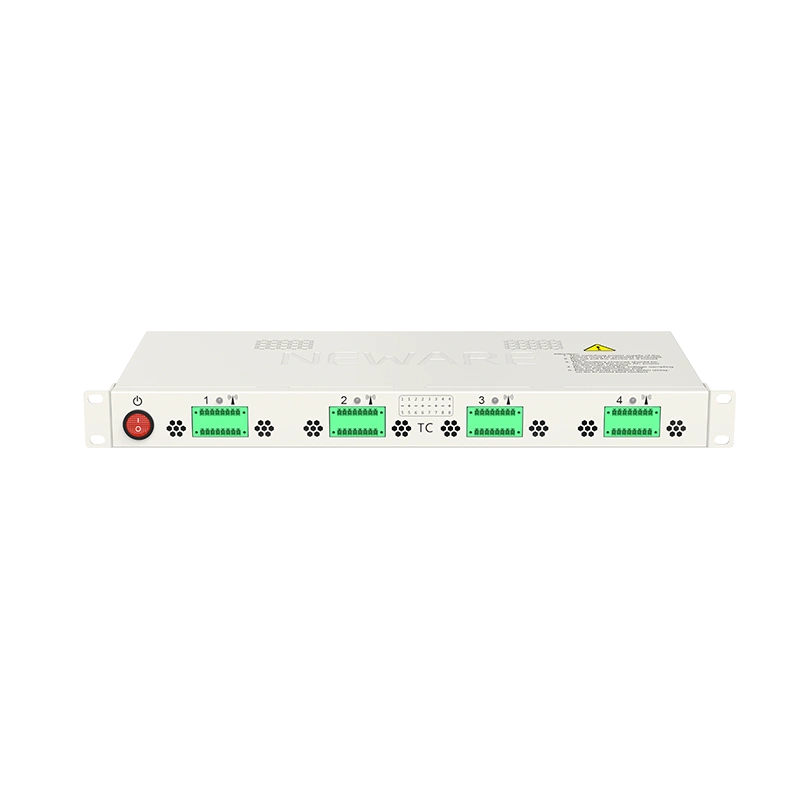

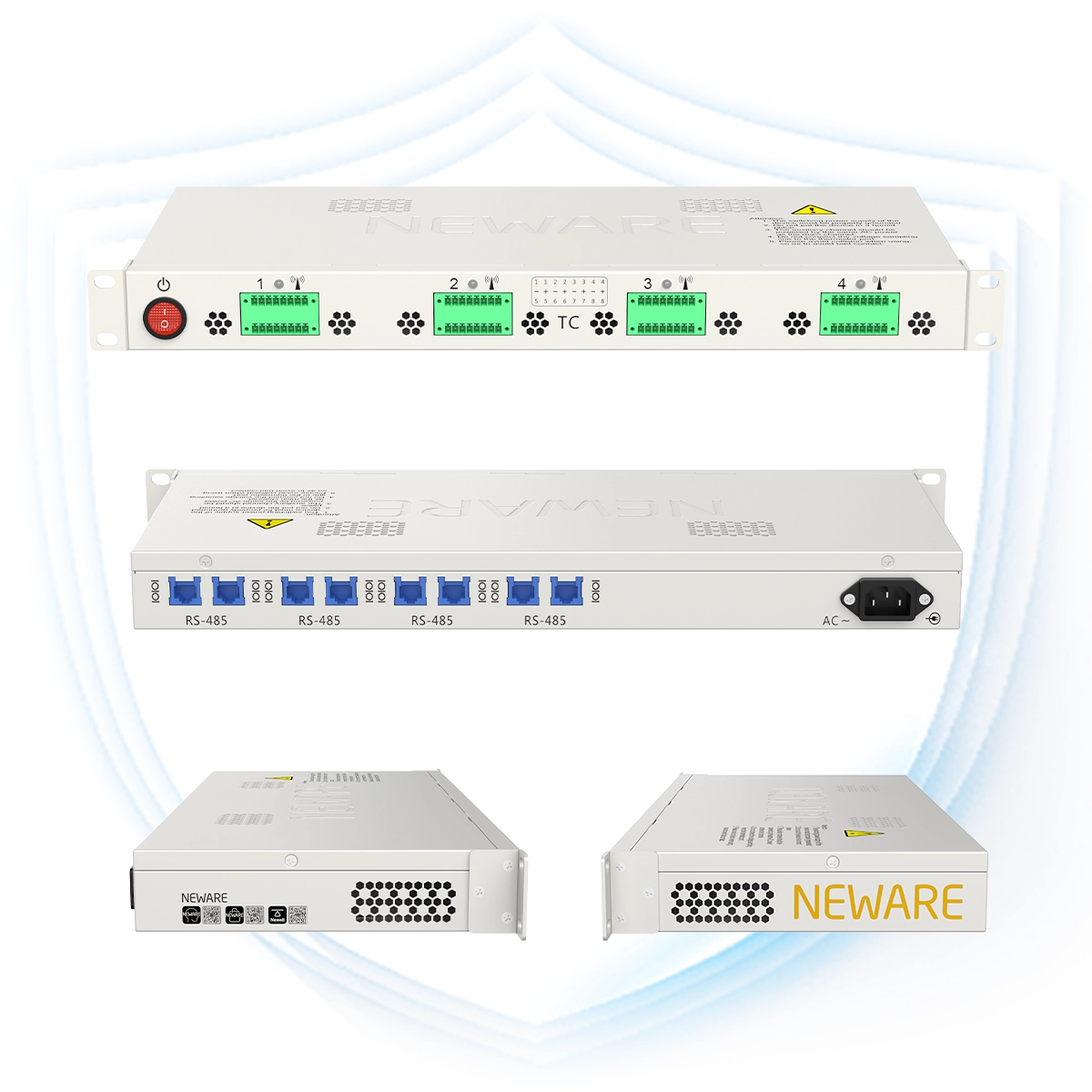

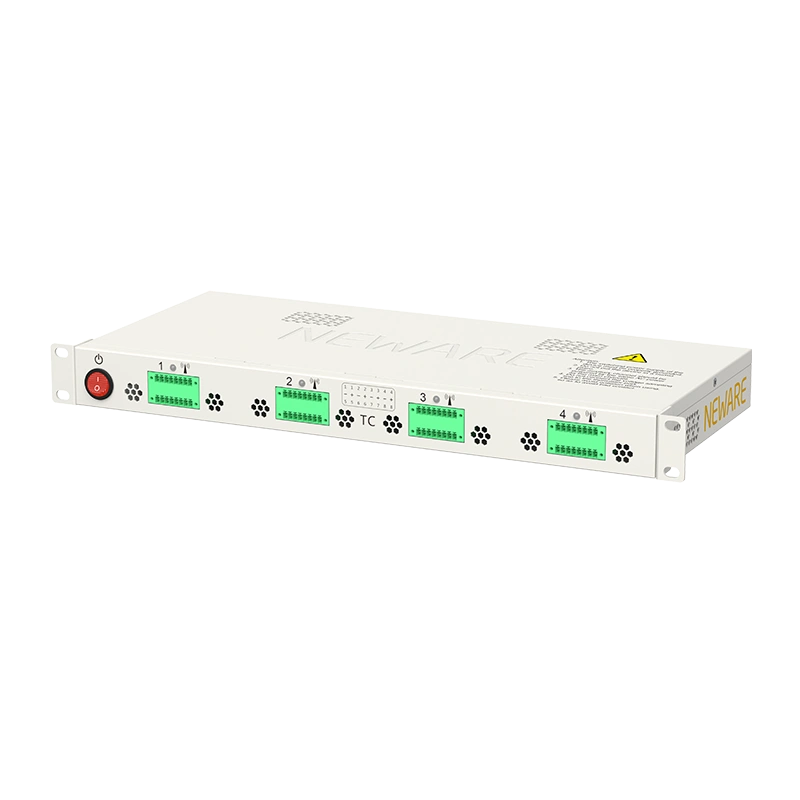

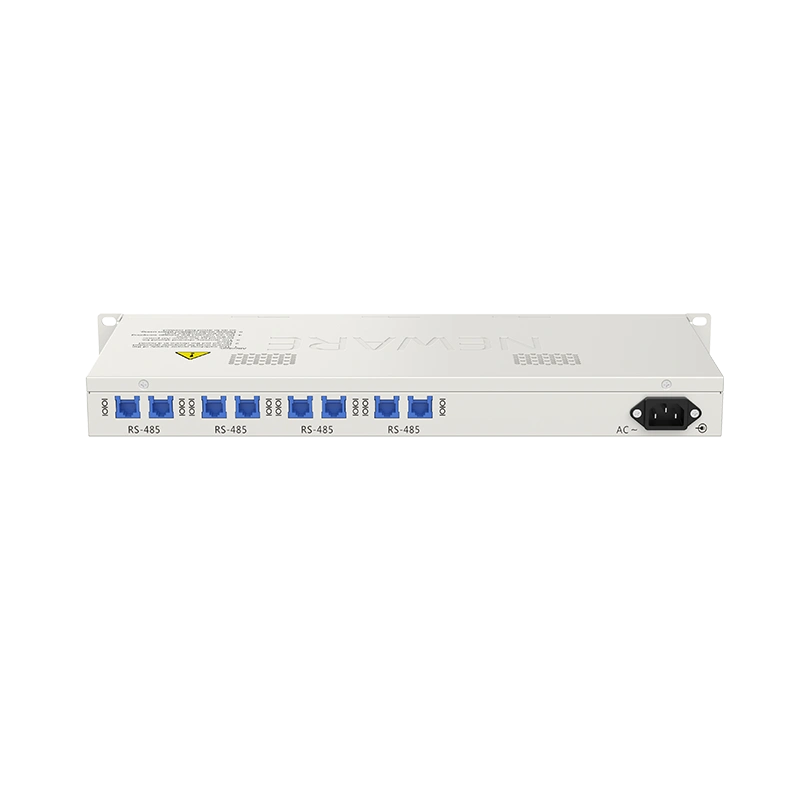

32-channel system for individual cell temperature data acquisition and real-time monitoring.
Features
Tech Specs
CA-4032n-1U-T-TC AUX auxiliary channel is a battery testing system used to measure temperature. It provides real-time monitoring and precise testing, catering to scientific research and data analysis needs, enabling comprehensive understanding of battery status.
Selectable thermocouple types T and K address various temperature challenges, ensuring precise temperature measurement. The system allows setting upper and lower temperature limits for safe battery testing, preventing safety issues during the process, and providing full-spectrum safety protection.
The auxiliary channel can be bound to any primary channel in the host computer, mapping it in the computer. The tested voltage and temperature data are linked with the main channel, and can be exported in Excel or TXT format for convenient data processing.
EachAuxiliary Channel can connect to 32 temperature test wires individually and can be bound with any main channel under the same control unit. A maximum of 248 temperature auxiliary channels can be bound to each main channel.
| Equipment name | AUX Auxiliary Channel |
|---|---|
| Temperature | |
| Test specification | Thermocouple: -200℃ ~260℃ |
| Accuracy | ± 1℃ (within 2m of line length) |
| Temperature resolution | 0.1℃ |
| Frequency of sampling | |
| Time | 10Hz（100ms） |
| It can be realized with the equipment | |
| Charge and discharge cut-off conditions | Temperature |
| Protection conditions | Upper temperature limit and lower temperature limit |
| Presentation of information | Excel, TXT (temperature bound to main channel test data) |
| Channel mapping | The secondary channel can be bound to any primary channel under the same medium machine. Up to 248 temperature auxiliary channels per primary channel |
