Clamps for heating, pressurizing, and charge/discharge testing of pouch cell.
Features
Tech Specs
Resources
Temperature Range
50℉~194℉ (10℃~90℃)
Pressure Range
30kg~500kg
Pressure Accuracy
1kg

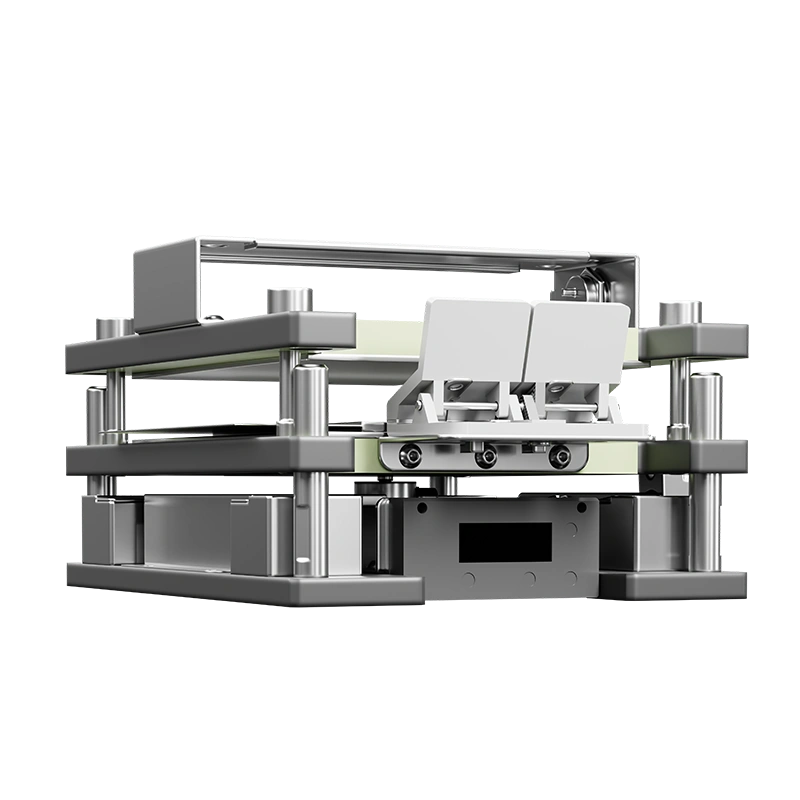

The NEWARE pouch battery clamp with pressure sensor is designed for precise testing and evaluation of battery performance.

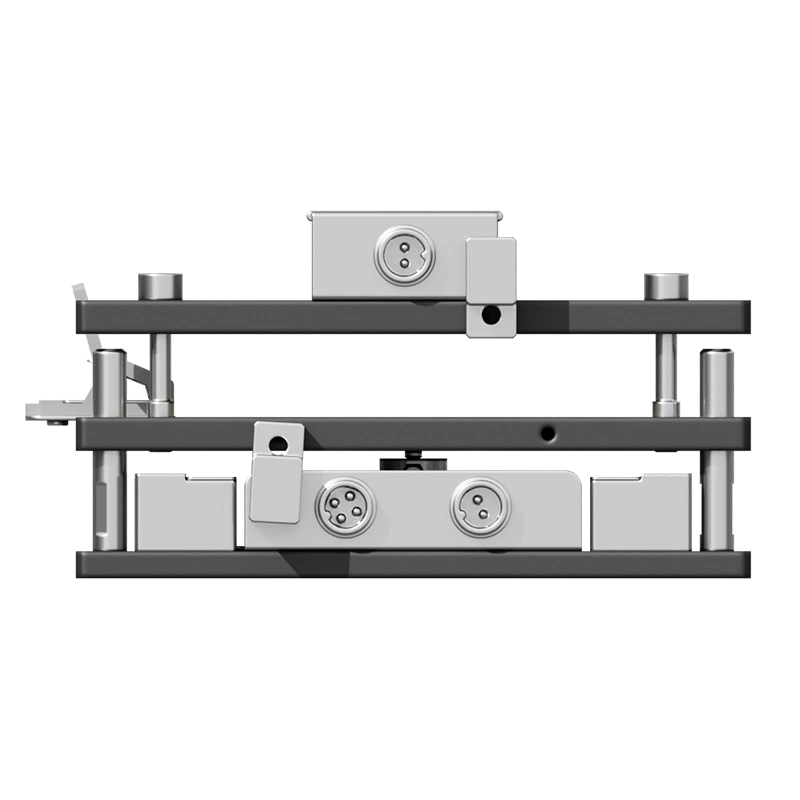

It is compatible with a variety of soft pouch battery sizes and offers flexible tab spacing adjustment for a perfect match with diverse batteries.
Integrated control, unified temperature regulation, flexible and convenient handling, and efficient testing.
Our product will provide exceptional performance and safety assurance, allowing you to focus on your experiments without any worries.

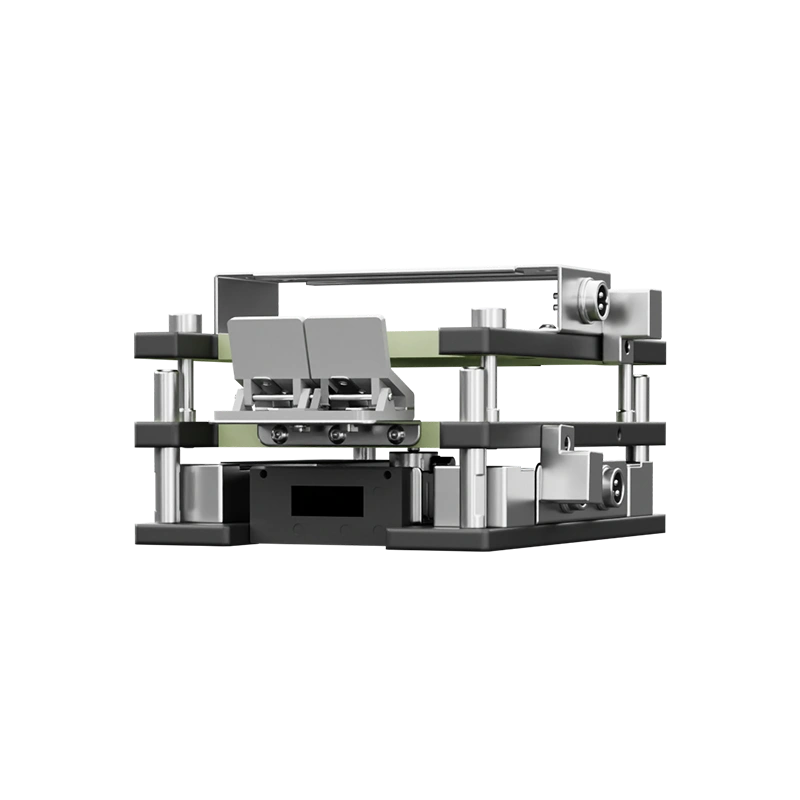

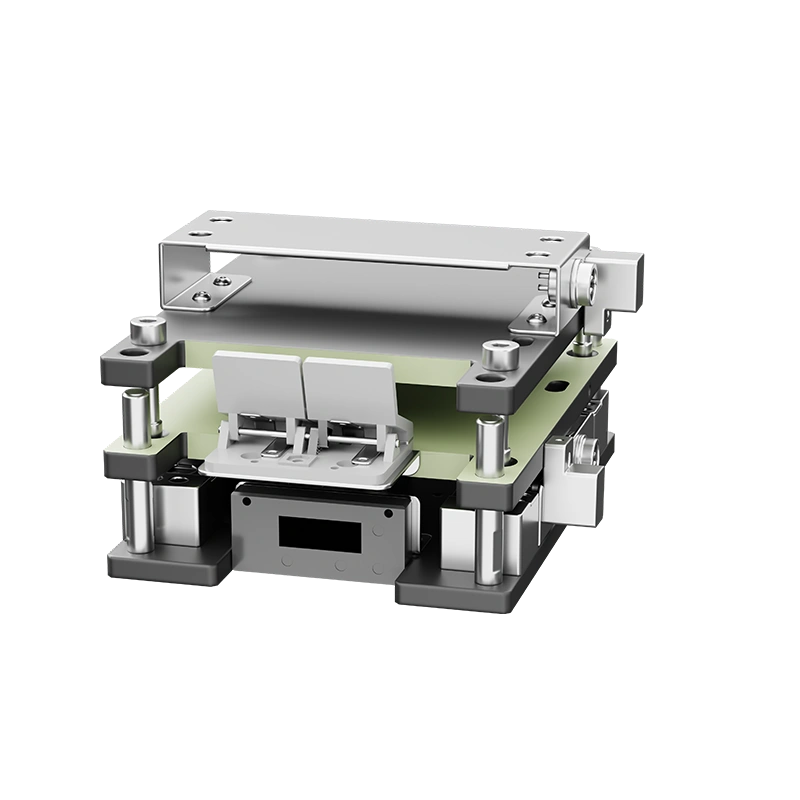

Clamps are made from high-quality flame-retardant materials, ensuring experiment safety. Paired with explosion-proof enclosures, we provide optimal protection. The compact structural design makes the clamp easy to integrate into various testing environments, delivering excellent performance in both laboratory precision tests and rapid inspections on the production line. With our exquisite manufacturing process, you can trust in the longevity of our products.

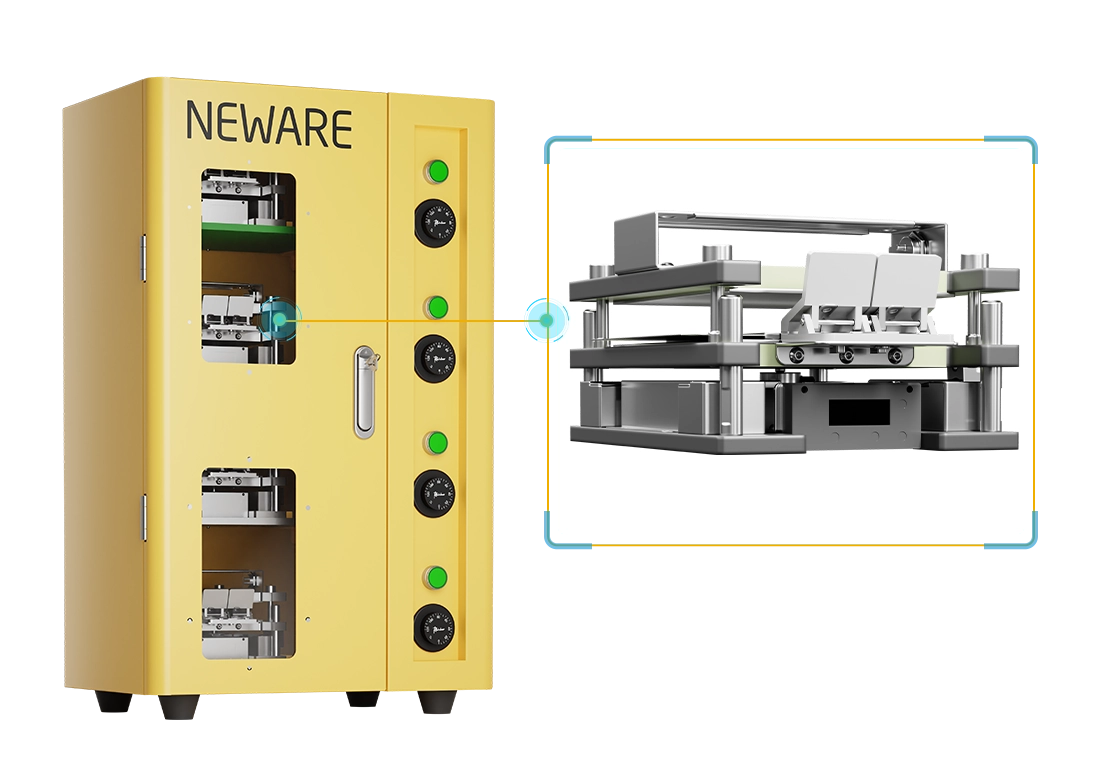

![[b]Excellence in material safety and manufacturing craftsmanship.PJ-RY-20A NEWARE](https://www.neware.net/uploadfile/2023/0908/04b7483f8196dac.webp)

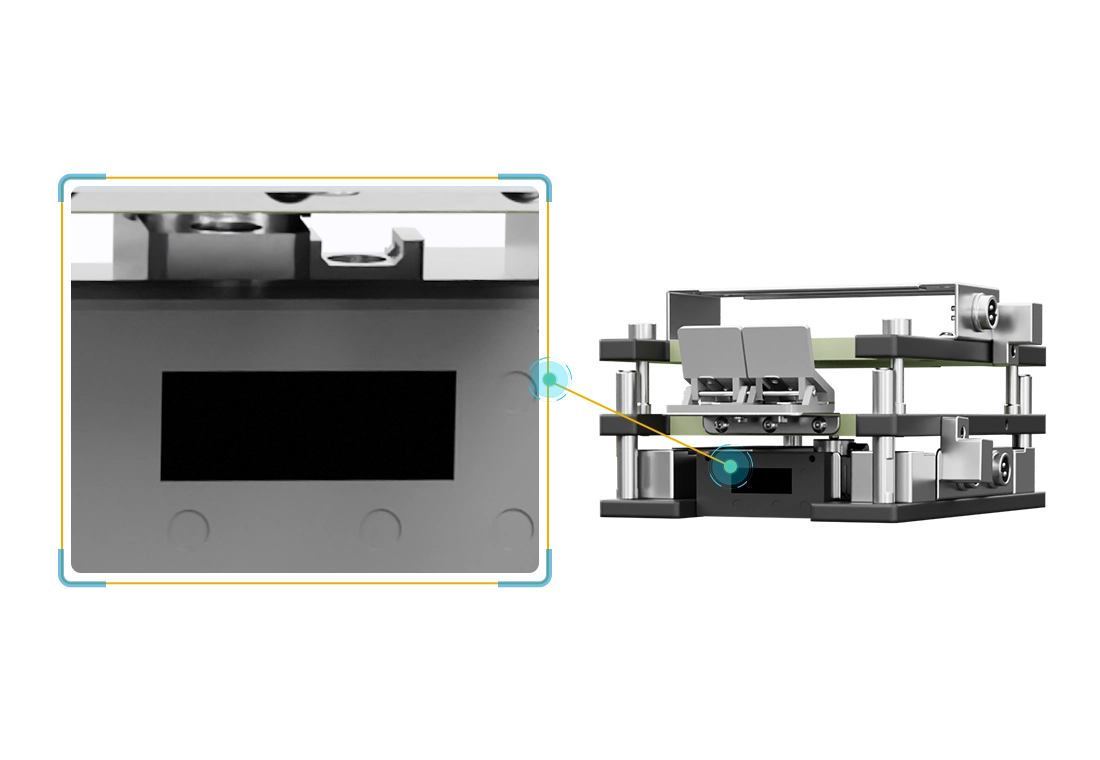

![[w]Achieve accurate detection with smart digital display.PJ-RY-20A NEWARE](https://www.neware.net/uploadfile/2023/0908/3583726fd38e3ba.webp)
| Equipment name | Pouch Cell Heat Press Sensor Clamps |
|---|---|
| Battery Size | Max. 5.3"×4.5" (135mm×115mm) |
| Battery Shape | Single-ended Dual-Pin Pouch Battery |
| Tabs Distance | 0.1"~2.5" (2mm~65mm) |
| Heating Voltage | DC 24V |
| Current | 12A |
| Pressure Transducer Power Supply | 7V~12V |
| External Size | 8.7"×6.9"×3.9" (220mm×175mm×100mm) |
Voltage&Current Accuracy: ±0.01% F.S.
