Reliable results obtained with remarkable consistency.

Precise data observation:
Energizing with alternative narratives.

0~3Ω
Impedance measurement range
0~3Ω
0~60V
Voltage measurement range
0~60V
±0.01%
Voltage accuracy
±0.01%
1~50PLC<br>(1PLC=20ms,50Hz)<br>(1PLC=16.67ms,60Hz)
Sampling rate
1~50PLC
(1PLC=20ms,50Hz)
(1PLC=16.67ms,60Hz)
1,000,000 samples
Data storage
1,000,000 samples
200kΩ
Input impedance
200kΩ

High-precision data monitoring to ensure testing accuracy.

Swift and steady in high-speed operation.

Pairing a high-precision ADC with a high-speed DAC can significantly enhance sampling accuracy and reduce noise interference.

Pairing a high-precision ADC with a high-speed DAC can significantly enhance sampling accuracy and reduce noise interference

Unstoppable quest for excellence: Crafting innovative digital solutions.

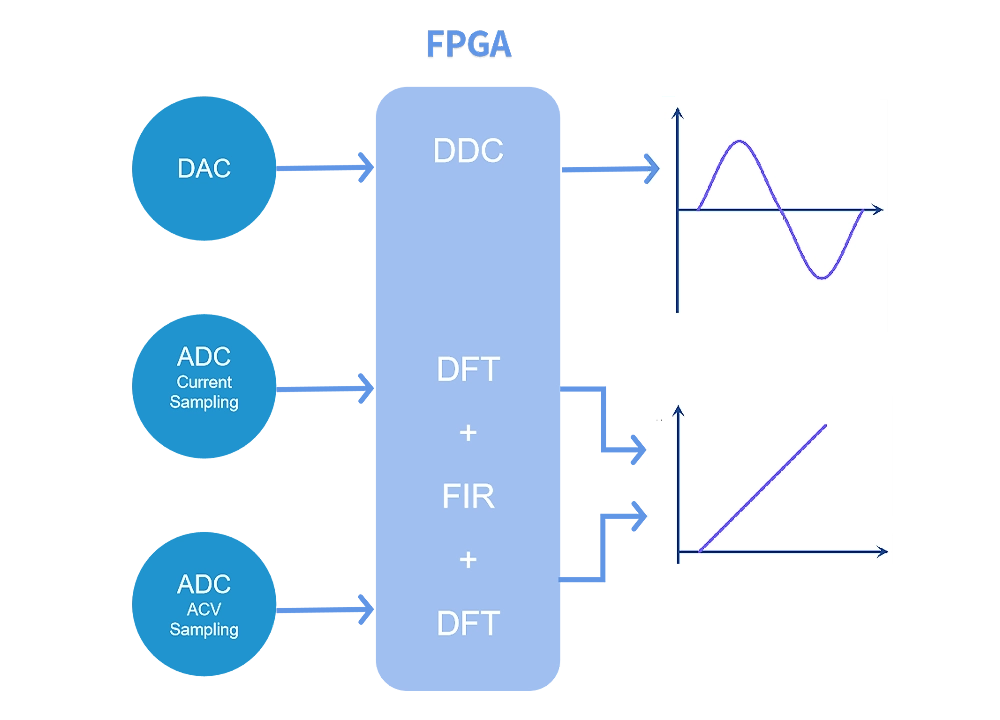

FPGA + high-speed DAC ⇨ ultra-high-precision DDS;

4096-point ultra-fine representation of sine wave;

Frequency error as low as ±0.02Hz;

Dual-channel ADC + FPGA high-speed parallel processing unit, DFT + FIR calculation ⇨ ultra-high-precision impedance.

FPGA + high-speed DAC  to get ultra-high-precision DDS,4096-point ultra-fine representation of sine wave,Frequency error as low as ±0.02Hz,Dual-channel ADC + FPGA high-speed parallel processing unit, DFT + FIR calculation to get ultra-high-precision impedance

High-speed LAN network communication.

High-speed network communication not only improves data uploading speed and remote operation speed, but also seamlessly integrates with the new Weiwei battery testing system.

 NEWARE Battery Testing Solutions
 NEWARE Battery Testing Solutions

Multiple testing modes.
One equipment, unlimited capabilities.

● Impedance Measurement

● Voltage Measurement

● Reactance Measurement

● Complex Impedance Measurement

● Impedance Phase Angle Measurement


Measures 5 types of data for comprehensive battery monitoring: internal resistance, voltage, reactance, complex impedance, and impedance phase angle.

NEWARE-High Precision Battery Internal Resistance Instrument measures 5 types of data for comprehensive battery monitoring: internal resistance, voltage, reactance, complex impedance, and impedance phase angle

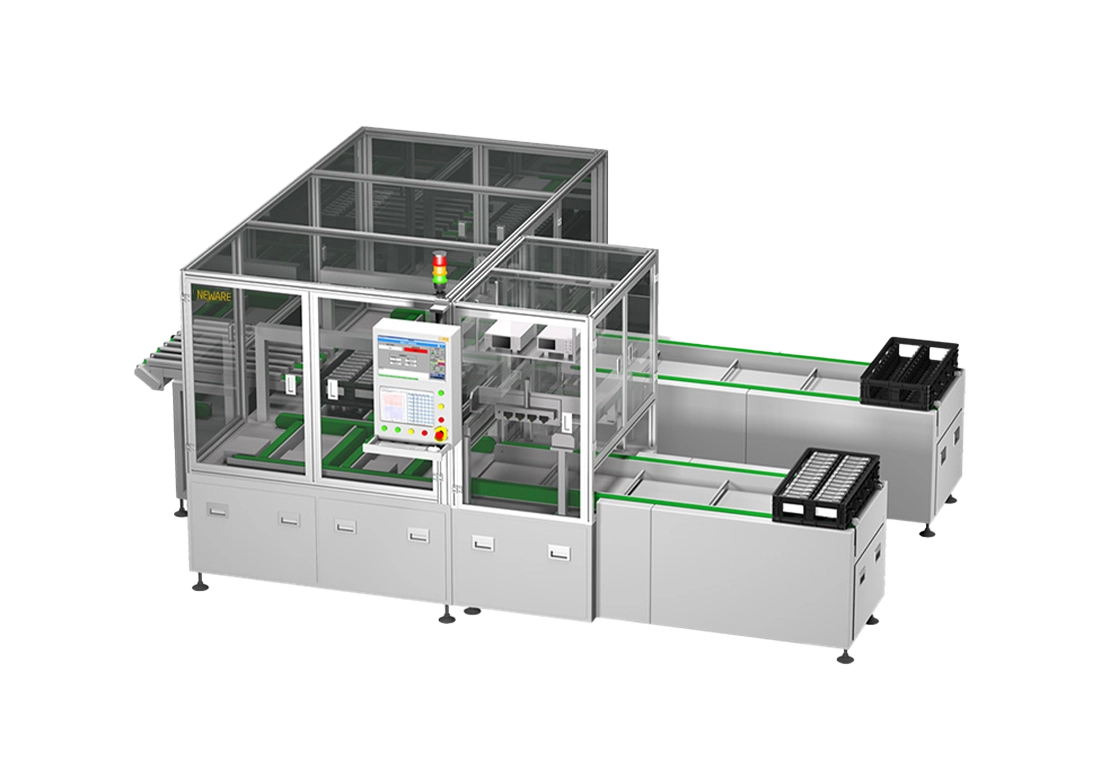

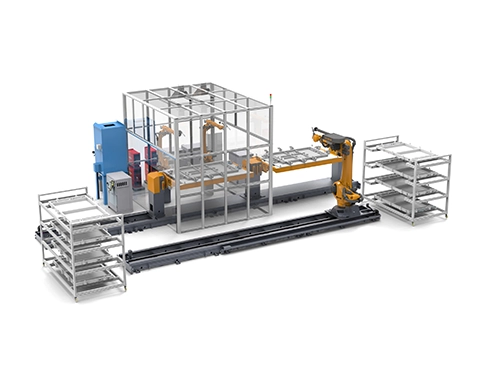

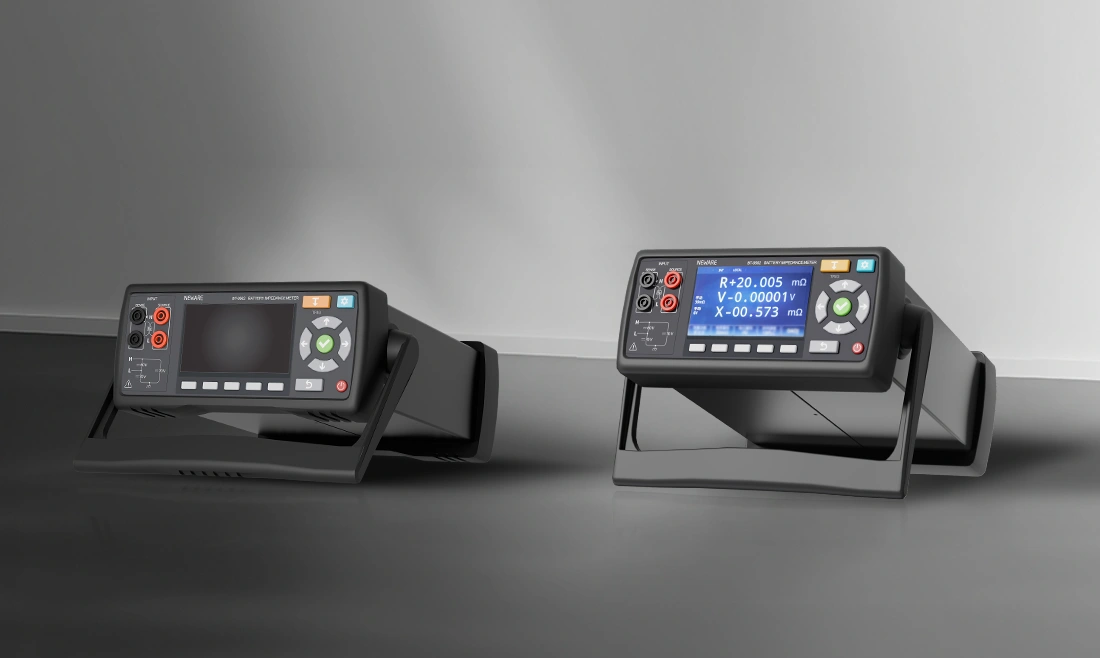

Easily link with our revolutionary NEWARE product lineup.

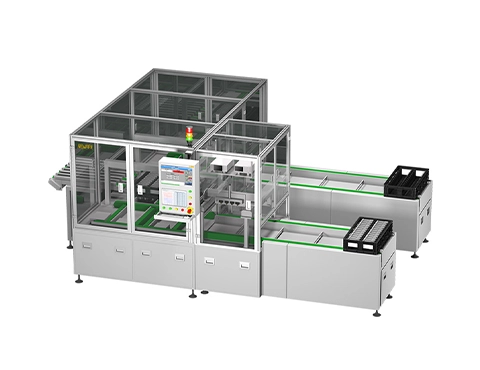

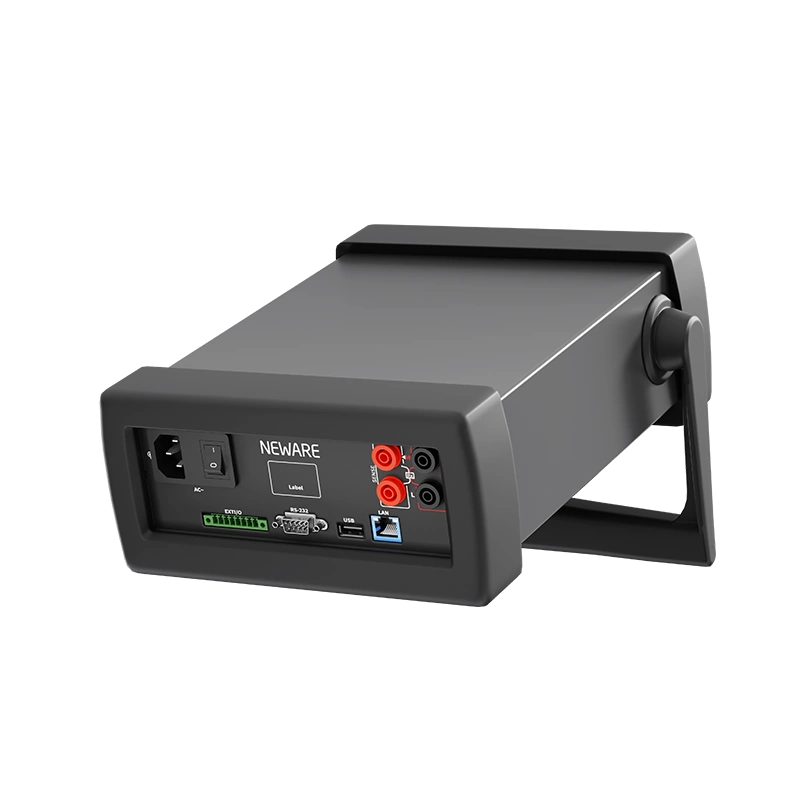

2U-sized impedance meter chassis, convenient for integration into rack-mount cabinets, compatible with battery testing systems, capable of testing internal resistance performance in different SOC states and cycling conditions. When paired with the NEWARE OCV machine, it can measure open-circuit voltage and AC impedance of battery cells, facilitating rapid automated cell sorting.

2U-sized impedance meter chassis, convenient for integration into rack-mount cabinets, compatible with battery testing systems, capable of testing internal resistance performance in different SOC states and cycling conditions

Embracing high-energy execution through a robust setup.

Utilizing high-performance NXP processors to swiftly respond to various task requirements, enhancing device performance; Intel Cyclone IV FPGA, integrating 10320 LEs, 414Kbits of memory, and 23 18x18 hardware multipliers, enabling highly efficient DFT and FIR digital filtering computations.

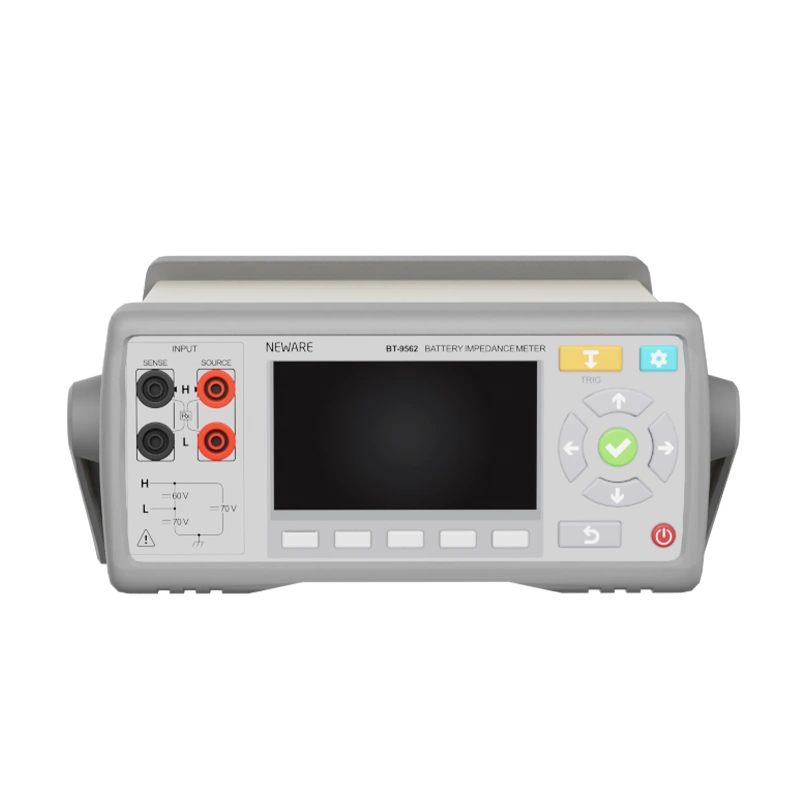

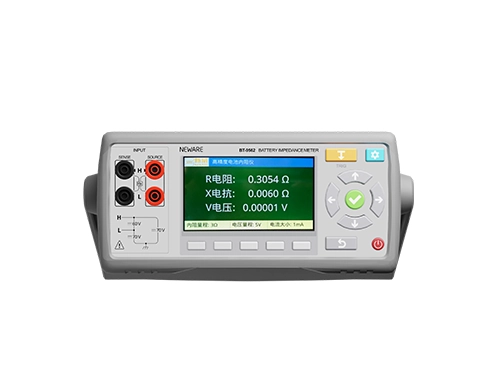

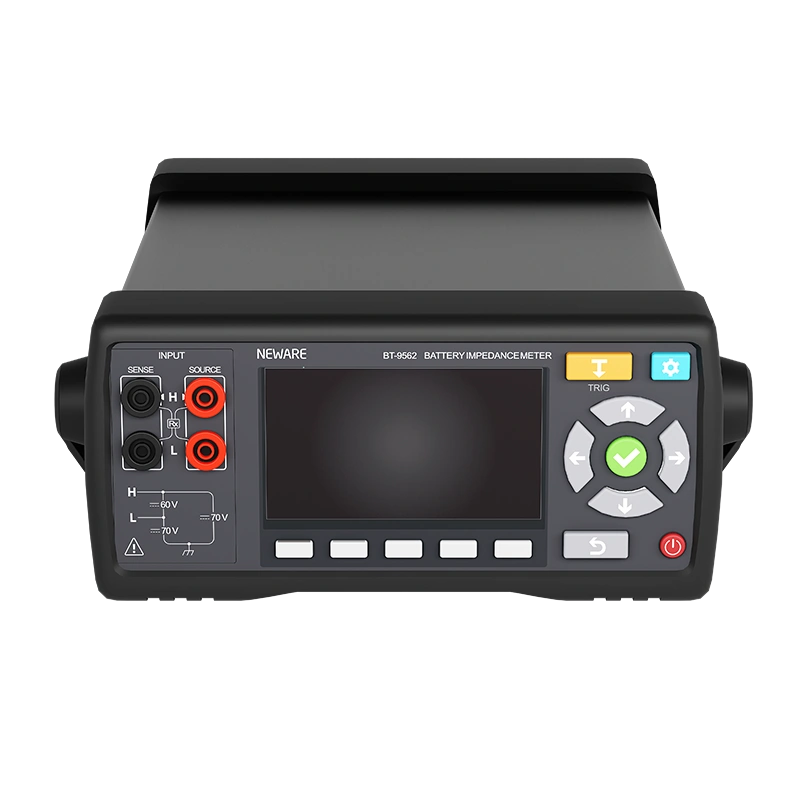

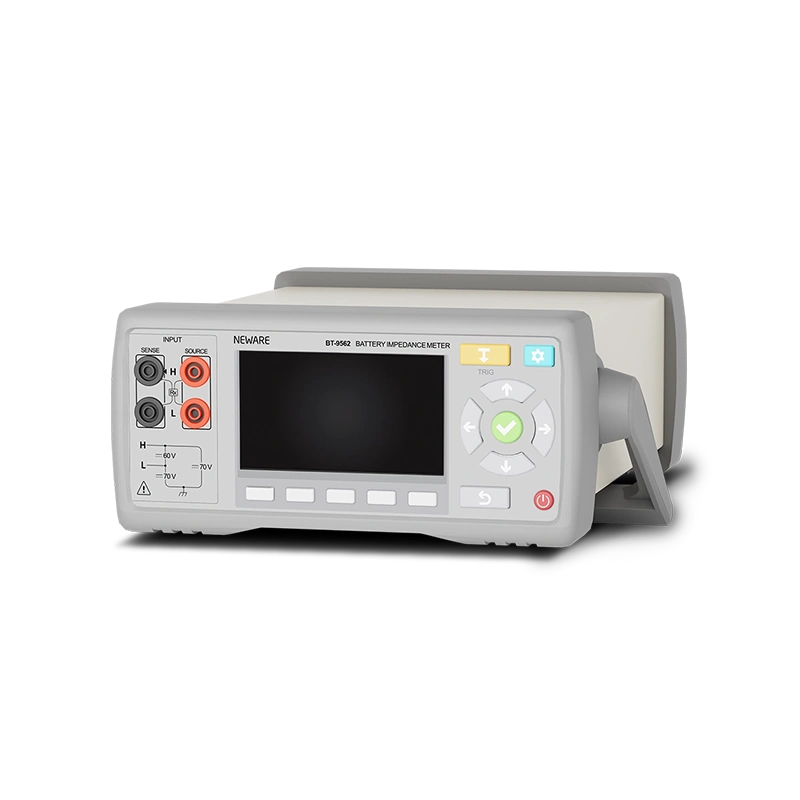

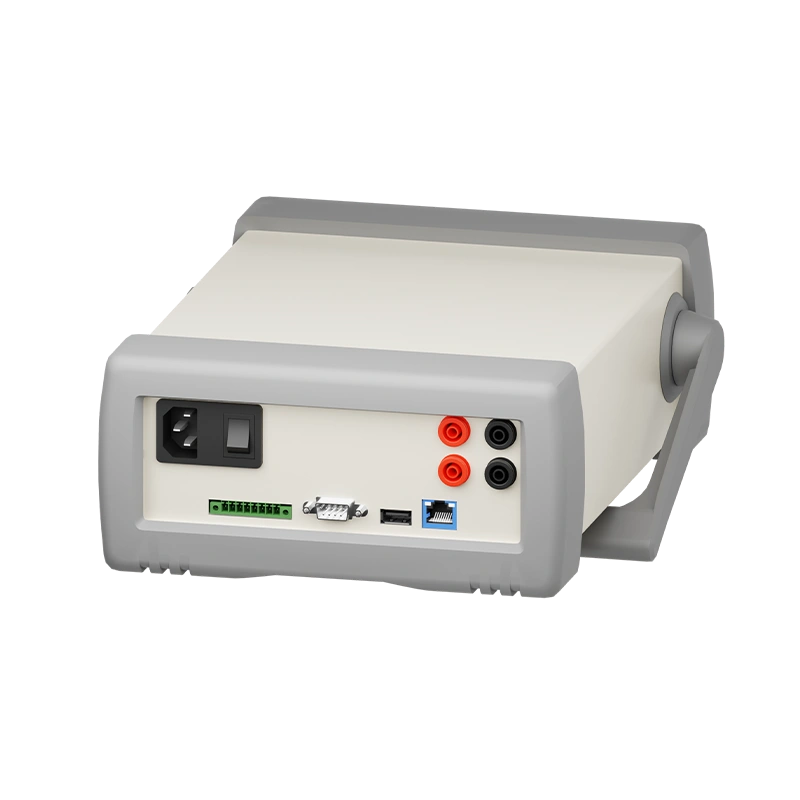

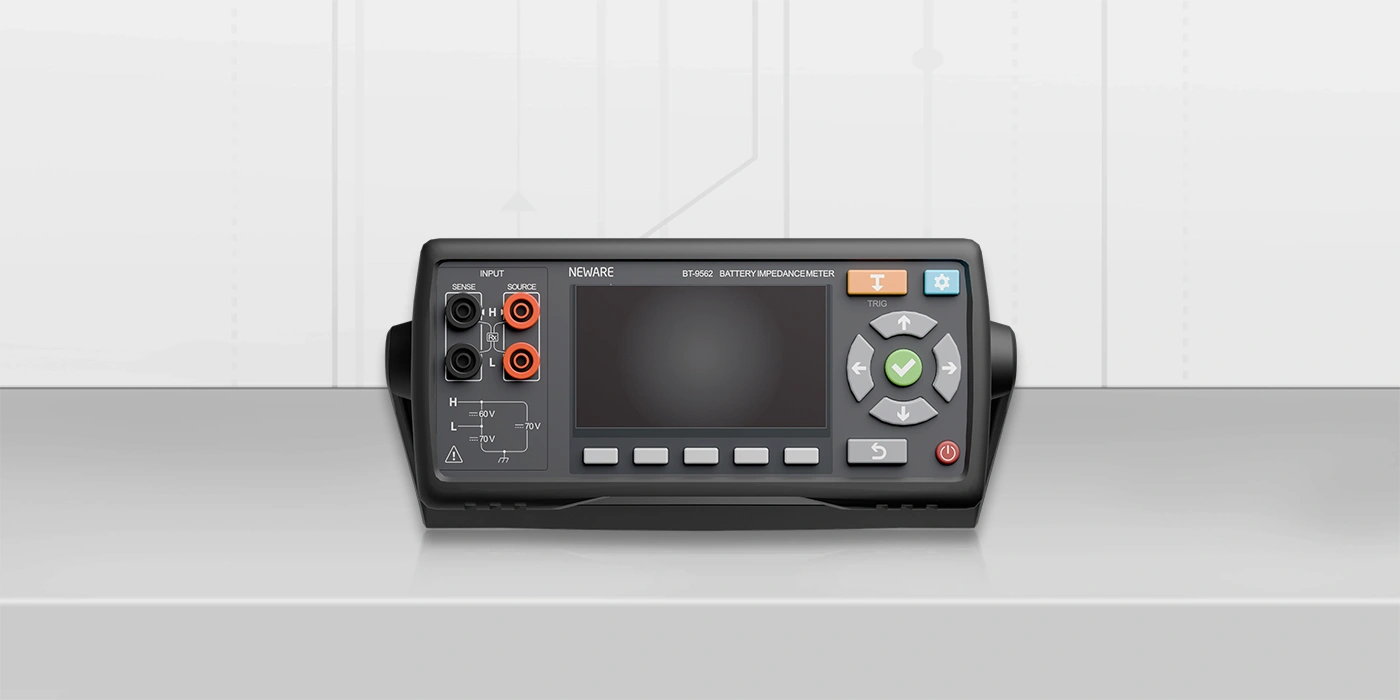

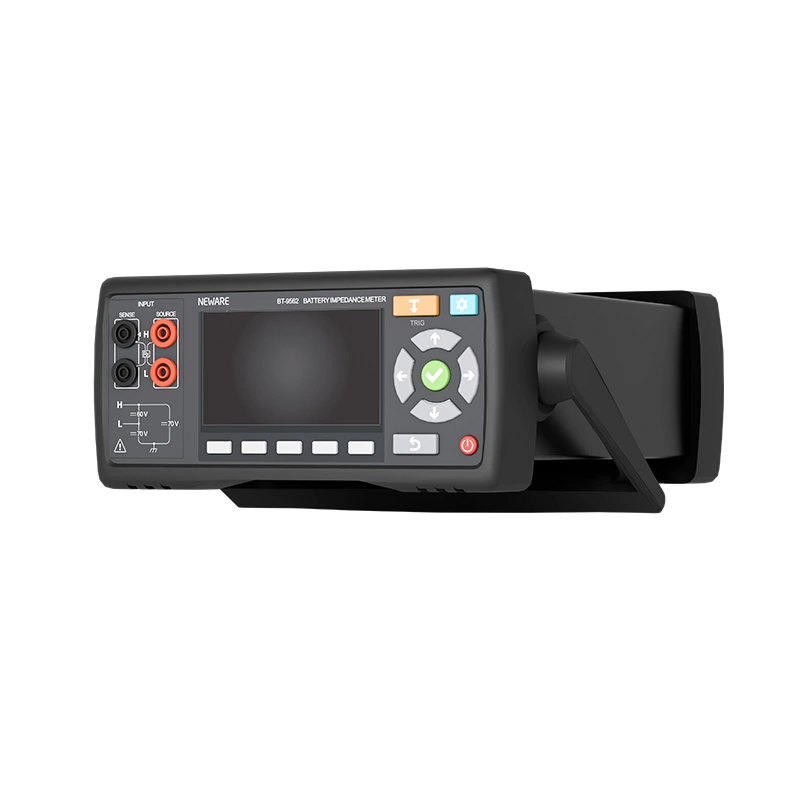

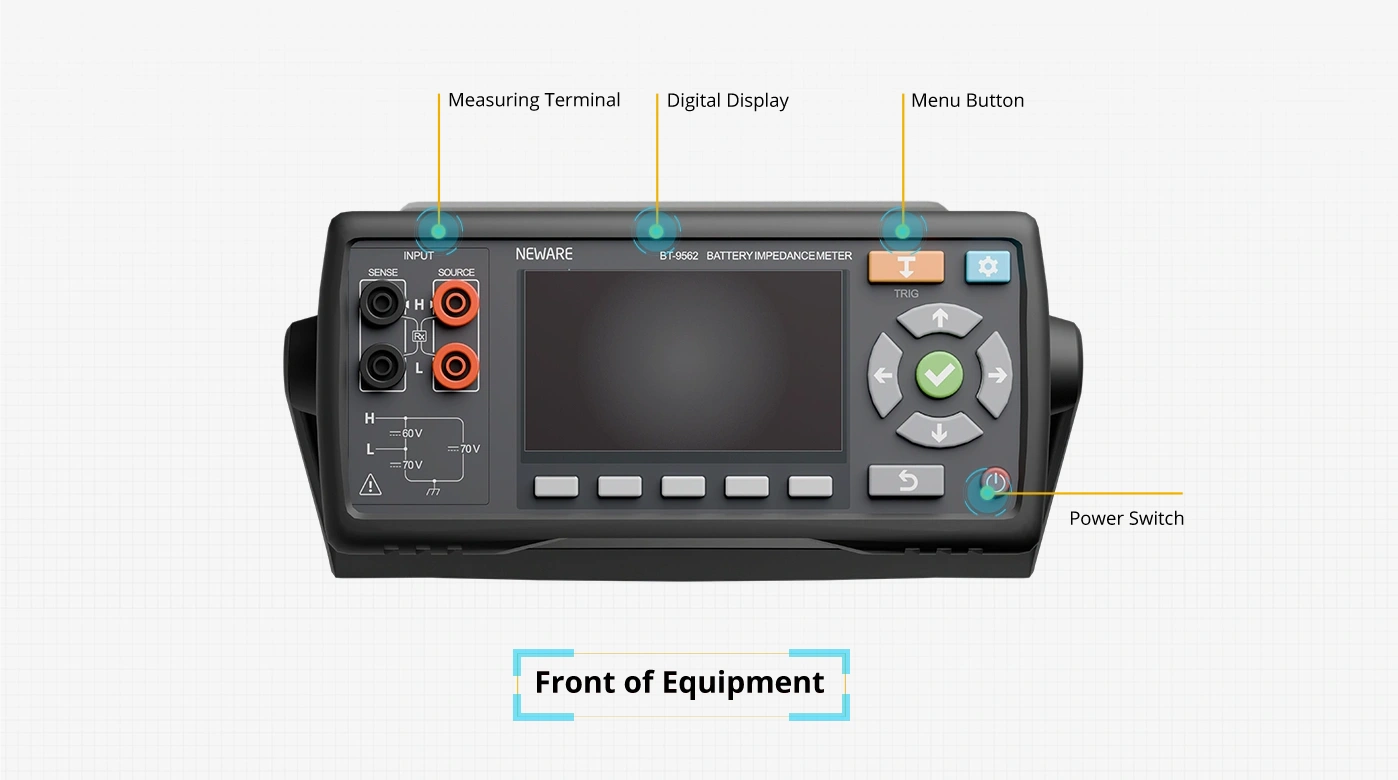

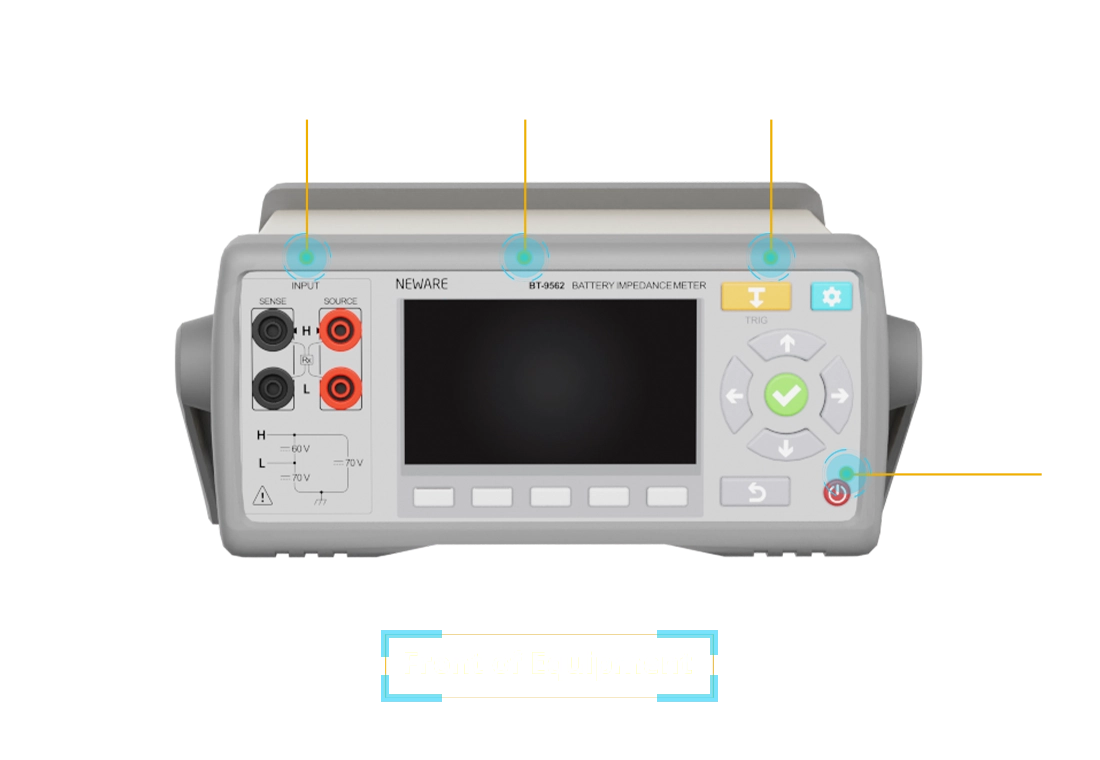

NEWARE BT-9562 High Precision Battery Internal Resistance Instrument
BT-9562 NEWARE

Technical Specifications

Equipment name BT-9562
Measure the project Internal resistance / Voltage / Reactance / Impedance / Impedance phase angle
Measurement method AC 4-terminal method (1kHz±0.02Hz)
Rated voltage
Rated input voltage DC±60V
Maximum rated voltage to the ground DC±70V
Input impedance About 200 kΩ
Sample rate 1~50PLC(50Hz, 1PLC=20ms; 60Hz,1PLC=16.67ms)
Trigger source Internal / External
Trigger delay Delay time: 0~9.999s
Mean filter 1~16 times
Computational function Total data, valid data number, maximum, minimum, mean, standard deviation, main standard deviation, Cp, CpK (engineering capability index)

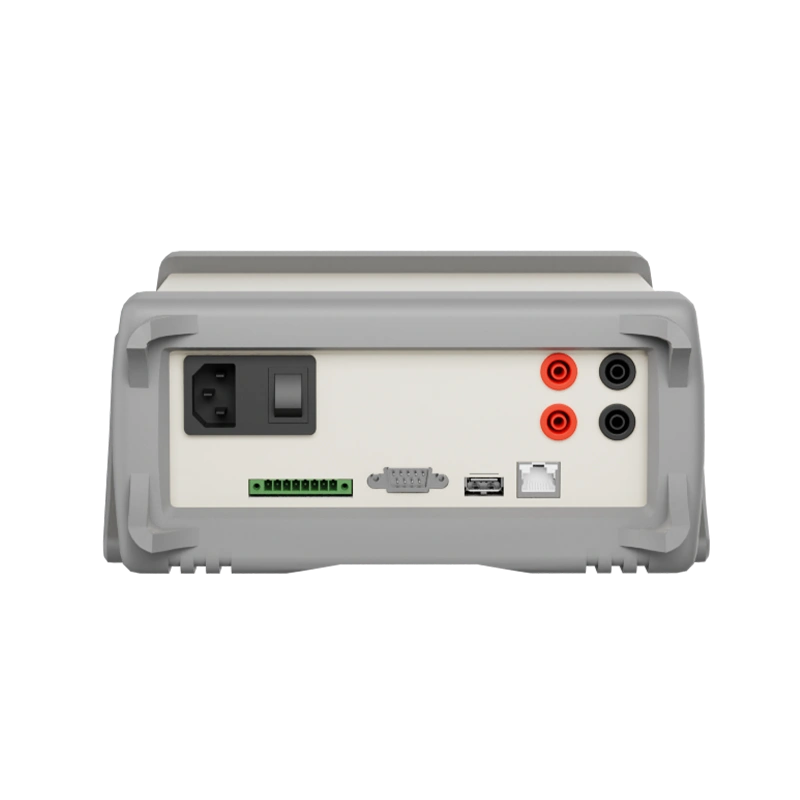

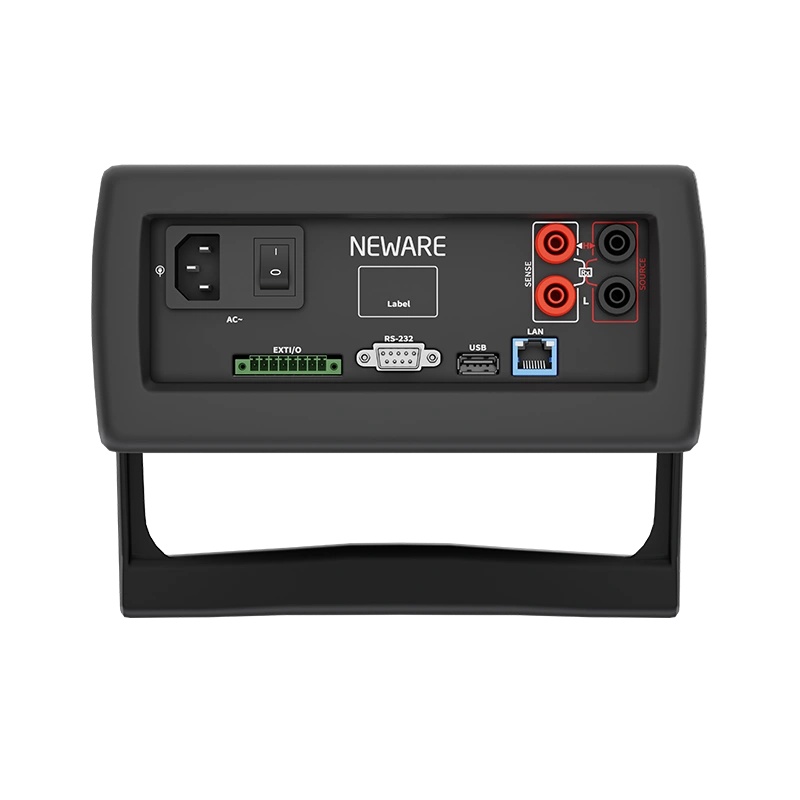

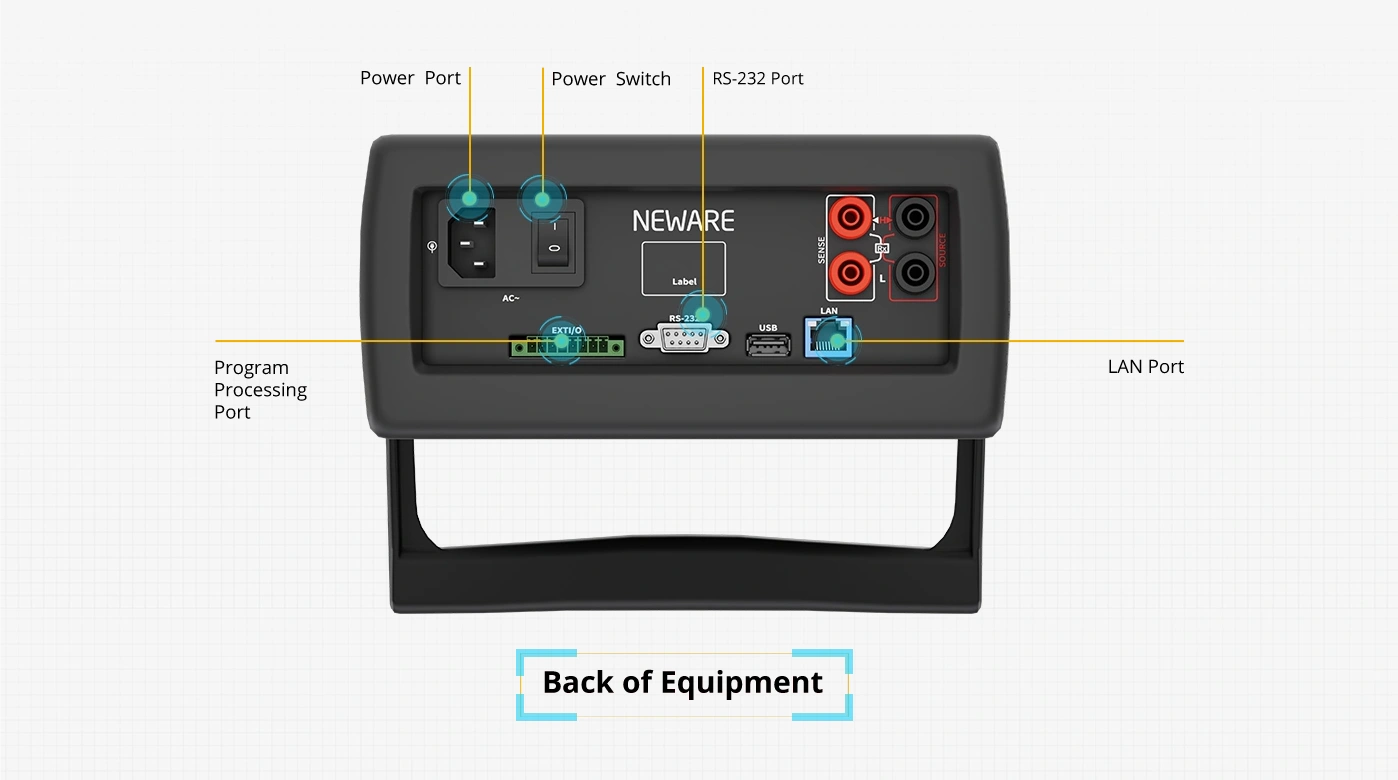

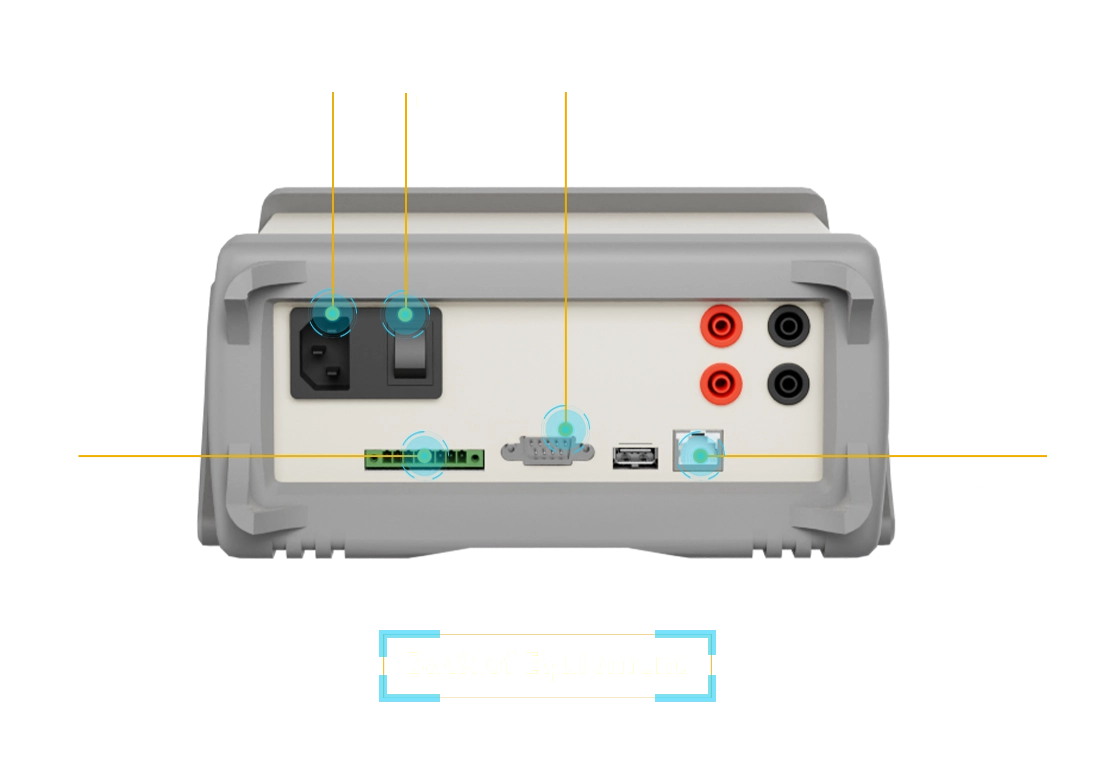

Peripheral interface 100M Ethernet、RS-232C 、USB
Outside I/O 2 input (for triggering input), 4 output (for battery sorting)
Measurement value storage function 1,000,000 groups
Parameter read and save The 1,000 sets of comparator settings
Other functions Excessive range display, Measurement anomaly detection, Self-calibration, Lock key
