IEC 61960: Performance Standard for Secondary Lithium Batteries (Rechargeable Batteries).
UN 38.3: Safety Standard for the Transport of Lithium Batteries, including tests for vibration, impact, short circuit, overcharging, and more.

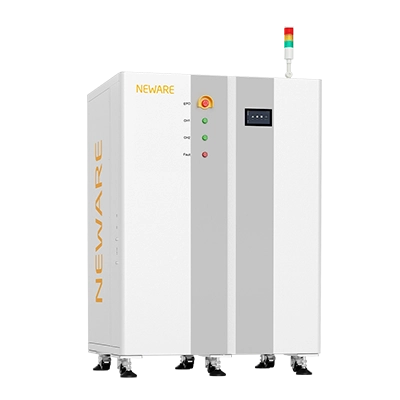

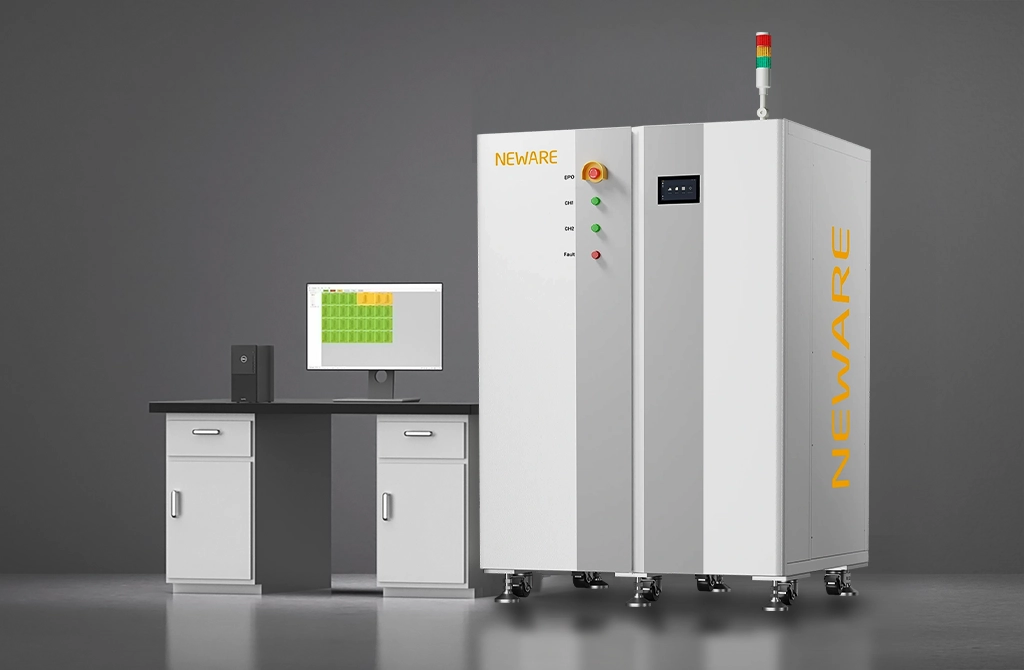

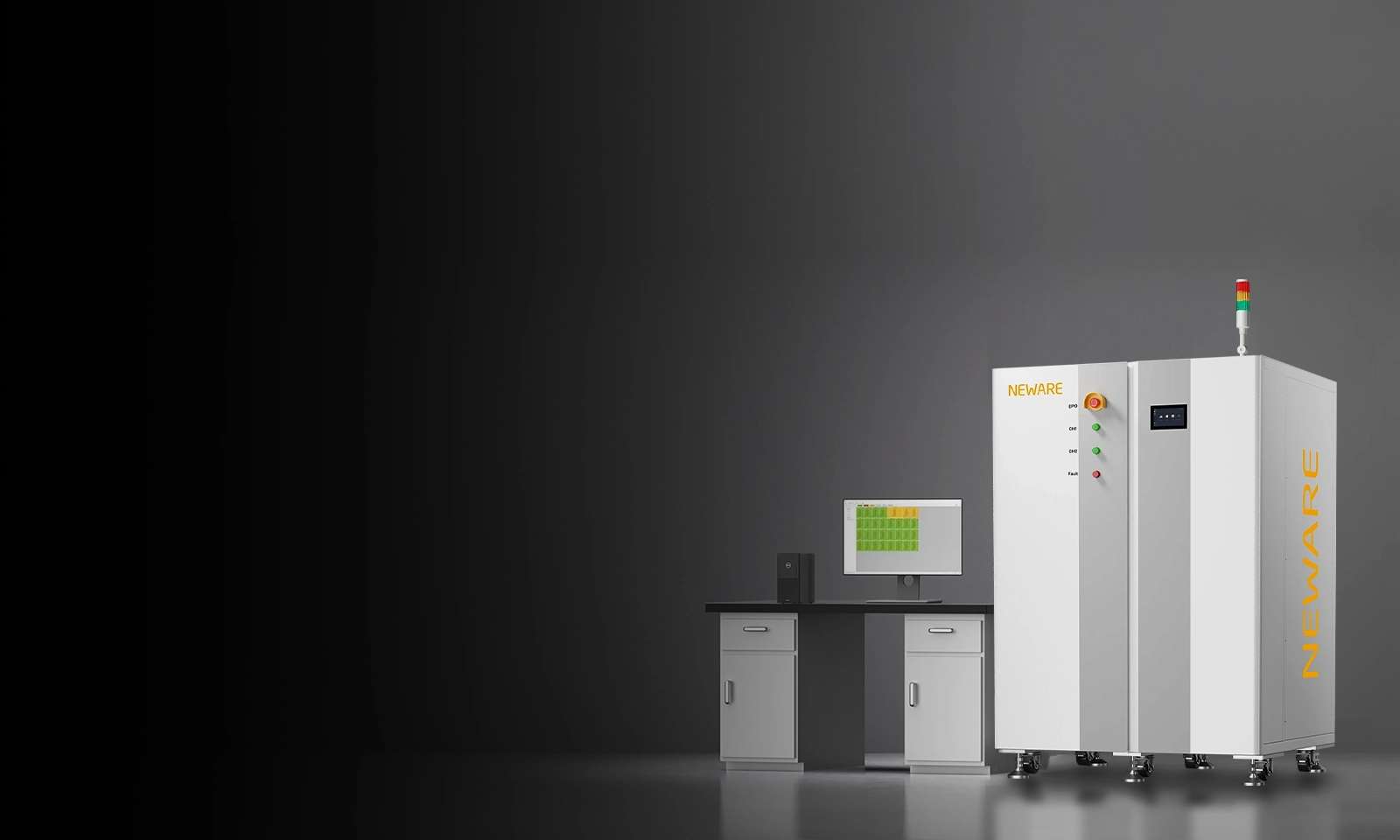

The CE-6000 Series Battery Testing System provides a comprehensive solution for the development and testing of high-power batteries, offering in-depth research and evaluation of battery performance. It utilizes specialized software for data recording and analysis, enabling the tracking of battery performance optimization.
● Safety testing: the Series 6 system is capable of conducting safety performance tests such as overcharge, over-discharge, and short circuit, ensuring the safe use of batteries.
● Modular power units: featuring a modular design with AC/DC and DC/DC two-stage high-frequency isolation, it allows for flexible combinations based on different current ranges, channel numbers, and power levels.
● Communication protocol support: supporting various communication methods, users can monitor battery status through the BMS, ensuring the use of appropriate chargers and charging strategies, as well as regular maintenance and inspection.
Voltage Accuracy: ±0.02% F.S.
Current Accuracy: ±0.05% F.S.
Recording Frequency: 100Hz
Current Conversion Time: ≤10ms
Current Response Time: ≤5ms
Minimum Pulse Width: 100ms
Feedback Efficiency (Max): 94%
