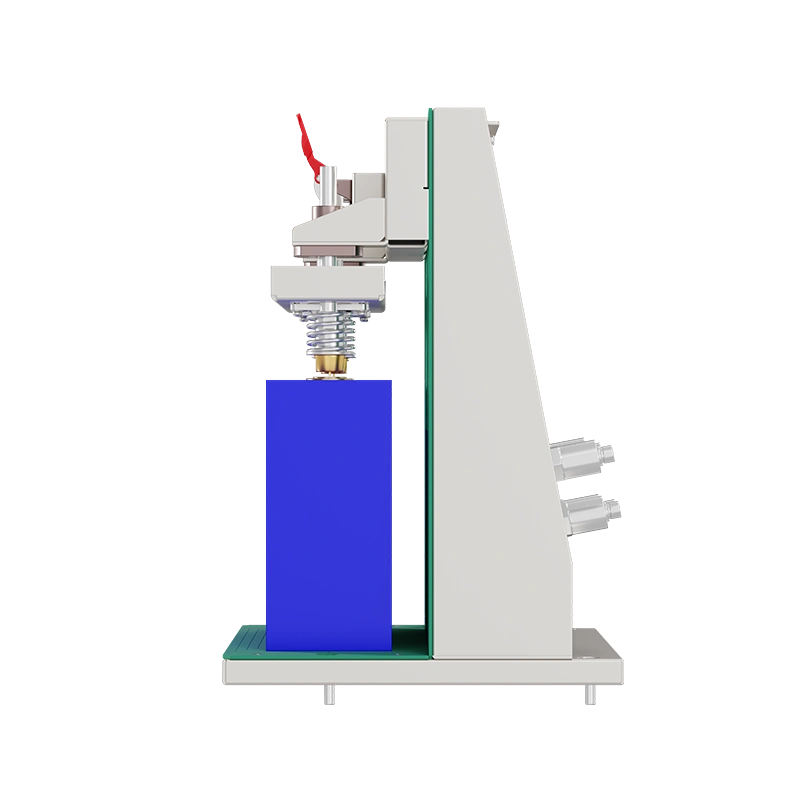

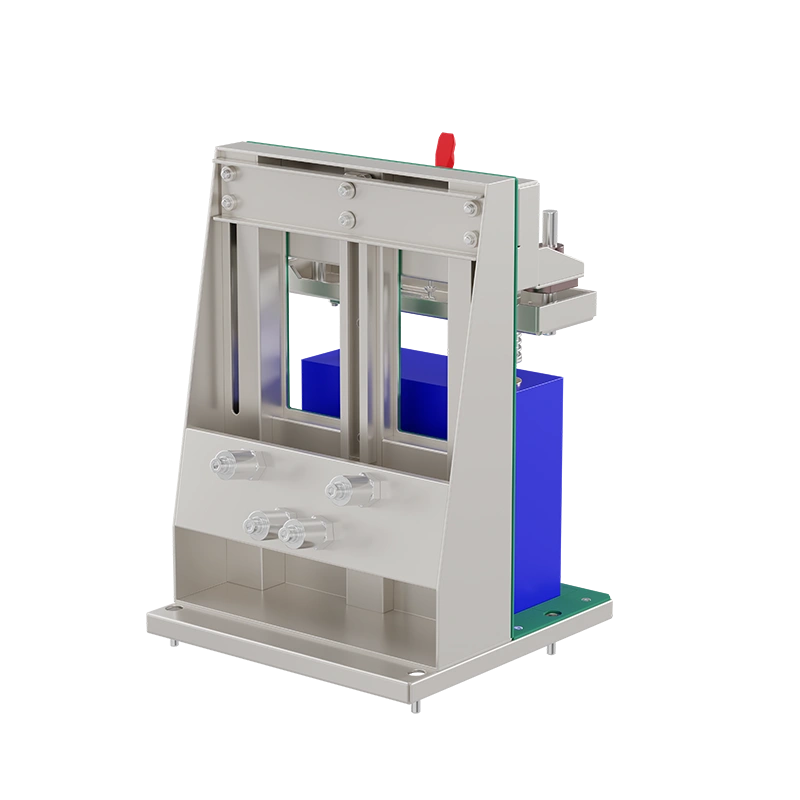

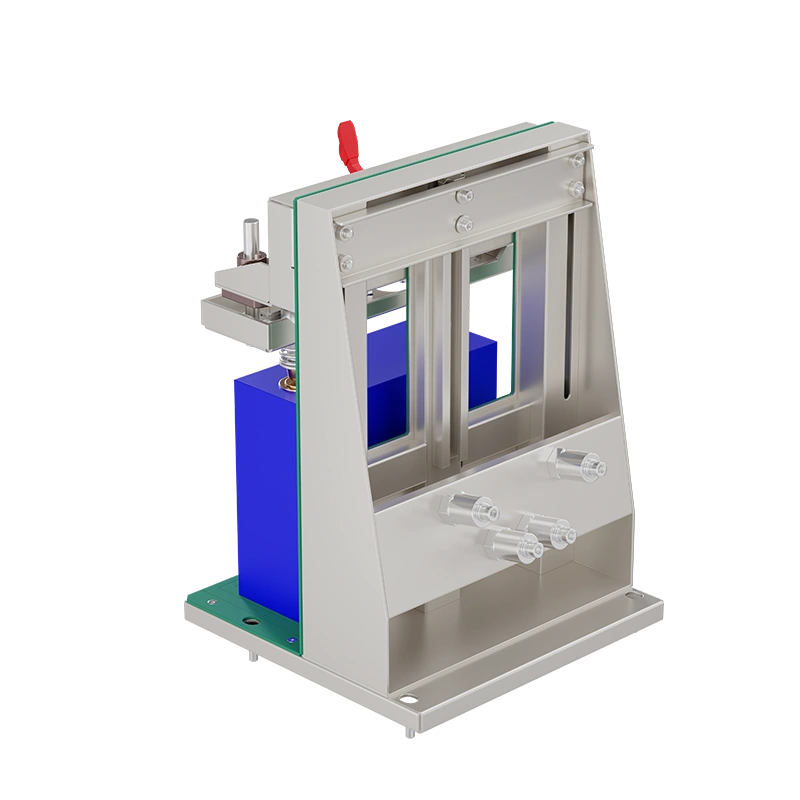

Flexible Adaptation: adjustable battery placement space to accommodate various sizes of prismatic batteries, meeting the diverse testing requirements.

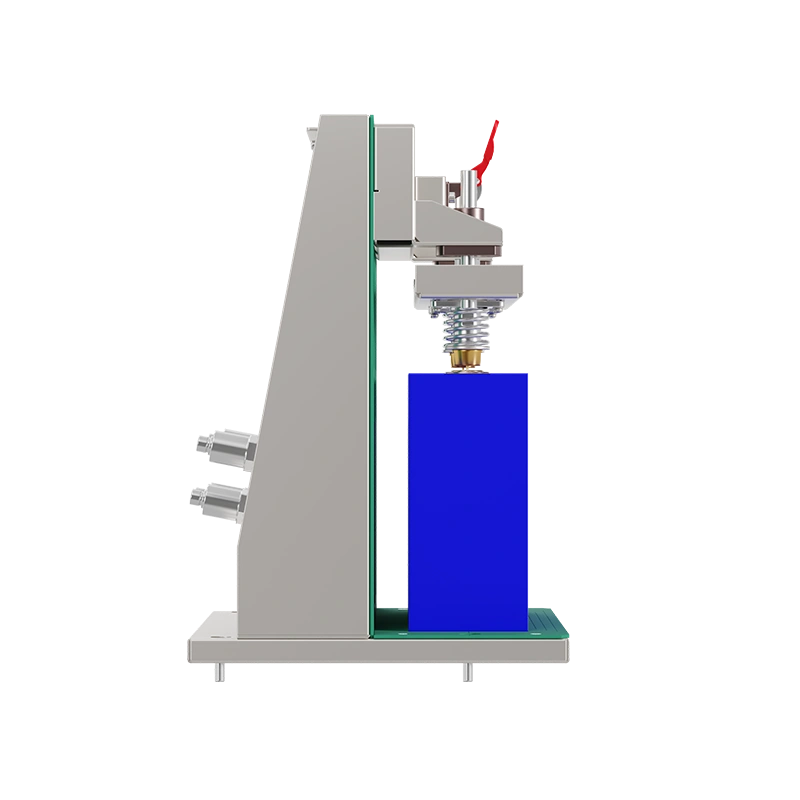

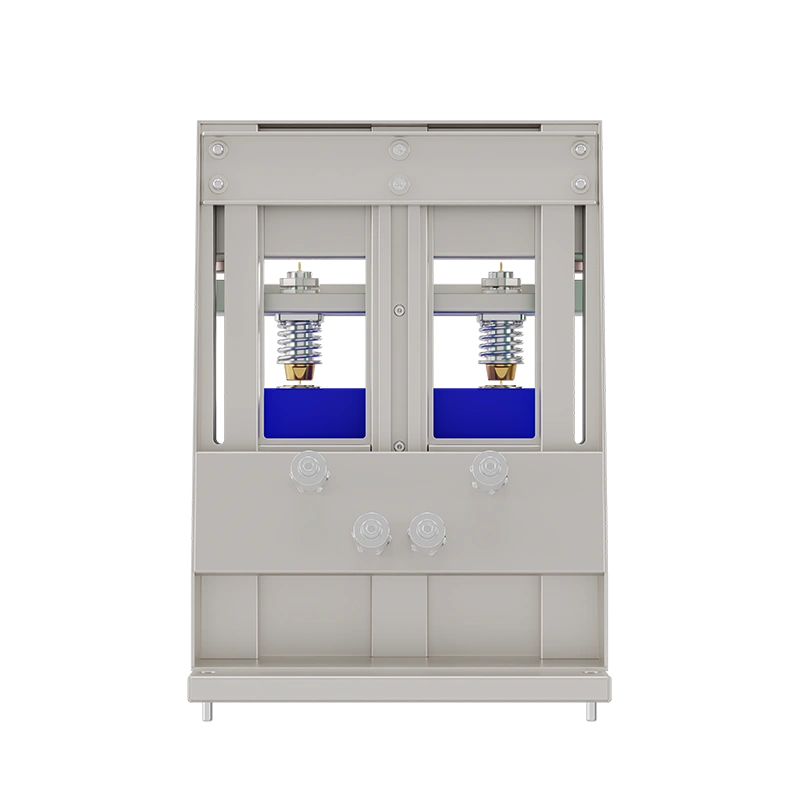

Stable and Safe: equipped with a fixed battery rack to ensure stability during testing, ensuring test safety.

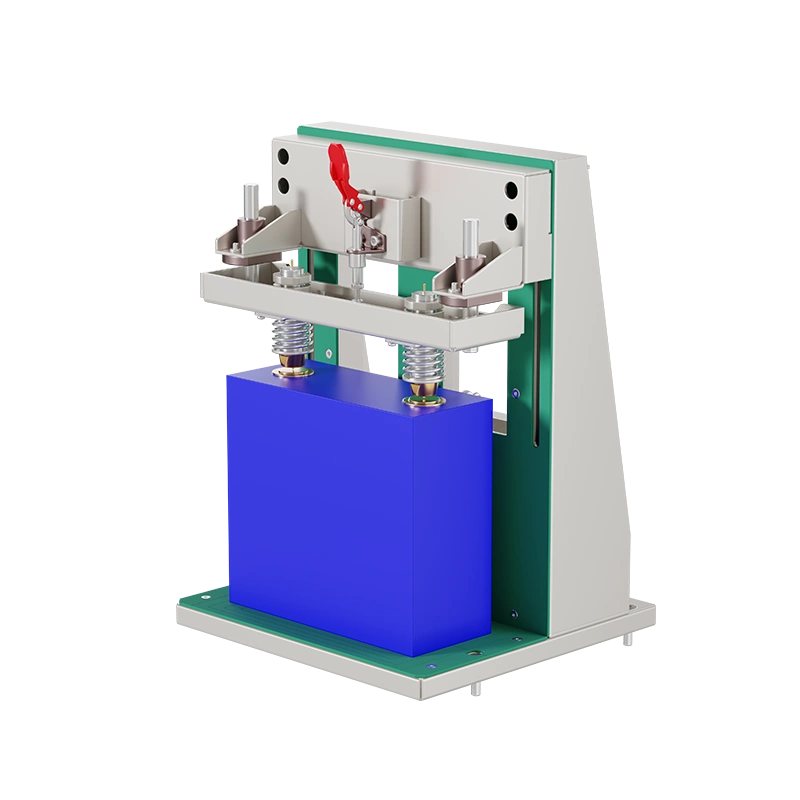

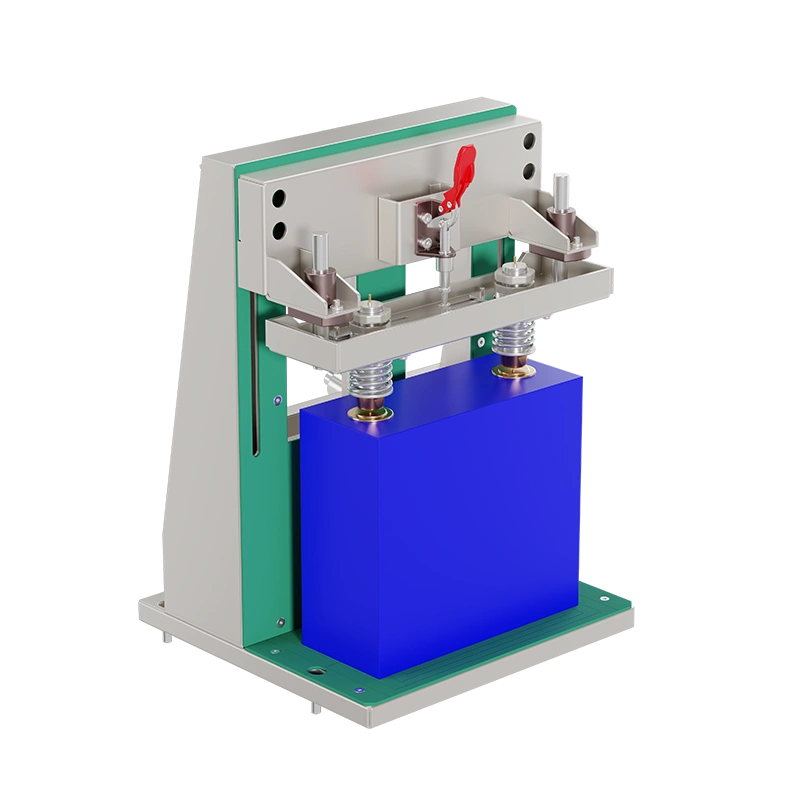

Efficient and Convenient: toggle clamps make battery testing and storage easy, improving work efficiency.
| Equipment name | 300A Prismatic Cell Toggle Clamp |
|---|---|
| Model | PTF-ZJ-F-300A-1CH-W230-H160 |
| Current | 300A |
| Battery Size | |
| Length | 3.2"-9.0" (80-230mm) |
| Width | 0.8"-3.9" (20-100mm) |
| Height | 3.2"-6.3" (80-160mm) |
| Tab Spacing | 2.0"-5.7" (50-145mm) |
| External Size | 9.3"×9.0"×13.0" (235×230×330mm) |
| Wire Terminal | M8/M6 |
