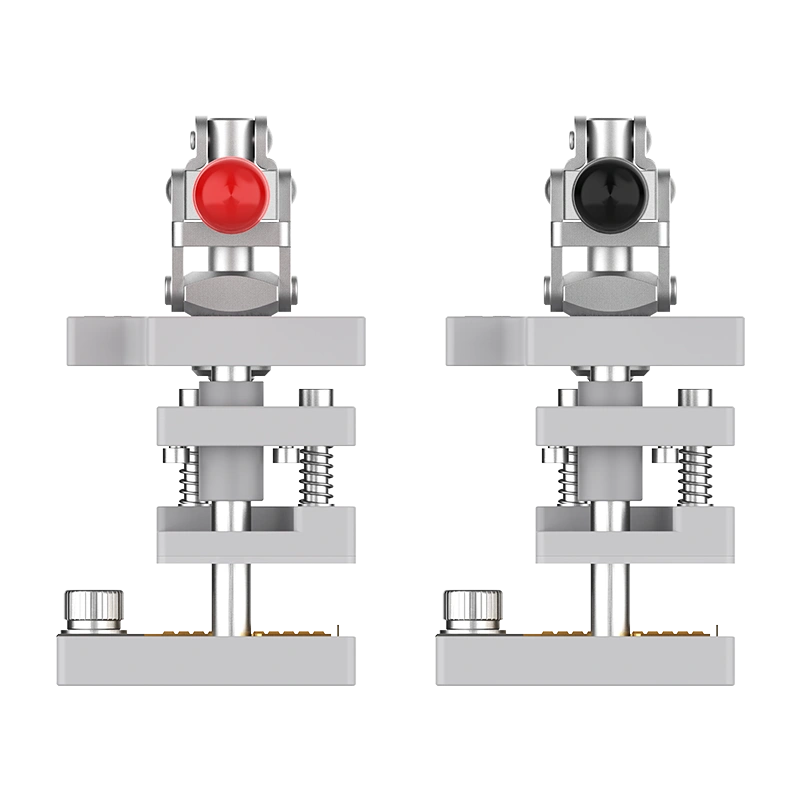

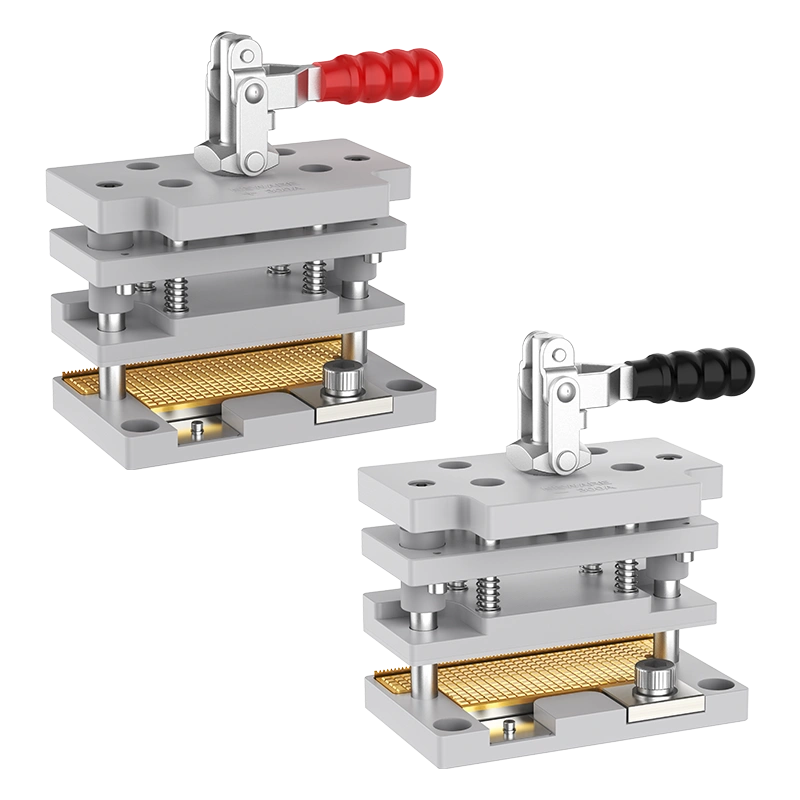

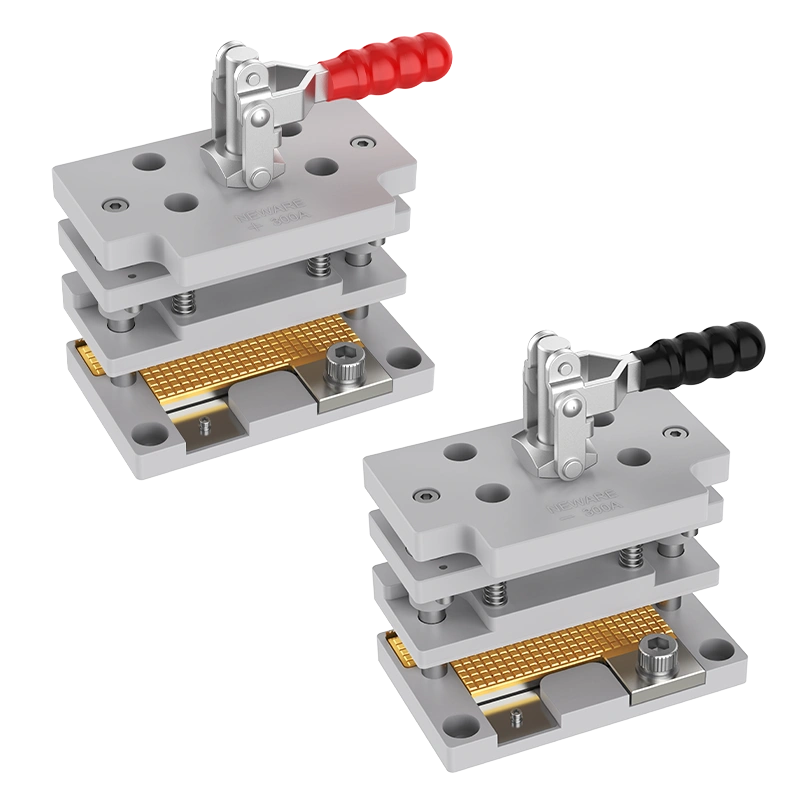

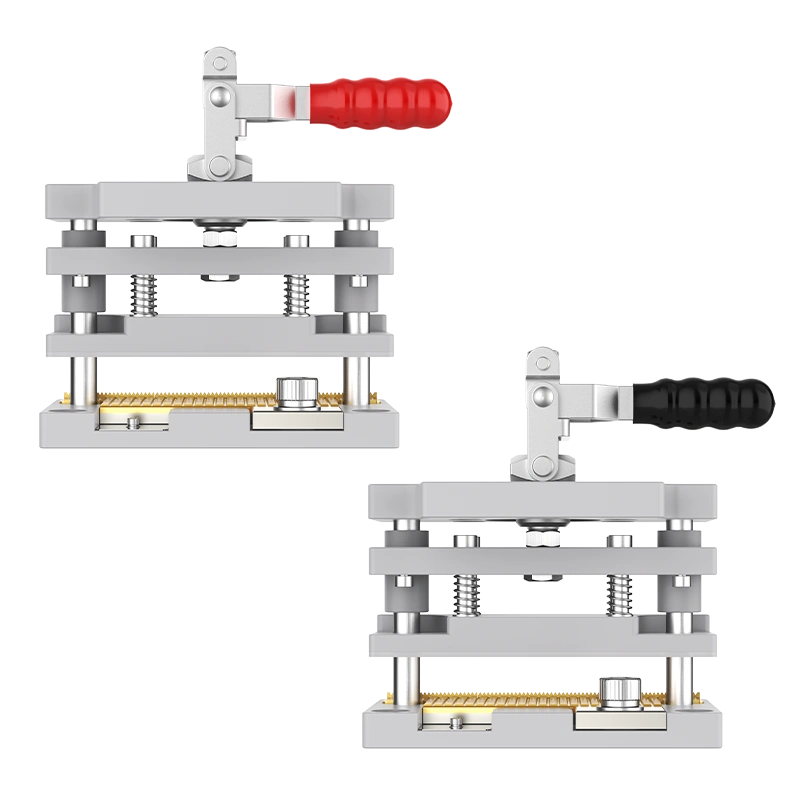

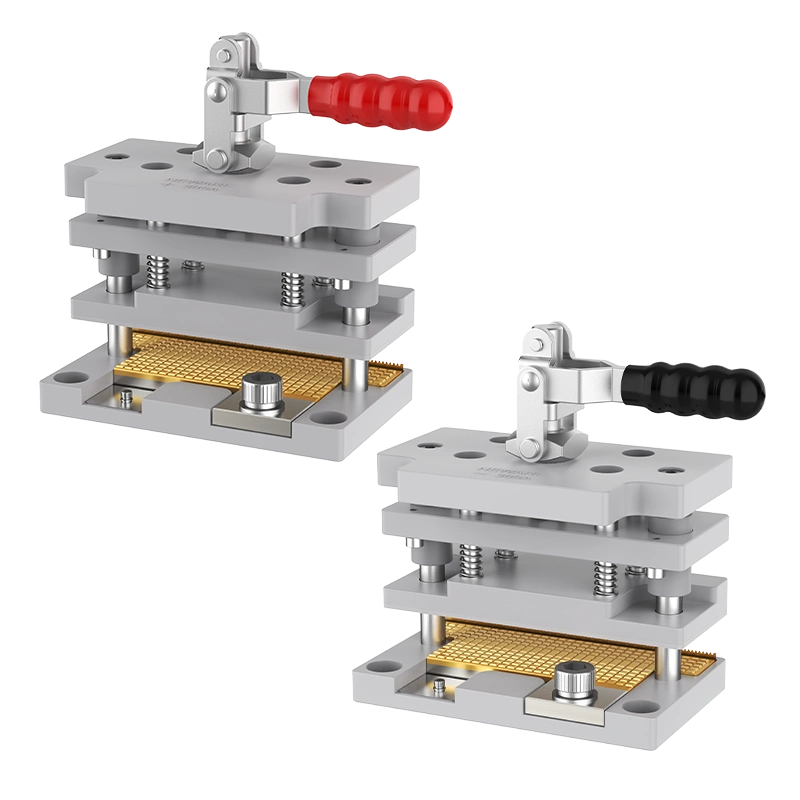

Pouch Cell Toggle Clamp (P103-12-TZ-R-300A) is designed for use with both anode and cathode configurations, in conjunction with battery testing apparatus for the assessment of pouch cells. It supports a maximum current overflow of 300A, ensuring secure clamping of high-current soft pack batteries.
Features
Tech Specs
Capable of withstanding a maximum of 300A overcurrent, clamping large-current pouch batteries.

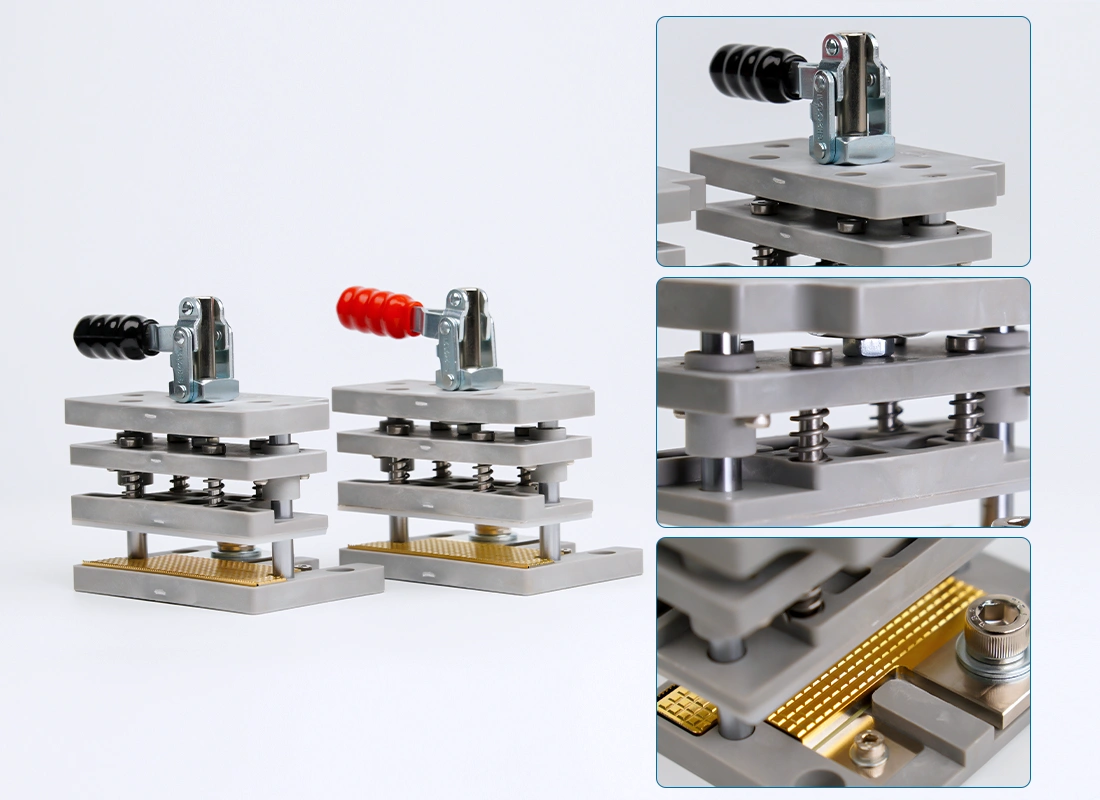

Elbow joint clamps make battery placement and removal effortless and convenient, making testing more efficient and hassle-free.
The main body made of epoxy board provides excellent insulation and high-temperature resistance, suitable for use in constant temperature test chambers/high-temperature and low-temperature test chambers.
| Equipment name | Pouch Cell Toggle Clamp |
|---|---|
| Model | P103-12-TZ-R-300A-
P103-12-TZ-R-300A+ |
| Current | 300A |
| Wire Terminal | M10 |
| Size (W×D×H) | 3.9"×2.4"×6.5" (100mm×62mm×165mm) |
