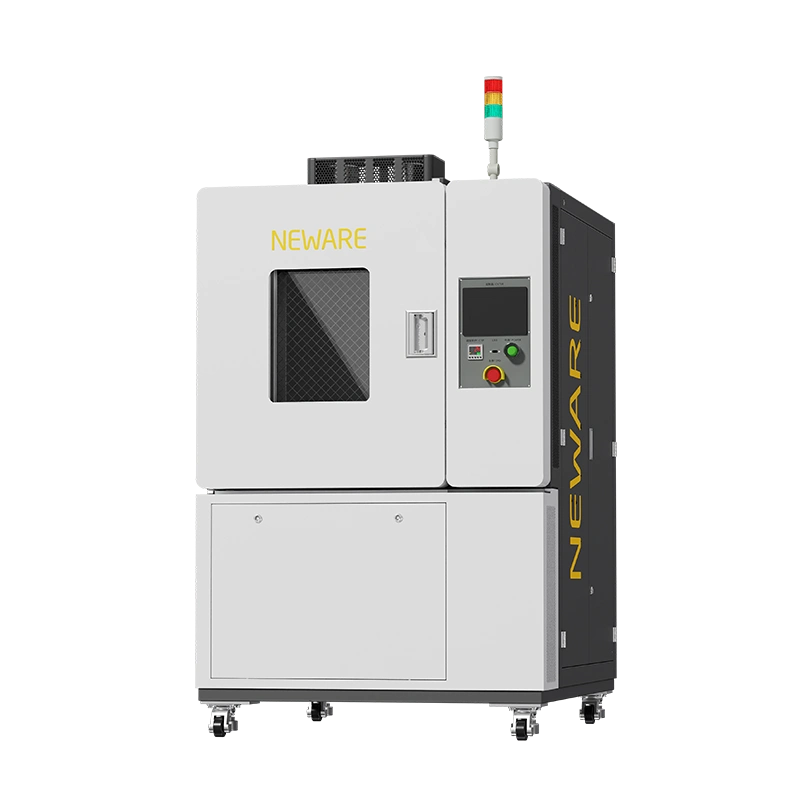

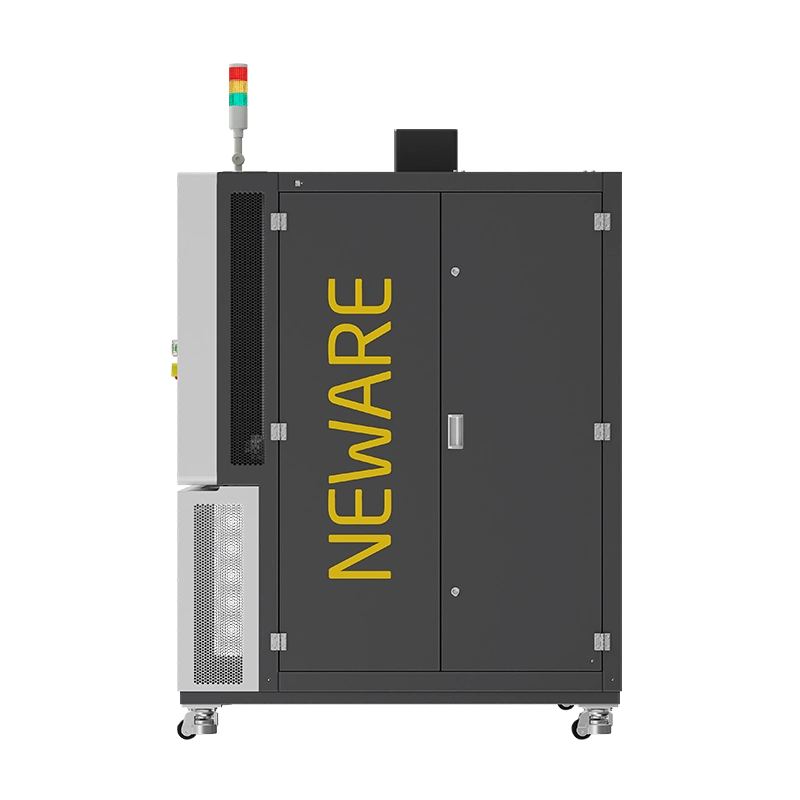

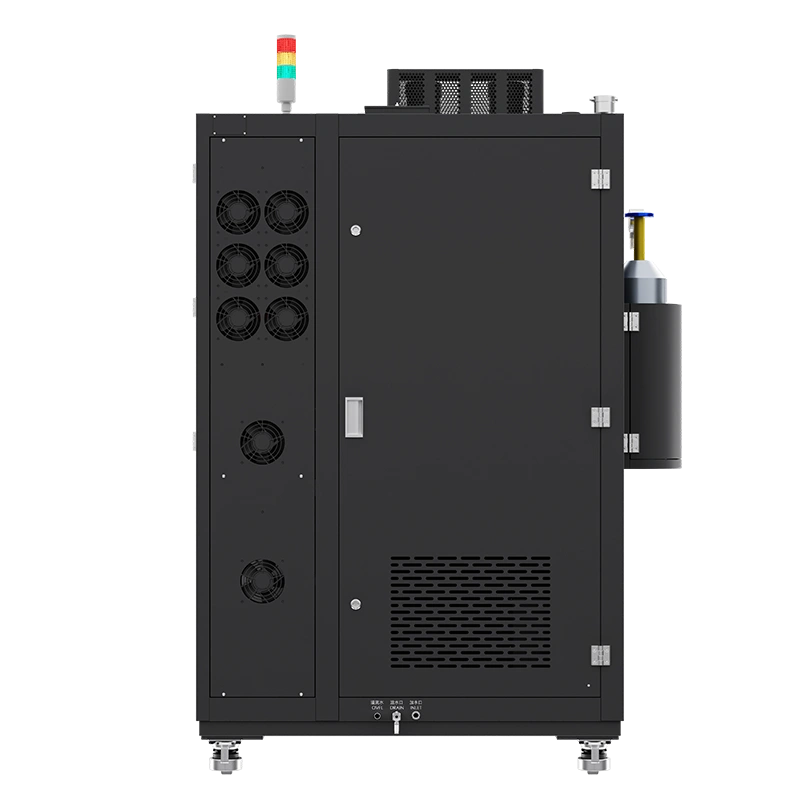

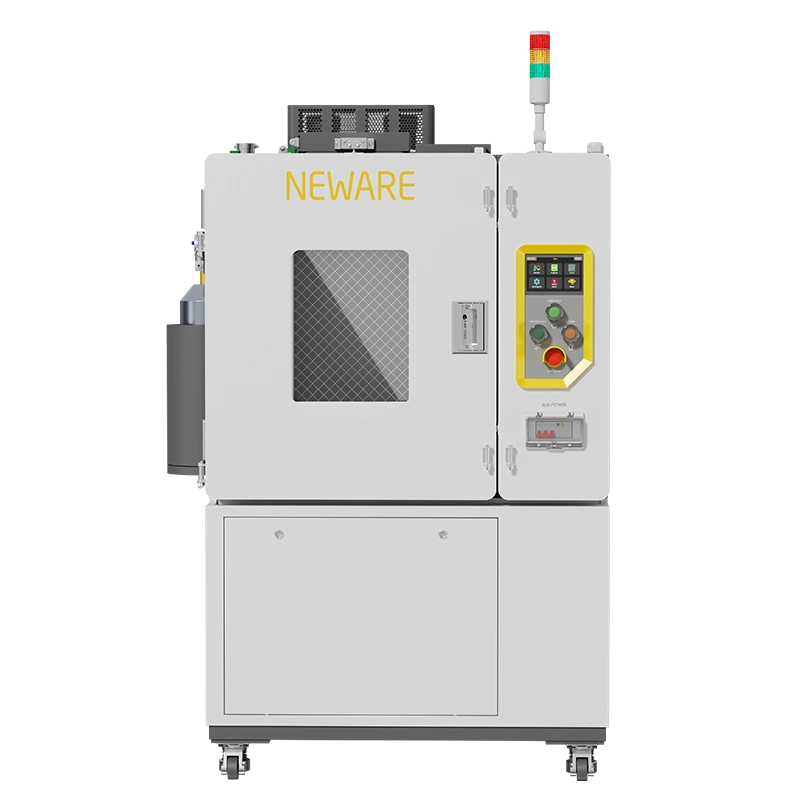

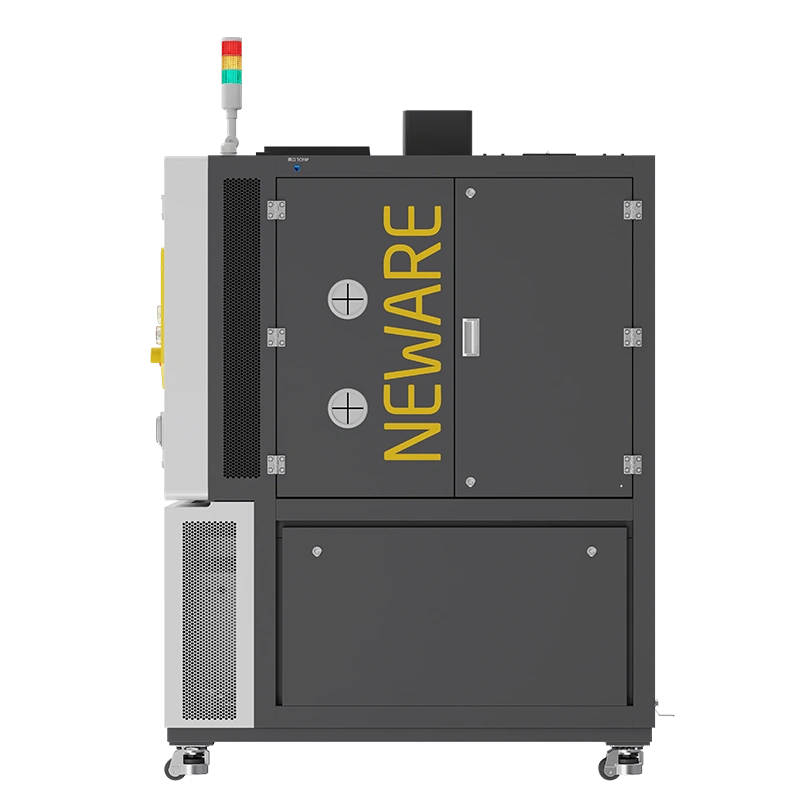

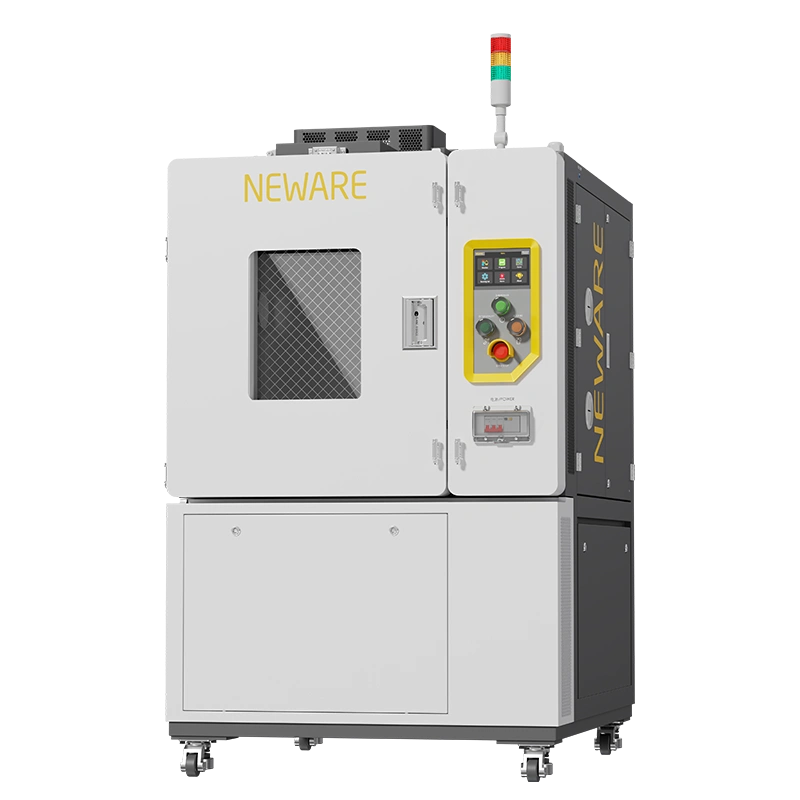

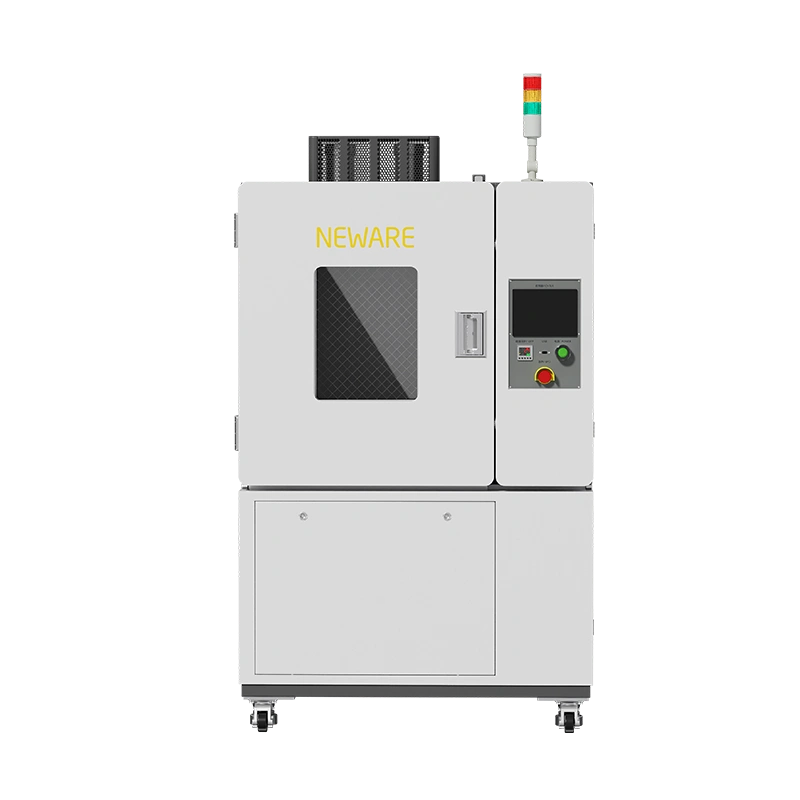

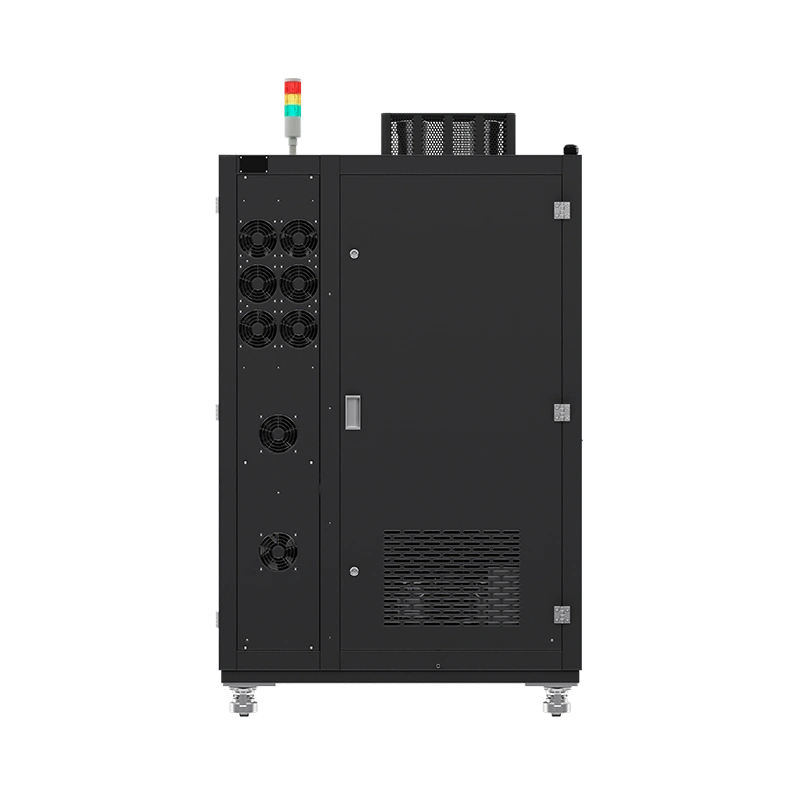

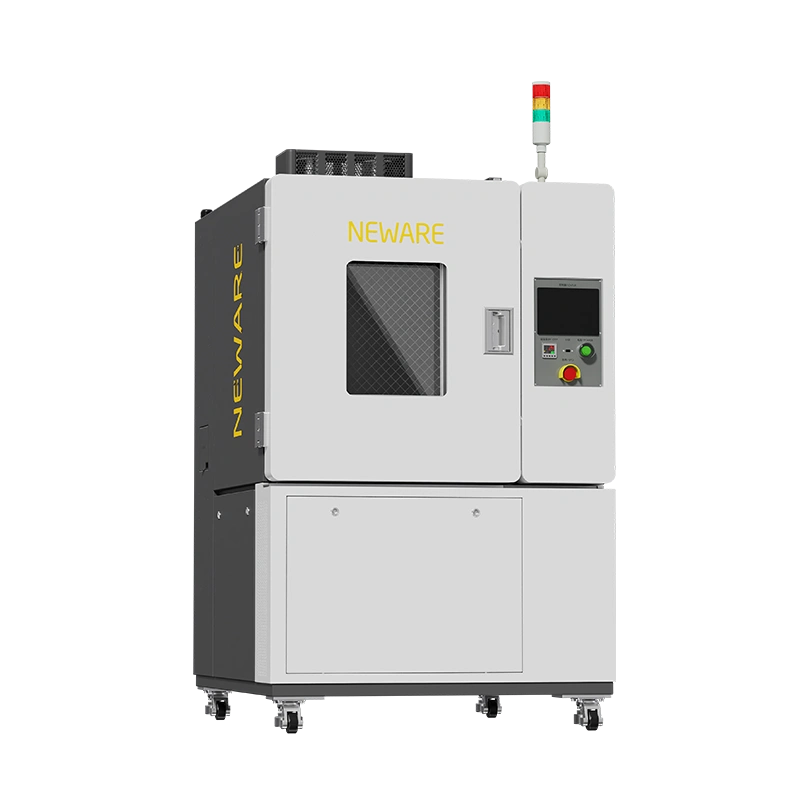

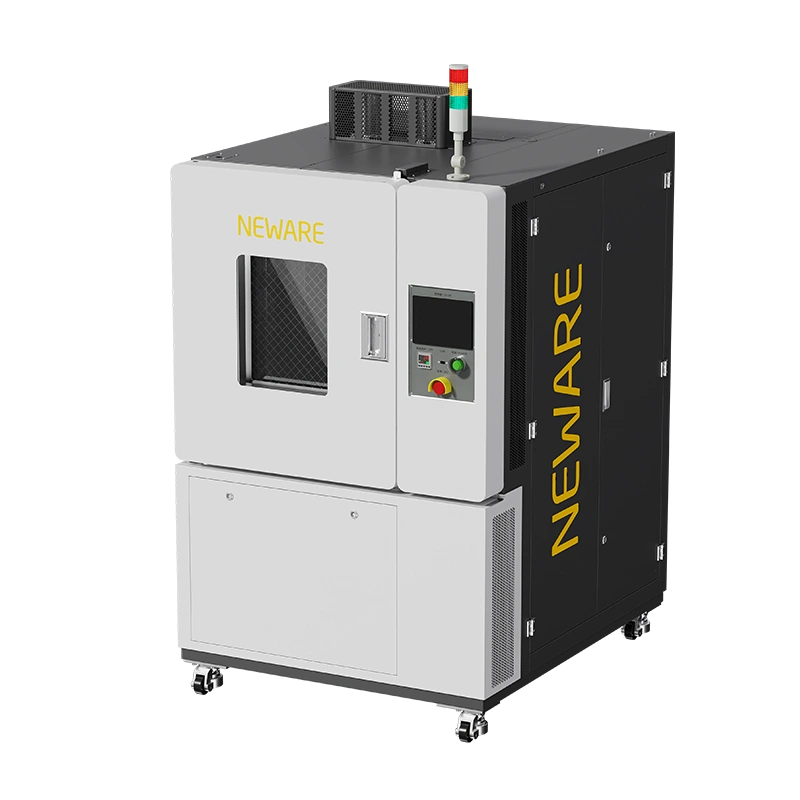

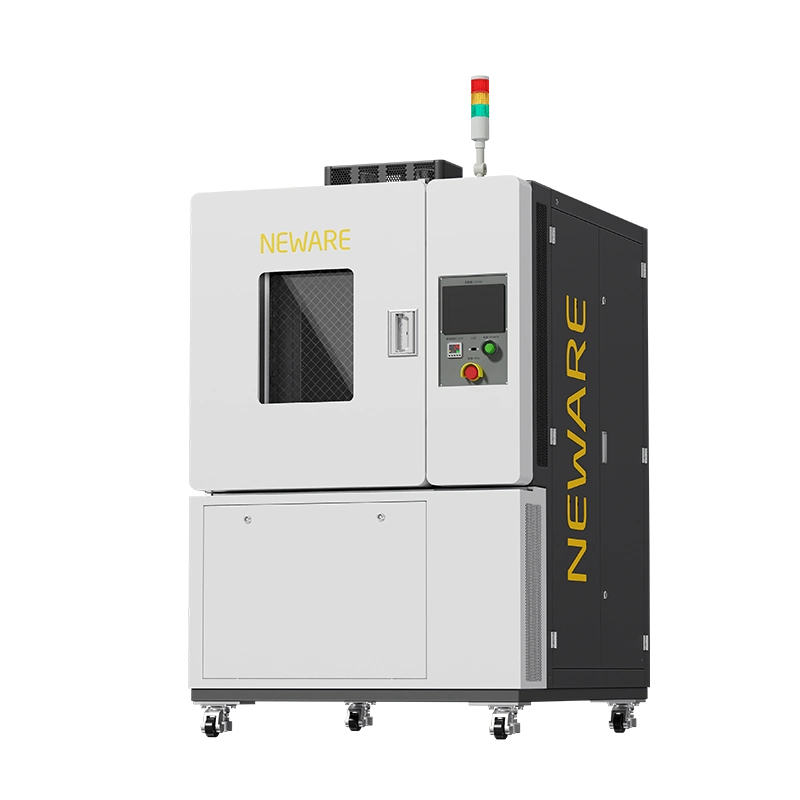

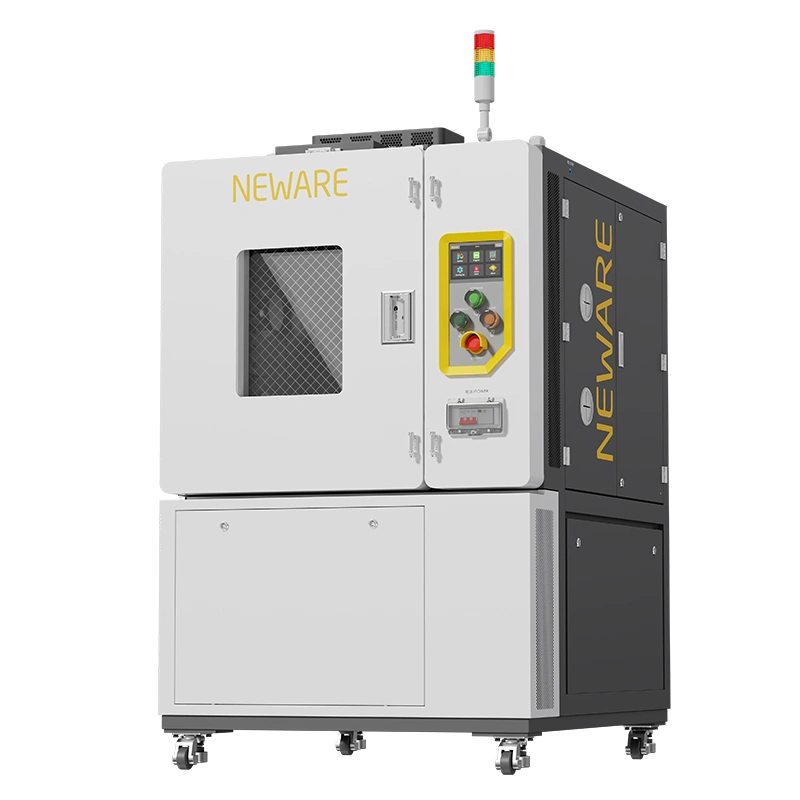

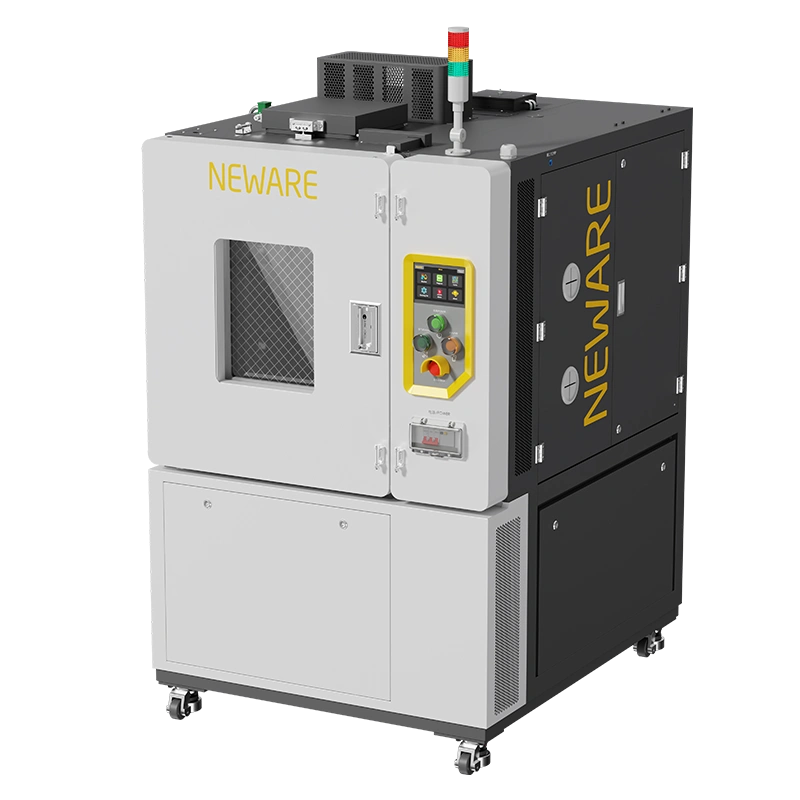

200L nominal capacity, built-in charge/discharge module, all-in-one machine for battery high and low temperature performance testing.
Features
Tech Specs

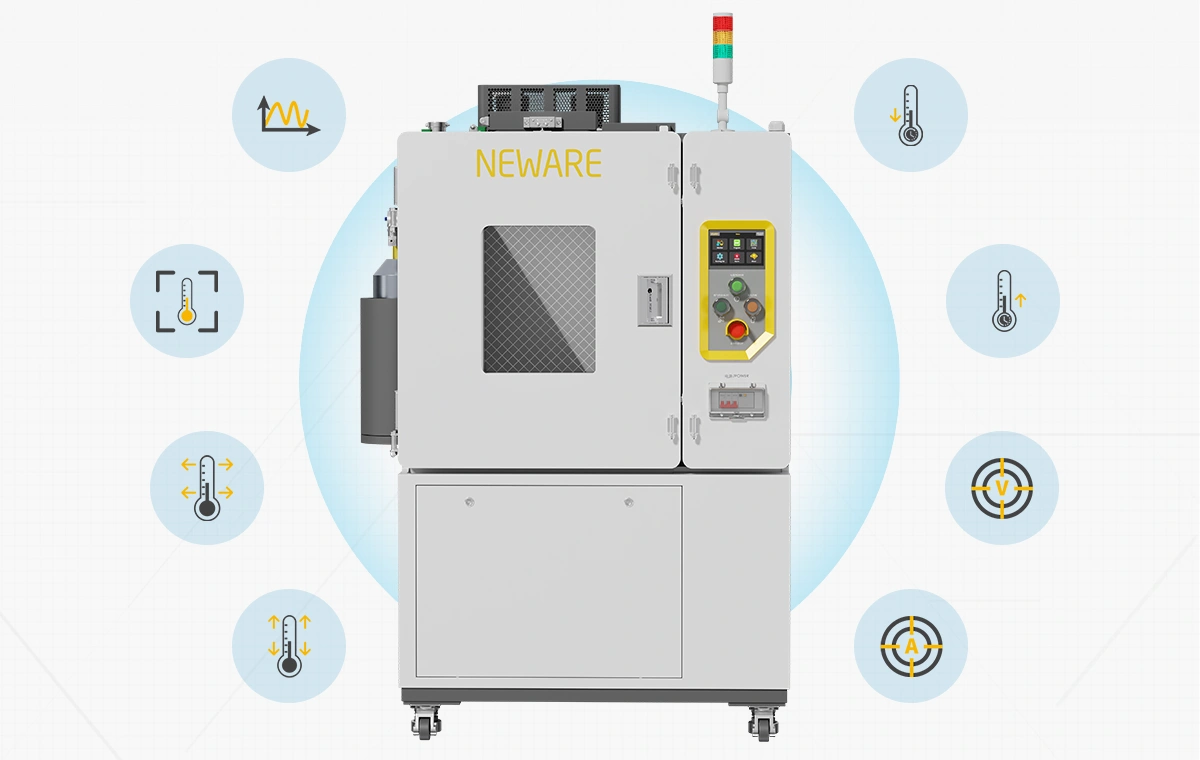

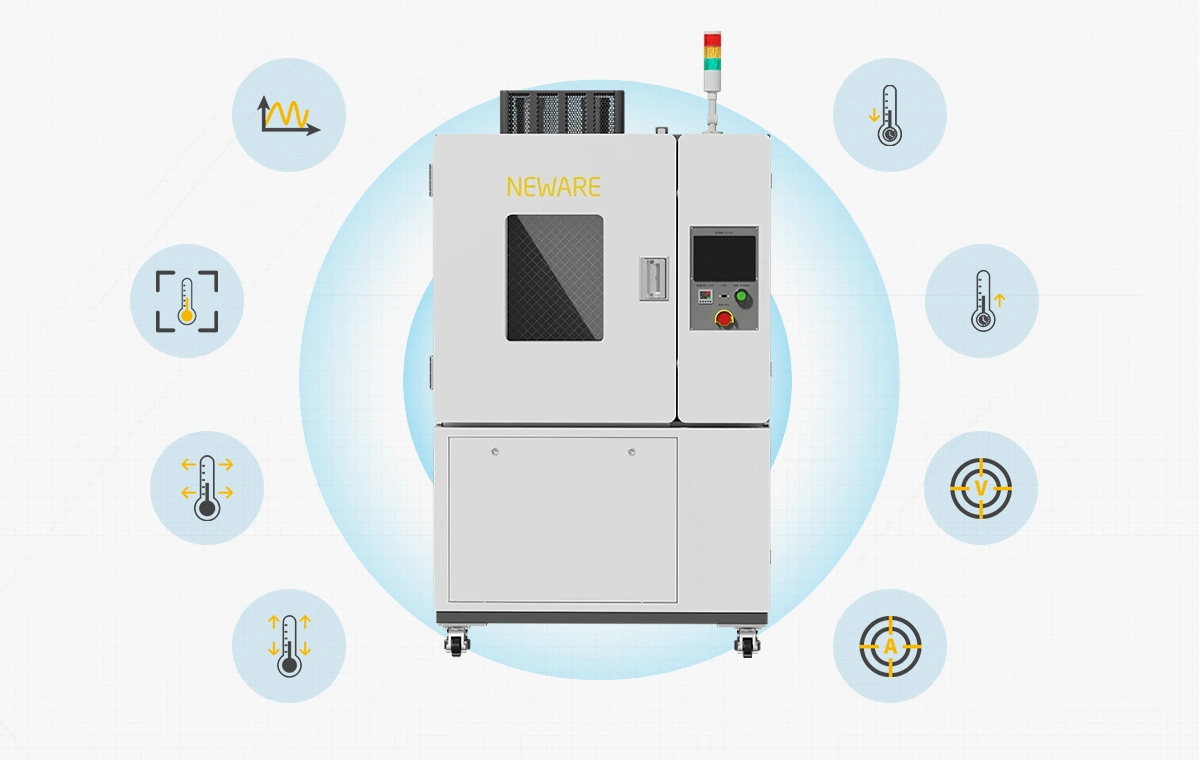

All-in-one system integrates a high/low-temperature test chamber and battery charge/discharge equipment. It works in the -40°C~150°C range and tests cells, enabling synchronized temperature cycling and charge/discharge control.
Key Specifications
Current & Voltage Accuracy: ±0.05% F.S.
Data Logging Frequency: 10Hz
Temperature Range & Deviation: -40°F~302°F±3.6℉ (-40℃~150℃±2℃)
Temperature Fluctuation: ≤0.9℉(0.5℃)
Heating Time: 68°F→302°F ≤60min (20℃→150℃≤60min)
Cooling Time: 68°F→-40°F ≤60min (20℃→-70℃≤60min)

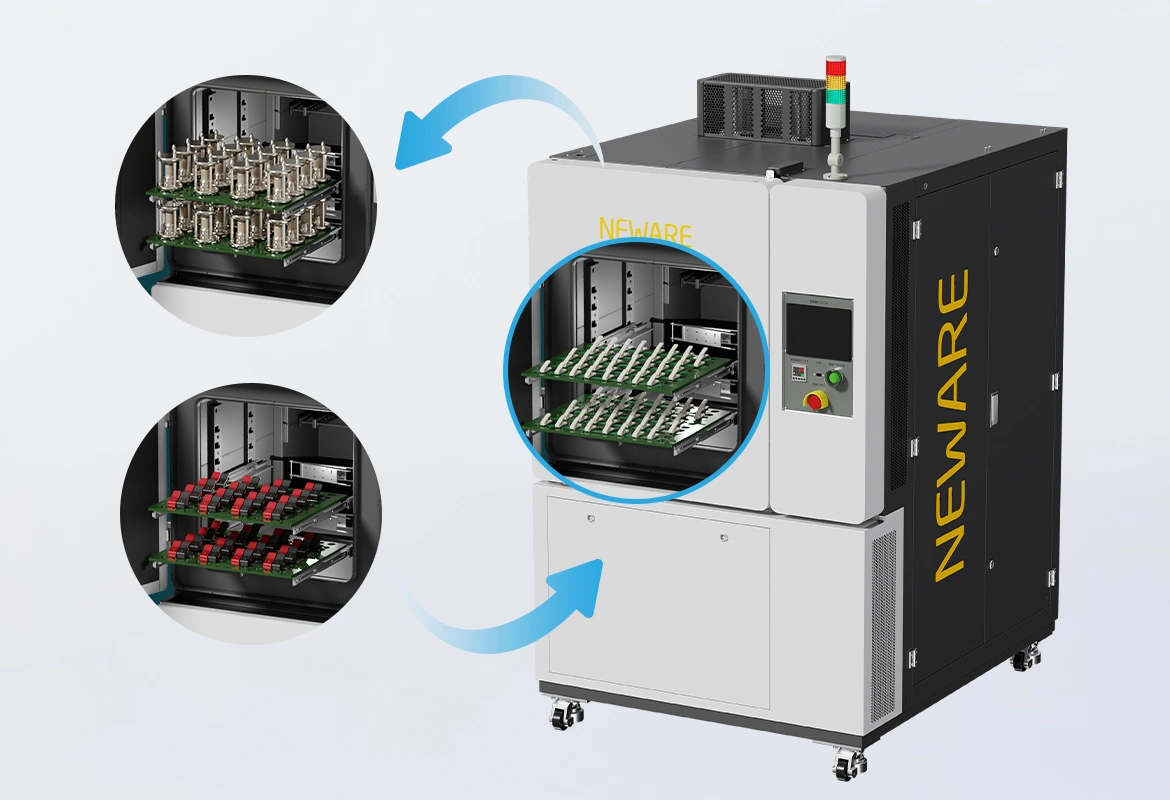

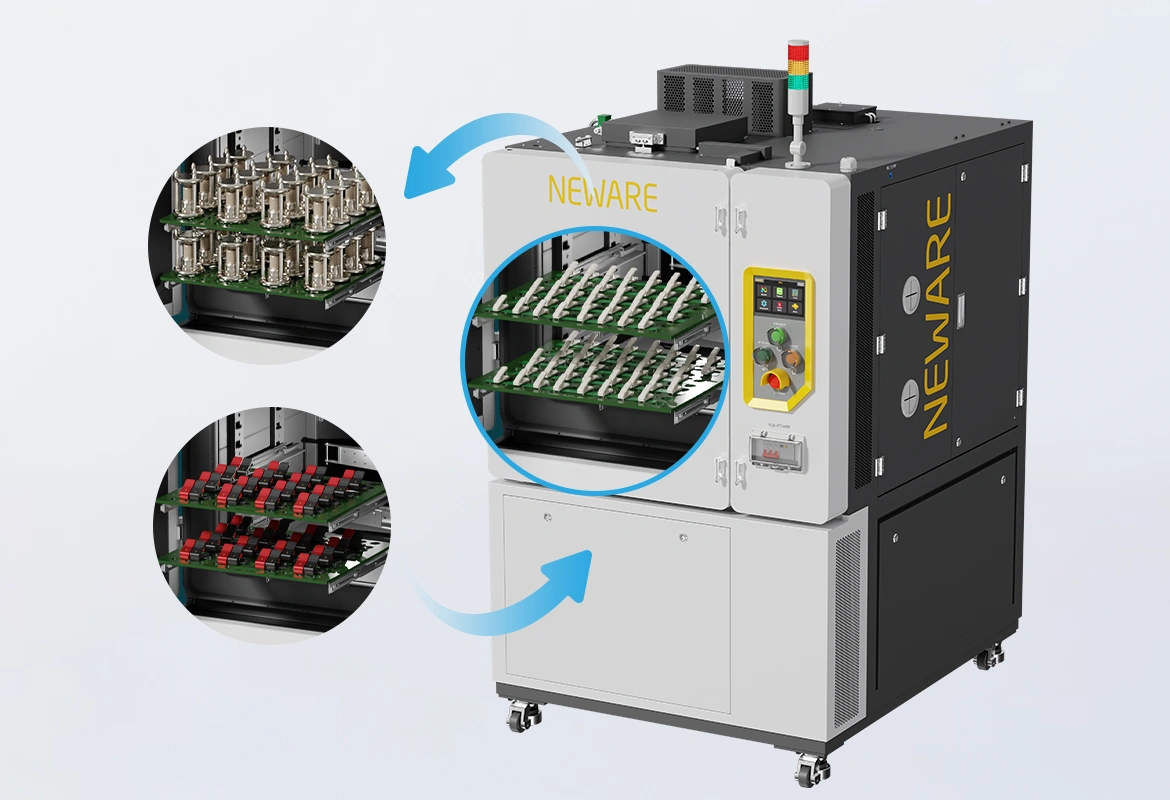

Tailored to meet specific requirements for material research, 3C battery testing, and power cell testing. Customizable battery fixtures to accommodate various cell types, including button and pouch cells.
Supports CC/CV/CP charge/discharge modes, with built-in pulse steps (minimum 100ms pulse width) and condition simulation functions, compatible with testing standards for battery cycle life and rate performance.

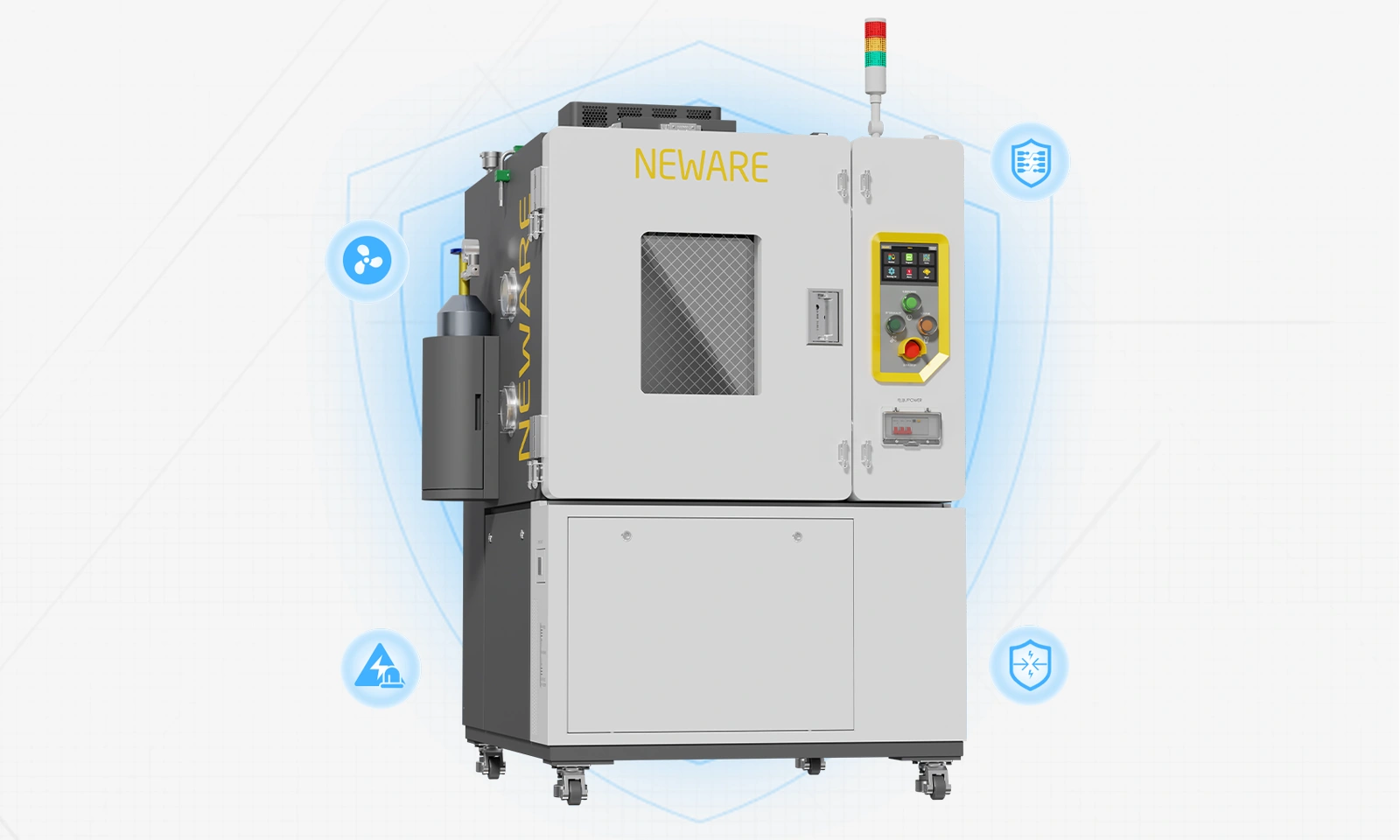

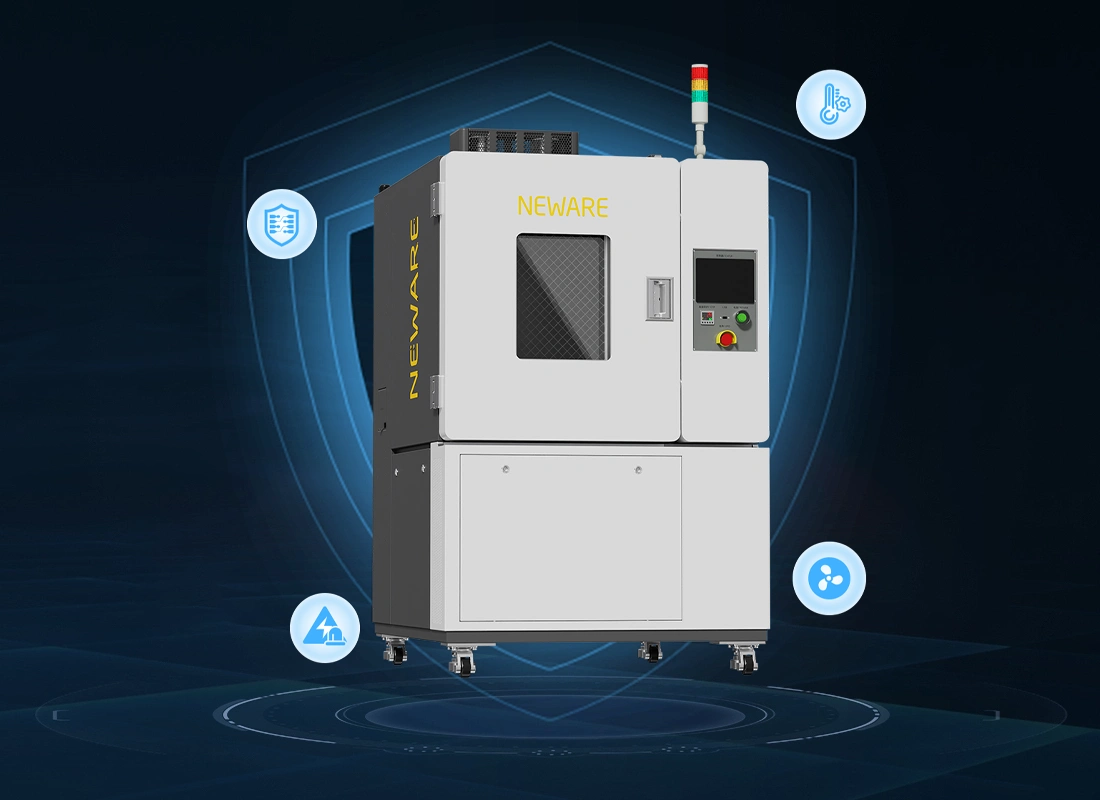

Equipped with independent over-temperature alarms, compressor overload protection, and other emergency mechanisms like power failure recovery and leakage protection to prevent equipment damage.
| Equipment name | 200L High and Low Temperature All-in-One Testing System |
|---|---|
| Model | WGDW-200L-40C-380V-6U |
| Voltage | 5V |
| Current | 100mA/6A/15/30A (Customizable) |
| Current & Voltage Accuracy | ±0.05% F.S. |
| Recording Frequency | 10Hz |
| Current Response Time | ≤1ms |
| Temperature Range | -40°F~302°F (-40℃~150℃) |
| Heating Time | 68°F→302°F ≤60min (20℃→150℃≤60min) |
| Cooling Time | 68°F→-40°F ≤60min (20℃→-40℃≤60min) |
| Temperature Fluctuation | ±0.9°F (±0.5℃) |
| Temperature Deviation | ±3.6°F (±2℃) |
| Nominal Content Volume | 200L |
| Product Dimensions | W43.7"×D53.1"×H74.8" (W1110mm×D1350mm×H1900mm) |
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
