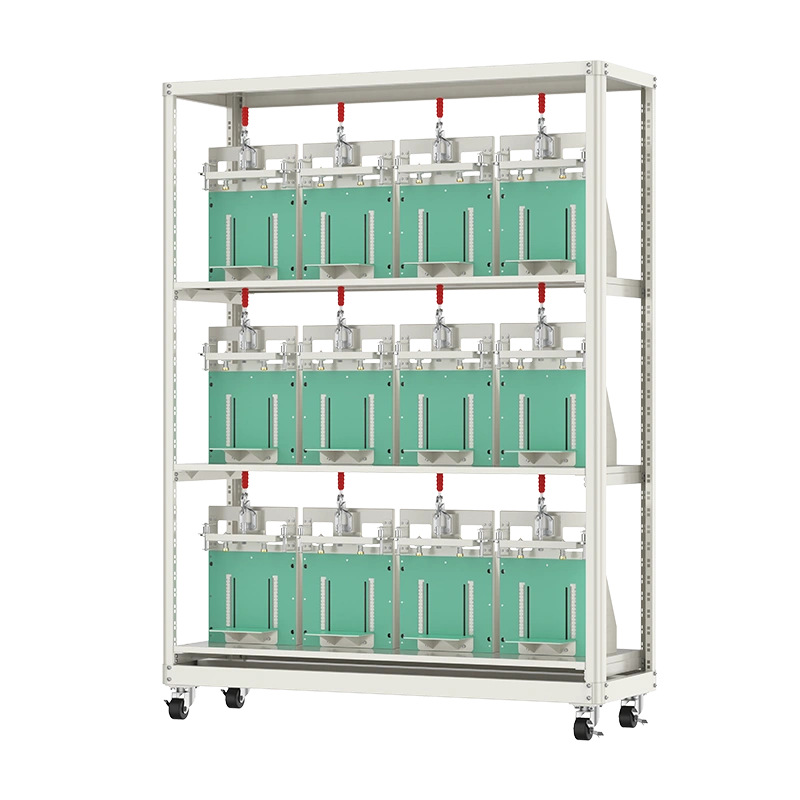

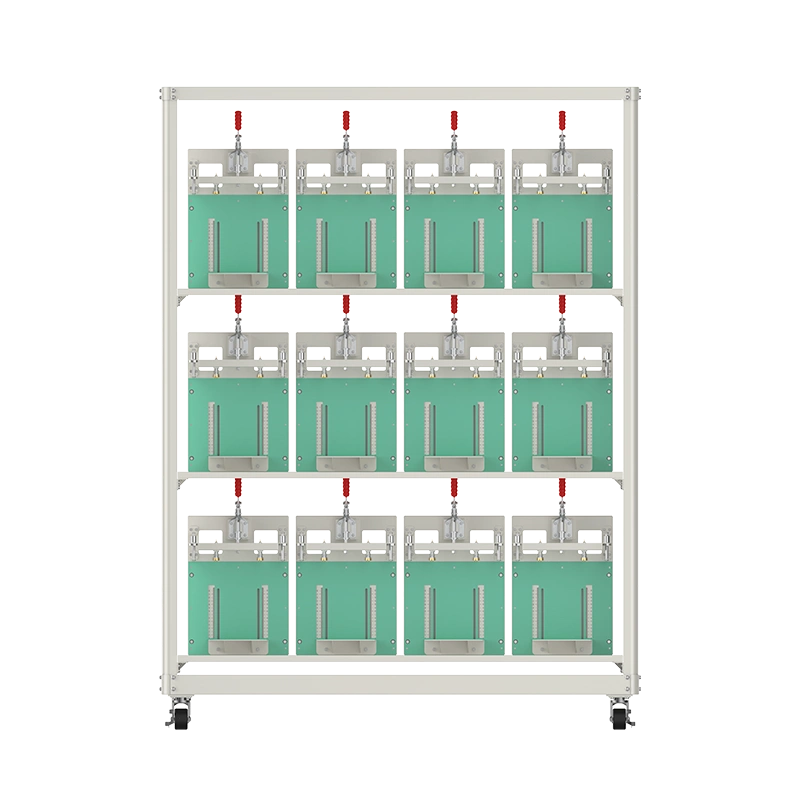

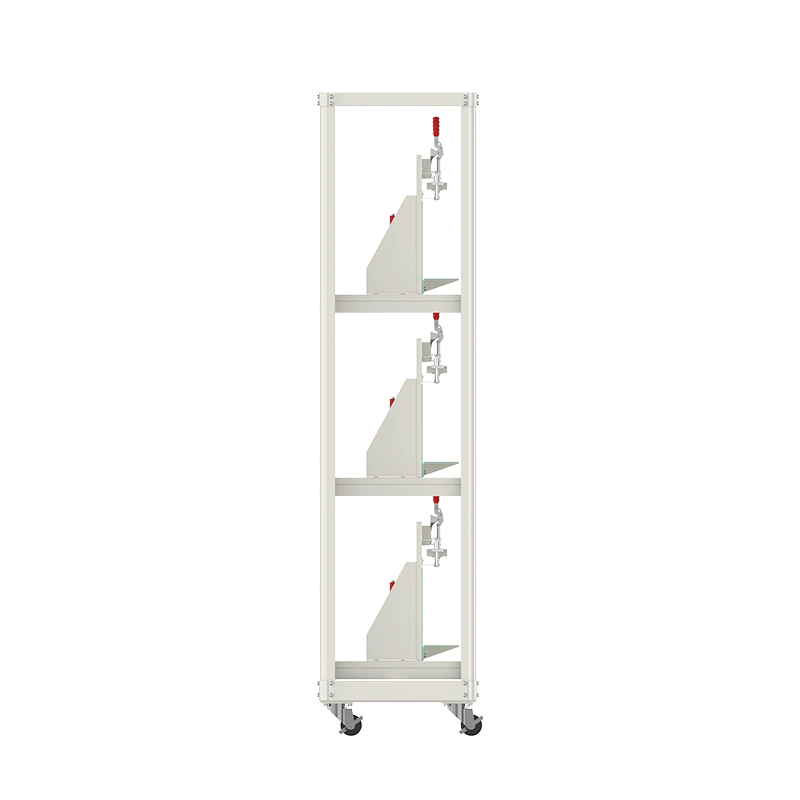

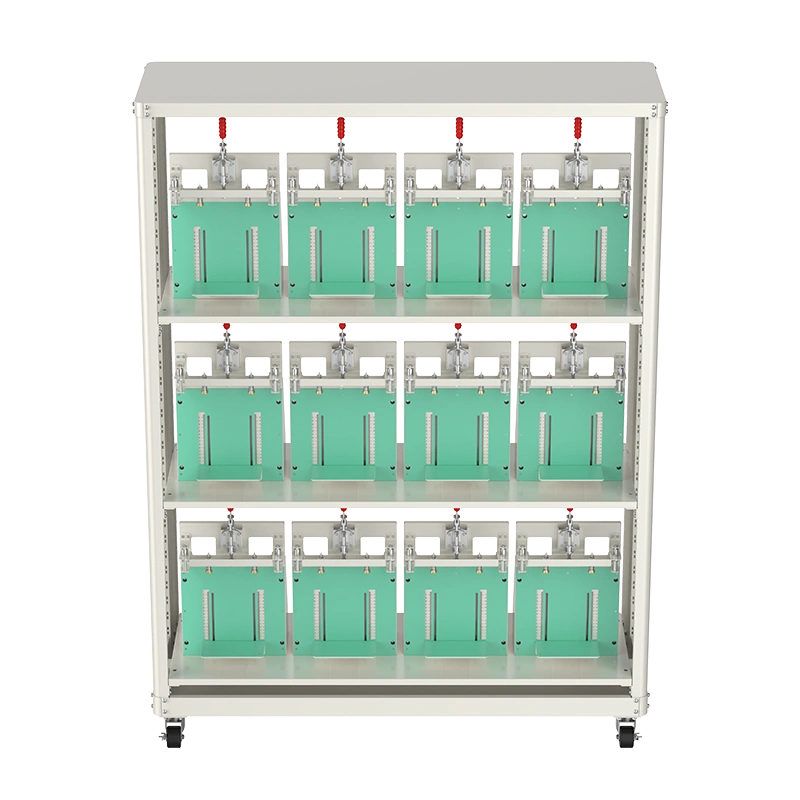

Prismatic battery cells testing rack offers 12 testing channels, adjustable probe spacing with elbow clamps, vertical tray movement for easy adjustment, flexible battery capacity space, and a detachable panel that can be used independently.
Features
Tech Specs
Resources

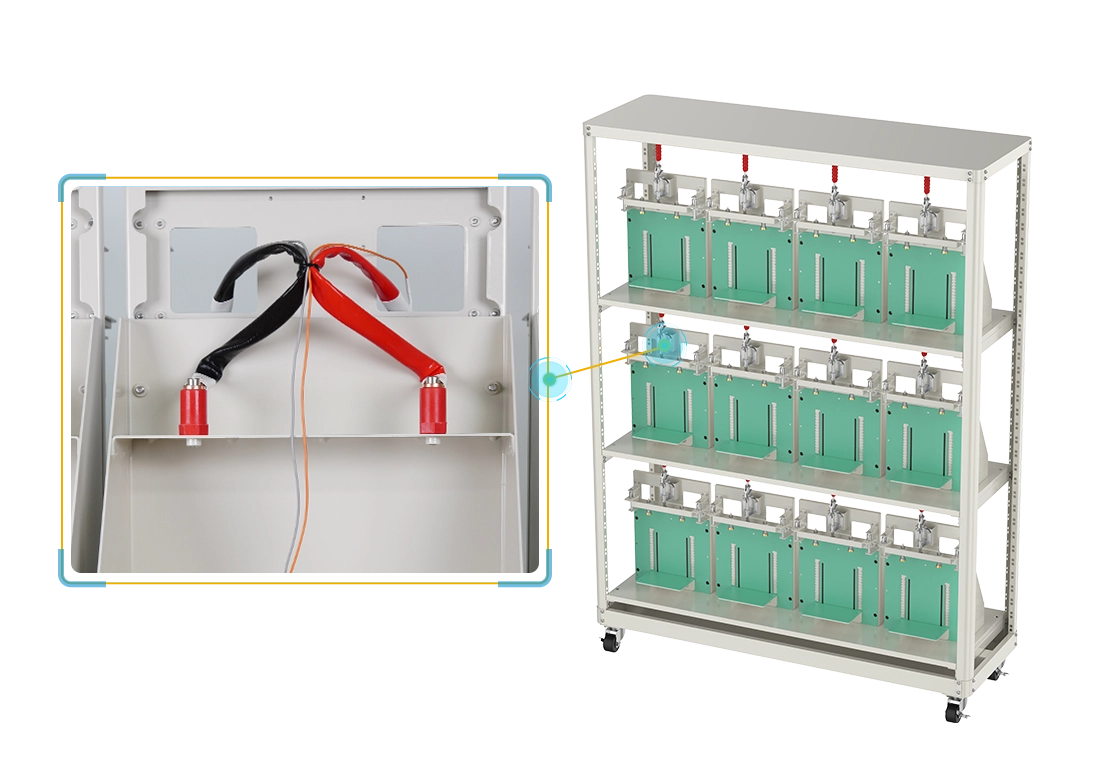

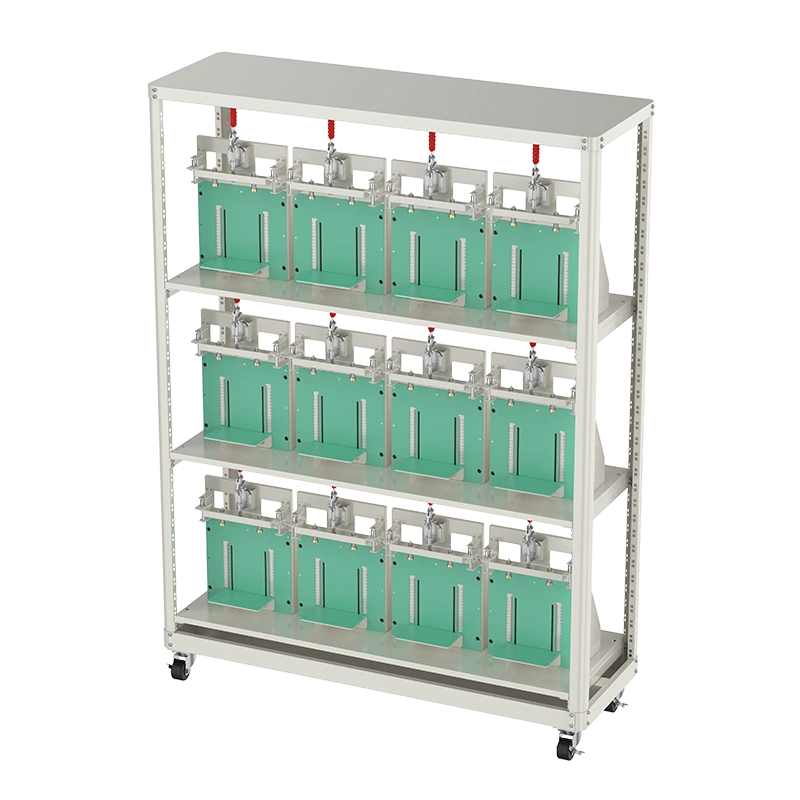

Green insulation coating, safeguarding battery safety.Equipped with bottom swivel wheels for free movement and secured with tight locking fasteners.

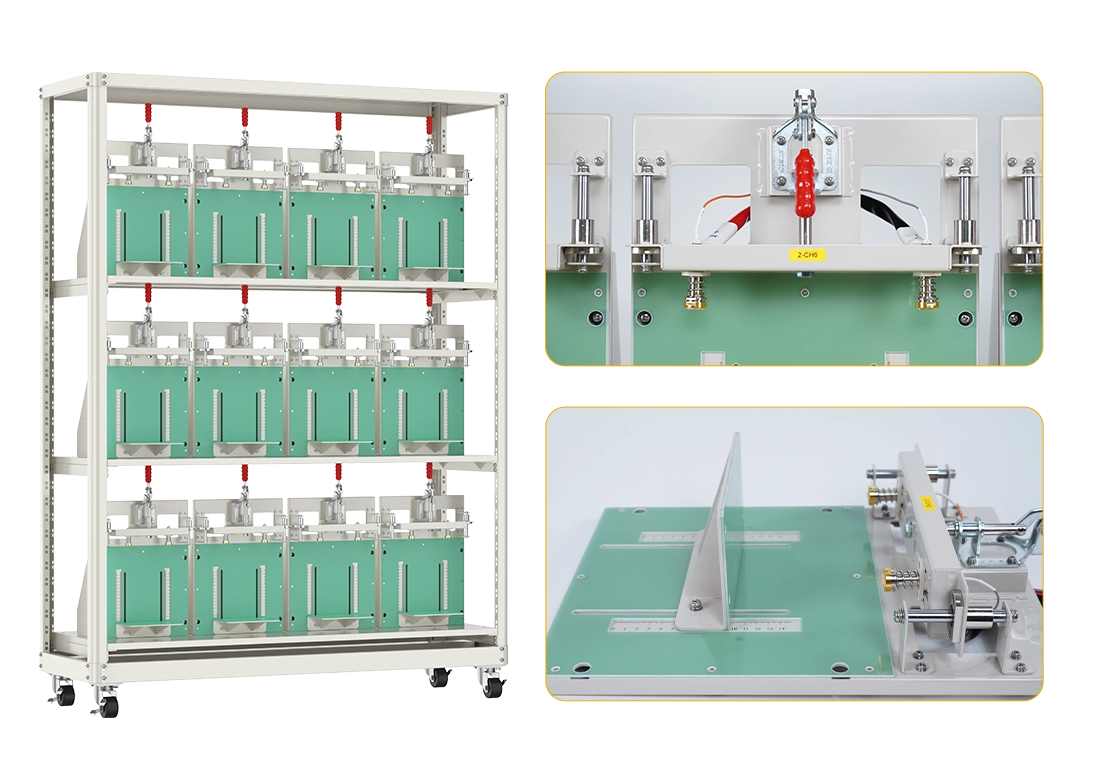

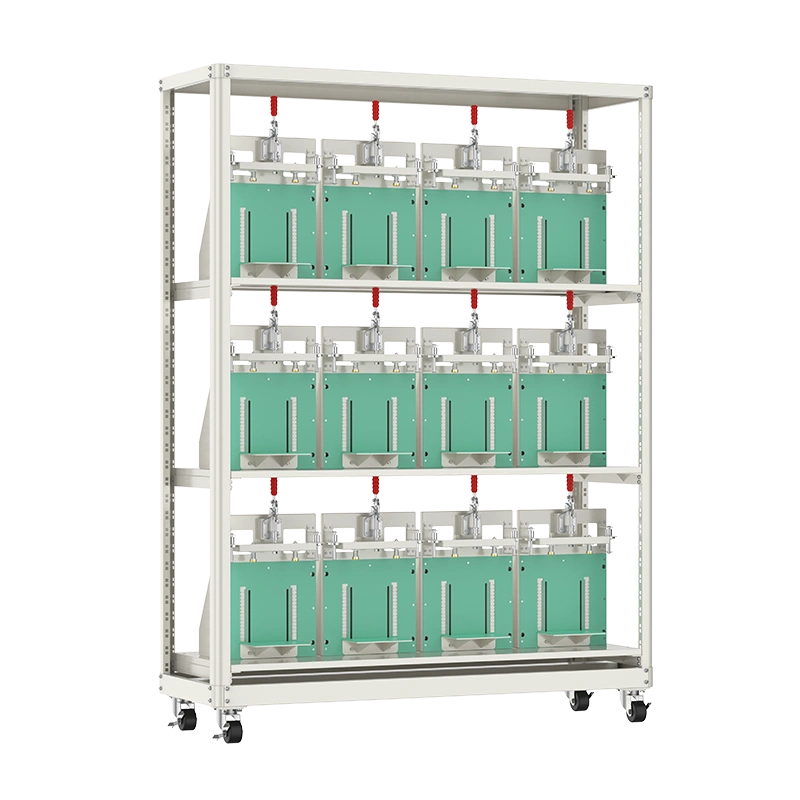

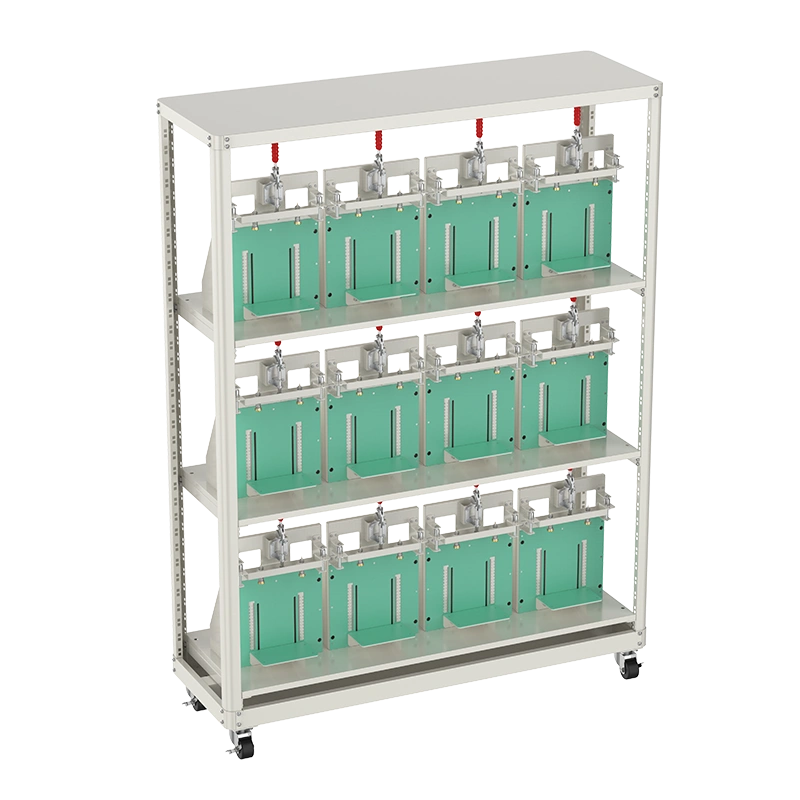

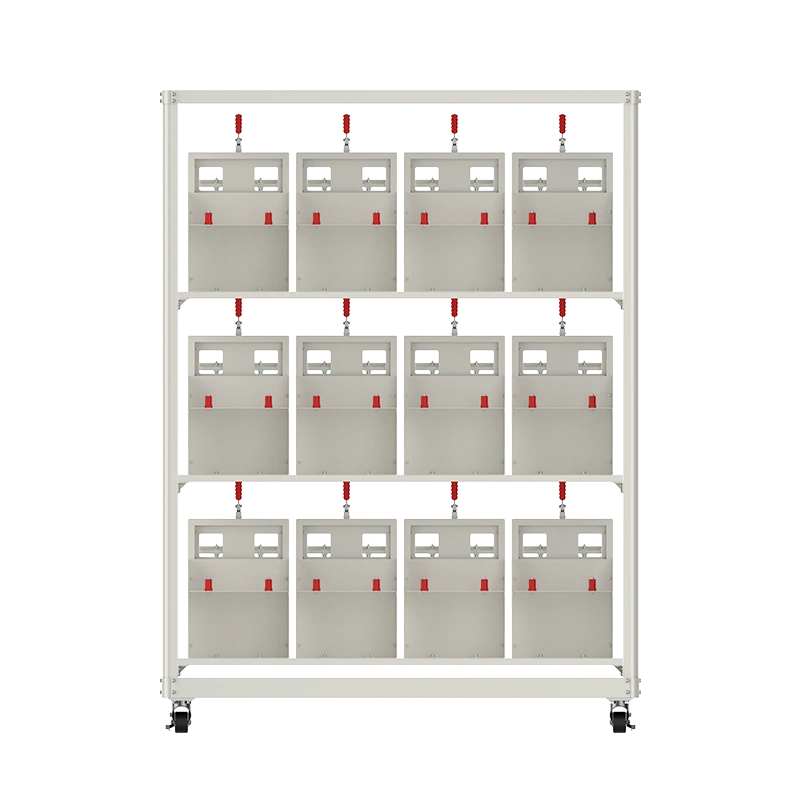

To maximize the fulfillment of various testing needs, the rack offers 12 testing channels, adjustable probe spacing with elbow clamps, vertical tray movement for easy adjustment, flexible battery capacity space, and a detachable panel that can be used independently.

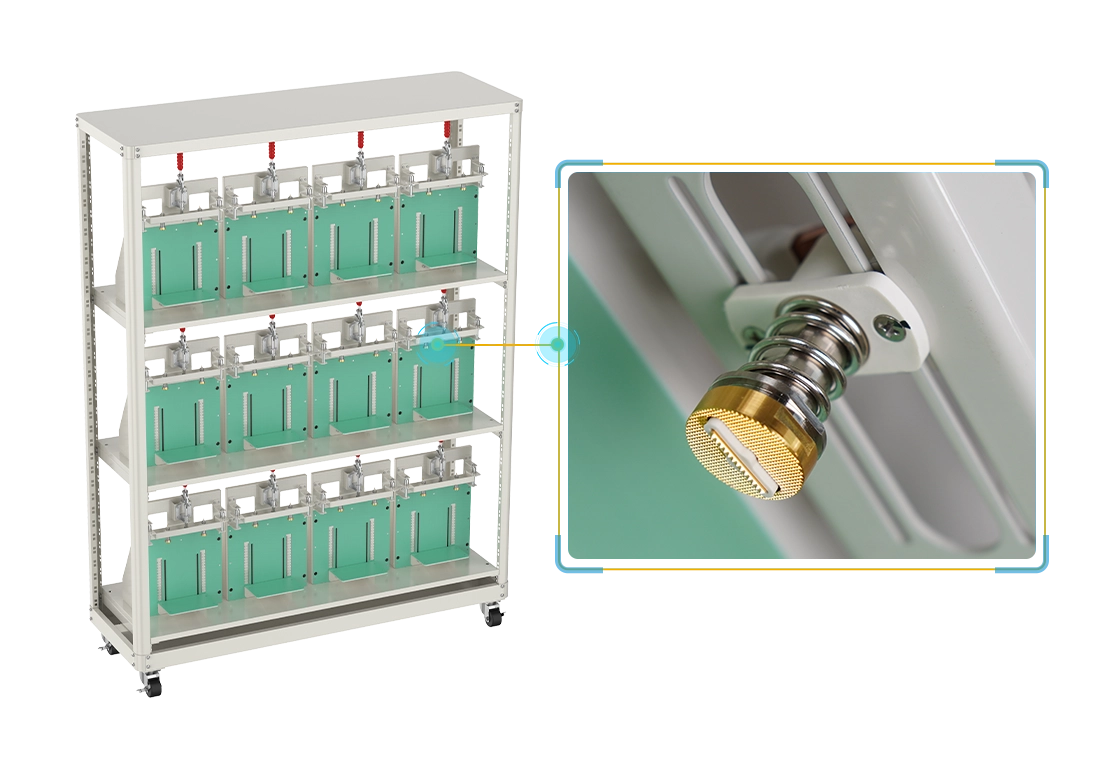

Crafted from beryllium copper, probes are enveloped in a dual-layer plating of nickel and gold, ensuring uniform and smooth coating. This enhances conductivity, guaranteeing stability and reliability for battery testing.
Crafted with black and red dual-color fiberglass silicone sleeves, our design cleverly distinguishes positive and negative pole connections. These sleeves not only possess the characteristics of simplicity and easy maintenance but also withstand high-temperature environments, with a temperature resistance of up to 200°C.
The NEWARE 120A prismatic battery rack is versatile and can be applied in a variety of scenarios, including preliminary R&D of battery performance, quality control, and product certification. It is an ideal choice for battery manufacturers, testing laboratories, and research institutions, particularly in situations where strict battery performance requirements must be met.
| Equipment name | 120A Prismatic Cell Rack |
|---|---|
| Current | 120A |
| Battery Size | Length：3.9"-11.8" (100~300mm)
Width： 0.4"-3.5" (10~90mm) Height：1.4"-8.1" (35~205mm) |
| Tabs Distance | 2.4"-7.9" (60~200mm) |
| Number of Channels | 12 |
| Clamp Size | 11.8"×21.9"
300mm×555mm |
| External Size | 56.5"×18.7"×76.0"
1435mm×474mm×1930mm |
