Single-channel cylindrical battery charging and discharging test in a temperature chamber.
Features
Tech Specs
Resources

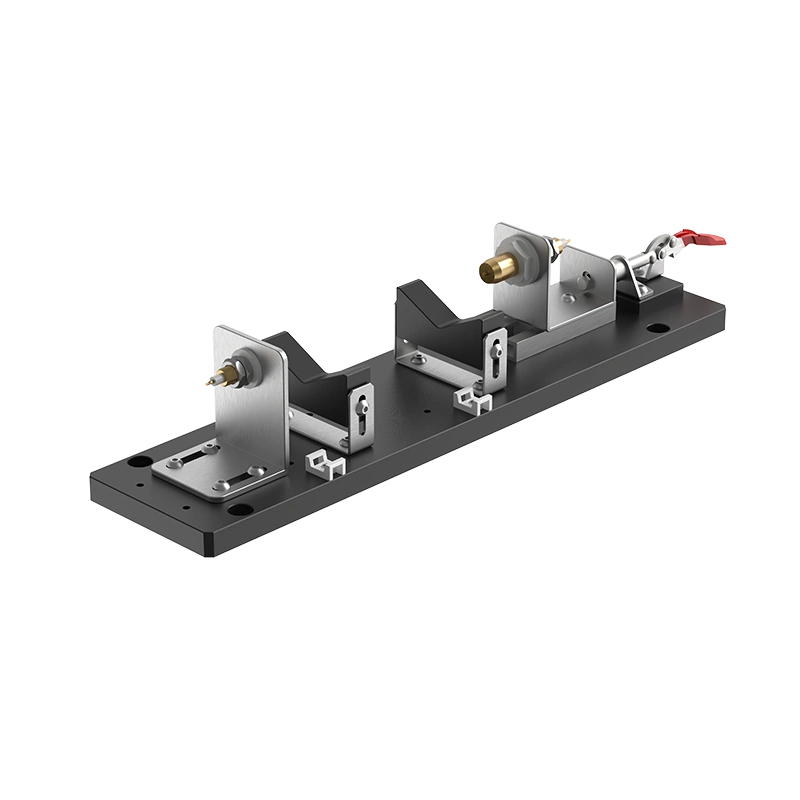

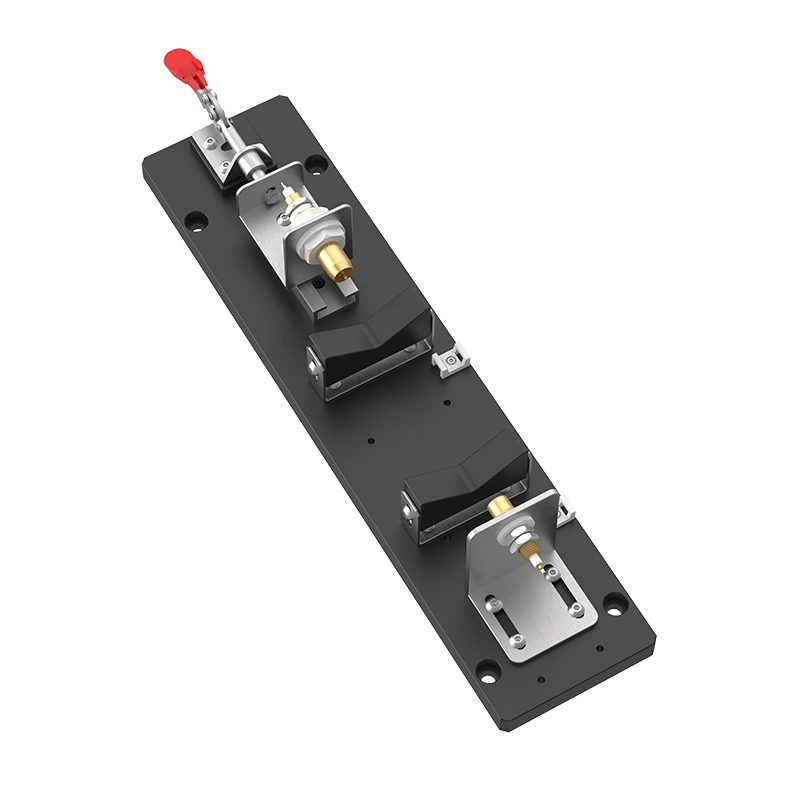

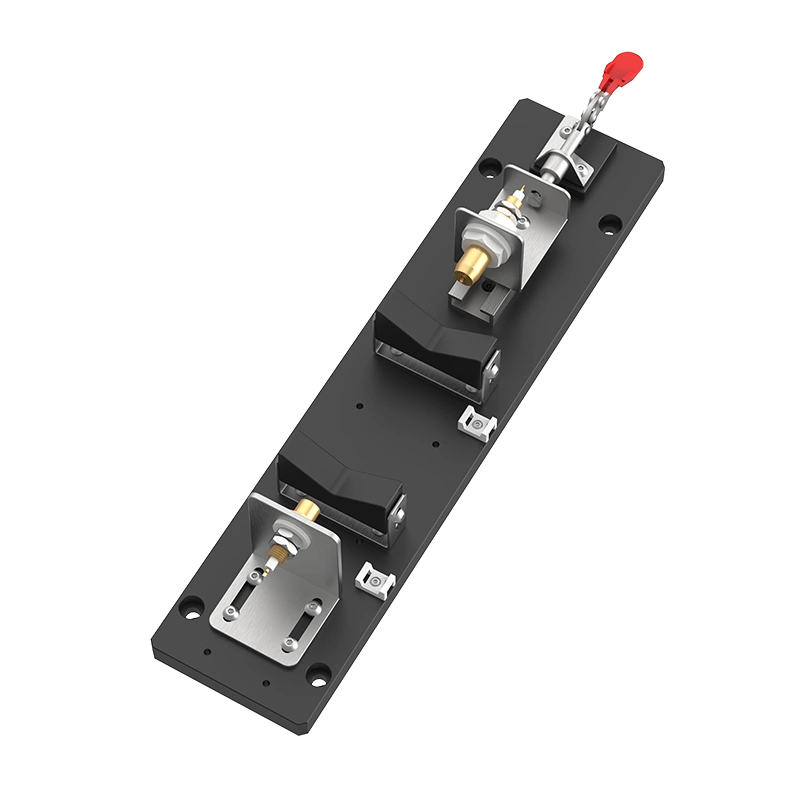

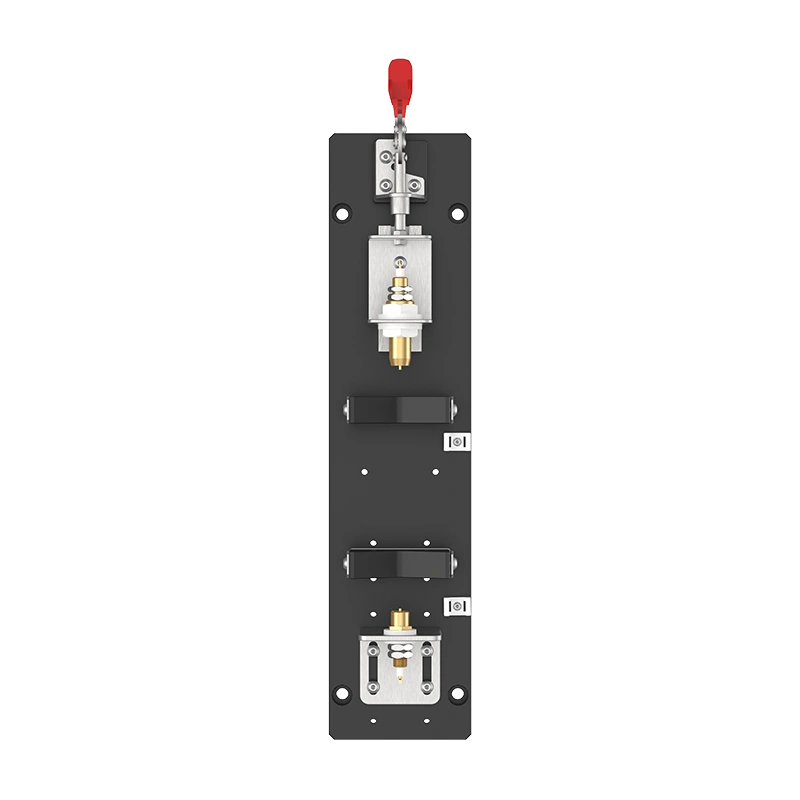

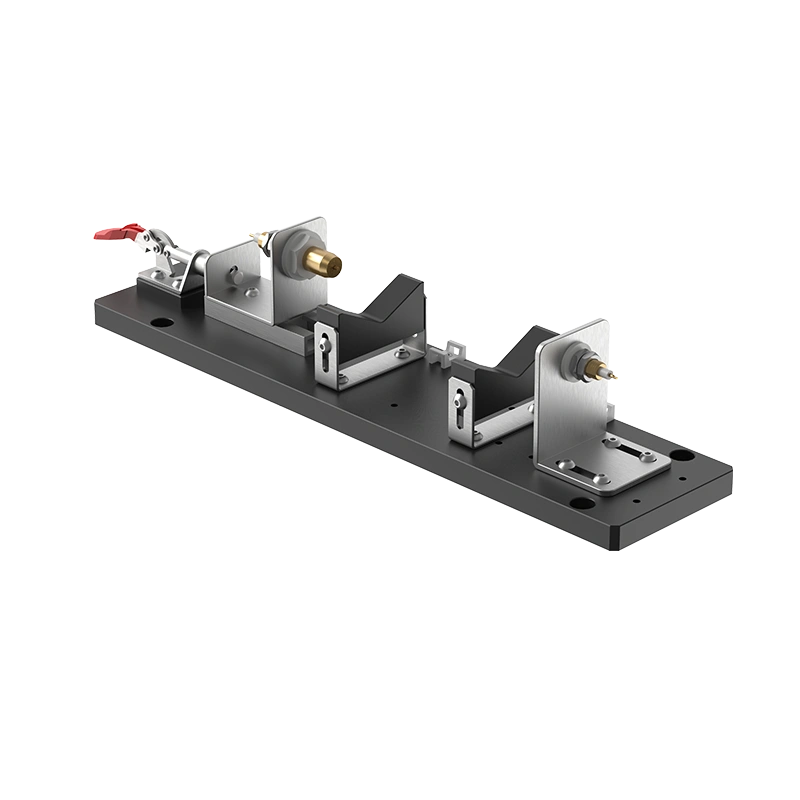

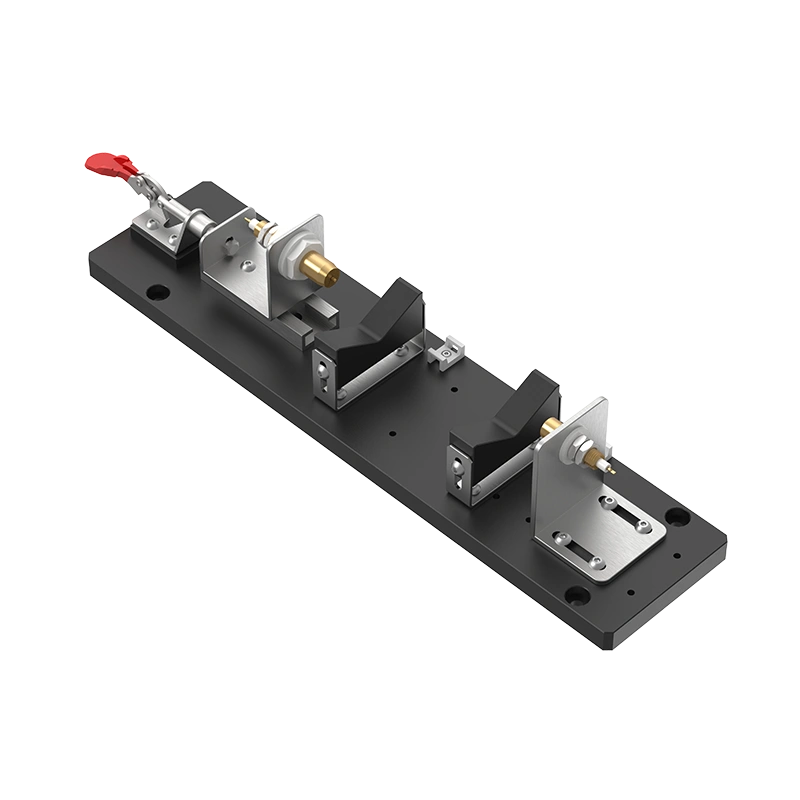

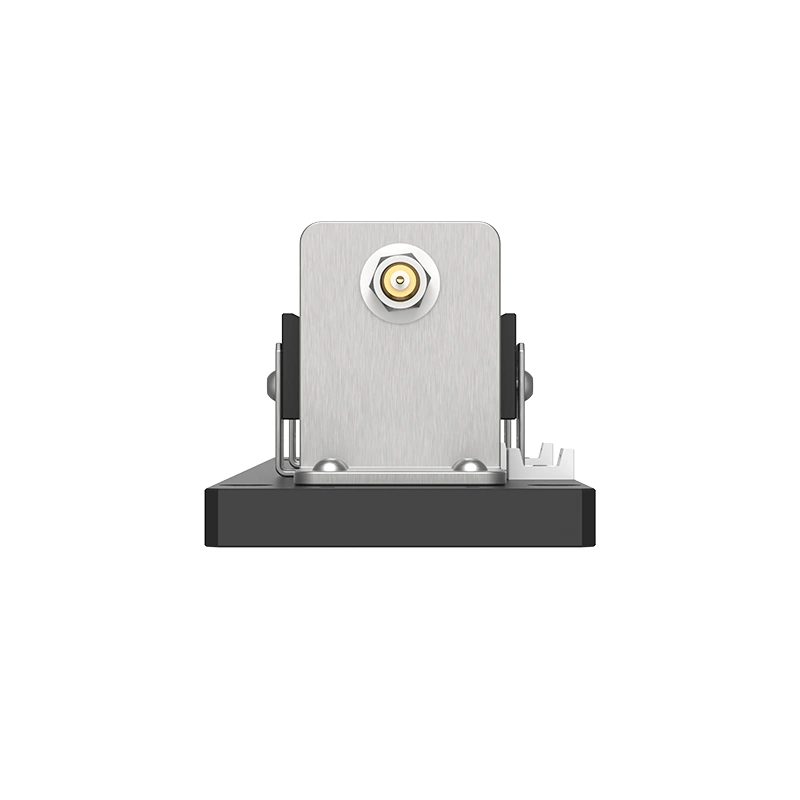

The clamp is designed for 3260/4680 cylindrical battery models, suitable for single-channel charging and discharging tests, measuring capacitance and voltage, and conducting formation and capacity tests. It can also be mounted in a temperature chamber for precise battery temperature performance testing, ensuring an accurate assessment of battery performance and a thorough analysis of chemical properties.

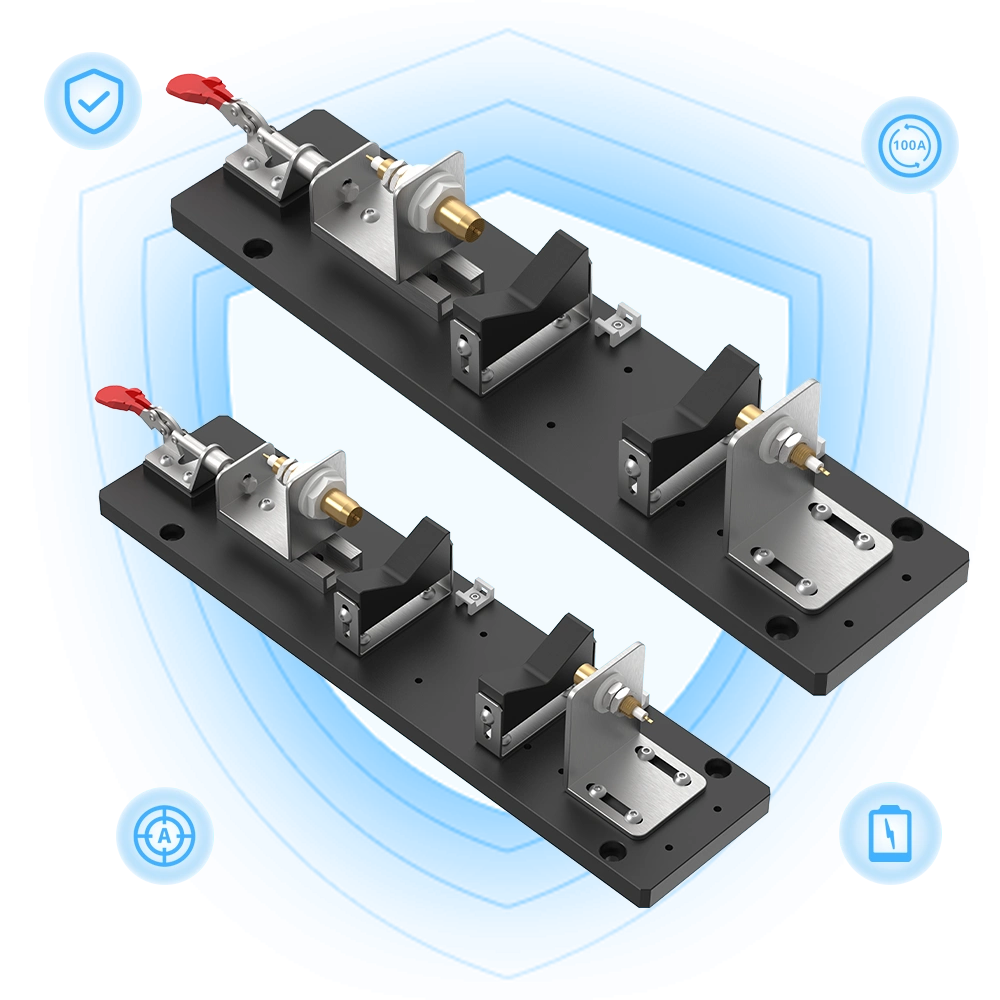

MCJ-YZJ-Y-3260-100A-WX cylindrical battery clamp features an adjustable probe spacing for compatibility with various cylindrical battery sizes, ensuring test applicability. With a current testing range up to 100A, it meets a wide range of testing needs and provides precise data for battery performance evaluation.

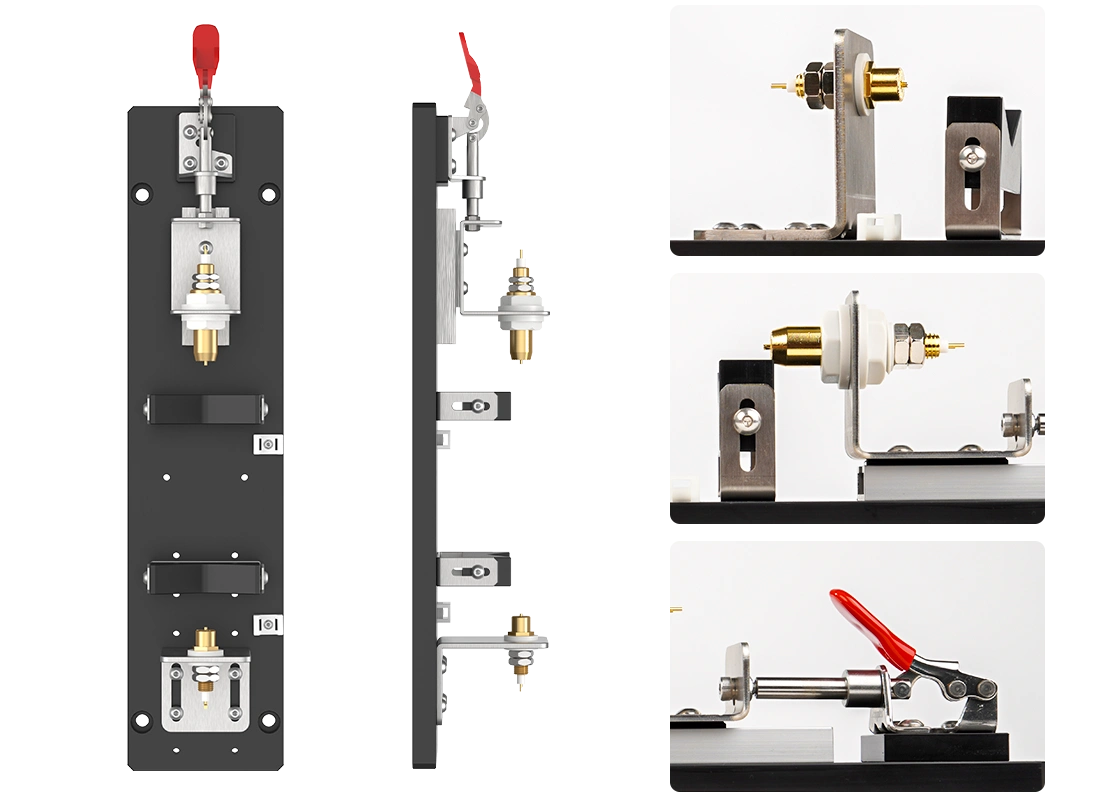

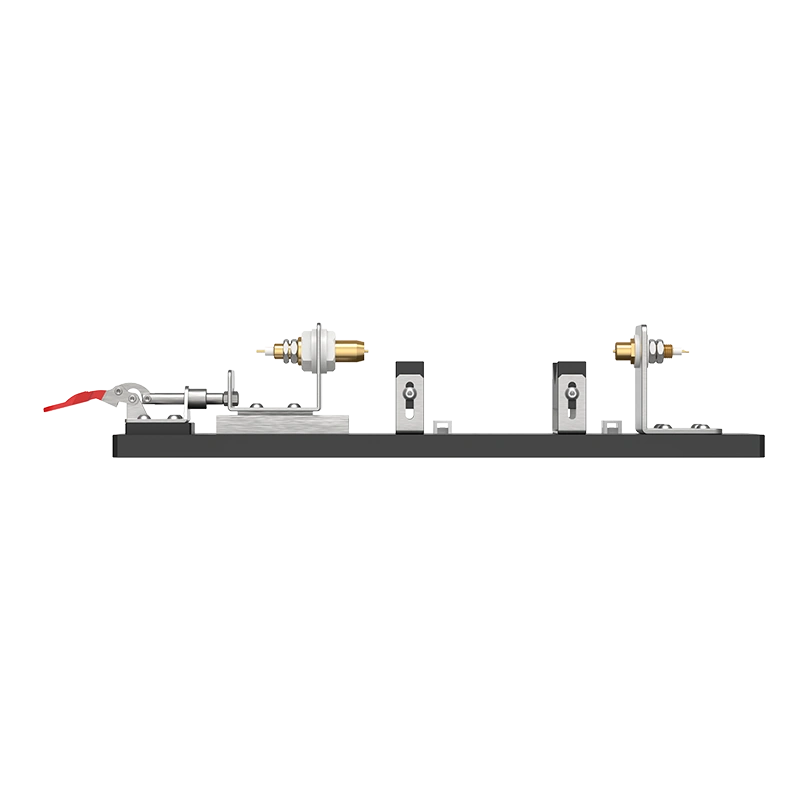

The toggle clamp and intermediate positioning block design allow for quick and easy battery loading and unloading, ensuring a safe and stable testing process. The vertical lifting contact mechanism effectively prevents friction damage to the battery during testing, ensuring precise alignment of contact points and electrical conductivity, resulting in efficient and reliable test outcomes.
| Equipment name | 100A Cylindrical Cell Toggle Clamp |
|---|---|
| Current | 100A |
| Wire Terminal | M8 |
| Battery Size | Length: 2.0"-5.5" (50-140mm)
Diameter: 0.8"-1.9" (21-48mm |
| External Size | 15.4"×3.9"×2.8"
390mm×100mm×72mm |
| Weight | 1kg |
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Volume: 100L
Space for Test System: 5U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min)
Cooling Time: 68°F→-94°F≤75min
(20℃→-70℃≤75min)
Volume: 100L*2
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Volume: 25L
Number of Channels: 32CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F→140°F≤50min
(25℃→60℃≤50min)
Cooling Time: 77°F→59°F≤60min
(25℃→15℃≤60min)
