Cell phone battery testing: advancing battery technology.

Protecting Cell Phone Battery Testing real-time monitoring and cycle life testing

The crossroads of cell phone battery cycle performance and energy density

Energy density limitation: it is difficult to balance between battery capacity and volume, and the user's requirement for long battery life is limited with the development of capacity enhancement technology;
Charging speed and safety: fast charging technology improves the charging speed of cell phones and optimizes user experience, but it also triggers heat and safety issues, and poses new challenges to battery life and thermal management;
Cycle life and stability: as a long-term investment in consumables, users are paying more and more attention to the cycle life and stability of cell phone batteries.

Efficient assessment of battery performance optimization process: real-time monitoring and cycle life testing

High accuracy: accurately measuring the capacity of a battery helps researchers balance the relationship between battery capacity and volume, ensuring that battery designs do not lose volumetric efficiency when increasing capacity.
Real-time monitoring: Simulates the impact of fast charging technology on battery charging speed and safety. temperature changes and voltage fluctuations during charging are monitored in real-time to assess the impact of fast-charging technology on battery life and safety, thus providing optimization recommendations.
Cycle life test: high-precision cycle charge/discharge test can be performed to evaluate the cycle life and stability of the battery. By simulating the charge/discharge cycles under real use conditions, it evaluates the performance changes of the battery in long-term use and helps researchers to optimize the battery materials and design to improve the cycle life and stability.

Protecting cell phone battery testing
to international standards

IEC 62133: The International Electrotechnical Commission (IEC) issued a battery safety standard for secondary batteries used in portable applications, including cell phone batteries. The standard covers the safety performance, test methods and requirements for batteries.

EC 61960: Covers the characteristics, performance and test methods for lithium-ion battery packs used in portable applications. While the primary focus is on high capacity batteries such as power tools and electric vehicles, some aspects of cell phone batteries are also applicable.

UN 38.3: The United Nations Transportation Test Manual specifies the test requirements to be met by lithium batteries and their products during transportation, including tests on the electrochemical performance, safety and resistance of the batteries.

ISO 18650: Lithium-ion battery standards issued by the International Organization for Standardization (ISO) for assessing the quality, performance and safety of batteries for a wide range of portable electronic devices, including cell phones.

Protecting Cell Phone Battery Testing to International Standards
NEWARE battery test equipment CT-4008Q-5V6A-S1
NEWARE battery test equipment CT-4008Q-5V6A-S1

Standard Testing

CT/CE-4/8000(3C)

NEWARE's 4/8 series of battery testing systems, with precise current control and measurement technology, provides a comprehensive solution for the performance evaluation of cell phone batteries. Through multi-functional tests such as charge and discharge testing and pulse testing, it helps to enhance battery endurance, optimize fast charging technology, and enhance the safety and stability of the battery. At the same time, it supports in-depth data analysis, providing a scientific basis for battery health management and life prediction.


● Multi-functional testing: integrating various testing modes to adapt to a comprehensive assessment of cell phone battery performance, providing a complete testing solution.

● High-precision measurement: using advanced measurement technology to accurately control and monitor current and voltage, meeting the high standards of battery testing requirements.

● Flexible testing configuration: supporting testing protocols for various types of batteries, adapting to the testing needs of batteries of different sizes and specifications.

● User-friendly: an intuitive operation interface and data processing software simplify the testing process and improve the efficiency of research work.

● Data recording and analysis: detailed data recording functions help to deeply analyze battery performance and achieve long-term performance tracking research on mobile phone batteries.

· Instruments

· Accessories

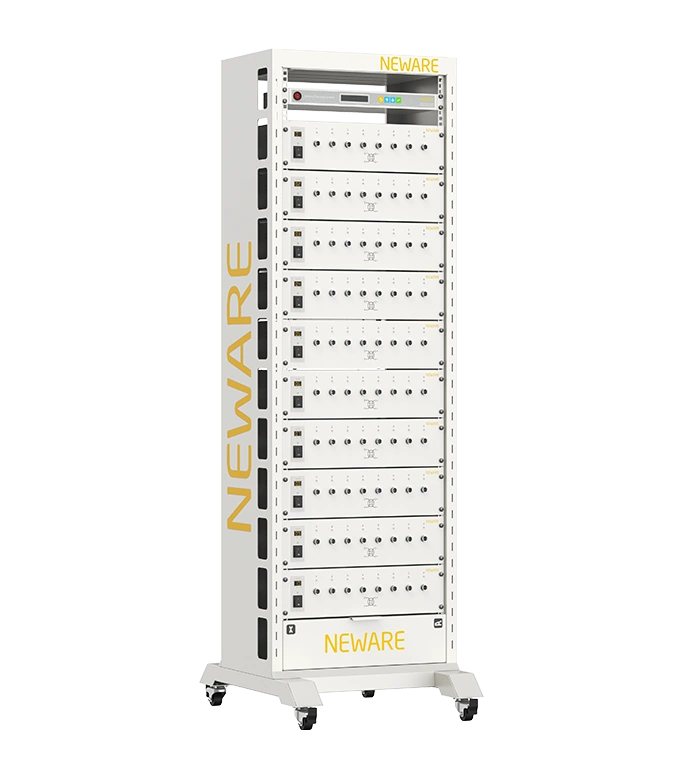

neware cell test  equipment CT-4008Q-5V6A-s1

CT-4008Q-5V6A-S1 *

CT-4000 Battery Testing System

● Voltage & Current Accuracy:±0.02% F.S.

● Recording Frequency:10Hz

● Sampling Time:100ms

● Current Response Time:≤1.5ms

● Minimum Pulse Width:500ms

● Off-Line Test:1GB

Read More
neware cell test  equipment CT-4008Q-5V6A-s1

CT-4008Q-5V6A-164 *

CT-4000 Battery Testing System

● Voltage & Current Accuracy:±0.02% F.S.

● Recording Frequency:10Hz

● Sampling Time:100ms

● Current Response Time:≤1.5ms

● Minimum Pulse Width:500ms

● Off-Line Test:1GB

Read More
NEWARE battery test equipment ct9000
NEWARE battery test equipment ct9000

Ultra-High Precision Testing

CT/CE-5000(mA/3C)

CT-9000

Developed specifically for high-precision testing requirements, Sunvic products provide accurate and reliable test data, meeting the diverse charging and discharging testing needs of mobile phone batteries. The multi-range design ensures the precision of the tests, while the SMBUS battery communication function enables real-time monitoring and analysis of data, which is crucial for optimizing mobile phone battery design, enhancing energy density, and cycle stability.


● High compatibility: suitable for different types of mobile phone batteries, including pouch and cylindrical batteries, offering a wide range of testing applicability.

 Precise internal resistance measurement: DCIR testing accurately measures the battery's internal resistance, providing key indicators for assessing the battery's health status and degree of aging.

 Multidimensional testing: combining various testing methods to comprehensively evaluate battery performance, providing data support for battery optimization and improvement.

 SMBus communication: real-time monitoring of battery status, providing instant information for the performance analysis and condition monitoring of mobile phone batteries, helping to address issues such as short battery life and fast charging efficiency.

· Instruments

· Accessories

NEWARE-Battery Tester
CT-9000 Battery Testing System
CT-9002-5V6A-F-204n

CT-9002-5V6A-F-204n *

CT-9000 Battery Testing System

● Voltage & Current Accuracy:±0.02% F.S.

● Voltage & Current Stability:±0.01% F.S.

● Recording Frequency:1000Hz

● Resolution AD:16bit

● Current Response Time:≤100μs

● Off-Line Test: 1GB

Read More
NEWARE-Battery Tester
CT-9000 Battery Testing System

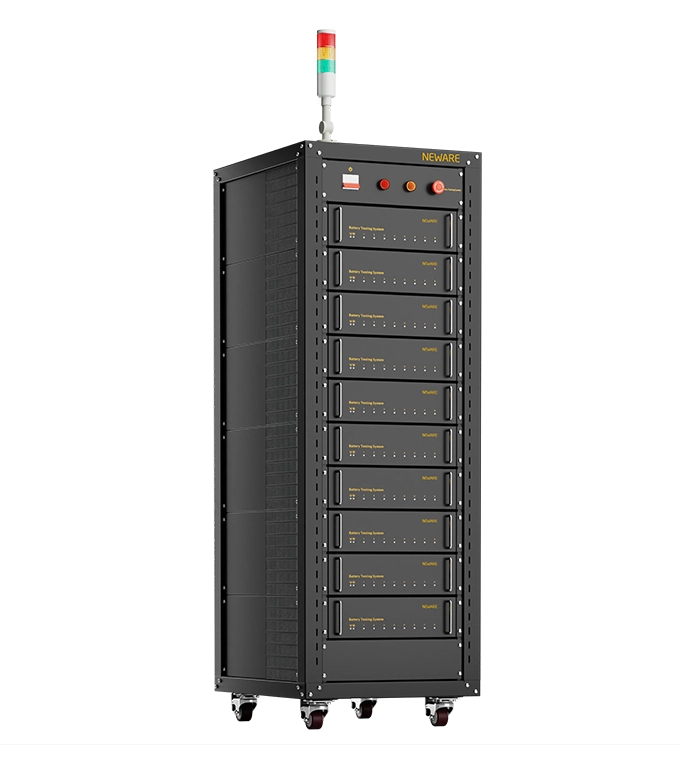

CT-9000-5V5A

CT-9000-5V5A *

CT-9000 Battery Testing System

● Voltage & Current Accuracy:±0.02% F.S.

● Recording Frequency:1000Hz

● Resolution AD:16bit

● Current Response Time:≤100μs

● Minimum Pulse Width:400μs

● Off-Line Test:1GB

Read More
NEWARE-Battery Tester
CT-5000 Battery Testing System
CT-5080-5V6A

CT-5080-5V6A *

CT-5000 Battery Testing System

● Voltage & Current Accuracy:±0.02% F.S.

● Recording Frequency:100Hz

● Resolution Ratio AD/DA:16bit

● Current Response Time:≤2ms

● Single-Cycle Operation Count:255 cycles

● Off-Line Test:1GB/CH

Read More
NEWARE battery test equipment WHW-500L-5V6A80CH-380V
NEWARE battery test equipment WHW-500L-5V6A80CH-380V

Integrated Temperature Control Testing

All-in-One Testing System

Incorporating charge and discharge testing with the functions of a constant temperature chamber or high/low-temperature test chamber, Sunvic offers an integrated battery testing solution specifically designed for comprehensive performance evaluation of mobile phone batteries under various temperature conditions.


● Integrated Design: the integration of charge and discharge testing with temperature control functions simplifies the testing process and reduces the complexity of wiring, providing a streamlined and efficient environment for mobile phone battery testing.

 Temperature Control: precise control of the test temperature simulates the performance of mobile phone batteries in specific environments, assessing their environmental adaptability and reliability.

 Cycle Life Assessment: testing batteries under different temperature cycling conditions evaluates their cycle life and understanding the impact of temperature on battery aging.

 Safety Performance Testing: testing batteries in extreme high and low-temperature environments reveals potential safety risks, providing data support for improving the safety design of mobile phone batteries.

· Instruments

· Accessories

NEWARE battery test equipment WHW-500L-5V6A80CH-380V

WHW-500L-5V6A80CH-380V *

3C All-in-One Testing System

● Voltage & Current Accuracy:±0.05% F.S.

● Recording Frequency:100Hz

● Number of Channels:80CH

● Temperature Range & Deviation:50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)

● Heating Efficiency:77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)

● Cooling Efficiency:77℉ ~ 50℉≤40min(25℃~10 ℃)

Read More
