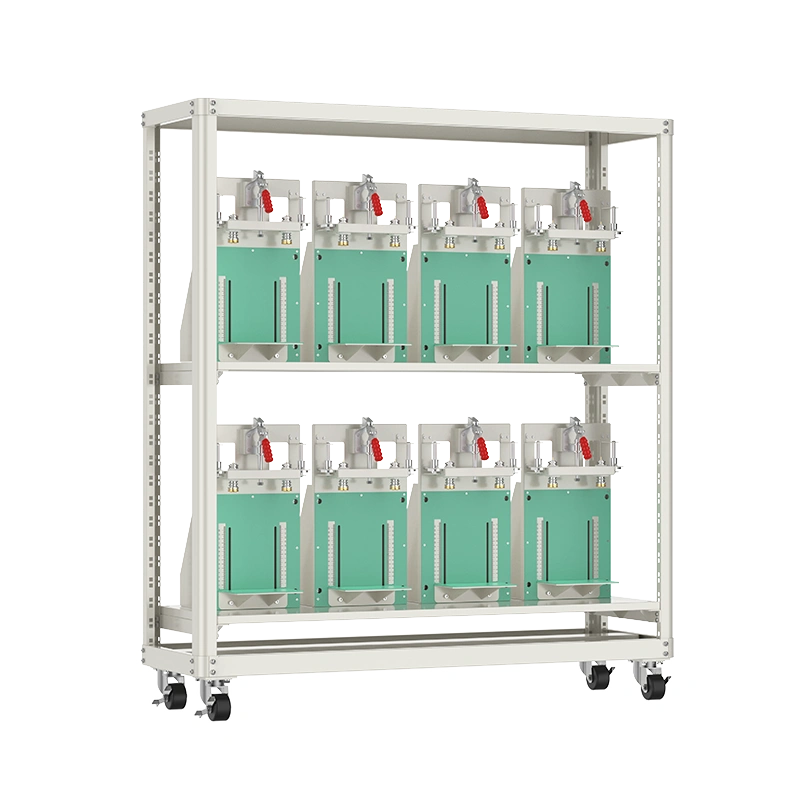

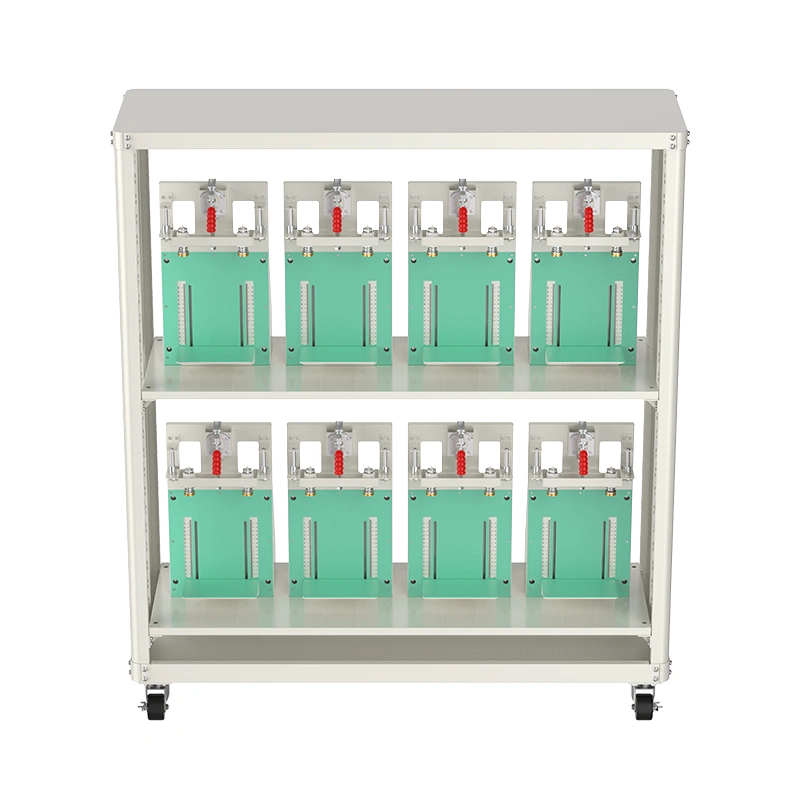

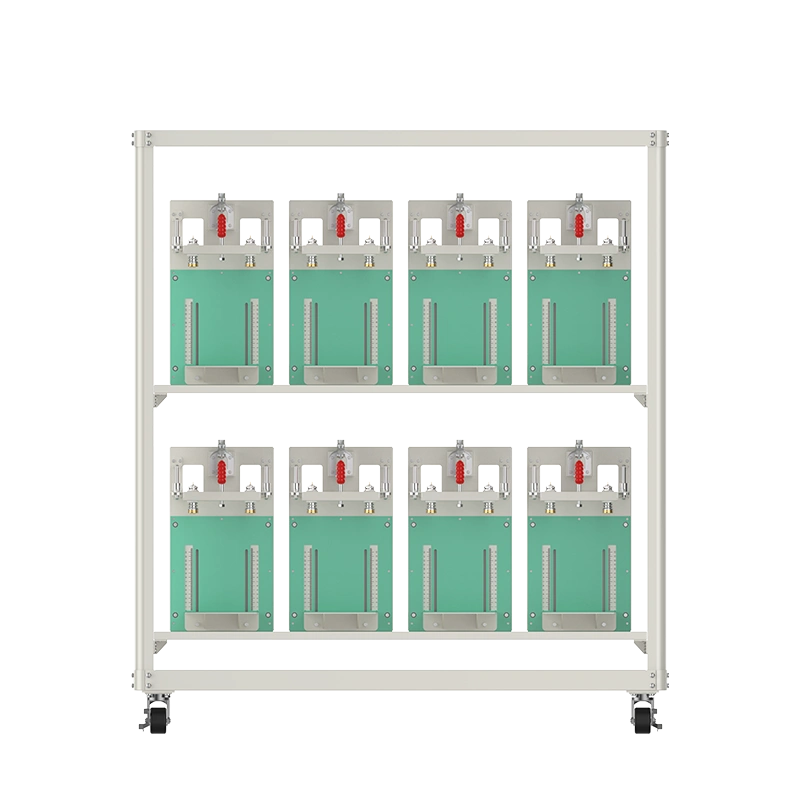

Prismatic cells testing rack offers 12 testing channels, adjustable probe spacing with toggle clamps, vertical tray movement for easy adjustment, flexible battery capacity space, and a detachable panel that can be used independently.
Features
Tech Specs
Resources

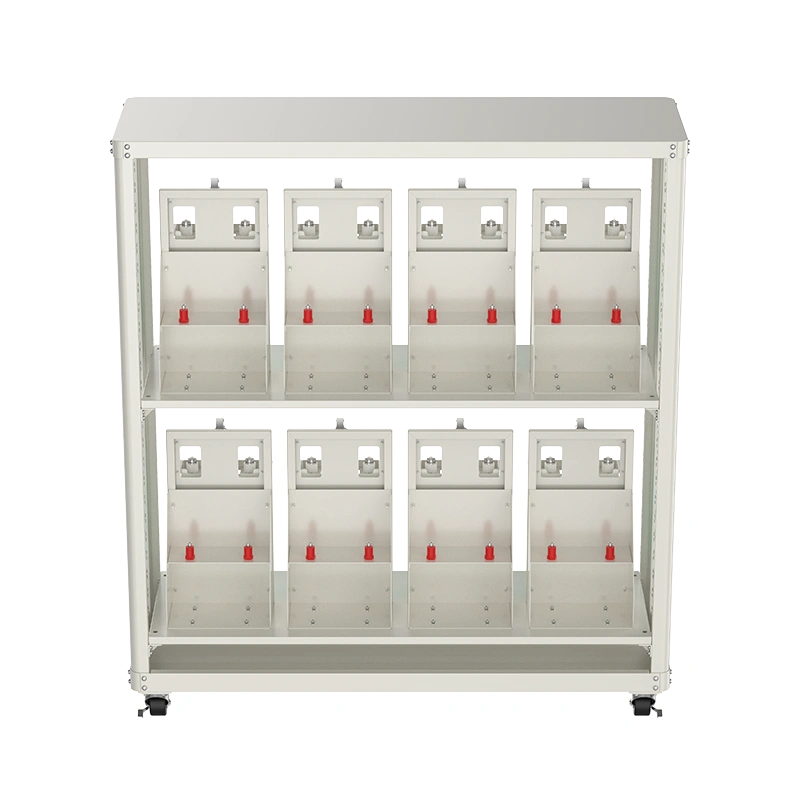

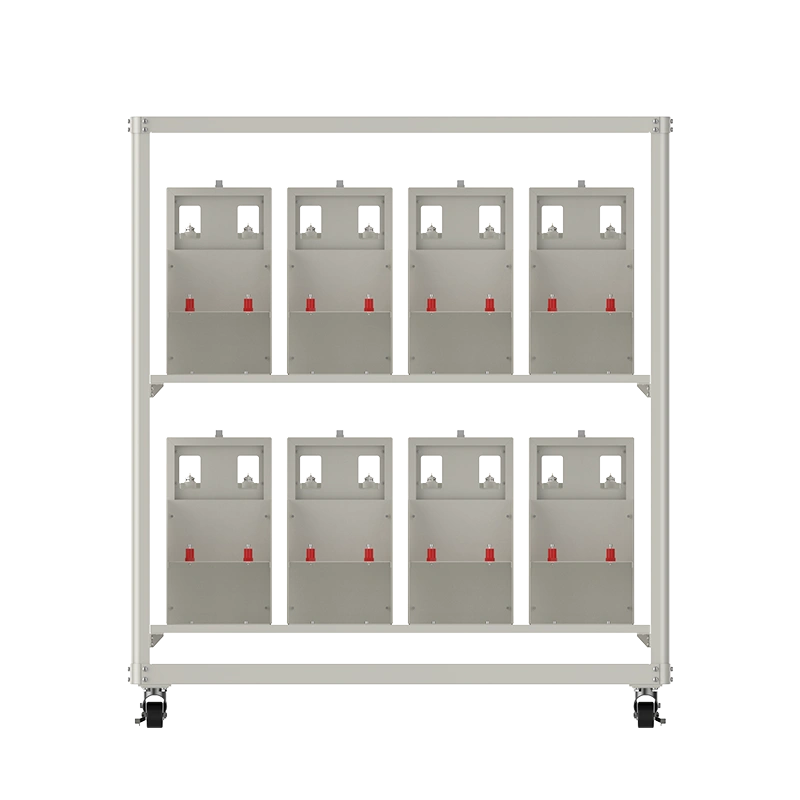

Crafted with black and red dual-color fiberglass silicone sleeves, our design cleverly distinguishes positive and negative pole connections. These sleeves not only possess the characteristics of simplicity and easy maintenance but also withstand high-temperature environments, with a temperature resistance of up to 200°C.

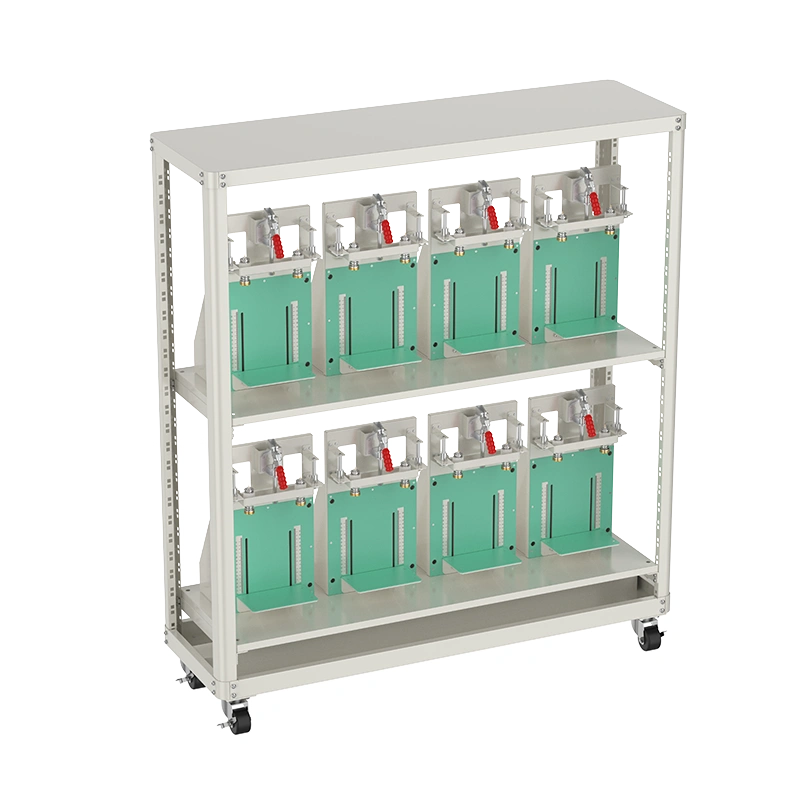

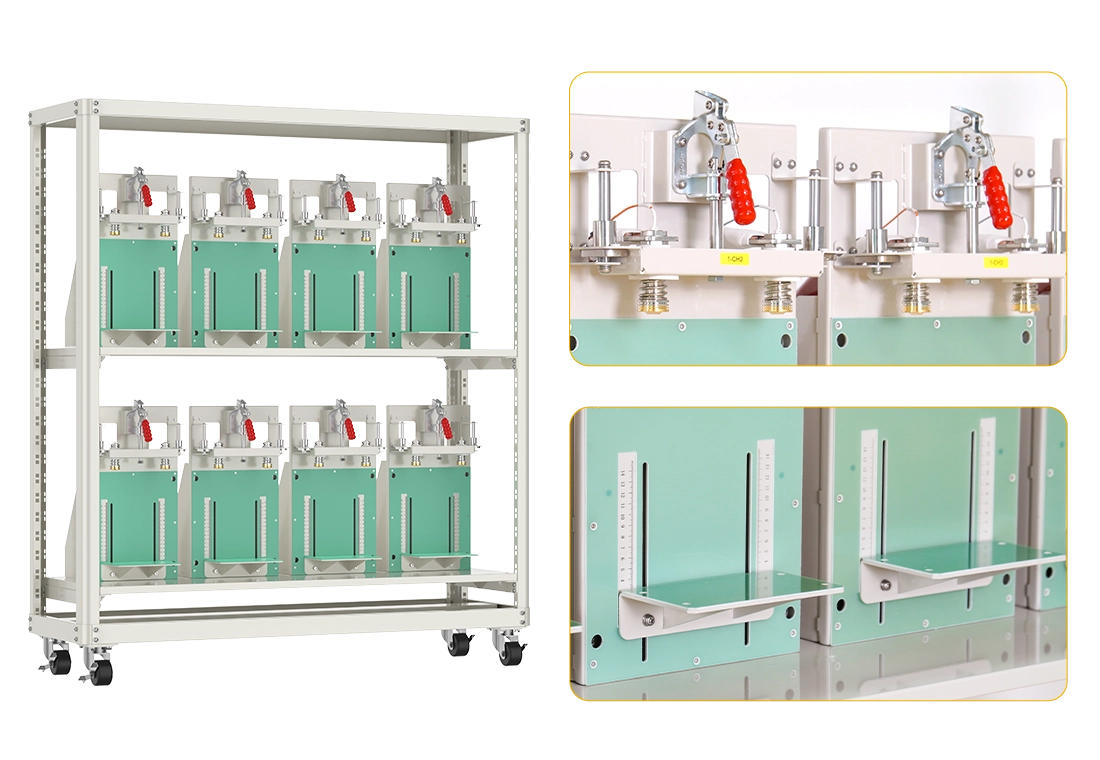

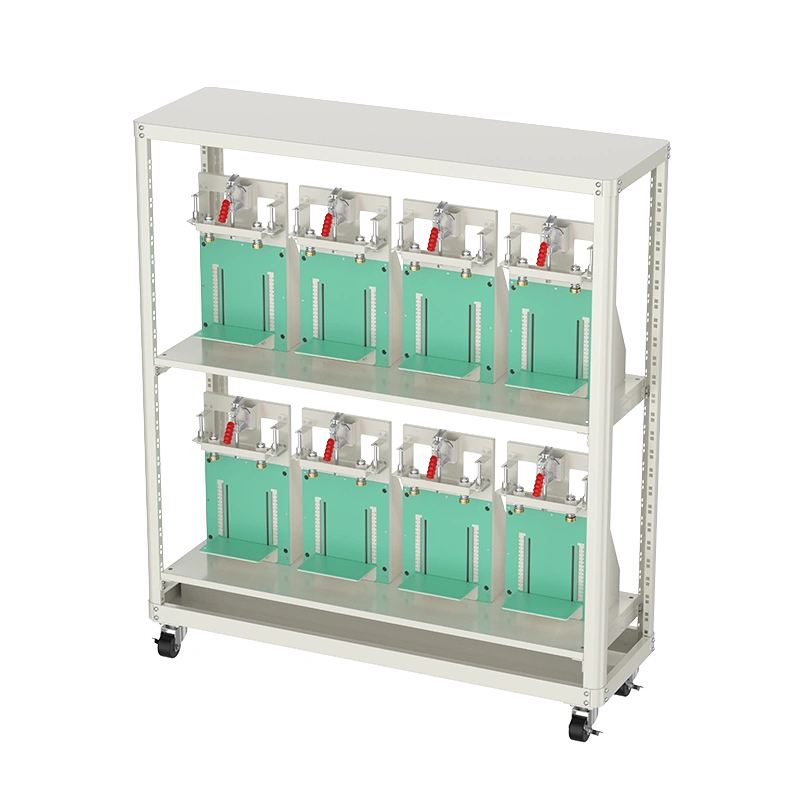

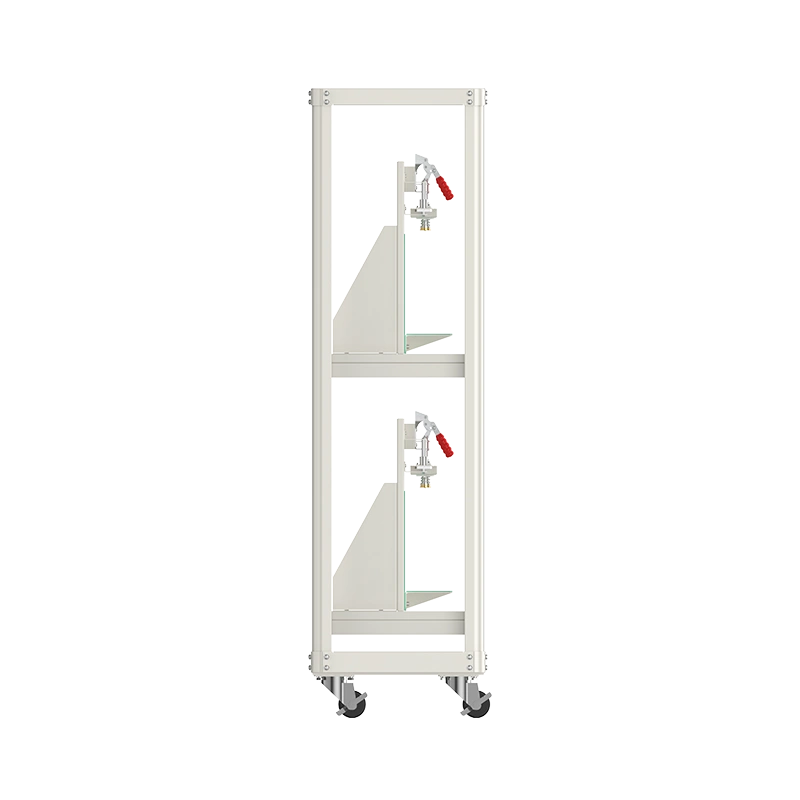

To maximize the fulfillment of various testing needs, the rack offers 12 testing channels, adjustable probe spacing with toggle clamps, vertical tray movement for easy adjustment, flexible battery capacity space, and a detachable panel that can be used independently.

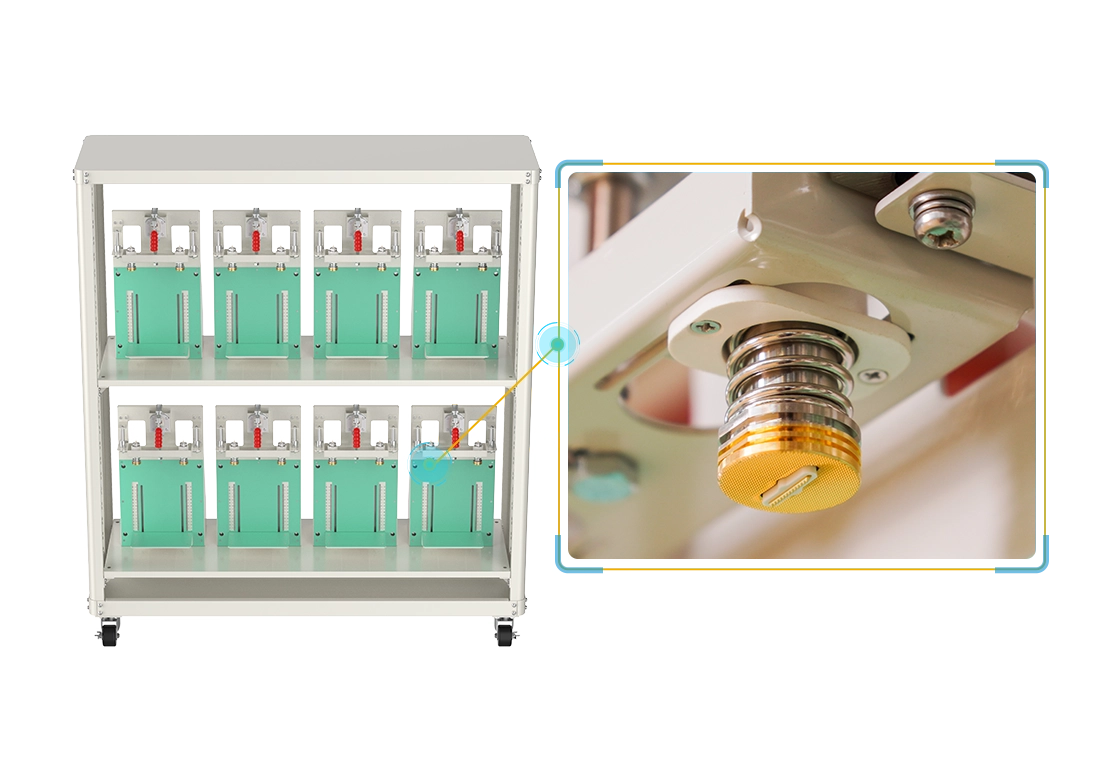

Crafted from beryllium copper, probes are enveloped in a dual-layer plating of nickel and gold, ensuring uniform and smooth coating. This enhances conductivity, guaranteeing stability and reliability for battery testing.
Green insulation coating, safeguarding battery safety.

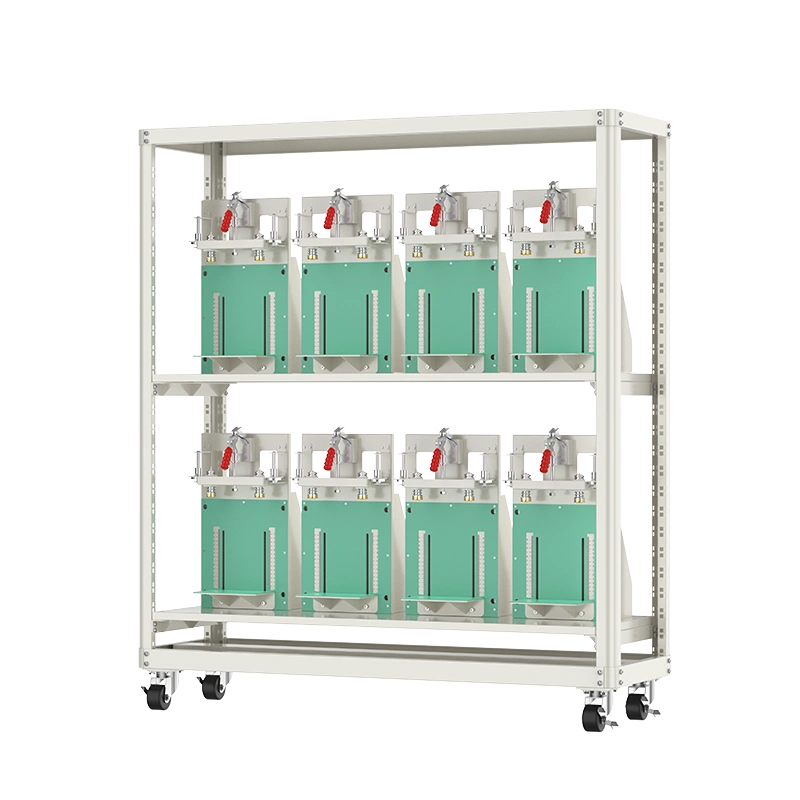

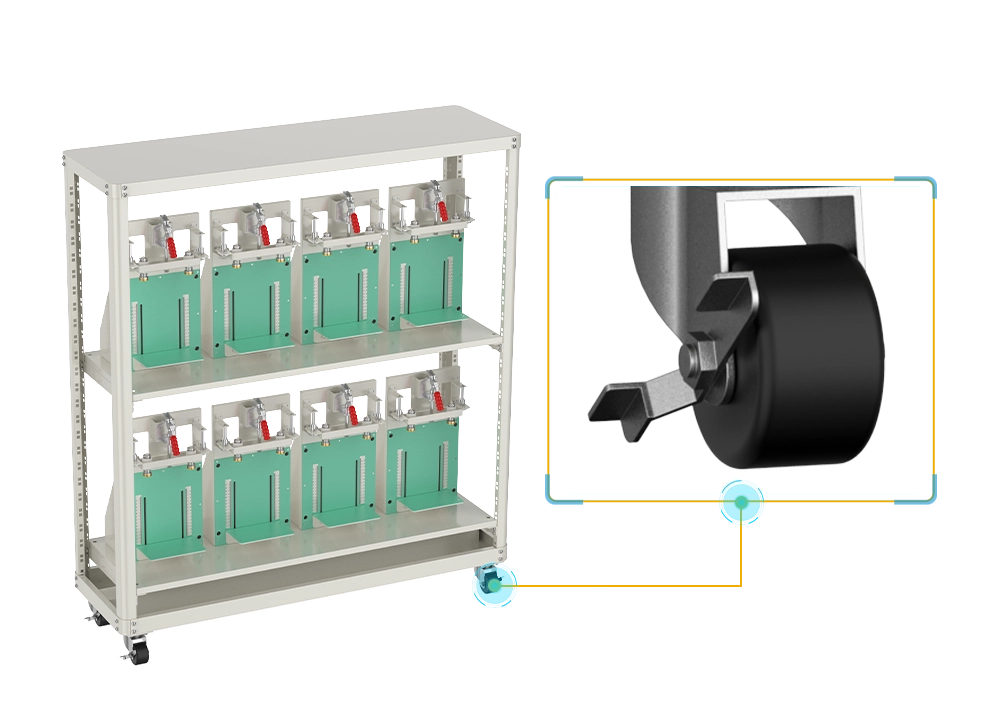

Equipped with bottom swivel wheels for free movement and secured with tight locking fasteners.
| Equipment name | 300A Prismatic Cell Rack |
|---|---|
| Current | 300A |
| Battery Size | Length: 3.9"~9.8" (100~250mm)
Width: 0.4"~3.1" (10~80mm) Height: 1.4"~9.4" (35~240mm) |
| Tabs Distance | 2.8"~5.5" (70~140mm) |
| Number of Channels | 8 |
| Clamp Size | 9.8"×11.0"×21.9“
250mm×278.5mm×555mm |
| External Size | 51.1"×16.0"×57.9"
1299mm×407mm×1470mm |
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Volume: 100L
Space for Test System: 5U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min)
Cooling Time: 68°F→-94°F≤75min
(20℃→-70℃≤75min)
Volume: 100L*2
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Volume: 25L
Number of Channels: 32CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F→140°F≤50min
(25℃→60℃≤50min)
Cooling Time: 77°F→59°F≤60min
(25℃→15℃≤60min)
