For prismatic cell testing. Customizable up to 8 batteries with a maximum test current of 500A.
Features
Tech Specs
Resources

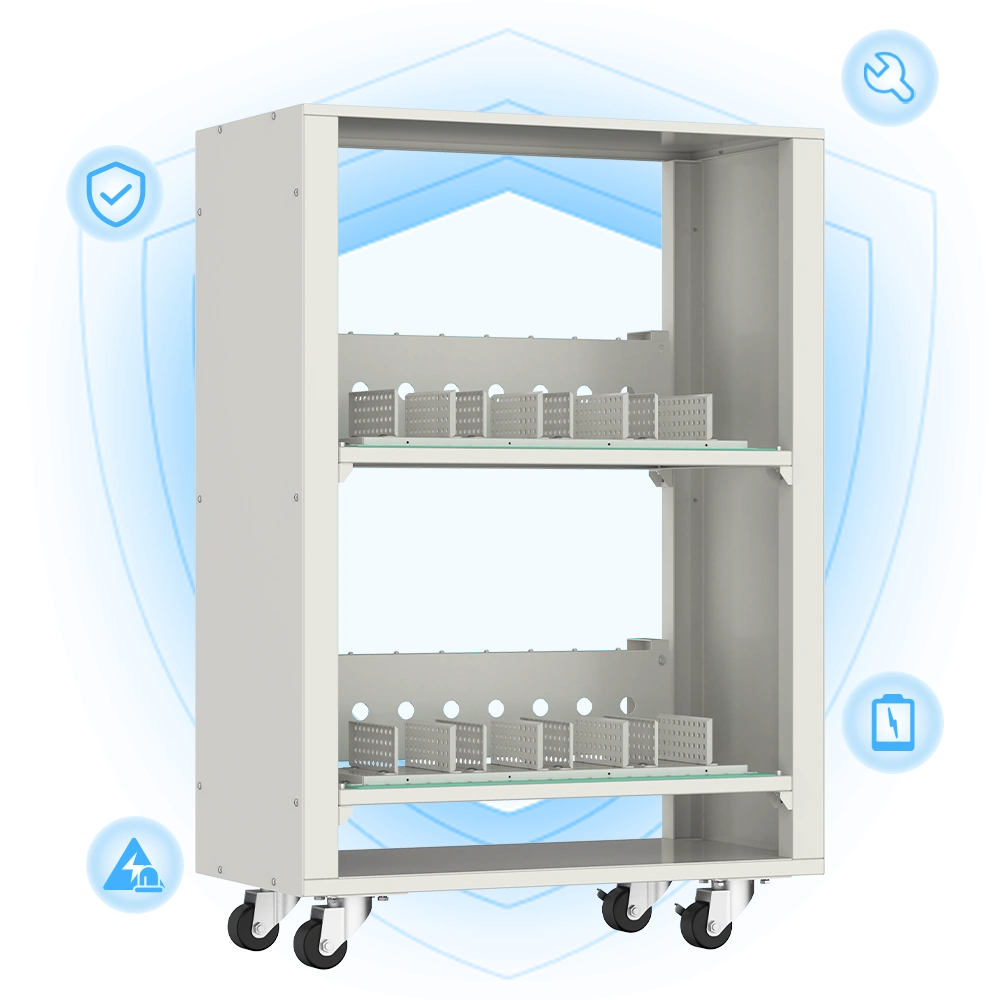

· Integrated with charging and discharging equipment, the BTS system monitors battery status, enabling efficient bulk battery testing.
· Customizable up to 8 batteries with a maximum test current of 500A.

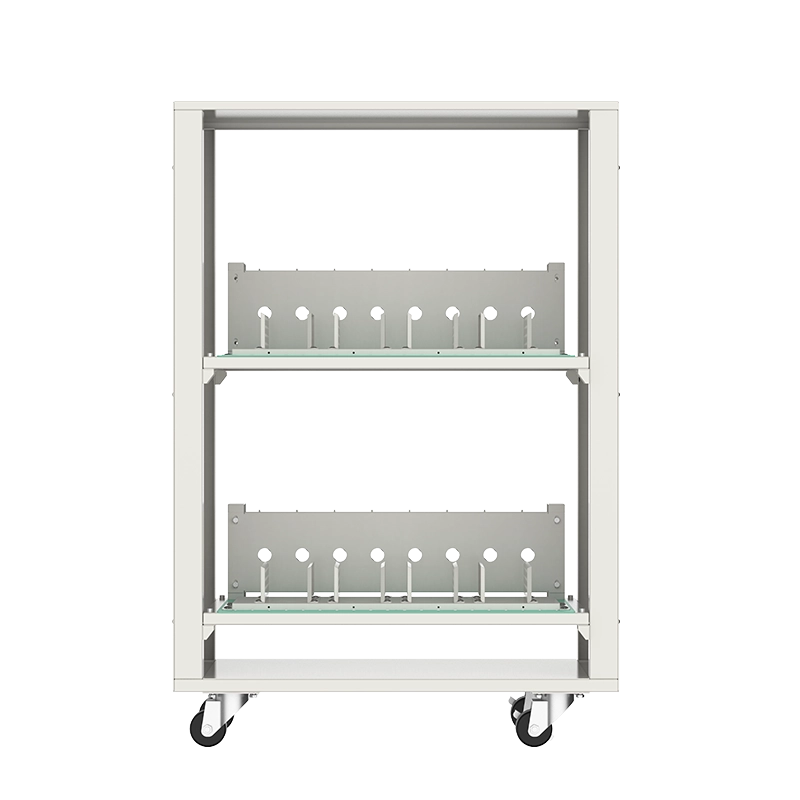

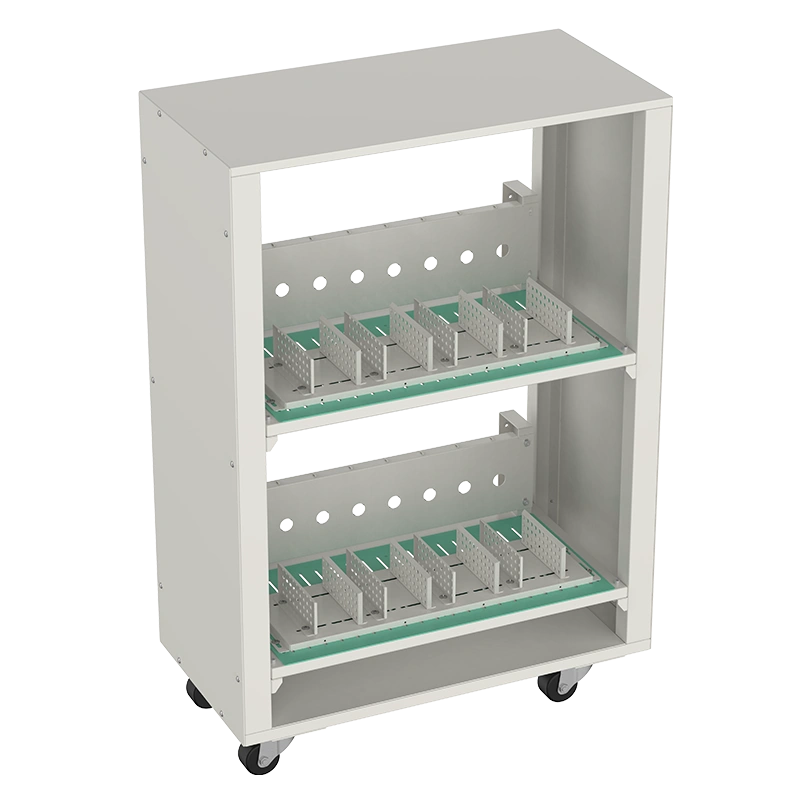

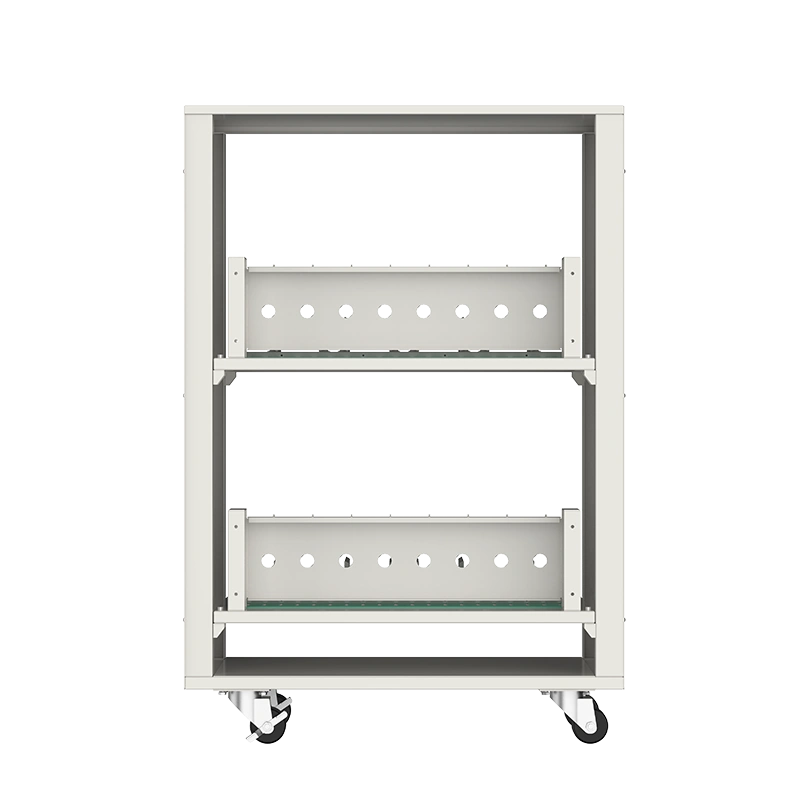

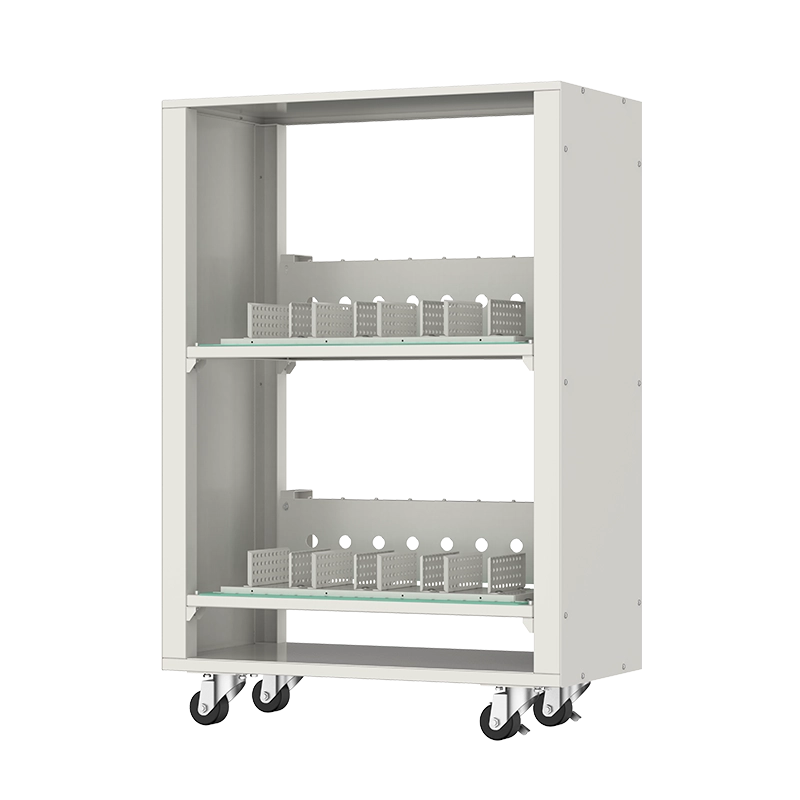

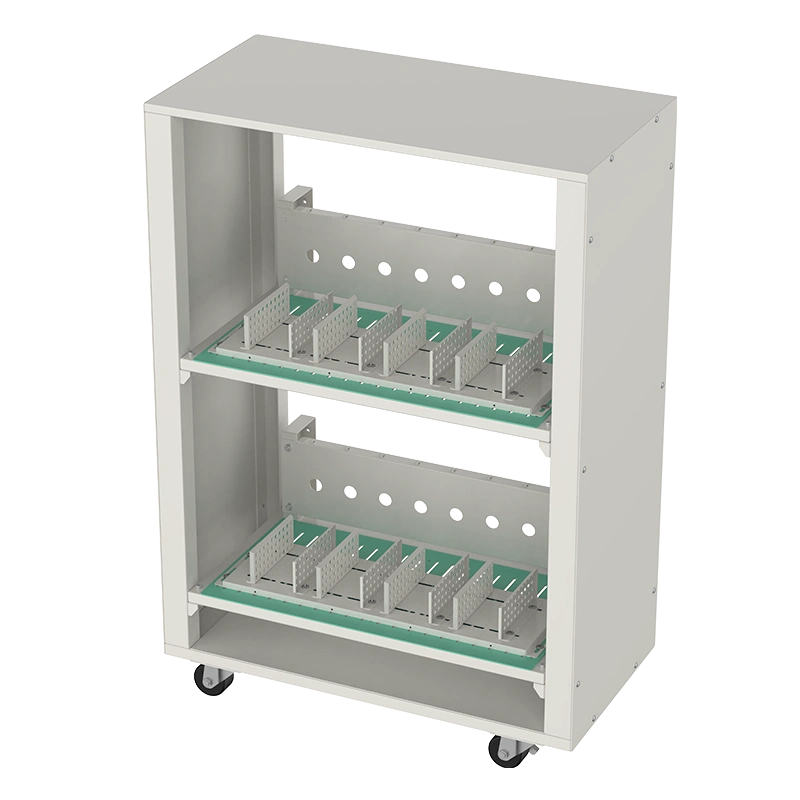

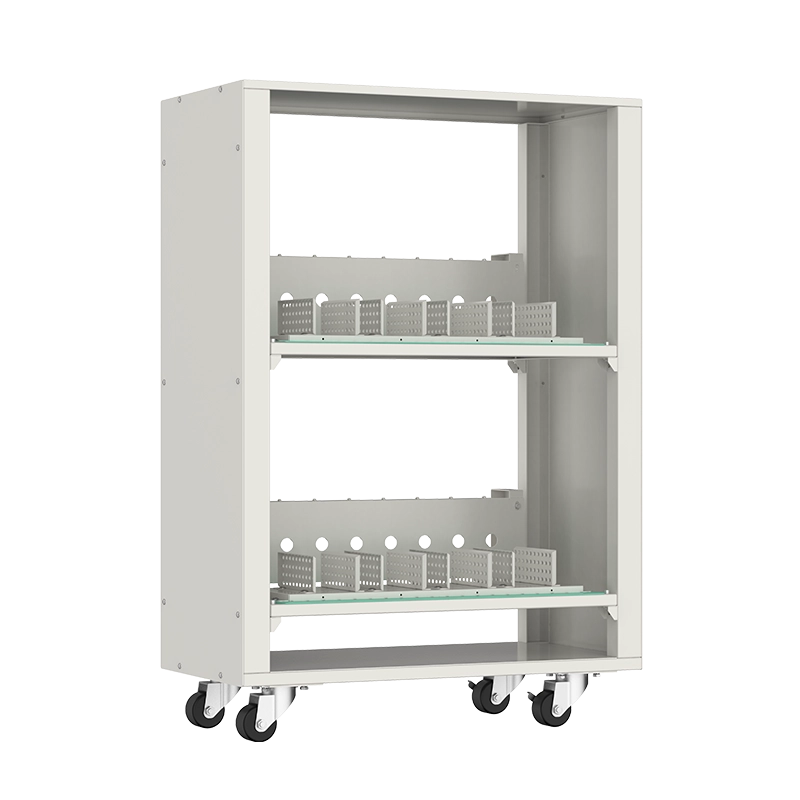

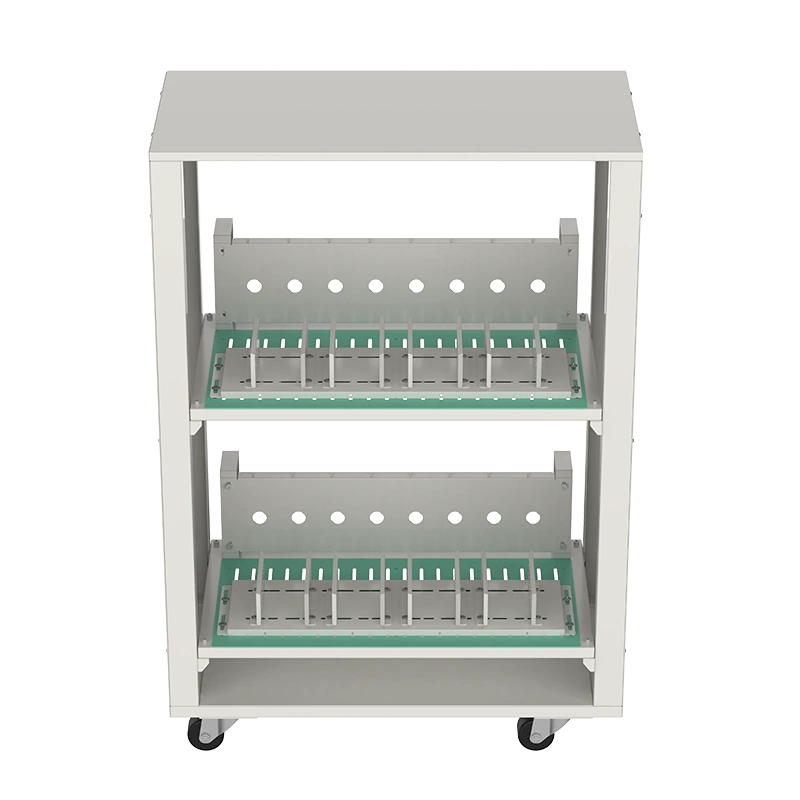

· The battery accommodation panel features an adjustable space suitable for various battery sizes and layouts.
· Equipped with a fiberglass epoxy insulation pad to prevent current leakage risks.

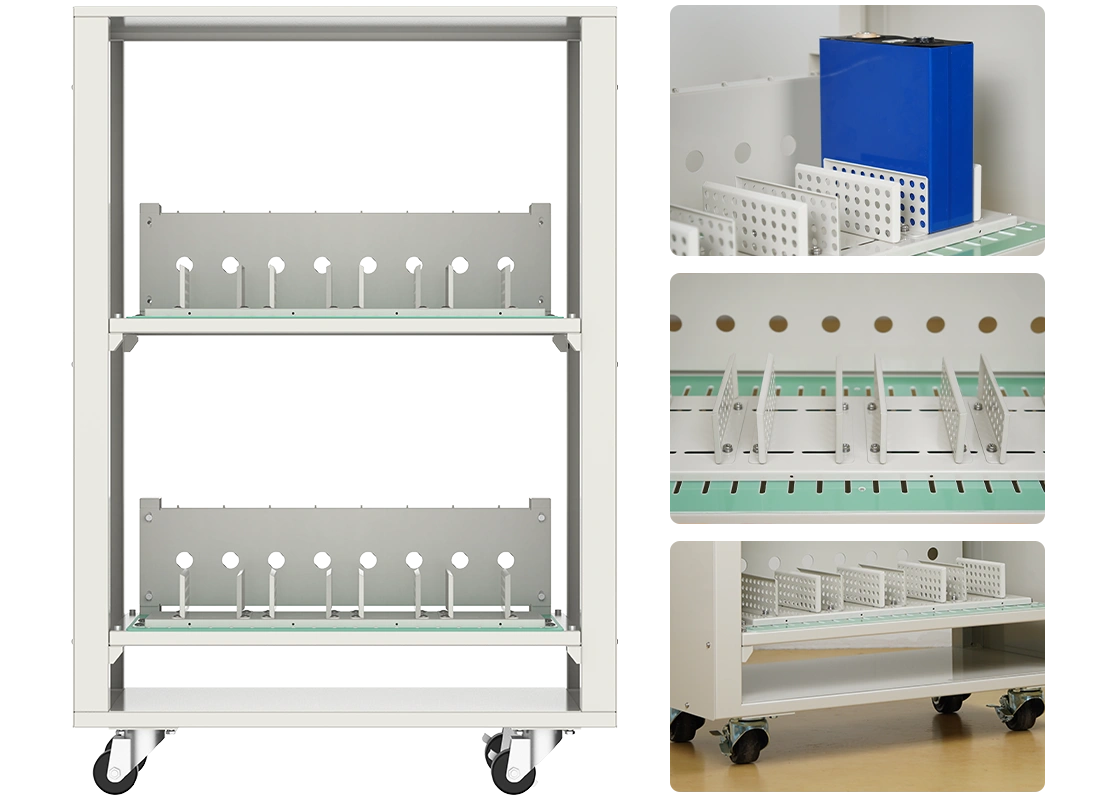

· The panel has dedicated test line fixing positions for quick organization and arrangement of test cables, enhancing work efficiency.

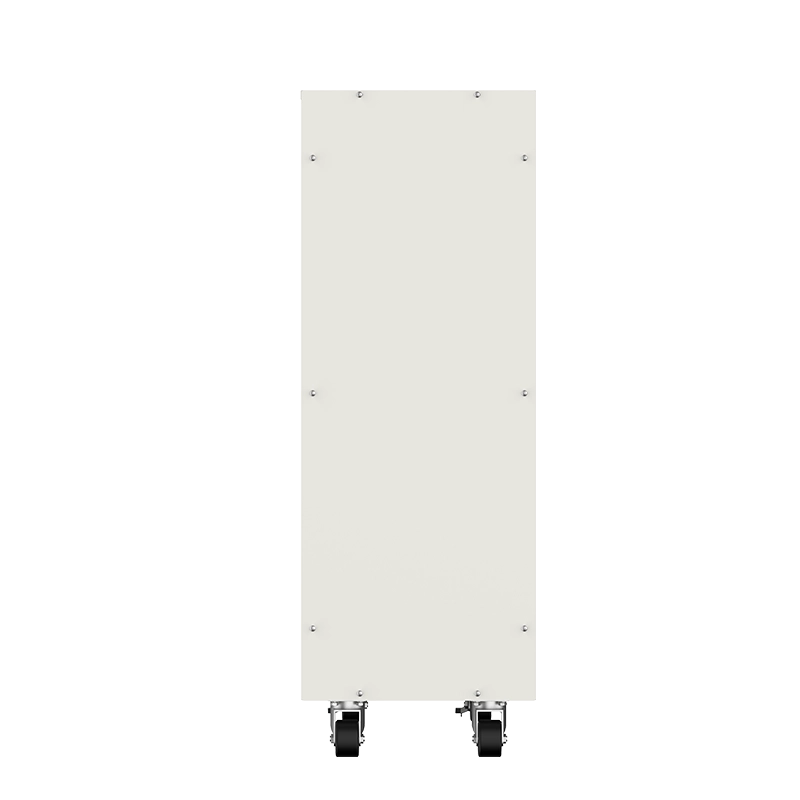

· Equipped with omnidirectional wheels for 360° flexible rotation, facilitating easy movement and positioning, ensuring stability and safety during testing.
| Equipment name | 500A Prismatic Cell Rack |
|---|---|
| Baffle Height | 17.7" (450mm) |
| Board Size | 26.6"×15.7" (675mm×400mm) |
| External Size | 30.8"×15.7" ×45" (783mm×400mm×1142mm) |
| Weight | 91kg |
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Current & Voltage Accuracy: ±0.05% F.S.
Data Logging Frequency: 10Hz
Temperature Range & Deviation: -94°F~302°F ±3.6°F(-70℃~150℃±2℃)
Temperature Fluctuation: ≤0.9°F(≤0.5℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min）
Cooling Time: 68°F→-94°F≤75min
(20℃→-70℃≤75min)
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
