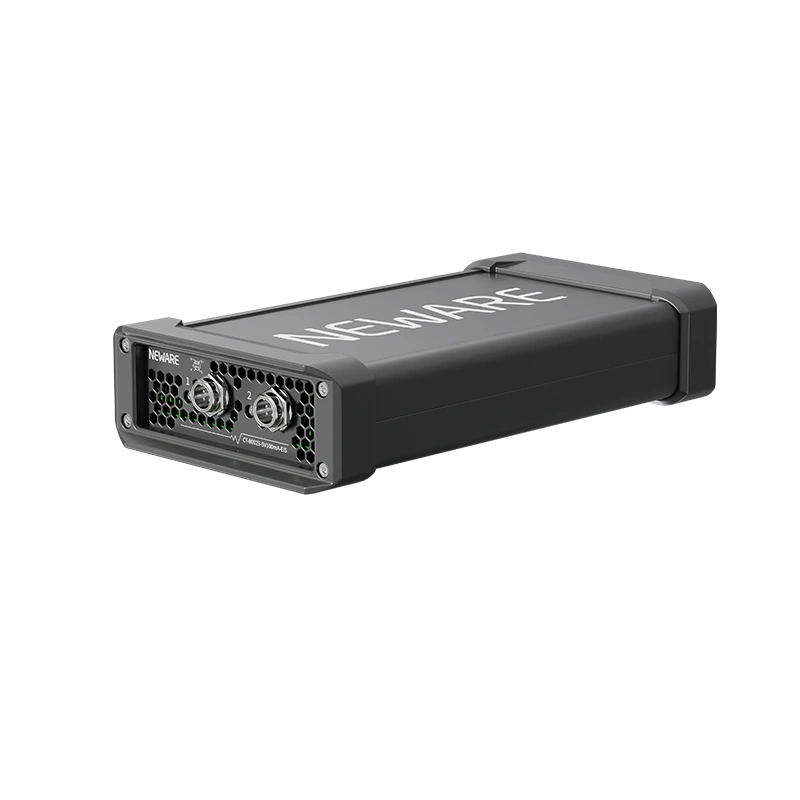

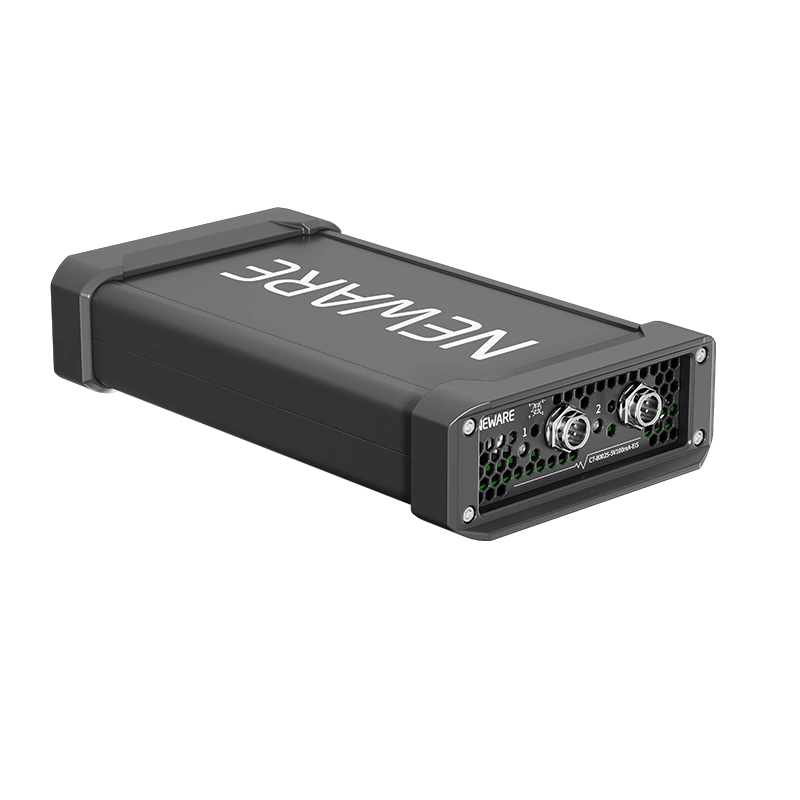

Powerful and ultra-high-precision portable battery testing system, meticulously engineered for battery R&D.
· 0.01% F.S. voltage & current accuracy
· 1 ms sampling interval
· Integrated CV & EIS Testing
· Microsecond-level current response time
· No switching delay between charge and discharge
Features
Tech Specs
Resources

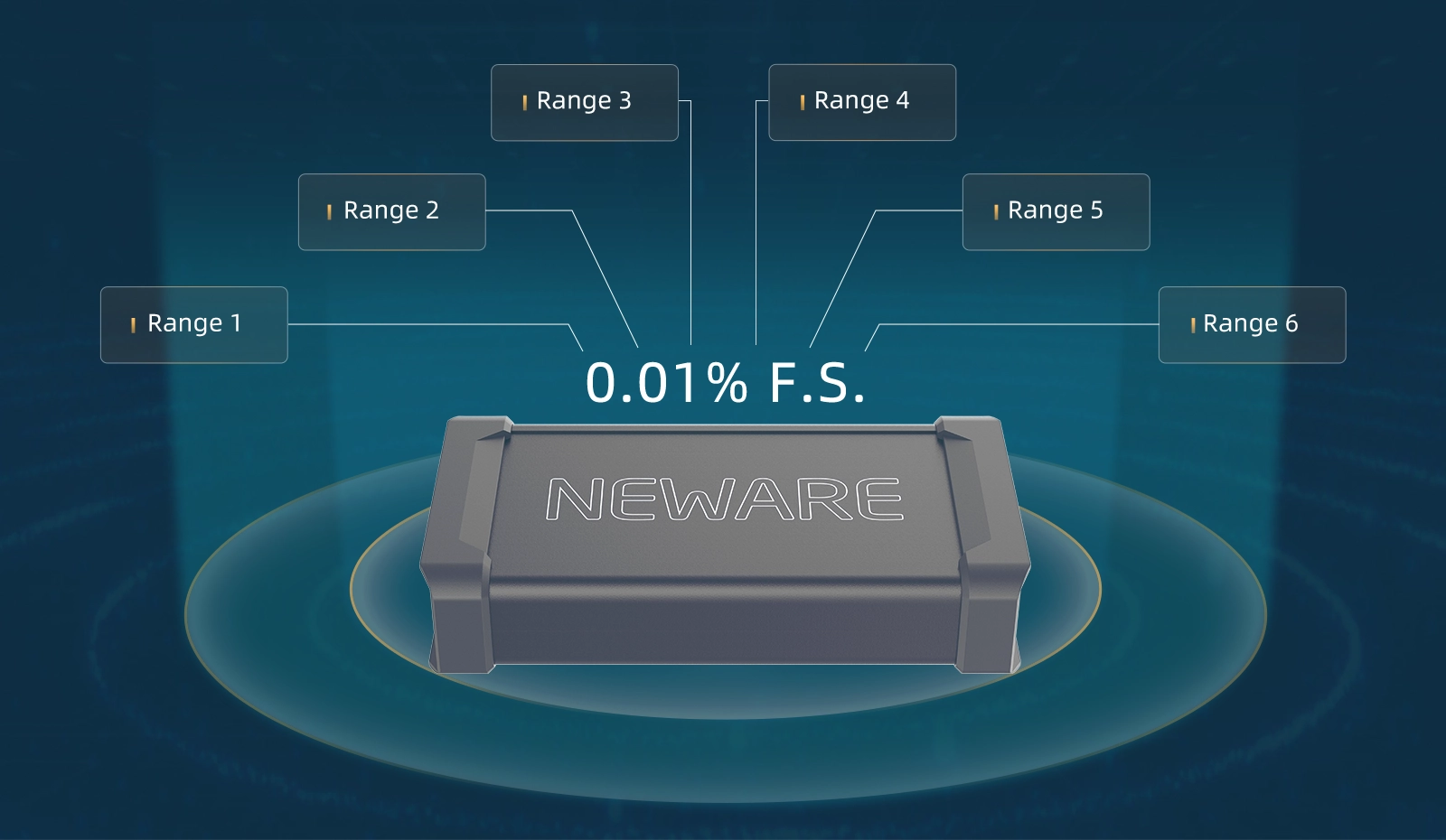

Voltage range covers -5V~5V, maximum current 100mA with automatic switching among multiple current ranges. High-precision voltage and current measurement combined with high-speed sampling accurately captures all details.
Microsecond-level current response time. Adopting bipolar linear circuits, the current crosses zero smoothly with no switching delay between charge and discharge.

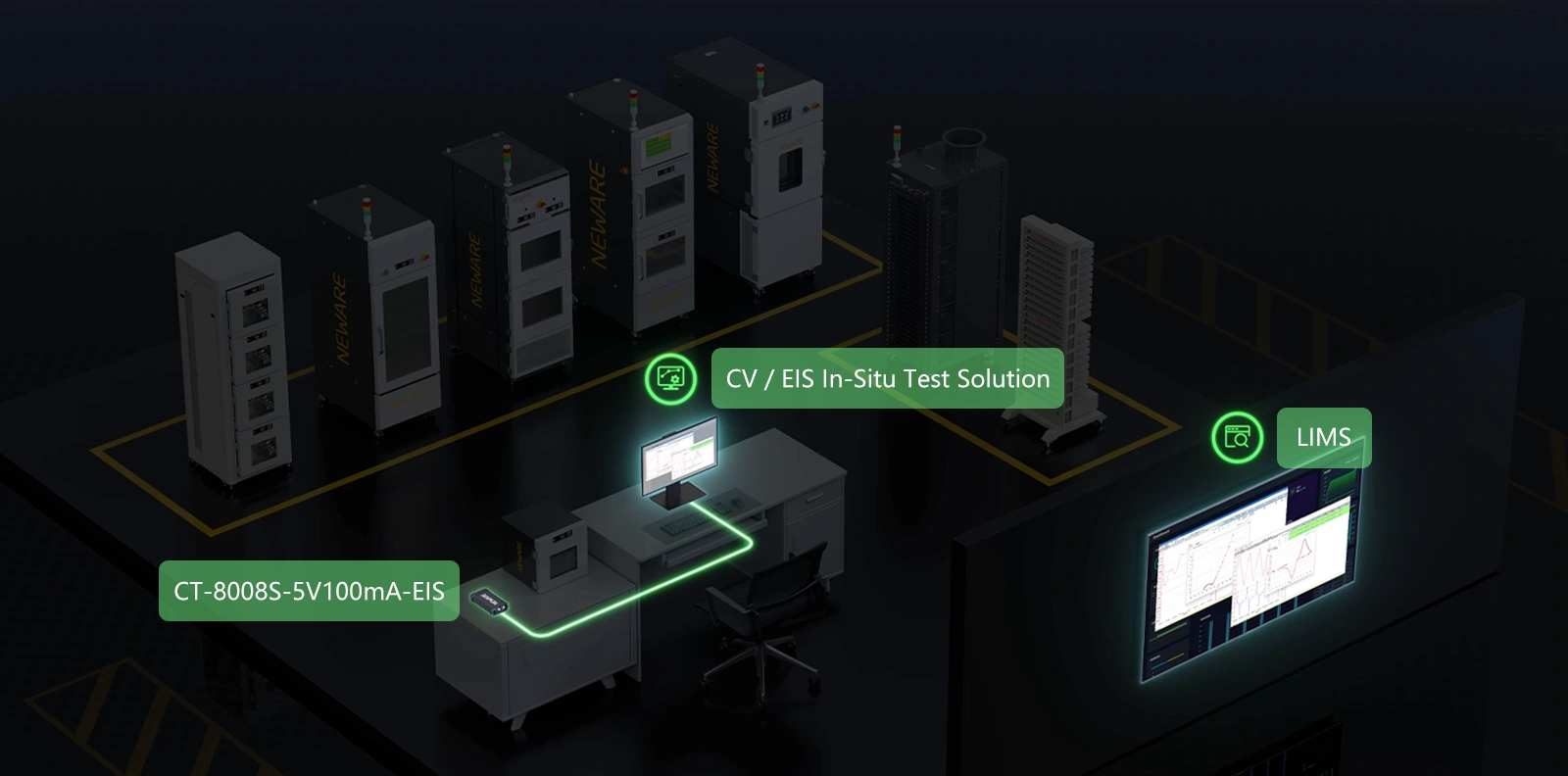

Dual-channel simultaneous CV testing. The test sequences for charge-discharge and CV are issued uniformly without battery repositioning, greatly improving test efficiency.

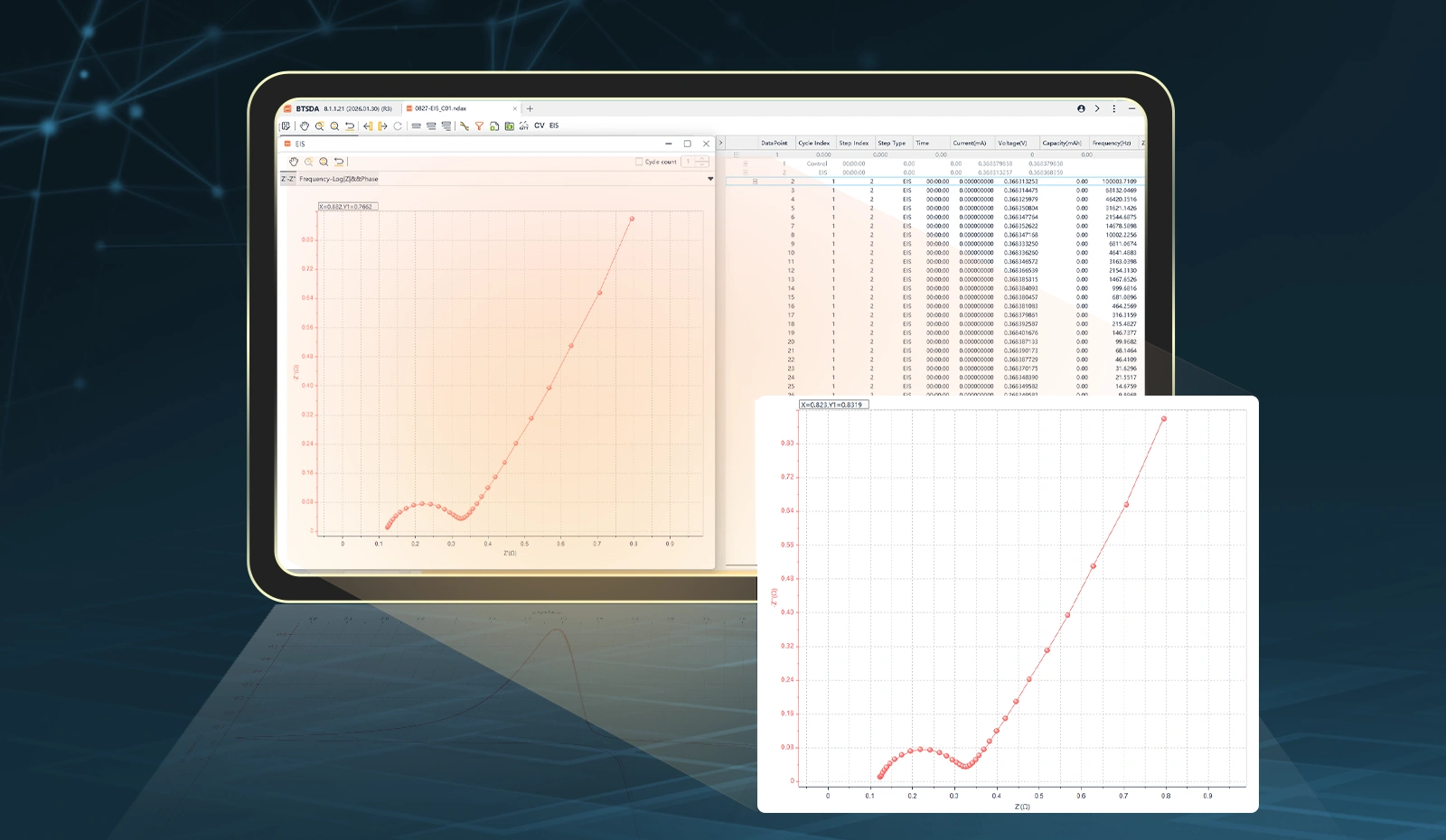

EIS Testing EIS function is standard on each channel. Impedance measurement seamlessly integrates with charge-discharge processes, and dual-channel simultaneous impedance measurement enables efficient acquisition of internal electrochemical information of the battery.
| Equipment name | CT-8000 Battery Testing System |
|---|---|
| Model | CT-8002S-5V100mA-EIS |
| Resolution | AD：24bit；DA：16bit |
| Voltage | |
| Output range | -5V-5V |
| Min discharge voltage | -5V |
| Accuracy | ± 0.01% of F.S. |
| Stability | 0.02% of F.S. |
| Current | |
| Output range | Range1: 0.1mA; Range2: 1mA; Range3: 5mA; Range4: 10mA; Range5: 50mA; Range6: 100mA |
| Accuracy | ± 0.01% of F.S. |
| Stability | 0.02% of F.S. |
| Power | |
| Single channel output power | 0.5W |
| Accuracy | ±0.02% of F.S. |
| Stability | 0.04% of F.S. |
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing

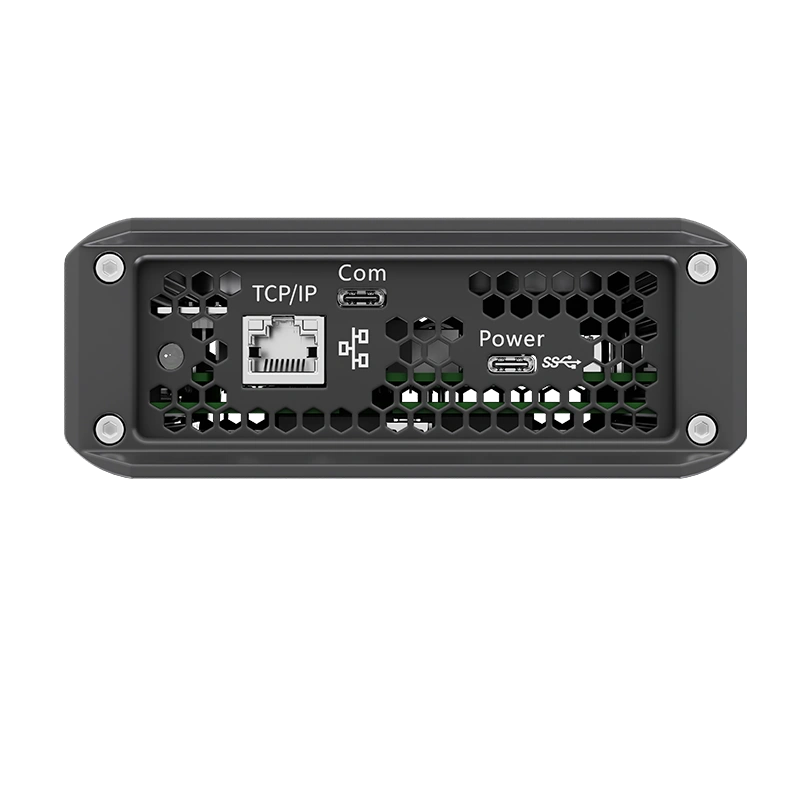

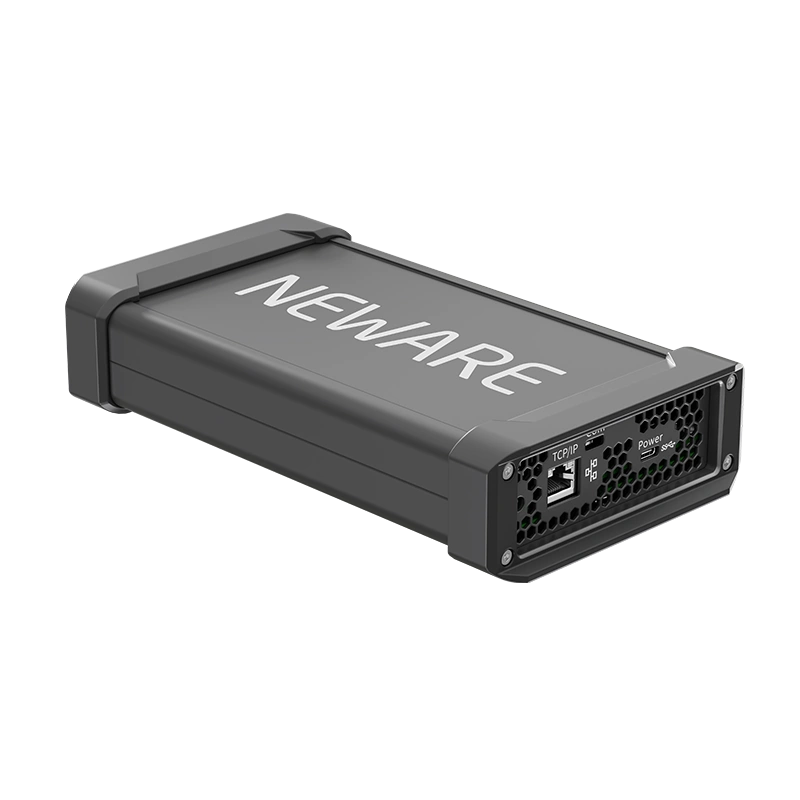

Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Volume: 100L
Space for Test System: 5U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F ~ 302°F≤60min
(20℃ ~ 150℃≤60min)
Cooling Time: 68°F ~ -94°F≤75min
(20℃ ~ -70℃≤75min)
Volume: 100L*2
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F ~ 140°F≤30min
(25℃ ~ 60℃≤30min)
Cooling Time: 77°F ~ 32°F≤50min
(25℃ ~ 0℃≤50min)
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉ ~ 140℉≤30min
(25℃ ~ 60℃≤30min)
Cooling Efficiency: 77℉ ~ 32℉≤50min
(25℃ ~ 0 ℃≤50min)
Volume: 25L
Number of Channels: 32CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F ~ 140°F≤50min
(25℃ ~ 60℃≤50min)
Cooling Time: 77°F ~ 59°F≤60min
(25℃ ~ 15℃≤60min)
