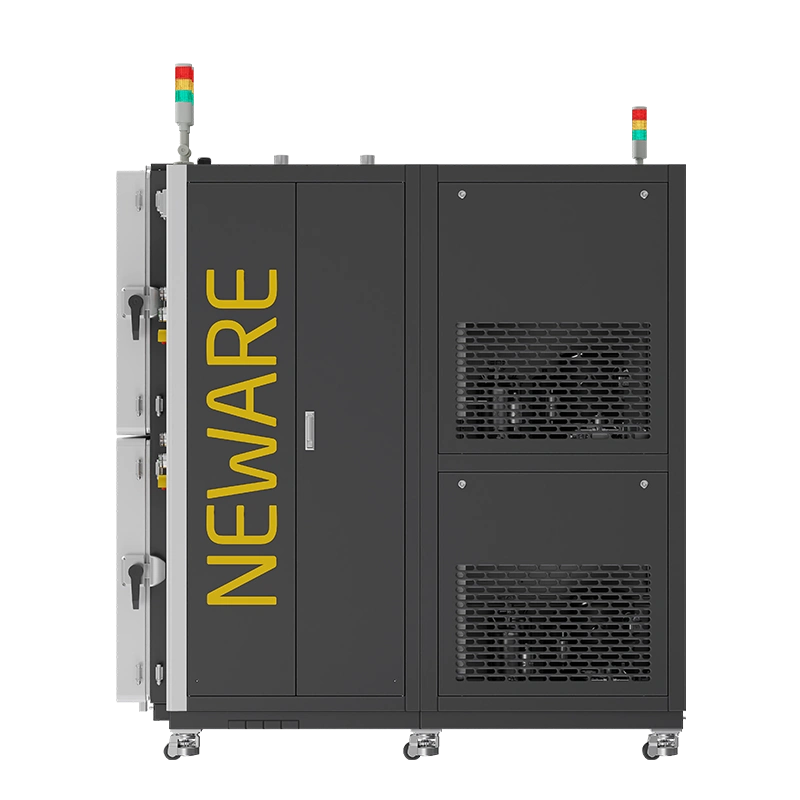

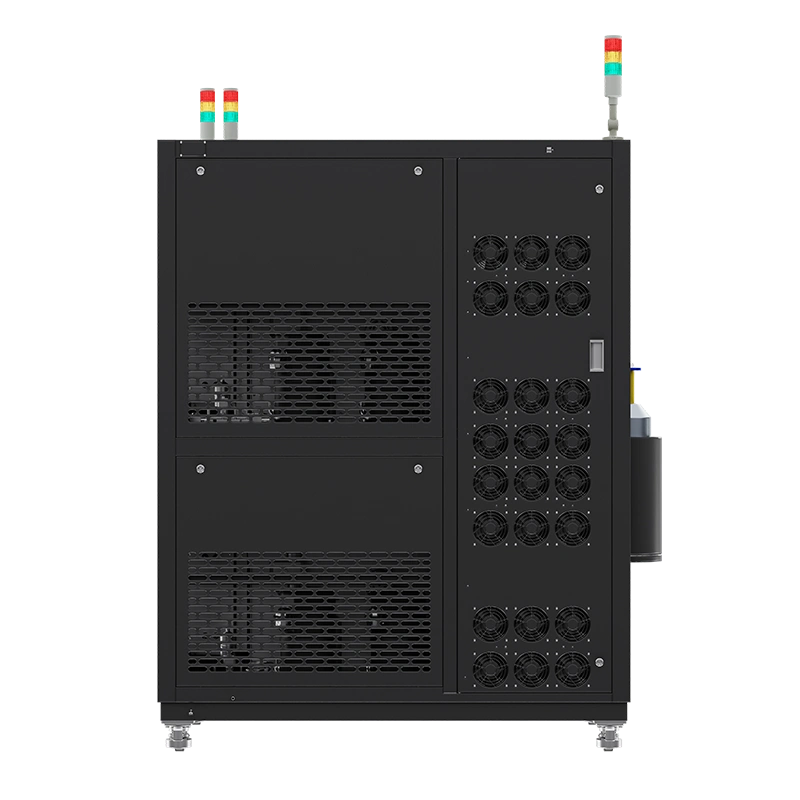

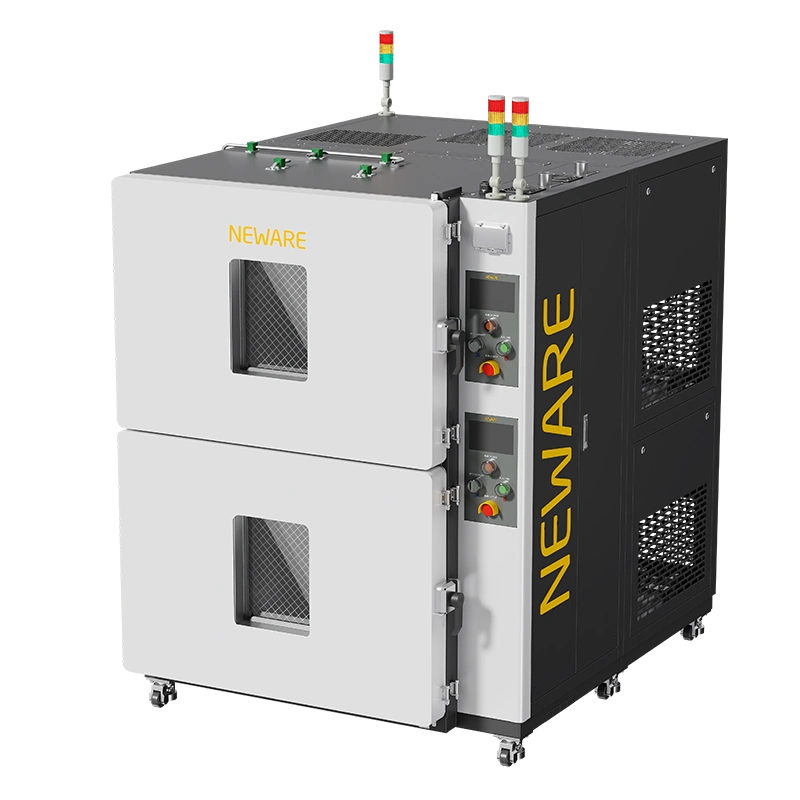

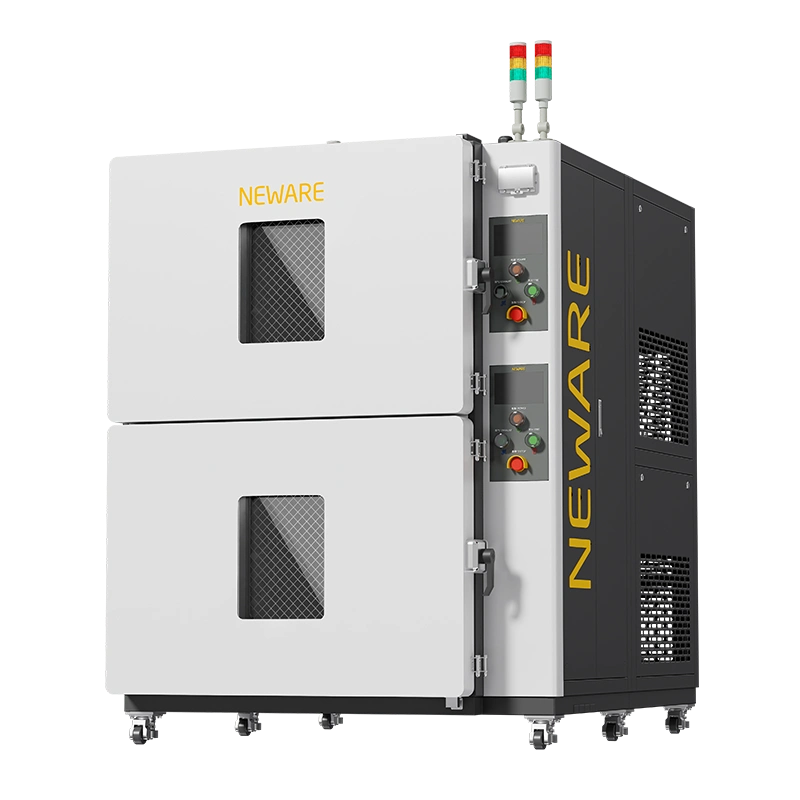

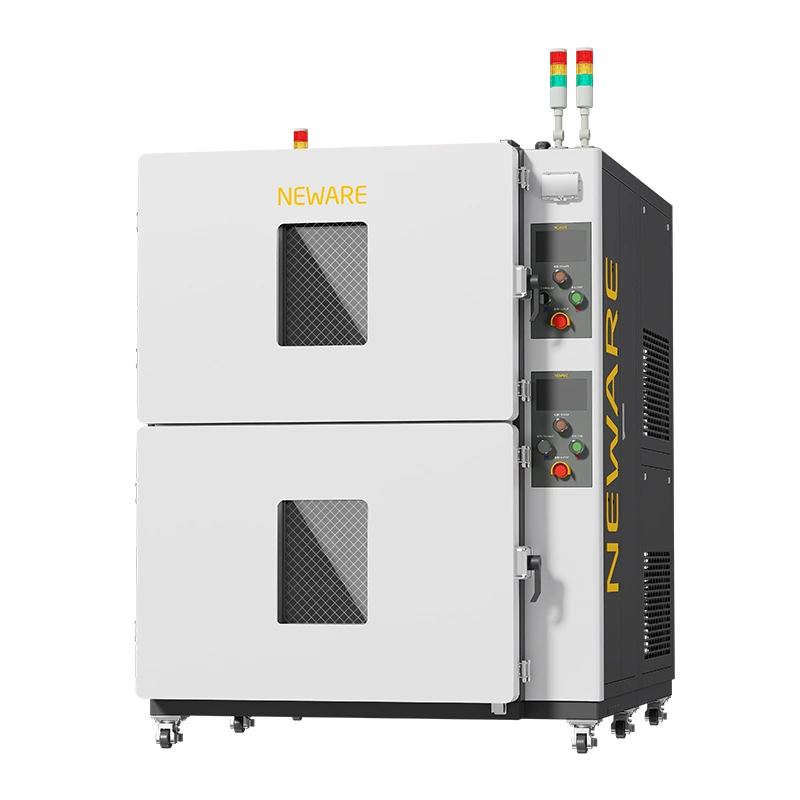

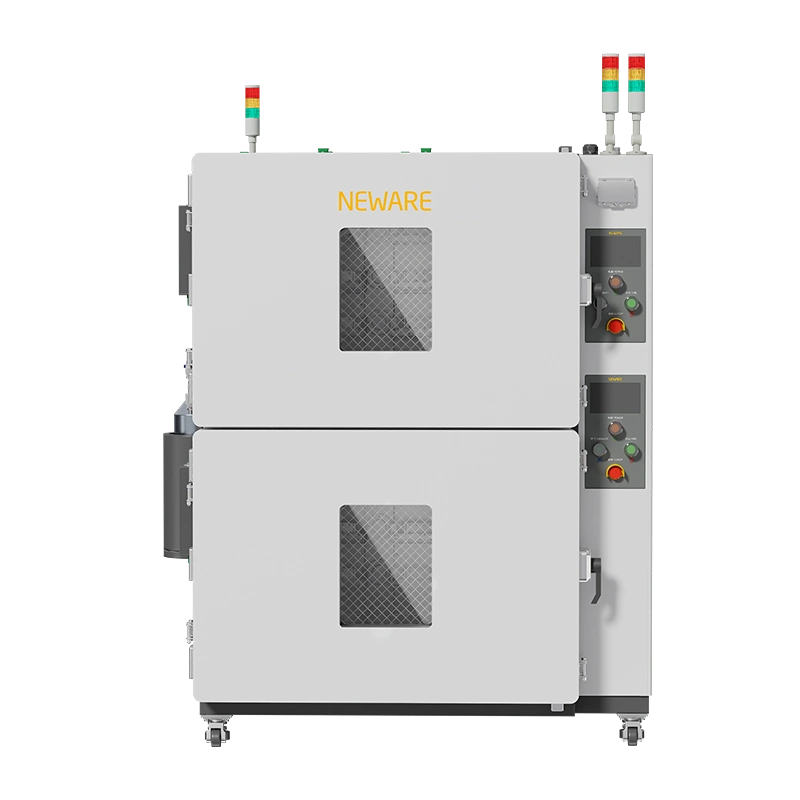

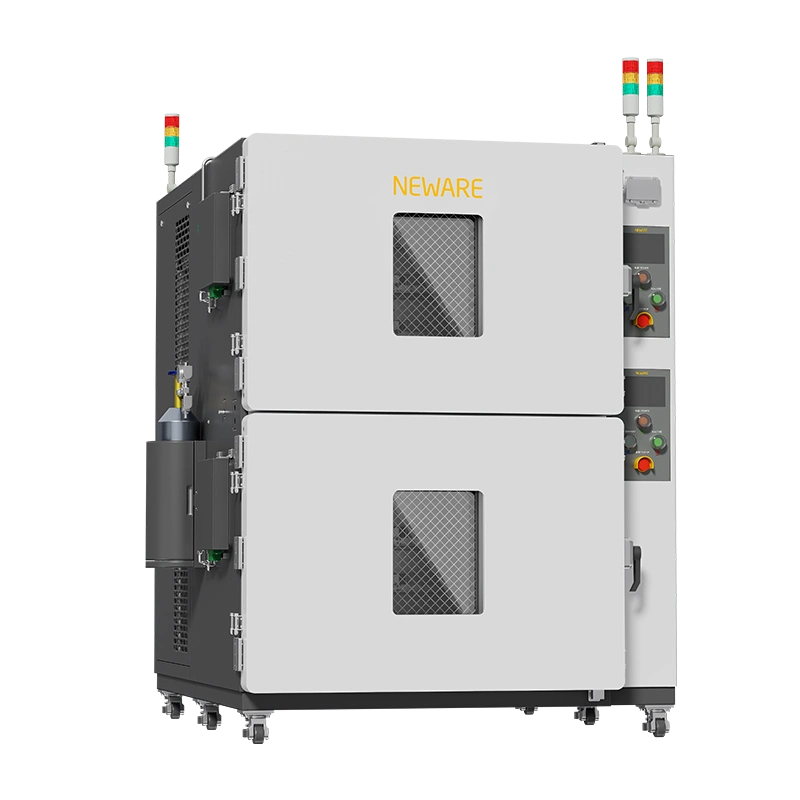

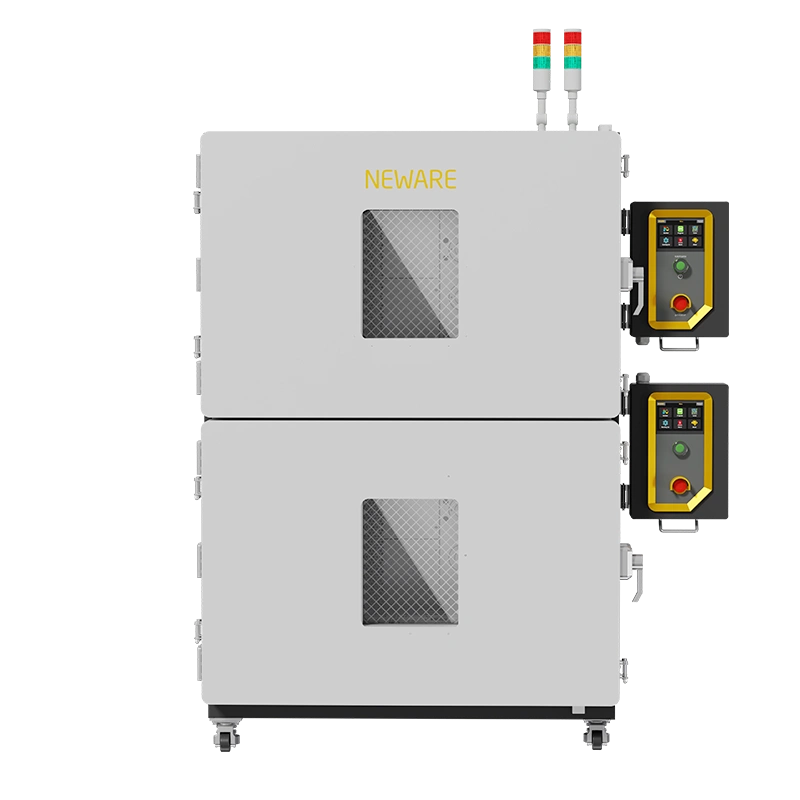

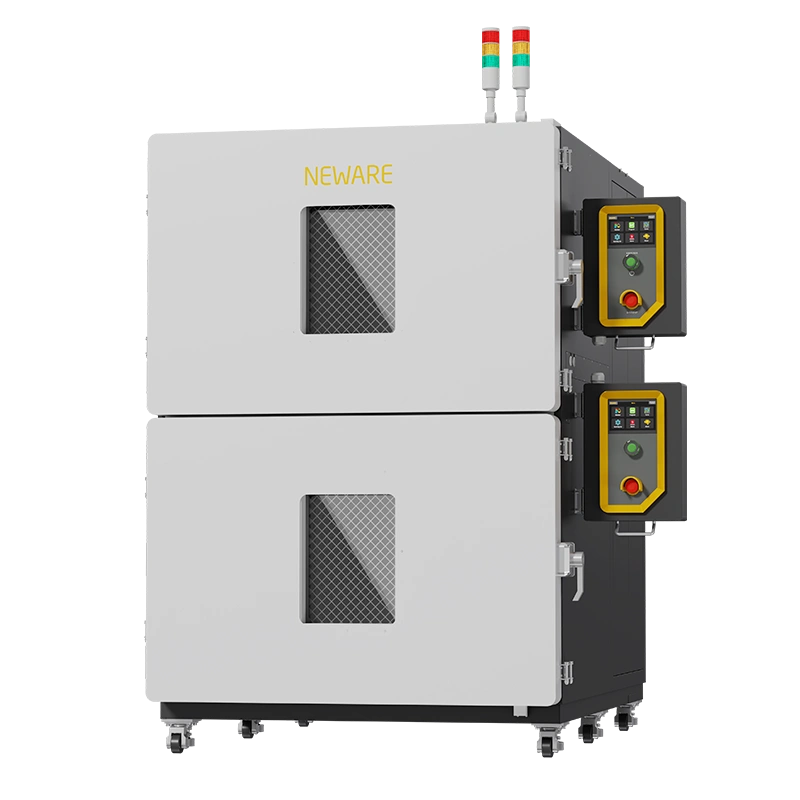

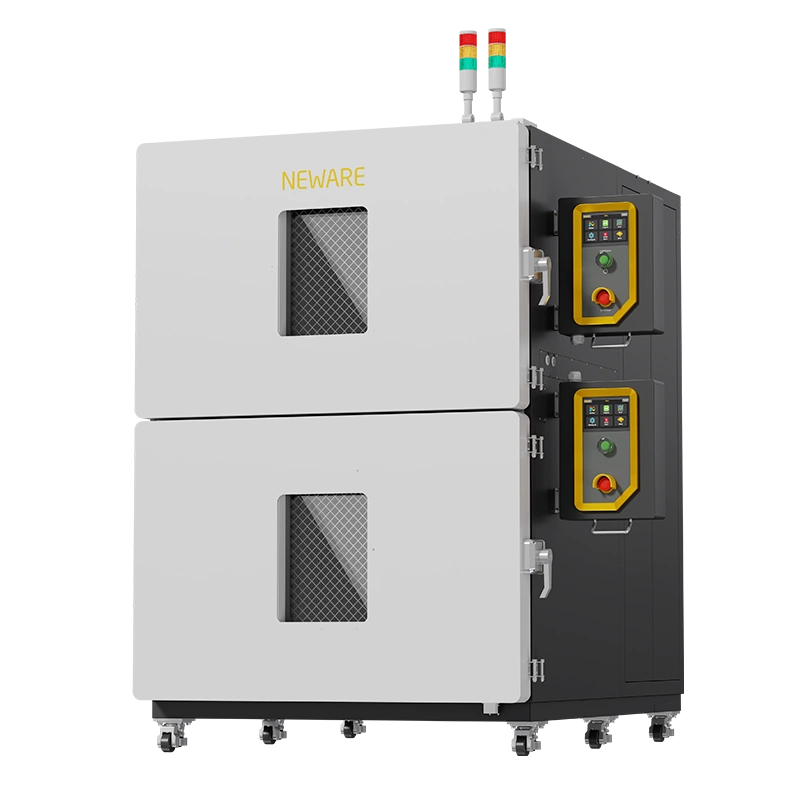

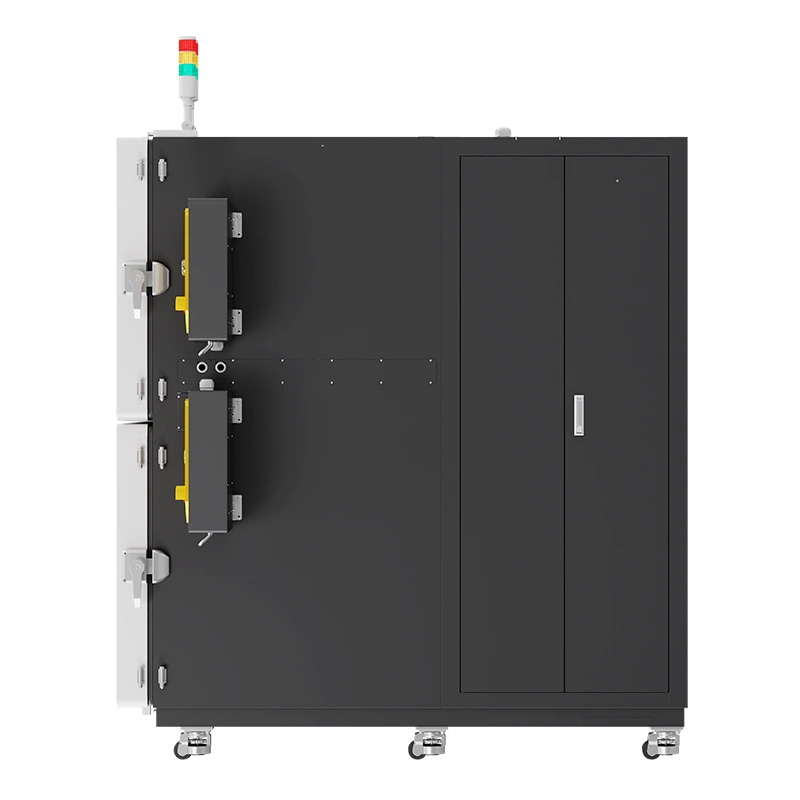

800L nominal capacity high and low temperature integrated machine for battery testing, suitable for temperature performance testing of batteries in 3C and power cells.
Features
Tech Specs

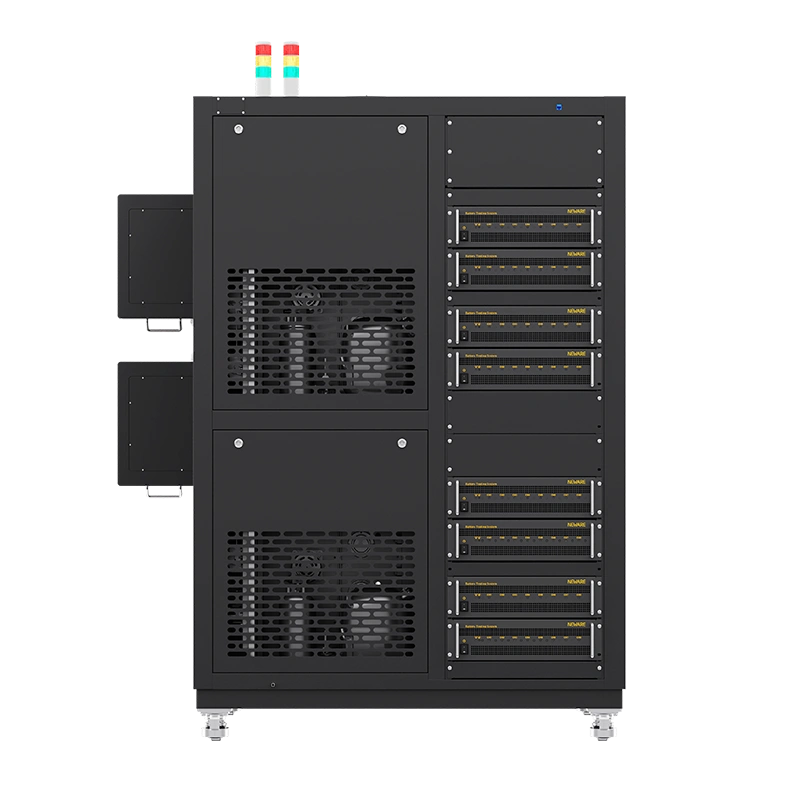

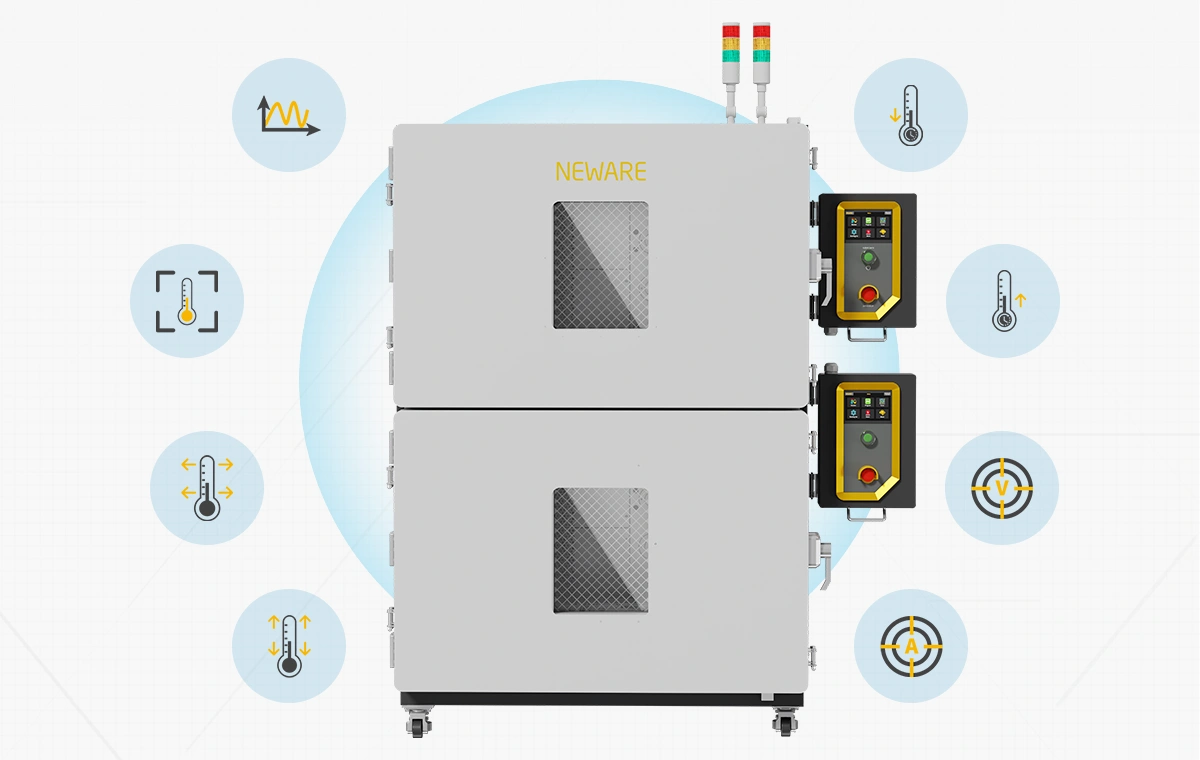

All-in-one system integrates a high/low-temperature test chamber and battery charge/discharge equipment. It works in the -40°C~150°C range and tests cells, enabling synchronized temperature cycling and charge/discharge control.
Key Specifications
Current & Voltage Accuracy: ±0.05% F.S.
Data Logging Frequency: 10Hz
Temperature Range & Deviation: -40°F~302°F±3.6℉ (-40℃~150℃±2℃)
Temperature Fluctuation: ≤0.9℉(0.5℃)
Heating Time: 68°F→302°F ≤60min (20℃→150℃≤60min)
Cooling Time: 68°F→-40°F ≤60min (20℃→-40℃≤60min)

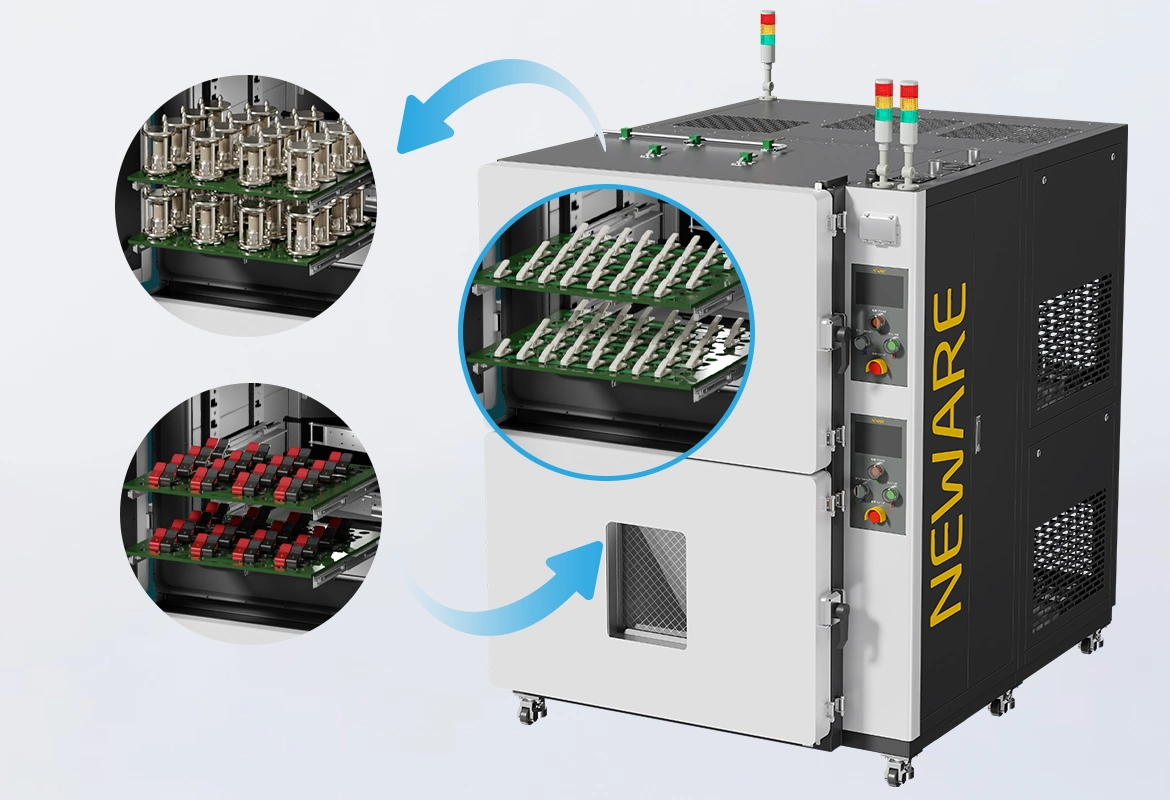

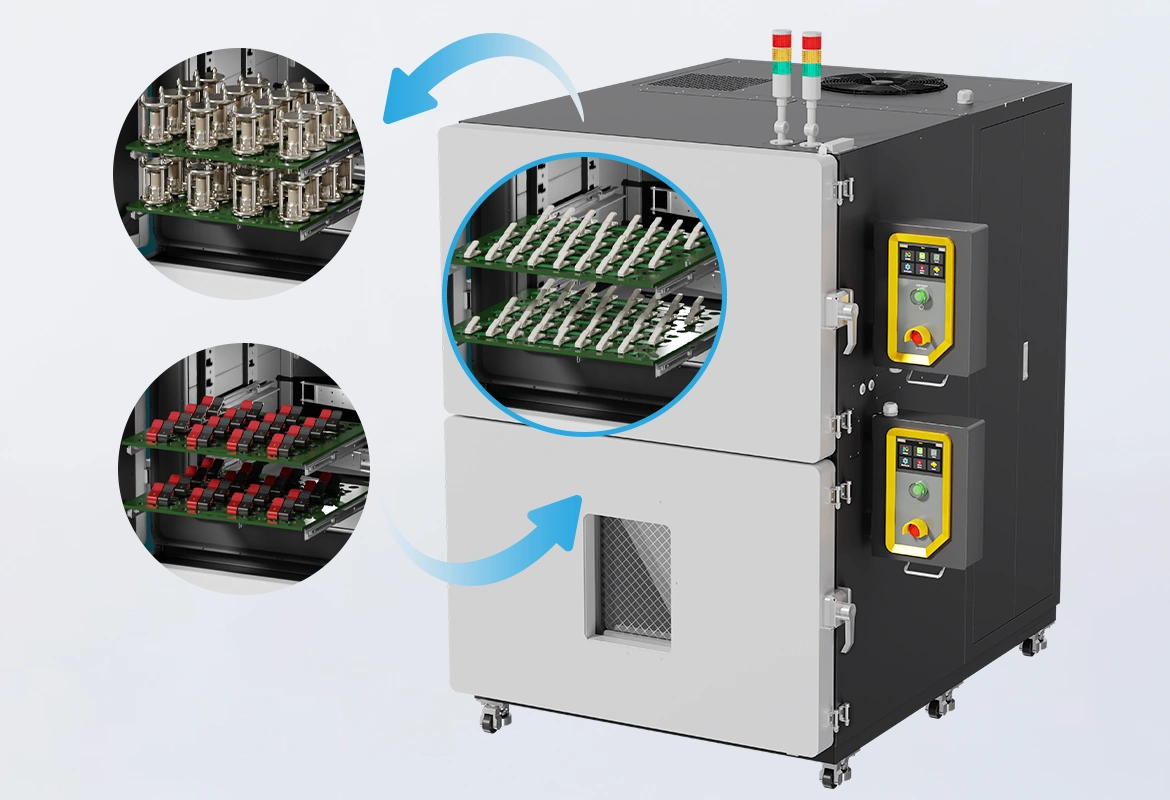

Tailored to meet specific requirements for material research, 3C battery testing, and power cell testing. Customizable battery fixtures to accommodate various cell types, including button and pouch cells.
Supports CC/CV/CP charge/discharge modes, with built-in pulse steps (minimum 100ms pulse width) and condition simulation functions, compatible with testing standards for battery cycle life and rate performance.

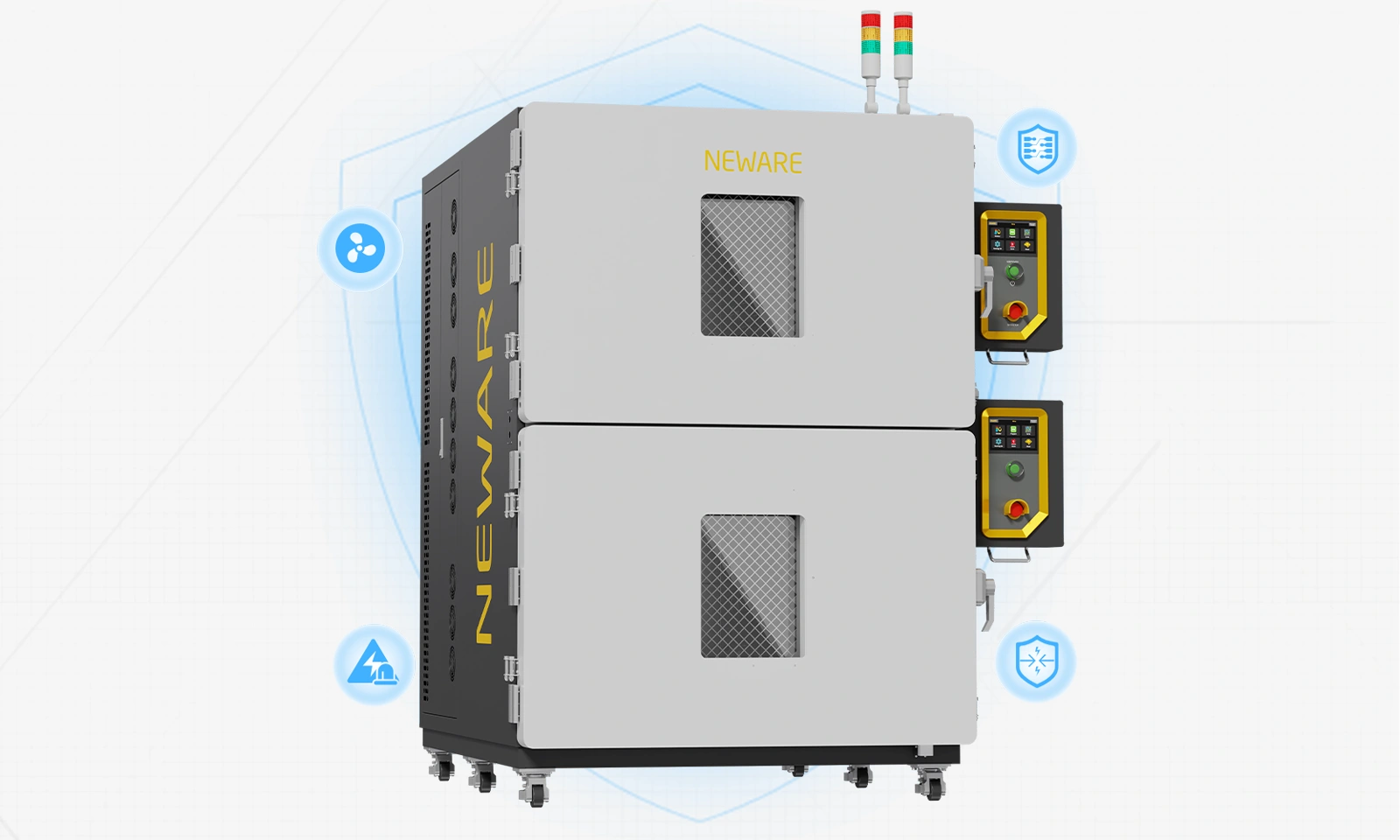

Equipped with independent over-temperature alarms, compressor overload protection, and other emergency mechanisms like power failure recovery and leakage protection to prevent equipment damage.

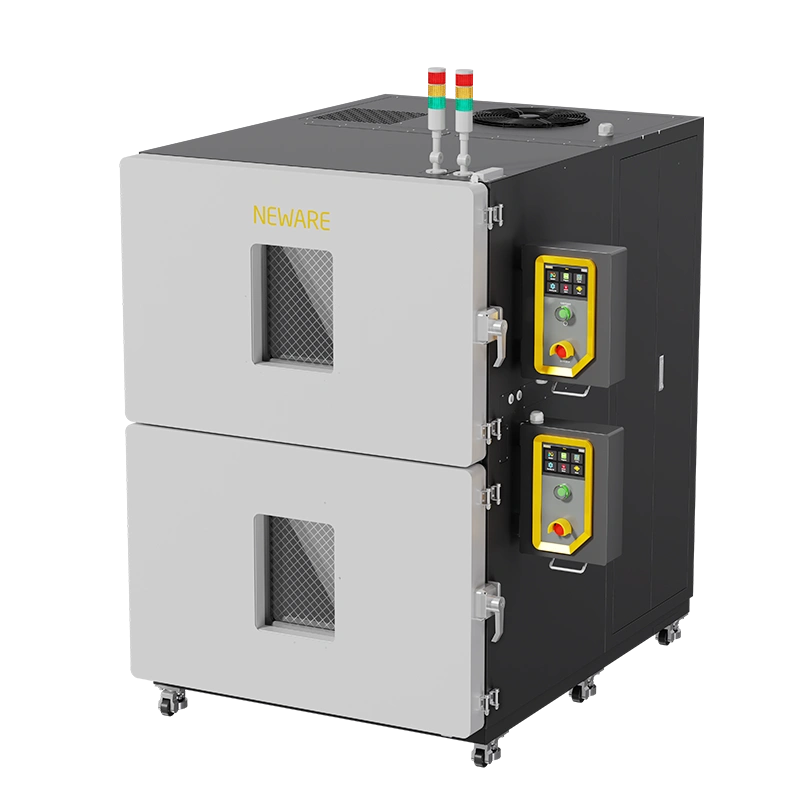

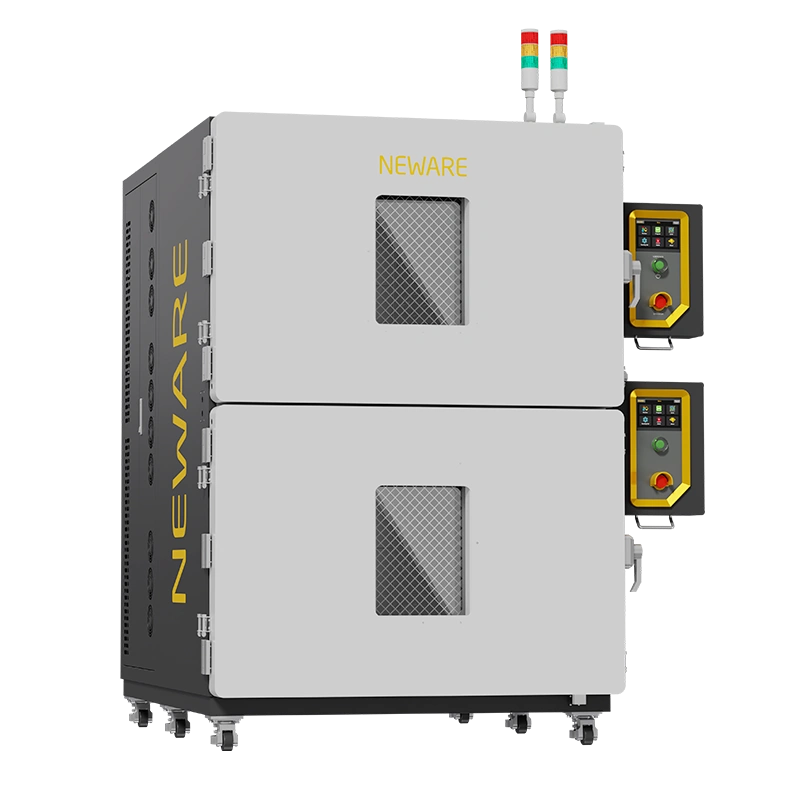

| Equipment name | 800L Dual-Zone High and Low Temperature All-in-One Testing System |
|---|---|
| Model | WGDW-800L2-40C-380V-32U-B |
| Voltage: 5V | |
| Current | 100mA/6A/15/30A/600A (Other ranges are customizable.) |
| Current & Voltage Accuracy | ±0.05% F.S. |
| Recording Frequency | 10Hz |
| Current Response Time | ≤1ms |
| Temperature Range | -40°F~302°F (-40℃~150℃) |
| Heating Time | 68°F→302°F ≤60min (20℃→150℃≤60min) |
| Cooling Time | 68°F→-40°F ≤60min (20℃→-40℃≤60min) |
| Temperature Fluctuation | ±0.9°F (±0.5℃) |
| Temperature Deviation | ±3.6°F (±2℃) |
| Nominal Content Volume | 400L(Single Zone) 800L(Dual Zone) |
| Product Dimensions | W63.0"×D80.7"×H80.7" (W1600mm×D2050mm×H2050mm) |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
