For testing 200A cylindrical batteries in a temperature chamber.
Features
Tech Specs
Resources

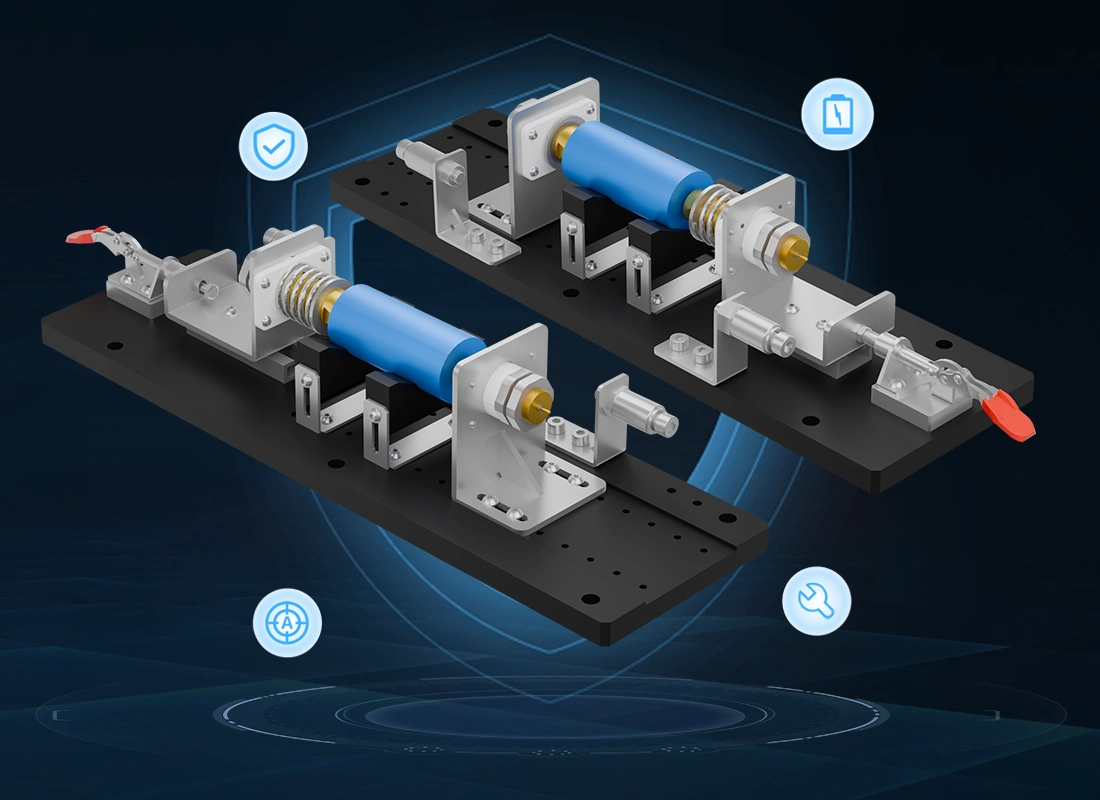

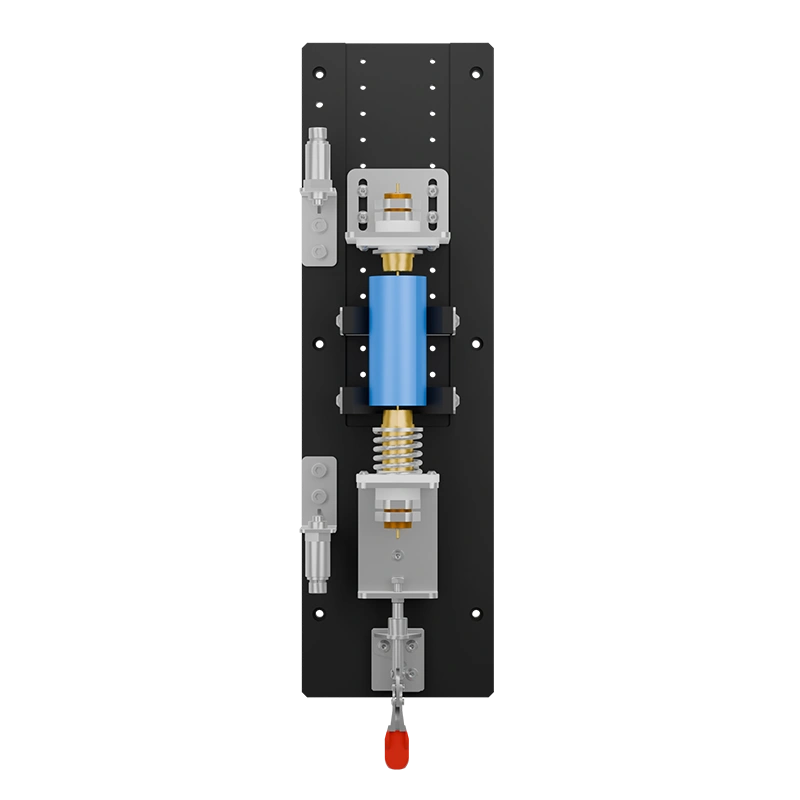

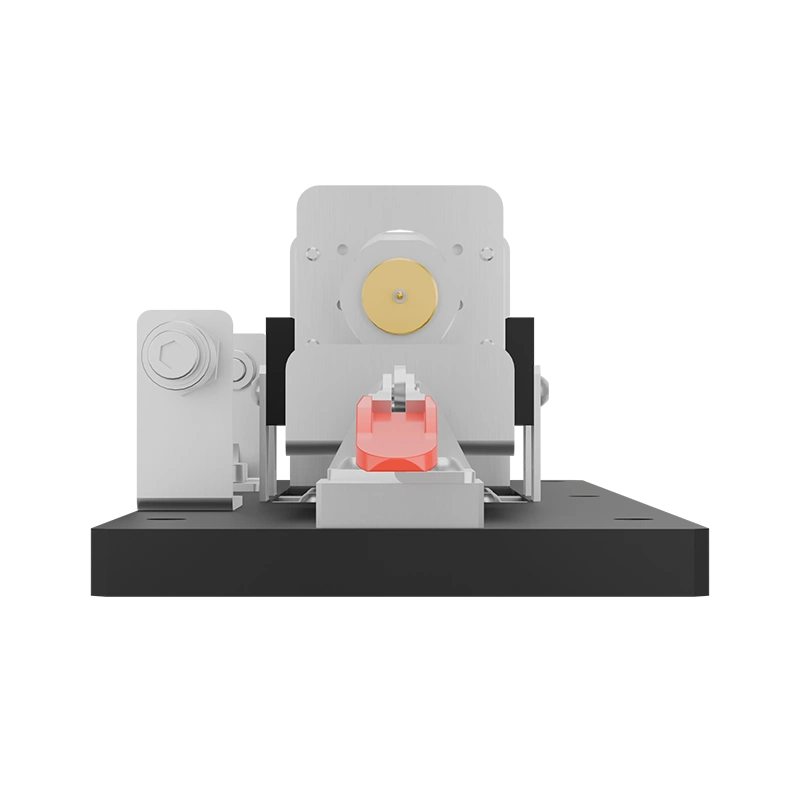

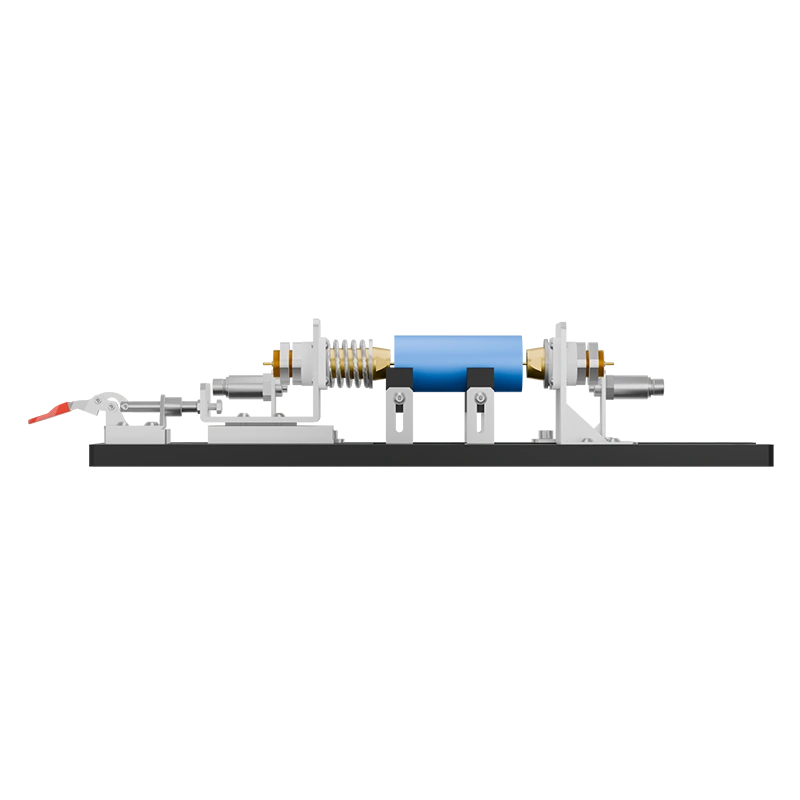

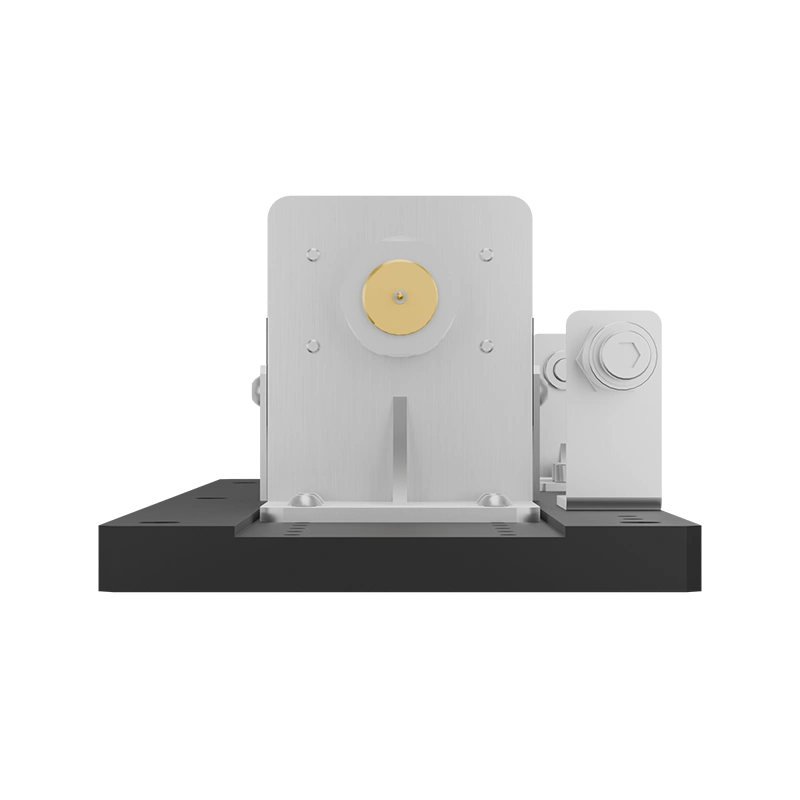

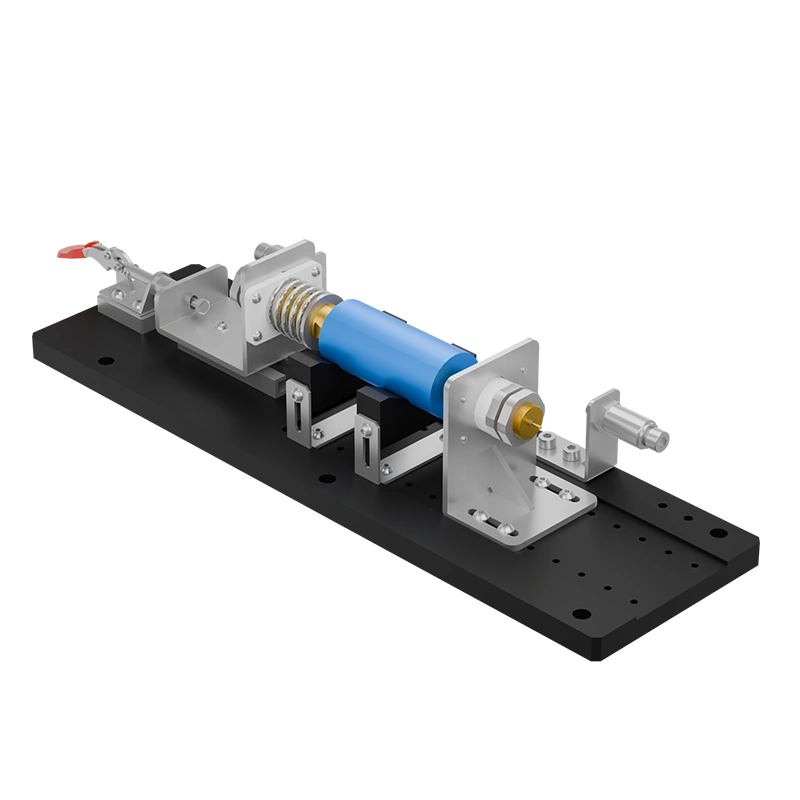

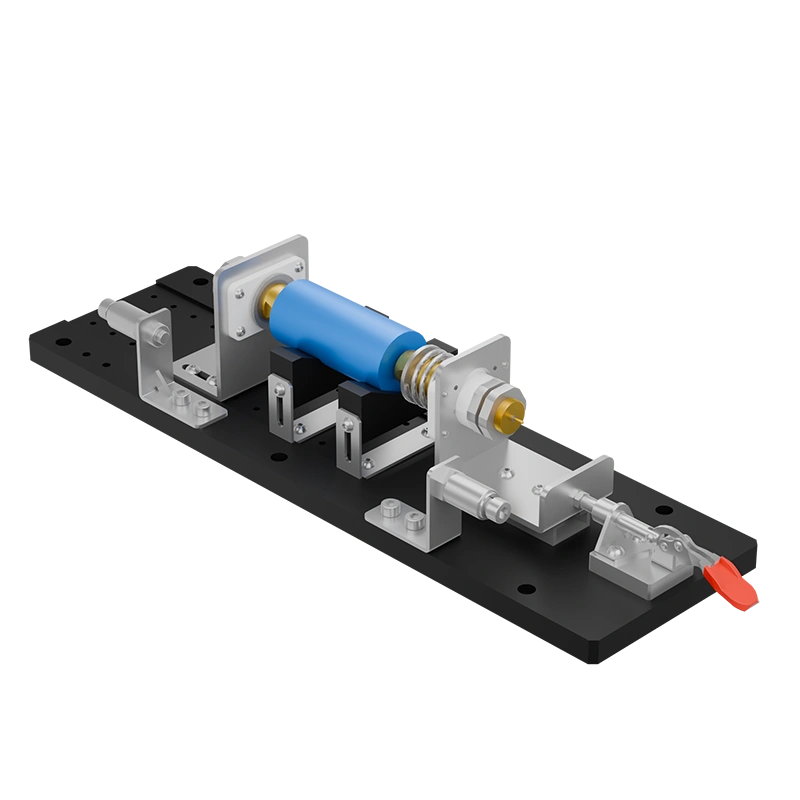

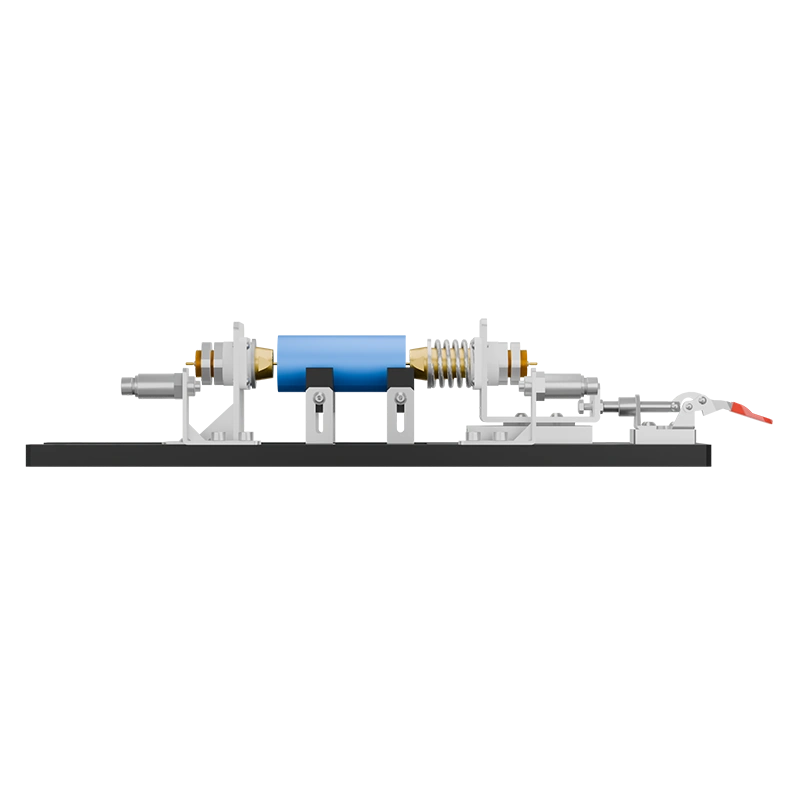

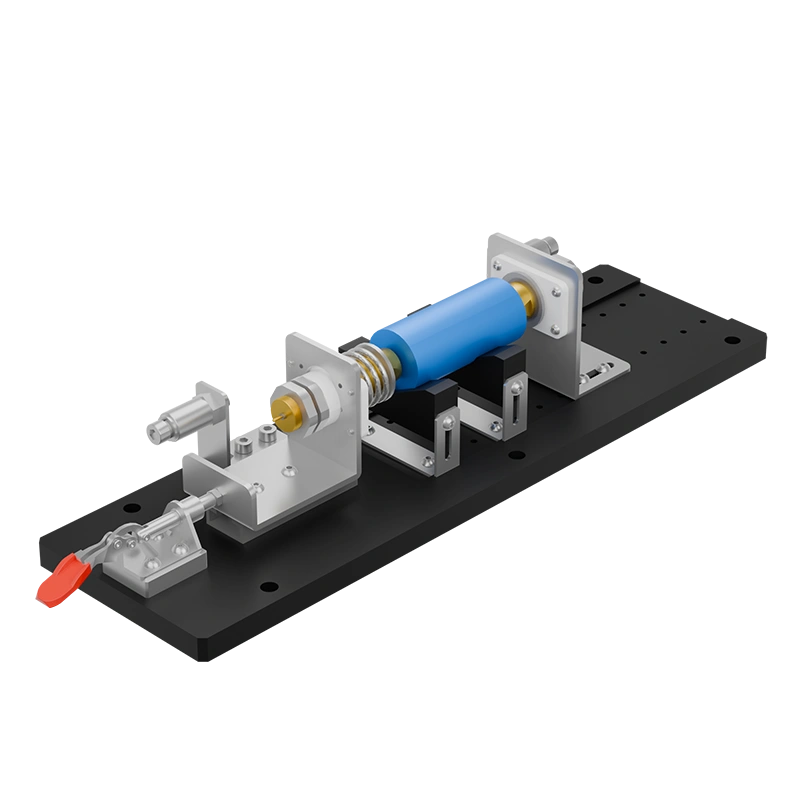

Capable of withstanding a maximum current of 200A, designed for testing 3270 cylindrical batteries. It can be fixed in a temperature chamber tray for temperature performance testing. The base plate is made of phenolic material, effectively preventing the risk of battery short circuits. The positioning block secures and supports the battery, ensuring its stability.
| Equipment name | 200A Cylindrical Cell Clamp for Temperature Chamber |
|---|---|
| Model | PCJ-YZJ-Y-3270-200-WX |
| Current | 200A |
| Battery Size | Length: 2.6"-5.9" (65-150mm) Diameter: 1.3"-2.0" (32-52mm) |
| External Size | 2.6"×5.9"×3.0" (415×110×75mm) |
| Weight | 1.5kg |
| Wire Terminal | M14/M6 |
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Current & Voltage Accuracy: ±0.05% F.S.
Data Logging Frequency: 10Hz
Temperature Range & Deviation: -94°F~302°F ±3.6°F(-70℃~150℃±2℃)
Temperature Fluctuation: ≤0.9°F(≤0.5℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min）
Cooling Time: 68°F→-94°F≤75min
(20℃→-70℃≤75min)
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
