Performance fully upgraded, testing more reliable .

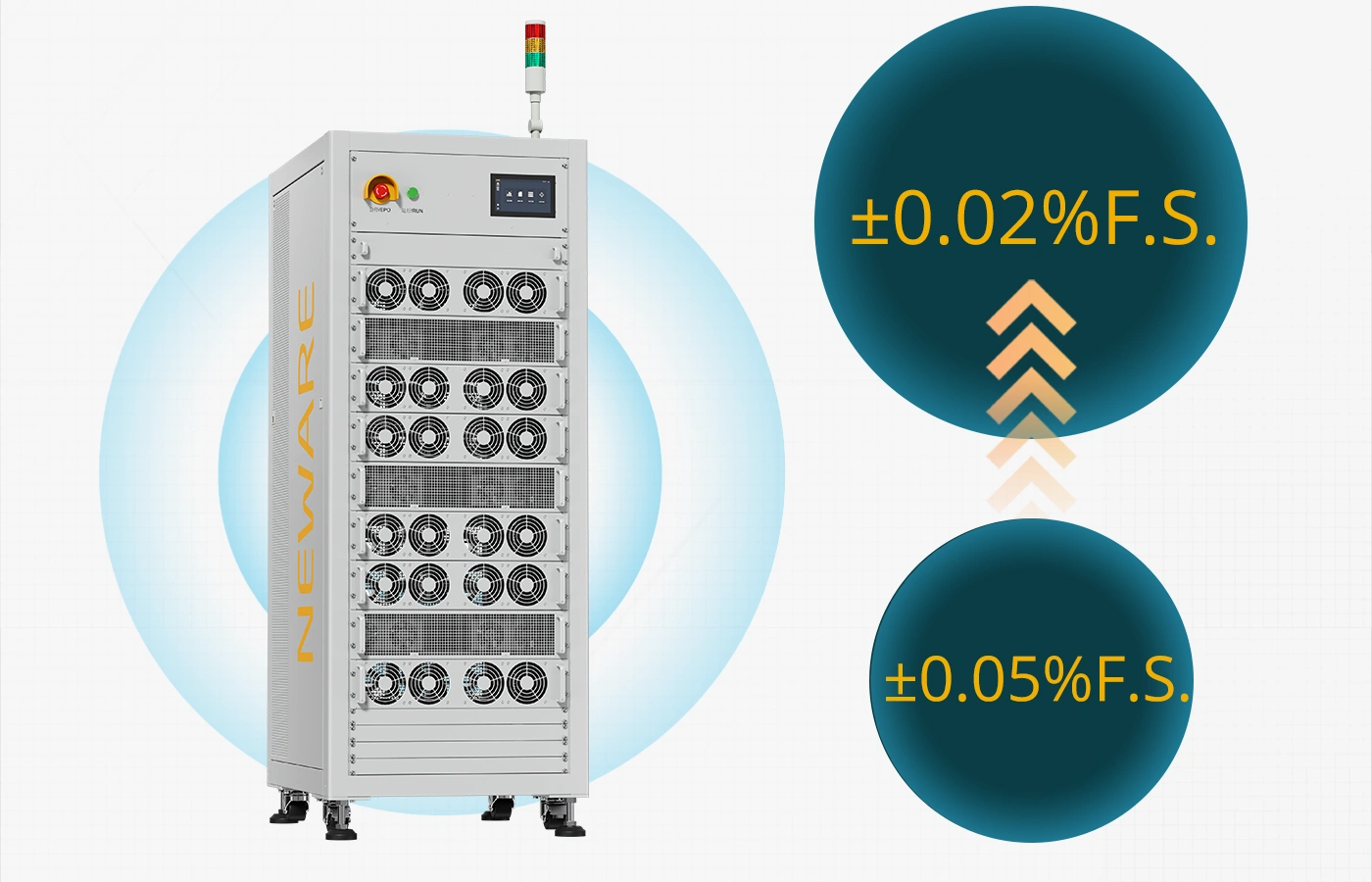

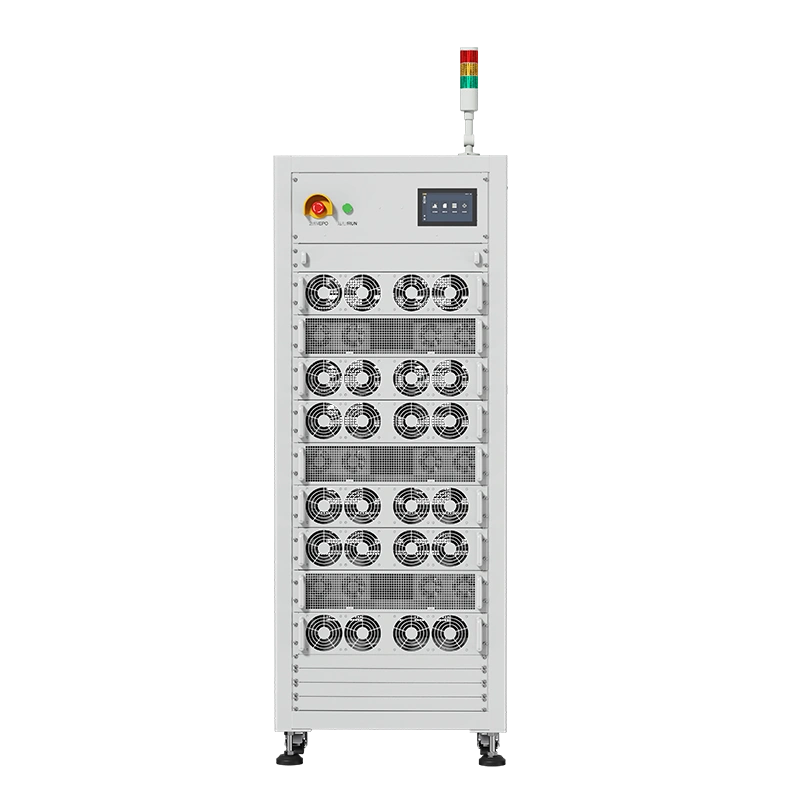

The CE-6000-Pro Series Cell Testing System features a comprehensive performance upgrade. Voltage and current measurement accuracy has improved from ±0.05% of F.S. to ±0.02% of F.S., supported by 24-bit high-resolution sampling for greater data precision. Key metrics including current response time, transition time, and minimum pulse width have also been significantly enhanced to accurately capture battery transient characteristics.

• Voltage & Current Accuracy：±0.05% F.S. → ±0.02% of F.S.

• Recording Frequency：100Hz → 200Hz

• Current Response Time：≤3ms → ≤1ms

• Current Conversion Time：≤6ms → ≤2ms

• Minimum Pulse Width：100ms → 10ms

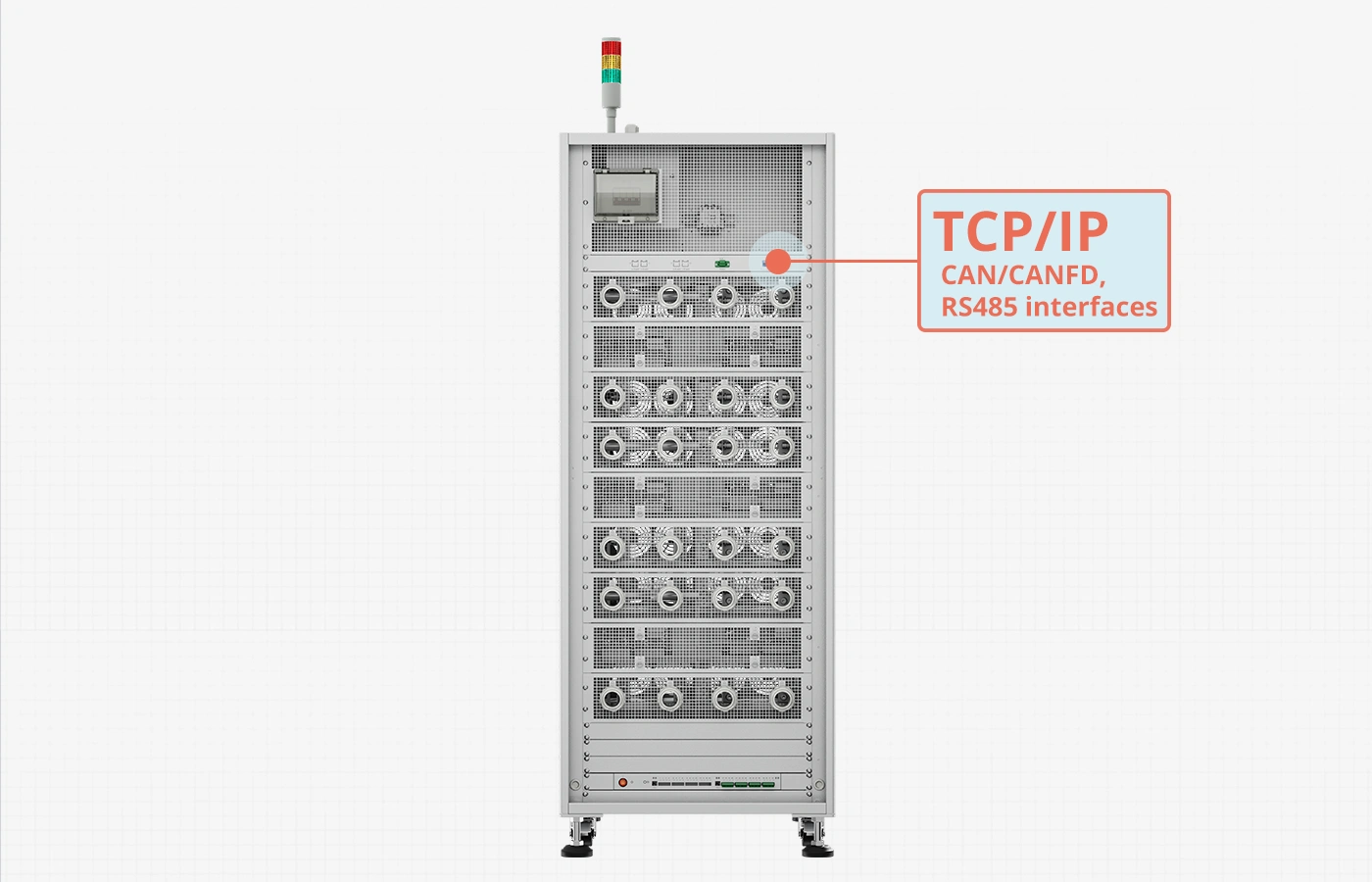

Supports communication expansion.

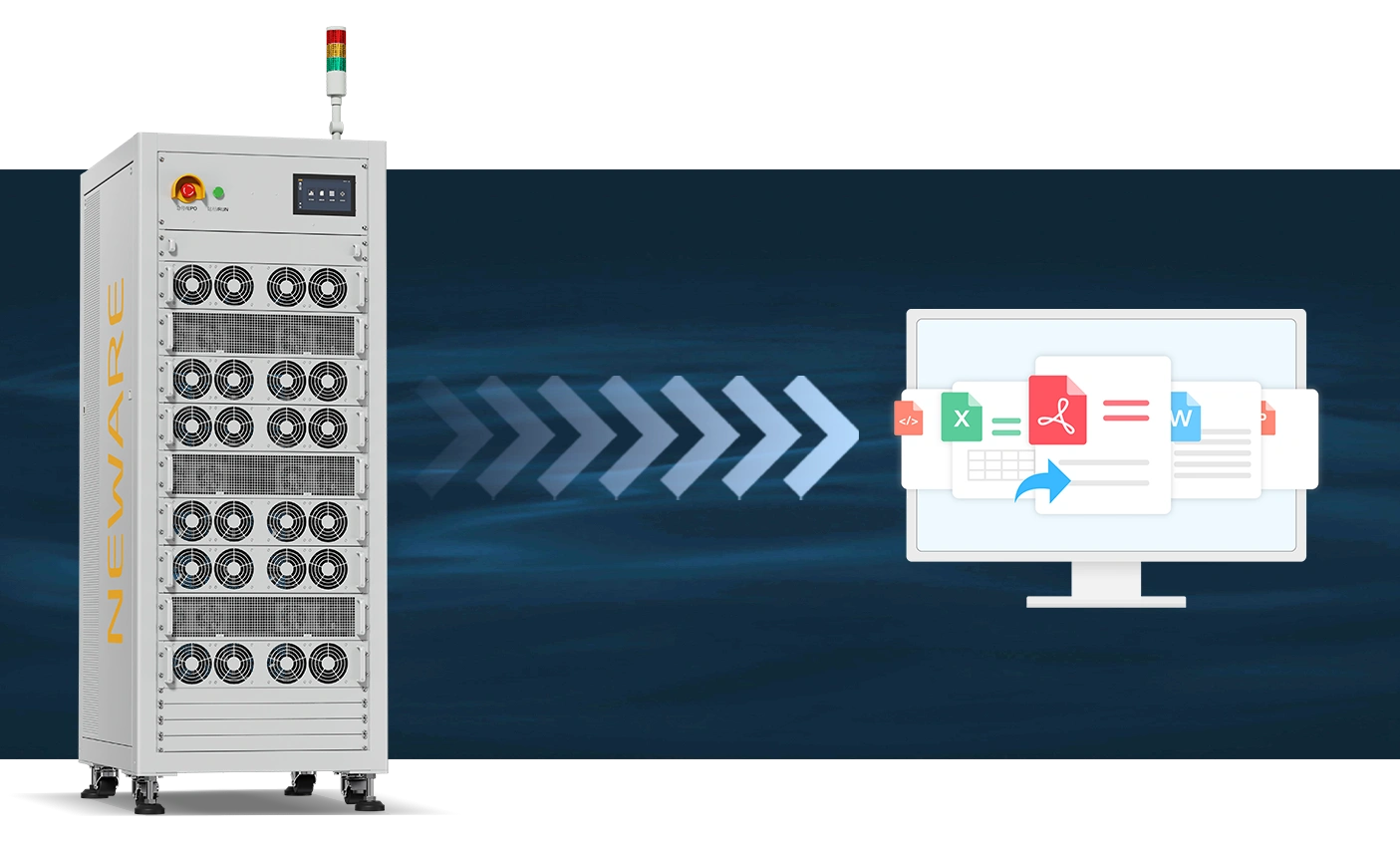

Create a multi-dimensional testing environment. It comes with standard Ethernet communication and TCP/IP protocol, optional CAN, RS485 and other interfaces. With DBC configuration function, it can interact with BMS systems, suitable for co - debugging in complex scenarios like battery packs and energy storage systems. Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental TestChambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.

Full-power energy feedback. Multi-scenario energy savings.

• Feedback Efficiency (Max) : 75%

The system can recover energy generated from battery discharge and redistribute it to other battery channels or feed it back to the internal power grid.

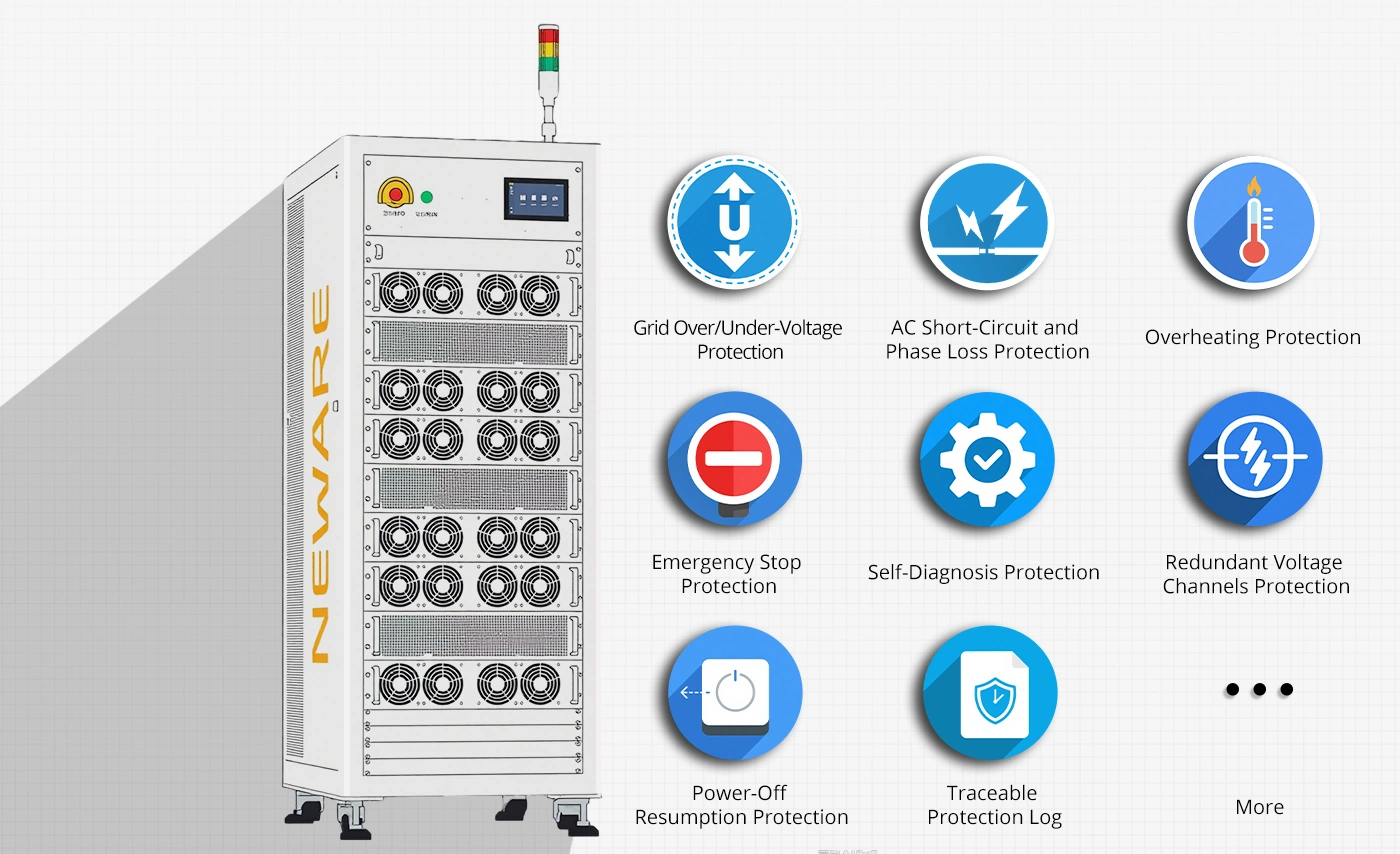

Perpetual dedication to safety protection.

• Grid Over/Under-Voltage Protection

• AC Short-Circuit and Phase Loss Protection

• Over-Voltage/Over-Current Output Protection

• Overheating Protection

• Open/Short Circuit Protection

• Emergency Stop Protection

• Self-Diagnosis Protection

• Redundant Voltage Channels Protection

• DC Polarity Reverse Protection

• Power-Off Resumption Protection

• Grid Voltage Phase and Frequency Adaptive

• Adjustable Protection Values for Voltage and Current

• Traceable Protection Log

Powerful programmability. Meet diverse testing needs.

Comprehensive equipment functionality, compatible with both charging and discharging, and adaptable to various BMS systems.

• DBC configuration

  Communication can be achieved by editing the DBC protocol files corresponding to different protocols of batteries.

• CC & CV charge/discharge test

  CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.

• 10ms pulse width

  Testing the performance of the battery under fast changes in current/power.

• Driving simulation

  Supports up to 1 million lines of changing data.
