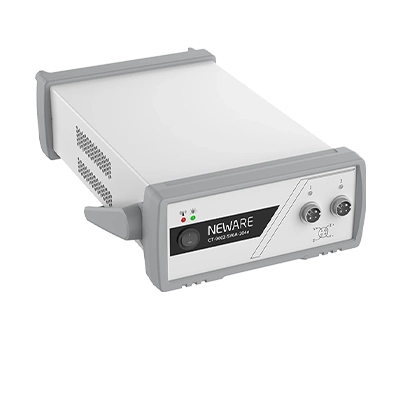

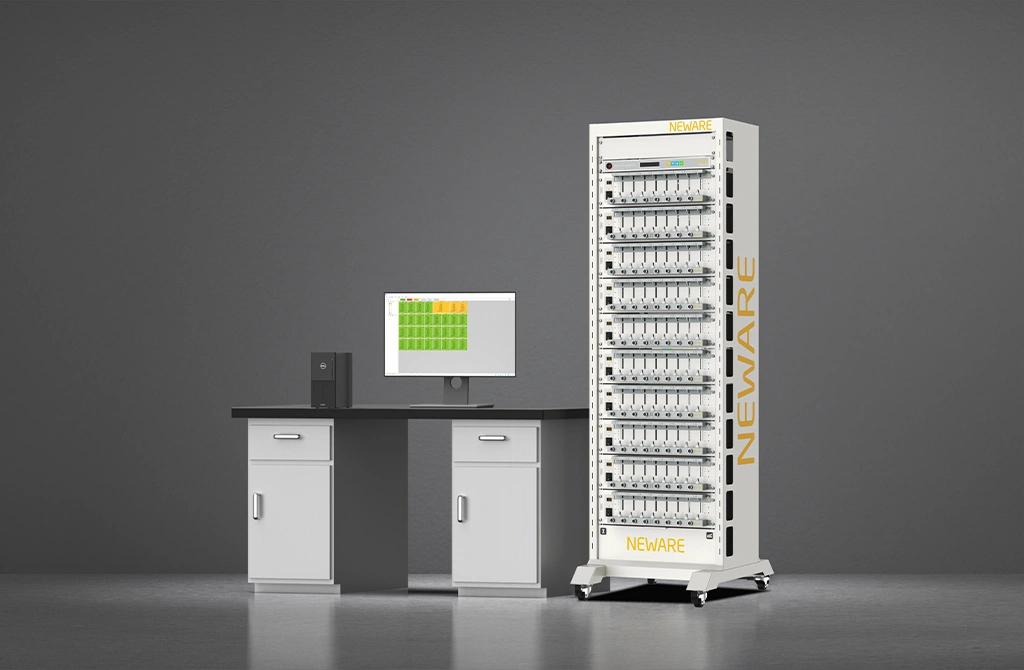

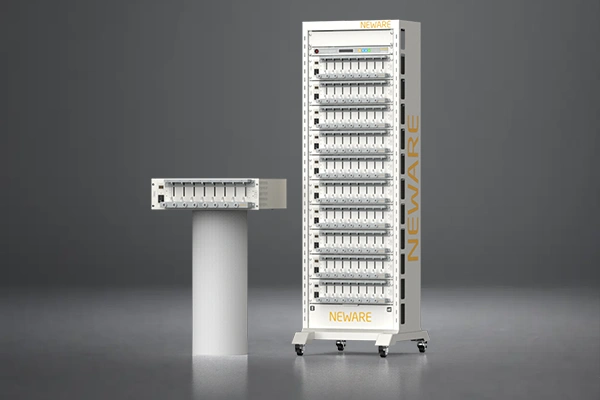

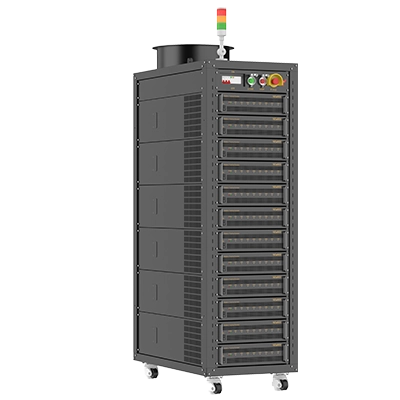

The current range is 6A to 30A, featuring high precision, multi-functionality and multi-range design. It can efficiently perform various performance evaluations such as routine charging and discharging, pulse testing and safety protection detection of power bank batteries.
Multi-functional integration: supports standard charge-discharge, pulse testing, and capacity calibration, covering diverse testing needs from R&D to quality inspection.
Multi-range design: accommodates power banks of varying capacities, ensuring versatile and precise testing.
Efficient and safe testing: enables easy setup and execution of overcharge, overdischarge, and short-circuit tests to validate battery safety designs.

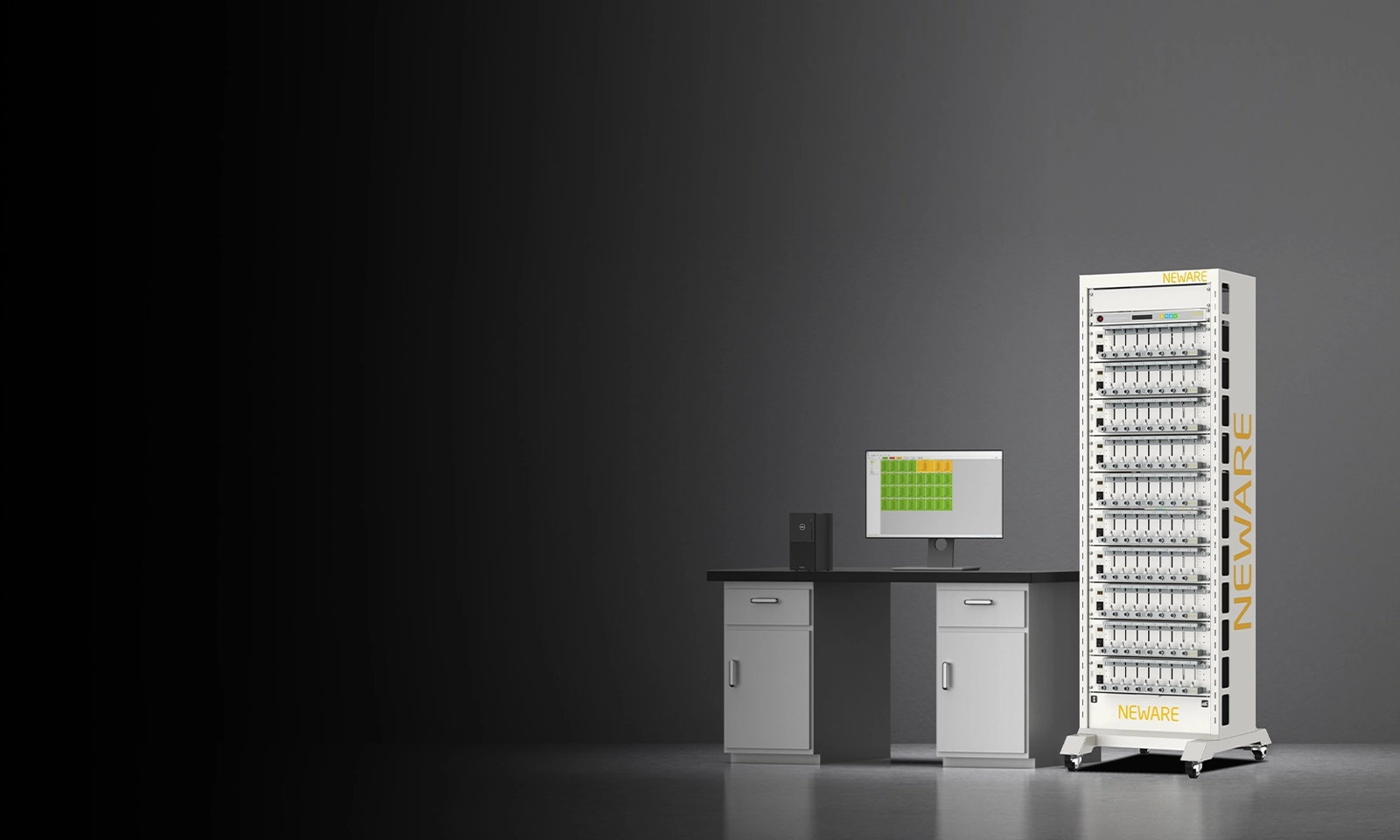

Series 9 products feature rapid response, and smart charge/discharge control, meeting basic testing needs and supporting fast - charging assessment and safety exploration.
Current response time ≤200μs: captures current changes instantly during charge/discharge switching, and evaluates fast-charging triggers and load - variation responses accurately.
Records charge/discharge curves at 1000Hz to analyze voltage/current ripple, and diagnoses power bank stability and internal resistance fluctuations.
Supports long-term cycling tests with complex strategies (e.g., fast - charging plus daily - use simulations) to speed up life and reliability verification of power banks.

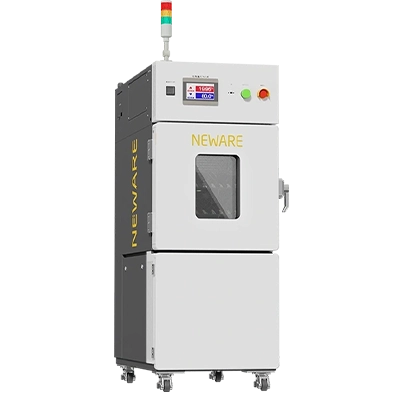

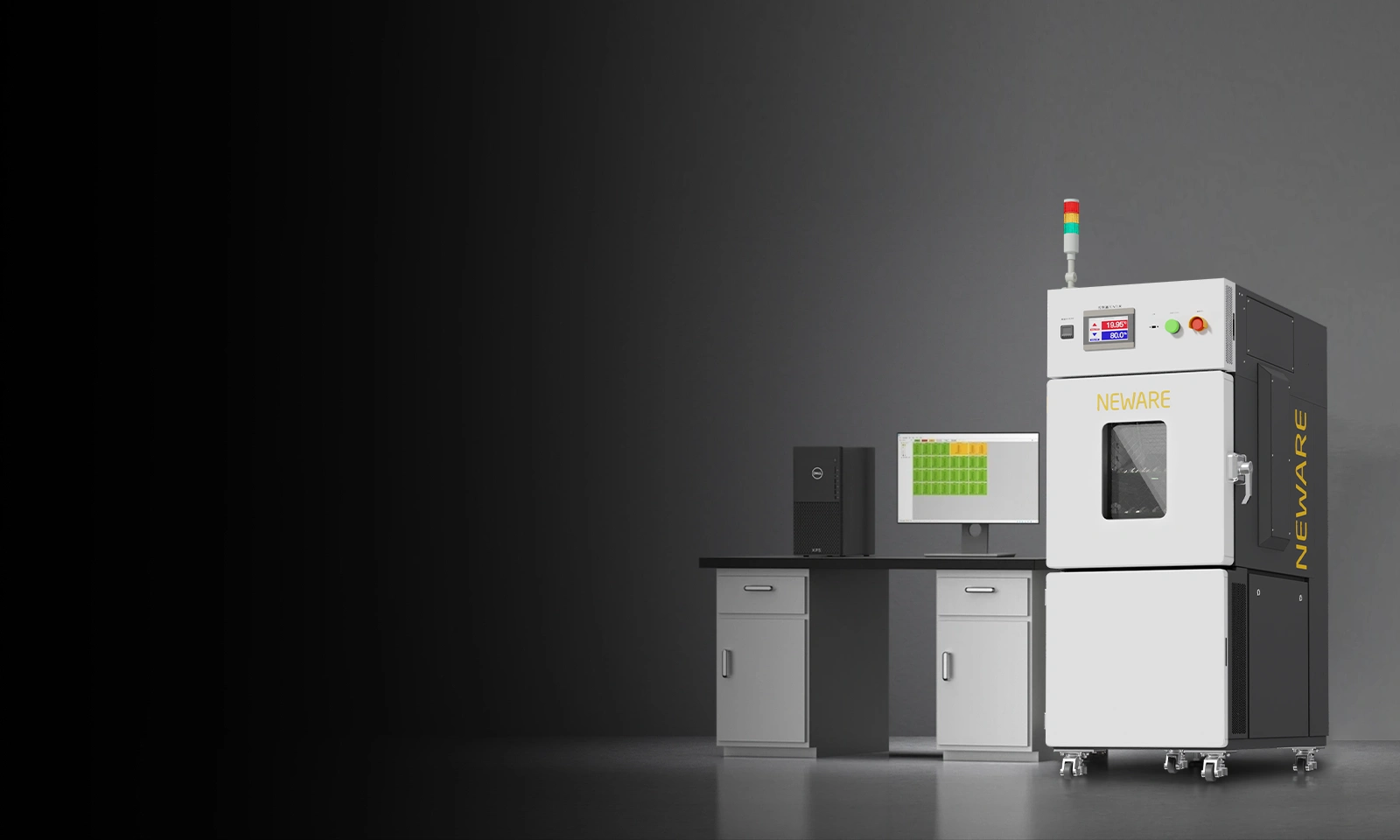

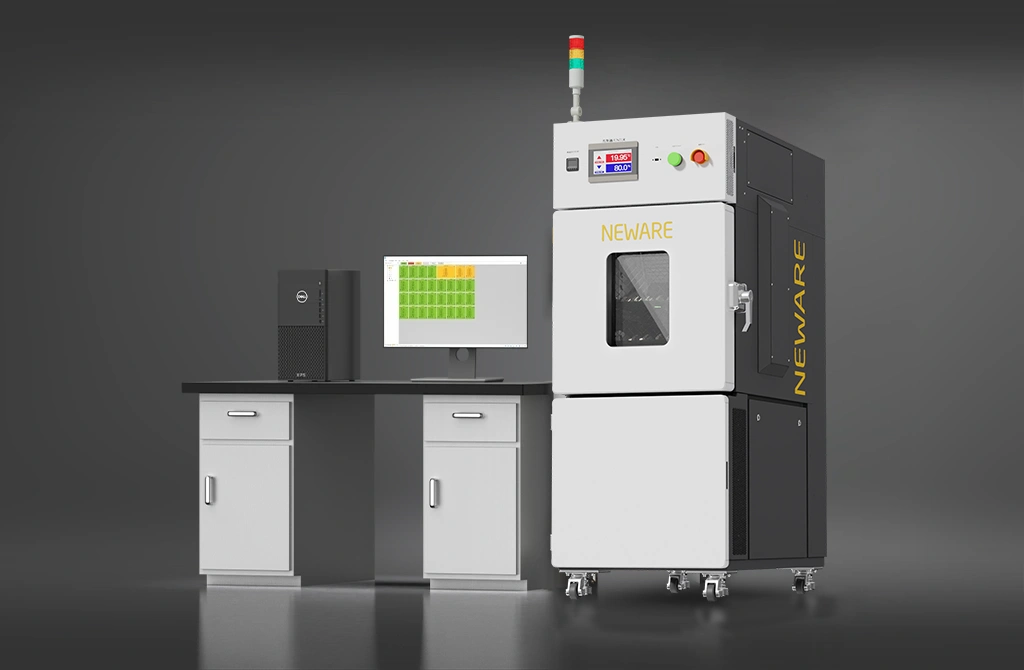

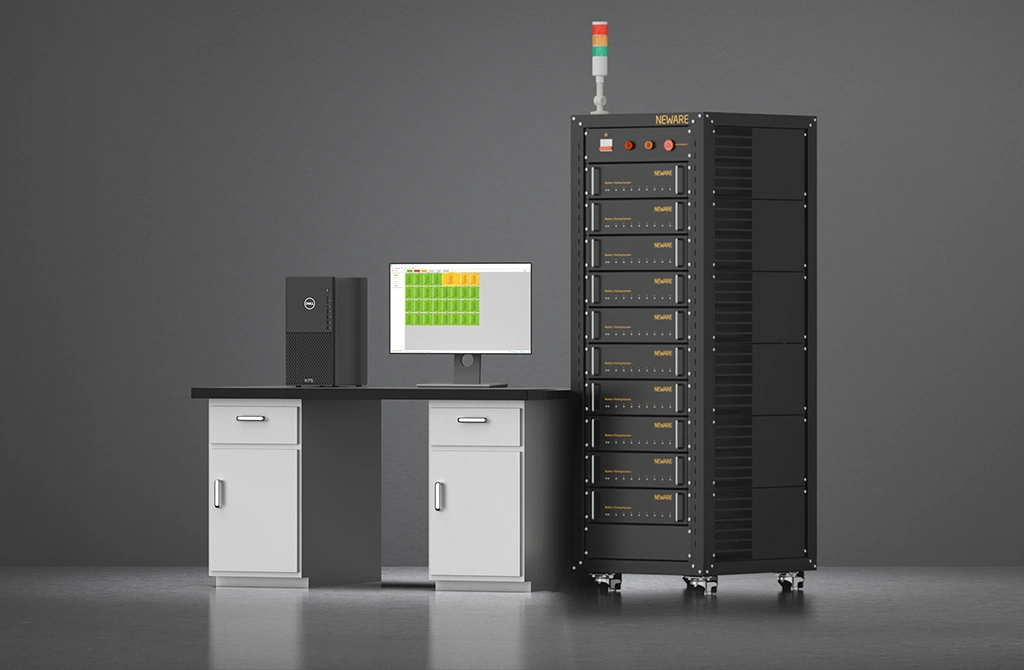

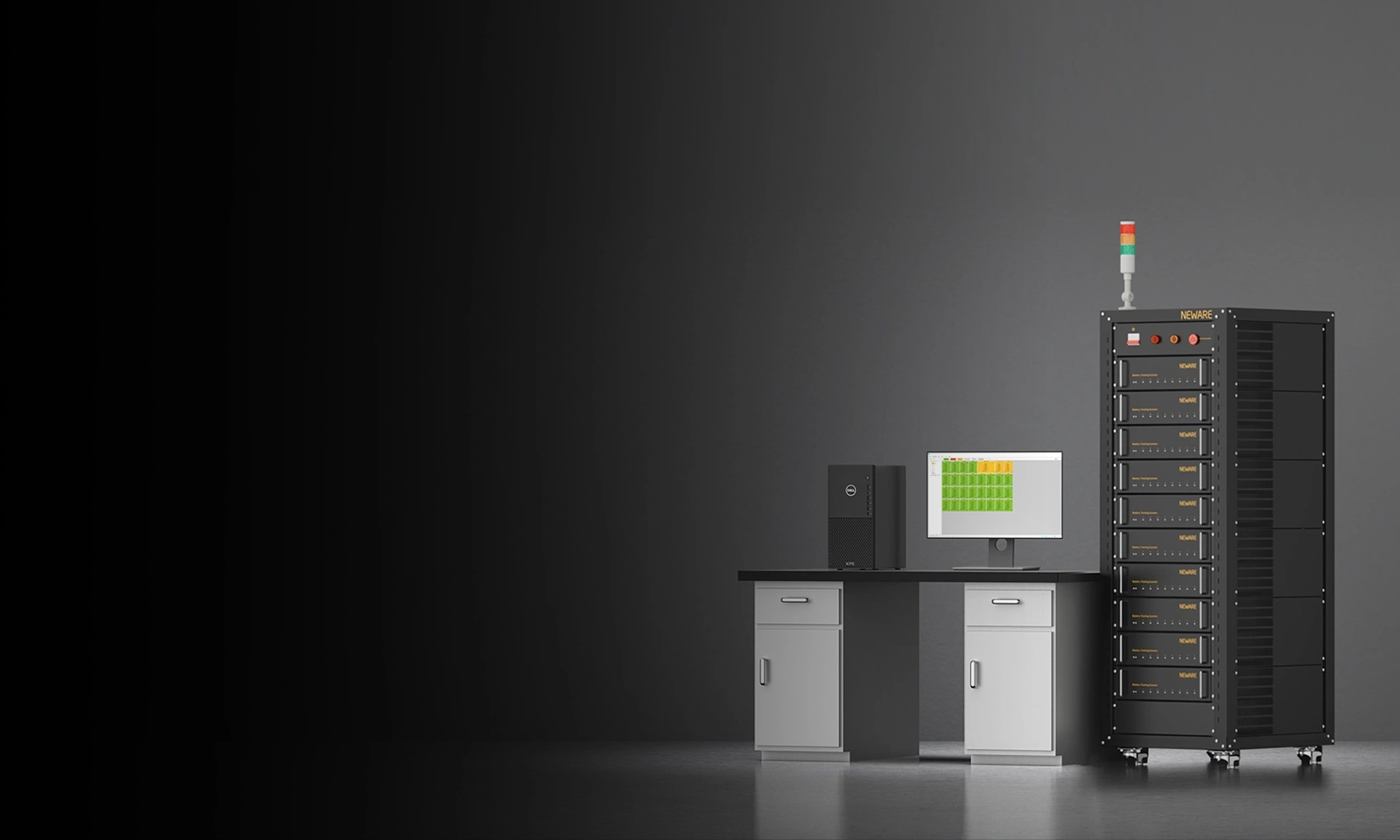

Testing power banks in simulated real-world conditions with an integrated charge-discharge device.
Temperature Impact Research: mimic diverse real-world settings. Long-term charge-discharge cycles at different temps assess battery aging and failure.
Safety Testing: perform overcharge/overdischarge tests in extreme cold/heat to spot thermal runaway risks, ensuring safety in harsh conditions and meeting market and user safety expectations.

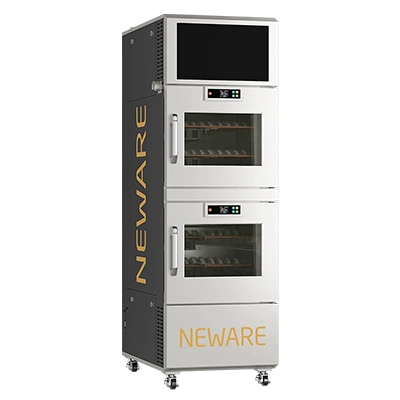

● Current & Voltage Accuracy:±0.05% F.S.
● Data Logging Frequency:10Hz
● Temperature Range & Deviation:-94°F~302°F ±3.6°F(-70℃~150℃±2℃)
● Temperature Fluctuation:≤0.9°F(≤0.5℃)
● Heating Time:68°F→302°F≤60min
(20℃→150℃≤60min)
● Cooling Time:68°F→-94°F≤75min
(20℃→-70℃≤75min)

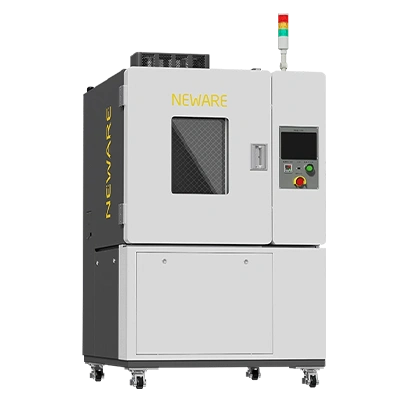

● Current & Voltage Accuracy:±0.05% F.S.
● Data Logging Frequency:10Hz
● Temperature Range & Deviation:-40°F~302°F±3.6℉(-40℃~150℃±2℃)
● Temperature Fluctuation:≤0.9℉(0.5℃)
● Heating Time:68°F→302°F≤60min
(20℃→150℃≤60min)
● Cooling Time:68°F→-40°F≤60min
(20℃→-70℃≤60min)
