UL 2743: Safety standard for portable power packs, covering electrical, mechanical, and environmental tests.
UN 38.3: Ensures battery transportation safety, covering vibration, shock, and short circuit tests.

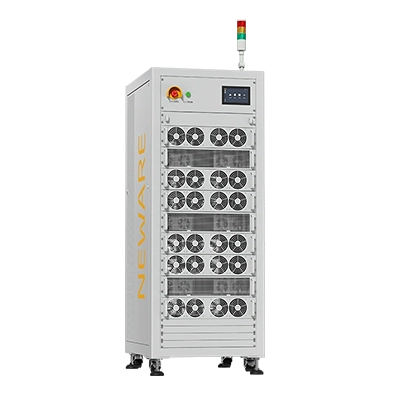

1. Multi-range design supports testing from standby to high-power discharge. ±0.02% F.S. accuracy and 24-bit resolution ensure precise capacity and runtime measurement, eliminating performance overstatement.
2. Simulates real usage with high-rate charge/discharge and long-term cycle tests (up to 65,535 cycles). Custom steps and cycle nesting assess capacity fade and reliability under shallow or deep cycling.

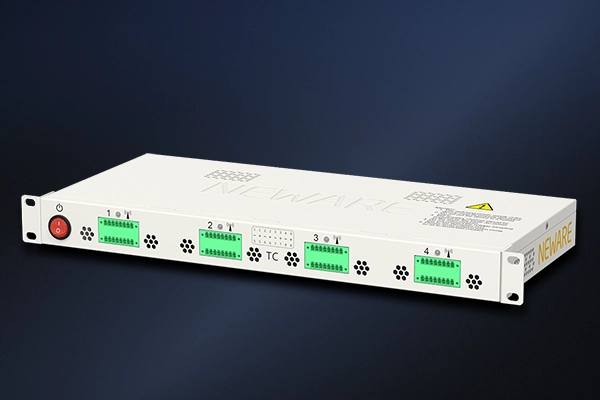

3. Integrates with AUX channels to monitor surface temperature and internal resistance. Syncs thermal and electrical data to evaluate battery health and safety.
Voltage & Current Accuracy: ±0.02% F.S.
High-Frequency Sampling: 200Hz
Current Conversion Time: ≤2ms
Current Response Time: ≤1ms
Minimum Pulse Width: 10ms
Feedback Efficiency (Max): 75%
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 100Hz
Current Conversion Time: ≤6ms
Current Response Time: ≤3ms
Minimum Pulse Width: 100ms
Feedback Efficiency (Max): 75%

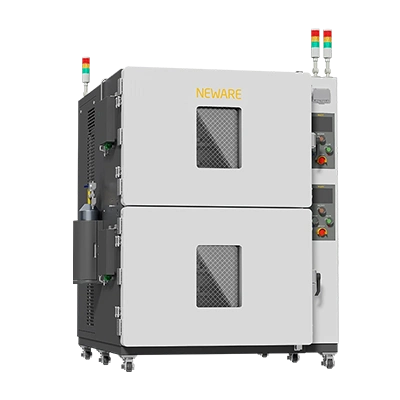

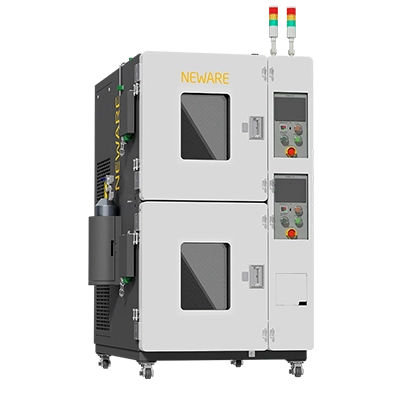

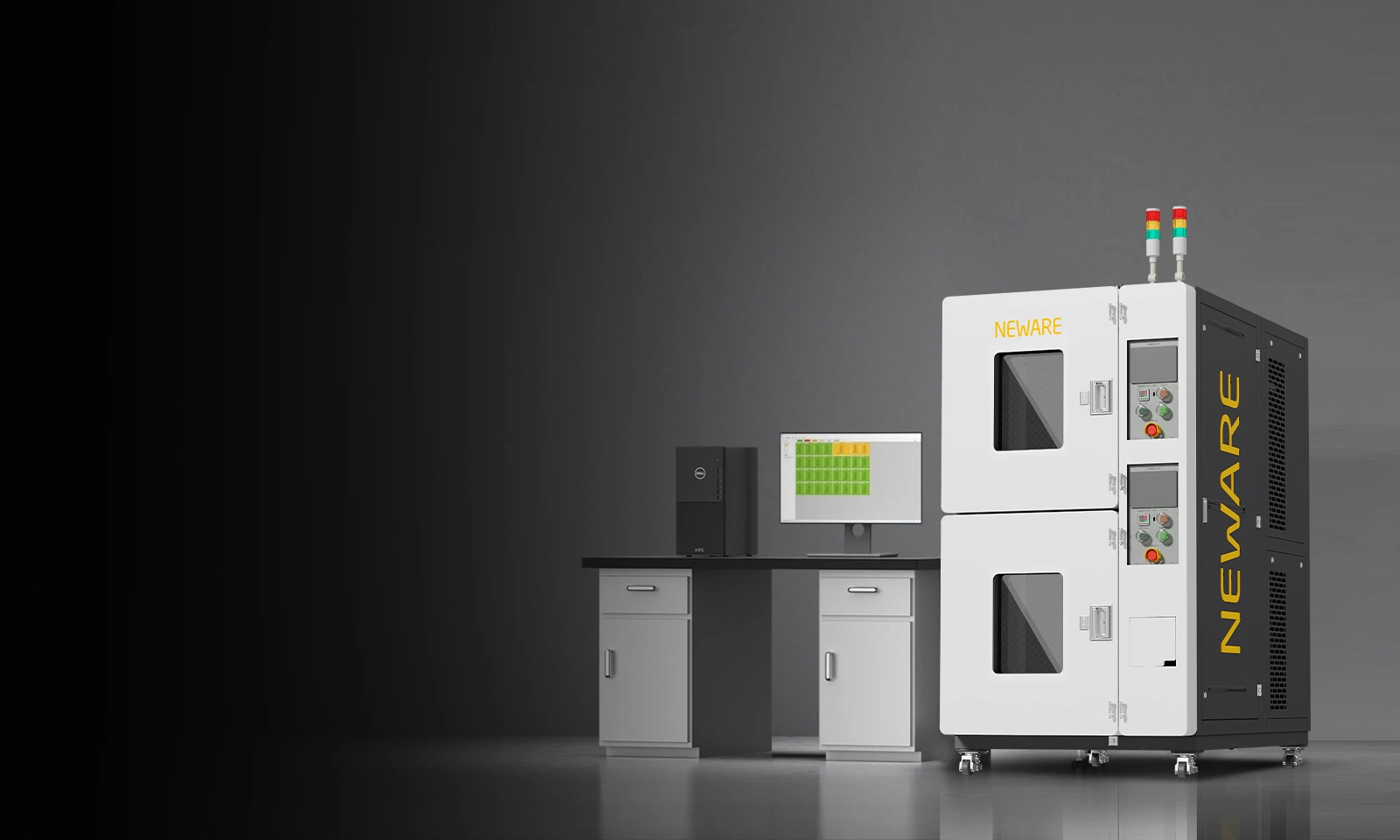

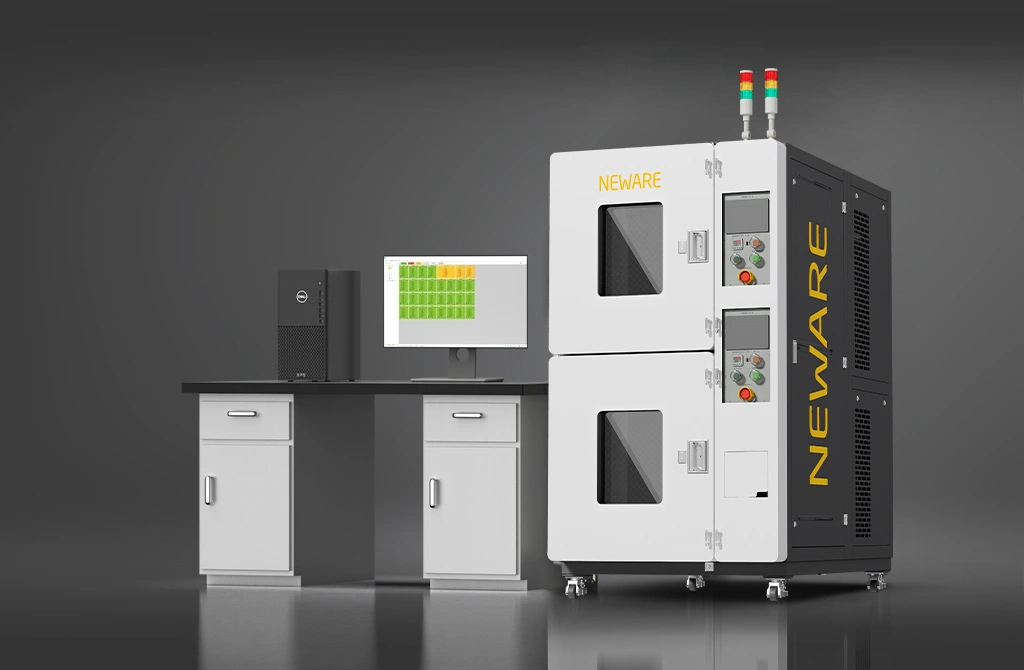

Combining charge/discharge testing with environmental simulation, the All-in-One Testing System delivers precise, efficient validation.
1. Covers -70°C to +150°C for performance verification under extreme conditions, ensuring reliability in all environments.
2. Temperature cycling during charge/discharge tests accelerates aging simulation, replicating years of real-world use.
3. Validates thermal safety and BMS performance under high-temperature, high-power operation.
Current & Voltage Accuracy: ±0.05% F.S.
Data Logging Frequency: 10Hz
Temperature Range & Deviation: -40°F~302°F±3.6℉(-40℃~150℃±2℃)
Temperature Fluctuation: ≤0.9℉(0.5℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min)
Cooling Time: 68°F→-40°F≤60min
(20℃→-70℃≤60min)
Current & Voltage Accuracy: ±0.05% F.S.
Data Logging Frequency: 10Hz
Temperature Range & Deviation: -40°F~302°F±3.6℉(-40℃~150℃±2℃)
Temperature Fluctuation: ≤0.9℉(0.5℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min)
Cooling Time: 68°F→-40°F≤60min
(20℃→-40℃≤60min)
Current & Voltage Accuracy: ±0.05% F.S.
Data Logging Frequency: 10Hz
Temperature Range & Deviation: -40°F~302°F±3.6℉(-40℃~150℃±2℃)
Temperature Fluctuation: ≤0.9℉(0.5℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min)
Cooling Time: 68°F→-40°F≤60min
(20℃→-40℃≤60min)
