Hazard caused by battery cell explosion during protective testing process.
Features
Resources

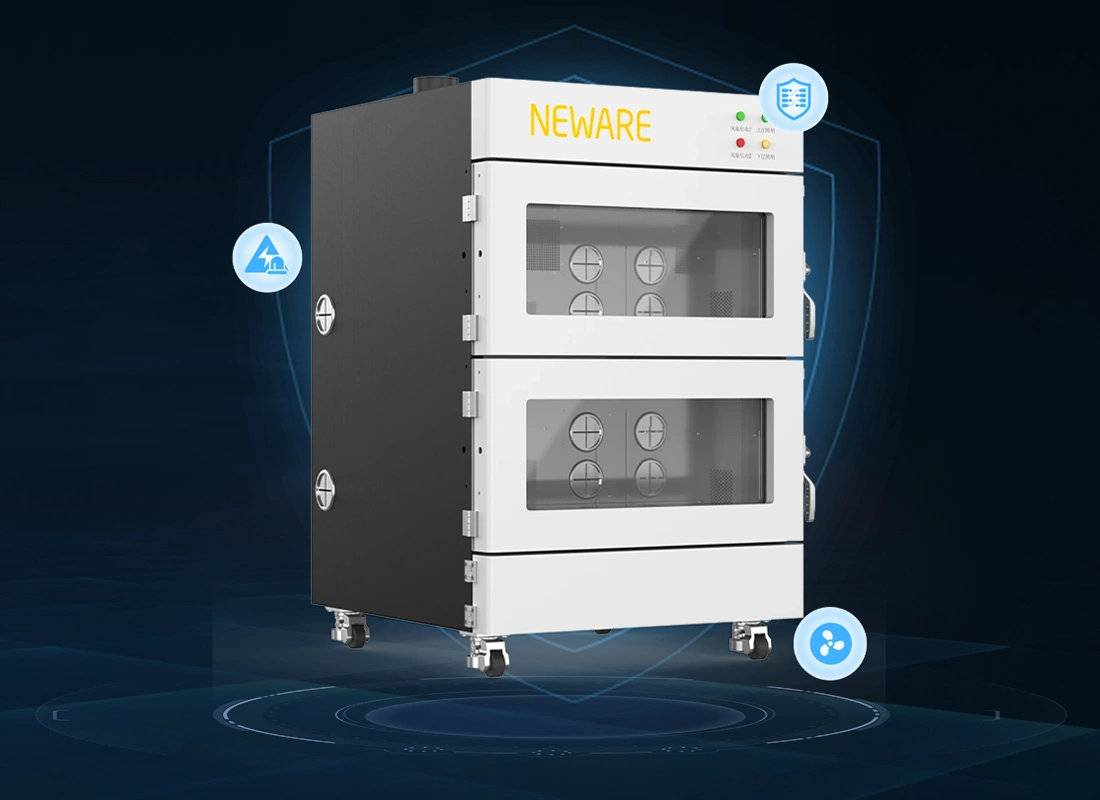

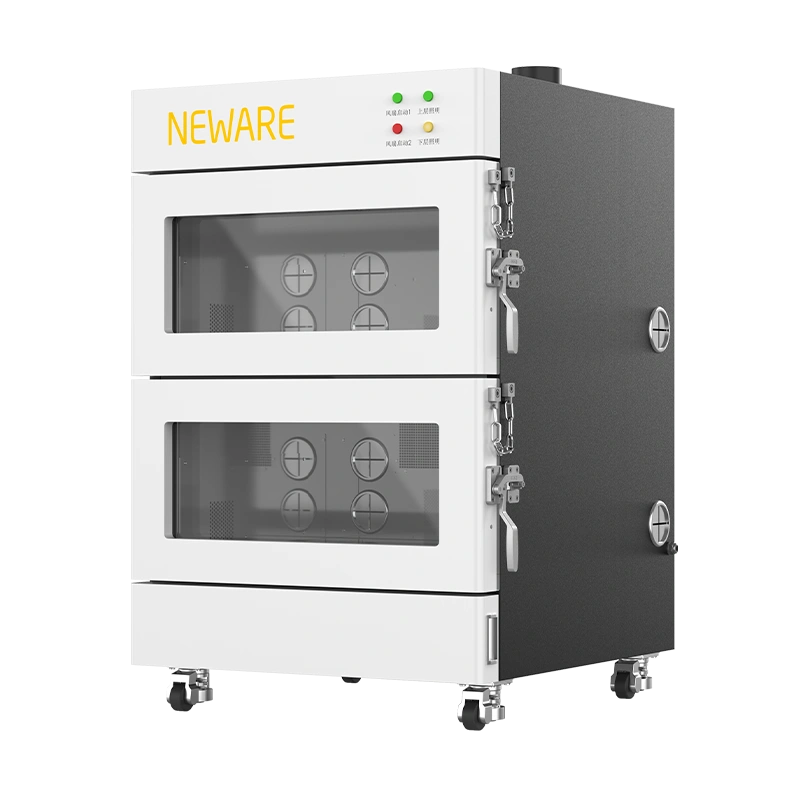

Battery safety performance testing includes procedures such as overcharge, overdischarge, and short-circuit tests. The WFB-220L-2K explosion-proof chamber provides a secure environment for conducting these tests, ensuring both experimental safety and reliability.

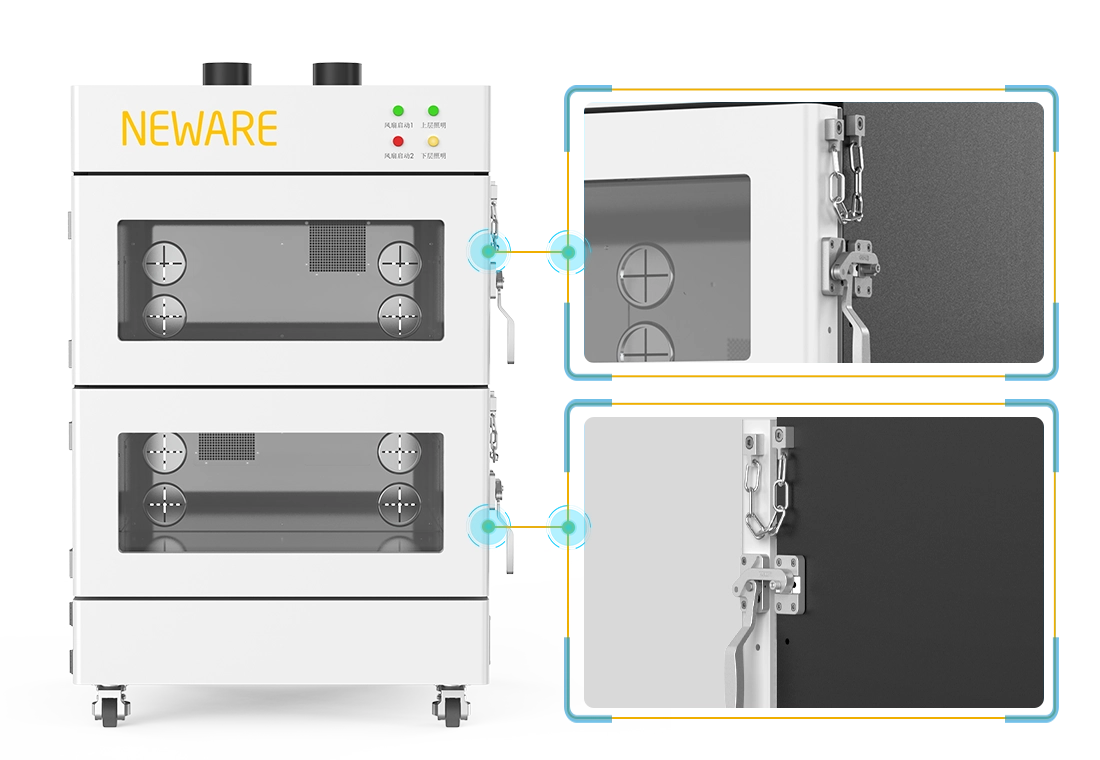

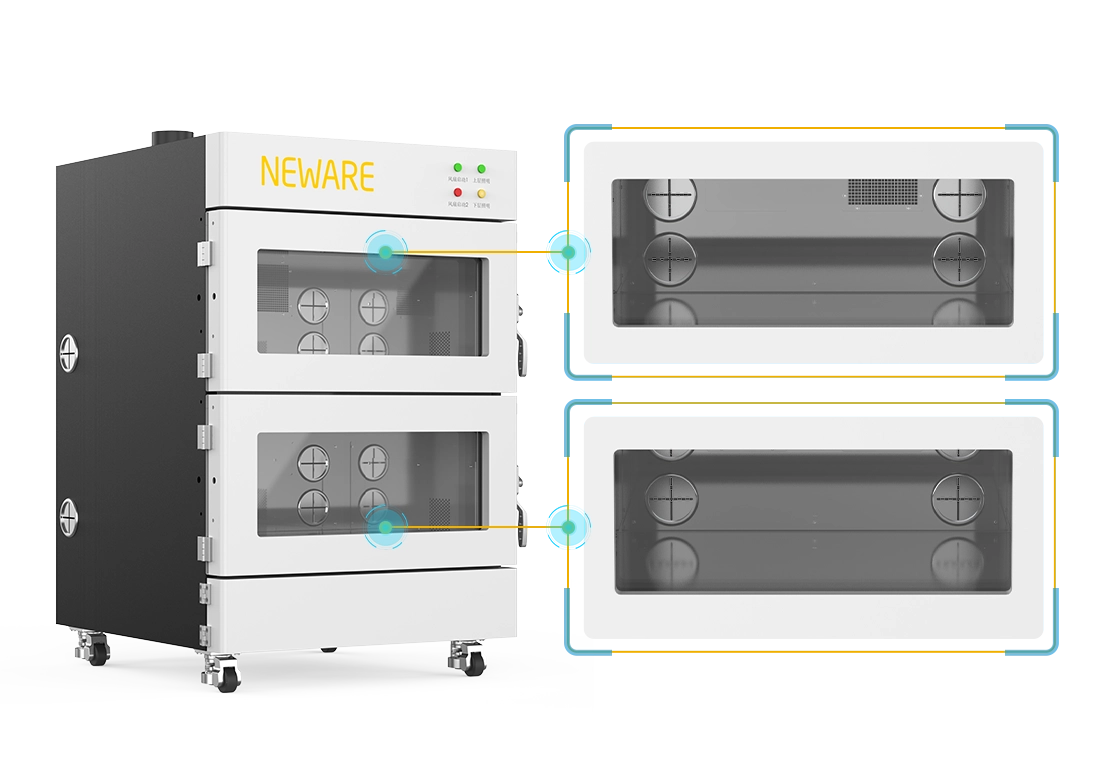

Each zone is equipped with three explosion-proof bars, two on the left side and one on the right side. The explosion-proof chamber is fitted with a explosion-proof transparent window to provide the protection for testing personnel if battery explosion happened. Additionally, the three-layer explosion-proof glass designed allows for dynamic observation of the testing conditions inside the chamber, enabling real-time monitoring of the testing progress.
The external wall is made of high-quality cold-rolled steel plate, with surface spray coating and paint treatment. The inner wall is made of 0.06" (1.5mm) stainless steel plate. The interior of the chamber is reinforced with epoxy insulation boards to ensure testing safety.

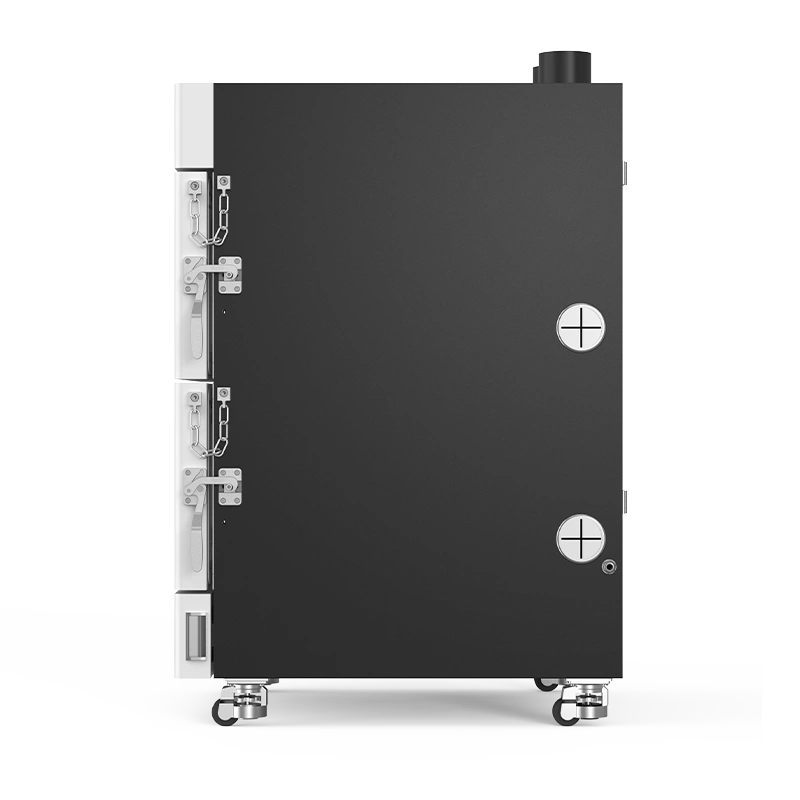

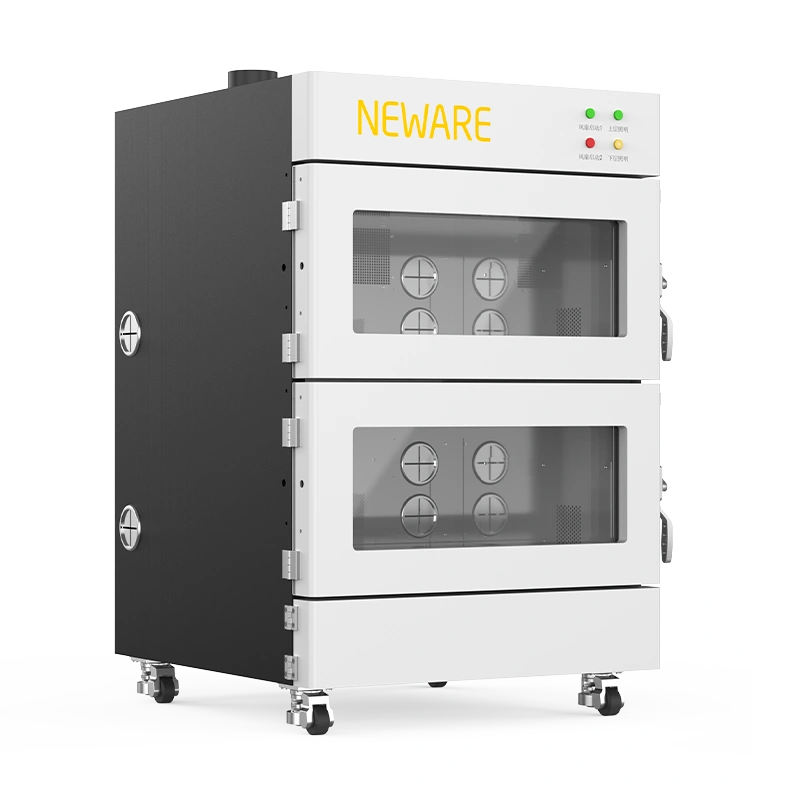

Featuring a unique connector aperture design, each enclosure is equipped with two connector holes on the left and right sides externally, as well as two 90mm diameter lead holes on the rear wall internally. This design effectively eliminates complex wiring issues. All connector apertures are equipped with protective grommets to securely fasten the leads in place.
● Protective Ground Wire
● Short Circuit Protection
● Explosion-proof Light

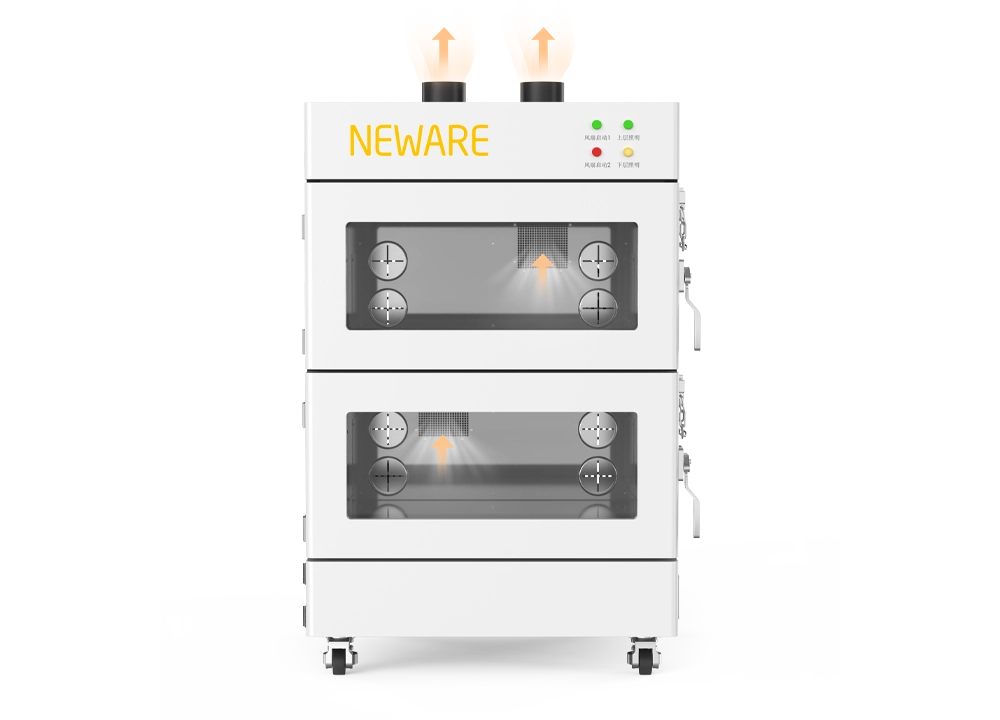

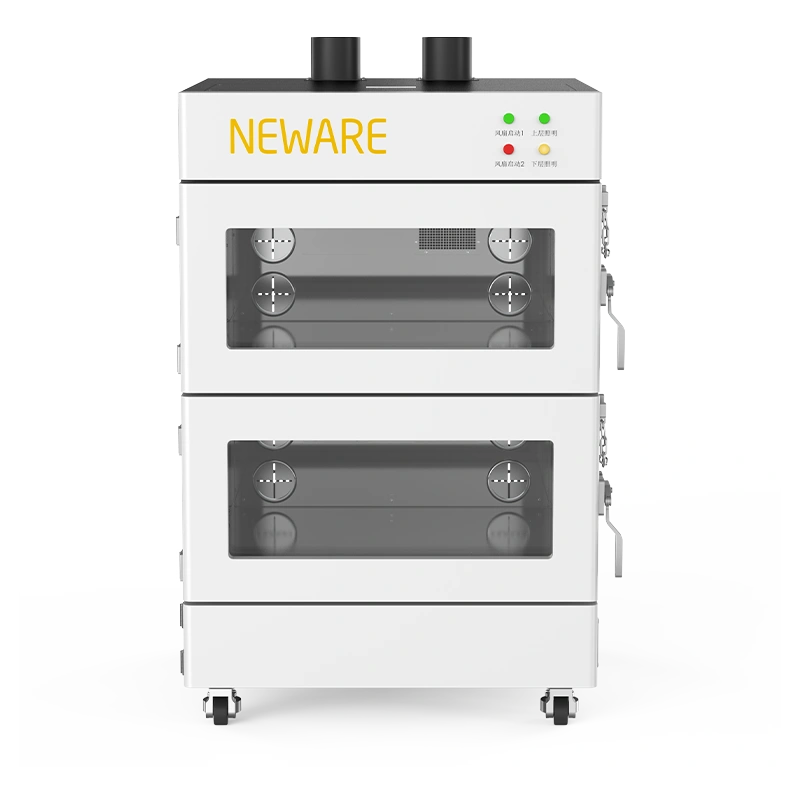

Each enclosure is equipped with ventilation ducts connected to external air ducts at the top. The top of the enclosure has two external air ducts that are fitted with exhaust fans for ventilation and heat dissipation.
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
