Seizing minuscule currents with ease.

Steady-state data acquisition.
Embracing the energy of precision.

±0.02% F.S.
Current Accuracy
±0.02% F.S.
10Hz
Recording Frequency
10Hz
100ms
Sampling Time
100ms
≤1.5ms
Current Response Time
(10% F.S. ~ 90% F.S.)
≤1.5ms
500ms
Minimum Pulse Width
500ms
1GB
Off-Line Test
1GB

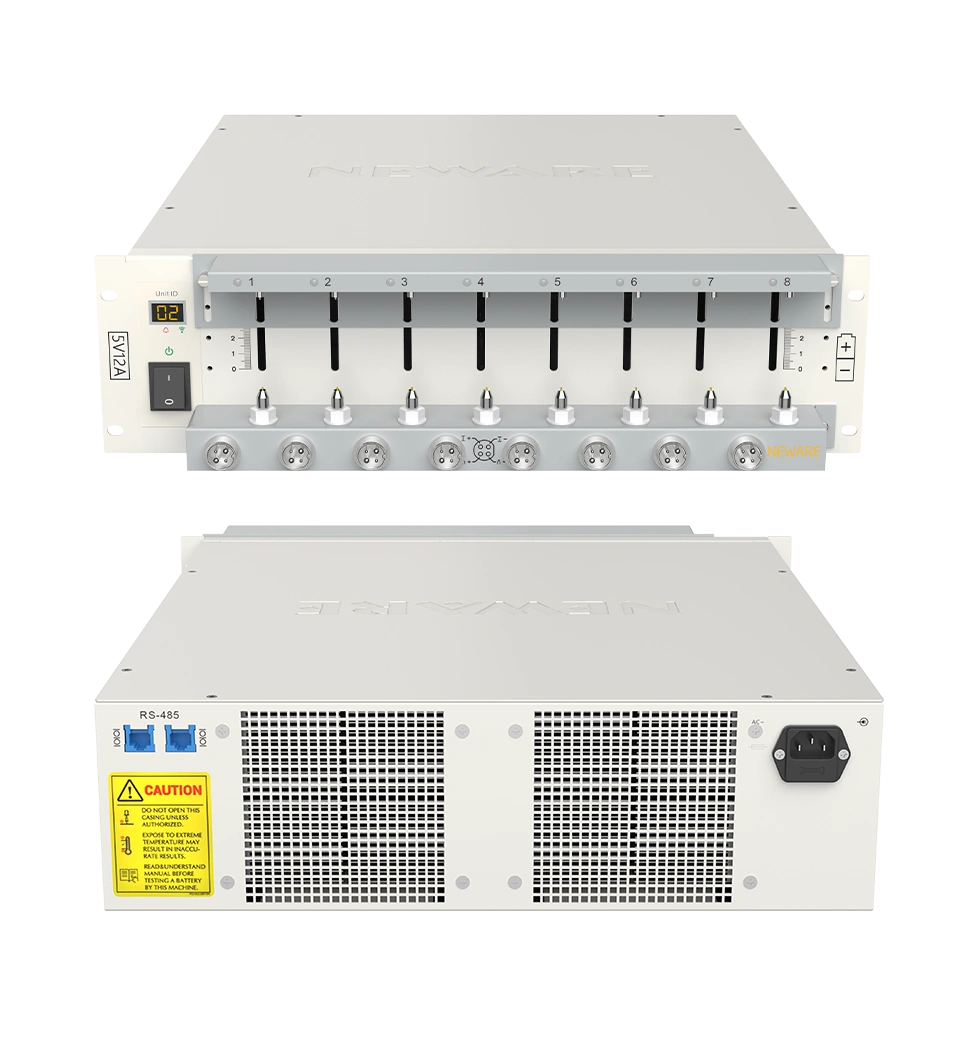

Stable performance parameters to ensure accurate and reliable test data. At the same time, the product adopts modular design with each unit having 8 channels, which can be independently data acquisition and programmed with the maximum number of editable lines supporting 254 lines. The NEWARE battery tester is engineered with integrated probes specifically for cylindrical batteries, allowing for height adjustment to accommodate various sizes of cylindrical batteries in testing.

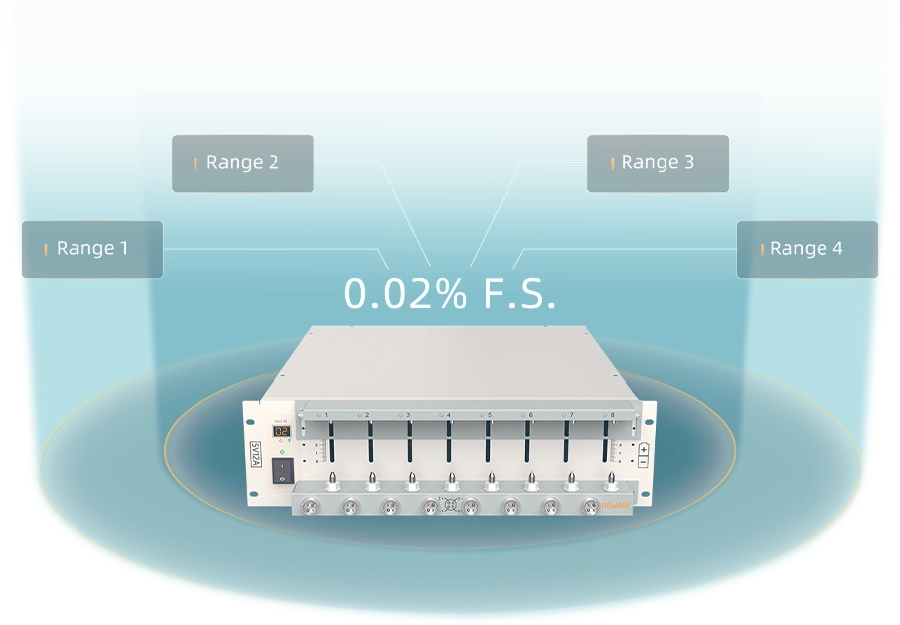

4-range switching,
precision defined.

Current ranges from 0.5mA ~ 100mA, 100mA ~ 500mA, 500mA ~ 6A, 6A ~ 12A can be selected to realize the controllable accuracy of small current in small range.

NEWARE Battery Tear-CT-4008Q-5V12A-S1 has four current ranges, which are 0.5mA ~ 100mA, 100mA ~ 500mA, 500mA ~ 6A, and 6A ~ 12A, respectively

Compact in size,
big on functionality.

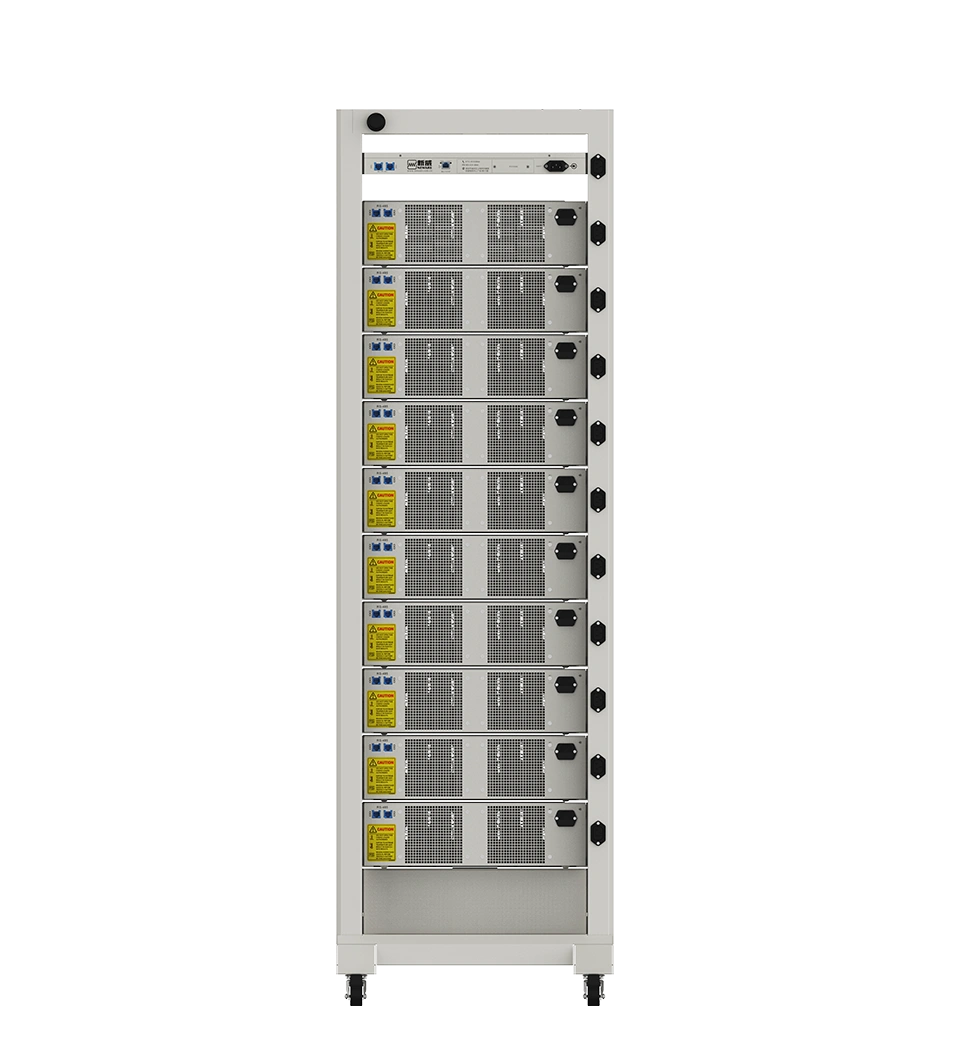

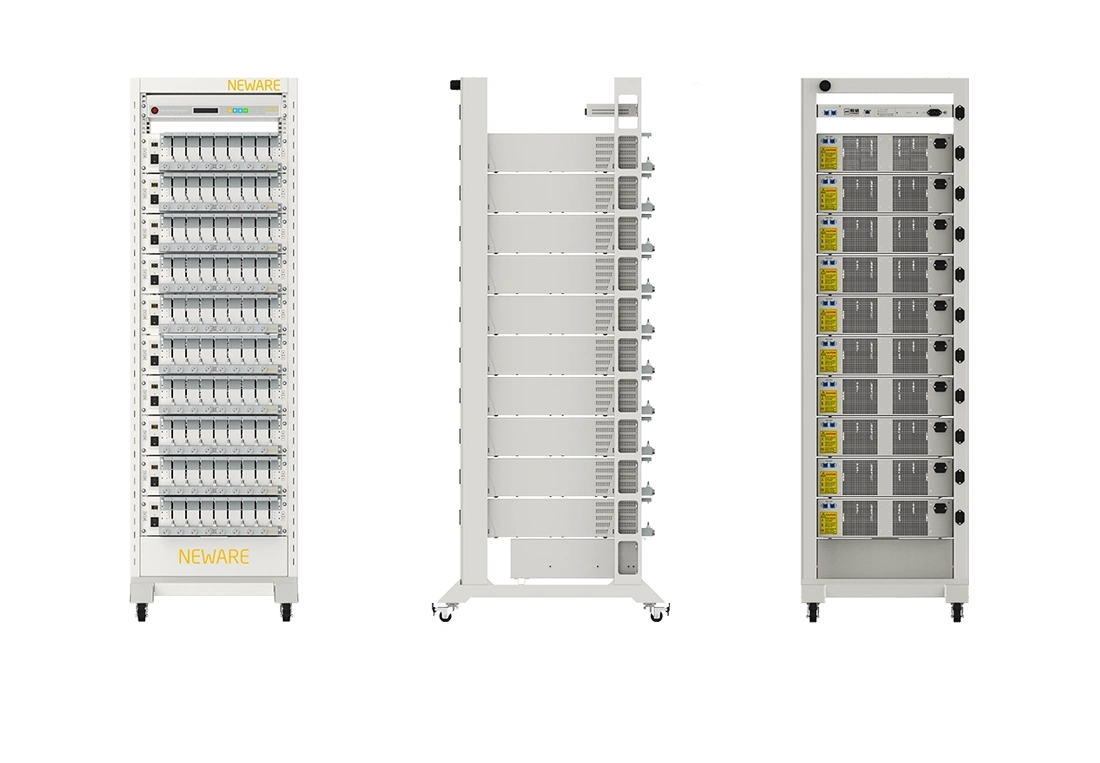

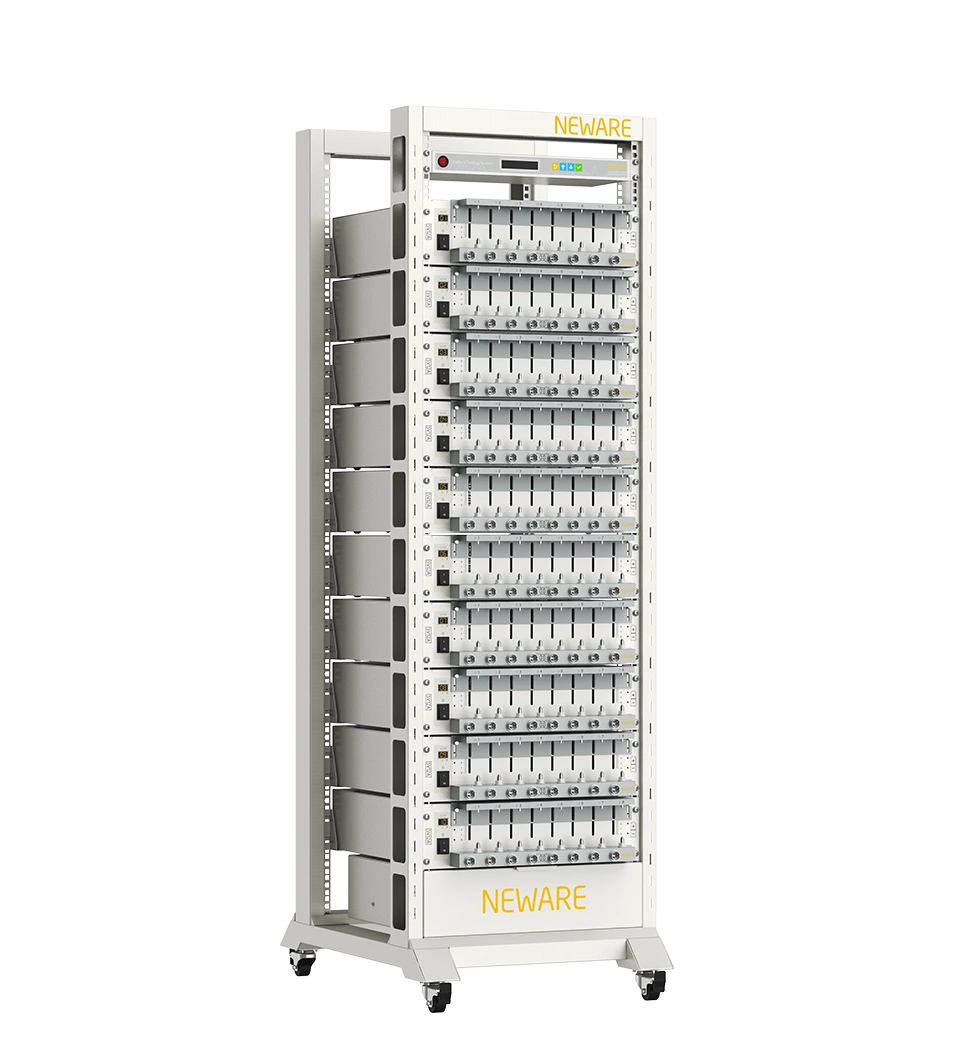

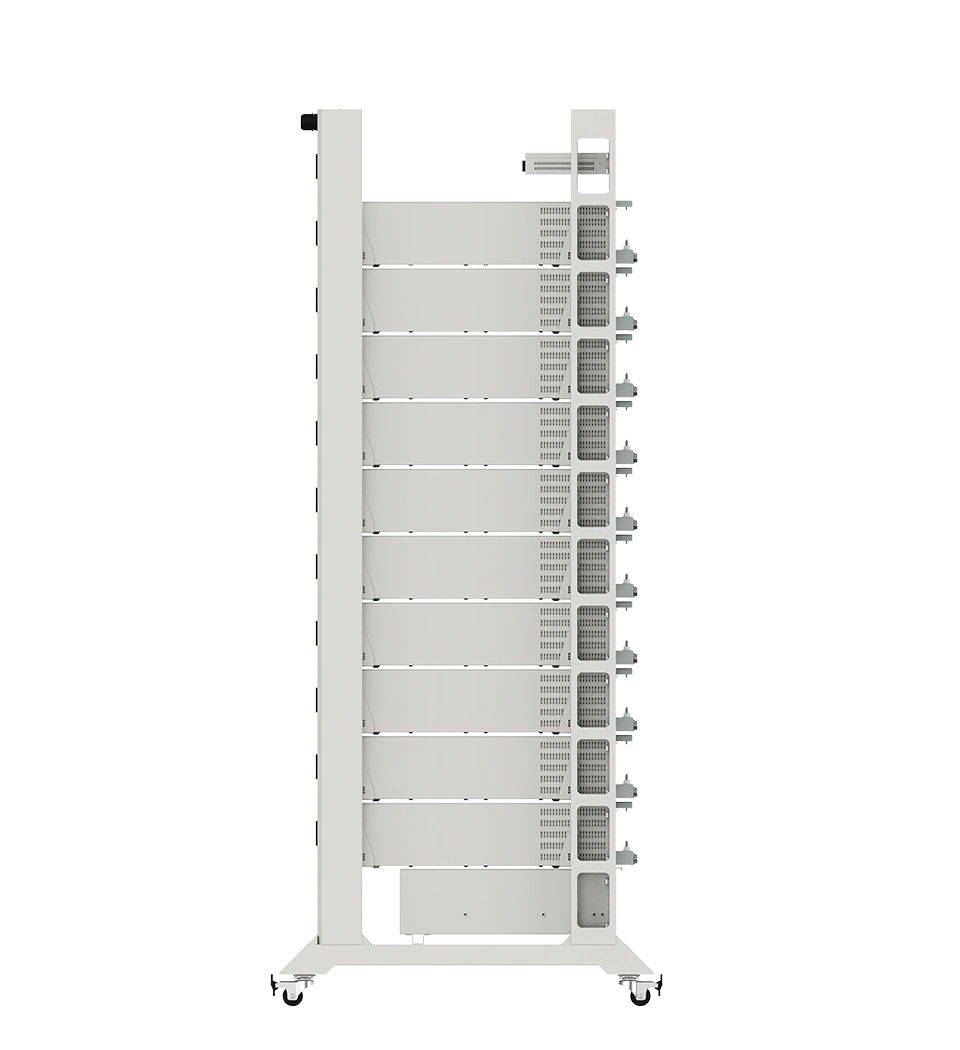

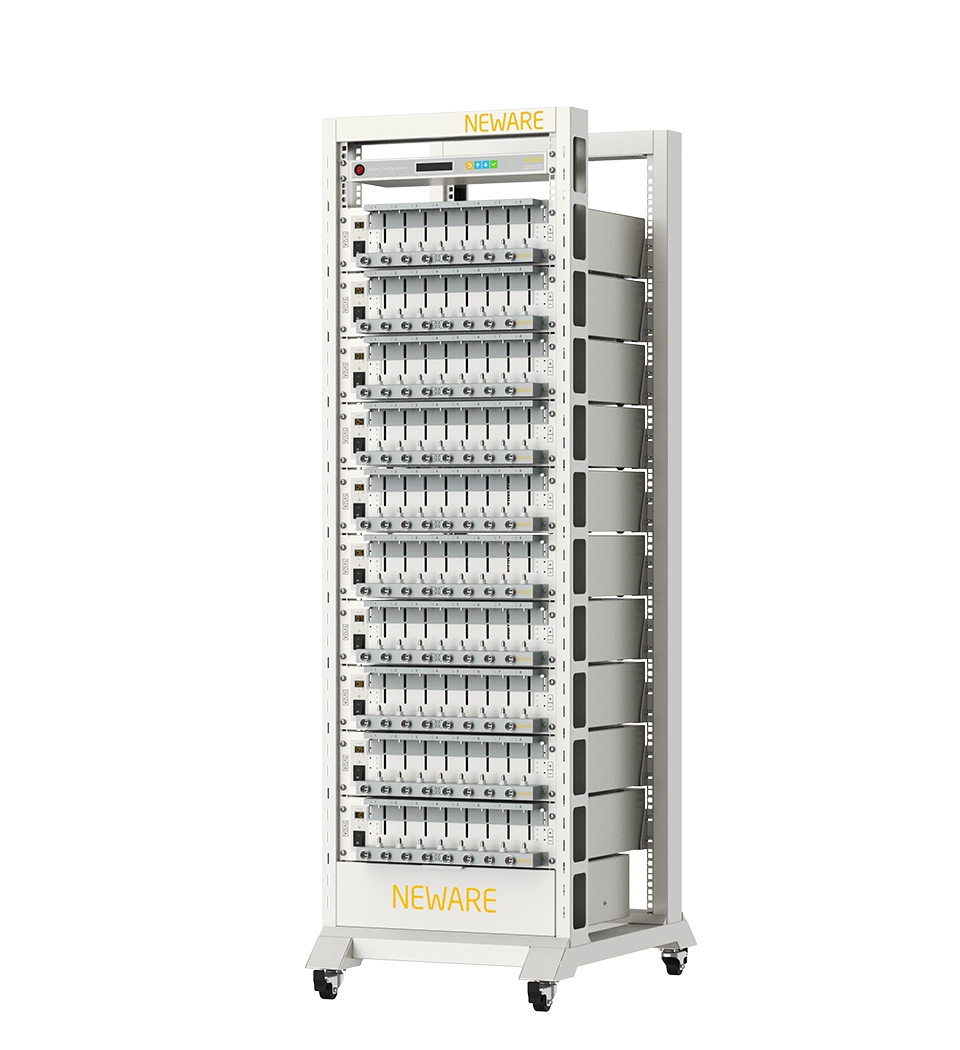

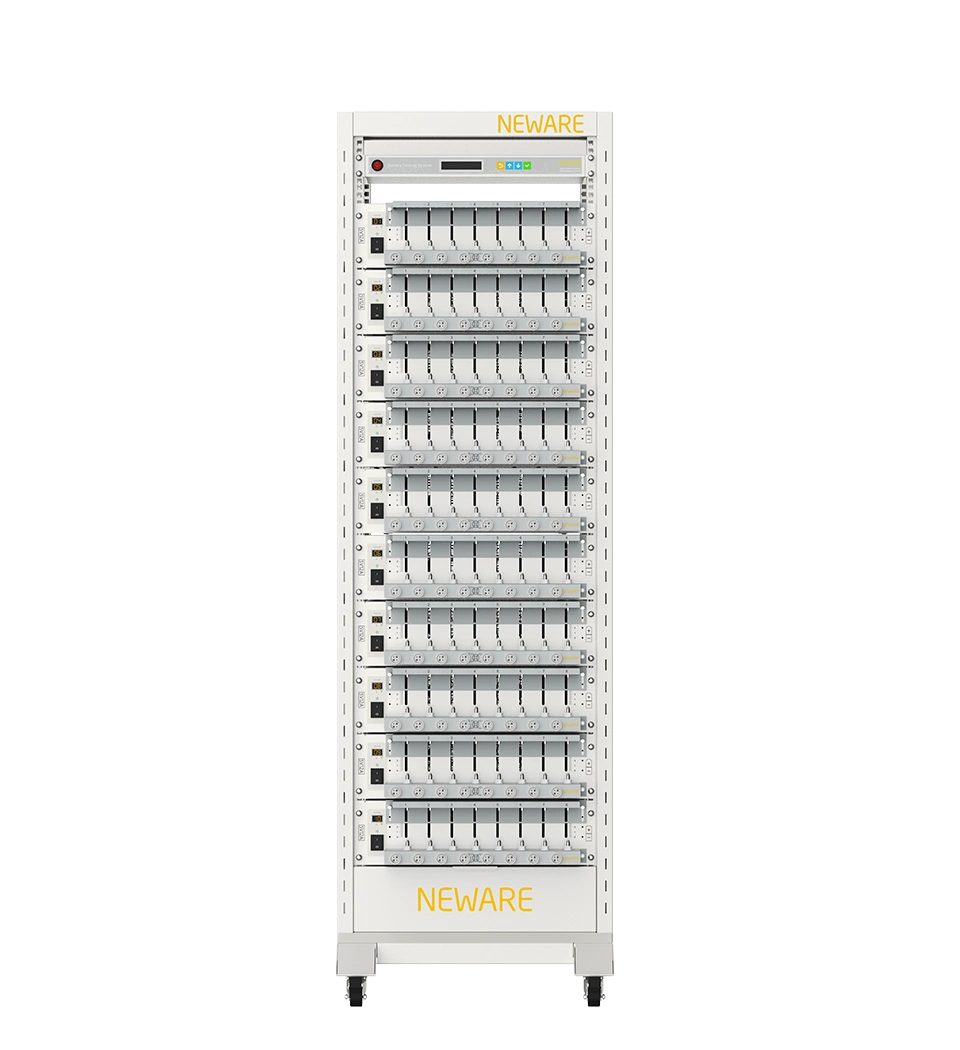

With a height of 3U*, it occupies minimal space while offering numerous testing capabilities. Multiple units can be assembled onto a gantry, allowing easy storage and fulfilling the requirements for testing multiple batteries.


 NEWARE Battery Testing Solutions
 NEWARE Battery Testing Solutions

* 3 U = 5.25 IN = 13.335 cm

Multiple testing modes.
One equipment, unlimited capabilities.

Cycle Life Test
Rate Charging / Discharging Test
Pulse Simulation Test
GITT Test
DCIR Test
dQ/dV Curve

Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.

dQ/dV differential capacity curve analysis graph

Powerful programmability.
Meet diverse testing needs.

The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.

DBC Configuration
CC & CV charge/discharge test
500ms pulse width
Segmented recording
DBC Configuration
CC & CV charge/discharge test
500ms pulse width
Segmented recording
Support import/edit/export of DBC files. Different battery pack protocols can be communicated by simply modifying the code of the DBC protocol file without upgrading the program.
CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.
Testing the performance of the battery under fast changes in current/power.
Allow to set up to 3 segment recording conditions per step, including voltage, current and time.

Perpetual dedication to safety protection.

● Discharge Data Protection

● Offline Testing Function

● Voltage Upper Limit Setting

● Voltage Lower Limit Setting

● Current Upper Limit Setting

● Current Lower Limit Setting

● Capacity Upper Limit Setting

● Delay Time Setting

[w]Perpetual dedication to safety protection.CT-4008Q-5V12A-S1 NEWARE

Extensive peripheral devices.
Create a multi-dimensional testing environment.

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing. With the option to pair with alligator clips and wire nose clamps, it adapts to the testing requirements of batteries of different shapes and sizes. This multifunctionality makes the device a versatile contender in the realm of battery testing.

The NEWARE Battery Tester-CT-4008Q-5V12A-S1 can connect to a variety of Integrated peripheral uses such as: Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers
Array

Technical Specifications

Equipment name CT-4008Q-5V12A-S1
Voltage
CV output range 25mV~5V
Min discharge voltage 2V for universal holder,2.5V for 2m cable
Accuracy ± 0.02% of F.S.
Stability ± 0.02% of F.S.
Current
Output range/channel Range1: 0.5mA-100mA
Range2: 100mA-500mA
Range3: 500mA-6A
Range4: 6A-12A
Accuracy ± 0.02% of F.S.
CV cut-off current Range1:0.2mA
Range2:1mA
Range3:12mA
Range4:24mA
Stability ± 0.02% of F.S.
Power
Output power/channel 60W
Stability ± 0.04% of F.S.
Time
Current response time ≤1.5ms (10%F.S. ~ 90%F.S.)
Working step time ≤(365*24)h/step
Time format-00:00:00.000(h、m、s、ms)
