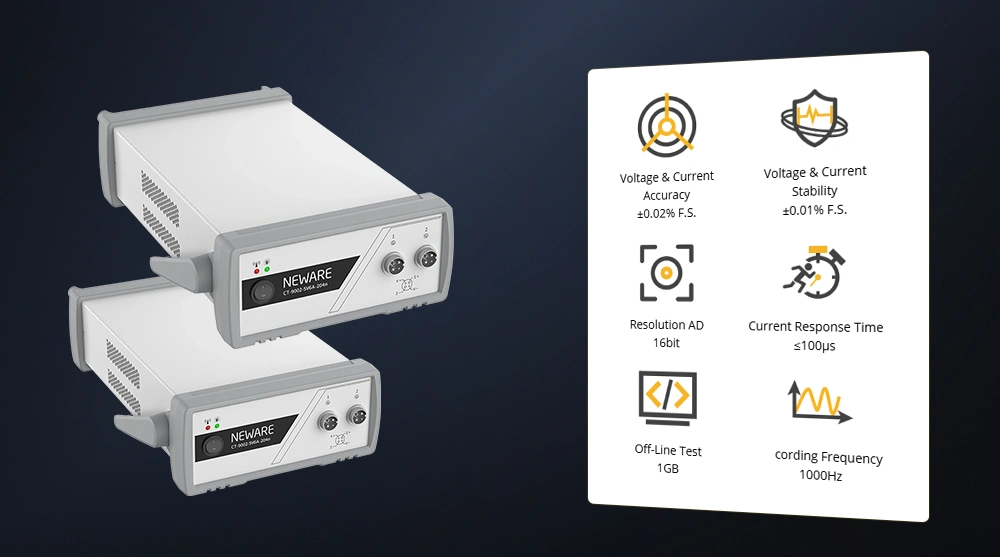

High sampling accuracy, fast response time, high control accuracy and wide measurement range.

All-around product tour.

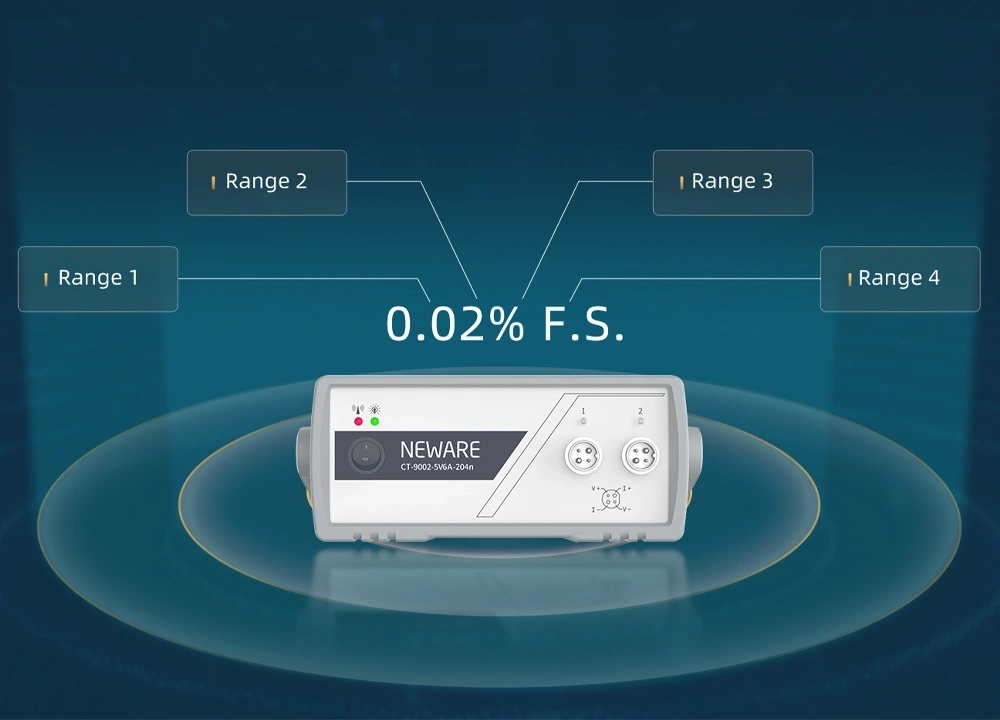

4-Range, precision to the utmost.

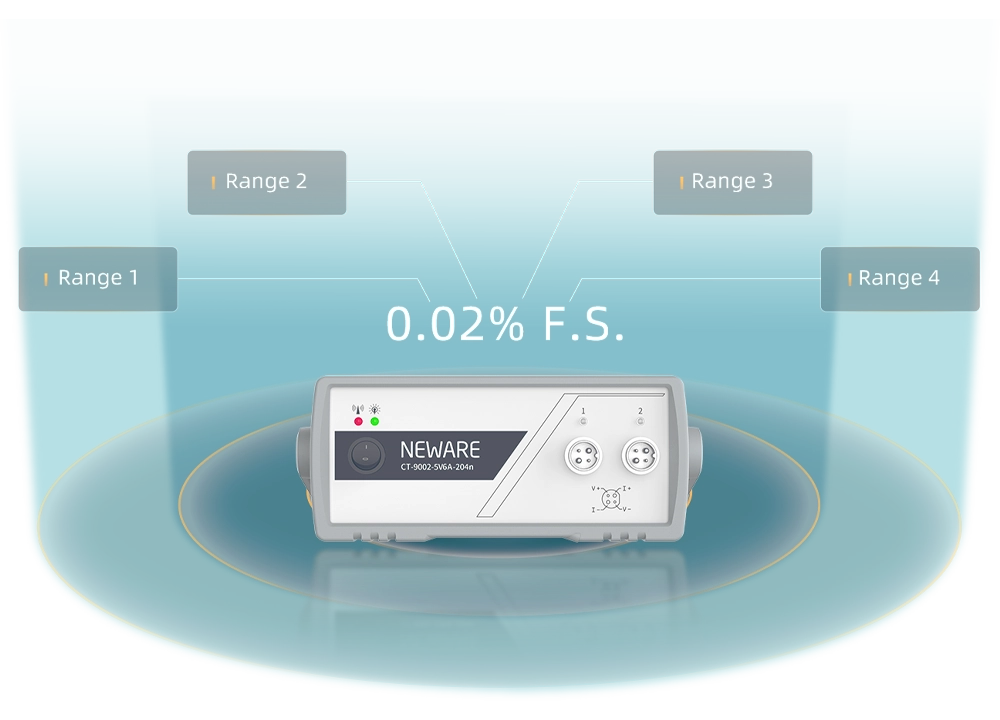

4 current ranges of 0.1μA~180μA, 180μA~6mA , 6mA~180mA , 180mA~6A can be selected respectively to realize the controllable accuracy of small current in small range.

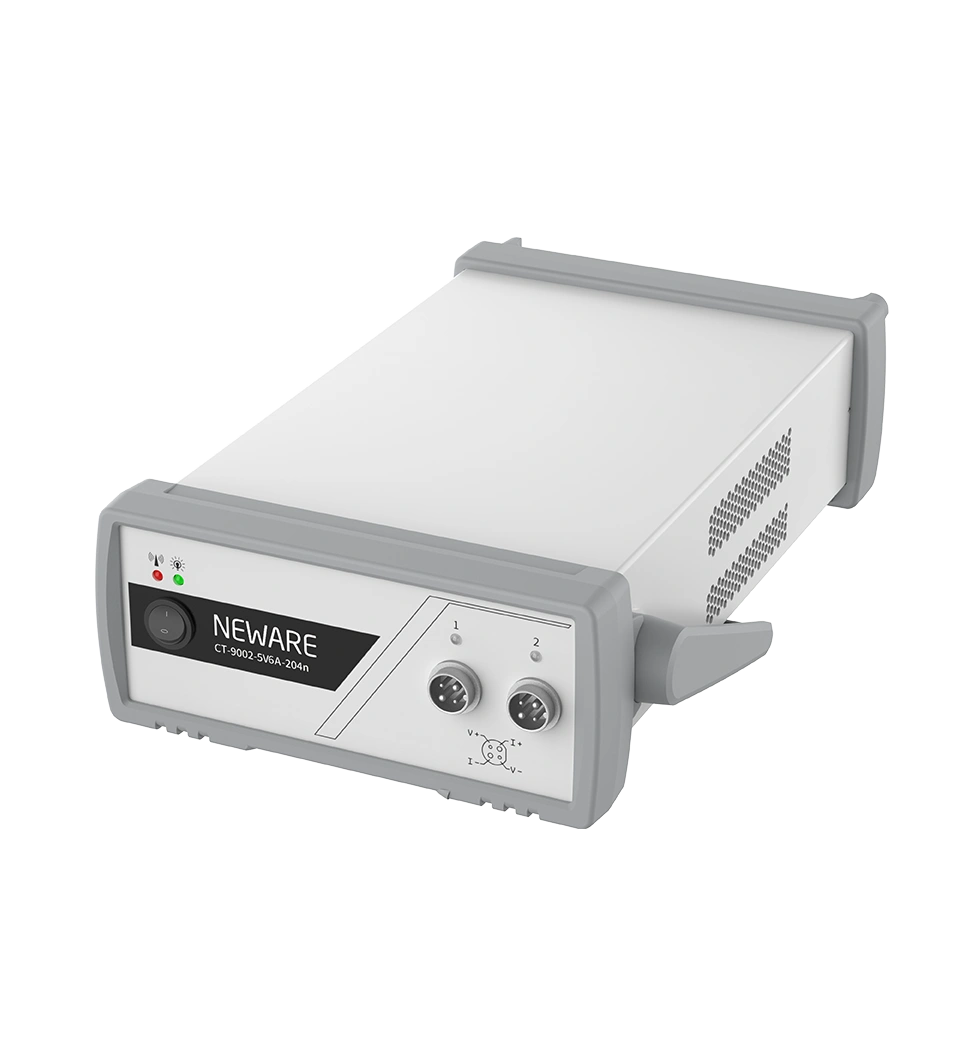

NEWARE battery tester-CT-9002-5V6A-F-204n 4 current ranges of 0.1μA~180μA, 180μA~6mA , 6mA~180mA , 180mA~6A

Safety protection keeps machines working longer.

● Discharge Data Protection

● Offline Testing Function

● Voltage Upper Limit Setting

● Voltage Lower Limit Setting

● Current Upper Limit Setting

● Current Lower Limit Setting

● Capacity Upper Limit Setting

● Voltage Fluctuation Protection

● Current Fluctuation Protection

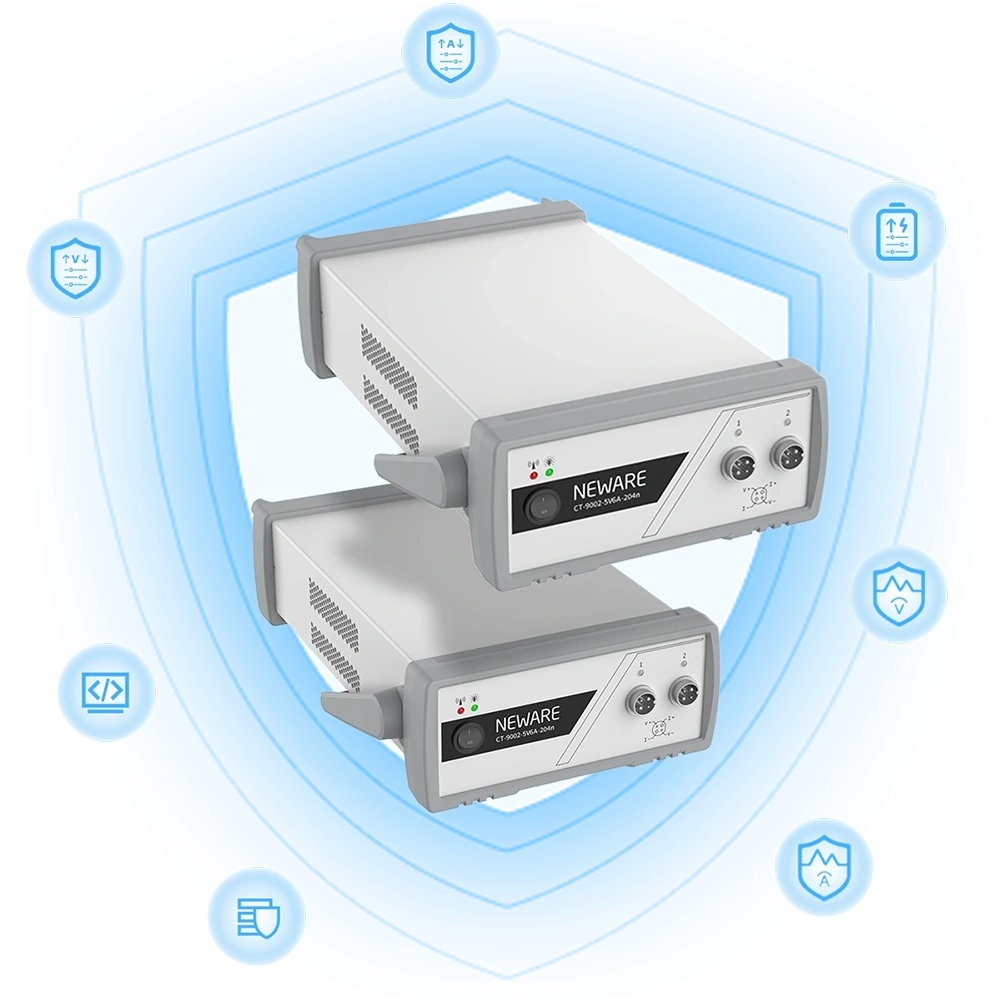

The NEWARE battery tester-neware CT-9002-5V6A-F-204 has a number of features designed to safely protect the test machine from working longer

High precision sampling.
Perceive every small fluctuation.

Up to 1000Hz data recording frequency

Compared to other modules of NEWARE testers, the CT-9002 series has a higher recording frequency up to 1000Hz. The IEC standard DCIR function of the CT-9002 is also based on the high frequency data set, allowing more DCIR values to be obtained in the same time range.

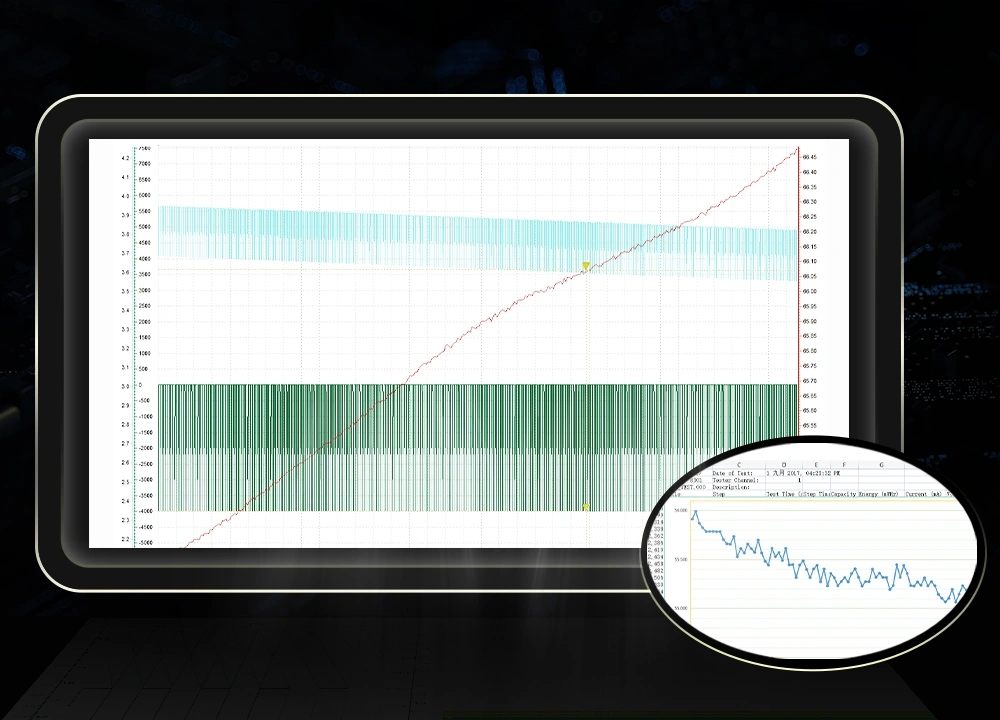

NEWARE battery tester-CT-9002-5V6A-F-204n High precision sampling,hz, frequency, DCIR value

Extensive peripheral devices.
Create a multi-dimensional testing environment.

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental TestChambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.

NEWARE battery tester-CT-9000-5V5A can connect to a variety of Integrated peripheral uses such as: Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers

A multitude of functionalities.
Accomplishing the testing of new species.

Cycle life test
Rate Charging / Discharging Test
DCIR test
dQ/dV differential capacity curve

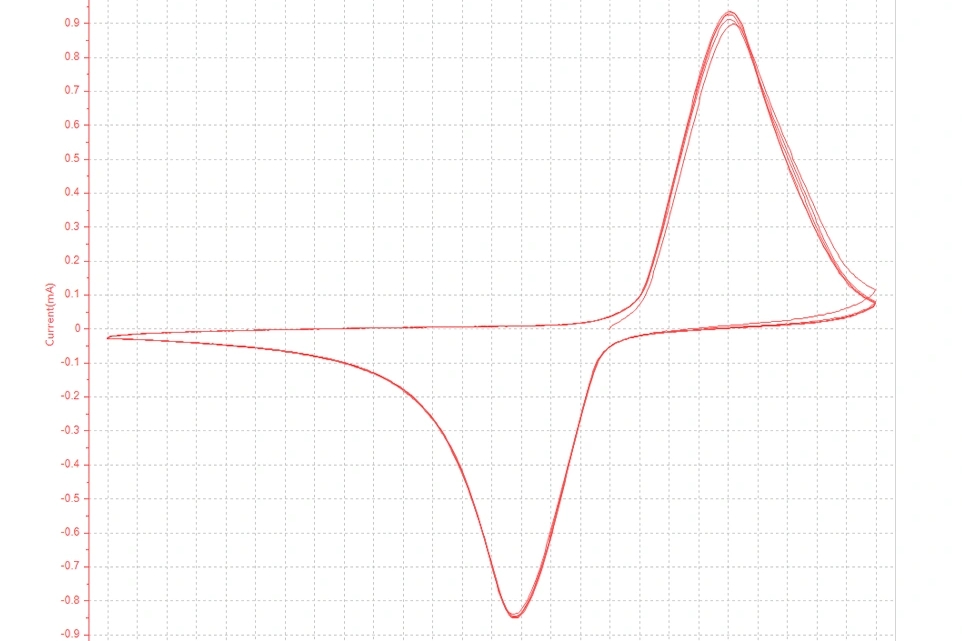

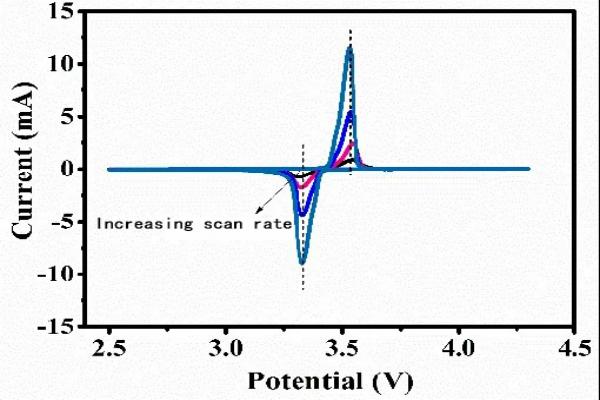

CV test

Support Differential Capacity Curve Test, designed for battery research in Universities, Research Institutes and etc.

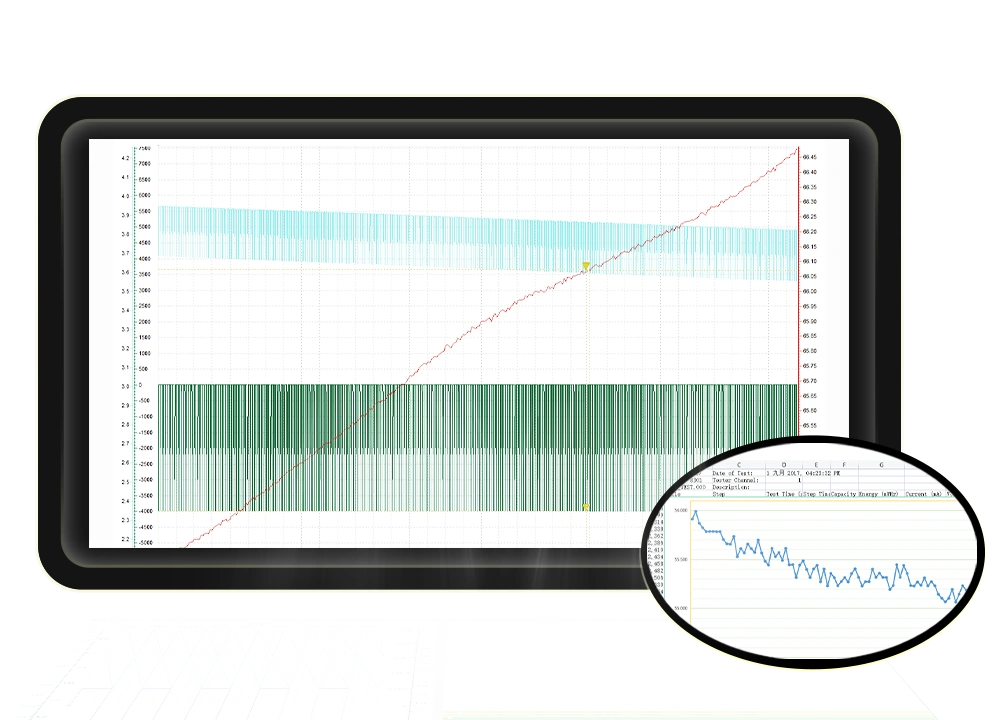

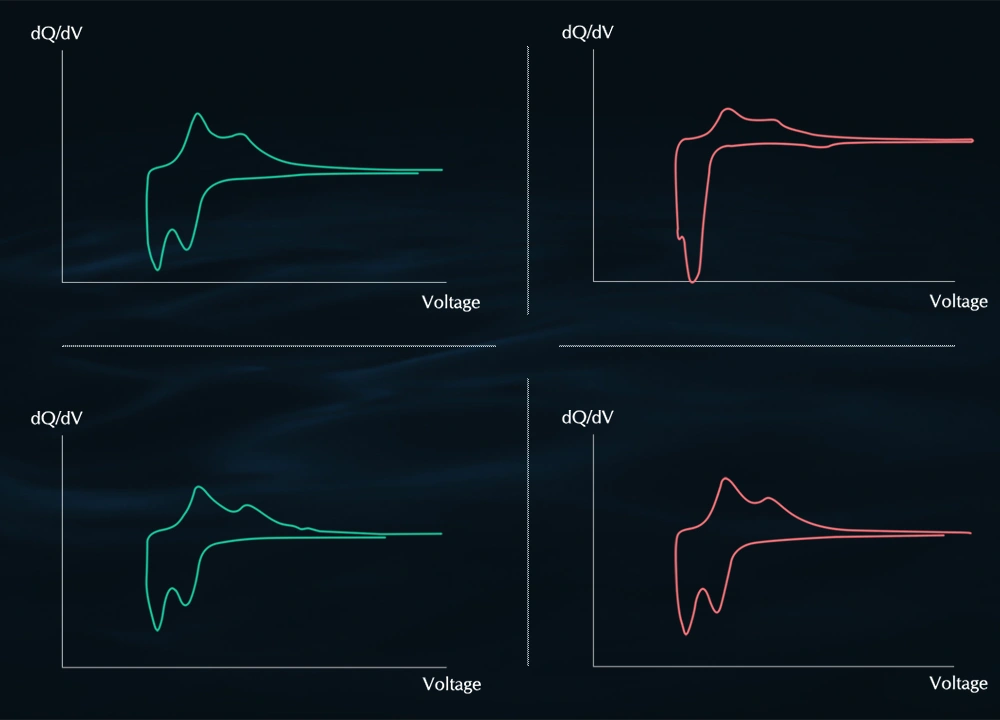

dQ/dV differential capacity curve analysis graph

Powerful programmability.
Meet diverse testing needs.

The equipment has comprehensive functions, supports SMBus communication, and easily meets various needs.

Simulation
Discharge to 0V *
Conditions switches
Simulation
Discharge to 0V *
Conditions switches

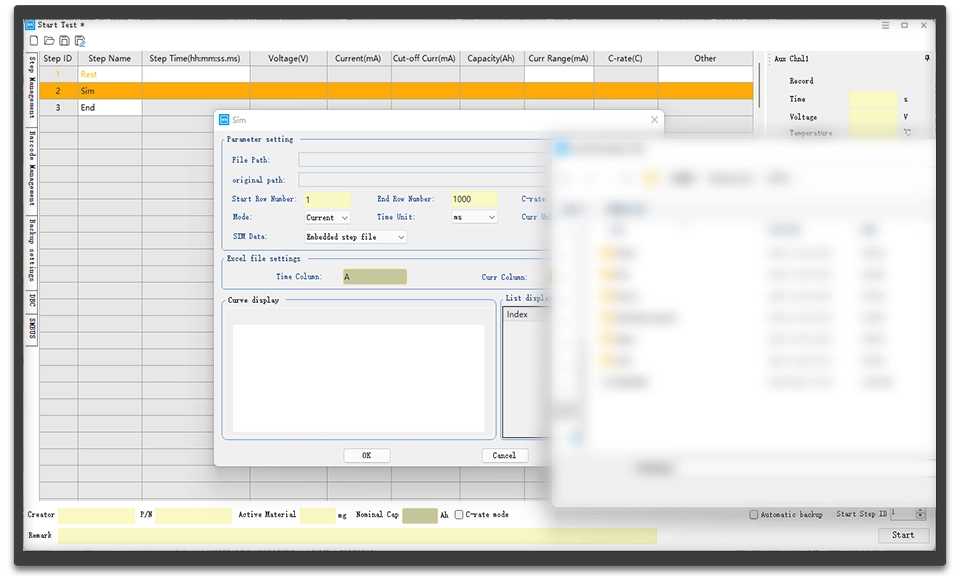

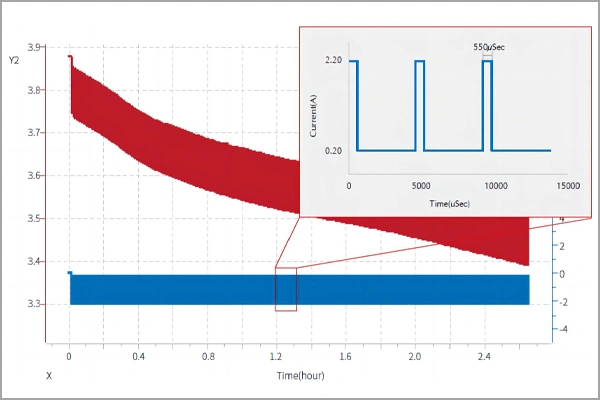

Simulation test support. Simulate the actual battery pack testing environment to verify the battery pack performance under real using. It supports loading maximum 100W rows of changing data.
Forced discharge of the battery pack to 0V, suitable for various safety tests, destructive tests and other tests of the battery pack.
*This function is optional.

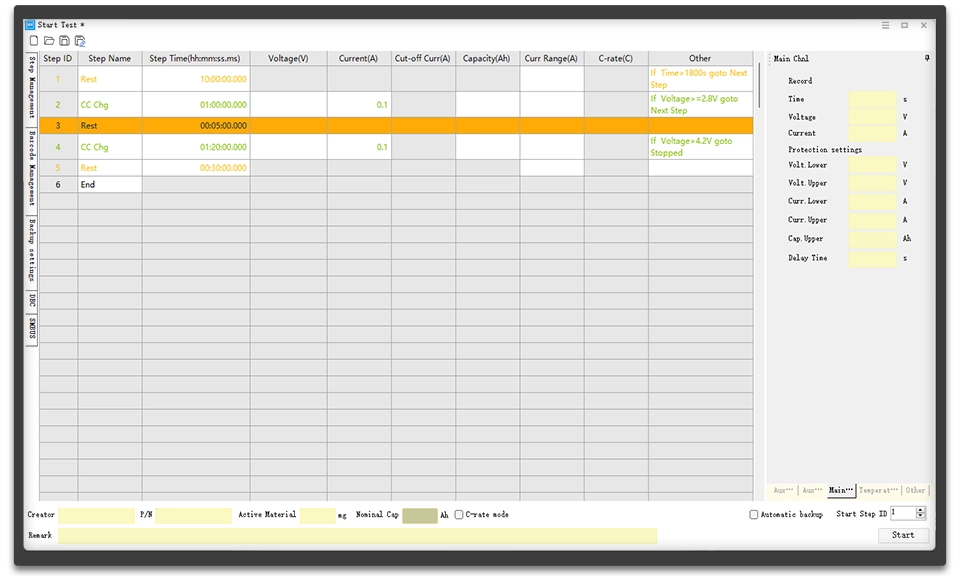

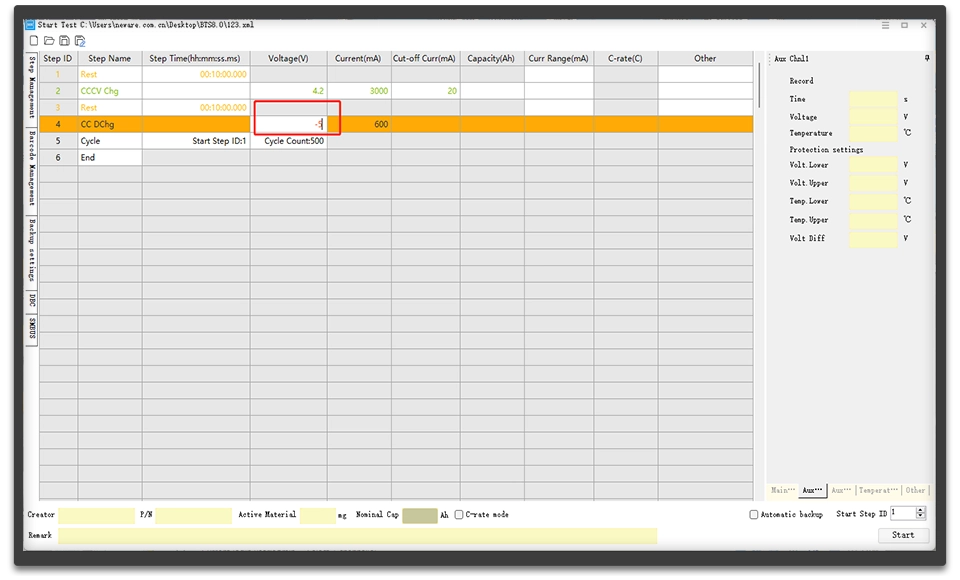

Battery test steps need to be estimated for multiple conditions according to different operations during test applications; condition switches meet requirements for multi-exit programming types. Each step supports 5 condition switches; support multi-exits, go to any steps, achieve more flexible process control.
neware CT-9002-5V6A-F-204n-neware-2024

Technical Specifications

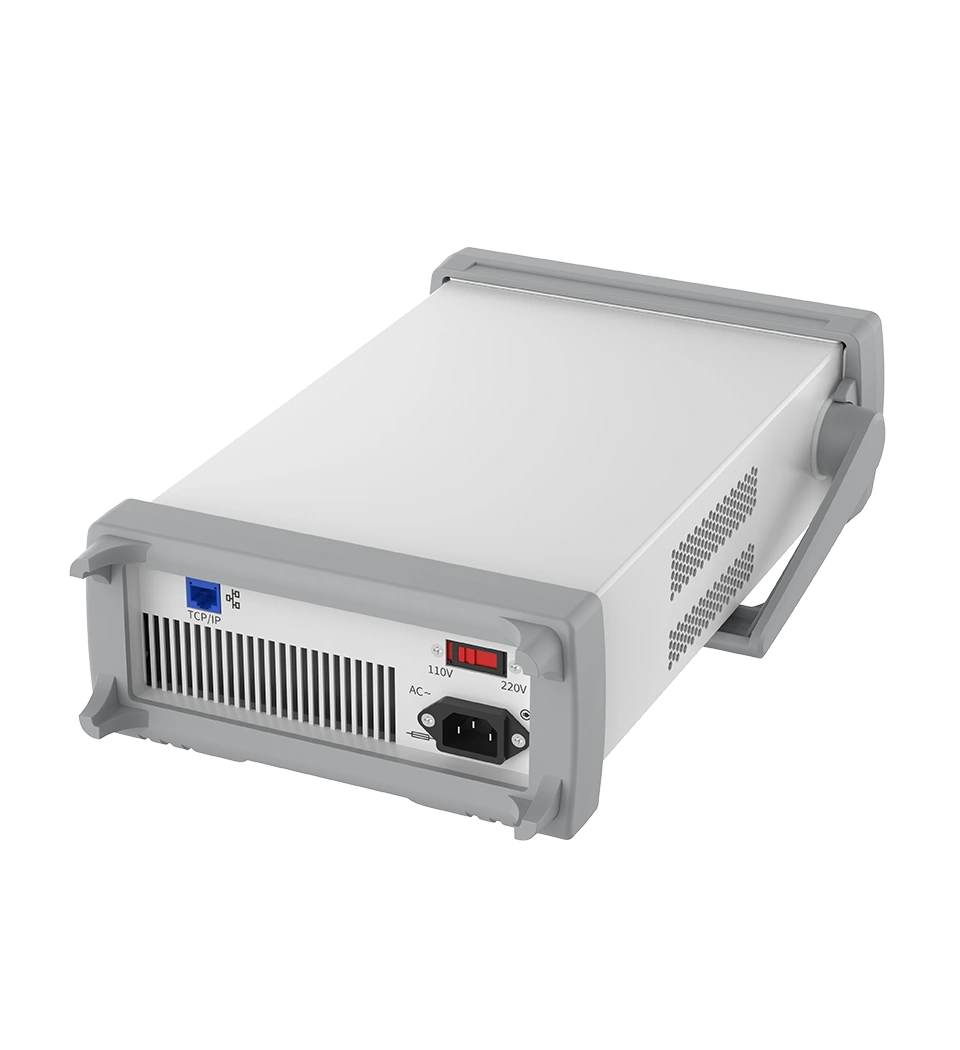

Equipment name CT-9002-5V6A-204n
Input power supply AC 220V +10% / -20%, 50Hz;
Input power 500W
Resolution ratio AD: 16bit; DA: 16bit
Input impedance ≥ 1000MΩ startup state (leakage current is 100μA when shutdown)
Channel characteristics Four-range wide dynamic range high-speed sampling and high precision
Voltage
Voltage range per channel Charging: 0 ~+5v;
Discharge: -5V~5V(9.07 channel plate)
Minimum discharge voltage -5V
Accuracy ± 0.02% of F.S.
Stability ±0.01% of F.S.
Current
Current range per channel Range 1: 0.1 μA-180 μA
Range 2: 180 μA-6 mA
Range 3: 6mA-180mA
Range 4: 180mA-6000mA
Accuracy ± 0.02% of F.S.
Stability ±0.01% of F.S.
Power
Max power per channel 30W
Stability ± 0.02% of F.S.
Time
Current response time ≤ 100μs(10% to 90% or 90% to 10%);
Time range of work step ≥10ms

Want to explore further?
Download our product technical specifications for more.

Download

CT-9002-5V6A-204n

We offer powerful auxiliary equipment
and accessories to provide comprehensive testing support for battery testing.

We offer powerful auxiliary equipment and accessories to provide comprehensive testing support for battery testing.

Equipment model CT-8002Q-5V100mA-124 CT-9002-5V6A-F-204n
Resolution ratio
AD 24bit 16bit
DA 16bit 16bit
Voltage
Range 10mV~5V Charge:0V~5V
Discharge:-5V~5V
Min discharge voltage -5V -5V
Accuracy ±0.01% F.S. ±0.02% F.S.
Stability ±0.01% F.S. ±0.01% F.S.
Current
Range Range 1: 0.2μA ~ 0.1mA
Range 2: 0.1mA ~ 1mA
Range 3: 1mA ~ 10mA
Range 4: 10mA ~ 100mA
Range 1: 0.1μA ~ 180μA
Range 2: 180μA ~ 6mA
Range 3: 6mA ~ 180mA
Range 4: 180mA ~ 6A
Accuracy ±0.02% F.S.
Range1: 0.1μA
Range2: 1μA
Range3: 10μA
Range4: 100μA
±0.02% F.S.
Range1: ±36nA
Range2: ±1.2μA
Range3: ±36μA
Range4: ±1.2mA
Stability ±0.02% F.S. ±0.02% F.S.
Power
Max power per channel 0.5W 30W
Stability ±0.03% F.S. ±0.02% F.S.
Time
Current response time ≤1ms (10% ~ 90% F.S.) ≤100μs (10% ~ 90% F.S.)
Time range of work step ≤ (365*24) hour/step ≥10ms
Data record
Recording frequency 100Hz 1000Hz
Recording condition Time △t: ≥10ms
Voltage △U: ≥5mV
Current △I: Range 1: ≥0.1μA, Range 2: ≥1μA, Range 3: ≥10μA, Range 4: ≥100μA
Time △t: ≥1ms
Voltage △U: ≥1mV
Current △I: ≥100nA
Charge
Recording condition CC charging, CC-CV charging, CV charging, CP charging, CP-CV charging, CR charging, Current ramp charging, Adaptive charging CC charging, CC-CV charging, CV charging, CP charging, CP-CV charging, CR charging
Cut-off condition Voltage, Current, Relative time, Capacity, -△V Voltage, Current, Relative time, Capacity, Energy, Power
Discharge
Discharging mode CC discharging, CV discharging, CC-CV discharging, CP discharging, CR discharging CC discharging, CP discharging, CR discharging, Pulse discharging, CC-CV discharging
Cut-off condition Voltage, Current, Relative time, Capacity, -△V Voltage, Current, Relative time, Capacity
Pulse mode
Minimum pulse width 500ms
Pulses numbers A single pulse step supports 32 different pulses.
Operating condition simulation
Charge/Discharge CC, CP Supports only unidirectional current.
Cut-off condition Time, Number of step
DCIR test
DCIR Support for custom taking points for the calculation of DCIR. Support for custom taking points for the calculation of DCIR.
Circulate
Cycle measuring range 1~65535 times 1~65535 times
Single cycle step number 254 255
Cyclic nesting ≤3 Layers ≤4 Layers
'
