Tiny currents can be lightly captured.

Seizing the fleeting changes. Distinguishing within millimeters.

±0.02% F.S.
Voltage & Current Accuracy
±0.02% F.S.
1000Hz
Recording Frequency
1000Hz
16bit
Resolution AD
16bit
≤100μs
Current Response Time
≤100μs
400μs
Minimum Pulse Width
400μs
1GB
Off-Line Test
1GB

High sampling accuracy, fast response time, high control accuracy and wide measurement range.

CT-9096-5V15A-APL

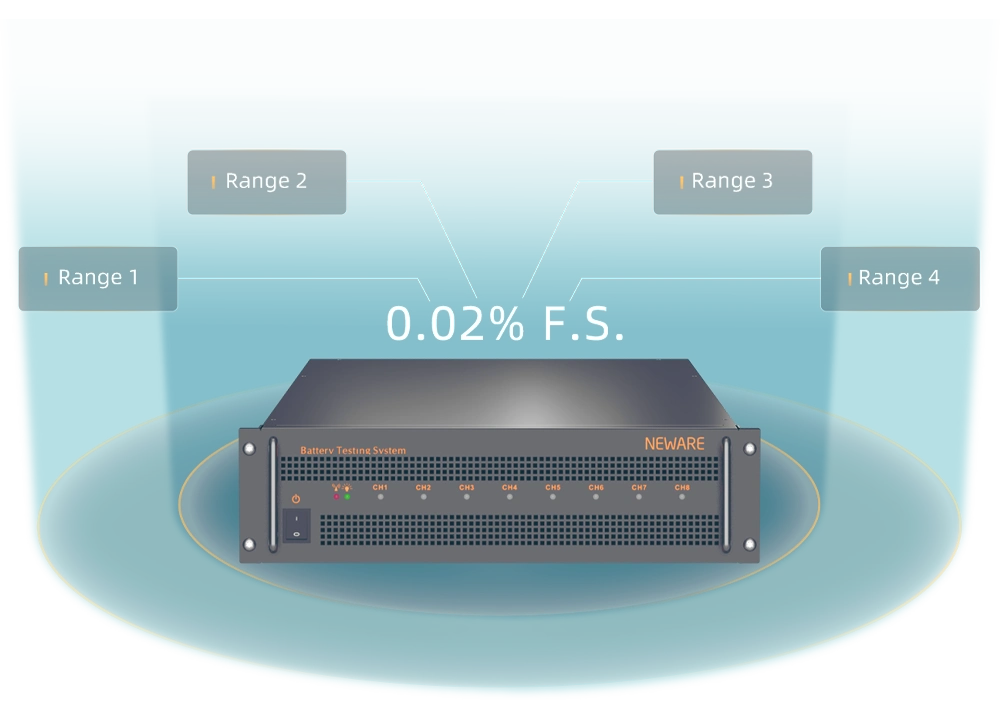

4-Range, precision to the utmost.

4 current ranges from 0.015mA ~ 15mA, 15mA ~ 150mA, 150mA ~ 1500mA, 1500mA ~ 15A can be selected respectively to realize the controllable accuracy of small current in small range.

CT-9096-5V15A-APL

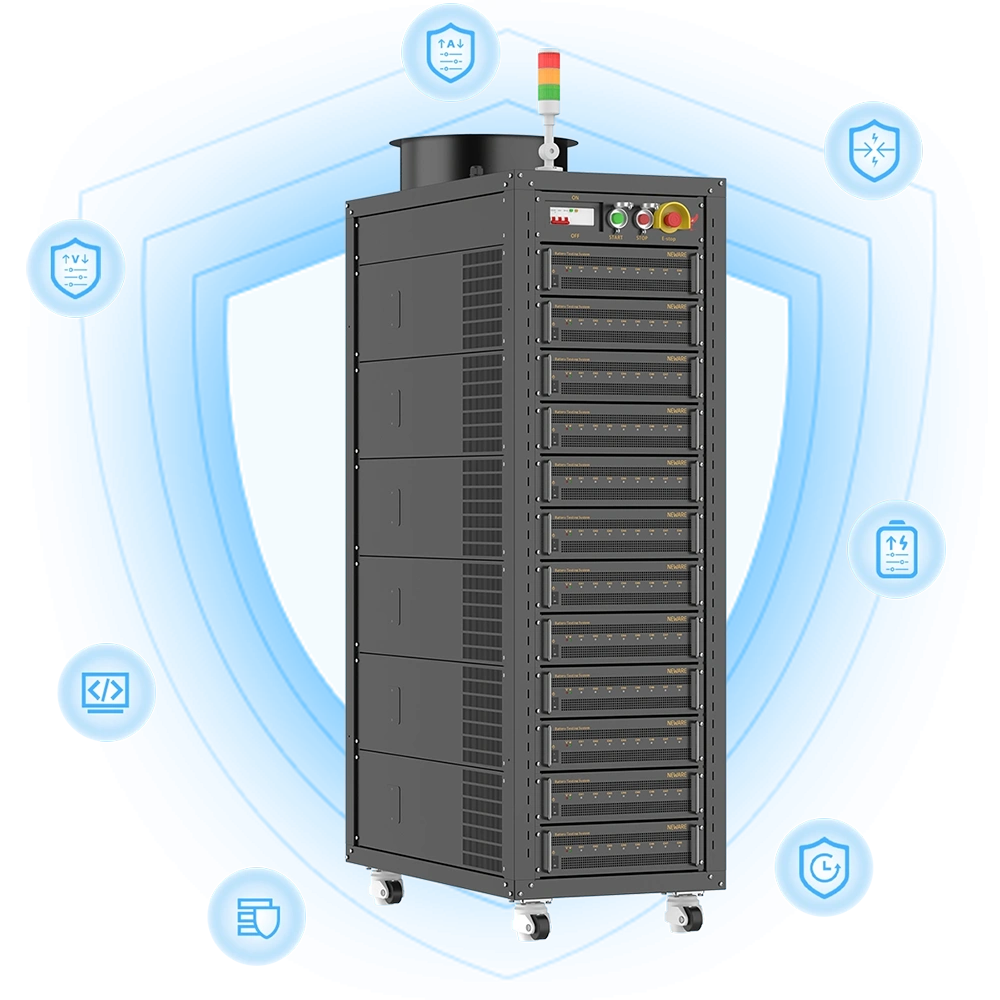

Safety protection keeps machines working longer.

● Discharge Data Protection

● Offline Testing Function

● Voltage Upper Limit Setting

● Voltage Lower Limit Setting

● Current Upper Limit Setting

● Current Lower Limit Setting

● Capacity Upper Limit Setting

● Voltage Fluctuation Protection

● Current Fluctuation Protection

The NEWARE battery tester-CT-9096-5V15Ahas a number of features designed to safely protect the test machine from working longer

High precision sampling.
Perceive every small fluctuation.

Up to 1000Hz data recording frequency Compared to other modules of NEWARE testers, the CT-9000 series has a higher recording frequency up to 1000Hz. The IEC standard DCIR function of the CT-9000 is also based on the high frequency data set, allowing more DCIR values to be obtained in the same time range.

NEWARE battery tester-CT-9000-5V15A High precision sampling,hz, frequency, DCIR value

Extensive peripheral devices. Create a multi-dimensional testing environment.

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental TestChambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.

NEWARE battery tester-CT-9000-5V15A can connect to a variety of Integrated peripheral uses such as: Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers

A multitude of functionalities. Accomplishing the testing of new species.

Pulse simulation test
Cycle life test
Rate Charging / Discharging Test
DCIR test
dQ/dV differential capacity curve

Support Differential Capacity Curve Test, designed for battery research in Universities, Research Institutes and etc.

dQ/dV differential capacity curve analysis graph

Powerful programmability.
Meet diverse testing needs.

The equipment has comprehensive functions, supports SMBus communication, and easily meets various needs.

400μs pulse width
Simulation
Discharge to 0V *
Conditions switches
400μs pulse width
Simulation
Discharge to 0V *
Conditions switches

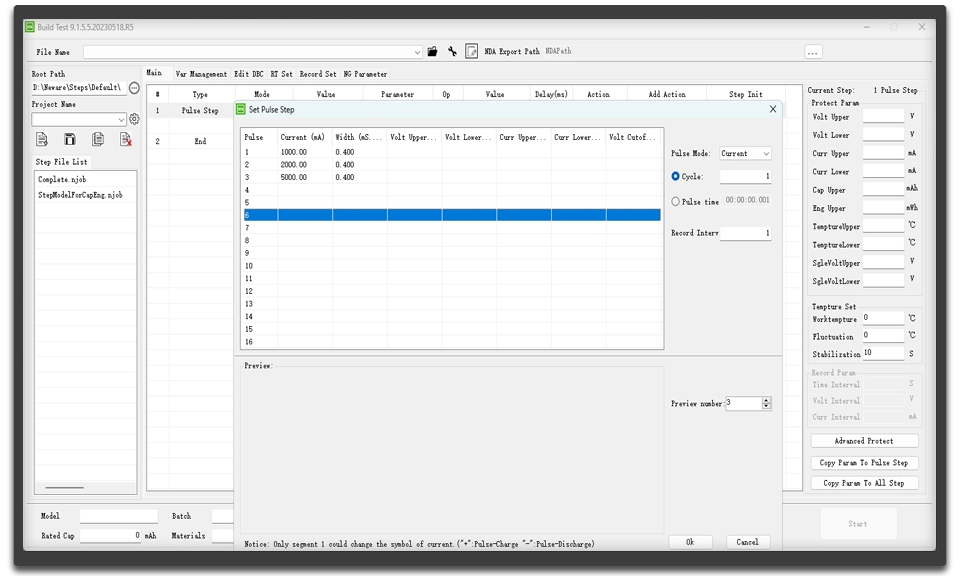

The pulse test supports the setting of a minimum pulse width of 400μs, which can be used to check the performance of the battery pack under rapidly changing current and power.
Simulation test support. Simulate the actual battery pack testing environment to verify the battery pack performance under real using. It supports loading maximum 100W rows of changing data.
Forced discharge of the battery pack to 0V, suitable for various safety tests, destructive tests and other tests of the battery pack.
*This function is optional.
Battery test steps need to be estimated for multiple conditions according to different operations during test applications; condition switches meet requirements for multi-exit programming types. Each step supports 5 condition switches; support multi-exits, go to any steps, achieve more flexible process control.
CT-9096-5V15A-APL

Technical Specifications

Equipment name CT-9008-5V5A-SMB
Voltage
Output range / channel Charge:0V ~ 5V
Discharge:0V ~ 5V
Minimum discharge voltage 0V
Accuracy ± 0.02% of F.S. / range
Stability 0.01% of F.S.
Current
Output range / channel Range1: 0.015mA ~ 15mA
Range2: 15mA ~ 150mA
Range3: 150mA ~ 1500mA
Range4: 1500mA ~ 15A
Accuracy ± 0.02% of F.S.
Range1: ±3μA
Range2: ±30μA
Range3: ±300μA
Range4: ±3mA
Stability ±0.01% of F.S.
Power
Output power / channel 75W
Stability ± 0.01% of F.S.
Time
Current response time ≤ 150μS (10% to 90% or 90% to 10%)
Working step time ≤(365*24)h/step
Time format-00:00:00.000(h、m、s、ms)
