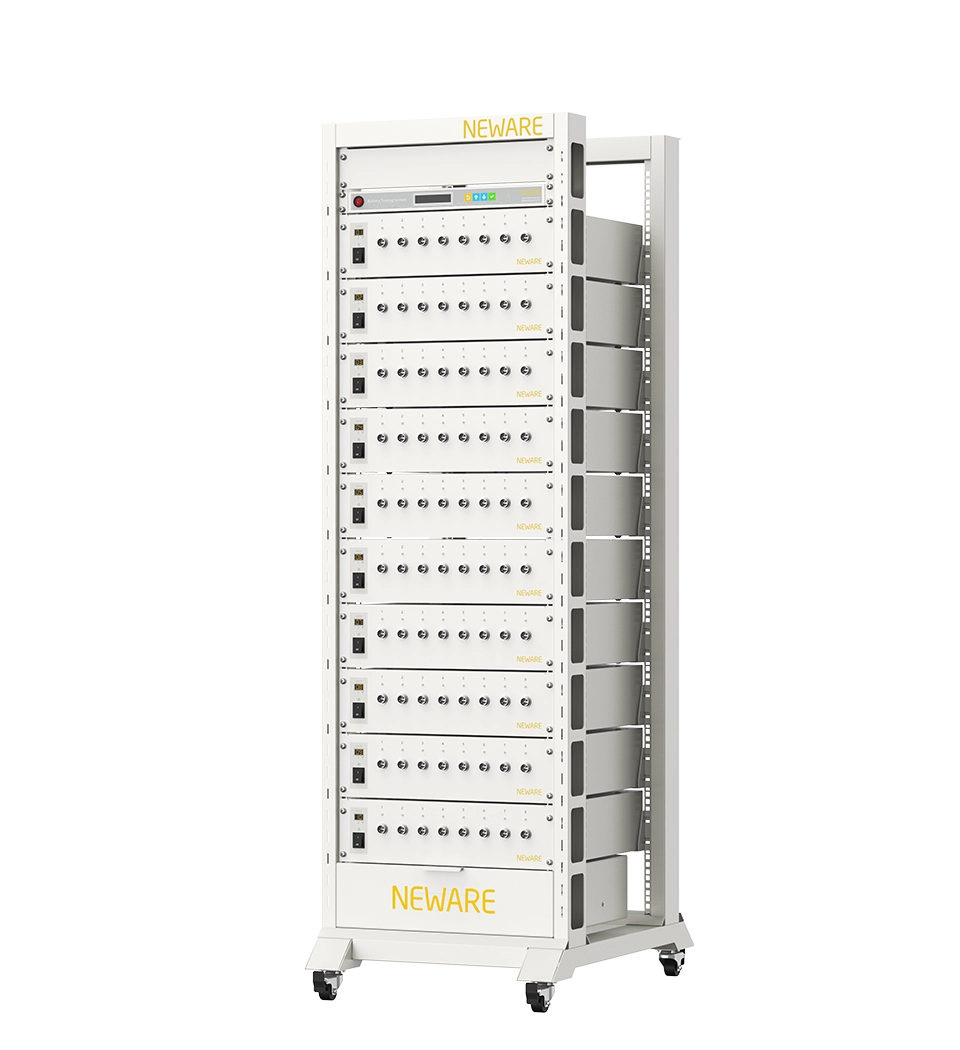

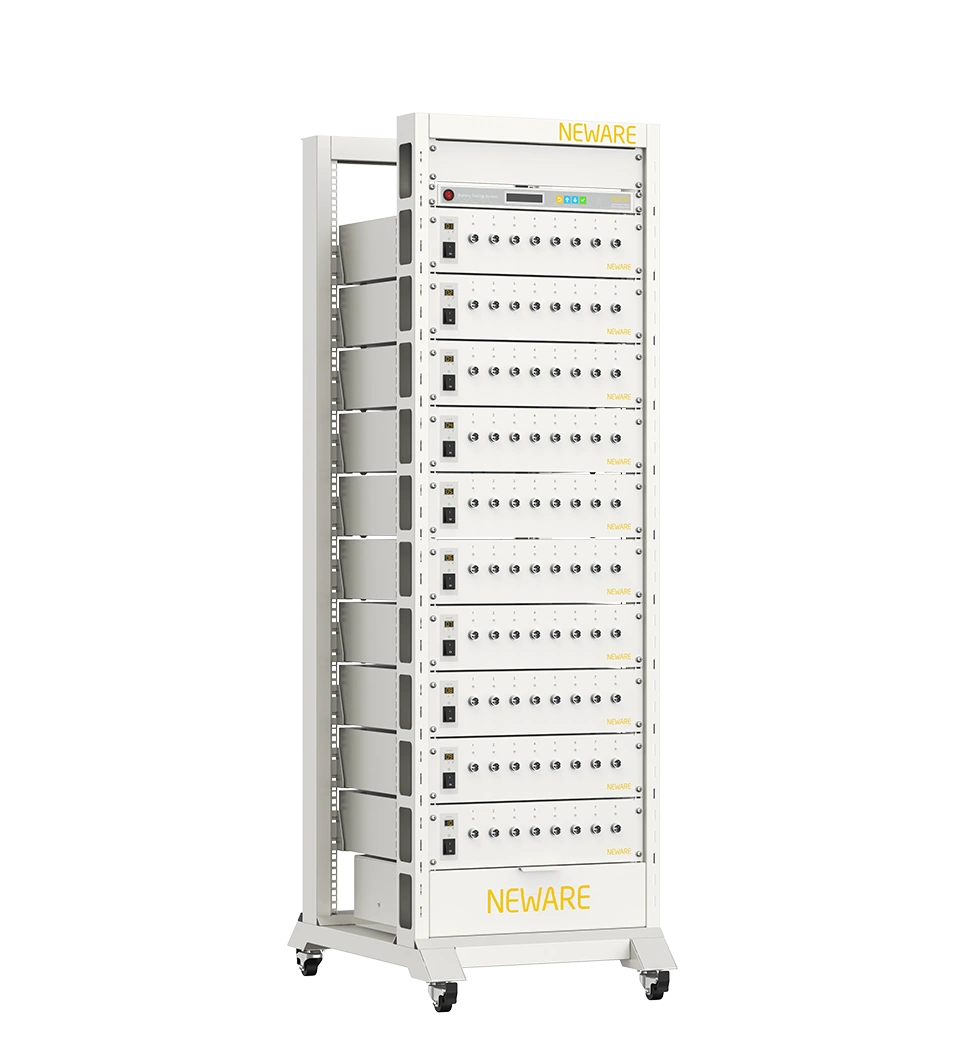

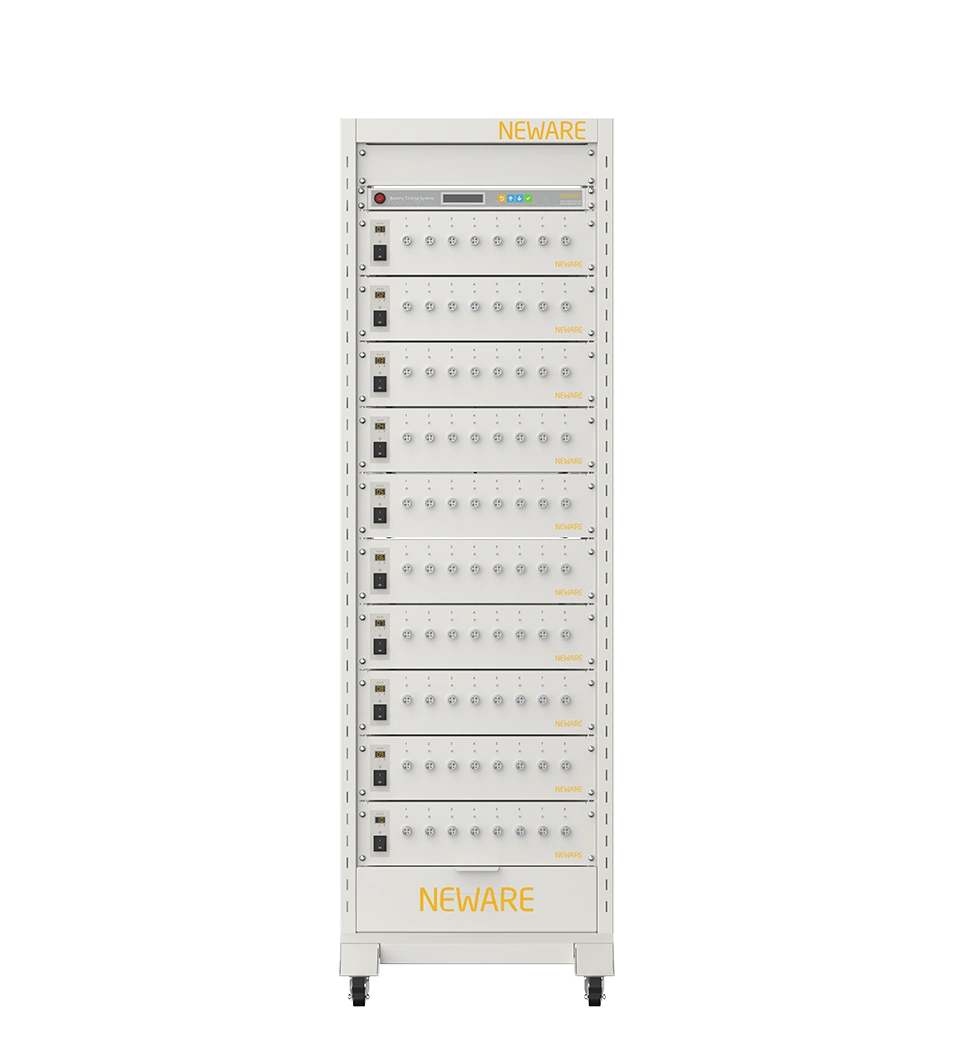

Highly accurate 4-range tester, master of detail realism. The NEWARE CT-4008Q-5V12A-204 battery tester is designed with a focus on pouch batteries, offering precision and reliability in a simple and efficient testing process.
* This product model has been updated. For details, please refer to CT/CE-4000 Series, or consult a sales expert.
Features
Tech Specs
Current Accuracy
±0.02% F.S.
Recording Frequency
10Hz
Sampling Time
100ms
Current Response Time
(10% F.S. ~ 90% F.S.)
≤1.5ms
Minimum Pulse Width
500ms
Off-Line Test
1GB
The NEWARE CT-4008Q-5V12A-204 battery tester is designed with a focus on pouch batteries, offering precision and reliability in a simple and efficient testing process. The four-range design not only enhances testing efficiency and reduces the time spent switching between equipment but also ensures optimal test accuracy within each range. Stable performance parameters to ensure accurate and reliable test data. At the same time, the product adopts modular design with each unit having 8 channels, which can be independently data acquisition and programmed with the maximum number of editable lines supporting 254 lines.
| Voltage & Current | Range / Current | |||
| Range 1 | Range 2 | Range 3 | Range 4 | |
| 5V12A | 0.5mA ~ 100mA | 100mA ~ 500mA | 500mA ~ 6A | 6A ~ 12A |
*Other models can be customized according to voltage and current requirements.

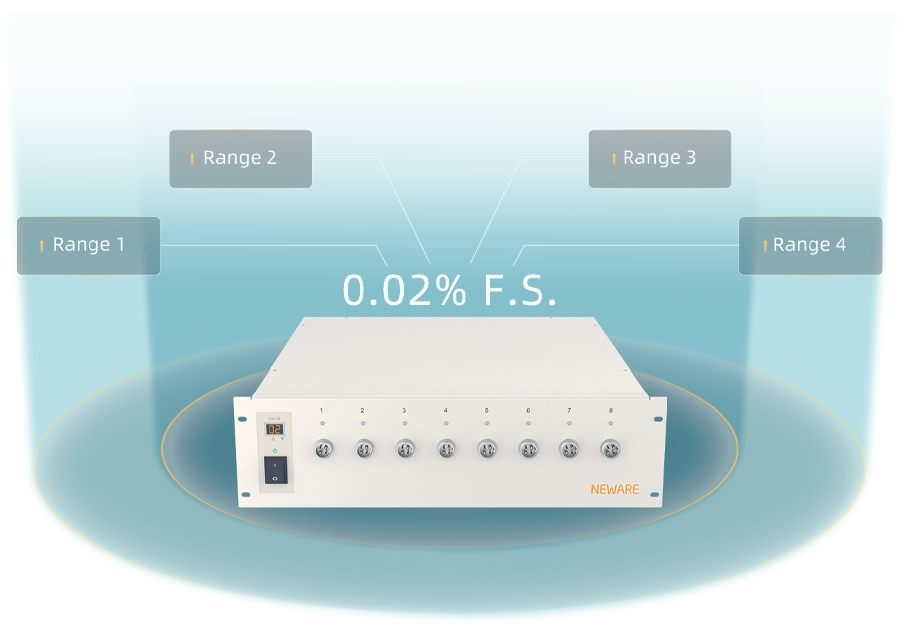

Current ranges from 0.5mA ~ 100mA, 100mA ~ 500mA, 500mA ~ 6A, 6A ~ 12A can be selected to realize the controllable accuracy of small current in small range.

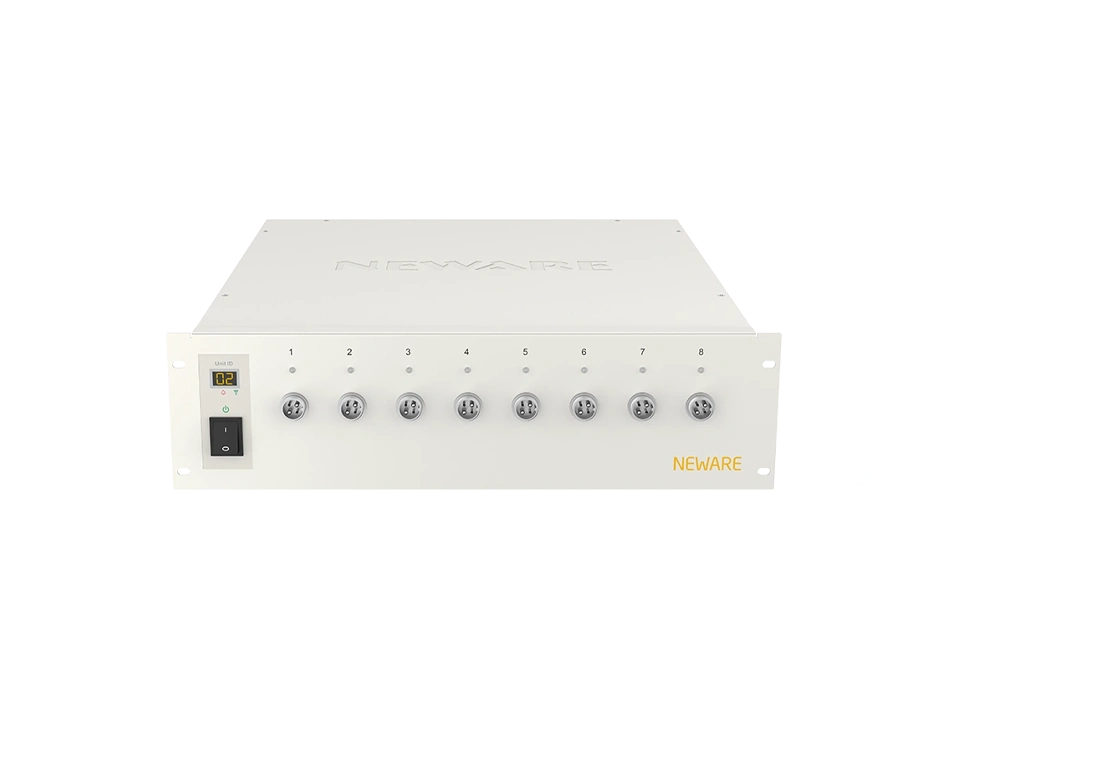

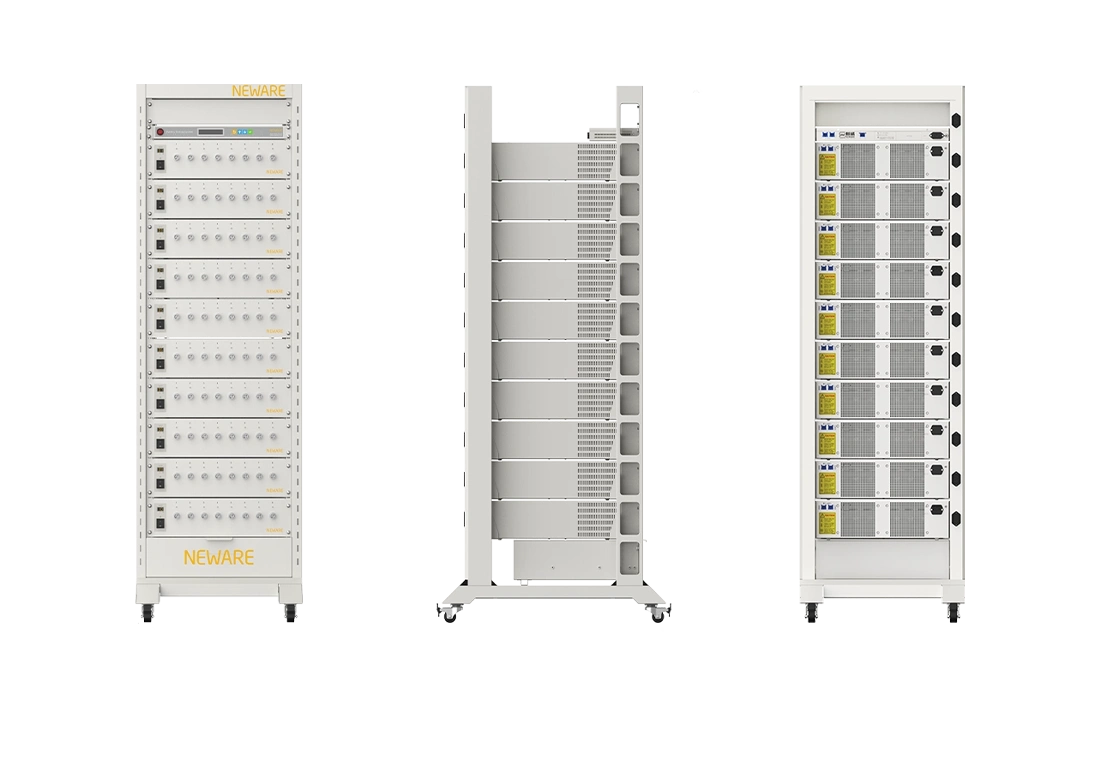

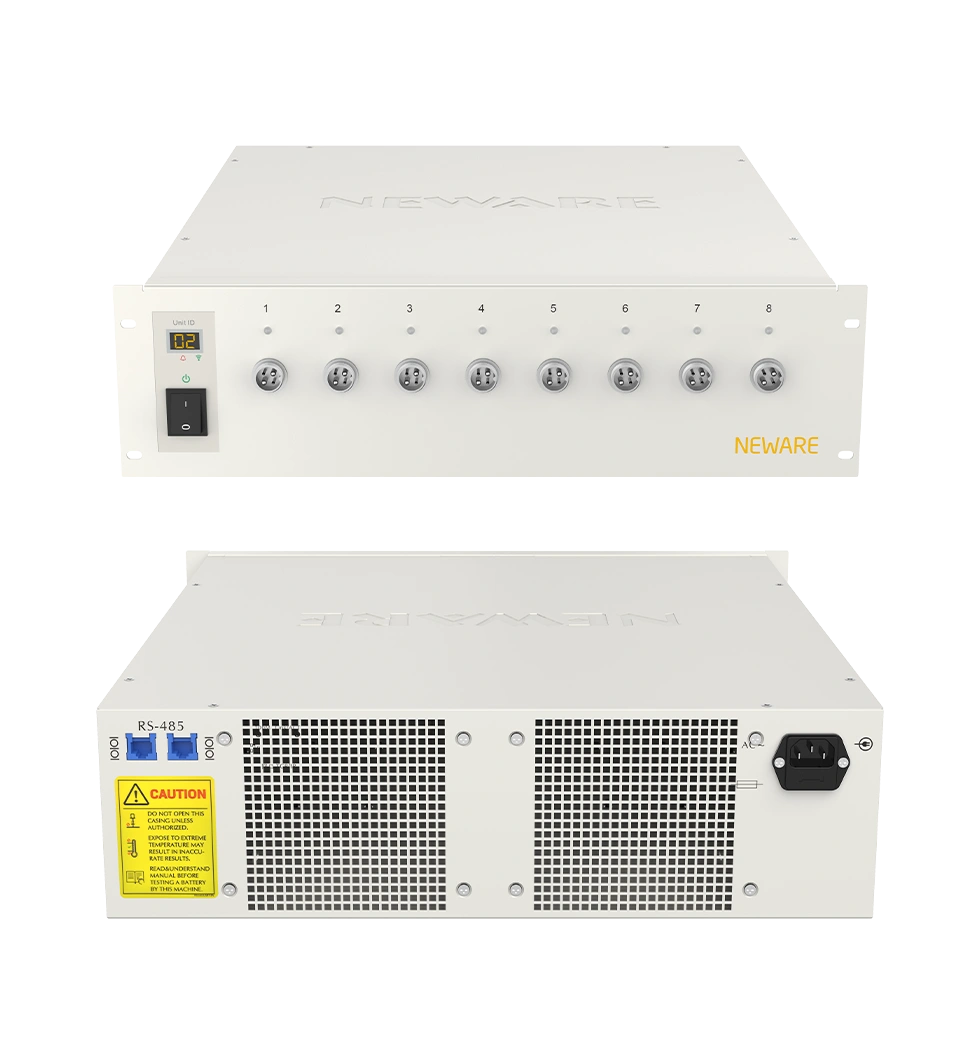

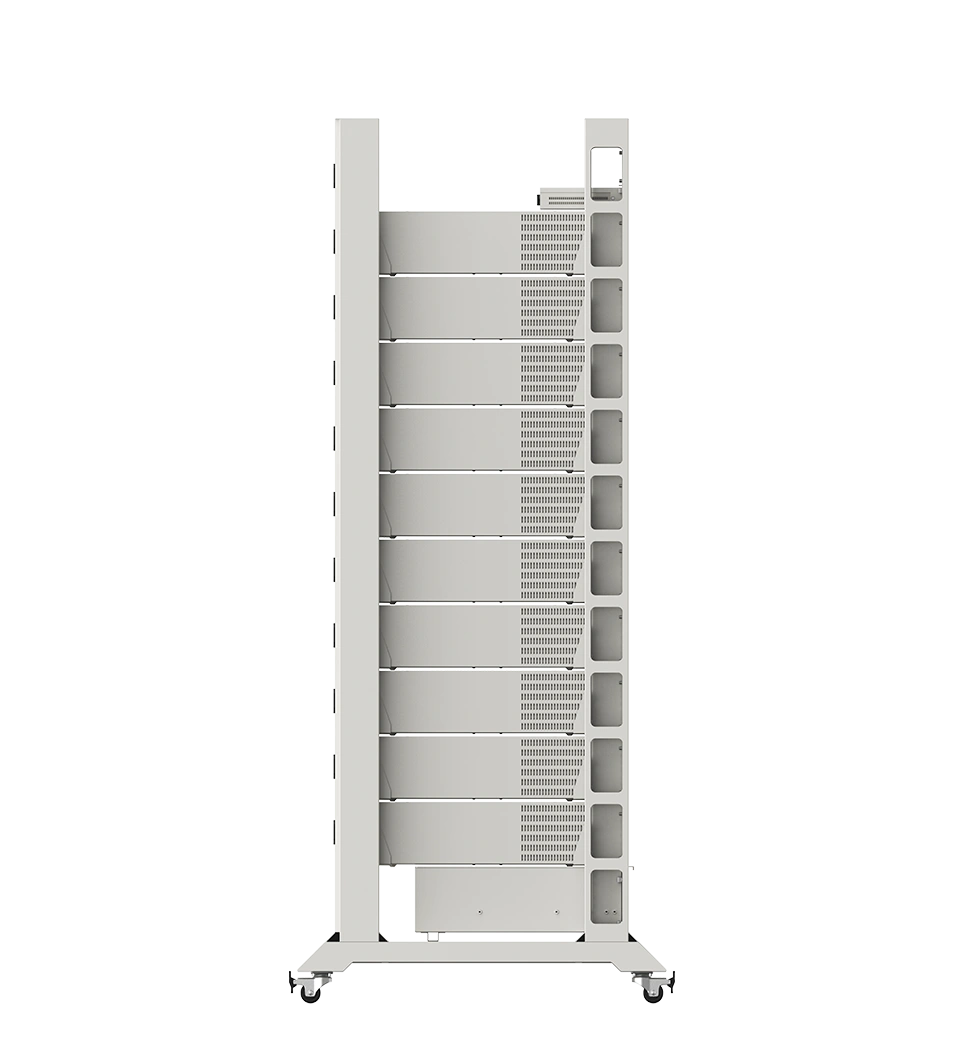

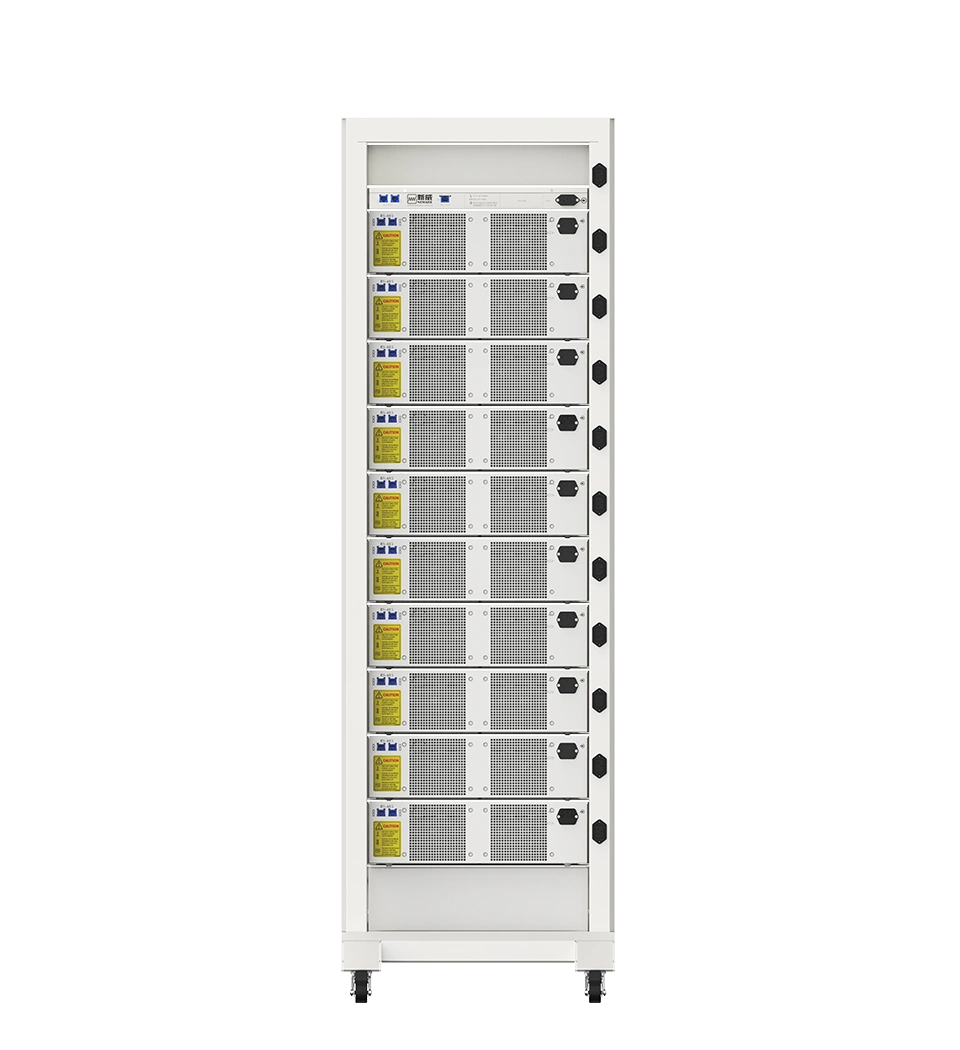

With a height of 3U*, it occupies minimal space while offering numerous testing capabilities. Multiple units can be assembled onto a gantry, allowing easy storage and fulfilling the requirements for testing multiple batteries.
* 3 U = 5.25 IN = 13.335 cm
Cycle Life Test
Rate Charging / Discharging Test
Pulse Simulation Test
GITT Test
DCIR Test
dQ/dV Curve
Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.
● Discharge Data Protection
● Offline Testing Function
● Voltage Upper Limit Setting
● Voltage Lower Limit Setting
● Current Upper Limit Setting
● Current Lower Limit Setting
● Capacity Upper Limit Setting
● Delay Time Setting
The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.
Supporting a variety of charge and discharge modes, including constant current charging, constant voltage charging, and constant current-constant voltage charging, it provides users with comprehensive testing solutions. Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental TestChambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
| Equipment name | CT-4000 Battery Testing System |
|---|---|
| Voltage | |
| CV output range | 25mV~5V |
| Min discharge voltage | 2V for battery holder,2.5V for 2m cable |
| Accuracy | ± 0.02% of F.S. |
| Stability | ± 0.02% of F.S. |
| Current | |
| Output range/channel | Range1: 0.5mA~100mA Range2: 100mA~500mA Range3: 500mA~6A Range4: 6A~12A |
| Accuracy | ± 0.02% of F.S. |
| CV cut-off current | Range1：0.2mA Range2：1mA Range3：12mA Range4：24mA |
| Stability | ± 0.02% of F.S. |
| Power | |
| Output power/channel | 60W |
| Stability | ± 0.04% of F.S. |
| Time | |
| Current response time | ≤1.5ms (10%F.S. ~ 90%F.S.) |
| Working step time | ≤(365*24)h/step Time format-00：00：00.000(h、m、s、ms) |
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Cooling Efficiency: ≤40min(77℉→32℉)
(25℃→0℃)
Heating Efficiency: ≤30min(77℉→140℉)
(0℃→60℃)
