Battery Cell Test

Powering precise electrochemical testing.

NEWARE's battery cell testing solution is built on its flagship All-in-One Testing System, which integrates WHW constant temperature / WGDW high and low temperature chambers, high-precision charge-discharge testers and an intelligent automation system in one compact setup, supporting precise control and measurement across the full development cycle—from lab R&D to validation and production.

High-precision voltage/current measurement for long-duration, high-repeatability testing
Universal compatibility with diverse battery formats (coin, cylindrical, pouch, prismatic)
Broad applicability to multiple chemistries (Li-ion, Na-ion, Li-sulfur, emerging systems)

Explore products in our battery cell test solution

Why Choose NEWARE Battery Cell Test Systems?

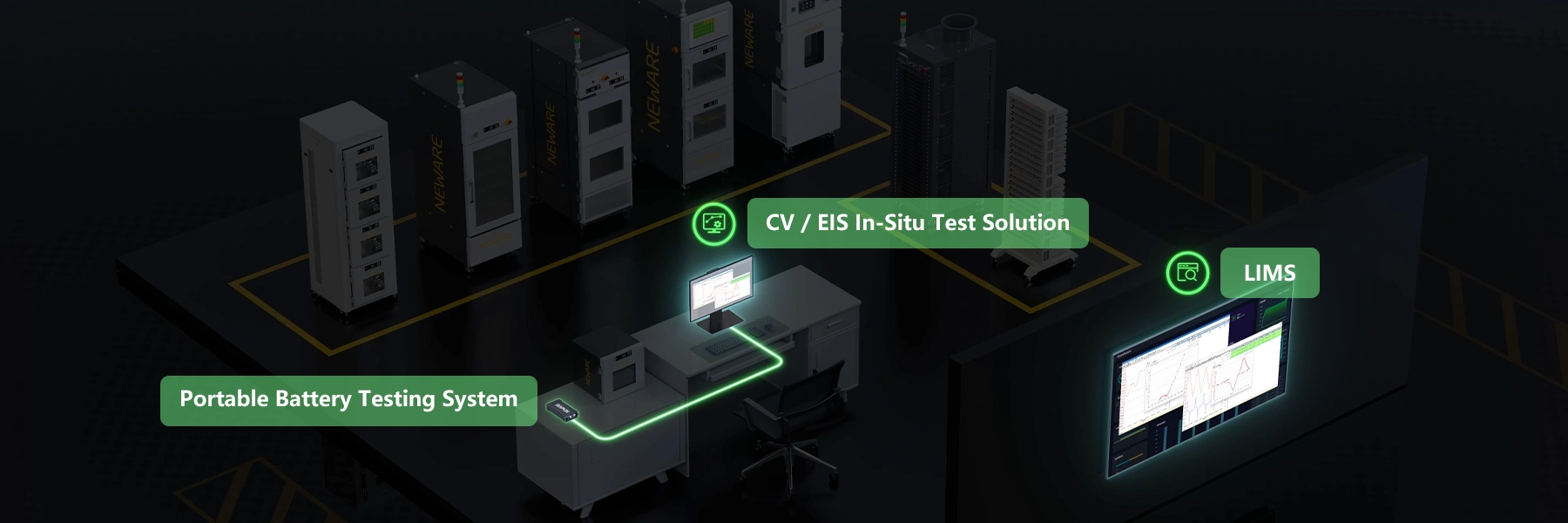

Characterization of lithium-ion battery cells with EIS test

The internal resistance of lithium-ion batteries is correlated with power density, energy efficiency and state of health (SoH), and dynamically changes with SOC, temperature, aging and other factors, with EIS as the core method for its complete impedance characterization. By applying small-signal AC excitation from mHz to kHz, detecting voltage/current response and analyzing complex impedance, it can correlate the internal physical phenomena of batteries, construct equivalent impedance models of passive components, and provide accurate basis for battery performance analysis.

The CT/CE-8000 series integrates EIS function, which seamlessly integrates with charge-discharge and cyclic voltammetry (CV) tests, enabling multi-dimensional analysis without moving the battery. With high stability and dynamic analysis capability, the device can accurately analyze battery impedance characteristics, help researchers construct equivalent circuit models, explore the correlation between impedance and internal electrochemical processes of batteries, and provide reliable electrochemical data support for performance optimization and health assessment of EV battery cells.

BTS Software, Integrated High-Precision Battery Test Equipment

BTS Software, Integrated High-Precision Battery Cell Test Equipment

Via BTS software, they seamlessly integrate precise temperature control with professional battery cell performance testing.
Centralized cell test data management enables comprehensive report generation, supporting R&D and production quality control of battery cells.
Intuitive graphical workflow design handles complex cell testing scenarios including cyclic, pulse testing and real-world working condition simulations.
Realize multi-dimensional battery cell data analysis (cycle count, temperature, SOC, etc.) with customizable report templates for diverse testing demands.

CT/CE-4000 Series

Trusted R&D platform for battery cells.

CT/CE-4000 series is the industry's most widely adopted professional test platform for routine battery cell characterization, featuring cost efficiency and scalable testing throughput. Tailored for battery material research, cell design validation and commercial cell qualification, it's the ideal solution for mainstream cell performance testing scenarios that do not require portable operation or ultra-fast transient measurement.

Optimized for routine testing of coin and pouch cells, meeting mainstream cell R&D and verification needs.
Supports mainstream low-to-mid current specifications (5V/100mA, 6A, 12A, 15A, 20A, 30A).
Fully compatible with standard charge/discharge, cycle life and performance screening tests.
Ideal for labs requiring cost-effective, scalable throughput for mainstream cell characterization.

Key applications

Solid-State Battery R&D Consumer Electronics Cell Materials Research

Model Lists

Battery Cycler Test Systems

CT-4008Q-5V6A-S1

CT-4000 Battery Testing System

Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1.5ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB

Battery Cycler Test Systems

CT-4008Q-5V12A-S1

CT-4000 Battery Testing System

Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1.5ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB

Battery Cycler Test Systems

CE-4008Q-5V15A

CE-4000 Battery Testing System

Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB

Battery Cycler Test Systems

CE-4008Q-5V20A

CE-4000 Battery Testing System

Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB

Battery Cycler Test Systems

CE-4008Q-5V30A

CE-4000 Battery Testing System

Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB

CT/CE-8000 Series

Battery cell CV/EIS electrochemical test system.

A portable electrochemical test system by NEWARE, deeply integrated with Cyclic Voltammetry (CV) and compatible with Electrochemical Impedance Spectroscopy (EIS) testing. It enables accurate characterization of battery cell electrochemical properties with ultra-high precision, ultra-fast response and portable design, suitable for laboratory in-situ, on-site detection and other scenarios, serving as a professional tool for battery material R&D and cell performance analysis.

Type-C power interface for flexible operation with approved external power sources.
Integrates standard charge-discharge and advanced electrochemical testing.
Suitable for laboratory, in-situ and on-site testing environments.
Refined performance monitoring under dynamic/in-situ test conditions.

Key applications

CV / EIS Test Advanced Materials Research On-site or Shared-lab Testing

Model Lists

Battery Cycler Test Systems

CT-8002S-5V100mA-CV

Portable Battery Testing System

Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement

CE-6000 Series

High-current regenerative testing for EV & energy storage cells.

This Series is engineered for high-current testing of large-format EV and energy storage cells, featuring high load capacity, precise dynamic control and energy efficiency. It covers 50A~2000A current range, suitable for large pouch (including blade-type) and prismatic cells. With a core regenerative architecture, it recovers energy during discharge to reduce high-current power consumption, and has high-speed data acquisition and dynamic response capabilities to meet programmable and simulation-based test requirements.

Current response ＜3ms, min pulse width 50ms, reproducing actual working conditions.
Max 100Hz recording frequency, capturing dynamic cell performance accurately.
Supports programmable & simulation-based tests, meeting diverse requirements.

Key applications

EV Battery Cell Energy Storage Systems (ESS) High C-rate Testing Dynamic Load Simulation

Model Lists

Battery Cycler Test Systems

CE-6000 Cell Testing System

Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 100Hz
Current Conversion Time: ≤6ms
Current Response Time: ≤3ms
Minimum Pulse Width: 100ms
Feedback Efficiency (Max): 75%

Battery Cycler Test Systems

CE-6004-Pro-5V600A

CE-6000-Pro Cell Testing System

Voltage & Current Accuracy: ±0.02% F.S.
High-Frequency Sampling: 200Hz
Current Conversion Time: ≤2ms
Current Response Time: ≤1ms
Minimum Pulse Width: 10ms
Feedback Efficiency (Max): 75%

Battery Cycler Test Systems

CD-6006A-5V1200A-PS-H

Intelligent Current Superposition Cell Testing System

Voltage Accuracy: ±0.02% F.S.
Current Accuracy: ±0.05% F.S.
Recording Frequency: 100Hz
Current Conversion Time: ≤6ms
Current Response Time: ≤3ms
Minimum Pulse Width: 50ms

Customization & Power Options

Power supply customization: Default 3-phase 380 VAC, optional 208 VAC for North American markets.

Channel configuration flexibility: Adjustable channel density & current range based on specific testing requirements.

Software integration: Compatible with LIMS systems for seamless data traceability.

CT/CE-5000 Series

High-precision battery cell testing for 3C & energy storage.

It is engineered for high-precision battery cell testing, suitable for consumer digital, EV and energy storage scenarios. Equipped with SMBus/I2C communication, it achieves ±0.02% F.S. voltage/current accuracy, and providing a precise and intelligent solution for full-process cell testing.

Four-quadrant technology, 30% energy saving, cutting costs.
Customizable multi-range, for low/high current cell testing.
Simultaneous testing, significantly improving throughput.

Key applications

EV Battery Cell Energy Storage Systems (ESS) Consumer Electronics Battery Materials Research

Model Lists

Battery Cycler Test Systems

CE-5008Q-20V30A-SMB-DS

CE-5000 Battery Testing System

Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 100Hz
Resolution Ratio AD/DA: 16bit
Current Response Time: ≤30ms
Single-Cycle Operation Count: 255 cycles
Channel: 8

Battery Cycler Test Systems

CE-5012-5V600A

CE-5000 Battery Testing System

Voltage Accuracy: ±0.02% F.S.
Current Accuracy: ±0.05% F.S.
Resolution Ratio AD/DA: 16bit
Current Response Time: ≤1ms
Minimum Pulse Width: 100ms
Off-Line Test: 1GB/CH

Battery Cycler Test Systems

CE-5040-20V10A

CE-5000 Battery Testing System

Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 100Hz
Resolution Ratio AD/DA: 16bit
Current Response Time: ≤20ms
Single-Cycle Operation Count: 255 cycles
Off-Line Test: 1GB/CH

CT/CE-9000 Series

Premium high-speed acquisition & precision pulse characterization.

The series is engineered for advanced battery cell characterization demanding ultra-high sampling frequency, ultra-fast transient response and nanoscale precise control. Tailored for consumer electronics, battery material research and solid-state cell testing featuring dynamic load, short-duration pulse and high-resolution performance analysis, it delivers professional and reliable testing support for in-depth exploration of cell electrochemical characteristics and dynamic response mechanisms.

1000Hz ultra-high-speed data acquisition captures ephemeral cell performance fluctuations with high-resolution precision.
400μs minimum pulse width enables ultra-rapid pulse testing and accurate replication of dynamic load conditions.
±0.02% F.S. high precision delivers lab-grade voltage and current accuracy, ensuring uncompromised test data integrity.
Integrated multifunctional testing supports DCIR, dQ/dV analysis and CV testing for comprehensive battery cell characterization.
