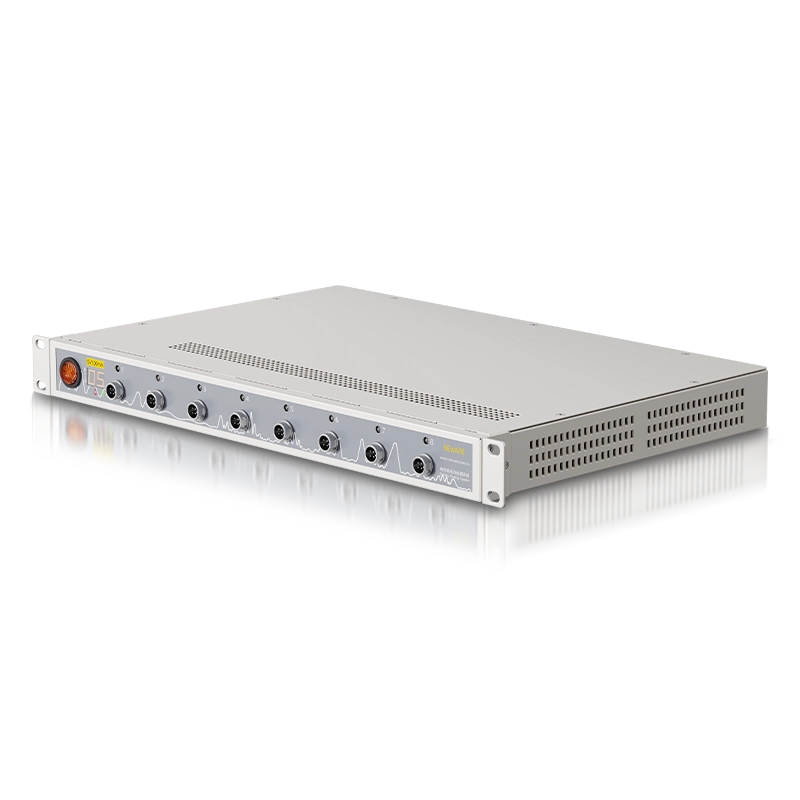

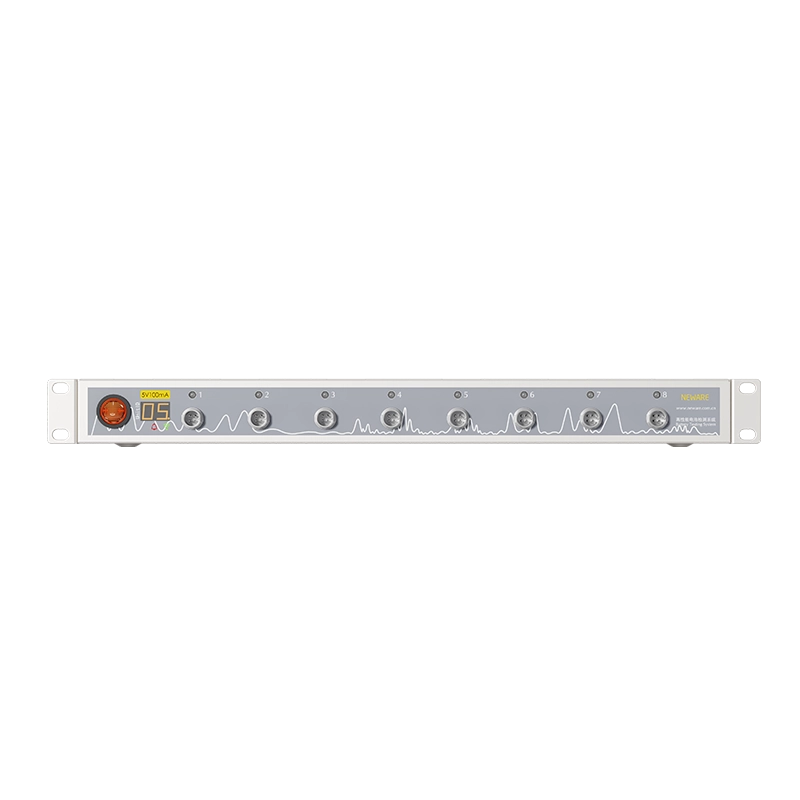

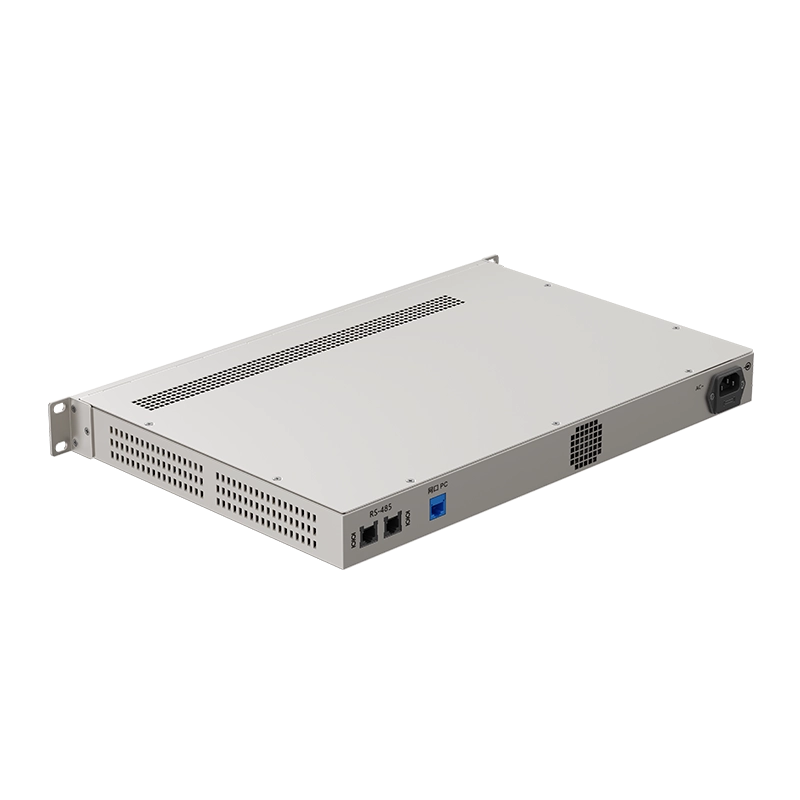

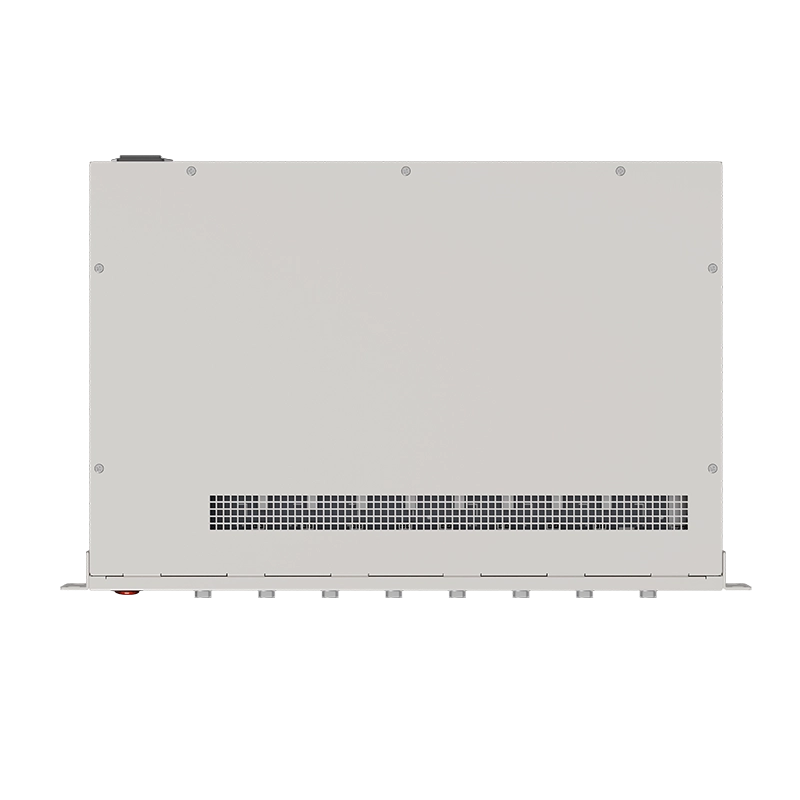

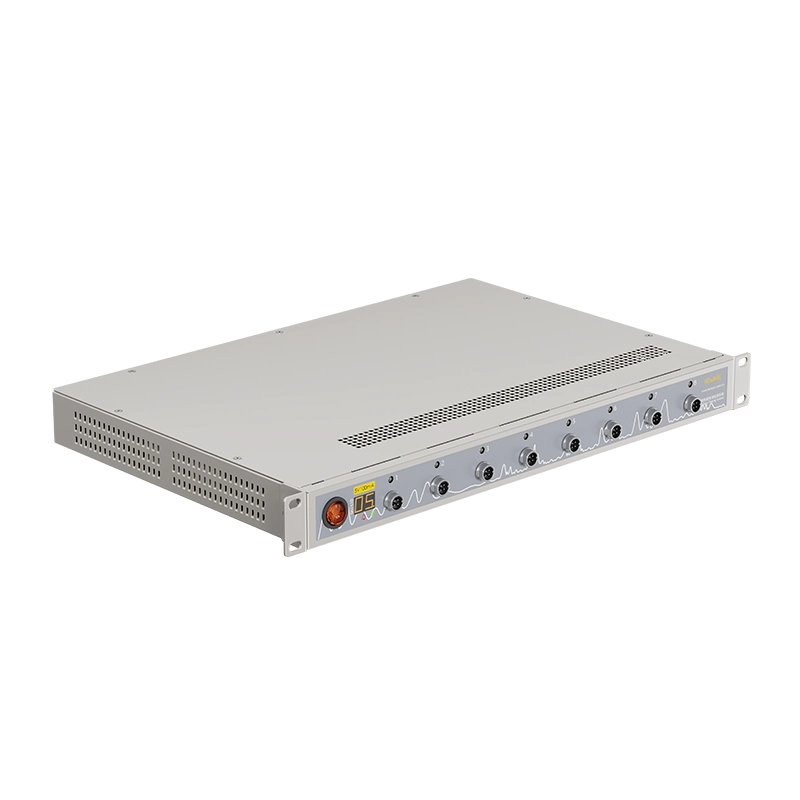

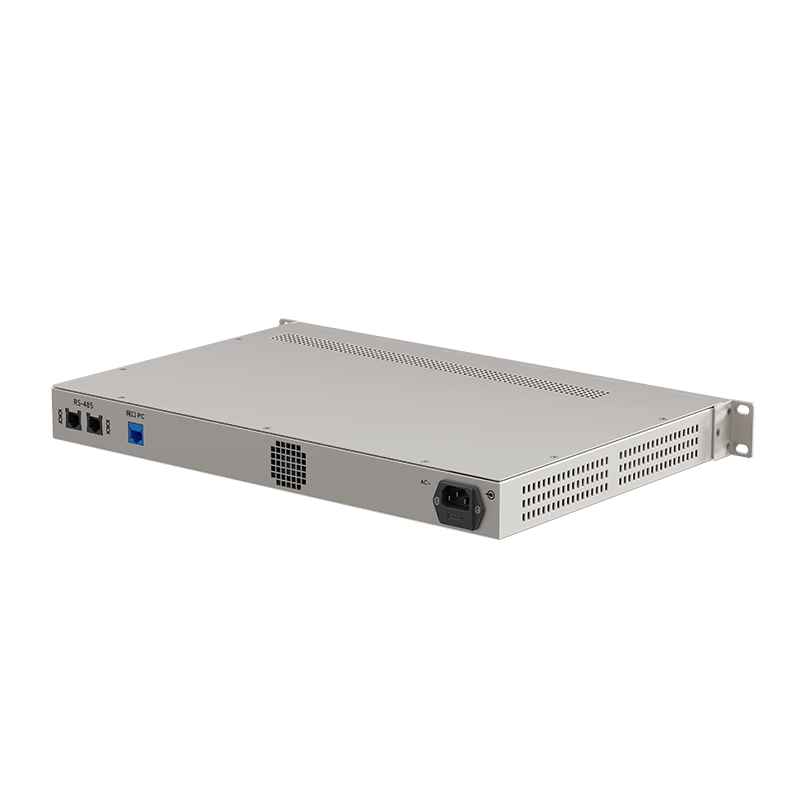

CT-8000 Battery Testing System

High-precision current control.

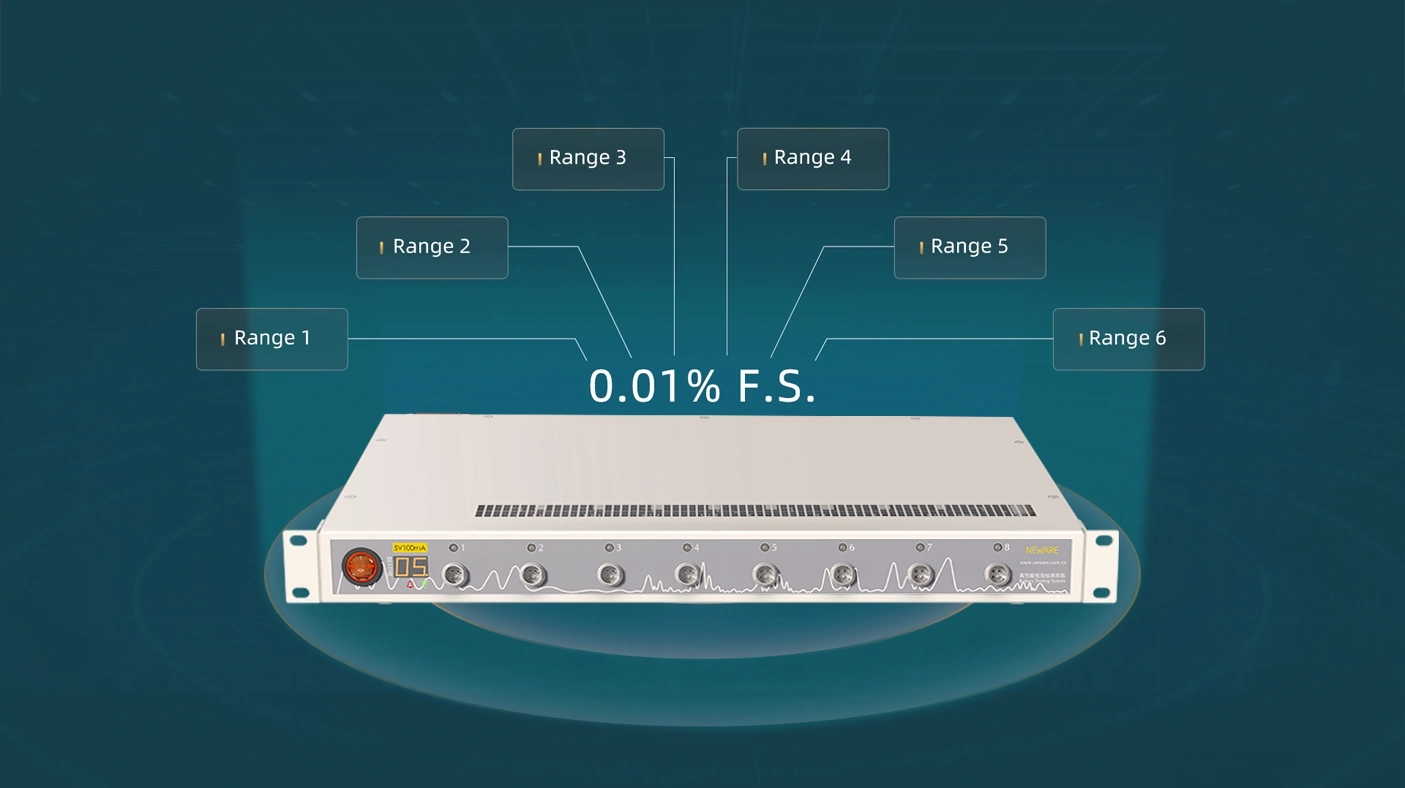

With a voltage range of -5V~5V and six current ranges from 0.1μA to 100mA, it achieves ±0.01% of F.S. precision. Using 24bit AD sampling and four - wire connection technology, it ensures accurate capture of tiny signals. The dual - closed - loop control of constant current and voltage provides lab - level precision for battery material research.

Current Ranges: 0.1 mA, 1 mA, 5 mA, 10 mA, 50 mA, 100 mA

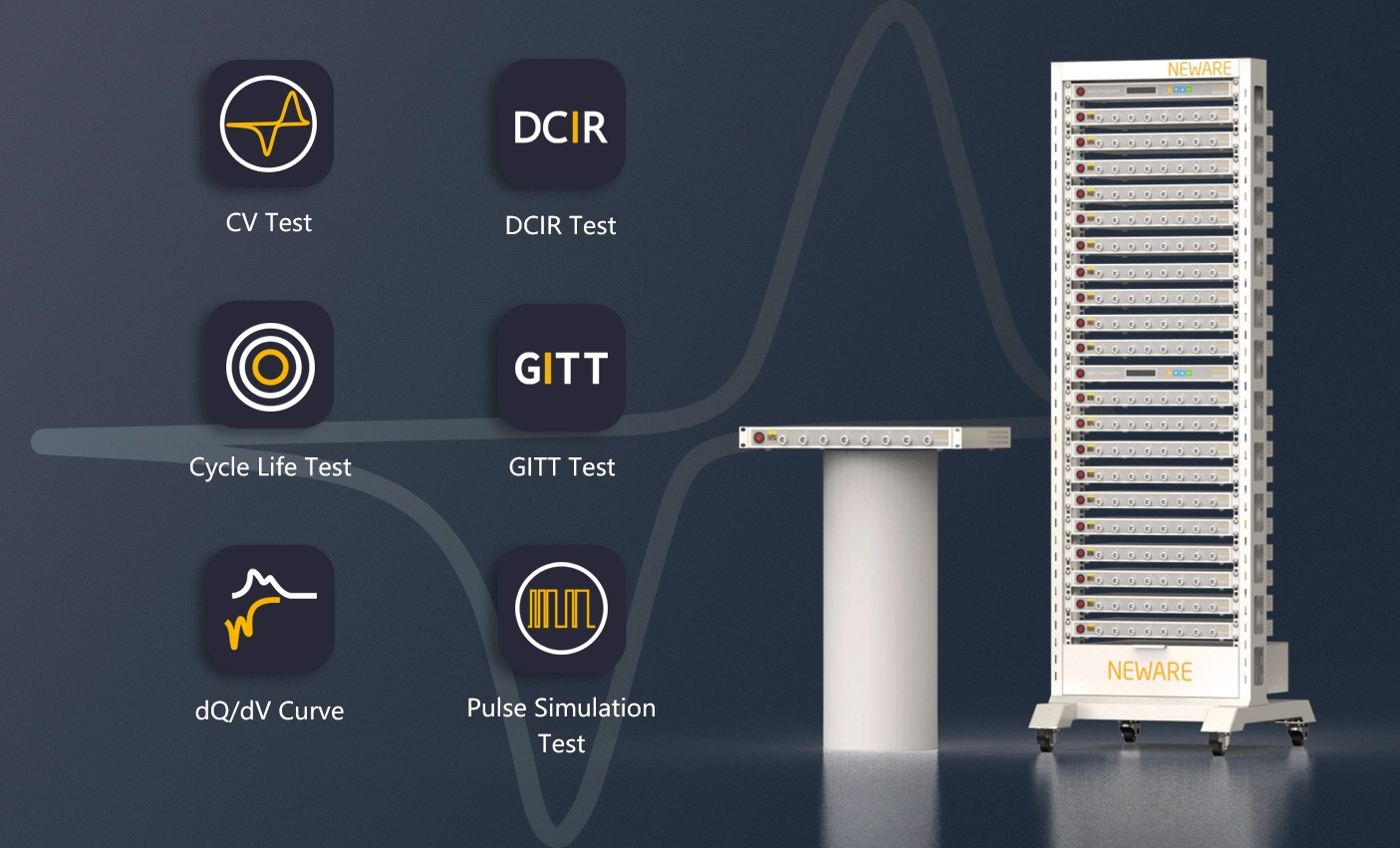

Multiple test modes with enhanced CV testing.

Comprehensive testing and data analysis: Features cycle life, rate charge-discharge, pulse simulation, GITT, DCIR, and dQ/dV differential capacity curve analysis. CV testing integration: Allows CV testing within charge-discharge cycles. Customize cycle numbers for automatic CV scans to simulate battery aging and analyze electrode reaction characteristics.

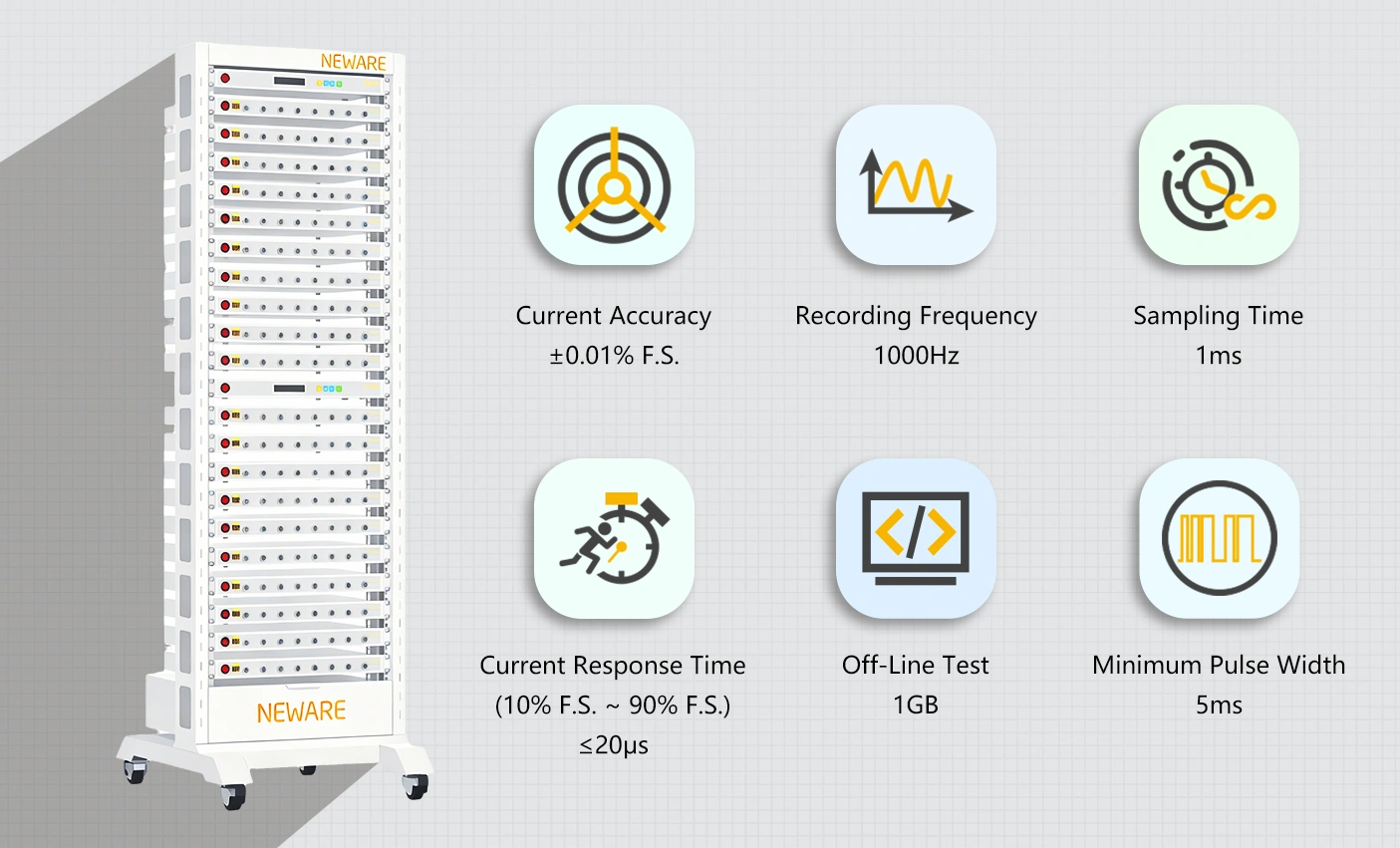

Fast response and seamless current switching.

It has a current response time of ≤20μs and can switch currents seamlessly. This allows it to quickly capture dynamic changes during battery charge/discharge, ensuring real - time and accurate data for reproducing true transient conditions.

Efficient data management and comprehensive safety assurance.

Test data is centrally stored in a MySQL database and can be exported in various formats such as Excel, TXT, and CSV for easy analysis and report generation, enhancing R&D efficiency. Dual software-hardware protection mechanisms, including voltage/current limits, temperature monitoring, and reverse connection prevention, along with power-loss data recovery and offline testing support, ensure equipment and battery safety.
