Integrating charge-discharge detection and temperature testing into one.
Features
Voltage Accuracy
±0.02% F.S.
Recording Frequency
100Hz
Current Response Time
≤20ms
Single-Cycle Operation Count
255 cycles
Resolution Ratio AD/DA
16Bit
Off-Line Test
1GB/CH

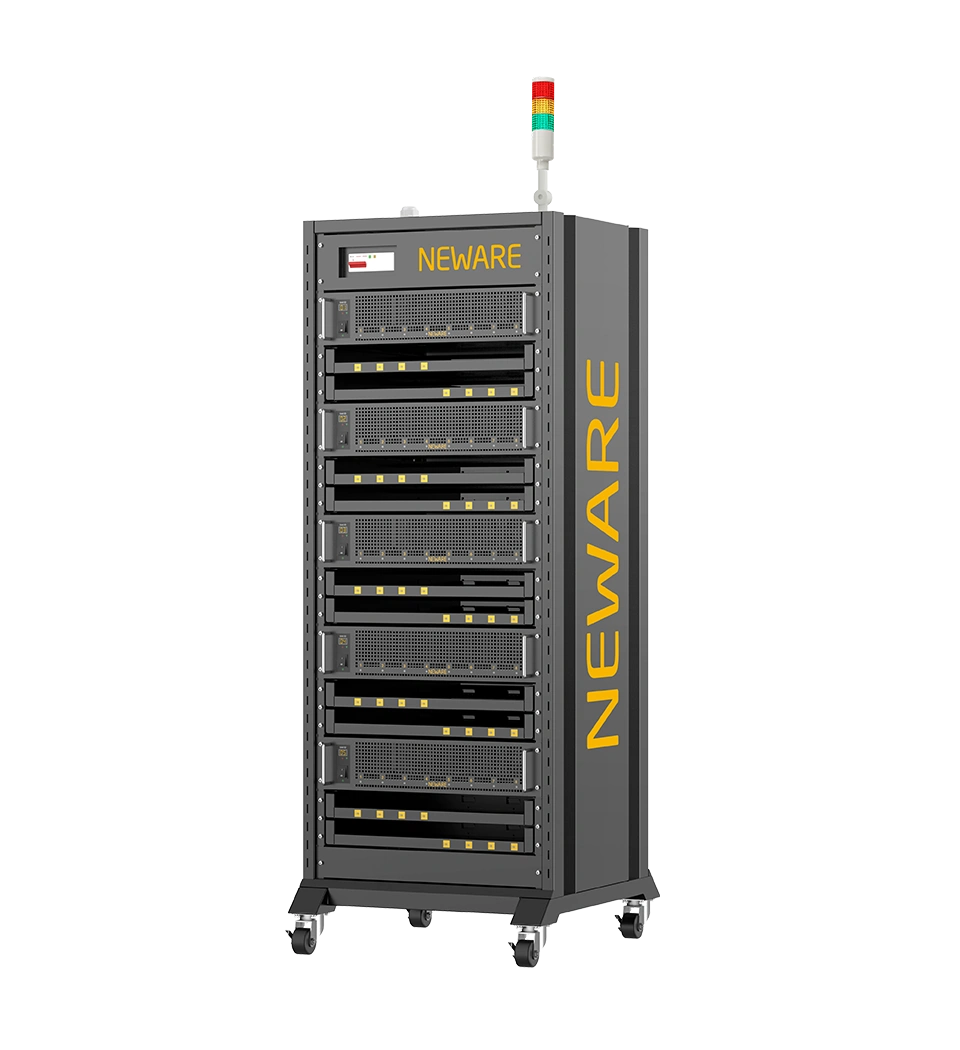

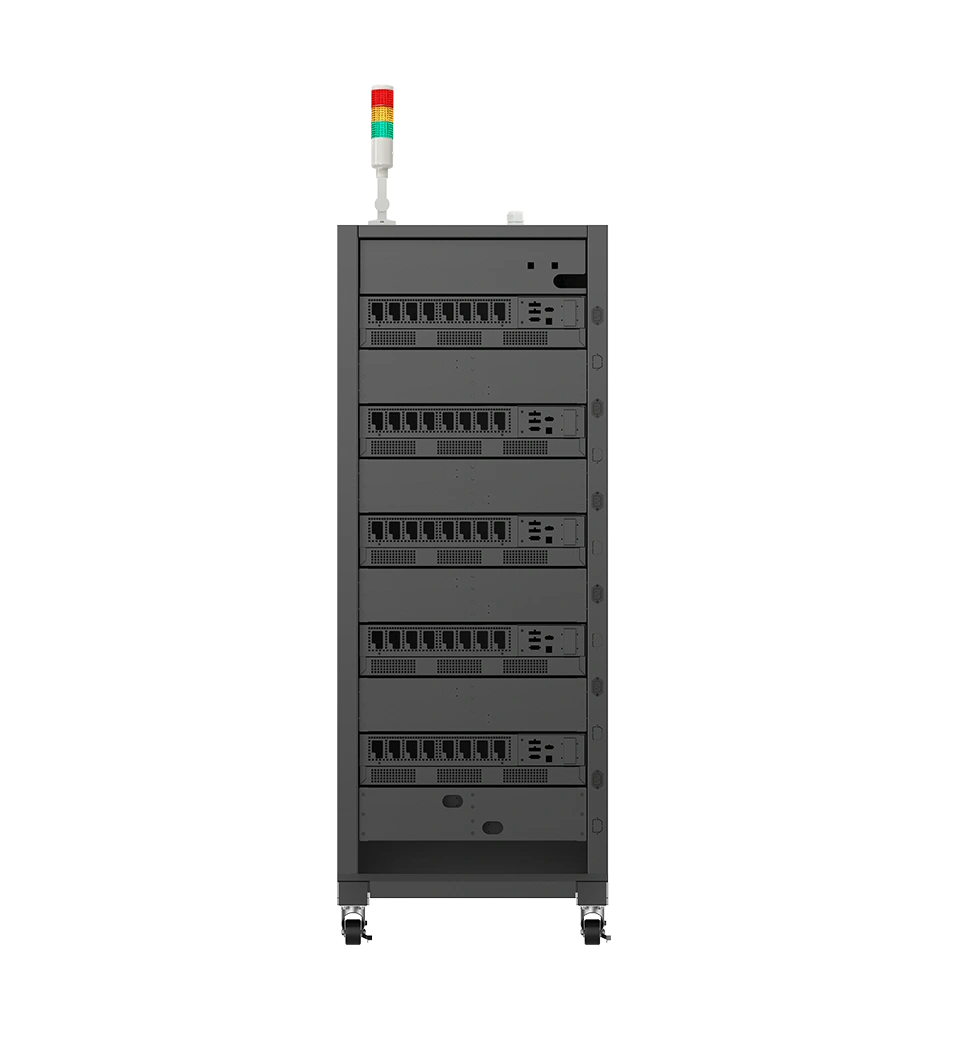

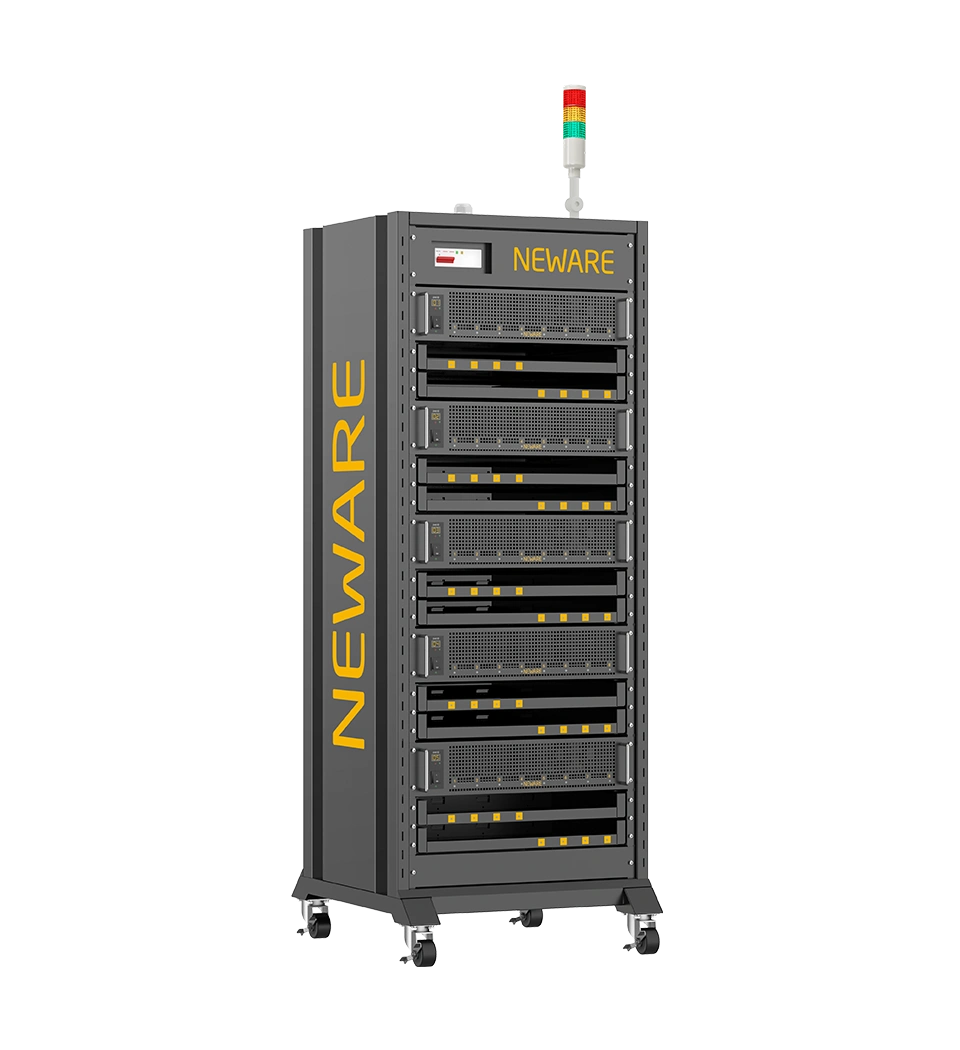

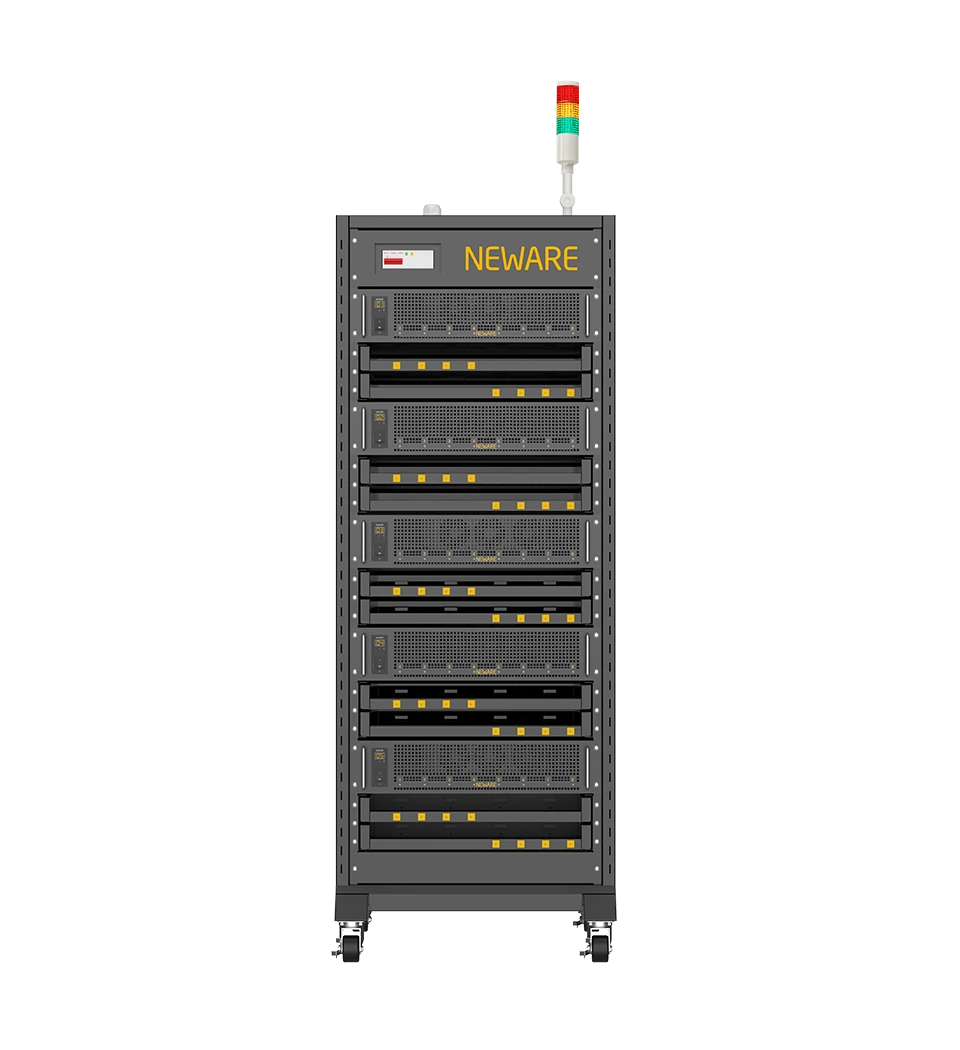

The CE-5040-20V10A is equipped with advanced processors and powerful computing capabilities, enabling efficient processing of large-scale data and complex computing tasks. It delivers exceptional performance, catering to various high-performance computing needs, including scientific research, data analysis, artificial intelligence, and deep learning applications.
| Voltage & Current | 20V/10A |
| current measurement range (Single-channel) | 10mA～10A |
| voltage measurement range (Single-channel) | 2V~20V |
*Other models can be customized according to voltage and current requirements.
Cycle life test
Rate Charging / Discharging Test
Pulse simulation test
GITT Test
DCIR test
dQ/dV differential capacity curve
Tailored for advanced battery testing: enabling dQ/dV differential capacity curve analysis capability.
Feedback Efficiency (Min)
65%
The energy generated by the battery discharge can be recovered and supplied to other channel batteries or fed back to the intranet.

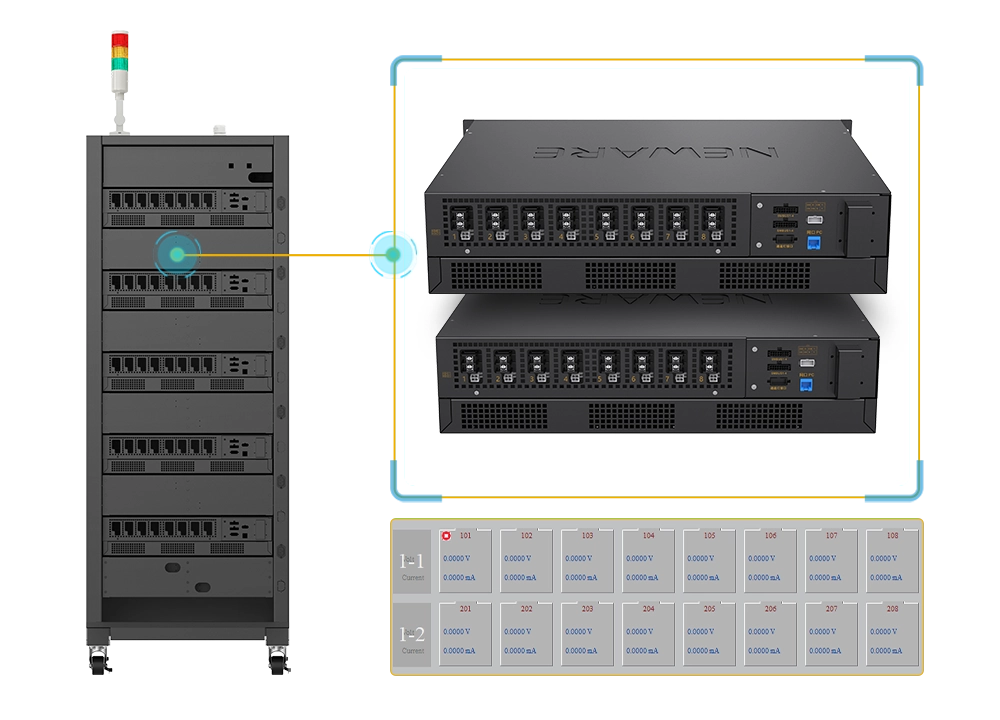

Each unit runs independently with 8 channels, and each channel can be set to read different SMBUS parameter lists. With a small number of parameters read per channel, it can achieve a refresh rate of more than 10 times per second.
Compatible with SMBus and I2C Communication Protocols, supporting high-speed mode at 100kHz. On the software side, it supports standard specification field information instructions defined by Smart Battery Data Specification Revision 1.1. Users can edit the DBC to support different chip protocols.
● Power-down data protection
● Voltage limits
● Current limits
● Control parameter deviation protection
● Current and voltage fluctuation protection
● Voltage slope protection
● Delay protection
● Reverse connection protection
● Input overvoltage protection
● Output overvoltage protection
● Input overcurrent protection
● Output overcurrent protection
● Overheating protection
● Overload protection
● Output no-load protection
Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0℃≤50min）
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F(0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Temperature Range: 32℉~140℉
(0℃~60℃)
Ambient Air Temperature: 41℉~86℉
(5℃~30℃)
Temperature Fluctuation: ≤1.8℉(1℃)
(No load and stable temperature)
Cooling Efficiency: ≤40min(77℉→32℉)
(25℃→0℃)
Heating Efficiency: ≤30min(77℉→140℉)
(0℃→60℃)
Temperature Deviation: ±3.6℉(±2.0℃)
(No load and stable temperature)
