Applicable to power cells, energy storage cells, and other related fields. It delivers exceptional performance, catering to various high-performance computing needs, including scientific research, data analysis, artificial intelligence, and deep learning applications.
Features
Voltage Accuracy
±0.02% F.S.
Current Accuracy
±0.05% F.S.
Current Response Time
≤1ms
Minimum dwell time
100ms
Resolution Ratio AD/DA
16Bit
Off-Line Test
1GB/CH

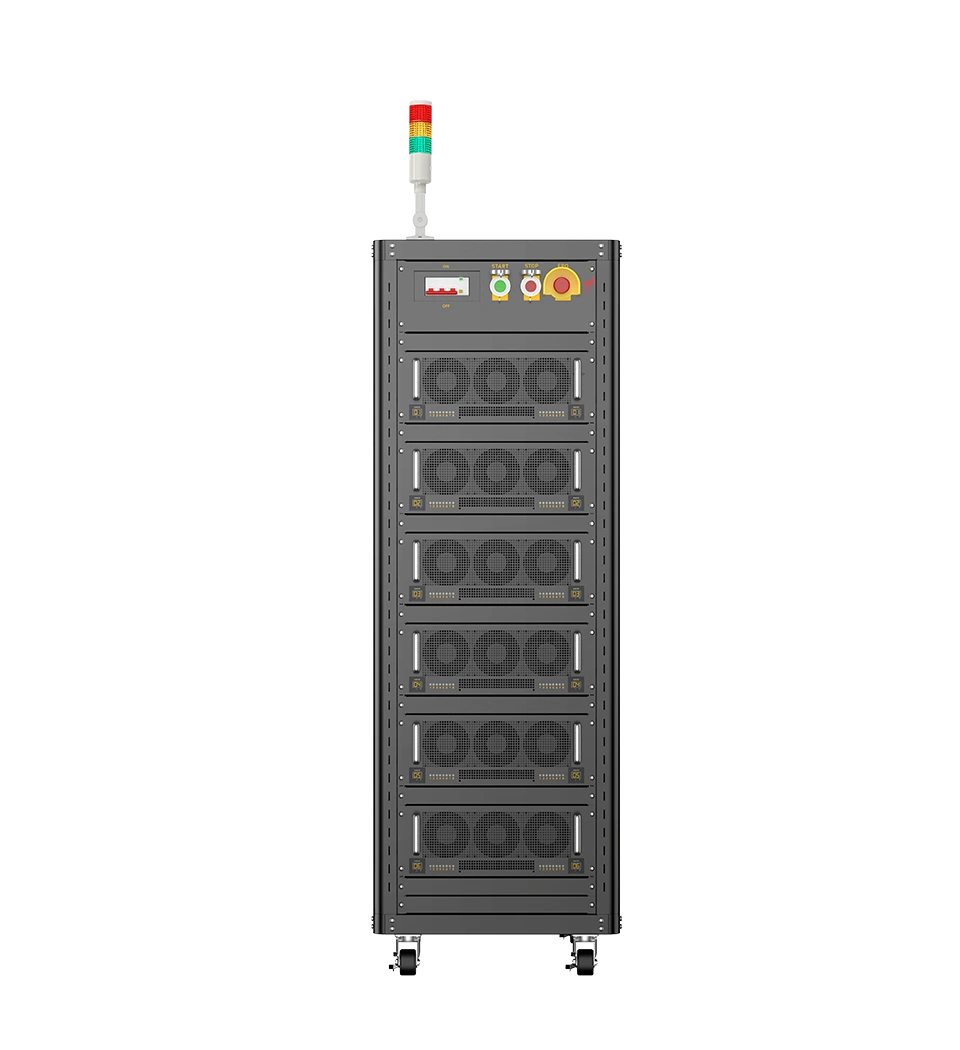

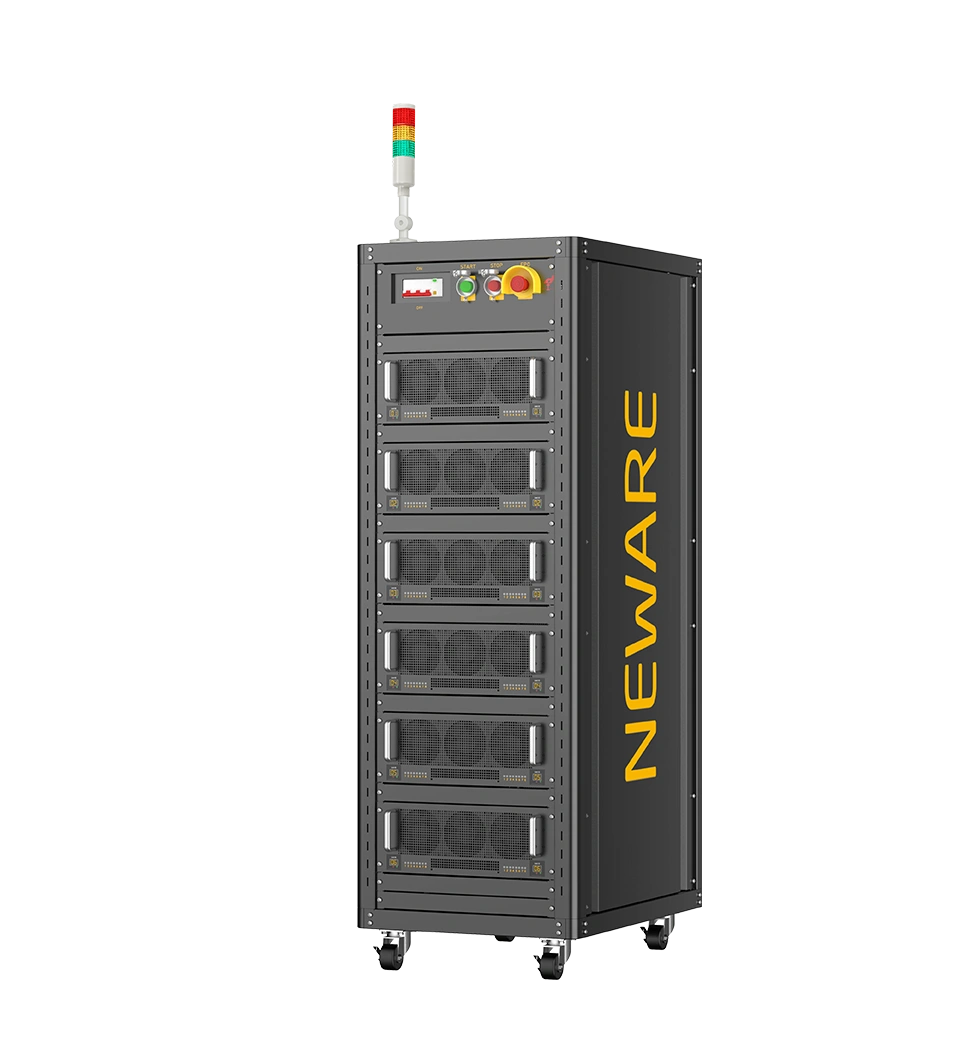

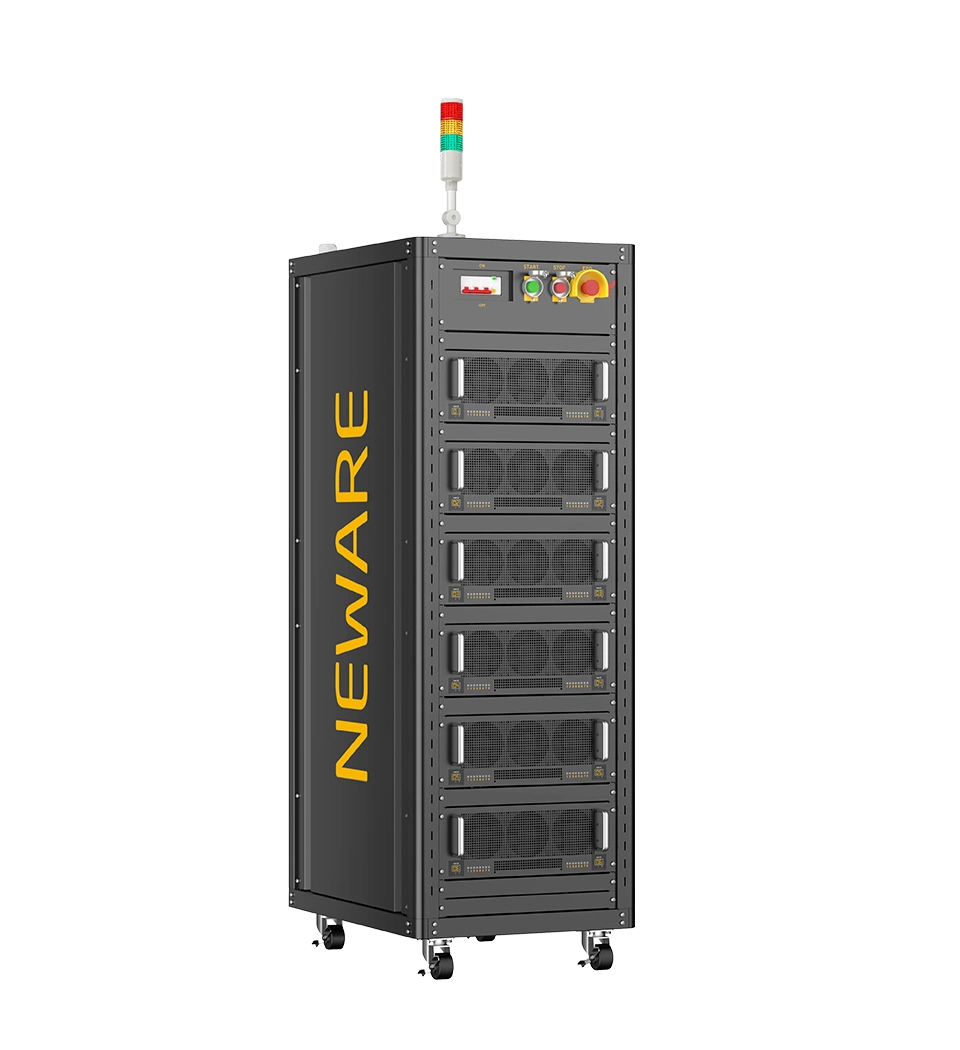

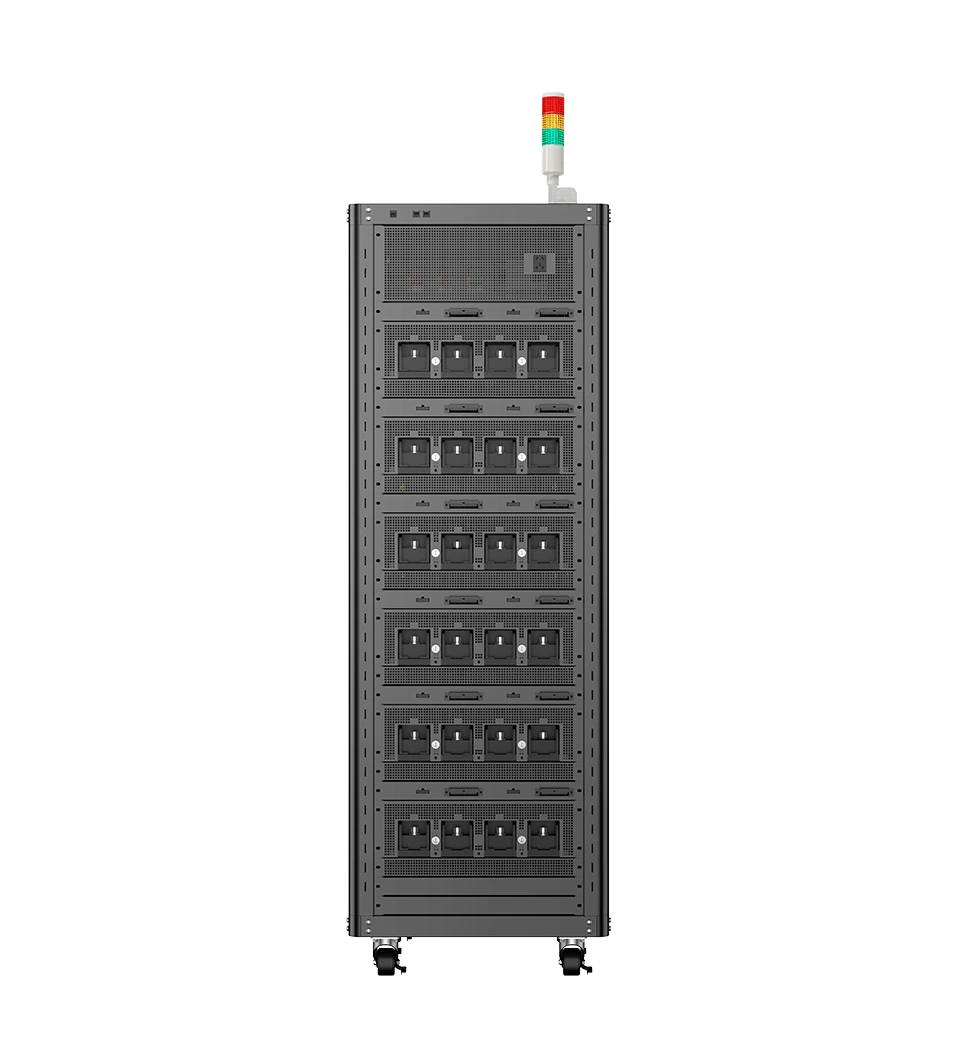

The CE-5012-5V600A is equipped with advanced processors and powerful computing capabilities, enabling efficient processing of large-scale data and complex computing tasks. It delivers exceptional performance, catering to various high-performance computing needs, including scientific research, data analysis, artificial intelligence, and deep learning applications.
| Charge Voltage Range | 0V~5V | |
| Discharge Voltage Range | 1.5V~5V | |
| Current Range | Single Channel | 75mA~600A |
| Channel Parallel Connection | 75A/150A/225A/300A/375A/450A/525A/600A/.../900A/...1200A/...6000A/... | |
*Other models can be customized according to voltage and current requirements.
Cycle life test
Rate Charging / Discharging Test
Pulse simulation test
GITT Test
DCIR test
Covering multiple testing functions, customizing and editing step contents in tabular form, supporting custom variables and custom functions, conducting comprehensive testing of battery cells from various perspectives.
Feedback Efficiency (Min)
65%
The energy generated by the battery discharge can be recovered and supplied to other channel batteries or fed back to the intranet, with an energy recovery efficiency of not less than 65%.

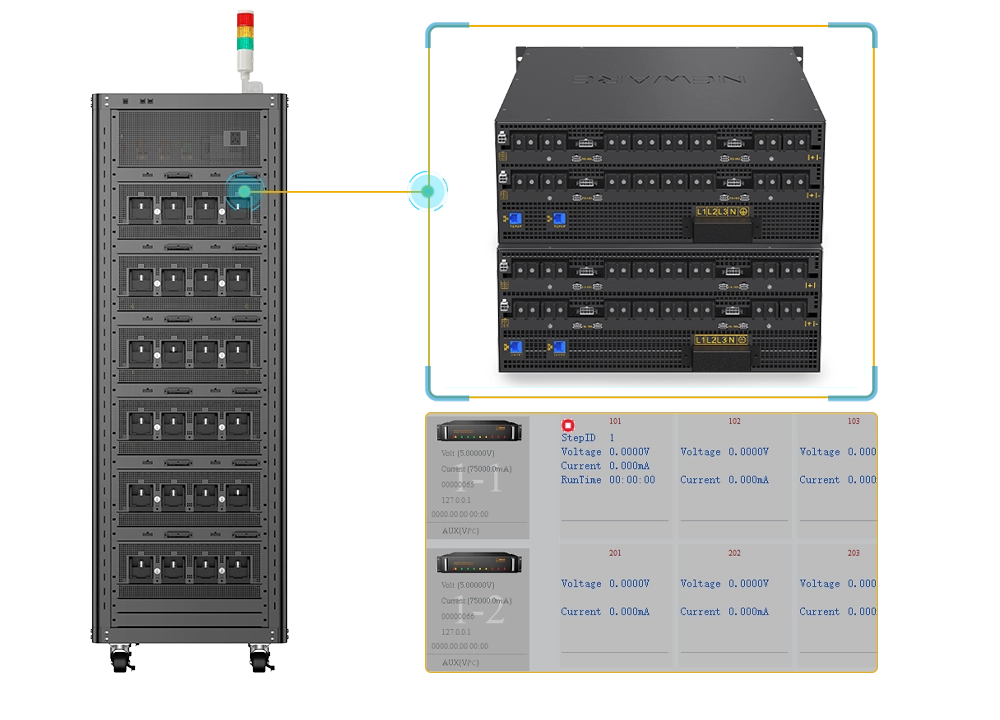

12CH independently operated, supports parallel connection of any adjacent channels, automatically blocks faulty channels, supports fault-tolerant operation.
● Power-down data protection
● Offline test protection
● Voltage Limits
● Current Limits
● Capacity upper limit
● Delay time protection
● Reverse connection protection
● Input overvoltage protection
● Output overvoltage protection
● Input overcurrent protection
● Output overcurrent protection
● Overheating protection
● Overload protection
● Output no-load protection
Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Volume: 25L
Number of Channels: 16CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
Volume: 25L*4
Number of Channels: 16CH*4
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Volume: 100L*2
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0℃≤50min）
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Cooling Efficiency: ≤40min(77℉→32℉)
(25℃→0℃)
Heating Efficiency: ≤30min(77℉→140℉)
(0℃→60℃)
