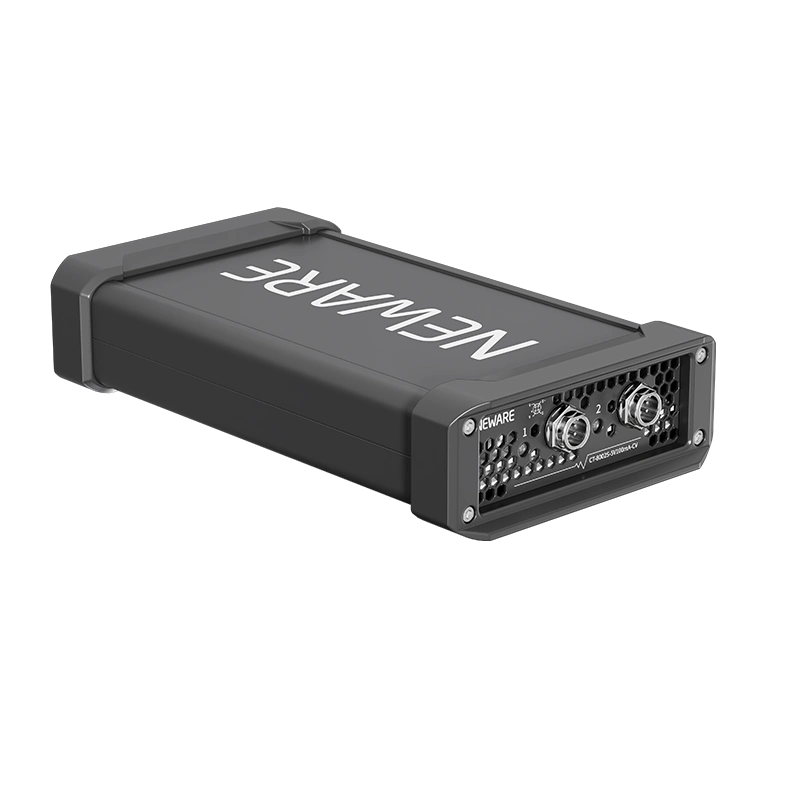

Portable battery testing system for battery materials research with in-situ testing support.
· CV Testing
· Current response time ≤30μs
· Seamless Current Switching

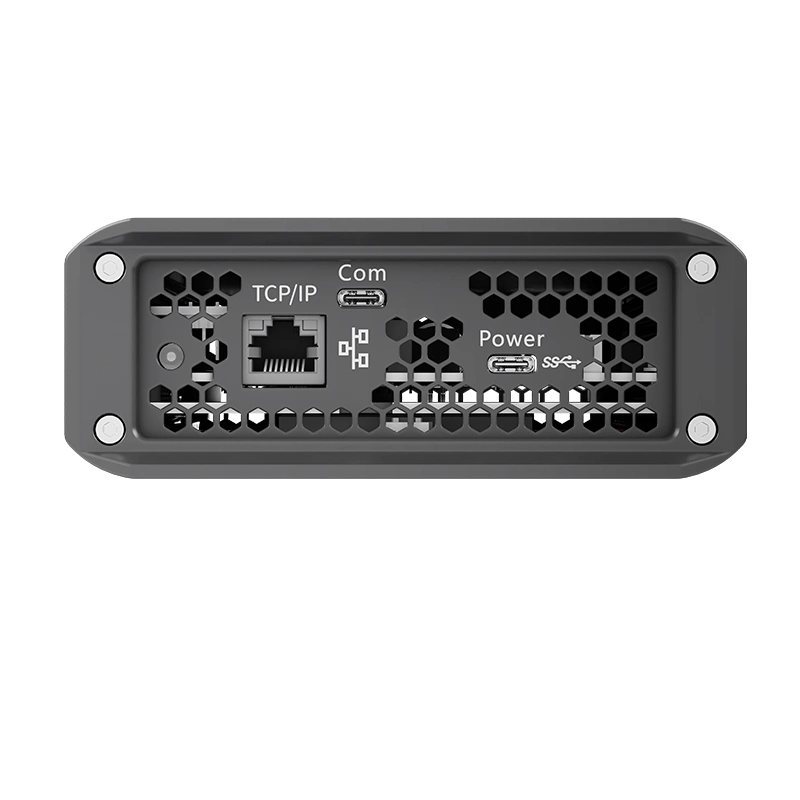

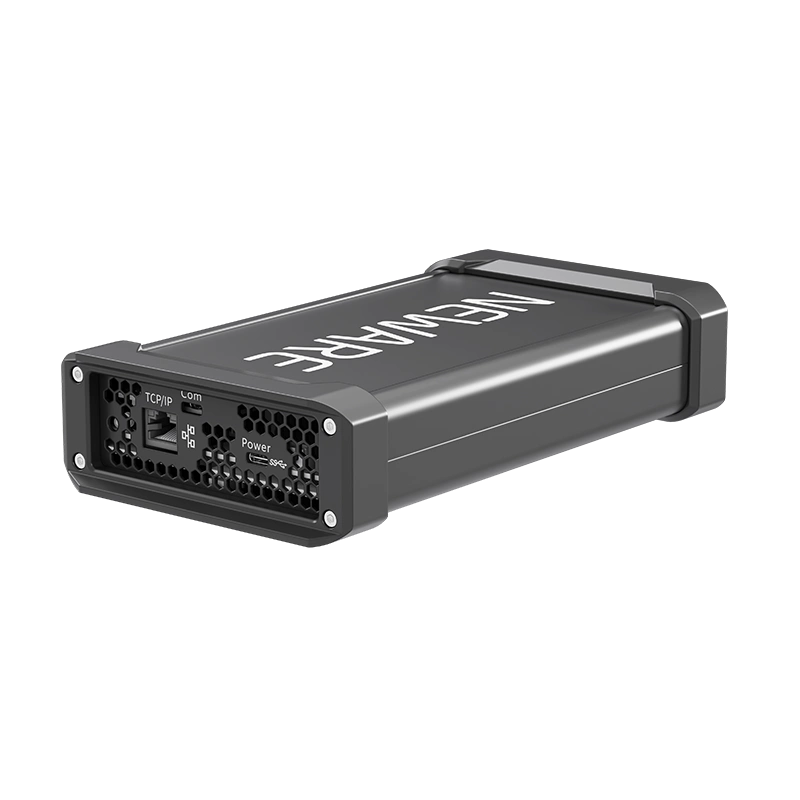

· Type-C Power Port
· 6-Range Current Measurement
Features
Tech Specs
Resources

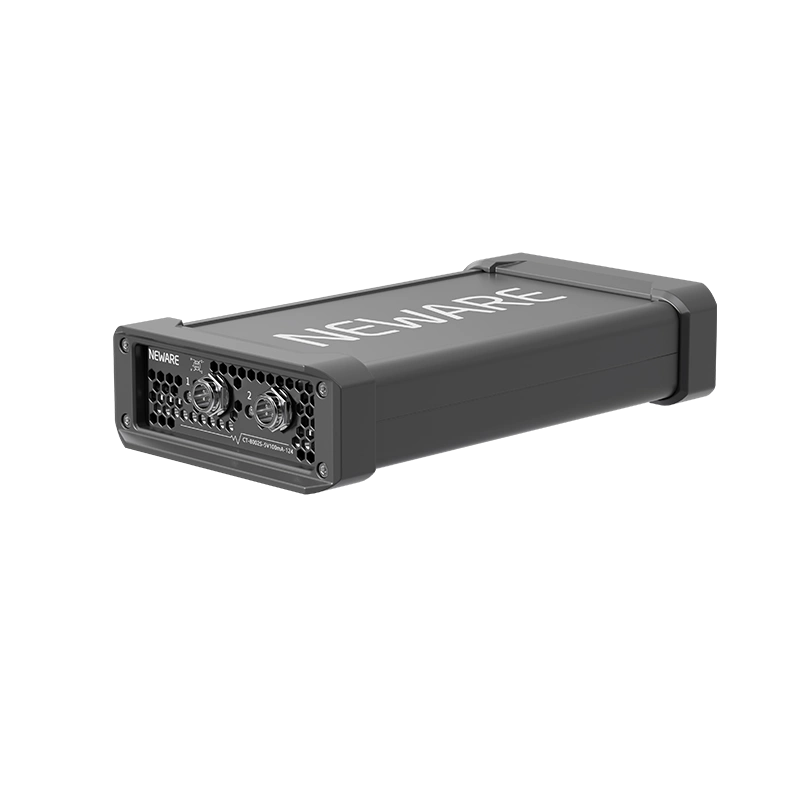

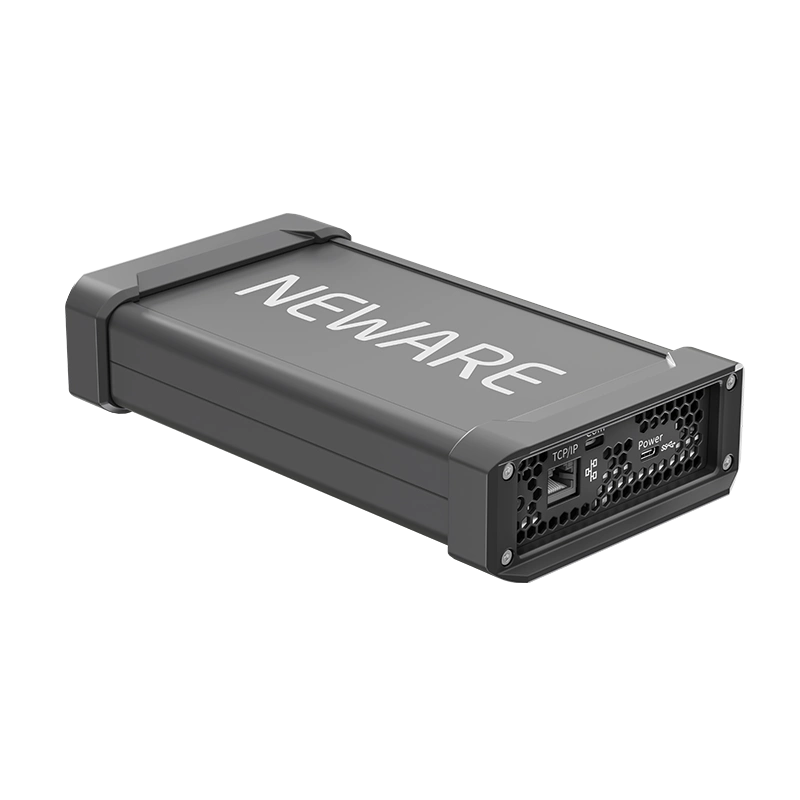

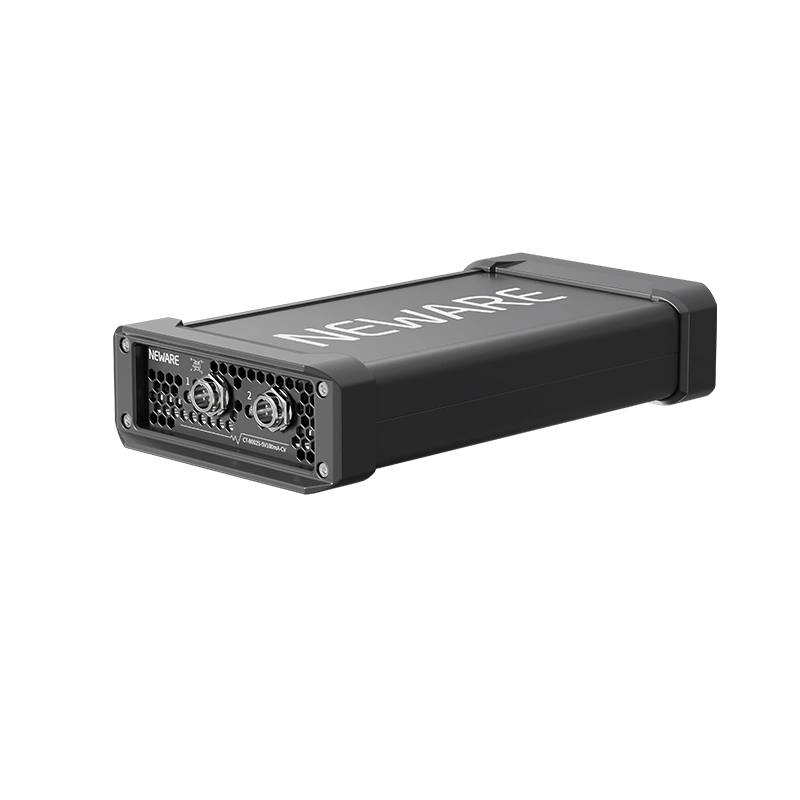

The mini - sized 226×127×48mm device is easy to carry and set up. It supports offline testing and power - failure protection, making it suitable for various complex scenarios: · Laboratory research: Meets the needs of in - situ battery testing. · Production line inspection: Facilitates on - site fault diagnosis. · Outdoor testing: Adapts to mobile testing requirements. · University teaching: Supports experimental and practical teaching activities.
Equipped with CV testing, it can insert CV scans into charge/discharge cycles. Just set the cycle number, and it will automatically perform CV scans to simulate battery aging and verify electrode reaction characteristics after different cycles.
With a voltage range of -5V~5V and six current ranges from 0.1μA to 100mA, it achieves ±0.01% of F.S. precision. Using 24bit AD sampling and four - wire connection technology, it ensures accurate capture of tiny signals. The dual - closed - loop control of constant current and voltage provides lab - level precision for battery material research.

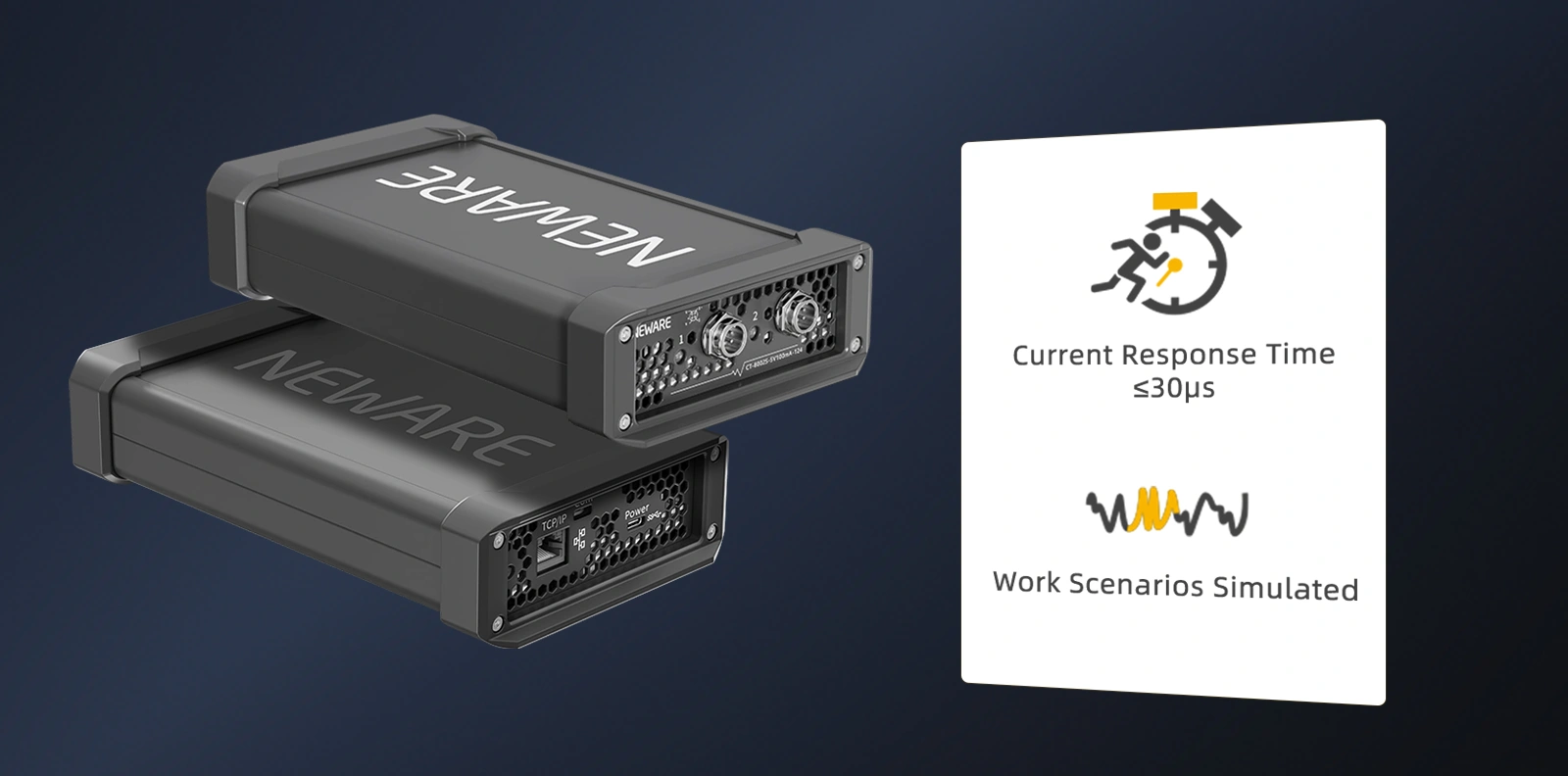

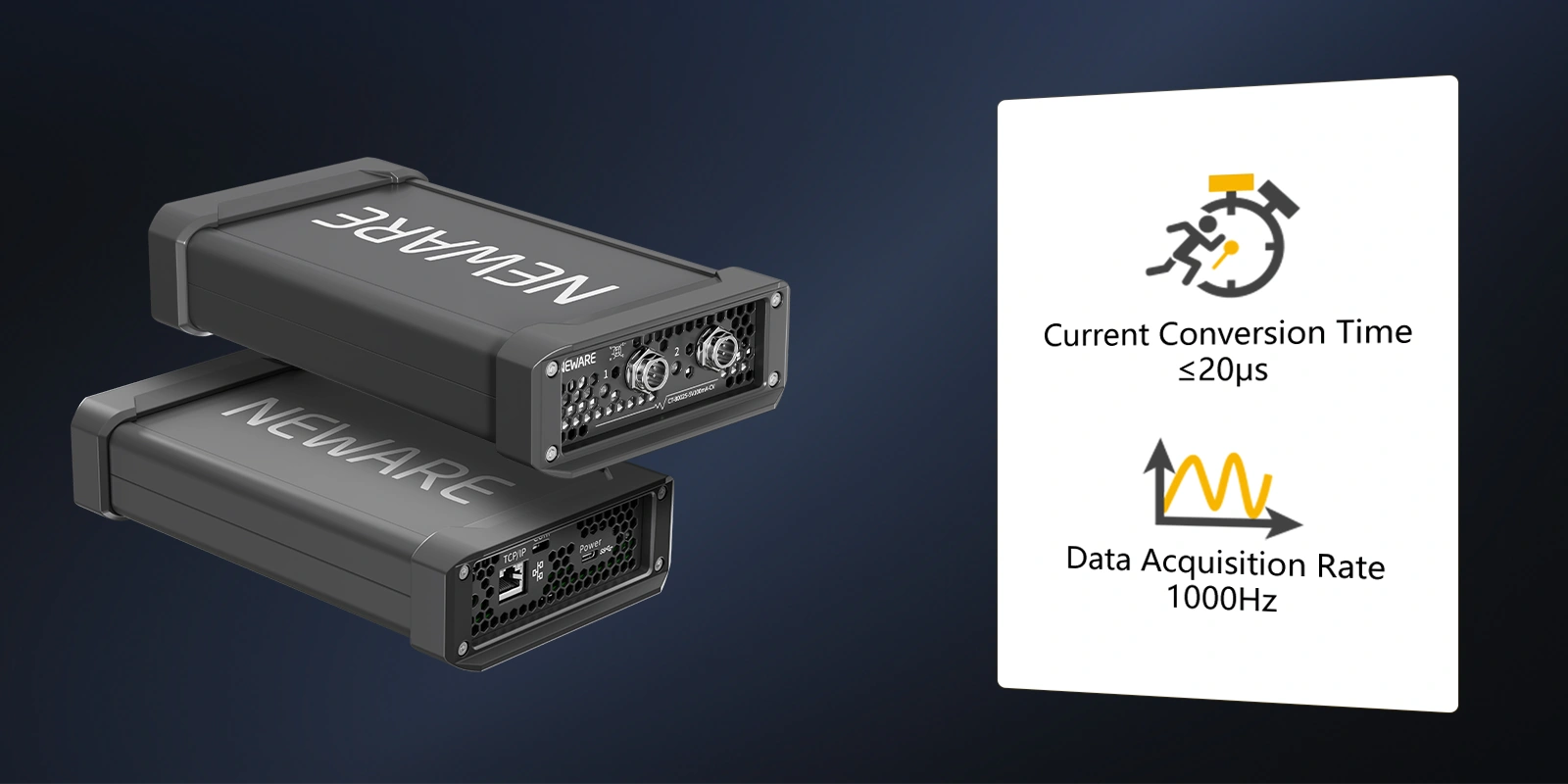

It has a current response time of ≤30μs and can switch currents seamlessly. This allows it to quickly capture dynamic changes during battery charge/discharge, ensuring real - time and accurate data for reproducing true transient conditions.
| Equipment name | Portable Battery Testing System |
|---|---|

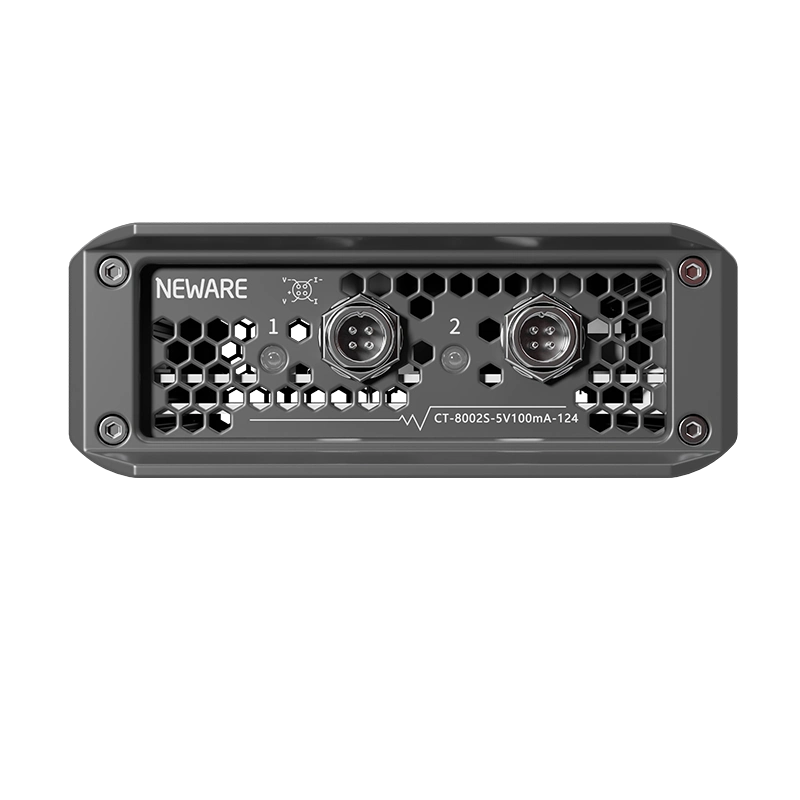

| Model | CT-8002S-5V100mA-124 |
| Resolution | AD：24bit；DA：16bit |
| Voltage | |
| Output range | -5V-5V |
| Min discharge voltage | -5V |
| Accuracy | ± 0.01% of F.S. |
| Stability | 0.02% of F.S. |
| Current | |
| Output range | Range1: 0.1mA; Range2: 1mA; Range3: 5mA; Range4: 10mA; Range5: 50mA; Range6: 100mA |
| Accuracy | ± 0.01% of F.S. |
| Minimum output current | 0.2μA |
| CV cut-off current | Range1: 0.1μA; Range2: 1μA; Range3: 5μA; Range4: 10μA; Range5: 50μA; Range6: 0.1mA |
| Stability | 0.02% of F.S. |
| Power | |
| Single channel output power | 0.5W |
| Accuracy | ±0.02% of F.S. |
| Stability | 0.04% of F.S. |
