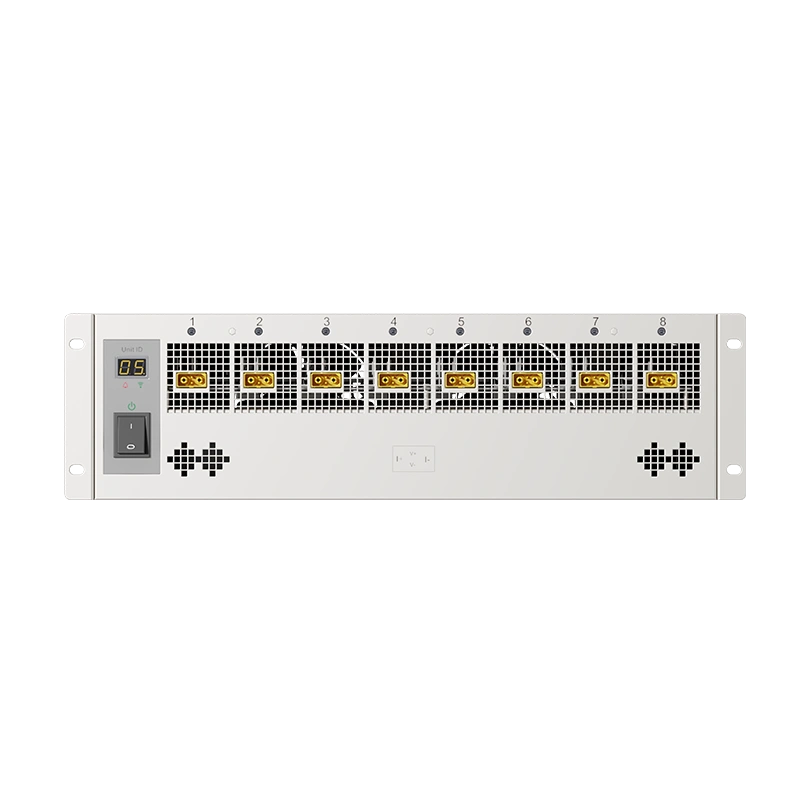

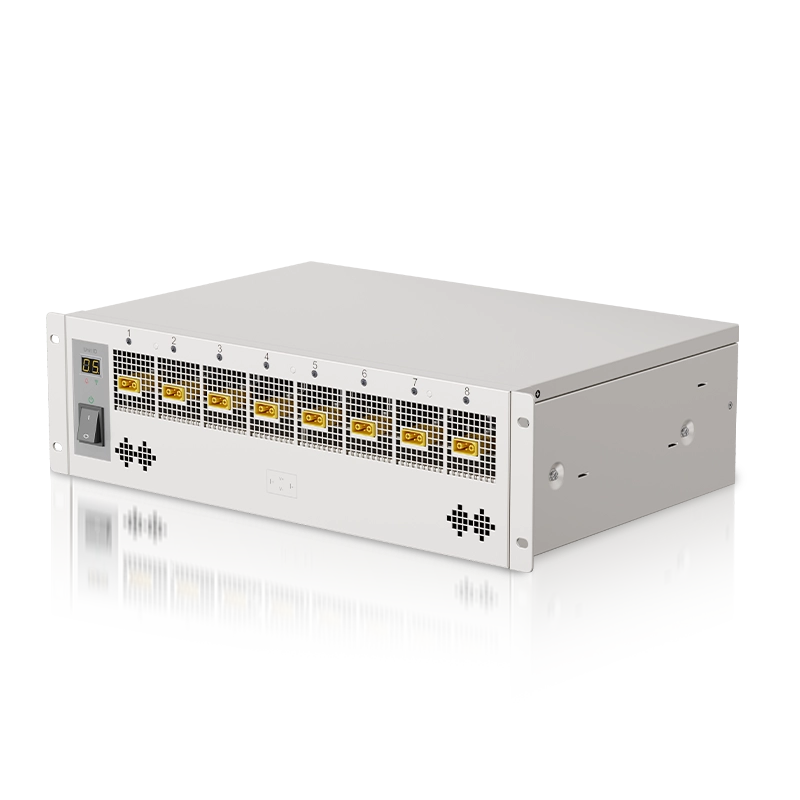

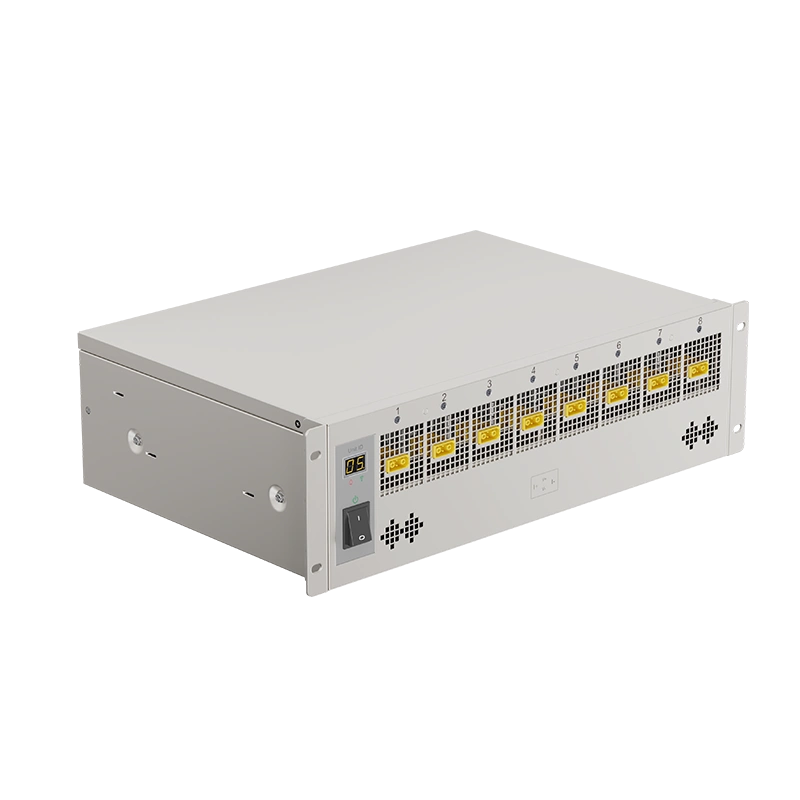

CE-8000 Battery Testing System

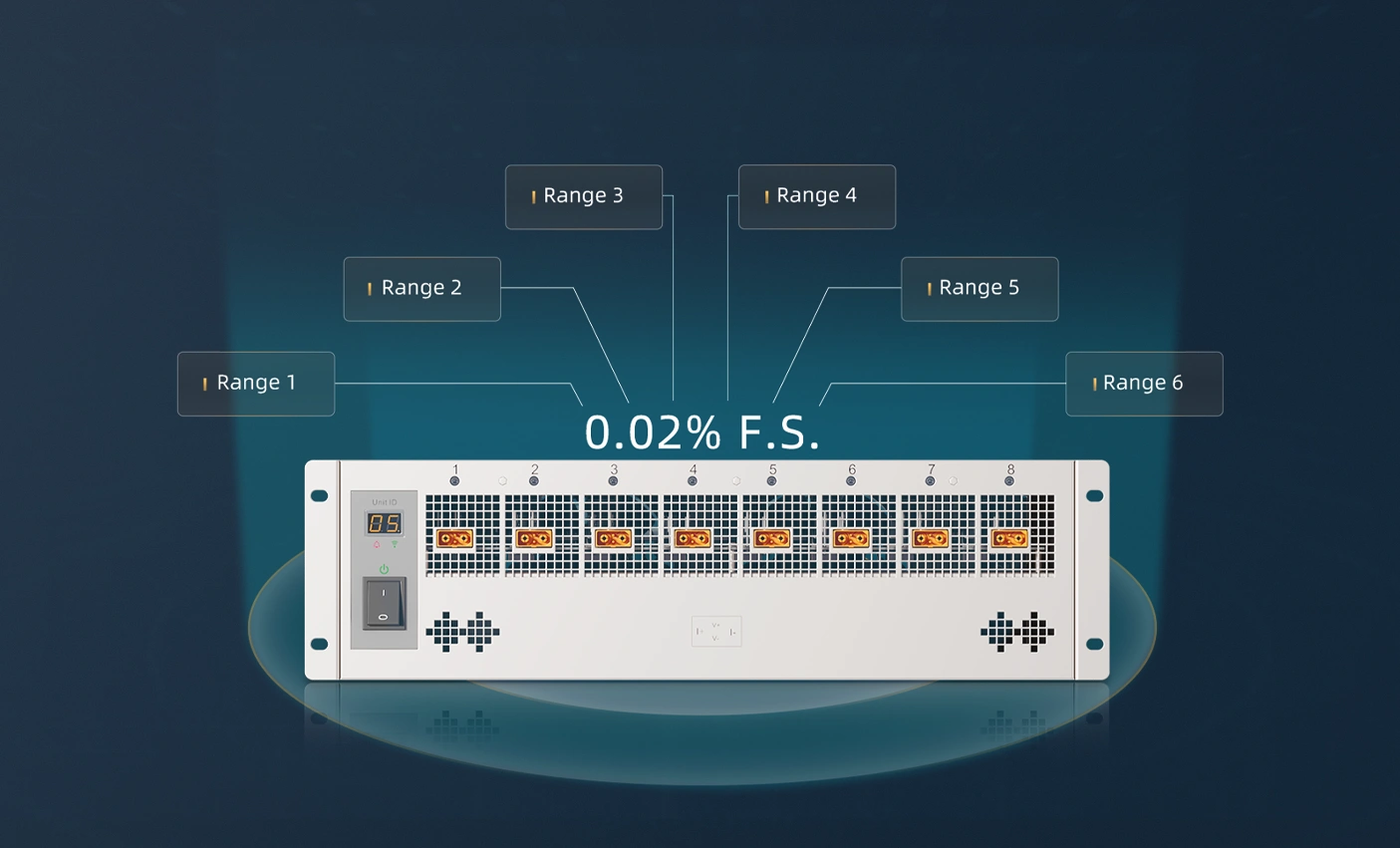

High-performance precision control and comprehensive charge-discharge testing.

Smart auto-switching of 6 current ranges, ±0.02% of F.S. current precision, delivers mA-level current for 3C battery standby power testing and high-current pulses for fast-charging protocol tests. 7-Mode Flexibility: Supports 7 modes like CC/CV/CP/CR/pulse charge-discharge, covering the full-life-cycle of batteries. Its minimum pulse width of 20ms and support for 32-pulse continuous switching per step aid accurate DCIR calculation.

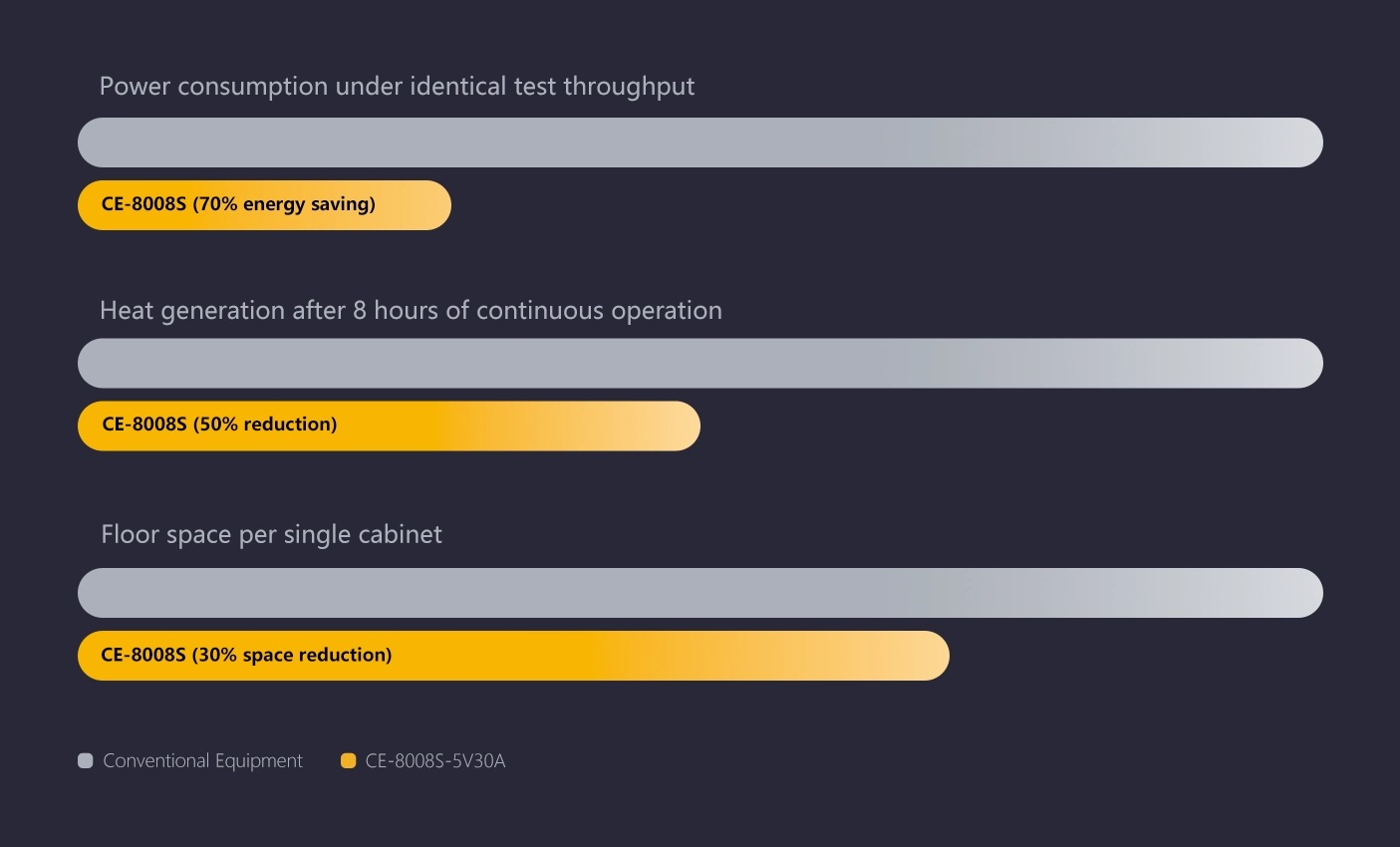

Millisecond-level switching for energy efficiency.

Rapid 500μs response, with current rise time ≤500μs (10%~90% of F.S.) and charge-discharge switching ≤1ms (–90%~90% of F.S.), boosts test efficiency for high-dynamic testing.

It has a>70% energy-efficient design. Using green energy-saving tech, it cuts energy use, meets sustainable-lab standards, and supports low-carbon testing.

High-efficiency and reliable architecture for non-stop operation.

• Dual-loop control technology: independent dual - loop structure for CV and CC sources ensures fast response and strong stability (0.04% of F.S. voltage stability).

• 4-wire connection: eliminates line-loss errors for precise voltage and current sampling.

• Multiple safety protections: features over-voltage/current/protection, reverse connection protection, over-temperature protection, emergency stop, IP20 rating to ensure device and personnel safety.

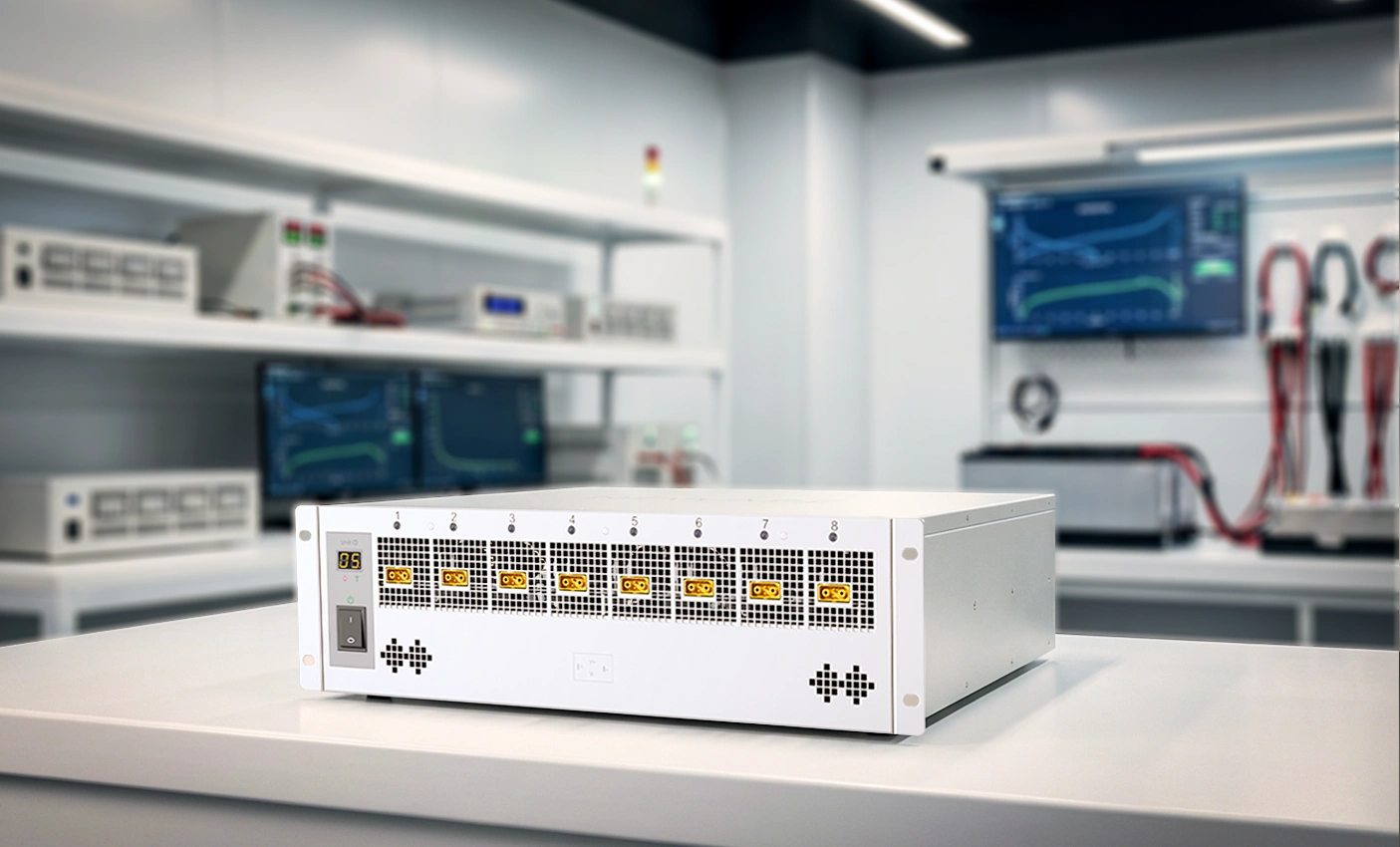

Smart expansion and data security.

• Industrial-grade communication interfaces: equipped with standard TCP/IP and optional CAN, RS485 for BMS communication, supporting DBC configuration for seamless BMS integration.

• Professional data management: centralized data management via MySQL databases for efficient, secure storage and retrieval.

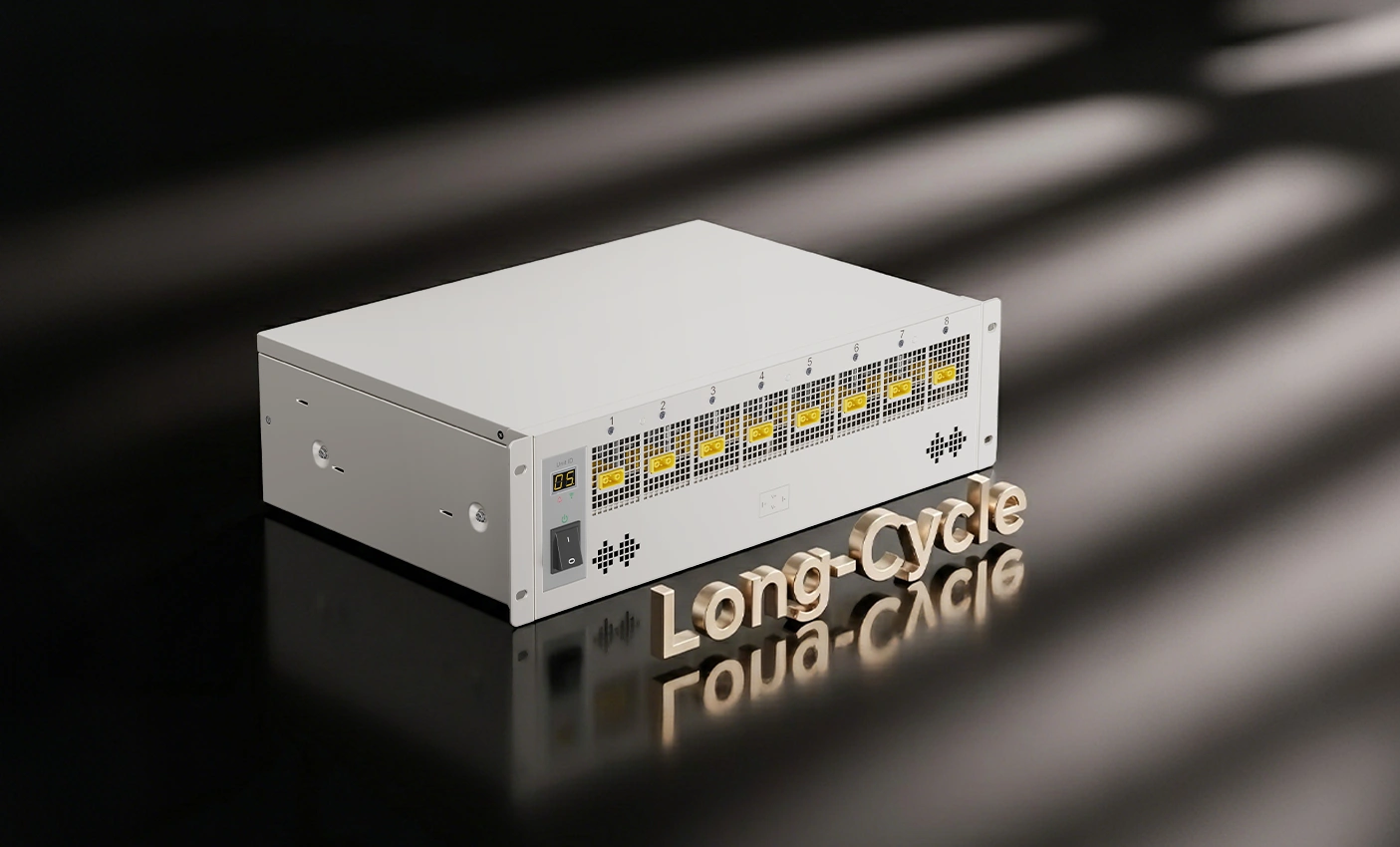

Long-cycle and environmental adaptability.

Each single step can run for up to 365×24 hours, meeting long - term aging test needs. The equipment maintains accuracy in a wide temperature range of 0~40°C, with a storage temperature range of -10~50°C, making it suitable for labs. It also ensures a quiet test environment with noise levels below 75dB at a distance of 1m.
