UL 9540: energy storage system safety standard.
IEC 62619: safety requirements for secondary lithium batteries and cells for industrial use.
IEEE 1547: standard for interconnection of distributed energy resources.

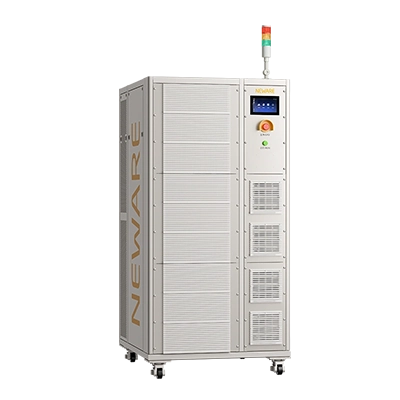

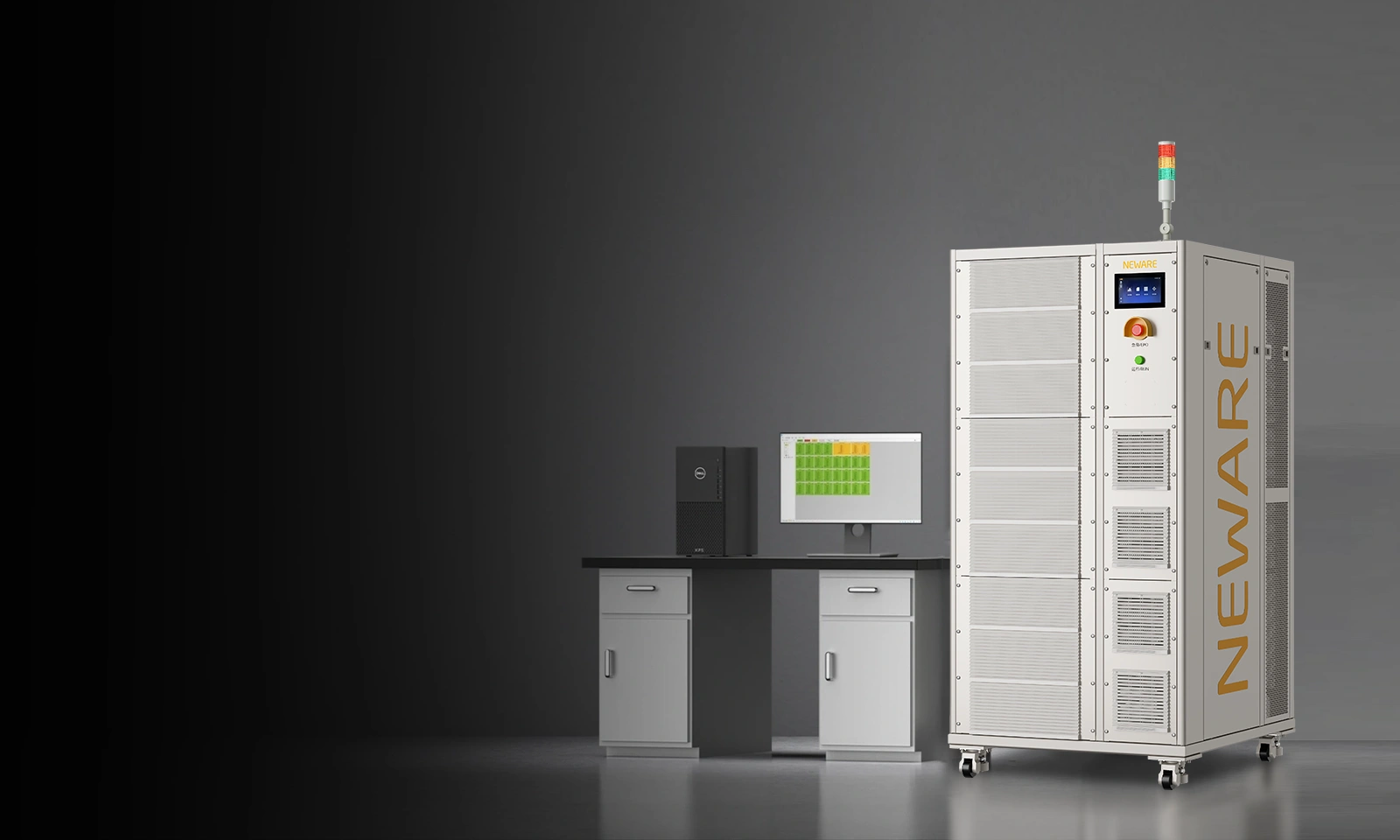

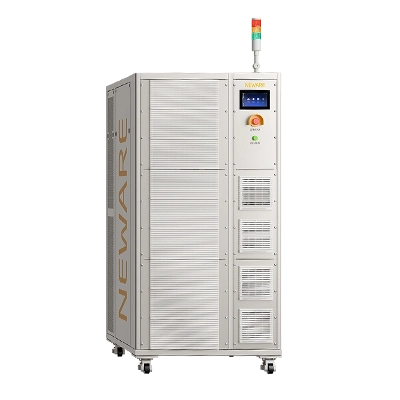

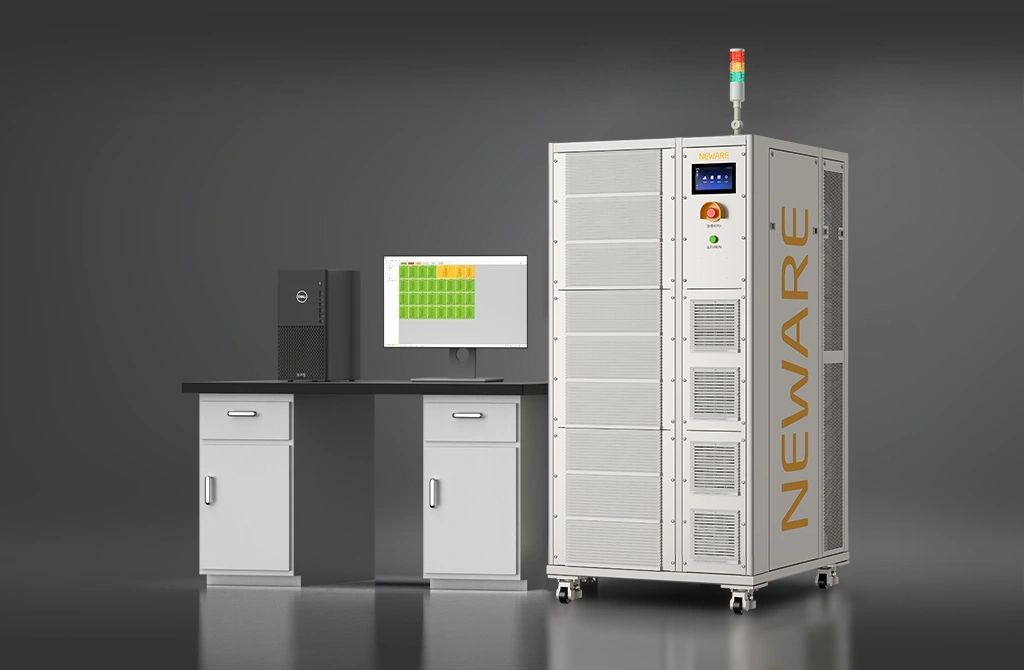

The CE-6000 series' 1500V/3000V ultra-high-voltage system evaluates key performance metrics of battery modules/systems, such as capacity, cycle life, efficiency, and operational stability.
1. High-Voltage Platform: rated 1500V/200A for direct testing of large modules or small clusters, simplifying setup and boosting efficiency.
2. High Precision & Long-Term Stability: utilizes high-frequency switching power technology to ensure precise current/voltage control in extended tests, providing reliable data for cycle life and capacity fade evaluation.
3. Comprehensive Testing Modes: supports constant current, constant voltage, constant power, pulse, and simulation, replicating complex grid scenarios like frequency regulation and peak shaving for full performance assessment.
4. Robust Communication & Integration: built-in CAN, Ethernet, and DBC file support enables seamless BMS integration for system-level in-depth evaluation.
Voltage Accuracy: ±0.02% F.S.
Current Accuracy: ±0.05% F.S.
Recording Frequency: 100Hz
Current Conversion Time: ≤10ms
Current Response Time: ≤5ms
Minimum Pulse Width: 100ms
Feedback Efficiency (Max): 94%
Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 100Hz
Current Conversion Time: ≤20ms
Current Response Time: ≤10ms
Minimum Pulse Width: 50ms
Feedback Efficiency (Max): 96%
Voltage & Current Accuracy: ±0.02% F.S.
Recording Frequency: 100Hz
Current Conversion Time: ≤20ms
Current Response Time: ≤10ms
Minimum Pulse Width: 50ms
Feedback Efficiency (Max): 96%
