Battery Test Equipment-NEWARE

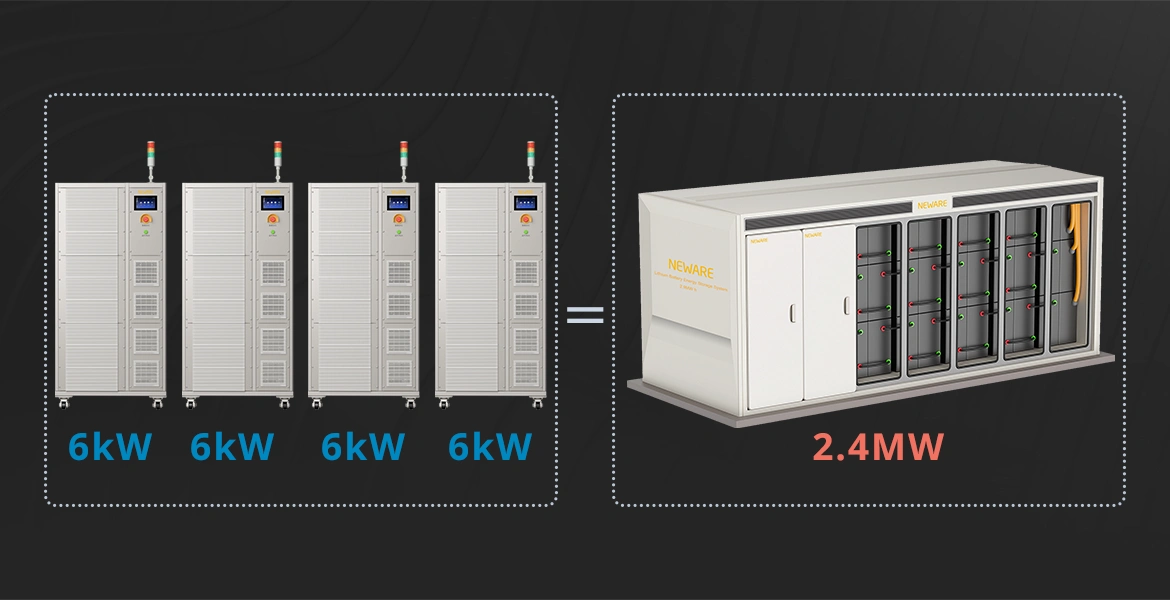

Multi-Channel parallel expansion for flexible adaptation to production line needs.

Single-channel voltage range: 100V to 1500V

Current range: 200A to 1600A (customizable).

Supports parallel operation of up to 4 channels (pulse/simulation testing unavailable in parallel mode), enabling seamless testing for energy storage Packs, ultra-high-voltage battery clusters, and high-voltage DC source simulation testing (PCS testing).

High-frequency + High power density + Modular design

AC/DC and DC/DC dual-stage high-frequency isolated modular architecture enhances system scalability and flexibility, ensuring efficient production and maintenance.

Multi-mode testing for diverse scenarios.

Supports free switching between constant current, constant voltage, and constant power charge/discharge modes. With built-in pulse steps, condition simulation, and continuous charge/discharge switching functions, it meets testing needs such as battery cycle life and condition reproduction.

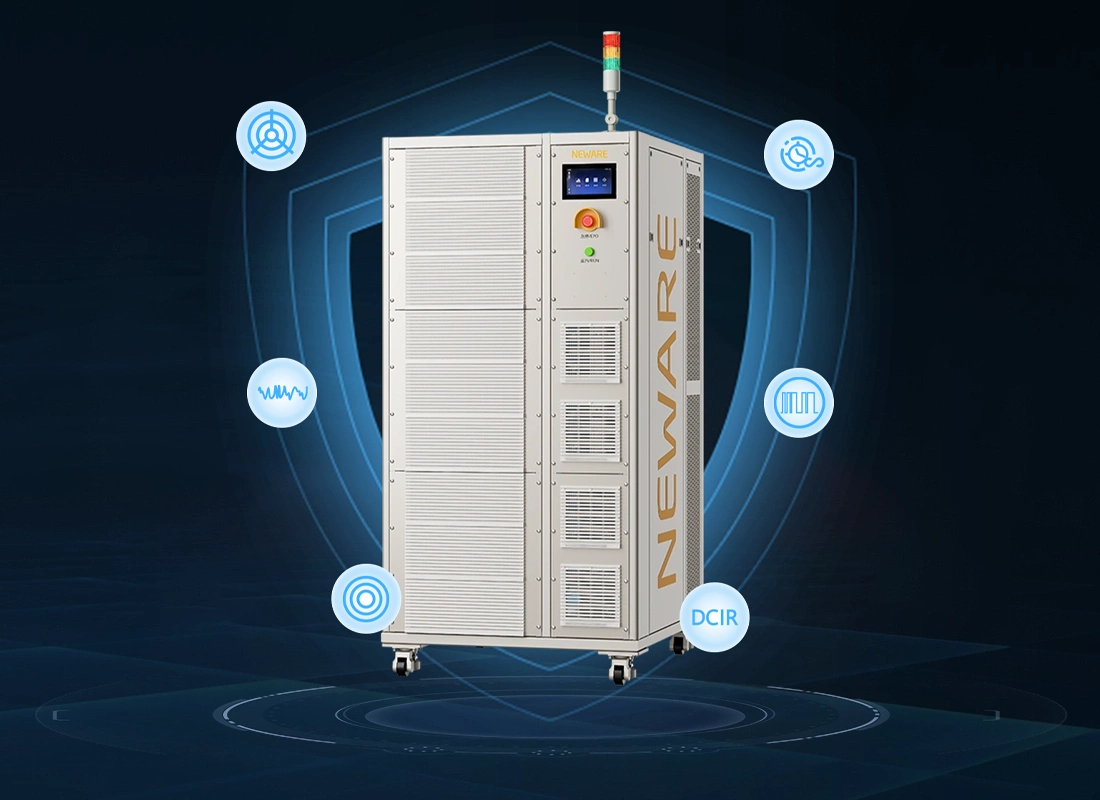

Cycle Life Testing / Pulse Testing / Condition Simulation / DCIR Test

• Voltage&Current Accuracy: ±0.02% F.S.

• Current Response Time: ≤10ms

• Current Switching Time: ≤20ms

• Minimum Pulse Width: 100ms

Smart communication and peripheral integration for automated testing ecosystems.

Multi-protocol communication interfaces: supports TCP/IP Ethernet, CAN FD/CAN/RS485, and mainstream BMS systems, enabling real-time data interaction and remote monitoring.

Peripheral synergy: integrates with water chillers, high/low-temperature environmental chambers, vibration testers, and other equipment to build a unified testing platform. Simulates complex operating conditions (e.g., high/low-temperature charge/discharge, vibration-based performance validation).

Efficient data management to accelerate R&D decisions.

Precision data acquisition & logging: 24-bit high-resolution voltage/current sampling with a minimum recording interval of 10ms (100ms for auxiliary channels). Centralized MySQL database management ensures traceability across millions of test data entries.

Intelligent analysis & visualization: supports Excel/TXT data export and features built-in DCIR (Direct Current Internal Resistance) testing functionality for rapid report generation, boosting R&D efficiency.
