Testing is the path to
extraordinary achievements.

Modular power units that
adapt to change.

±0.05% F.S.
Voltage Accuracy
±0.05% F.S.
±0.05% F.S.
Current Accuracy
±0.05% F.S.
100Hz
Recording Frequency
100Hz
100ms
Minimum Pulse Width
100ms
≤3ms
Current Response Time
(10% F.S. ~ 90% F.S.)
≤3ms
≤10ms
Current Conversion Time
(-90% F.S. ~ 90% F.S.)
≤10ms

AC/DC and DC/DC dual-stage high-frequency isolation modular design, combined with low temperature drift and high-performance multi-channel 24-bit analog-to-digital converter chip, the steady-state accuracy is higher than that of traditional equipment.

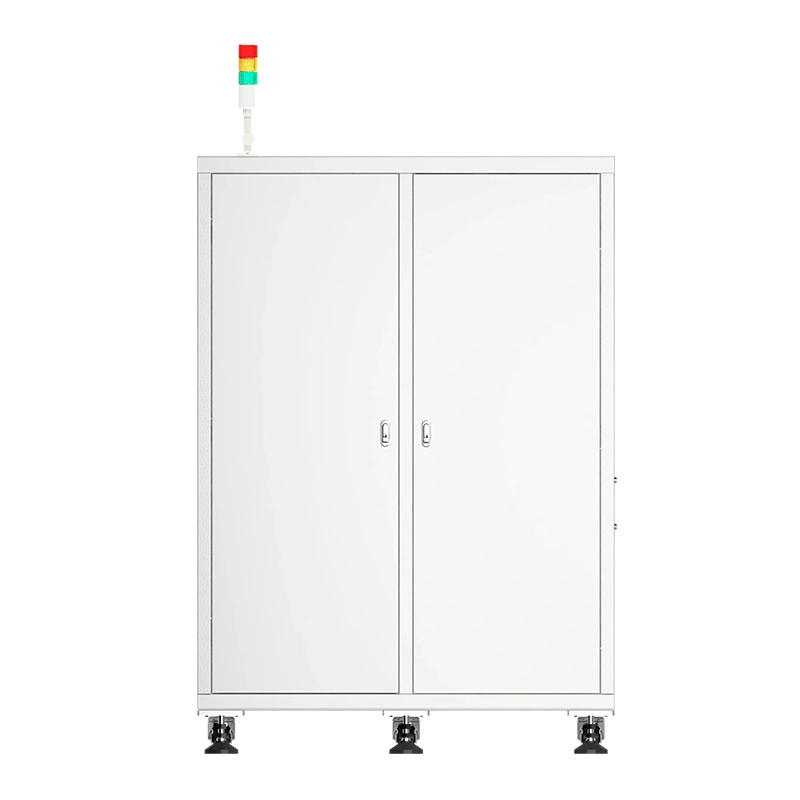

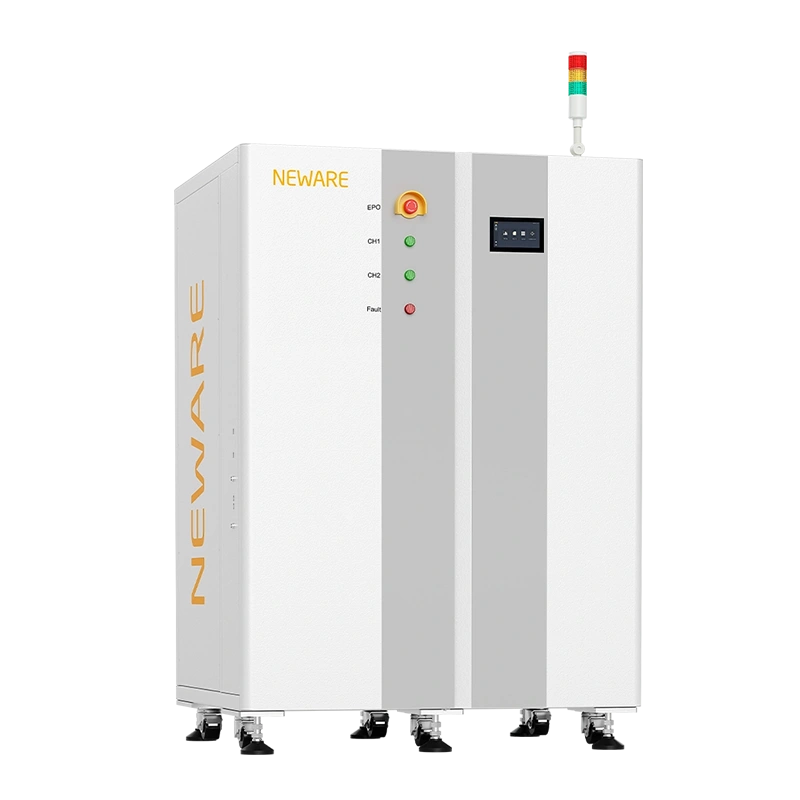

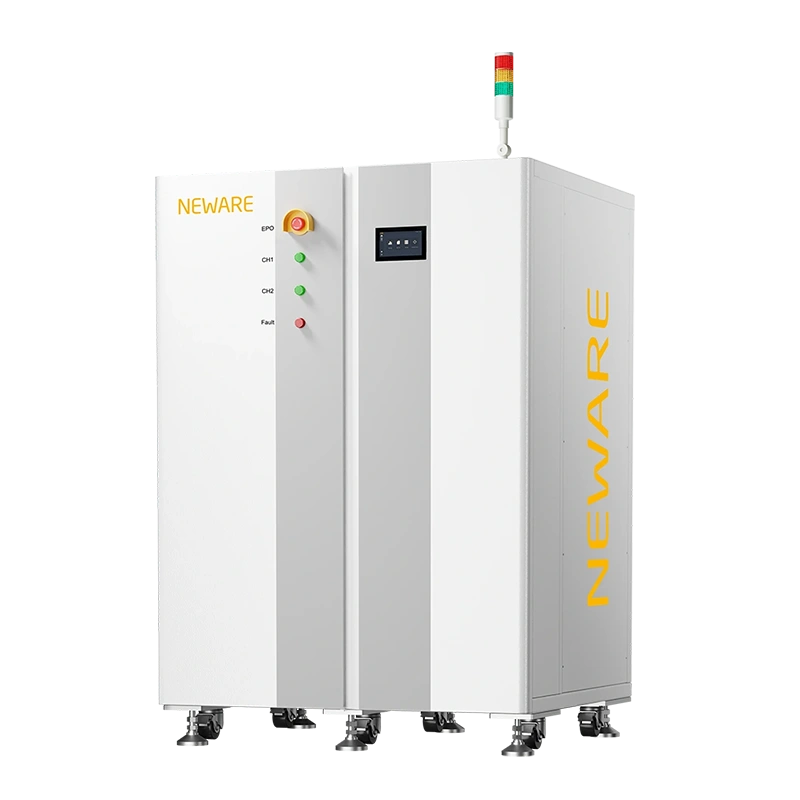

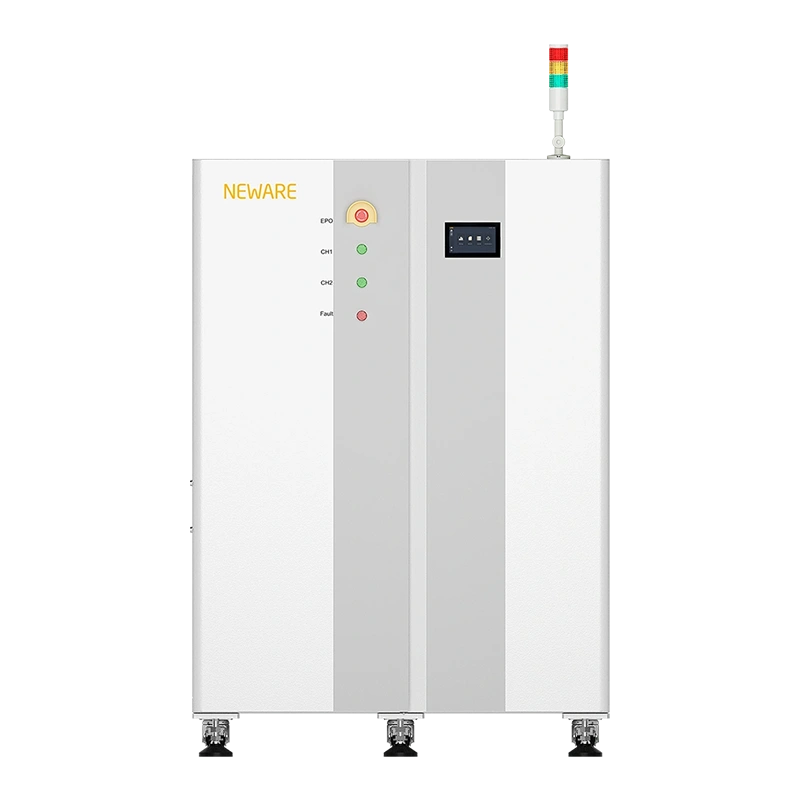

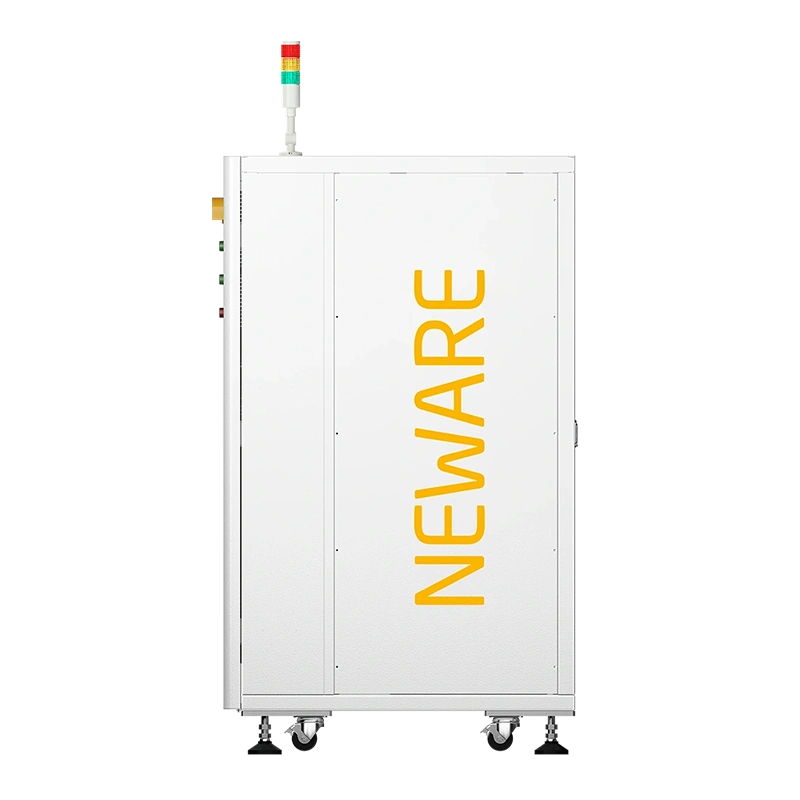

All-around product tour.

Flexibly parallel, simply and efficiently.

The channel-independent parallel and split function enables testing of batteries in different power ranges, while the modular parallel function supports high-current battery module testing.

The channel-independent parallel and split function enables testing of batteries in different power ranges, while the modular parallel function supports high-current battery module testing.

Full-power energy feedback.
Multi-scenario energy savings.

94%
Feedback Efficiency (Max)
94%

The system can recover energy generated from battery discharge and redistribute it to other battery channels or feed it back to the internal power grid.

Powerful programmability.
Meet diverse testing needs.

Comprehensive equipment functionality, compatible with both charging and discharging, and adaptable to various BMS systems.

DBC configuration
 CC & CV charge/discharge test
100ms pulse width
Driving simulation
Discharge to 0V test <span>*</span>
DBC configuration
CC & CV charge/discharge test
100ms pulse width
Driving simulation
Discharge to 0V test *
Communication can be achieved by editing the DBC protocol files corresponding to different protocols of batteries.
CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.
Testing the performance of the battery under fast changes in current/power.
Supports up to 1 million lines of changing data.
Suitable for safety and destructive testing.
*This function is optional.

Perpetual dedication to safety protection.

● Grid Over/Under-Voltage Protection

● AC Short-Circuit and Phase Loss Protection

● Over-Voltage/Over-Current Output Protection

● Overheating Protection

● Open/Short Circuit Protection

● Emergency Stop Protection

● Self-Diagnosis Protection

● Redundant Voltage Channels Protection

● DC Polarity Reverse Protection

● Power-Off Resumption Protection

● Grid Voltage Phase and Frequency Adaptive

● Adjustable Protection Values for Voltage and Current

● Traceable Protection Log

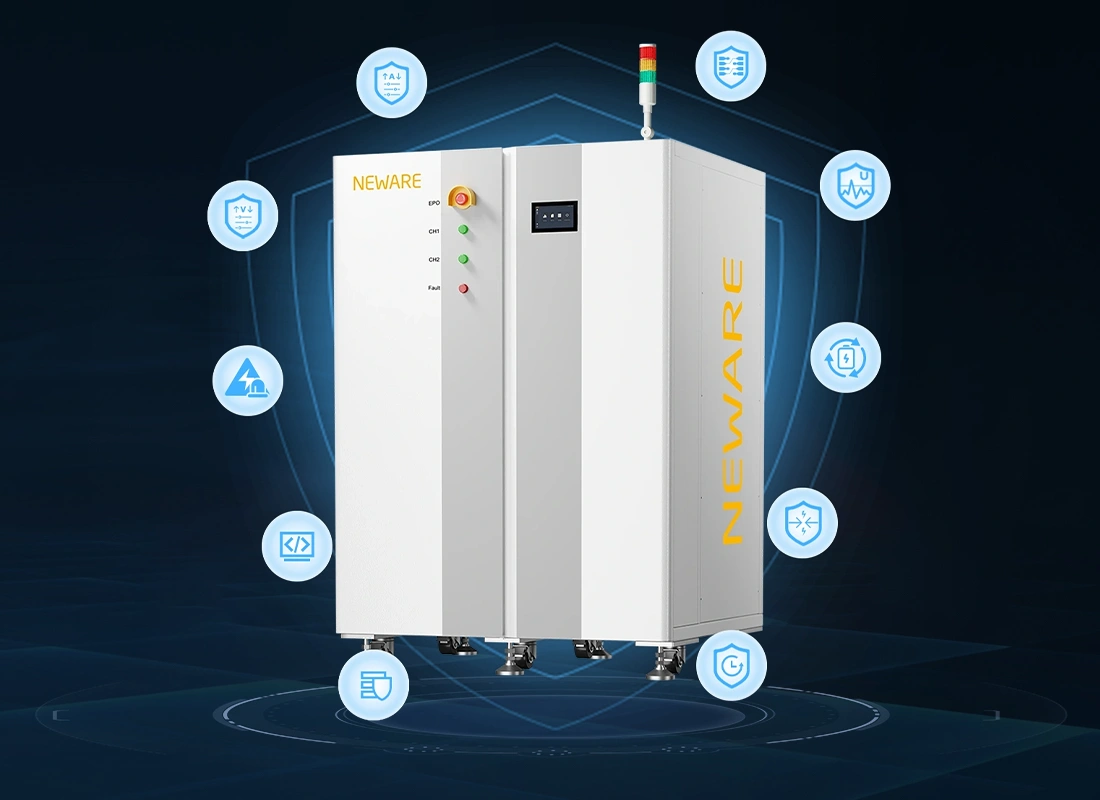

The NEWARE-CE-6000 Pack Testing System-battery tester has a number of features for security purposes

Extensive peripheral devices.
Create a multi-dimensional testing environment.

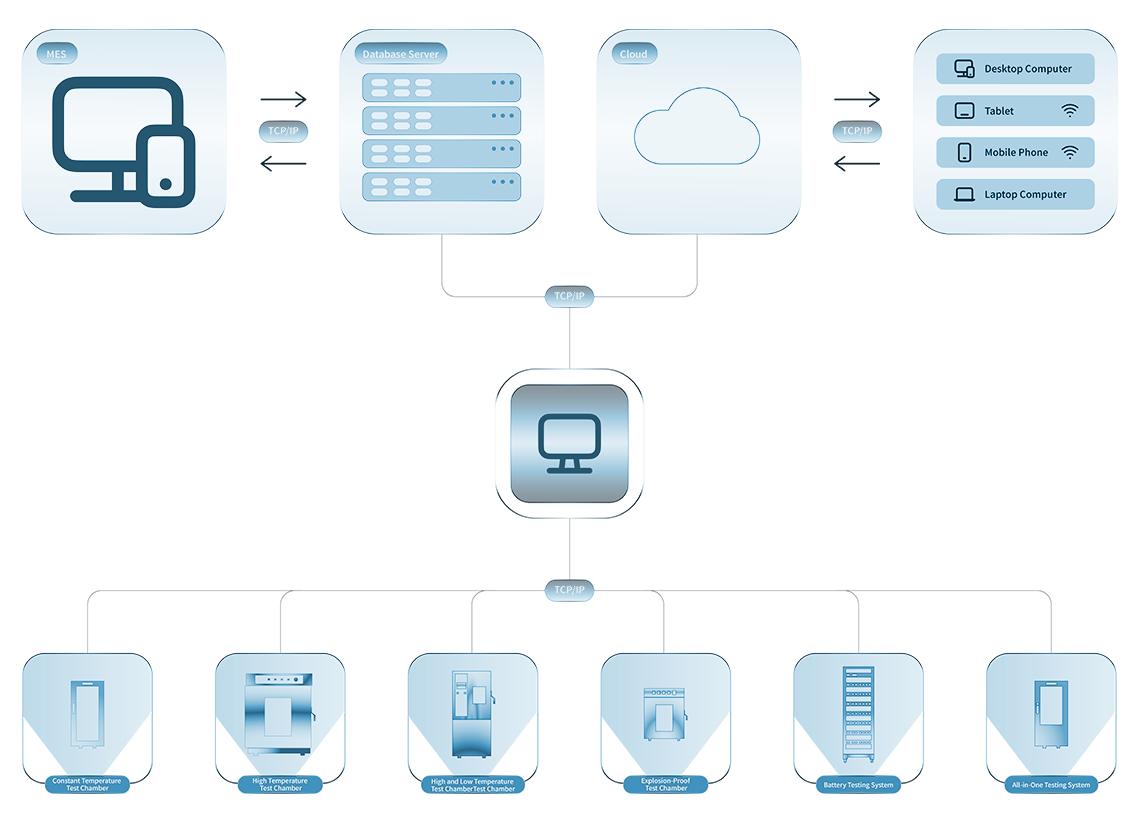

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.

The NEWARE-CE-6000 Pack Testing System-battery tester can connect to a variety of Integrated peripheral uses such as: Auxiliary Voltage, Auxiliary Temperature, and Environmental Test Chambers
NEWARE-CE-6004n-1000V300A-IG Pack Testing System-battery tester

Technical Specifications

Equipment name CE-6004n-1000V300A-IG
Voltage
Outputrange \ Charge 0V~1000V
Outputrange \ Discharge 30V~1000V
Min discharge voltage 30V
Accuracy ±0.02% of F.S.
Resolution 24bit
Current
Outputrange 1.5A~300A
Accuracy(independent range) ±0.05% of F.S.
CV cut-off current 300mA
Resolution 24bit
Power
Single channel output power 300kW
Whole machine output power 1200kW
Time
Currentresponse time ≤5ms
Current conversion time ≤10ms
Min. step time 0.1s

Want to explore further?
Download our product technical specifications for more.

Download
NEWARE-CE-6004n-500V200A-IG Pack Testing System-battery tester

Technical Specifications

Equipment name CE-6004n-500V200A-IG
Voltage
Outputrange \ Charge 0V~500V
Outputrange \ Discharge 10V~500V
Min discharge voltage 10V
Accuracy ±0.02% of F.S.
Resolution 24bit
Current
Outputrange 1A~200A
Accuracy(independent range) ±0.05% of F.S.
CV cut-off current 200mA
Resolution 24bit
Power
Single channel output power 100kW
Whole machine output power 400kW
Time
Currentresponse time ≤5ms
Current conversion time ≤10ms
Min. step time 0.1s

Want to explore further?
Download our product technical specifications for more.

Download
NEWARE-CE-6004n-750V250A-IG Pack Testing System-battery tester

Technical Specifications

Equipment name CE-6004n-750V250A-IG
Voltage
Outputrange \ Charge 0V~750V
Outputrange \ Discharge 10V~750V
Min discharge voltage 10V
Accuracy ±0.02% of F.S.
Resolution 24bit
Current
Outputrange 1.25A~250A
Accuracy(independent range) ±0.05% of F.S.
CV cut-off current 250mA
Resolution 24bit
Power
Single channel output power 187.5kW
Whole machine output power 750kW
Time
Currentresponse time ≤5ms
Current conversion time ≤10ms
Min. step time 0.1s

Want to explore further?
Download our product technical specifications for more.

Download

CE-6004n-1000V300A-IG

CE-6004n-500V200A-IG

CE-6004n-750V250A-IG

We offer powerful auxiliary equipment
and accessories to provide comprehensive testing support for battery testing.

We offer powerful auxiliary equipment and accessories to provide comprehensive testing support for battery testing.
