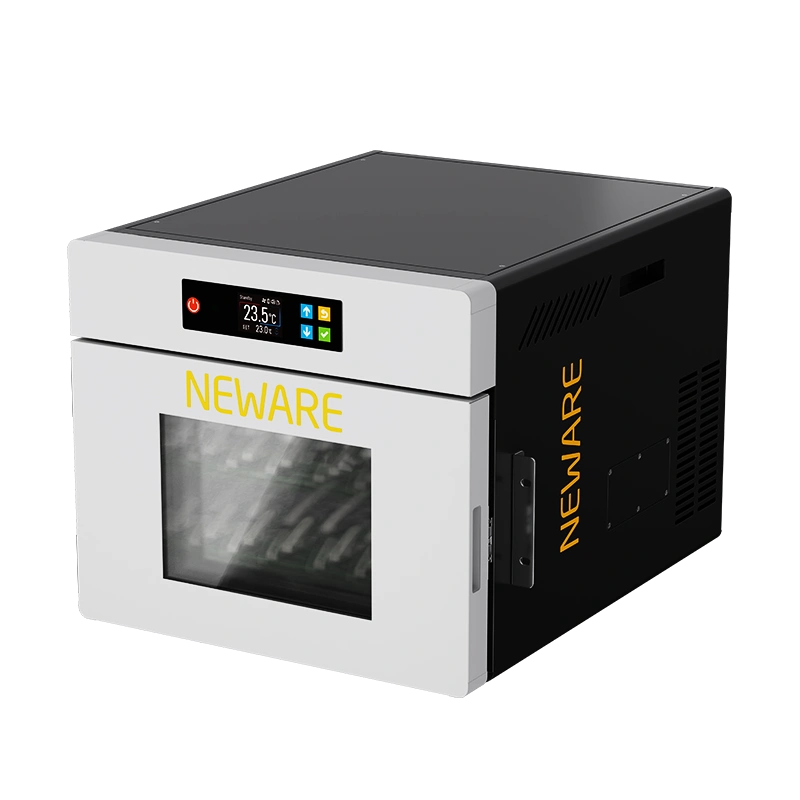

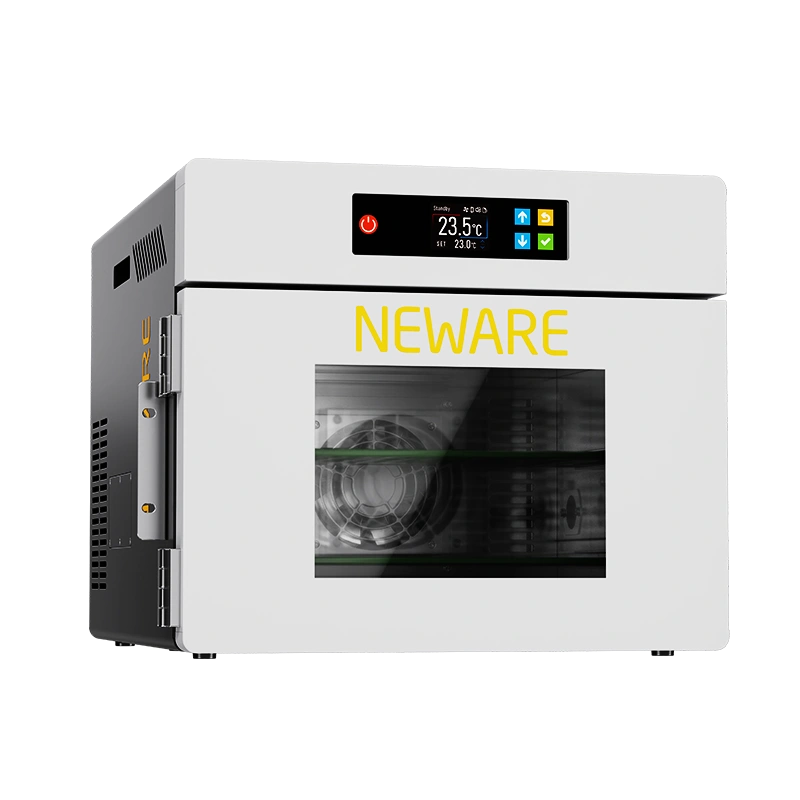

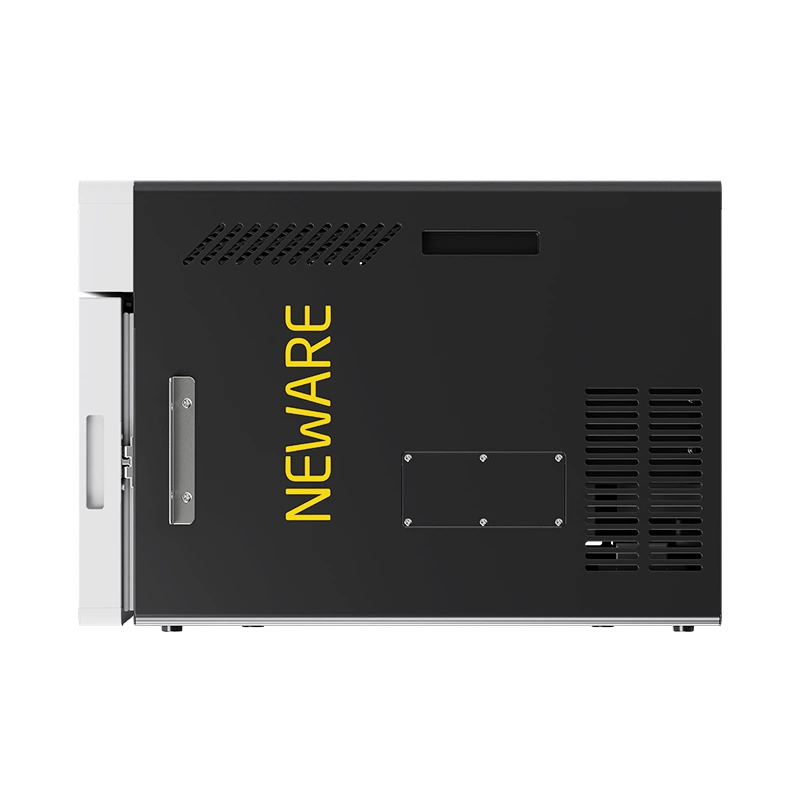

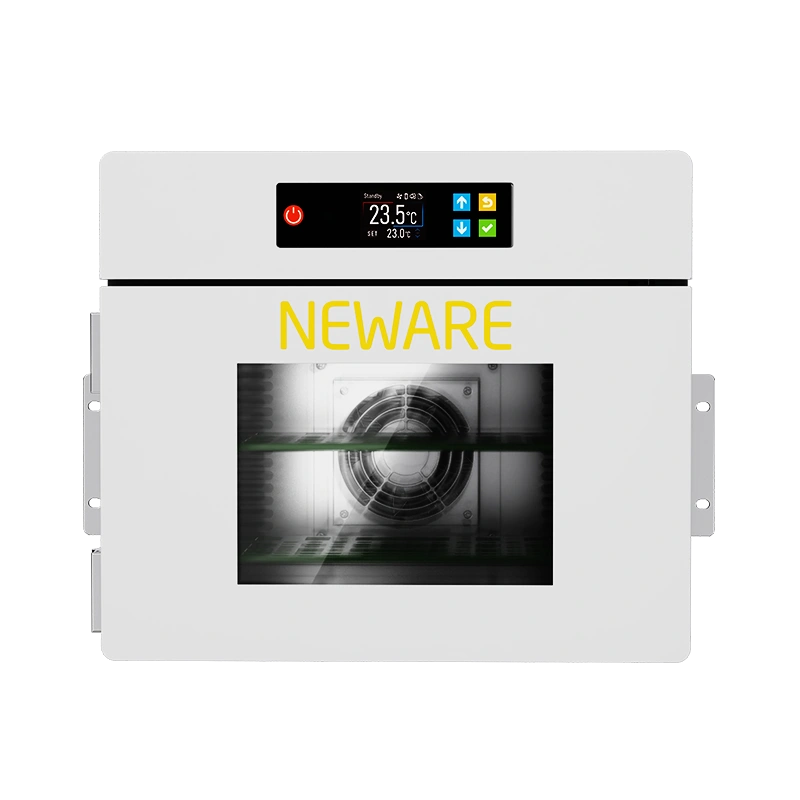

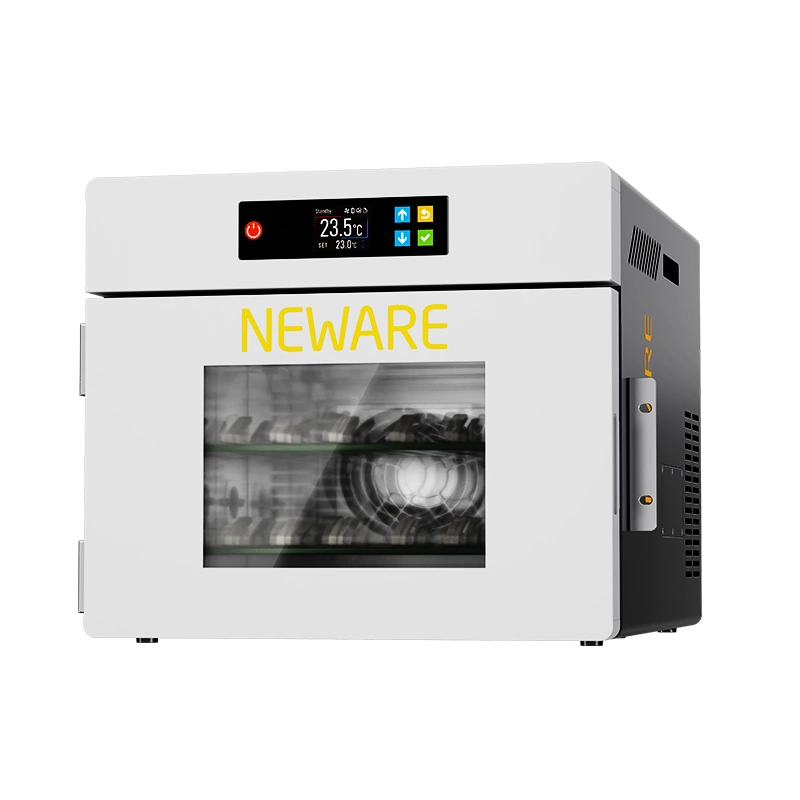

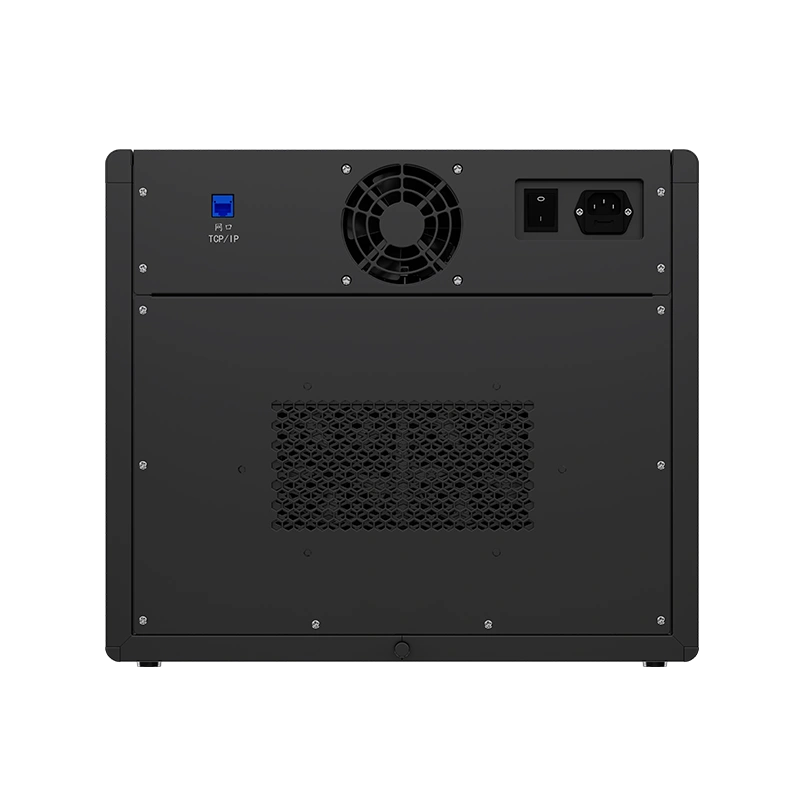

25L nominal volume desktop all-in-one testing machine, designed for professional battery material research and button cell performance testing, features a wide operating temperature range of 59~140°F(15~60℃).
Features
Tech Specs
Resources
Integrates high and low temperature test chambers and battery charging and discharging equipment, supporting 15℃~60℃ button cell battery testing, simulating the conventional environment. Achieves synchronous control of temperature and charging/discharging tests through the upper computer, meeting various needs in material research, battery development, and quality inspection.
Current and voltage accuracy: ±0.05% F.S.
Sampling time: 100ms
Temperature range & deviation: 15℃~60℃±2℃ (59°F~140°F±3.6°F)
Channel number: 32CH
Heating time: 25℃(77°F)→60℃(140°F) ≤50min
Cooling time: 25℃(77°F)→15℃(59°F) ≤60min
By integrating the functions of compatible charging and discharging detection equipment and environmental test boxes into a meticulously designed solution, our products maximize space utilization and enhance equipment efficiency. Applicable for material research and button cell battery testing; the double-layer fixture tray design can securely accommodate up to 32 battery cells, providing a reliable and efficient solution for battery organization and management.
Emergency protection mechanisms such as power failure data recovery, short circuit protection, and fan abnormality detection are provided to prevent equipment damage.
| Equipment name | NEWARE Mini All-in-One Testing System |
|---|---|
| Model | WHW-25L+15C-5V100mA-32CH |
| Voltage | 5V |
| Current | 100mA |
| Temperature Range | 32°F~140°F (15℃~60℃) |
| Heating Time | 77°F→140°F ≤50min (25℃→60℃≤50min) |
| Cooling Time | 77°F→59°F ≤60min (25℃→15℃≤60min) |
| Temperature Fluctuation | ≤±0.9°F (≤±0.5℃) |
| Temperature Deviation | ±3.6°F (±2℃) |
| Nominal Content Volume | 25L |
| Product Dimensions | W17.3"×D21.7"×H15.4" (W440mm×D550mm×H390mm) |
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Current & Voltage Accuracy: ±0.05% F.S.
Data Logging Frequency: 10Hz
Temperature Range & Deviation: -94°F~302°F ±3.6°F(-70℃~150℃±2℃)
Temperature Fluctuation: ≤0.9°F(≤0.5℃)
Heating Time: 68°F→302°F≤60min
(20℃→150℃≤60min）
Cooling Time: 68°F→-94°F≤75min
(20℃→-70℃≤75min)
Current & Voltage Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Current Response Time: ≤1ms
Temperature Range: 32°F~140°F (0℃~60℃)
Heating Time: 77°F→140°F≤30min
(25℃→60℃≤30min)
Cooling Time: 77°F→32°F≤50min
(25℃→0℃≤50min)
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 100Hz
Number of Channels: 160CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(0℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤30min
(25℃~60℃≤30min)
Cooling Efficiency: 77℉~32℉≤50min
(25℃~0 ℃≤50min)
Voltage & Current Accuracy: ±0.05% F.S.
Sampling Time: 100ms
Number of Channels: 16CH
Temperature Range & Deviation: 32℉~140℉±3.6℉(15℃~60℃±2.0℃)
Heating Efficiency: 77℉~140℉≤50min
(25℃~60℃≤50min)
Cooling Efficiency: 77℉~59℉≤60min
(25℃~15℃≤60min)
