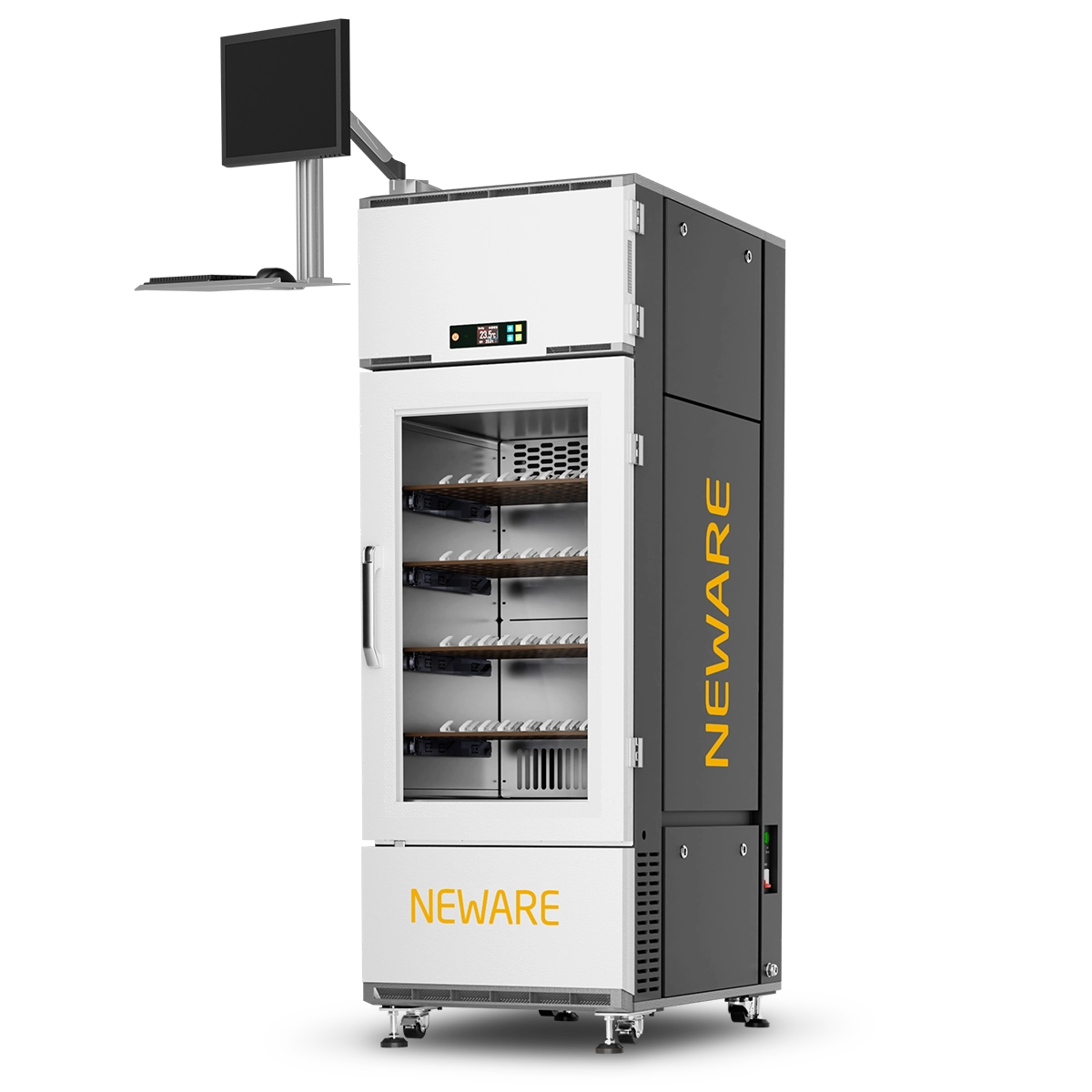

Coin Cell All-in-One Testing System

WHW-200L-160CH-B

Integrating charge-discharge and temperature testing into one. Test button batteries, coin cells, and super capacitors with precision. Ensure reliable performance with data storage, GITT analysis, and temperature control.

Request a quote

Features

Tech Specs

Ultimate control within your fingertips: personalized temperature regulation

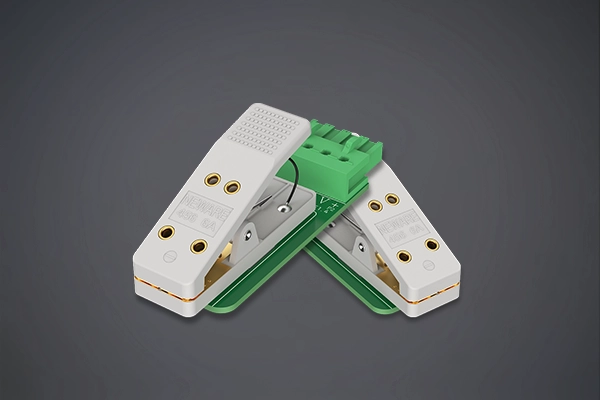

Coin Cells

Pouch Cells

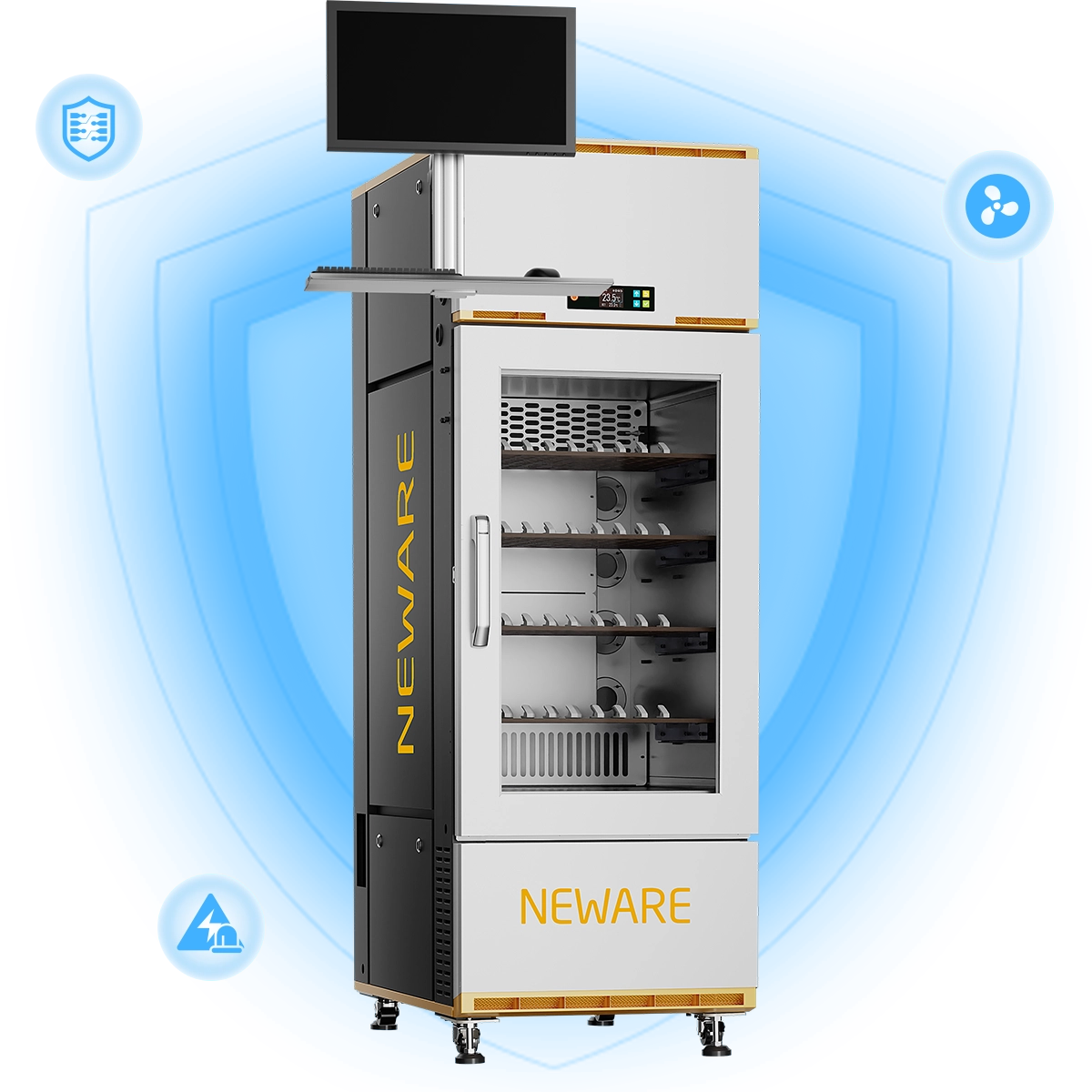

Monitor & Alarm System

Steady-state data acquisition. Embracing the energy of precision.

Voltage & Current Accuracy
±0.01% F.S.

Recording Frequency
10Hz

Number of Channels
160CH

Temperature Range & Deviation
32℉ ~ 140℉±3.6℉
(0℃ ~ 60℃±2.0℃)

Heating Efficiency
77℉ ~ 140℉ ≤30min
(25℃ ~ 60℃)

Cooling Efficiency
77℉ ~ 32℉≤50min
(25℃~0 ℃)

WIHW-200-160CH-B is equipped with advanced processors and powerful computing capabilities, enabling efficient processing of large-scale data and complex computing tasks. It delivers exceptional performance, catering to various high-performance computing needs, including scientific research, data analysis, artificial intelligence, and deep learning applications.

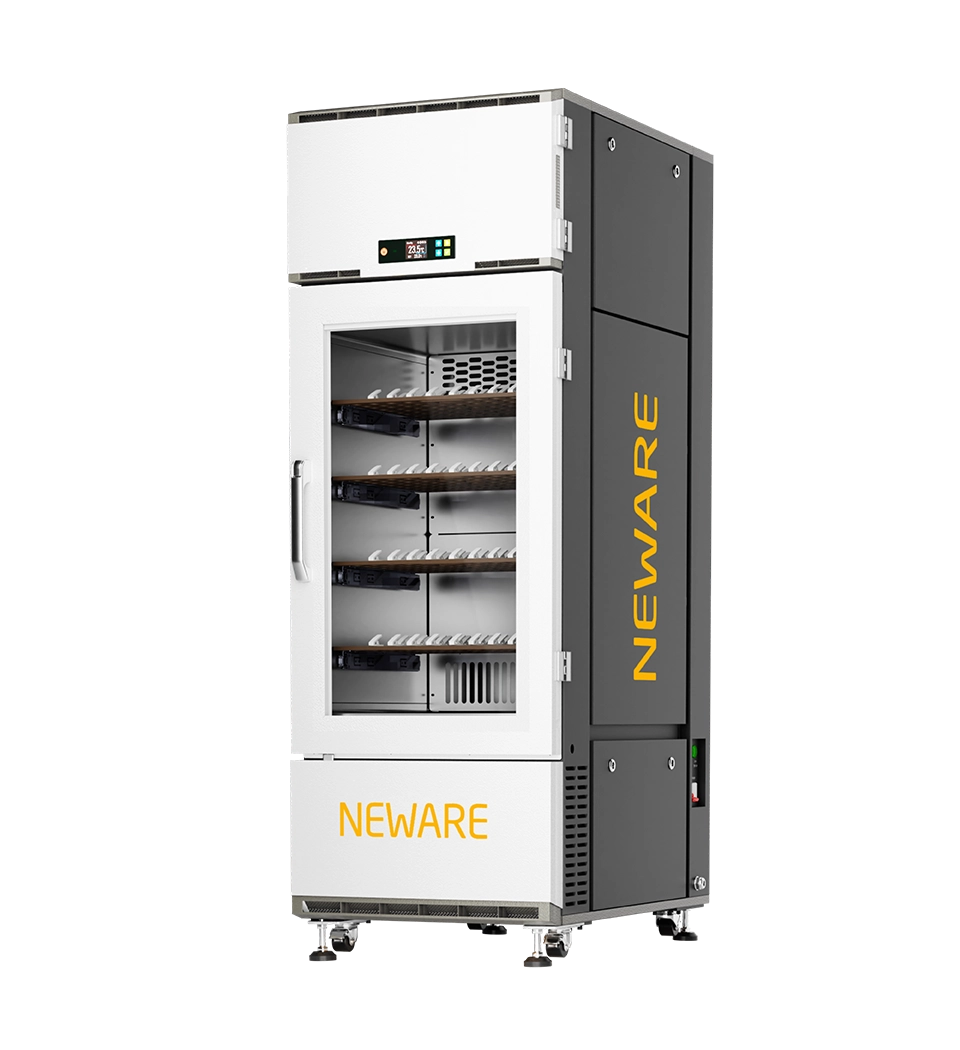

Occupying less area, advocate of spatial aesthetics.

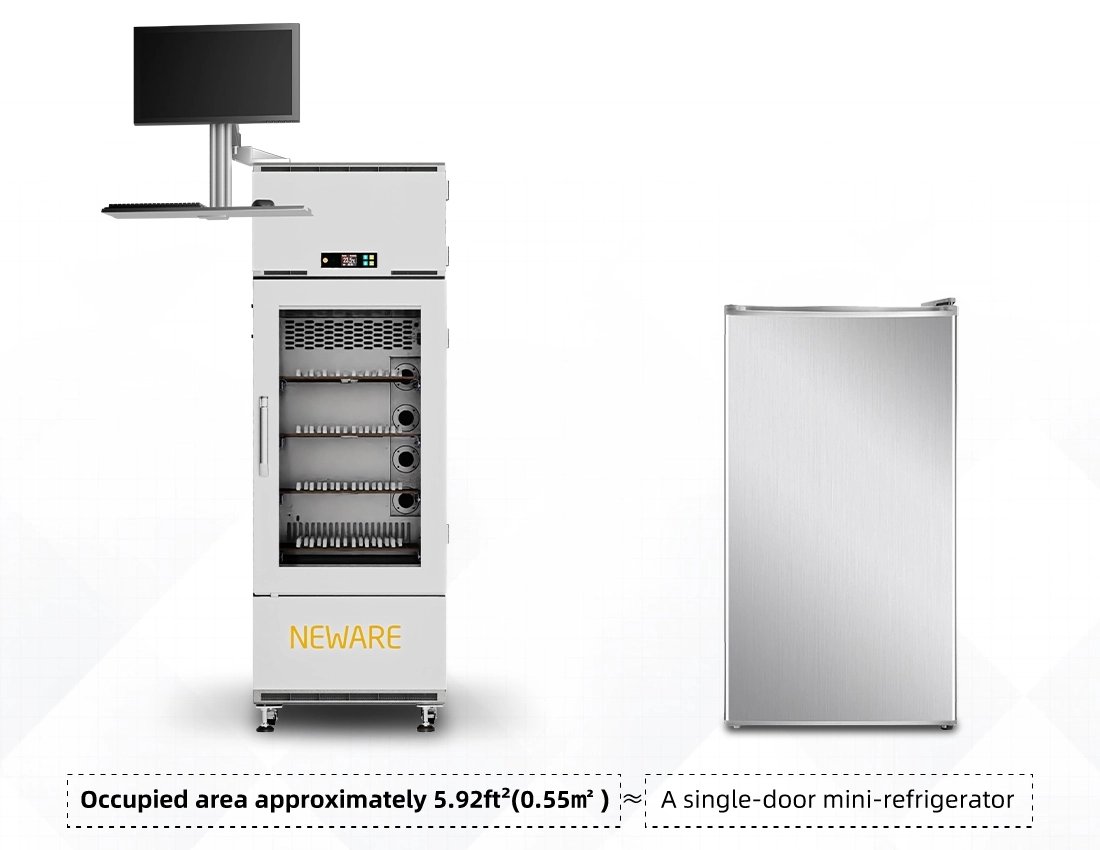

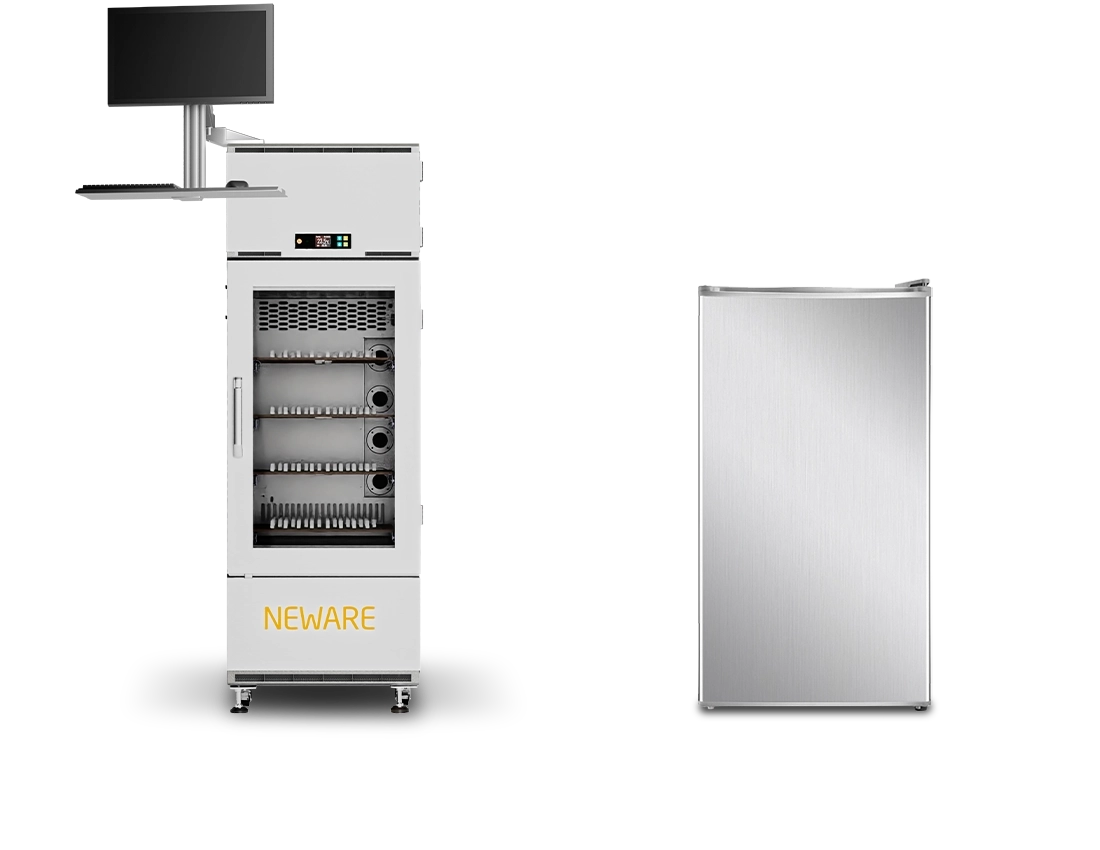

Introducing the new dual-function integrated constant temperature test chamber, featuring a consistent large capacity of 200L, unchanged number of channels, occupying a footprint of approximately 5.92ft²(0.55㎡ ). This upgrade not only saves experimental space but also enhances the aesthetic with a modern and simplistic design.

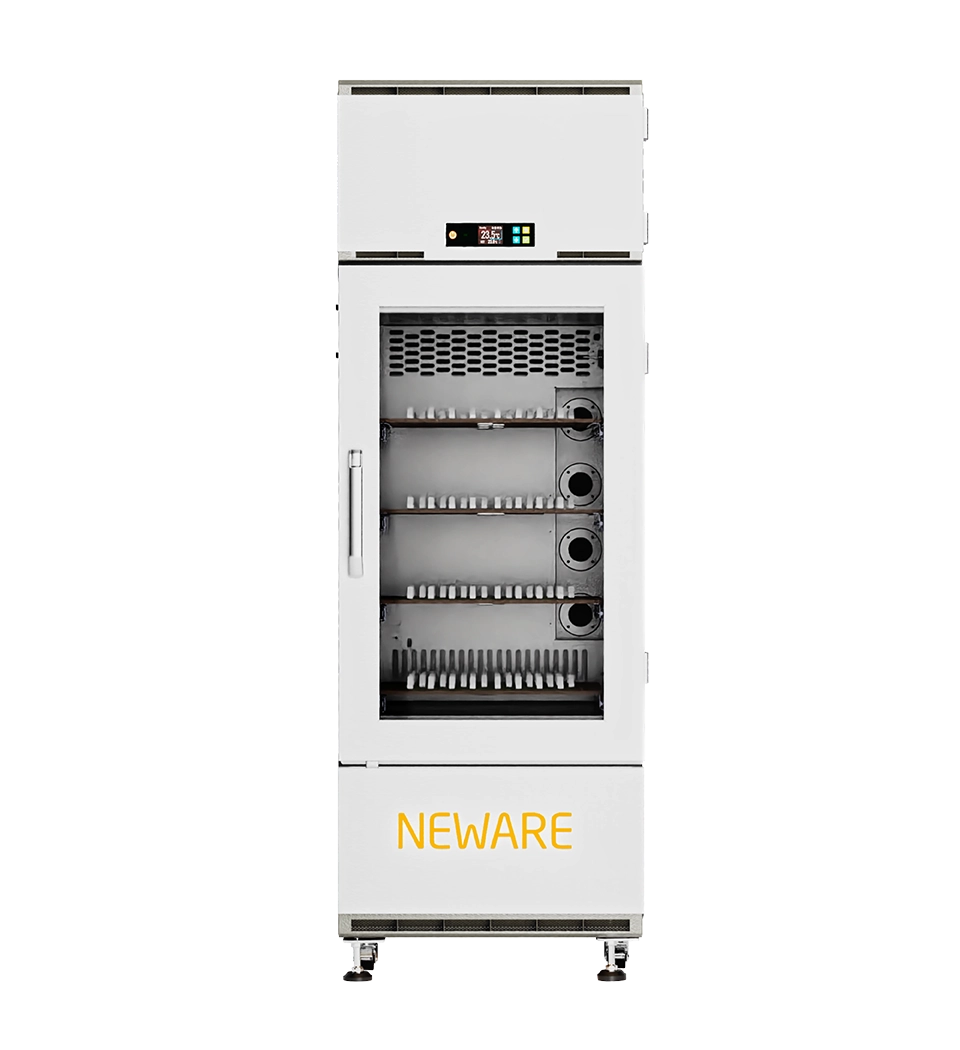

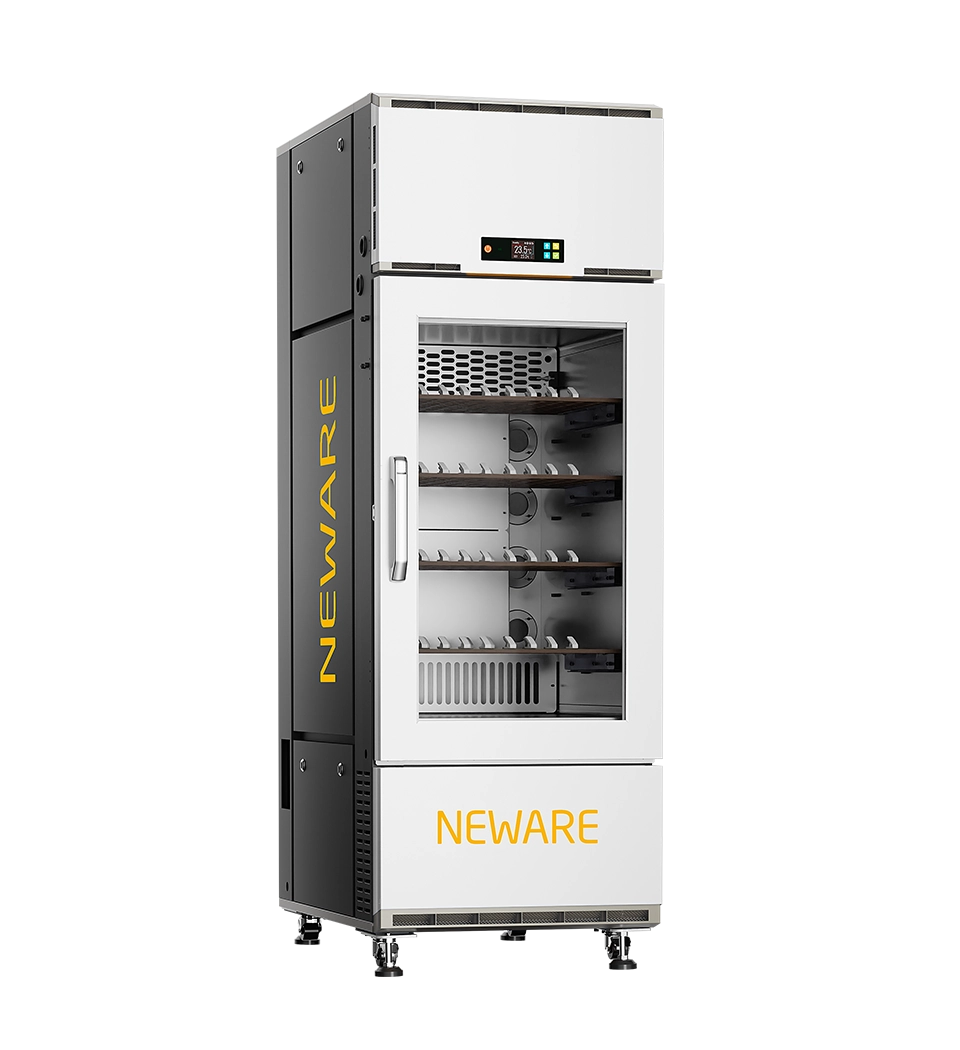

NEWARE-WIHW-200-160CH-B-All in one battery Tester-button battery

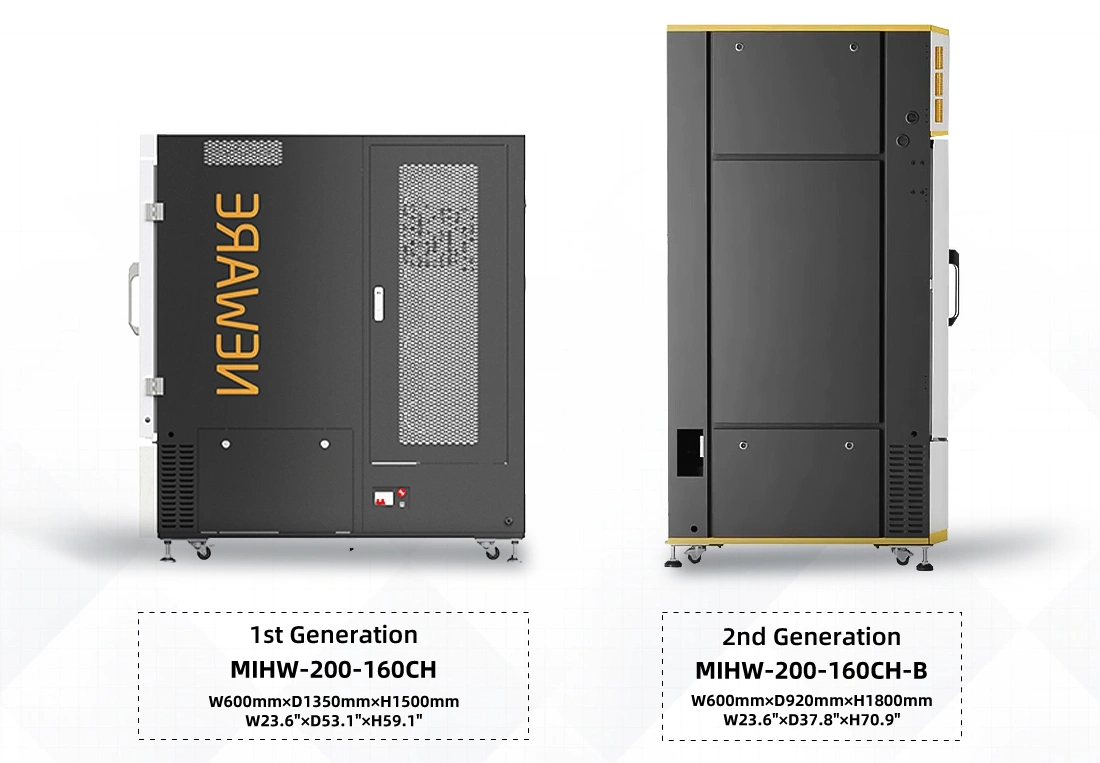

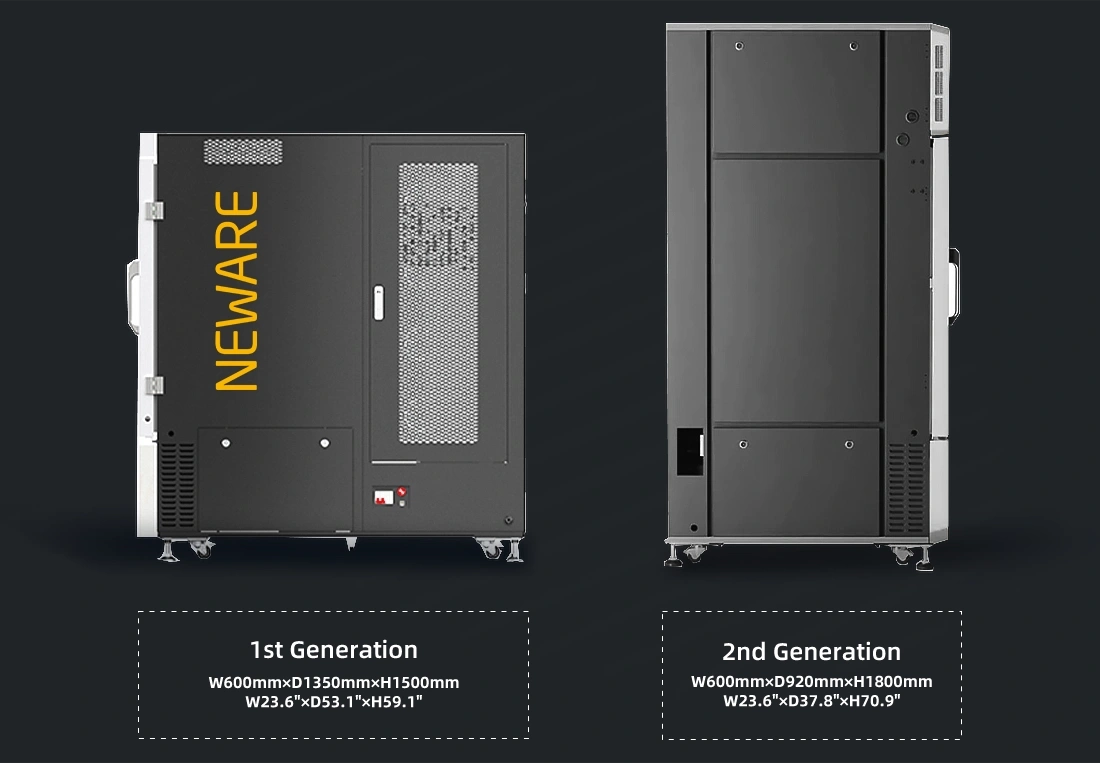

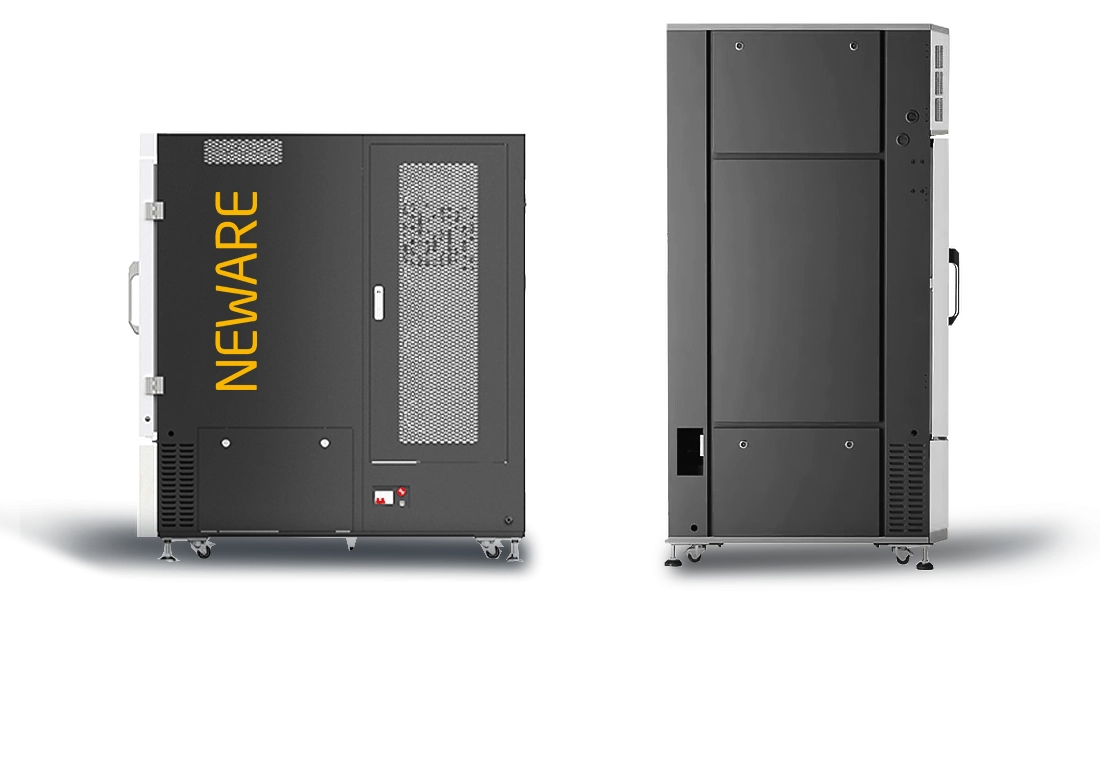

Compared with the previous generation (WIHW-200-160CH), the product has a smaller footprint and can save more laboratory space.

Four-in-one design, simplify and refine.

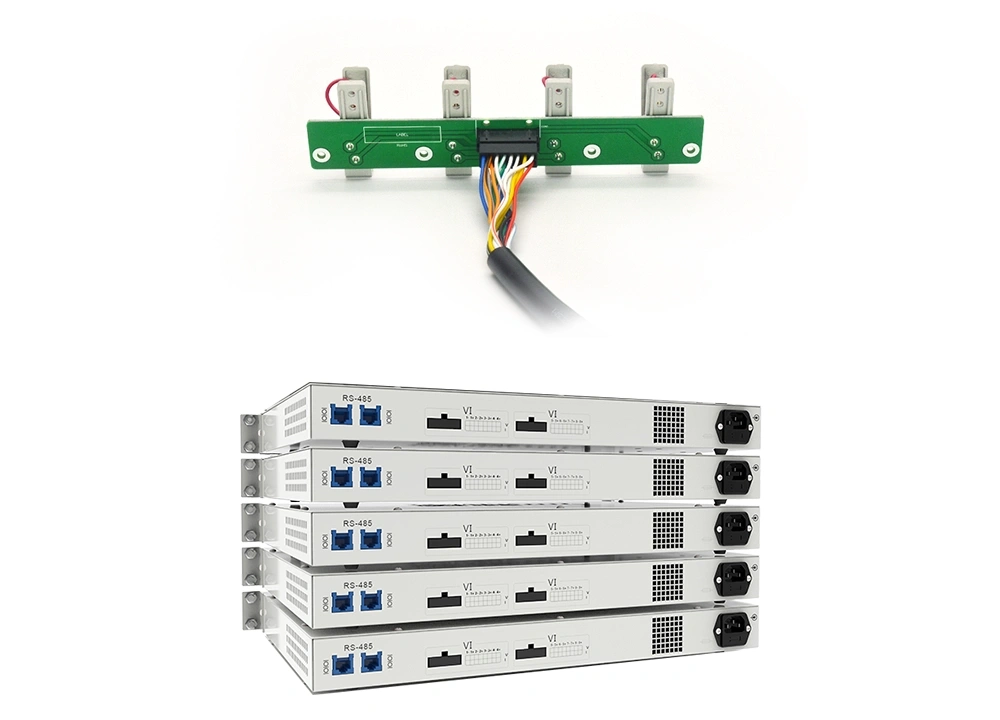

Connect the back of the charging and discharging equipment to the inside of the temperature box. Four channels are connected using a single channel wire, with each unit only requiring 2 wires to reduce the number of channel wires and effectively reduce temperature fluctuations.

NEWARE-WIHW-200-160CH-B battery tester connects four channels using a single-channel wire, with each unit only requiring 2 wires. This reduces the number of channel wires and effectively reduces temperature fluctuations

Intuitive interface, effortless operation.

WHW-200L-160CH-B prioritizes user experience and incorporates a touch LCD screen design with a user-friendly graphical interface and flexible configuration options. It features automatic screen wake-up through infrared human body sensing within a 1.5-meter range, allowing users to easily set up and manage the device.

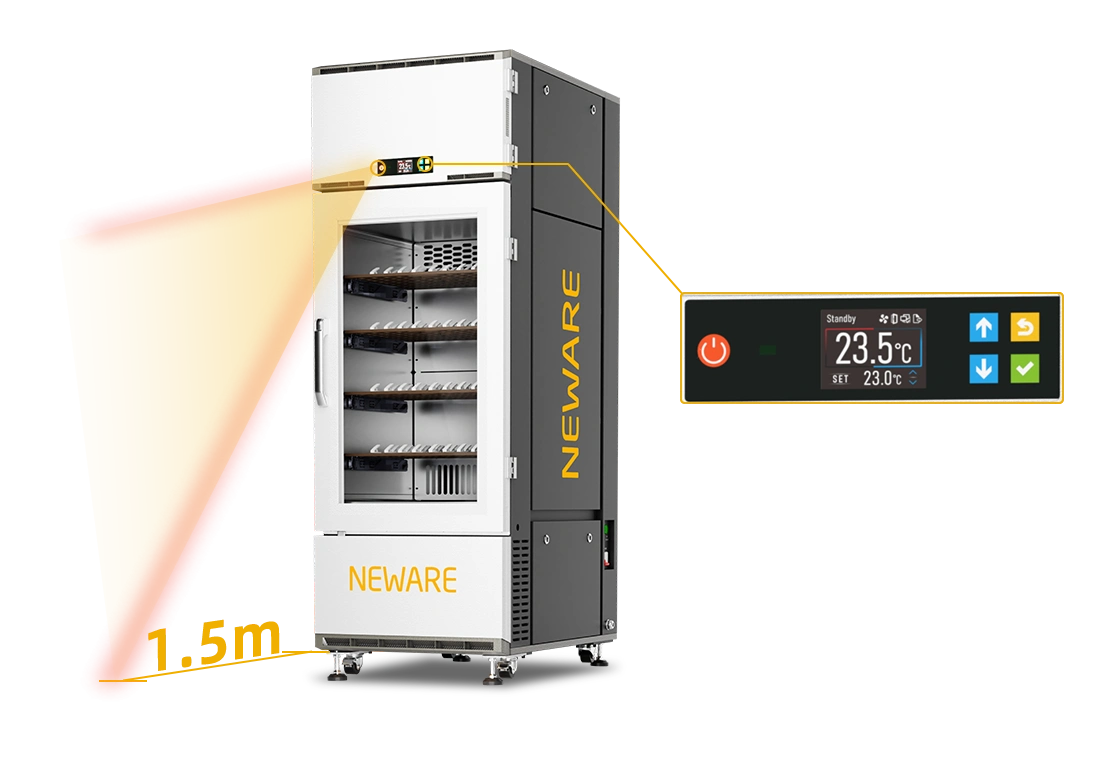

NEWARE-WIHW-200-160CH-B-Battery Tester features a touch LCD screen design and wake-up capability through infrared human body sensing

Mastering multiplicity: Simplifying the intricate.

Combining the functionalities of compatible charge-discharge testing equipment and environmental test chambers into one cleverly designed solution, our product maximizes space utilization and enhances equipment efficiency.

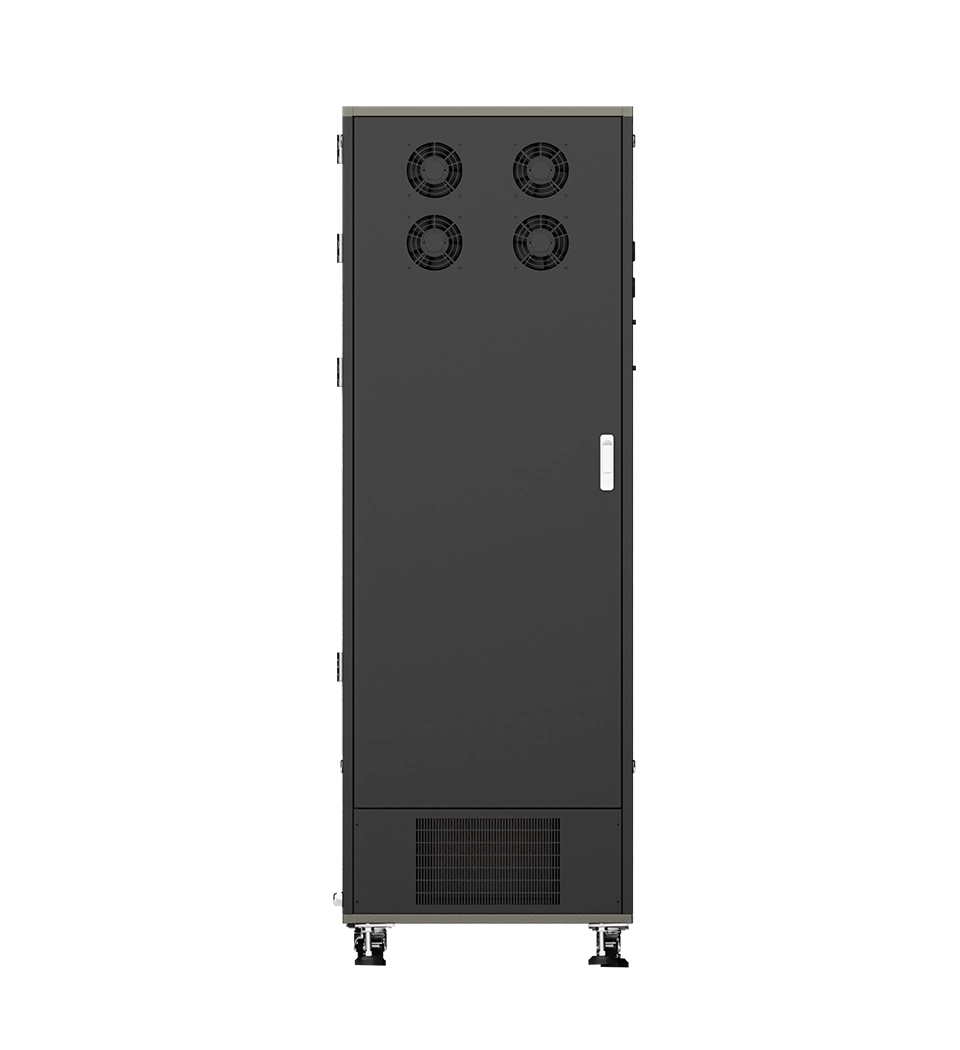

Powerful heat dissipation, reliable and stable.

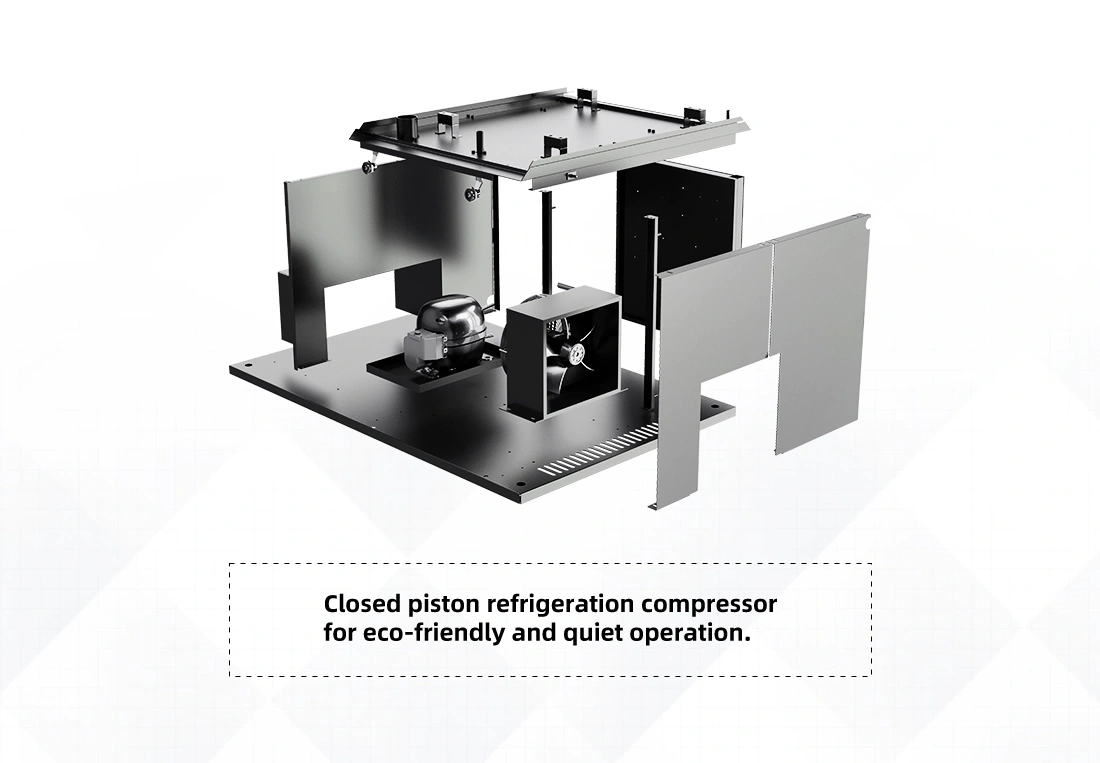

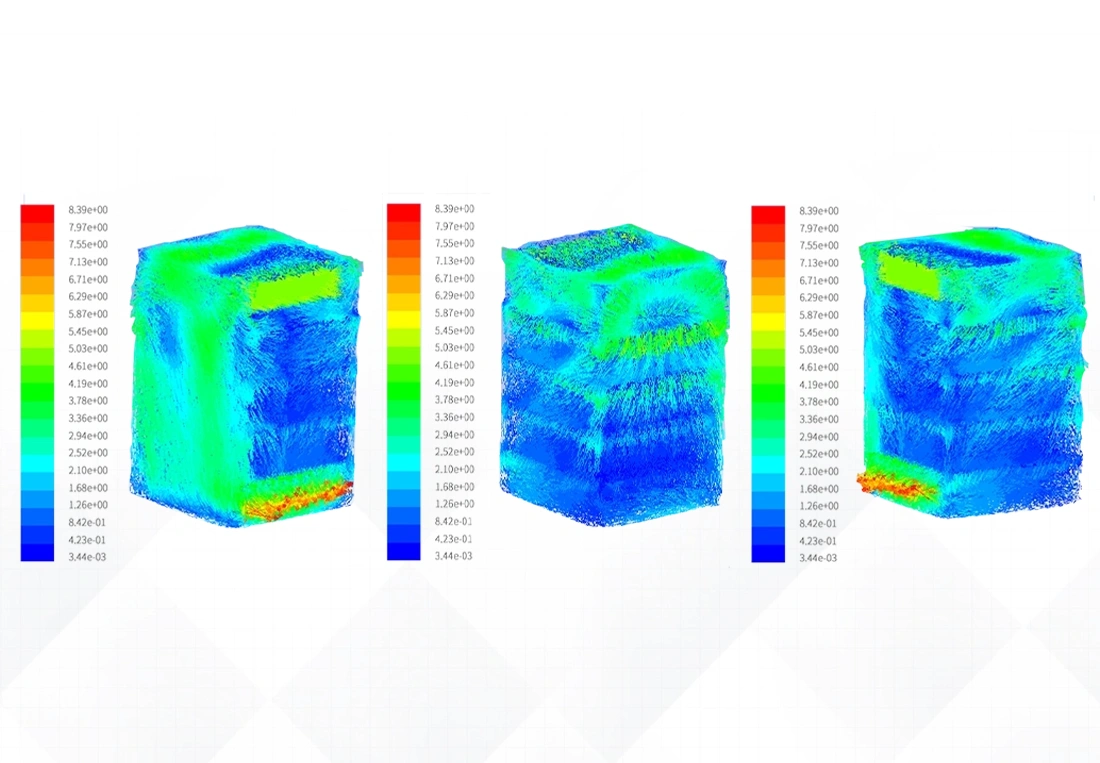

It features a closed piston refrigeration compressor for eco-friendly and quiet operation. The independently developed temperature control module has reliable performance and excellent temperature control capabilities. The fan ensures uniform airflow and maintains a consistent temperature.

Discover unparalleled testing efficiency with 160 channels.

WHW-200L-160CH-B, 160 channels, is capable of simultaneously processing multiple input and output signals. It can accommodate 4 layers of battery cells, with each layer capable of holding 40 snap-on battery cells (with a maximum current of 100mA per battery). Each layer can bear a weight of up to 10kg.

Perpetual dedication to safety protection.

● Power-down data protection

● Short circuit protection

● Abnormal monitoring of circulating fan operation

Powerful programmability. Meet diverse testing needs.

The software is fully functional, covering a variety of work-step settings, recording, and data storage to meet a wide range of testing needs.

DBC Configuration

CC & CV charge/discharge test

500ms pulse width

Segmented recording

Support import/edit/export of DBC files. Different battery pack protocols can be communicated by simply modifying the code of the DBC protocol file without upgrading the program.

CC charging or discharging until the voltage reaches the specified value, and then seamlessly switching to CV mode for battery compensation which is smooth without any spikes.

Testing the performance of the battery under fast changes in current/power.

Allow to set up to 3 segment recording conditions per step, including voltage, current and time.

Extensive peripheral devices. Create a multi-dimensional testing environment.

Integrated peripheral devices such as Auxiliary Voltage, Auxiliary Temperature for comprehensive testing and evaluation, providing multi-dimensional and quantifiable support for battery mass production testing.

NEWARE-WIHW-200-160CH-B battery tester can connect to a variety of integrated peripherals, such as auxiliary voltage, auxiliary temperature, and environmental test chambers

Technical Specifications

Equipment name	Coin Cell All-in-One Testing System
ACInput	AC220V±10%50Hz SinglePhase+protective earthground
Power	3kW
InputCurrent	16A
Volume, Size
StandardVolume	200L
Inner Size	W500mm×D500mm×H800mm
External Size	W600mm×D920mm×H1800mm
Netweight	About 200kg
Performance
Operating Environment	Operating Temperatureis+25℃, Relative humidity≤85%, Nosamplessituation
TemperatureRange	0~60℃
TemperatureFluctuation	≤1℃(noloading、temperaturestability)
TemperatureDeviation	±2.0℃(noloading、temperaturestability)
Risingtime	25℃→60℃≤30min(Noloading)
Coolingtime	25℃→0℃≤50min(Noloading)
