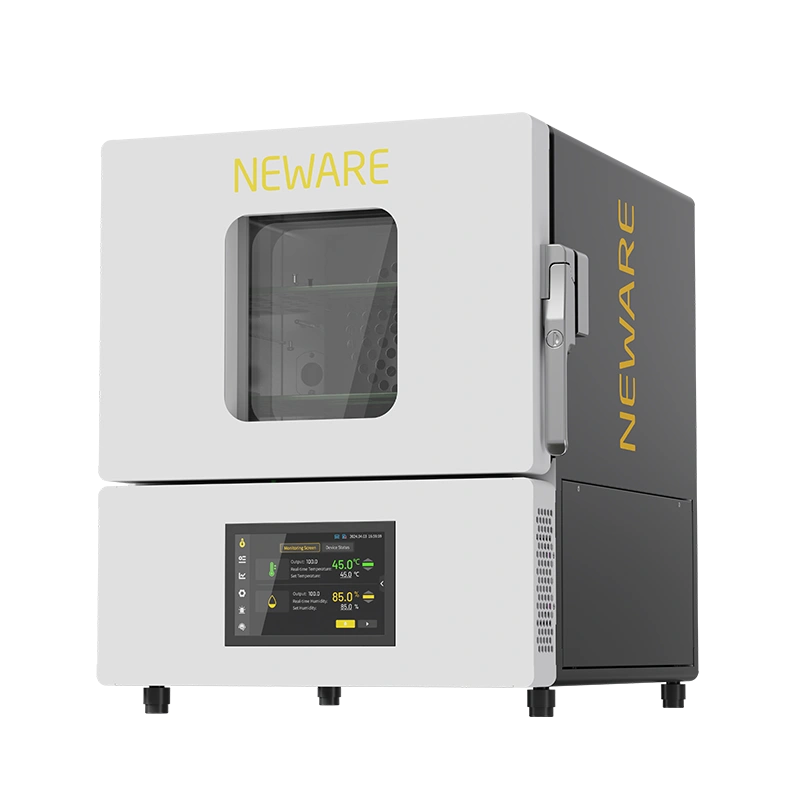

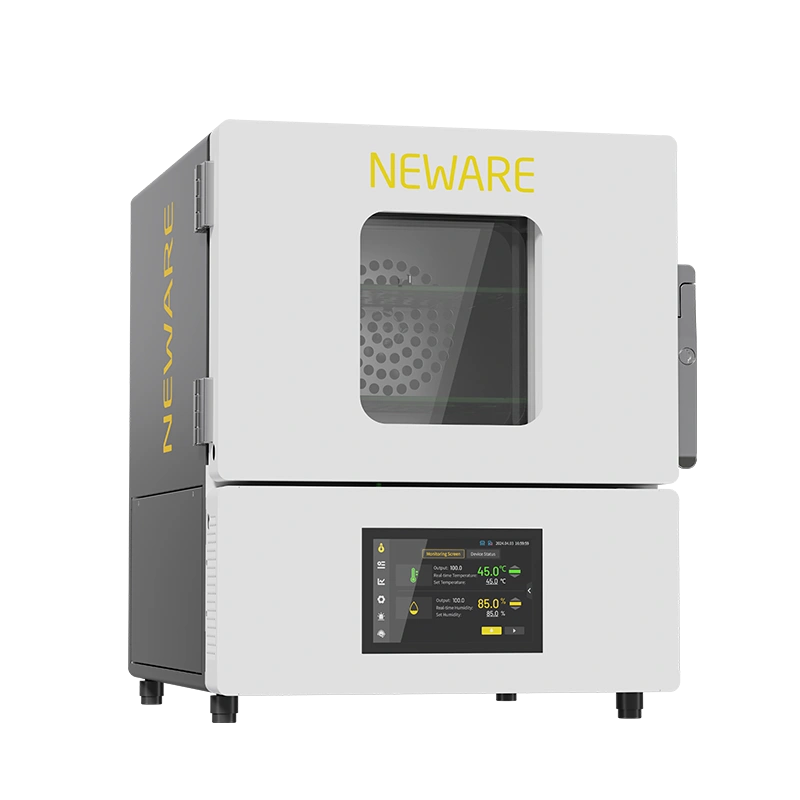

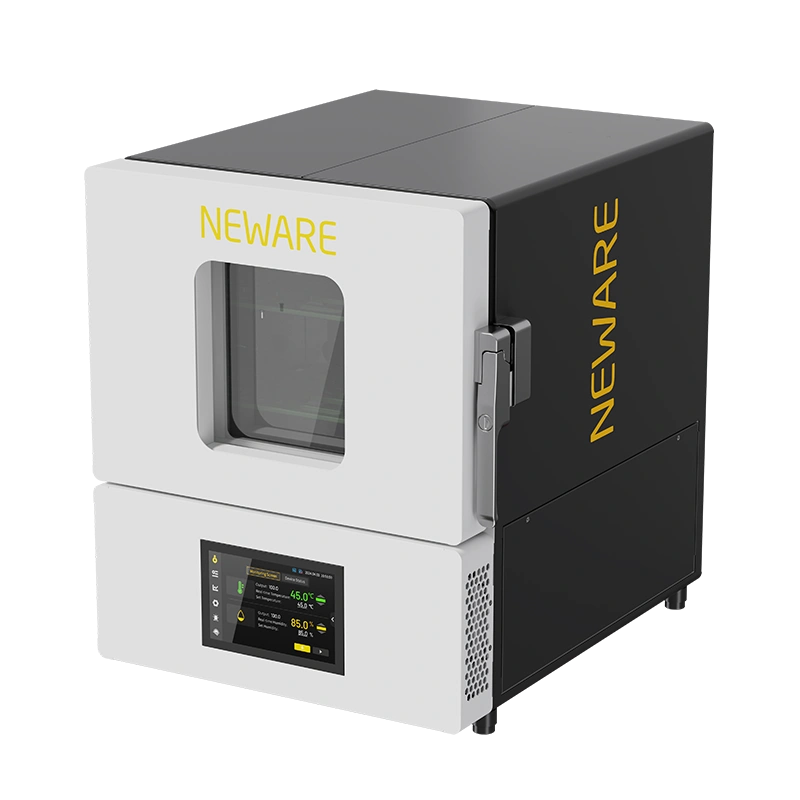

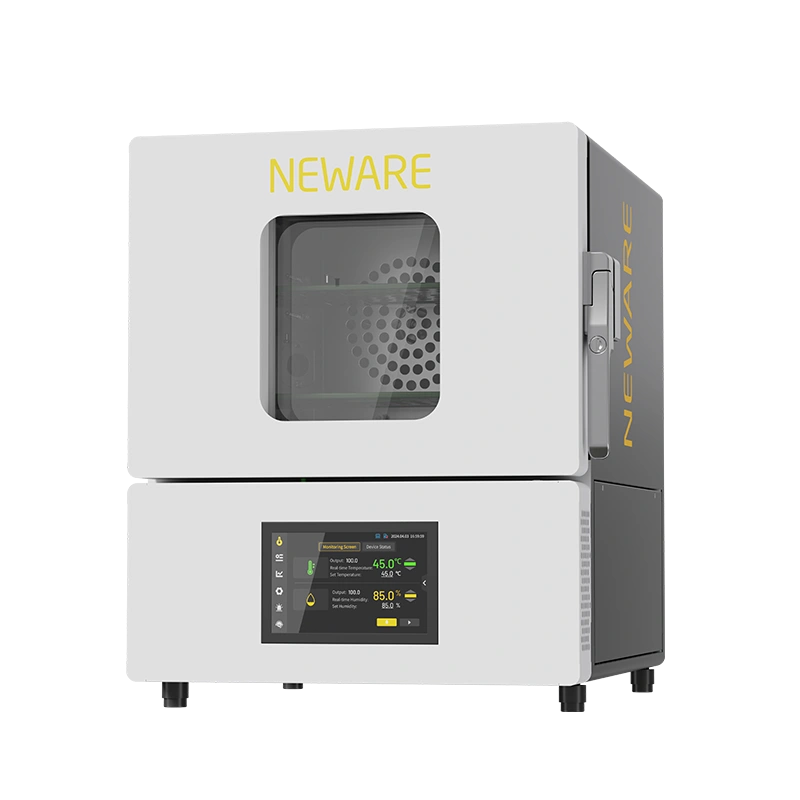

High-Low Temperature Mini All-in-One Testing System

Dual-function integration of environmental simulation and performance testing

This system combines a high-low temperature test chamber with a battery charge-discharge unit, covering a broad temperature range of -20°C to 85°C to simulate extreme conditions. Synchronized temperature and charge-discharge testing are managed through upper-computer software, meeting diverse requirements for battery R&D and quality inspection.

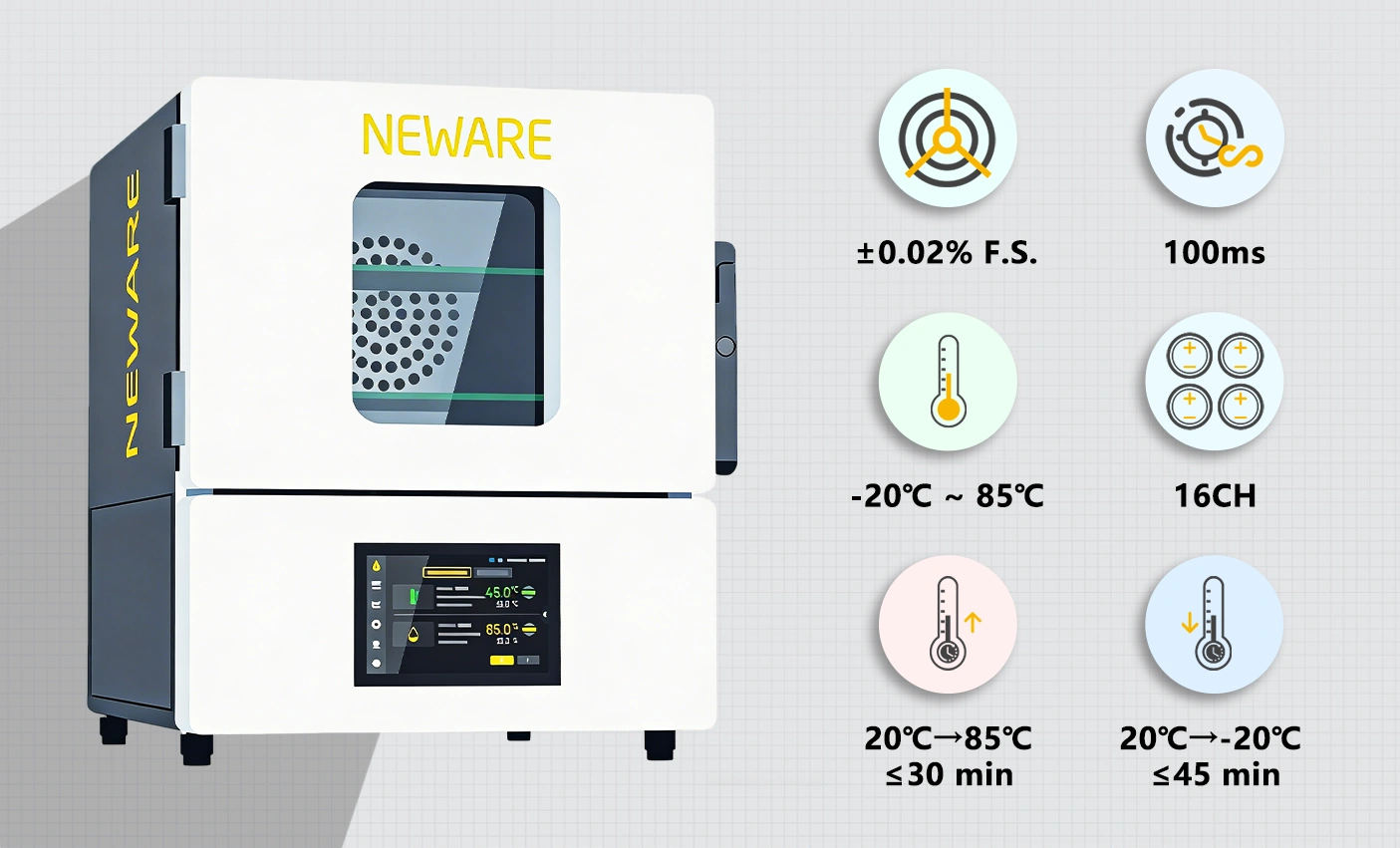

Key Specifications

• Current & voltage accuracy: ±0.02% F.S.

• Sampling time: 100ms

• Temperature range & deviation: -4°F ~ 185°F ±3.6°F(-20℃ ~ 85℃±2℃)

• Channel number: 16CH

• Heating time: 68°F→185°F ≤30 min (20℃→85℃ ≤30 min, no load, average non-linear)

• Cooling time: 68°F→-4°F ≤45 min (20℃→-20℃ ≤45 min, no load, average non-linear)

Mastering diversity, simplifying complexity

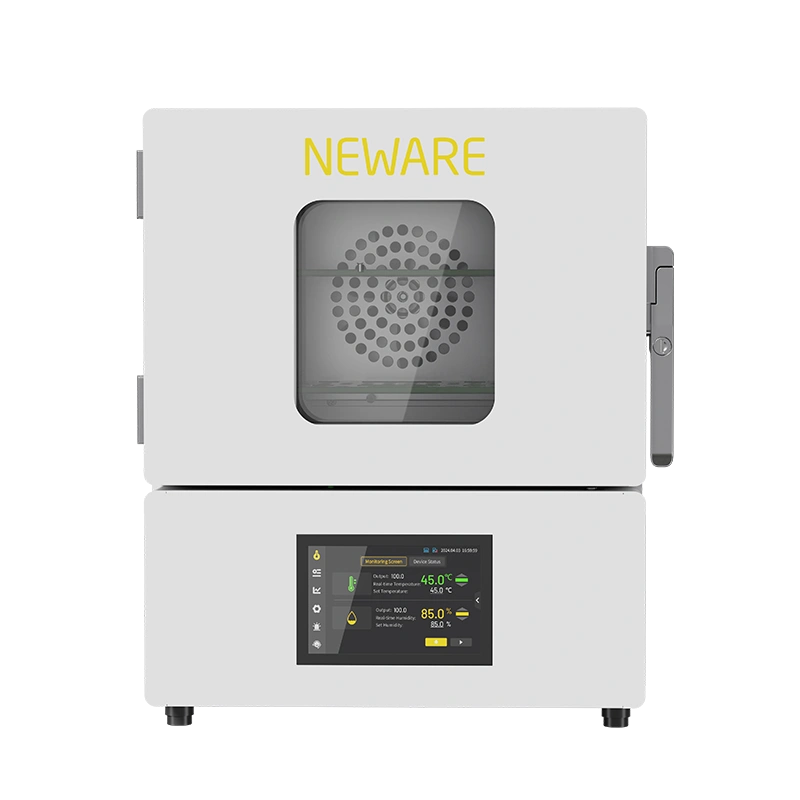

By integrating the functions of compatible charging and discharging detection equipment and high and low temperature environmental test boxes into a meticulously designed solution, our products maximize space utilization and enhance equipment efficiency. Applicable for material research and button cell battery testing; the double-layer fixture tray design can securely accommodate up to 16 battery cells, providing a reliable and efficient solution for battery organization and management.

Multiple safety protection mechanisms

Emergency protection mechanisms such as power failure data recovery, short circuit protection, and fan abnormality detection are provided to prevent equipment damage.
