Used for cylindrical battery performance testing, formation, and capacity grading.
Features
Tech Specs
Resources

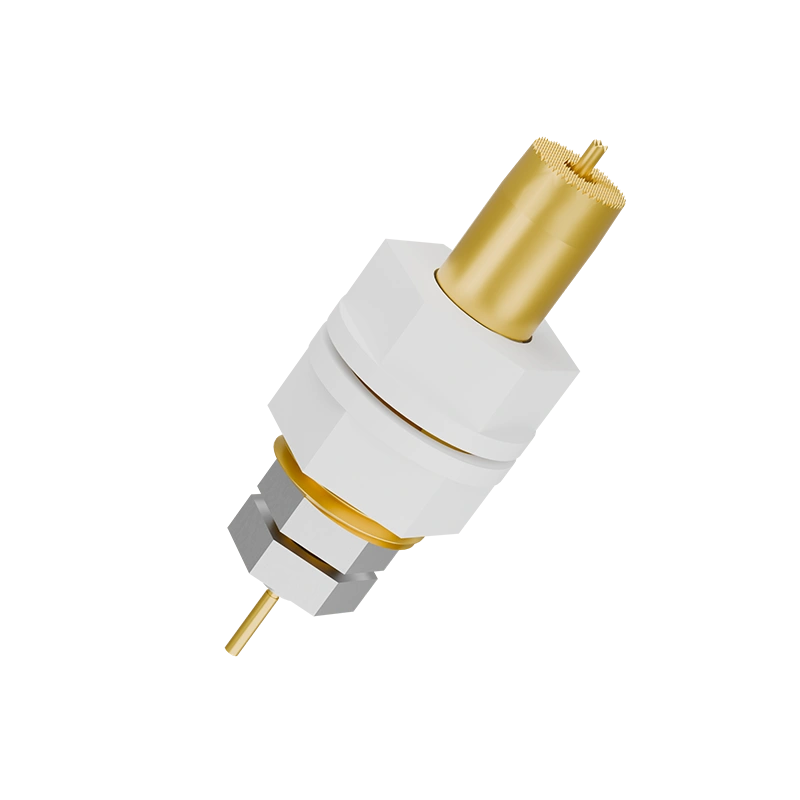

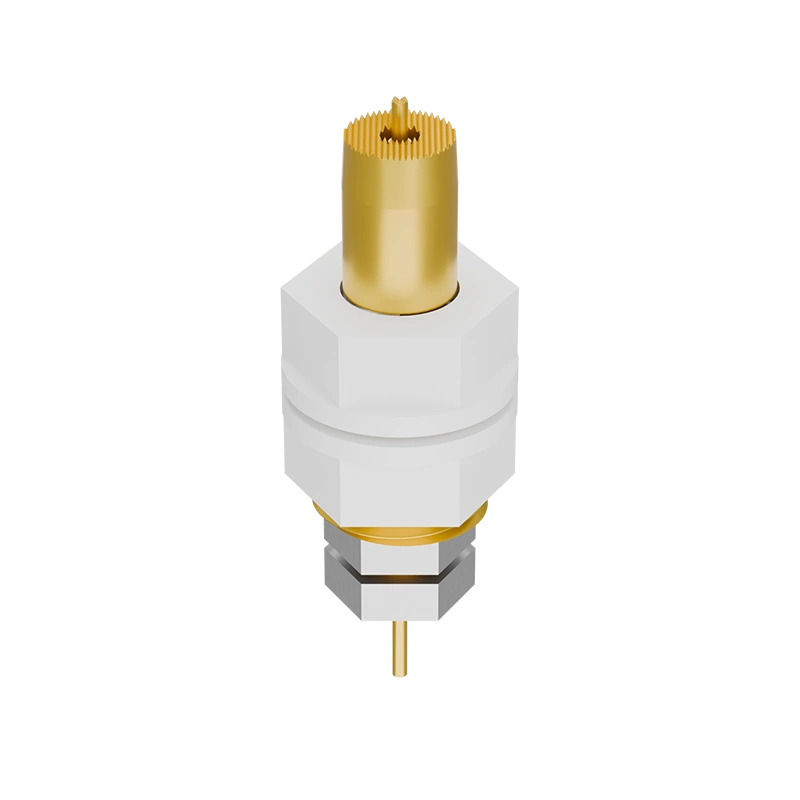

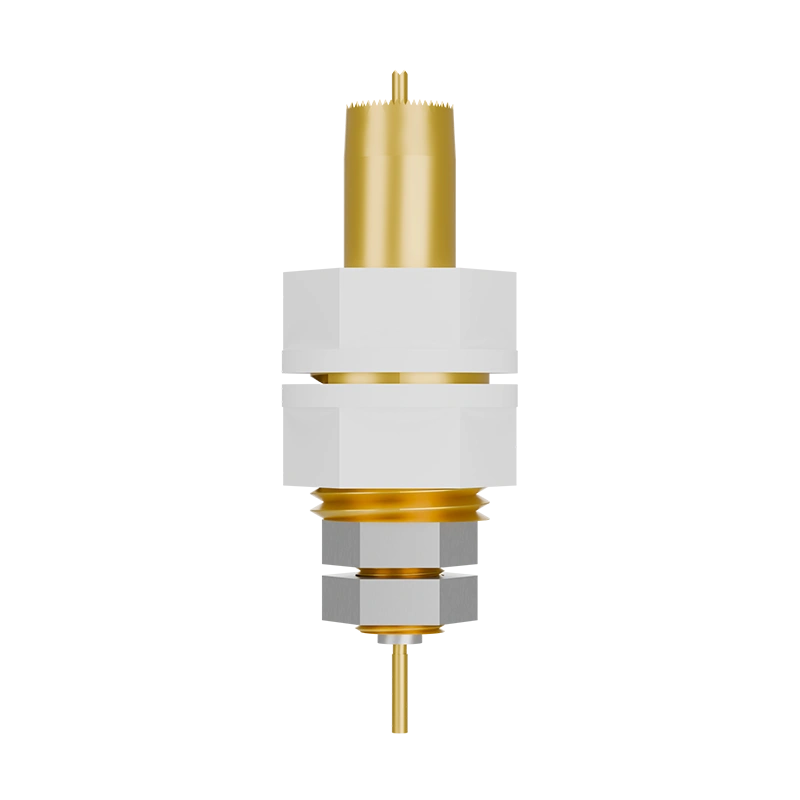

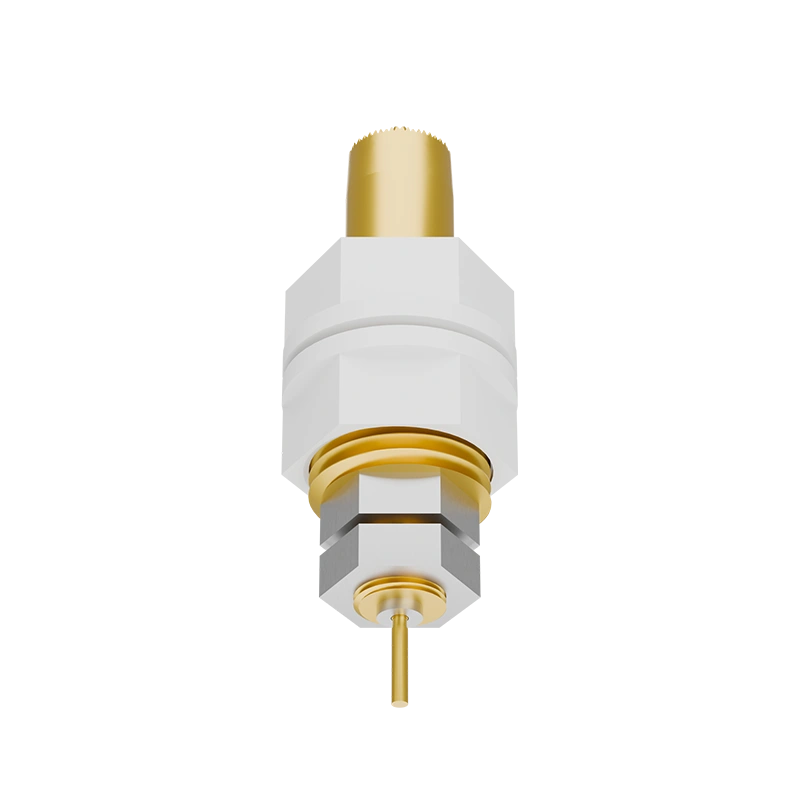

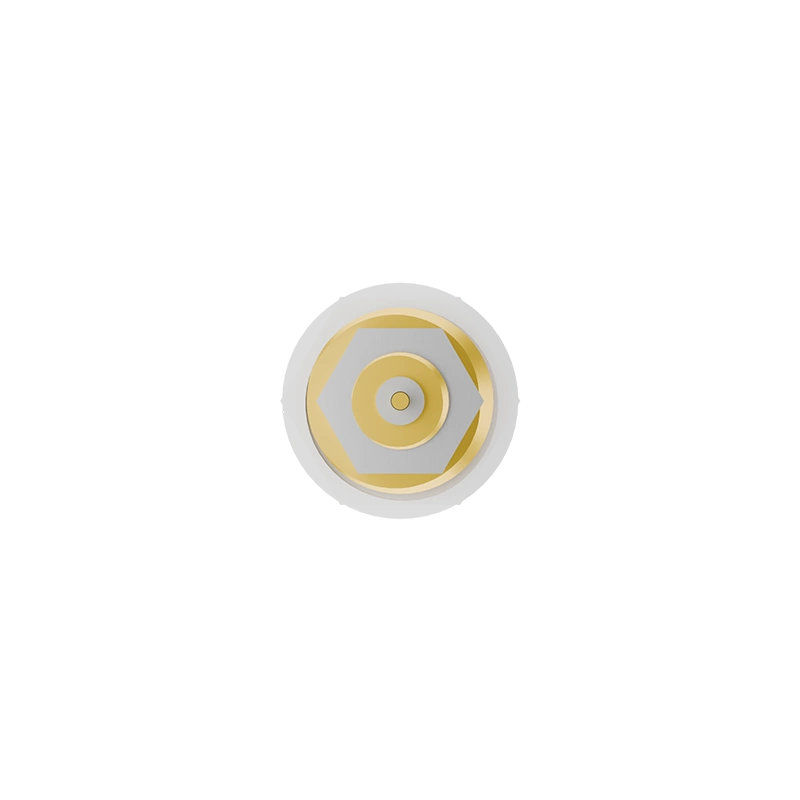

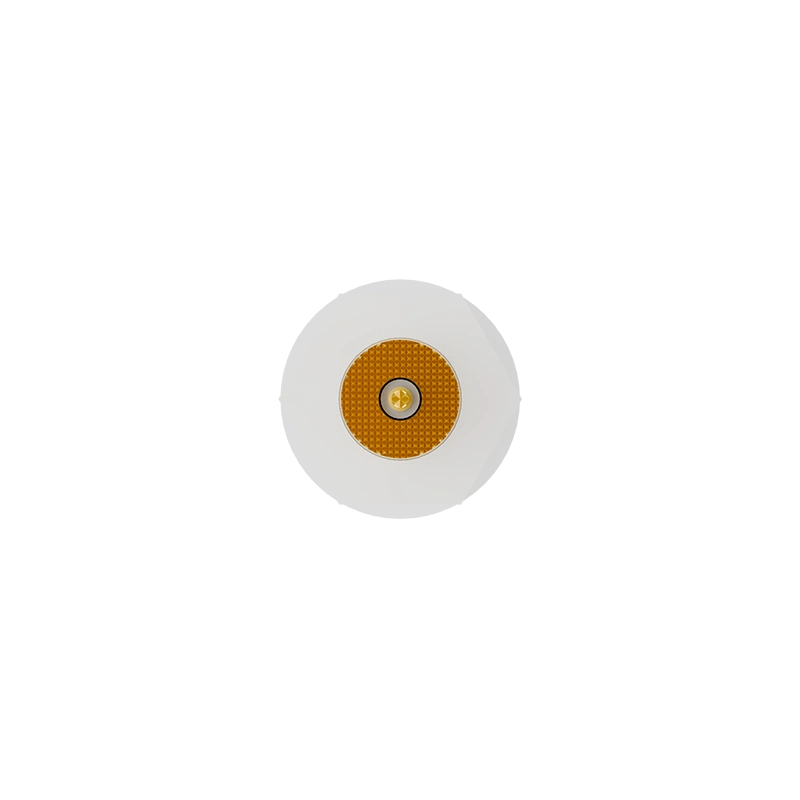

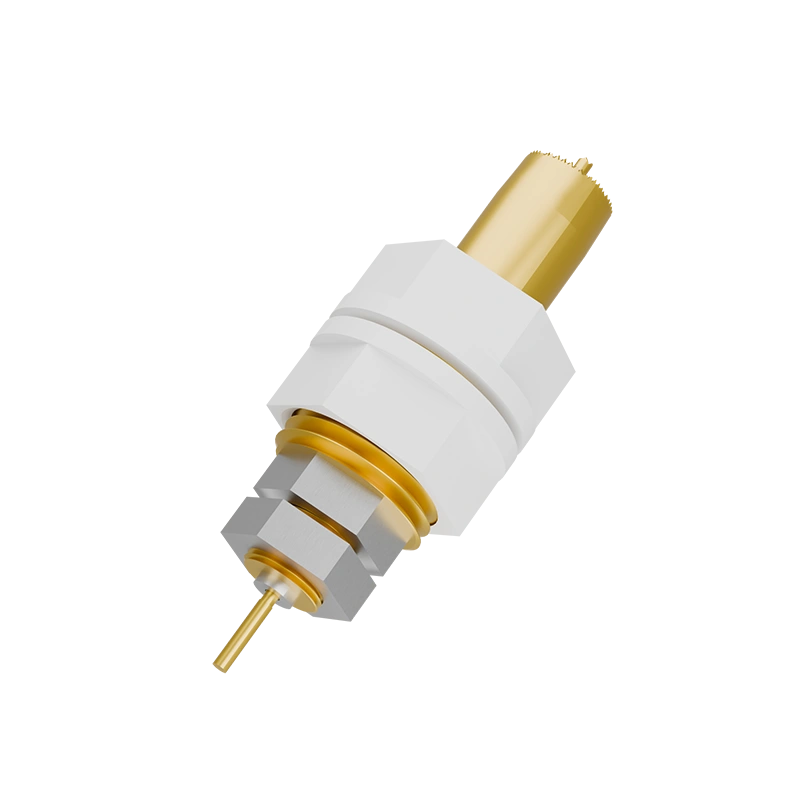

The positive probe with a spring ensures a stable connection between the probe and the battery. When combined with the A703-01-NT-Y-75A negative probe, it is used for testing 75A cylindrical batteries, detecting parameters such as voltage and current, and performing battery performance testing, formation, and capacity grading.
| Equipment name | 75A Positive Probe (with Spring) |
|---|---|
| Model | A703-01-T-Y-75A |
| Current | 75A |
| Probe Head Diameter | 0.37"(9.5mm) |
| Terminal | M8 |
