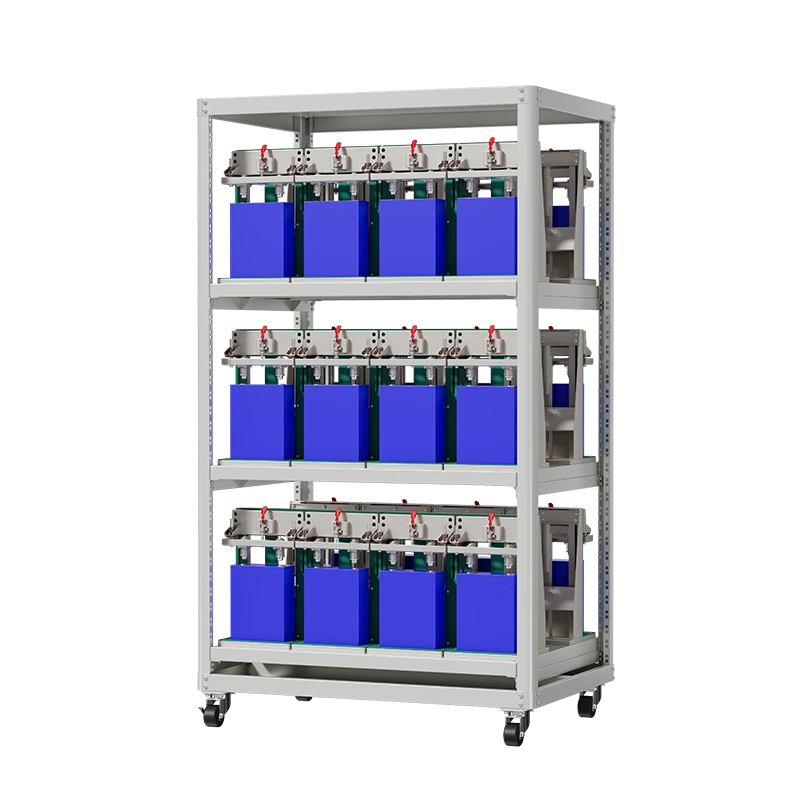

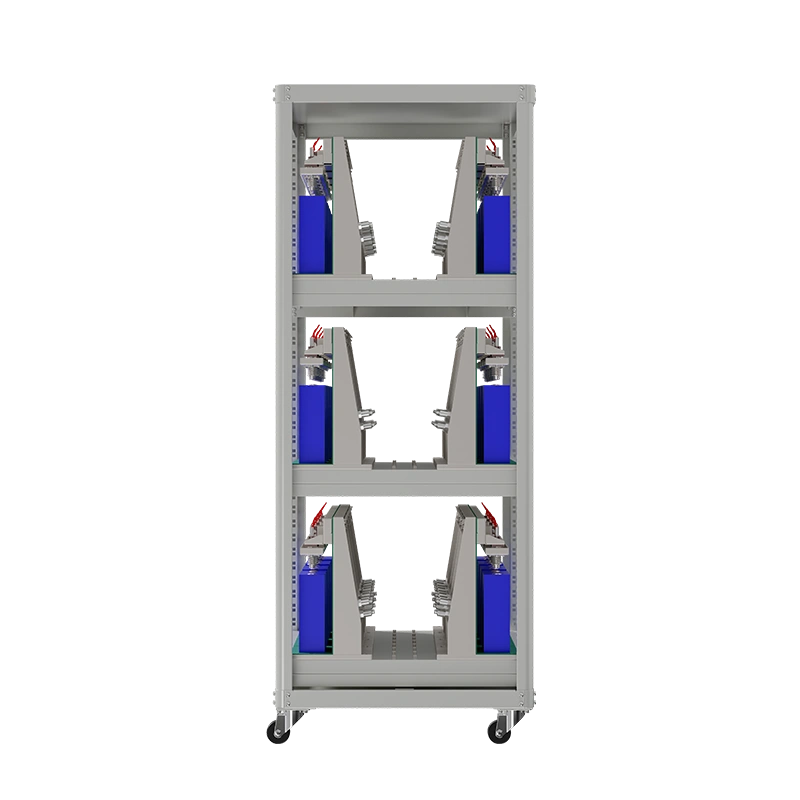

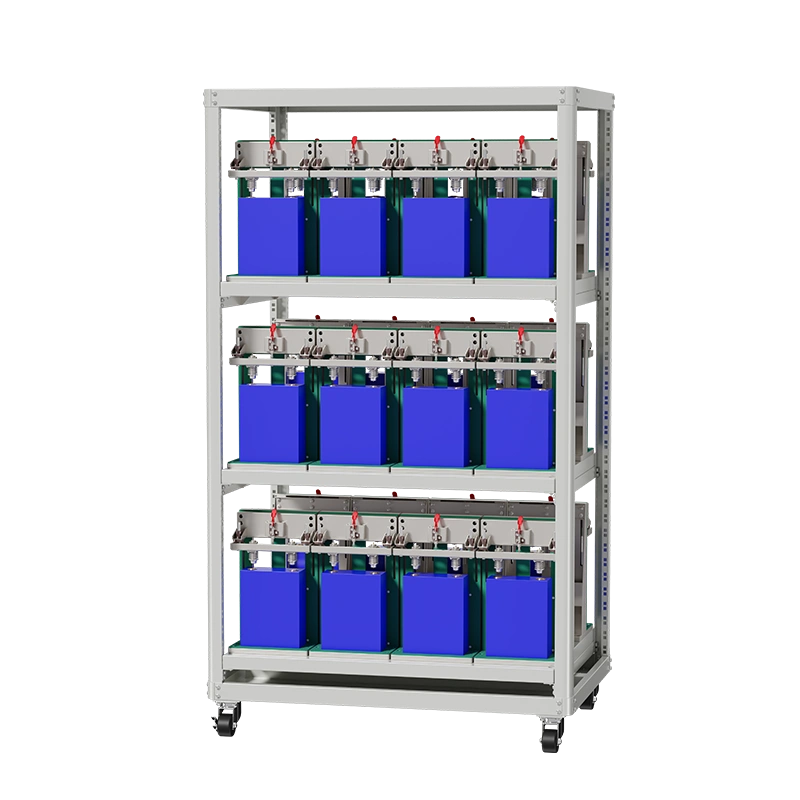

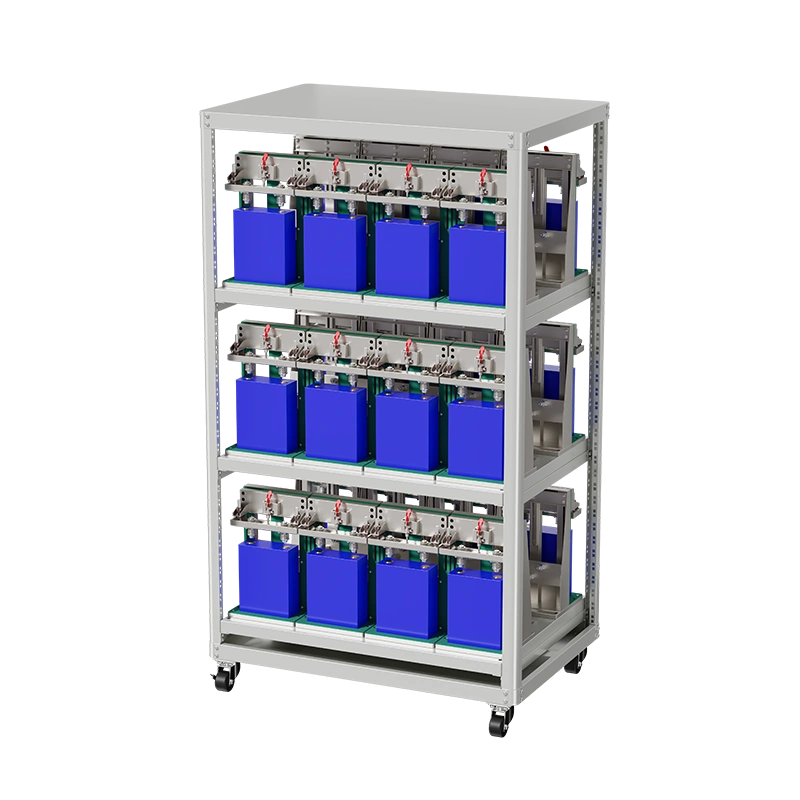

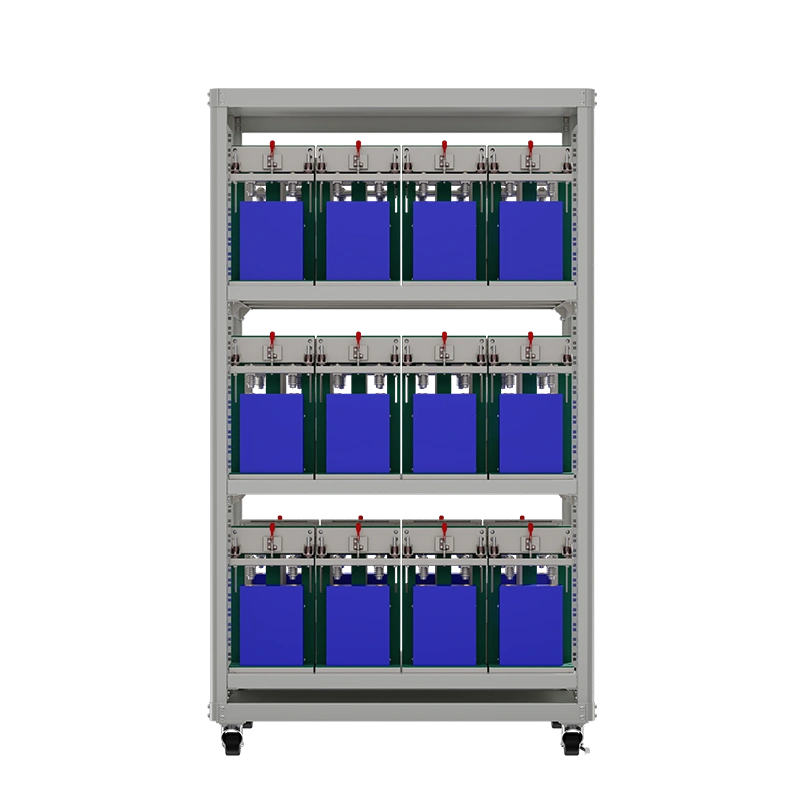

Used for securing prismatic cell fixtures, with 24 channels in total.
Features
Tech Specs
Resources
Designed for high-volume battery testing, the cell rack features a flexible design with configurable number of test channels and maximum current per channel. A single rack supports up to 24 channels, with a maximum current capacity of 600A per channel. The fixture height and electrode spacing are adjustable to accommodate prismatic cells of various dimensions. It adopts a 4-wire (Kelvin) connection, which eliminates the influence of lead resistance and contact resistance on measurements, ensuring reliable and accurate test results.
| Equipment name | 24CH Prismatic Cell Rack |
|---|---|
| Model | PDCJ-F-24CH-S2 |
| Current | Max. 600 A |
| Battery Size | Length: 3.15″ (80mm) – 9.06″ (230mm) Width: 0.79″ (20mm) – 3.15″ (80mm) Height: 3.15″ (80mm) – 6.30″ (160mm) or 3.15″ (80mm) – 8.66″ (220mm) |
| Tab Spacing | 2.17″ (55mm) – 5.71″ (145mm) |
