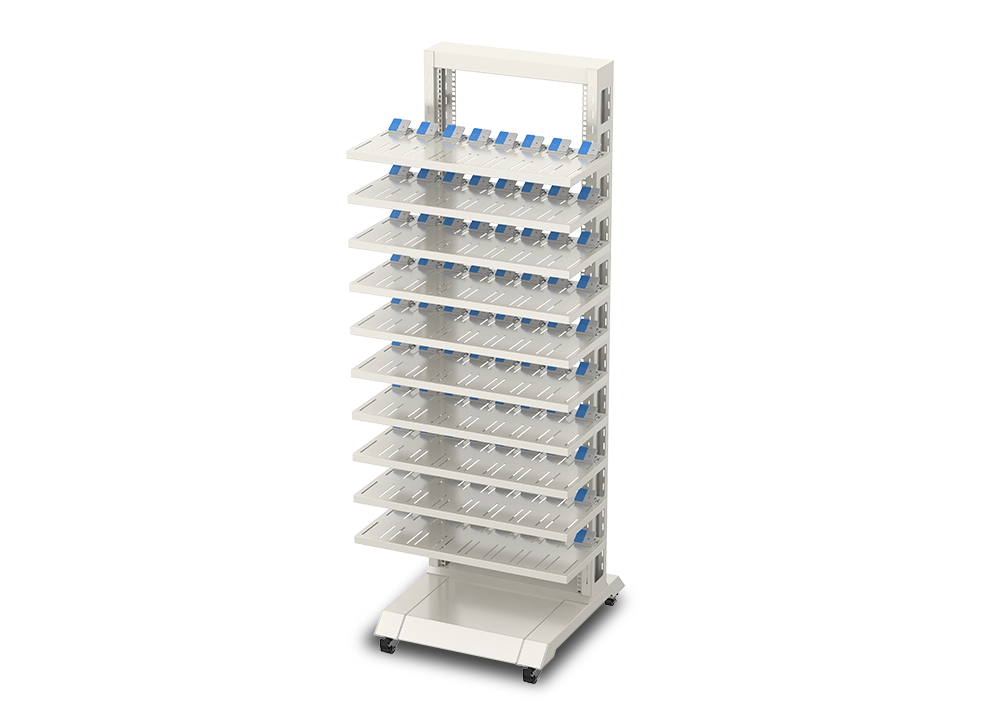

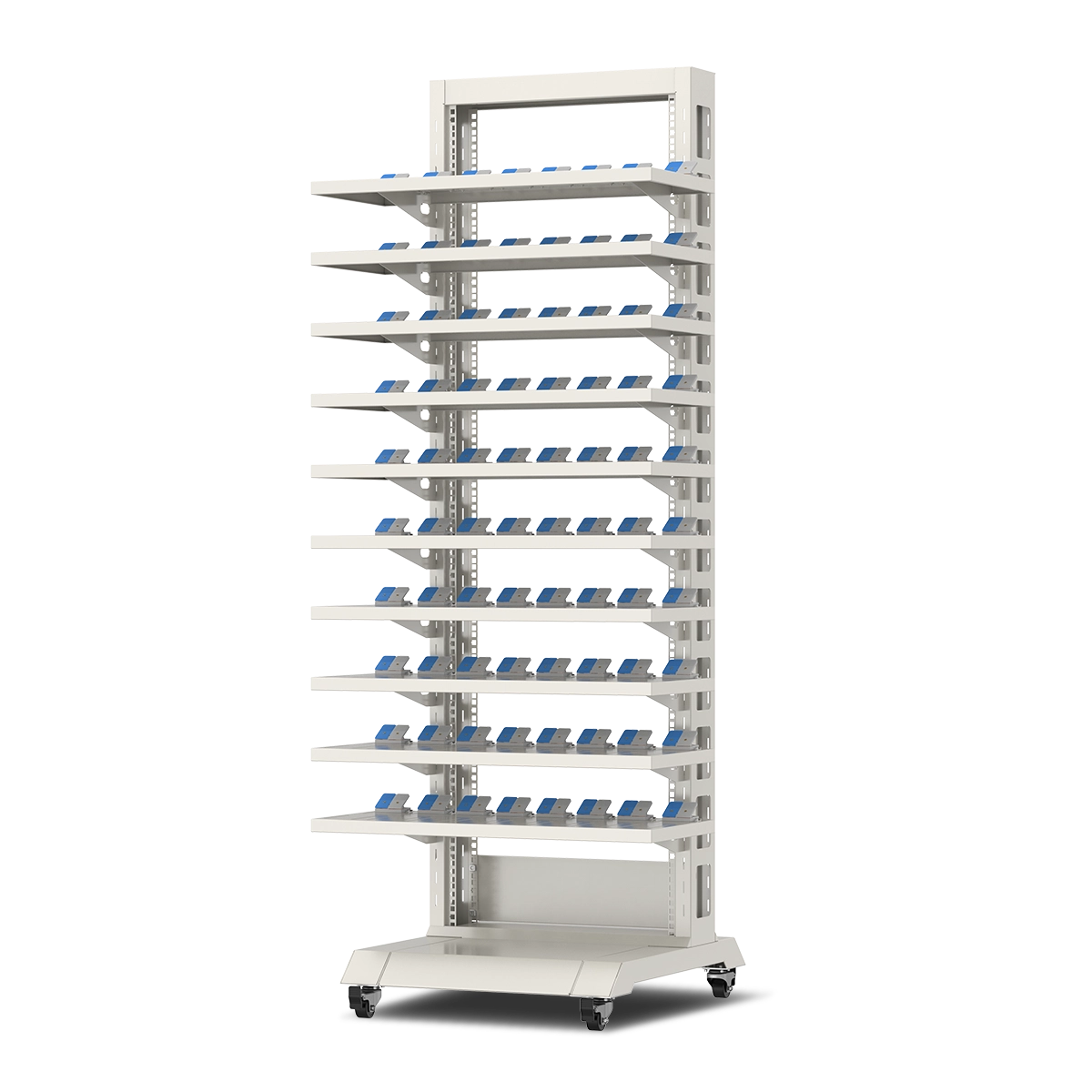

Pouch cells testing rack.
| Current | 6A |
| Number of Channels per Panel | 8 |
| Number of Layers | 10 |
| Number of Channels | 80 |
| Battery Size | Length: 0.4"~7.9"(10~200mm) Width: 0.4"~3.2"(10~82mm) Thickness: 0.4"(10mm) |
| External Size | 27.6"×25.6"×70.8" 700mm×650mm×1798mm |
* This product model has been updated. For details, please refer to Pouch Cell Racks, or consult a sales expert.
Features
Resources
It is compatible with pouch batteries with a length of 0.4"~7.9"(10~200mm) and a width of 0.4"~3.2"(10~82mm). Fixture panels are detachable and can be independently suspended in a 3U rack space, allowing adjustment of the battery accommodation area according to experimental requirements.
*3U：5.25"（133.35mm）
Each channel supports a 6A current, with a 10-layer panel featuring 8 testing channels per layer.
It is used in conjunction with a battery testing system for pouch cells.

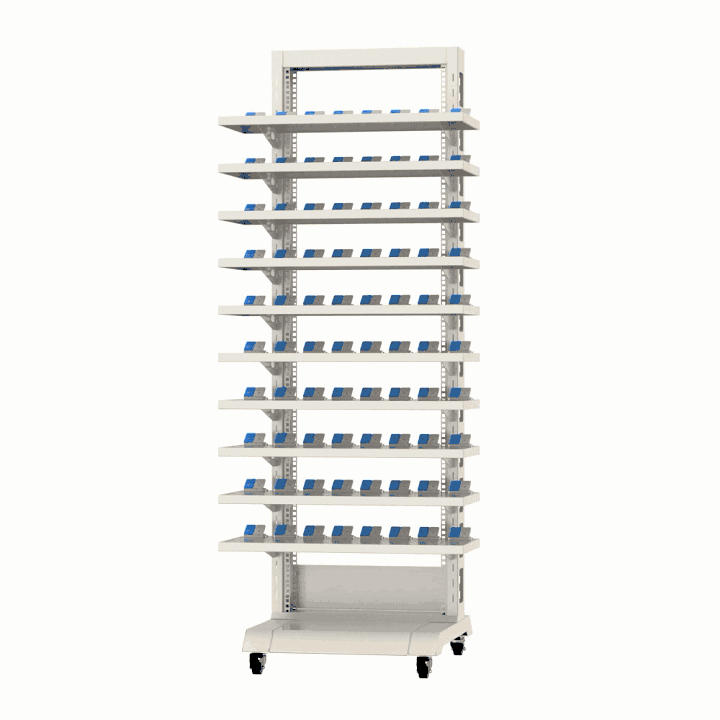

With a small footprint and equipped with 360° swivel casters, the battery rack is easily movable and can be securely locked in place using the locking mechanism on the tightening wheels.

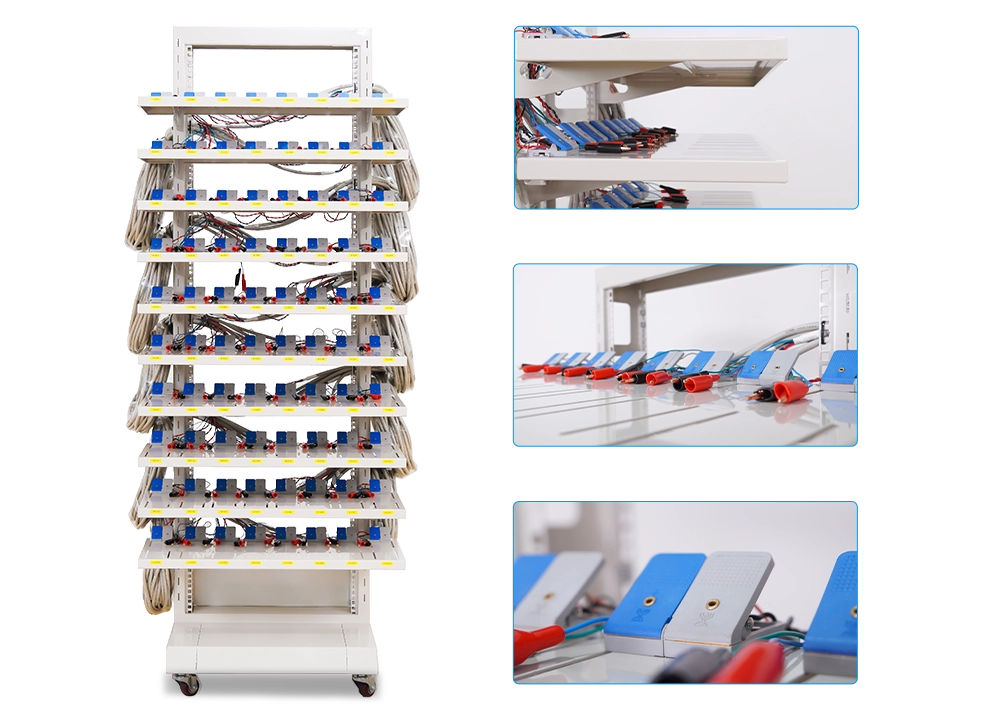

The fixture is mounted on an adjustable guide rail, compatible with both single-sided and double-sided probe testing. When used with alligator clips, it enables fast charging with three-prong testing. The flexible design meets diverse experimental requirements.
Voltage&Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Volume: 100L
Space for Test System: 5U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F ~ 302°F≤60min
(20℃ ~ 150℃≤60min)
Cooling Time: 68°F ~ -94°F≤75min
(20℃ ~ -70℃≤75min)
Volume: 100L*2
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F ~ 140°F≤30min
(25℃ ~ 60℃≤30min)
Cooling Time: 77°F ~ 32°F≤50min
(25℃ ~ 0℃≤50min)
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉ ~ 140℉≤30min
(25℃ ~ 60℃≤30min)
Cooling Efficiency: 77℉ ~ 32℉≤50min
(25℃ ~ 0 ℃≤50min)
Volume: 25L
Number of Channels: 32CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F ~ 140°F≤50min
(25℃ ~ 60℃≤50min)
Cooling Time: 77°F ~ 59°F≤60min
(25℃ ~ 15℃≤60min)
