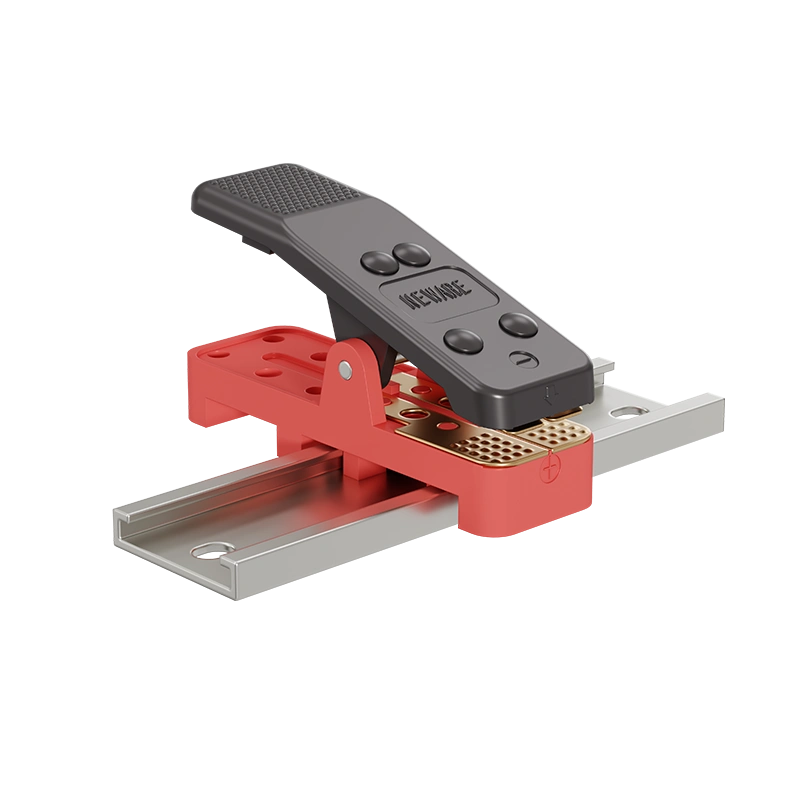

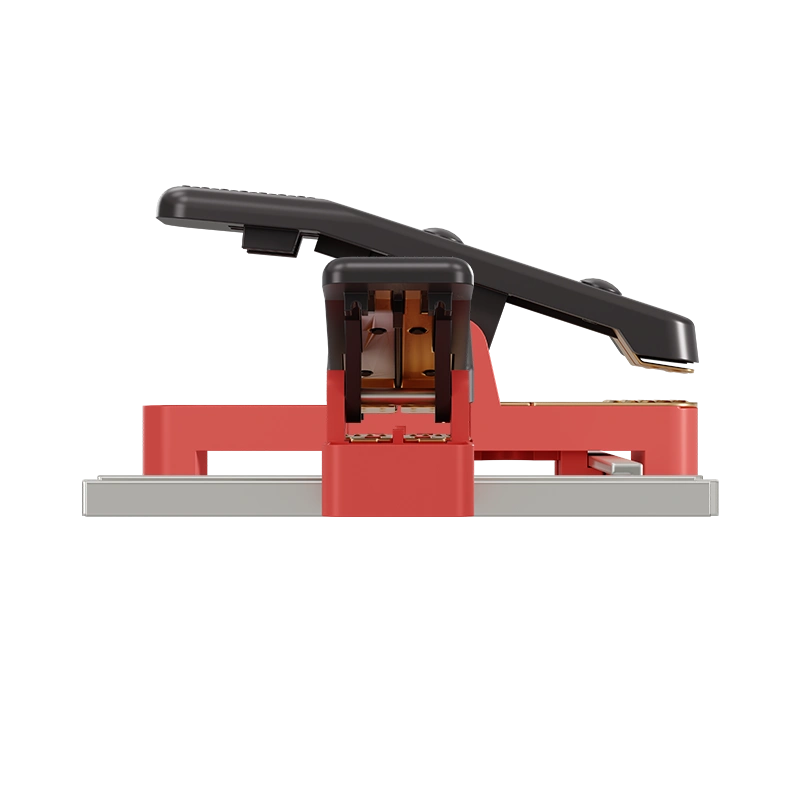

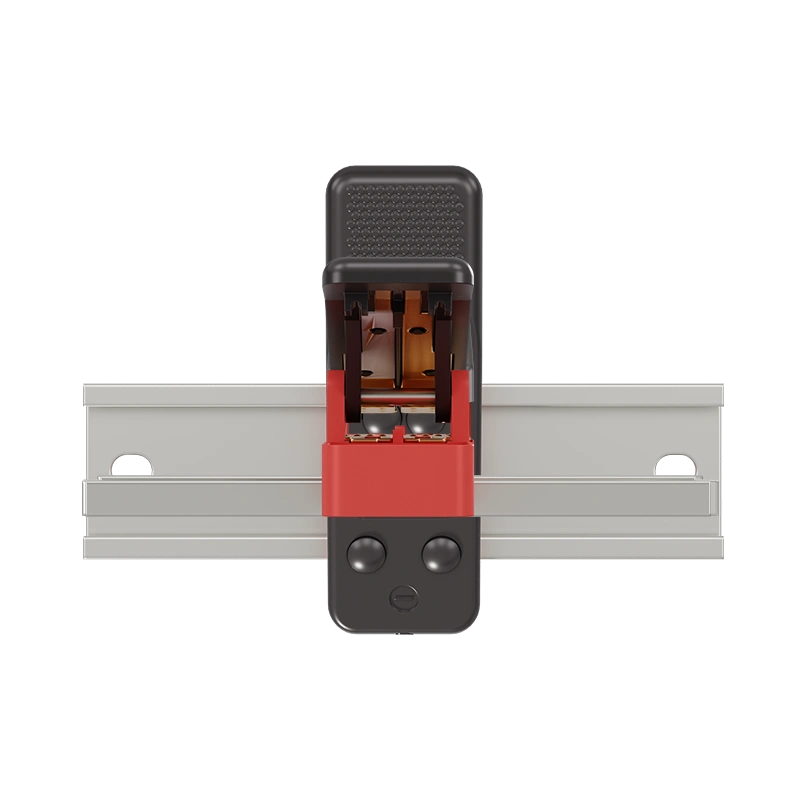

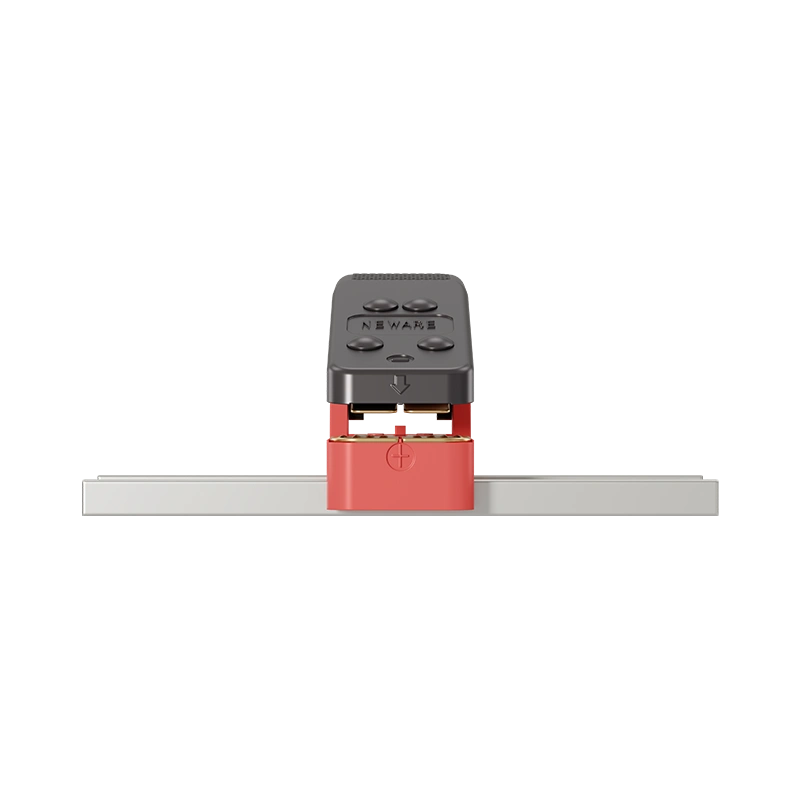

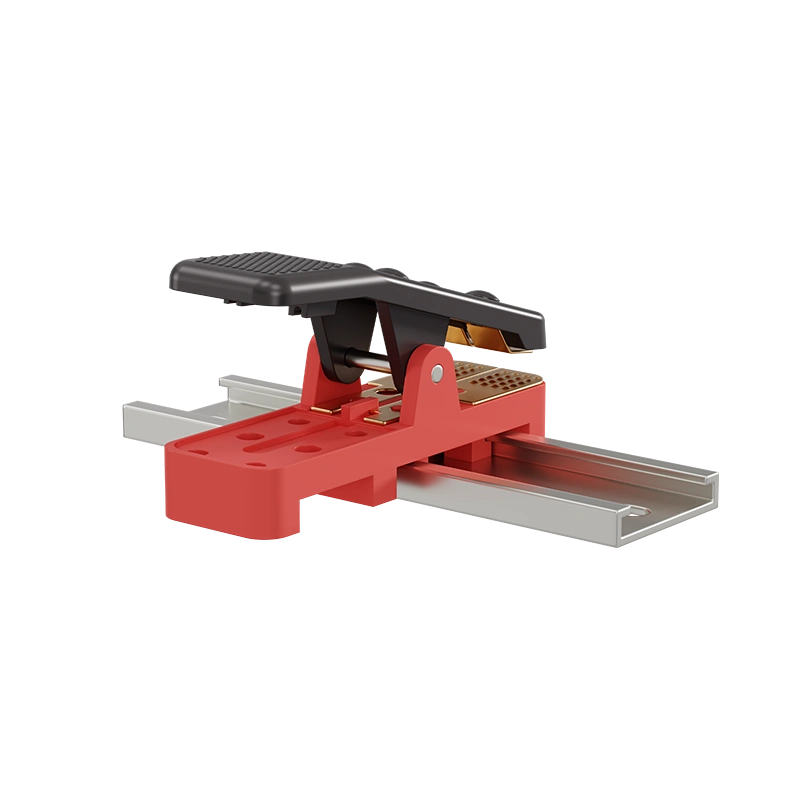

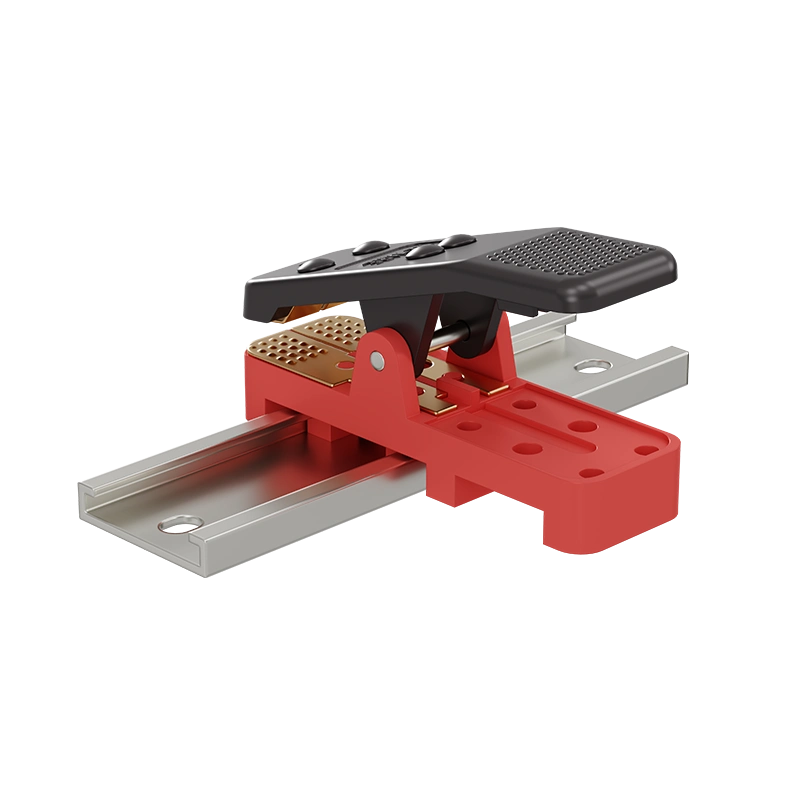

Clamping coin battery cells for electrochemical testing with rail-guided fixation.
Features
Tech Specs
Designed specifically for button cell testing, it features a gold-plated surface and a 4-wire Kelvin structure to minimize contact resistance.
Verified by professional tests, the contact impedance is <50mΩ at 100mA current. Withstands 5kVDC withstand voltage test, showing no abnormalities and a leakage current of ≤0.003mA, while the insulation resistance ≈30GΩ.
Operable at temperatures up to 150°C, suitable for high and low-temperature battery performance testing. Its robust structure ensures a service life exceeding 20,000 cycles. Equipped with a rail self-locking mechanism for easy installation and positioning, enhancing test stability and efficiency.
| Equipment name | Coin Cell Clamp |
|---|---|
| Model | A705-CR-MA-DG |
| Contact Resistance | ≤50mΩ |
| Operating Temperature | -40~150℃ |
| Battery Thickness | ≤6mm |
| Service Life | >20,000 cycles |
