How to set and free parallels
Latest updated: Aug 18, 2023
Open the BTS8.0 software, click "Set" in the menu bar at the top of the page, and click "System settings".

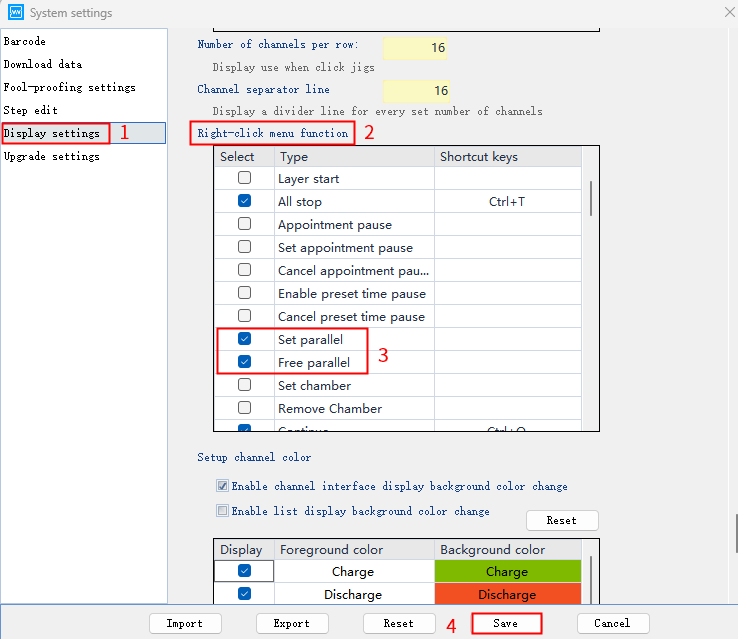

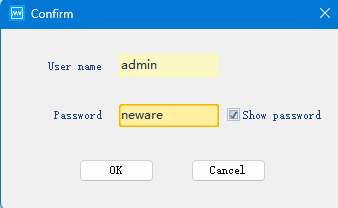

Click on "Display Settings" in the System Settings, locate the "Right-click Menu Function" option, expand the dropdown menu, and select "Set parallel" and "Free parallel." After making the selections, save your changes. When you click on "Save," a login dialog box will appear. Use the following credentials: User name: admin; Password: neware.

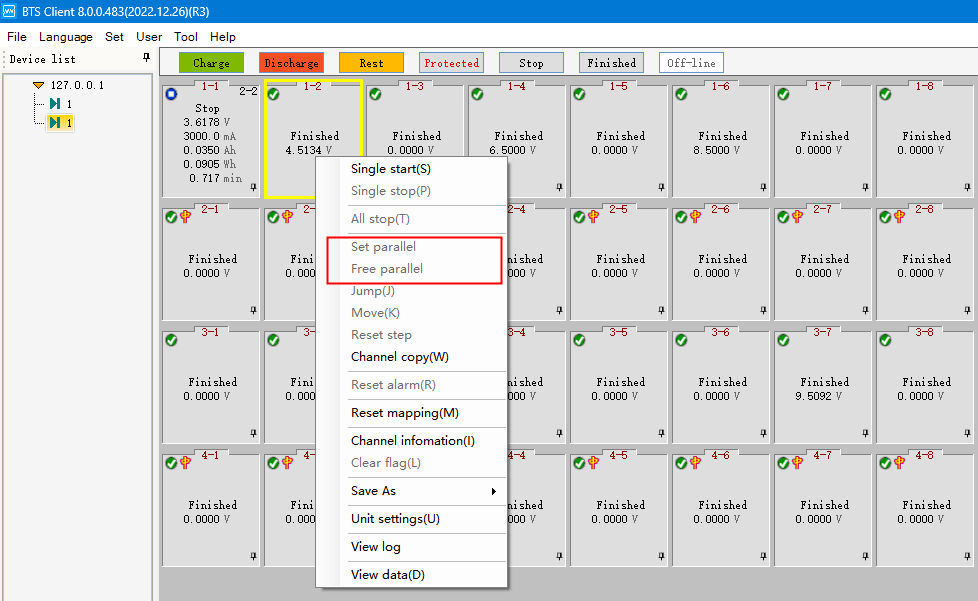

Then right-click on the main channel, the "Set parallel" and "Free parallel" option will be displayed.

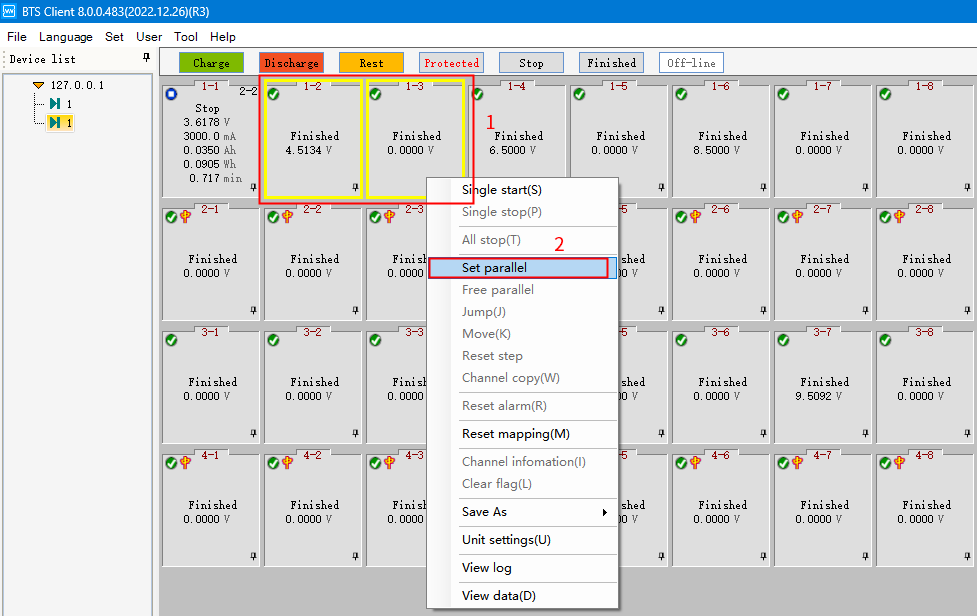

Select two or more channels and right-click to set the channel parallel (or hold down the Ctrl key, select the adjacent channel that you want to parallel, and right-click "Set parallel").
Attention:
1. Channel parallel support only 50A or higher devices.
2. The current range after parallel is the sum of the ranges of each channel.
3. All positive sampling lines and all negative sampling lines of the parallel channel are connected separately. It is then used as the positive and negative lines of the parallel channel.

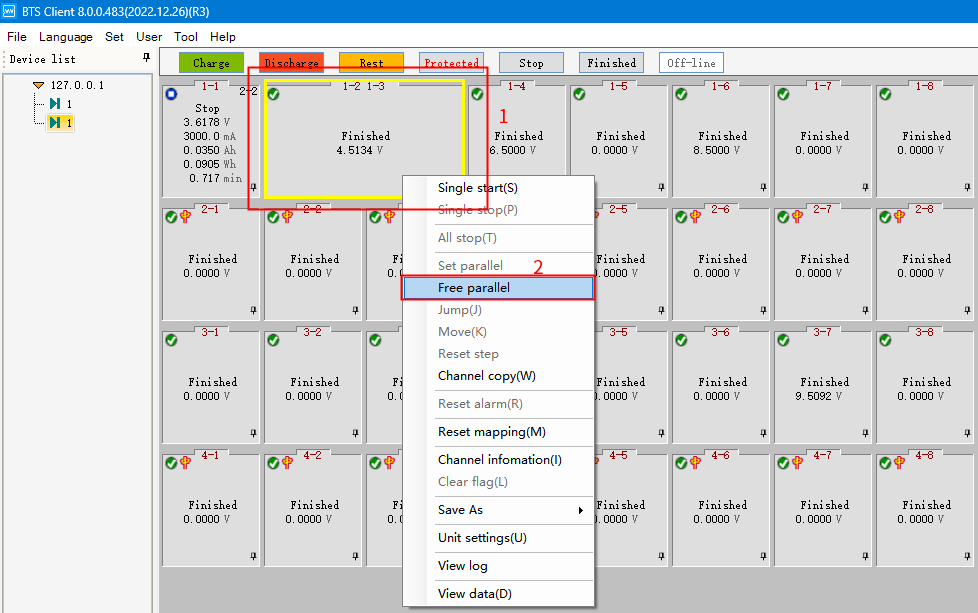

"Remove parallel" just need to select the need to remove parallel channel, and then right-click "Free parallel".
