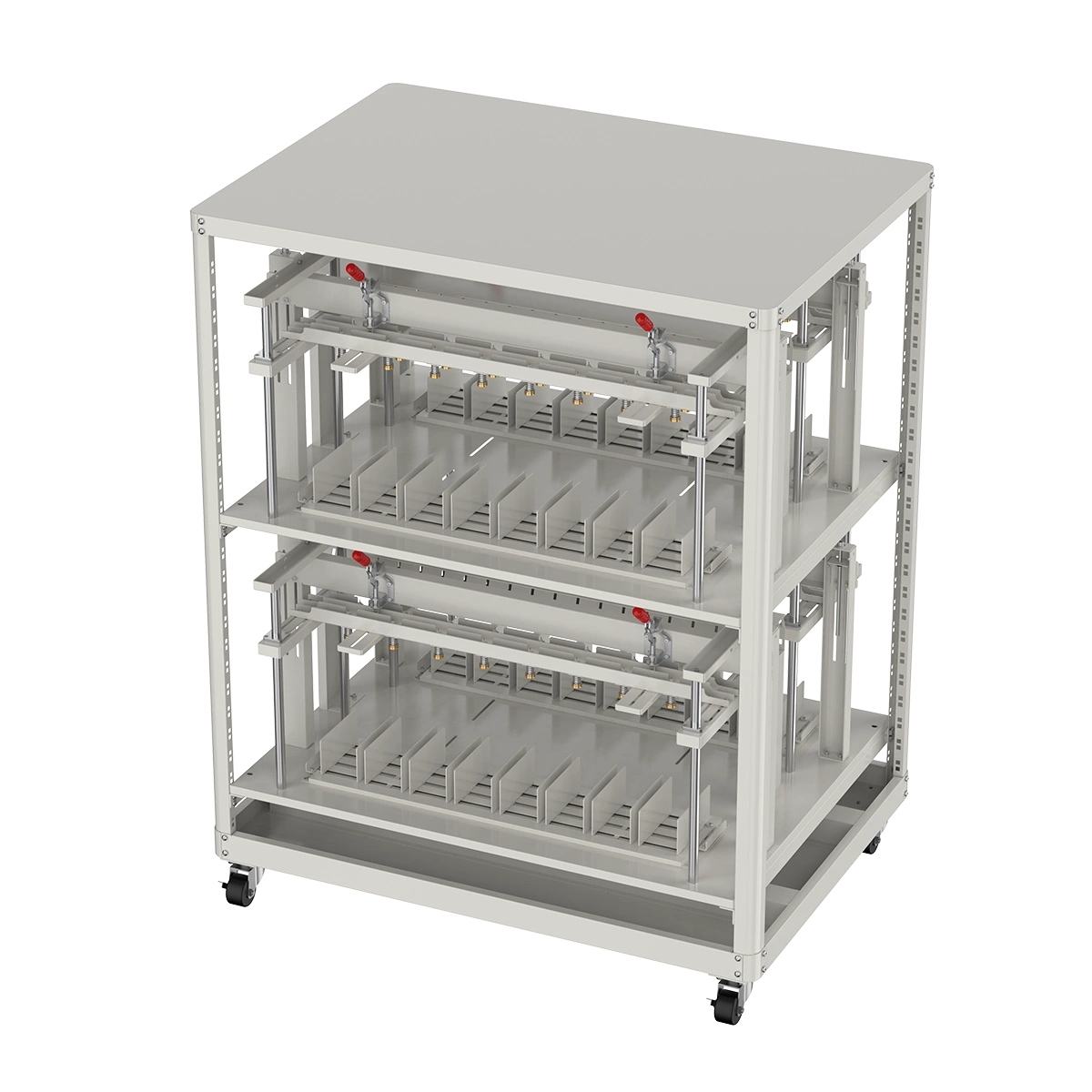

For prismatic cell testing. Integrated with battery testing equipment, the BTS system monitors battery status to ensure precise test results. Dual-sided battery placement with 4 rows of testing panels allows for 32-battery testing capacity.
Features
Tech Specs

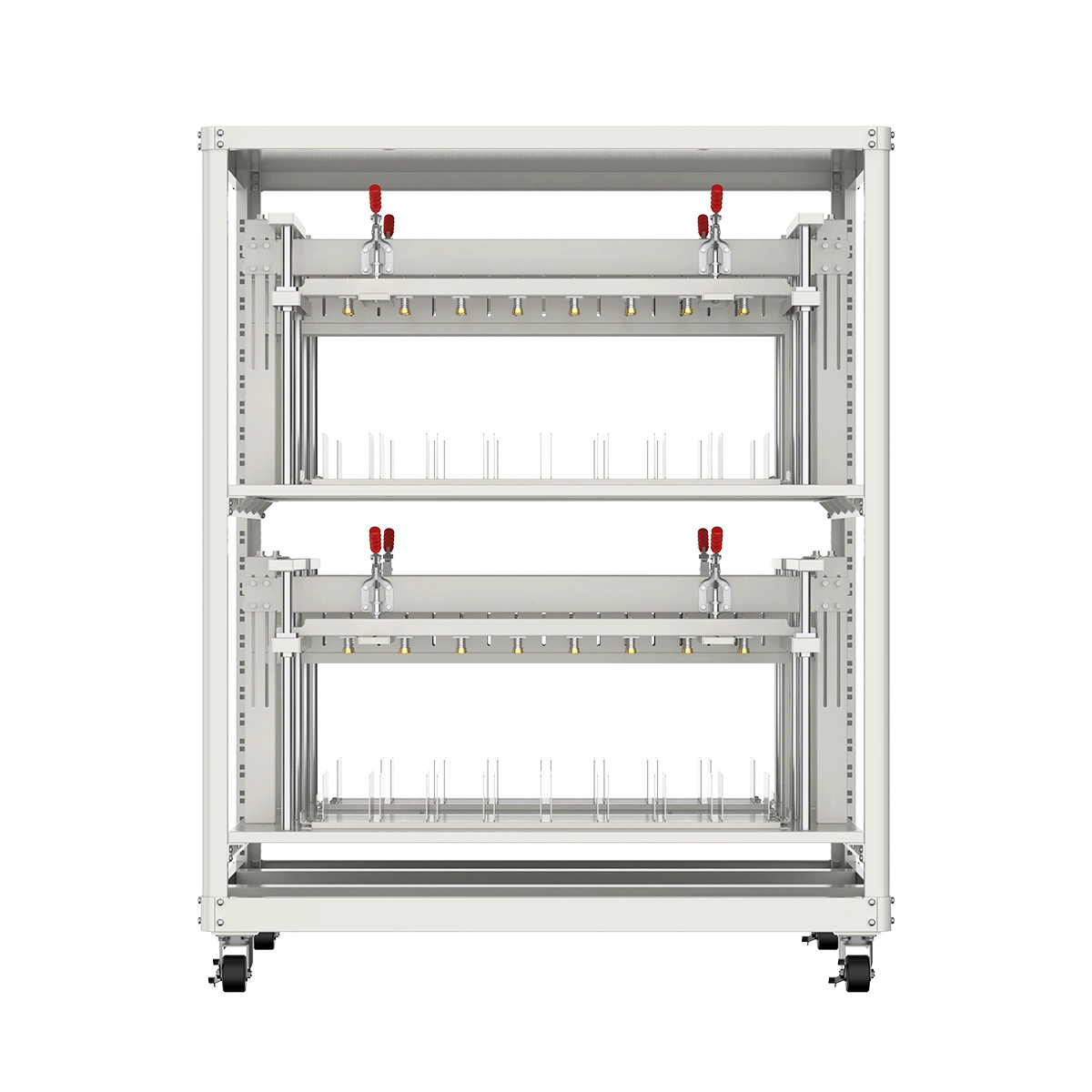

· Dual-sided battery placement with 4 rows of testing panels allows for 32-battery testing capacity.
· Integrated with battery testing equipment, the BTS system monitors battery status to ensure precise test results.

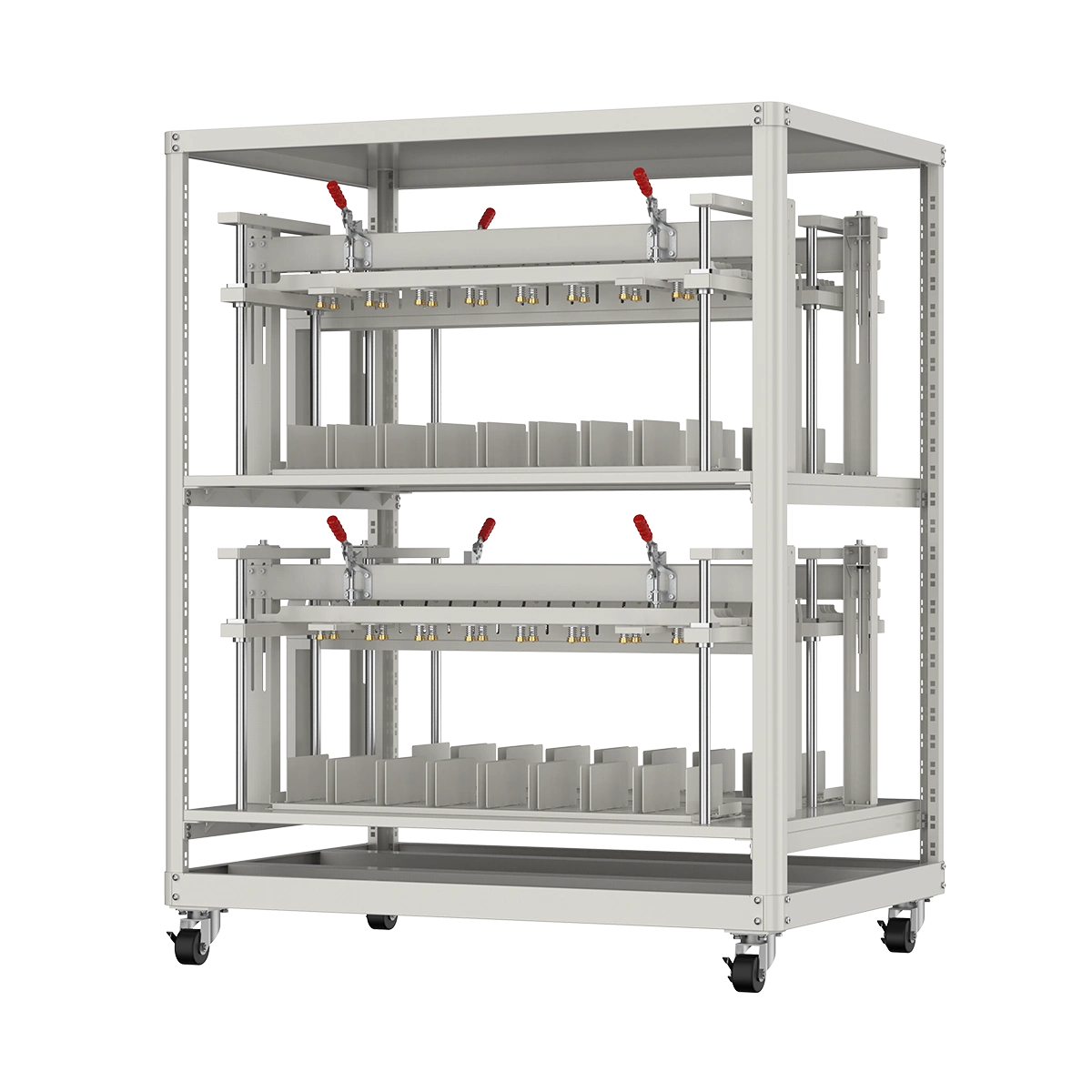

· Adjustable in multiple directions including test plate spacing, probe height, and layer spacing for precise adaptation to various battery specifications. Users can freely customize the battery accommodation space to meet specific testing needs.

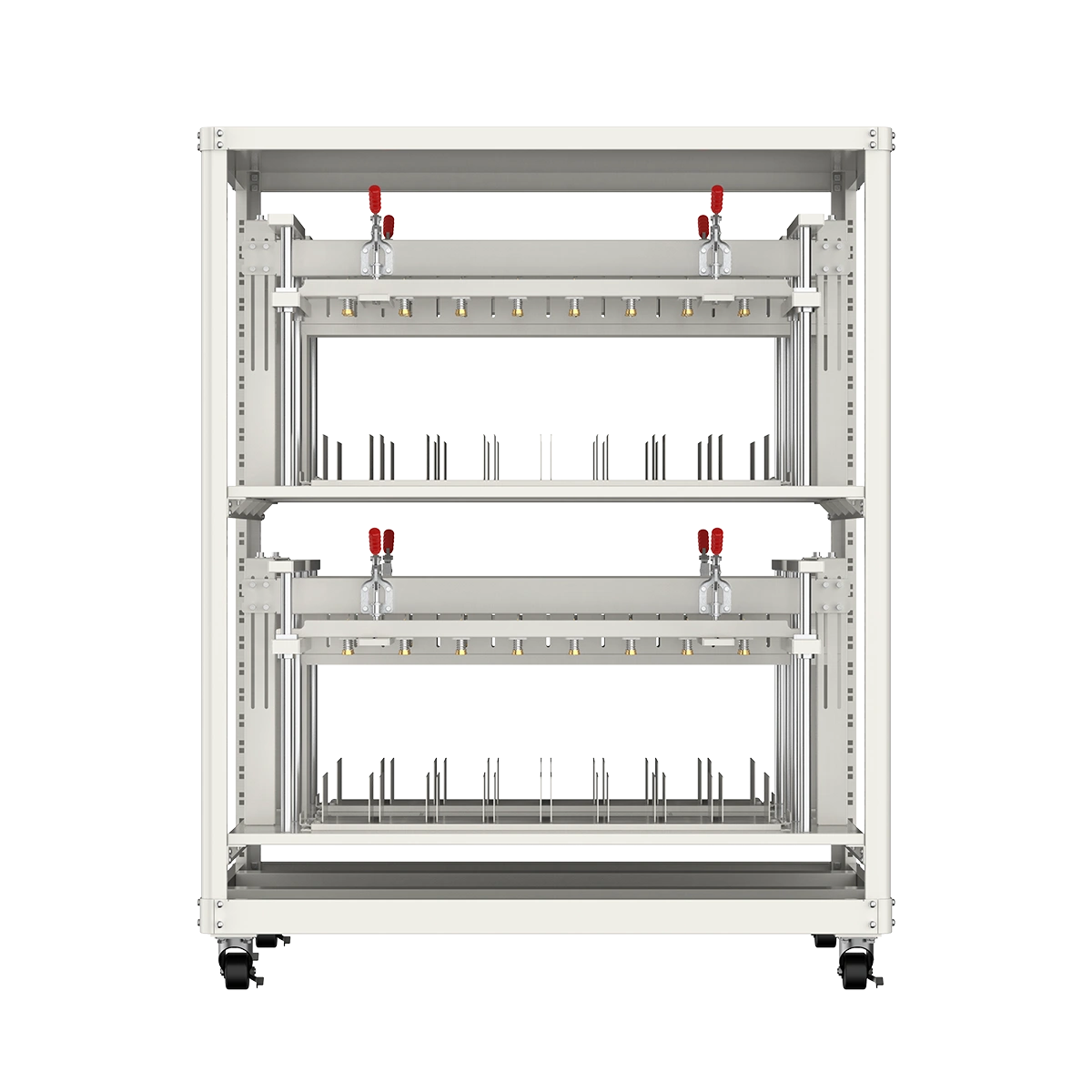

· Supports up to 100A test current with gold-plated probes for excellent electrical conductivity, ensuring accurate and efficient battery performance assessment.

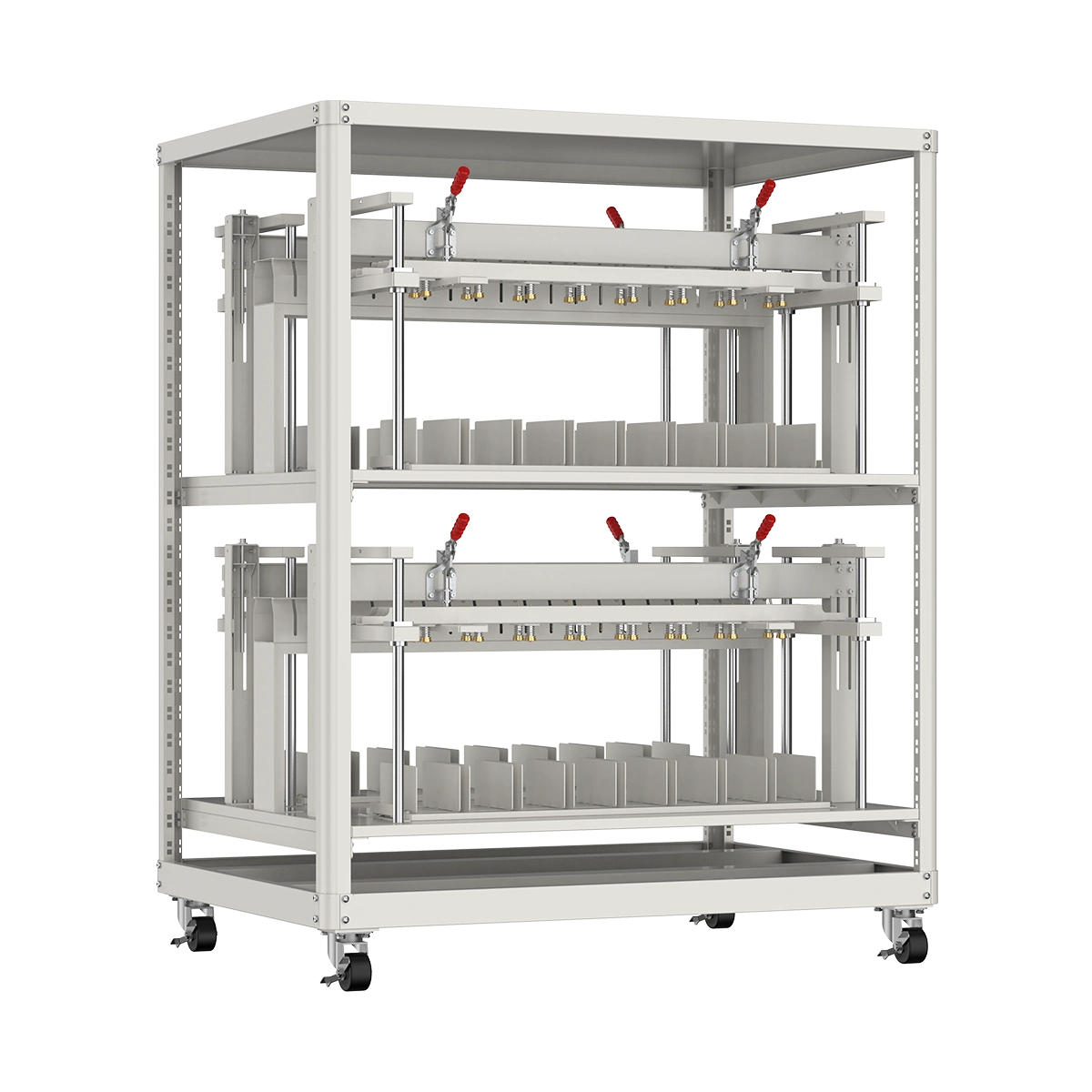

· Two toggle clamps per row for unified control of probes, enhancing testing efficiency.

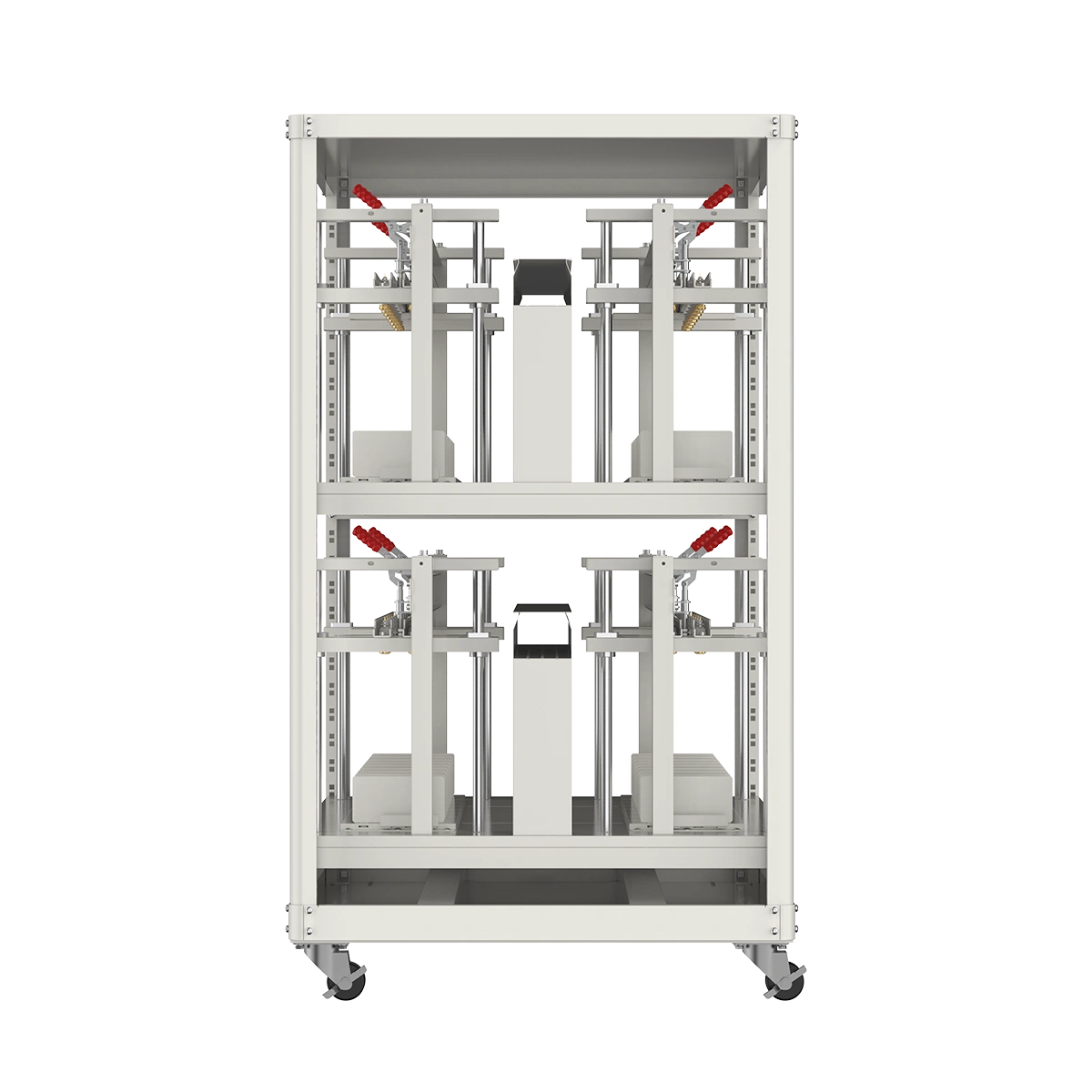

· The centrally designed wiring position simplifies the wiring process, avoiding tangles.

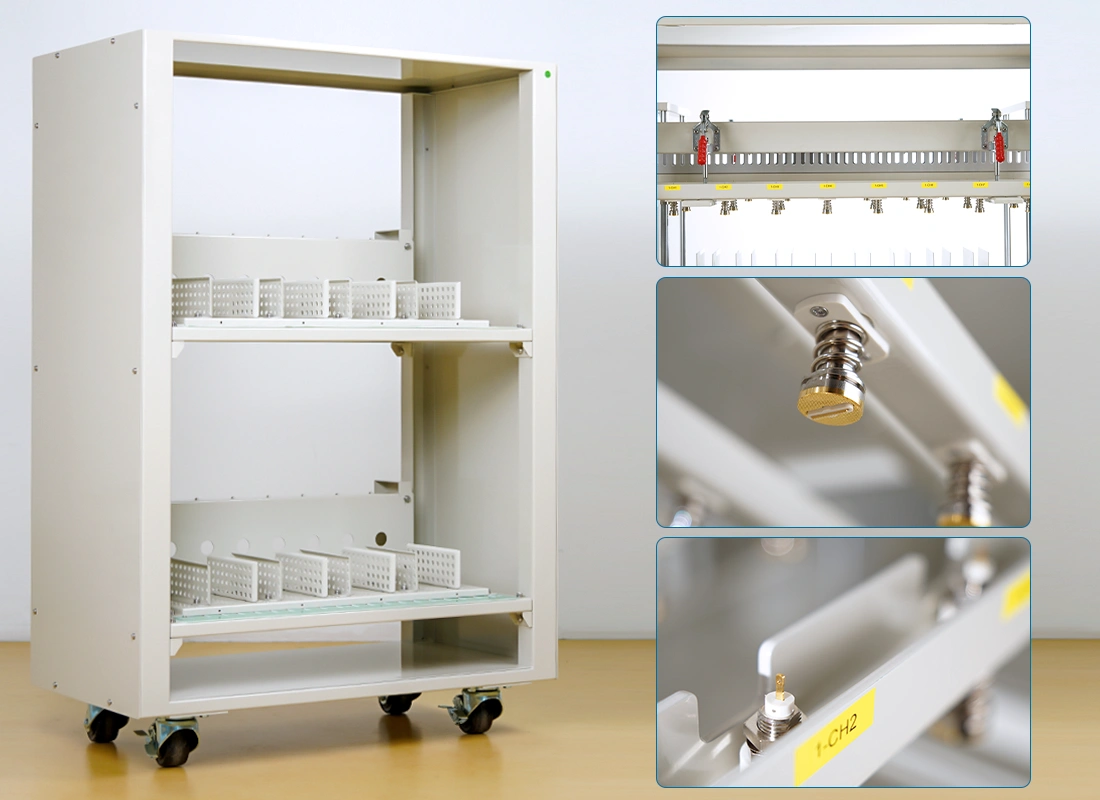

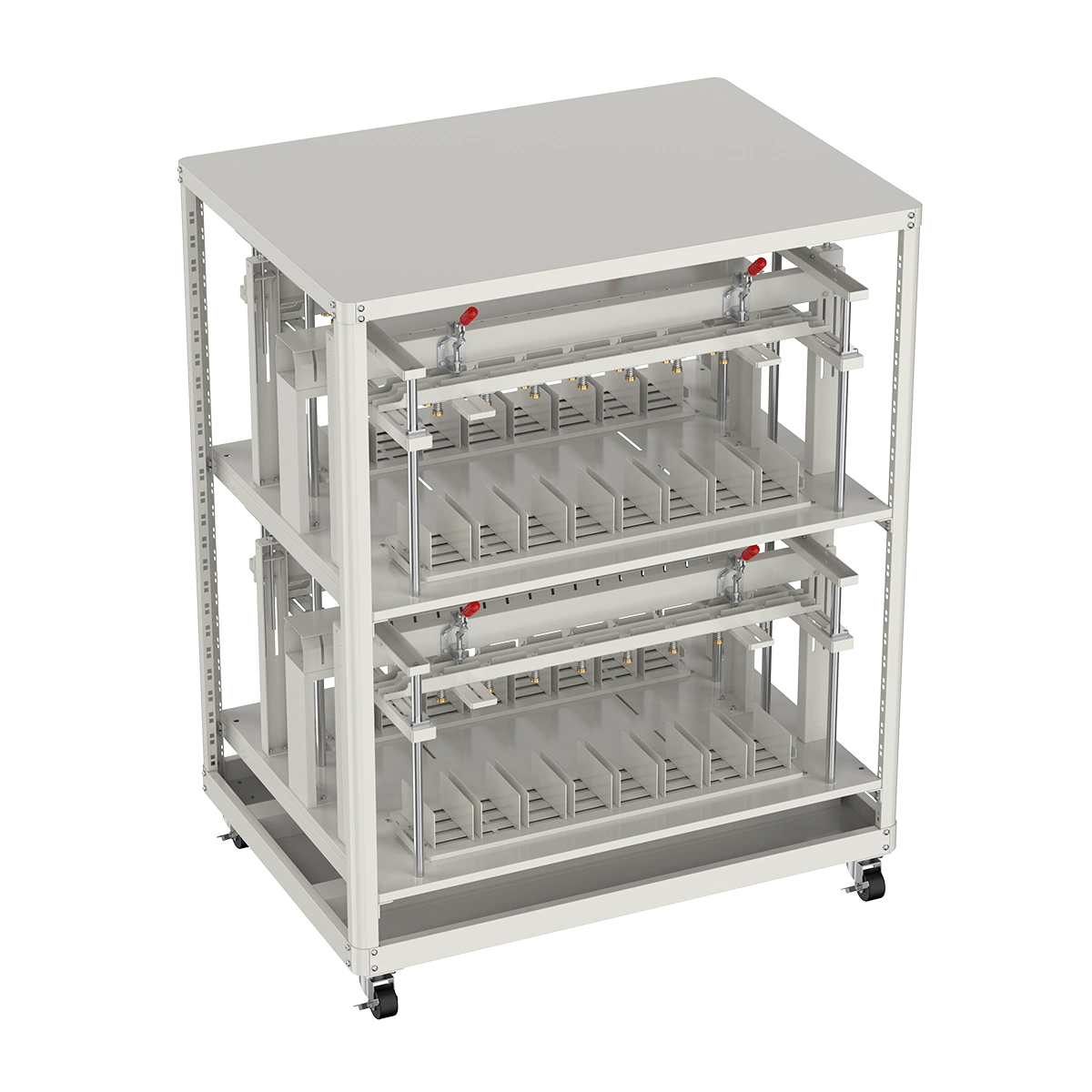

· Equipped with omnidirectional wheels for 360° flexible rotation, along with secure lock latches for easy movement and stable positioning during testing.
| Equipment name | 100A Prismatic Cell Rack |
|---|---|
| Model | PDCJ-F1-ZJ-100A-32CH-S8 |
| Current | 100A |
| Prode Model | P103-12-Y-DH20232-120A-2 |
| Wire Terminal | M10 |
| Tabs Distance | 2.0"-8.5" (50-215mm) |
| Battery Size | Length: 3.9"-13.8" (100-350mm) Width: 0.4"-3.1" (10-80mm) Height: 2.0"-11.4" (50-290mm) |
| Number of Channels | 32CH |
| External Size | 47.2"×33.9"×59.1" (1200mm×860mm×1500mm) |
| Weight | 32kg |
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Energy Efficiency：>65%
● Off-Line Test: 1GB
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：10Hz
● Sampling Time：100ms
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test: 1GB
● Voltage&Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Current Response Time：≤1ms
● Minimum Pulse Width：500ms
● Off-Line Test：1GB/CH
● Cycle Life, GITT Test, DCIR Test, dQ/dV Curve
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Temperature Fluctuation：≤1.8℉(1℃)
● Temperature Range & Deviation：-40℉ ~ 302℉±3.6℉(-40℃ ~ 150℃±2.0℃)
● Heating Efficiency：68℉ ~ 302℉ ≤60min(20℃ ~ 150℃)
● Cooling Efficiency：68℉ ~ -40℉≤60min(20℃~-40℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Recording Frequency：100Hz
● Number of Channels：80CH
● Temperature Range & Deviation：50℉ ~ 185℉±3.6℉(10℃ ~ 85℃±2.0℃)
● Heating Efficiency：77℉ ~ 185℉ ≤40min(25℃ ~ 85℃)
● Cooling Efficiency：77℉ ~ 50℉≤40min(25℃~10 ℃)
● Voltage & Current Accuracy：±0.05% F.S.
● Sampling Time：100ms
● Number of Channels：16CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(15℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉≤50min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 59℉≤60min(25℃~15 ℃)
● Voltage & Current Accuracy：±0.01% F.S.
● Recording Frequency：100Hz
● Number of Channels：160CH
● Temperature Range & Deviation：32℉ ~ 140℉±3.6℉(0℃ ~ 60℃±2.0℃)
● Heating Efficiency：77℉ ~ 140℉ ≤30min(25℃ ~ 60℃)
● Cooling Efficiency：77℉ ~ 32℉≤50min(25℃~0 ℃)
