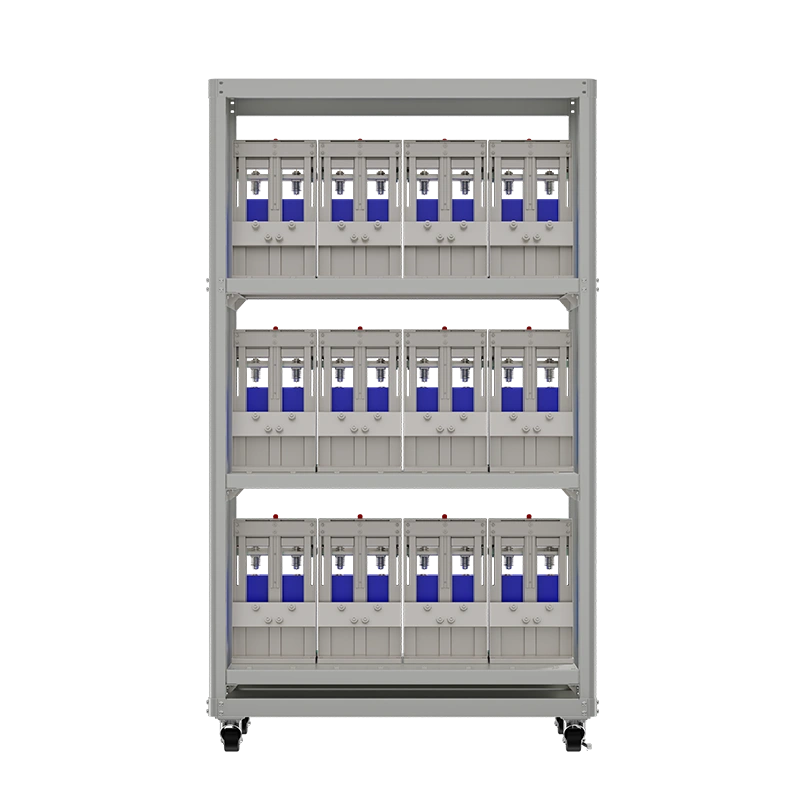

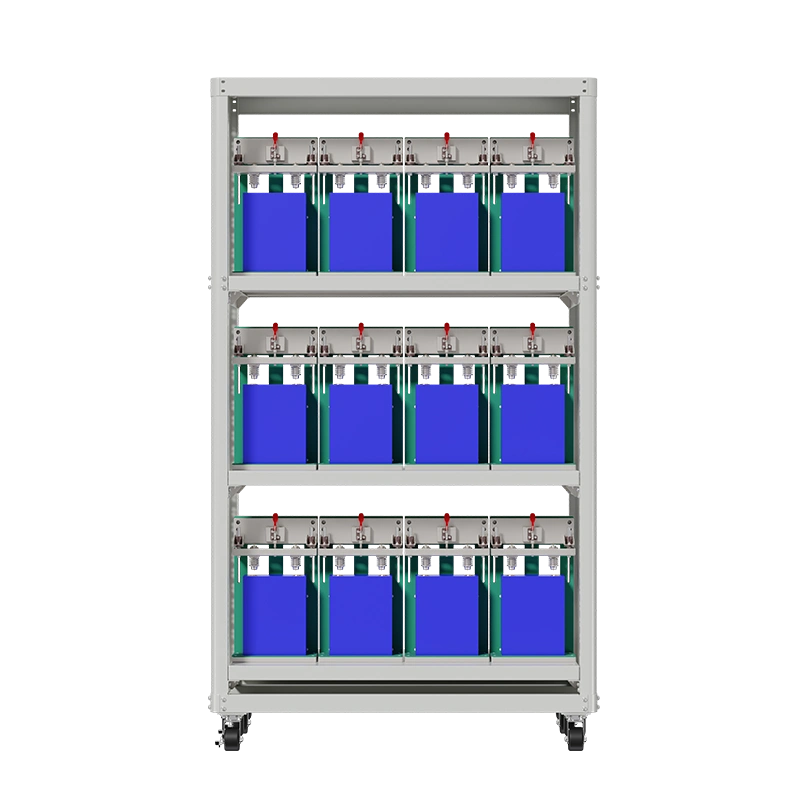

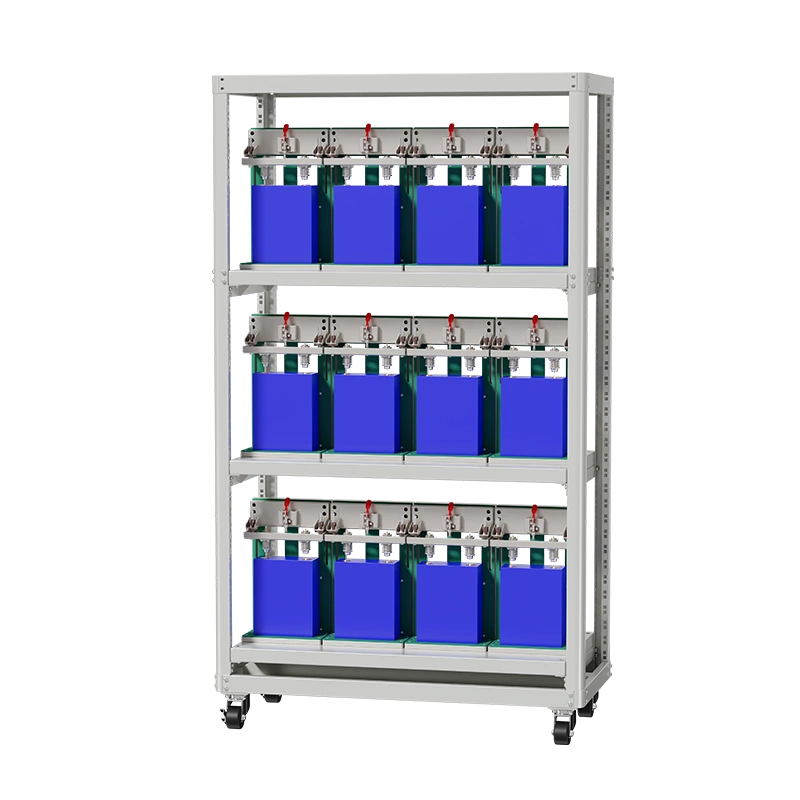

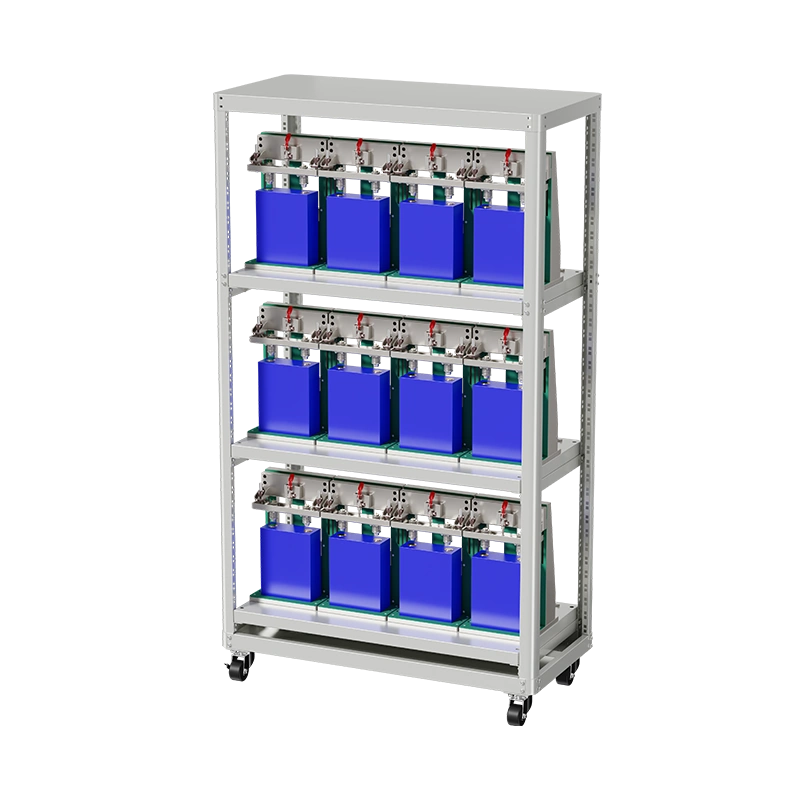

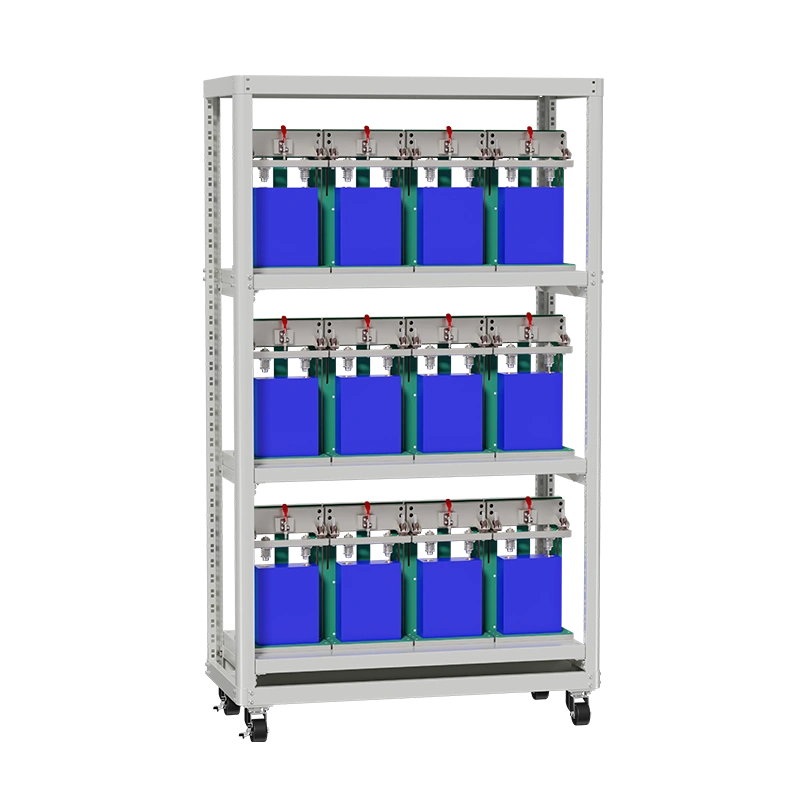

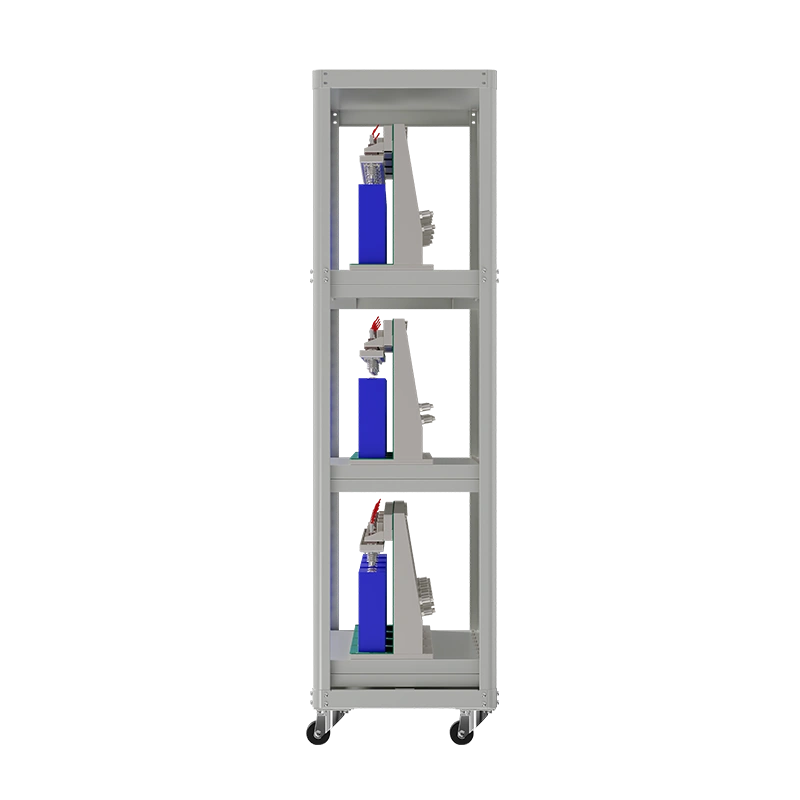

Used for securing prismatic cell fixtures, with 12 channels in total.
Features
Tech Specs
Resources
Designed for high-volume battery testing, the cell rack features a flexible design with configurable number of test channels and maximum current per channel. A single rack supports up to 12 channels, with a maximum current capacity of 600A per channel. The fixture height and electrode spacing are adjustable to accommodate prismatic cells of various dimensions. It adopts a 4-wire (Kelvin) connection, which eliminates the influence of lead resistance and contact resistance on measurements, ensuring reliable and accurate test results.
| Equipment name | 12CH Prismatic Cell Rack |
|---|---|
| Model | PDCJ-F-12CH-D1 |
| Current | Max. 600 A |
| Battery Size | Length: 3.15″ (80mm) – 9.06″ (230mm) Width: 0.79″ (20mm) – 3.15″ (80mm) Height: 3.15″ (80mm) – 6.30″ (160mm) or 3.15″ (80mm) – 8.66″ (220mm) |
| Tab Spacing | 2.17″ (55mm) – 5.71″ (145mm) |
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.02% F.S.
High-Frequency Sampling: 200Hz
Current Conversion Time: ≤2ms
Current Response Time: ≤1ms
Minimum Pulse Width: 10ms
Feedback Efficiency (Max): 75%
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Volume: 100L
Space for Test System: 5U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F ~ 302°F≤60min
(20℃ ~ 150℃≤60min)
Cooling Time: 68°F ~ -94°F≤75min
(20℃ ~ -70℃≤75min)
Volume: 100L*2
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F ~ 140°F≤30min
(25℃ ~ 60℃≤30min)
Cooling Time: 77°F ~ 32°F≤50min
(25℃ ~ 0℃≤50min)
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉ ~ 140℉≤30min
(25℃ ~ 60℃≤30min)
Cooling Efficiency: 77℉ ~ 32℉≤50min
(25℃ ~ 0 ℃≤50min)
