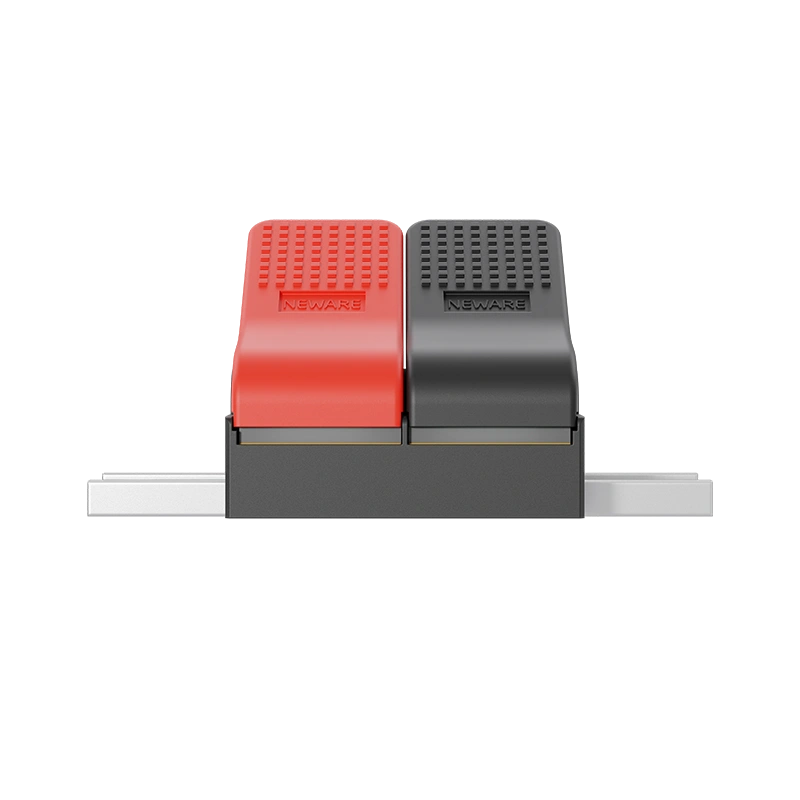

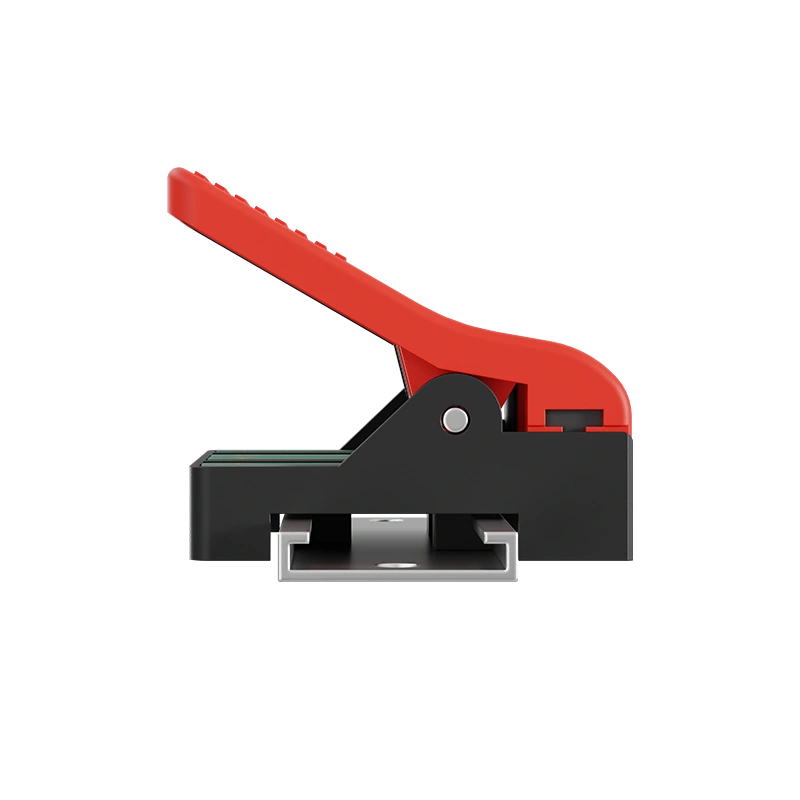

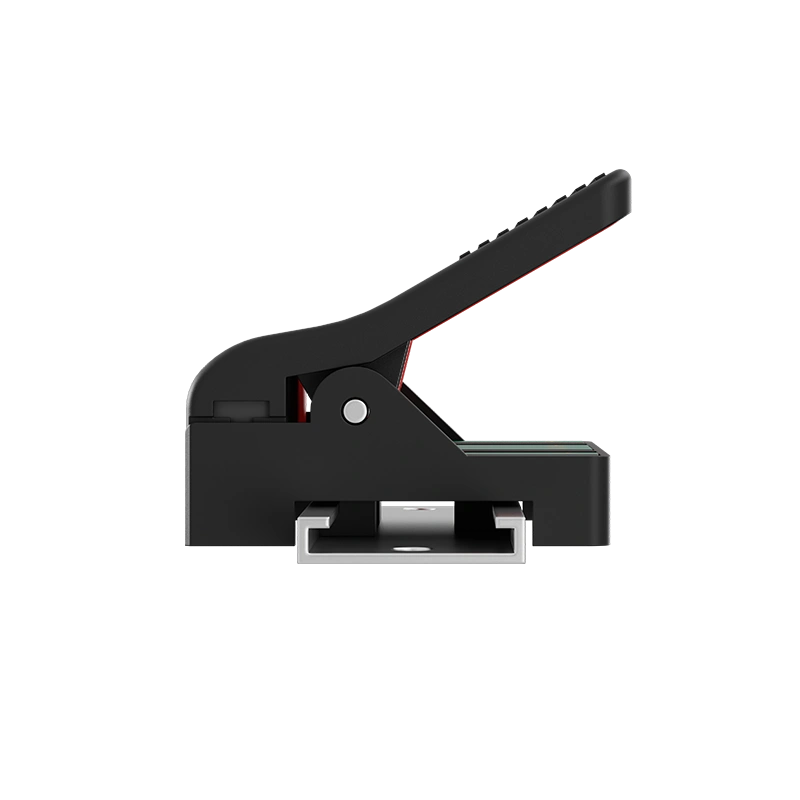

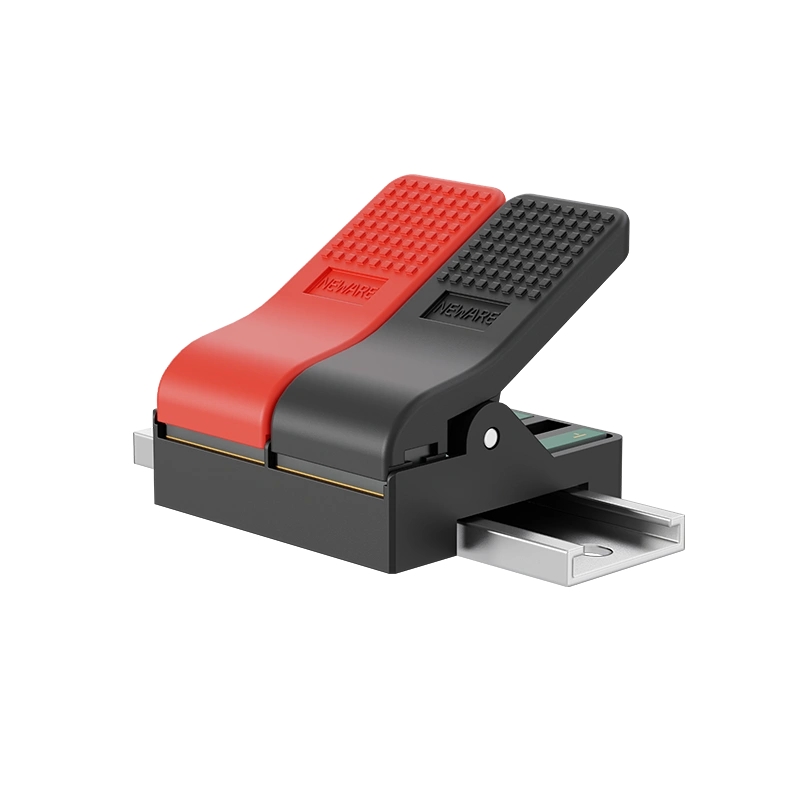

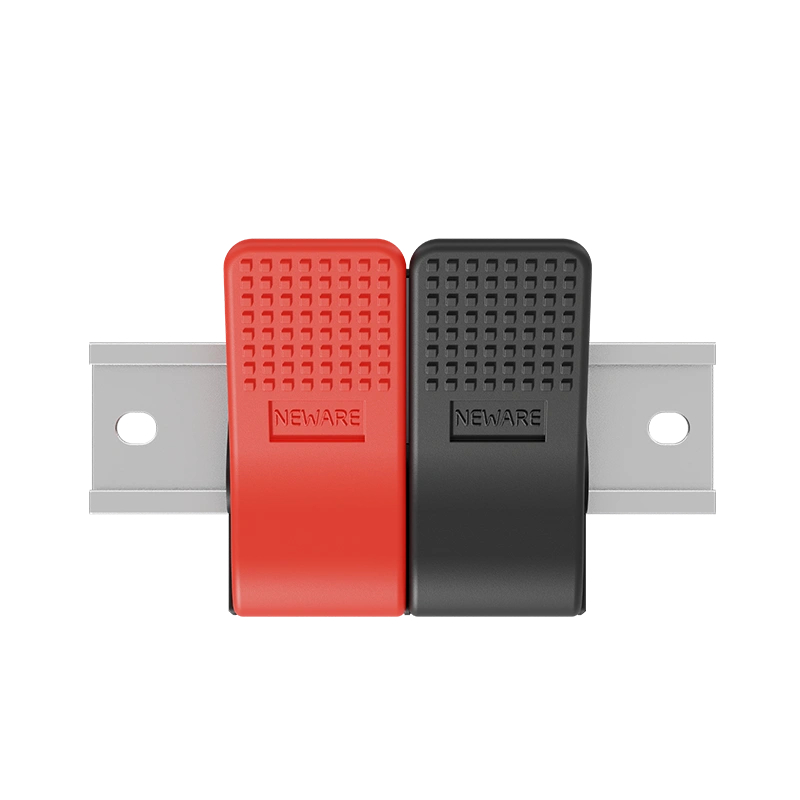

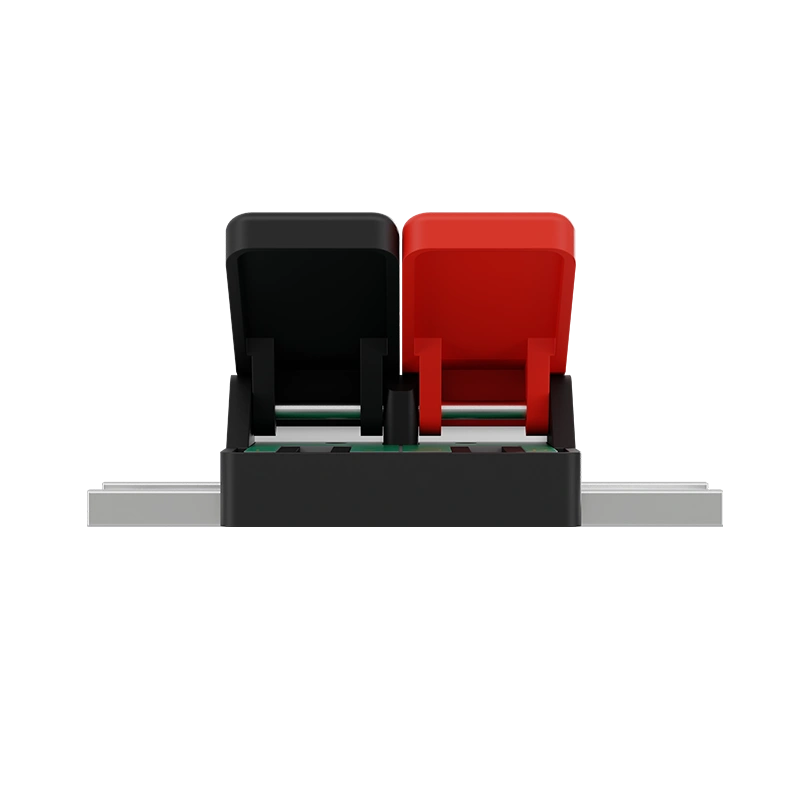

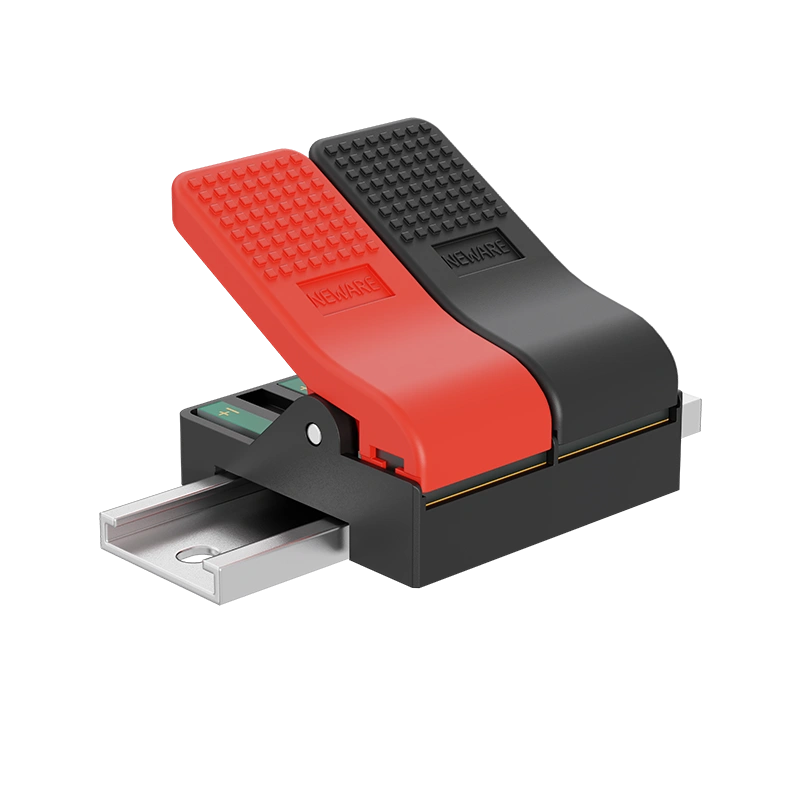

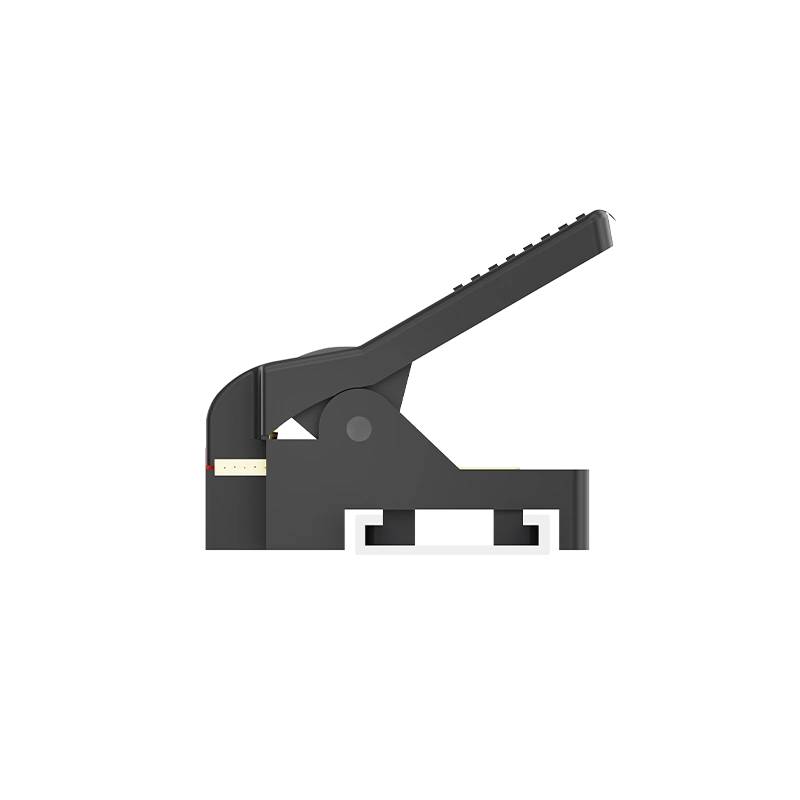

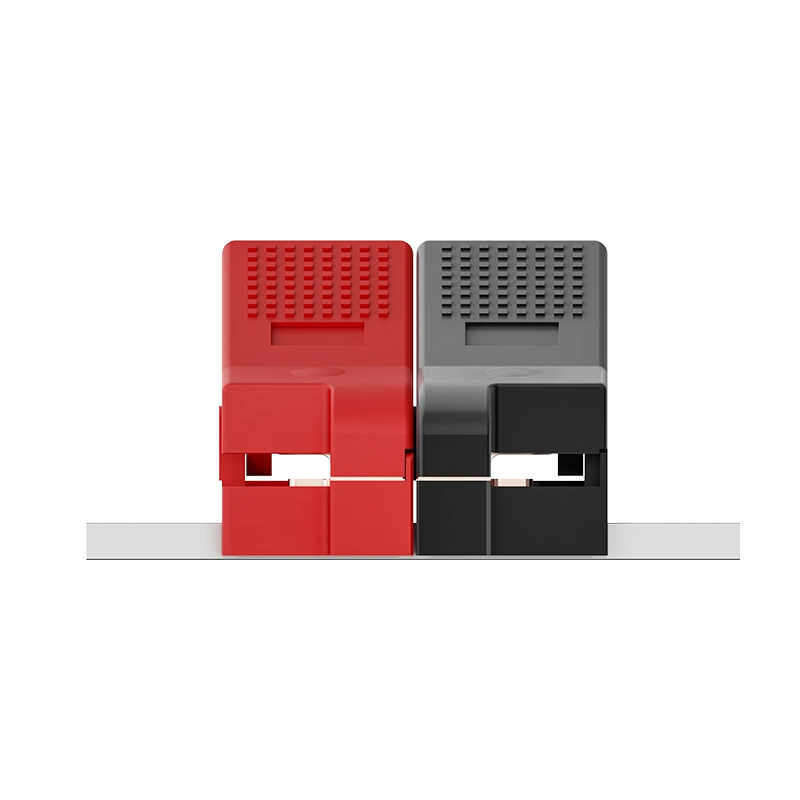

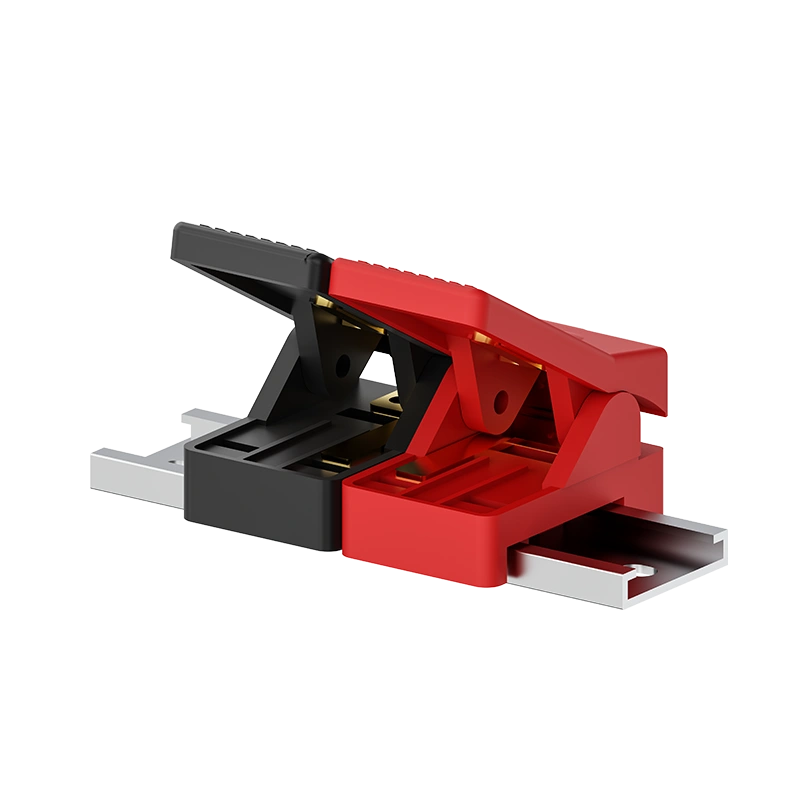

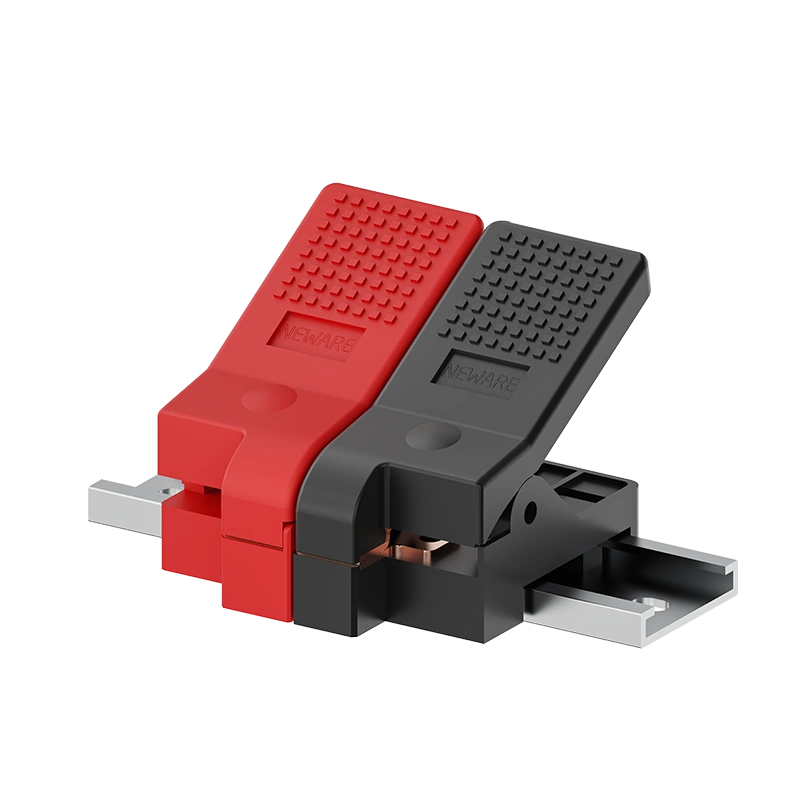

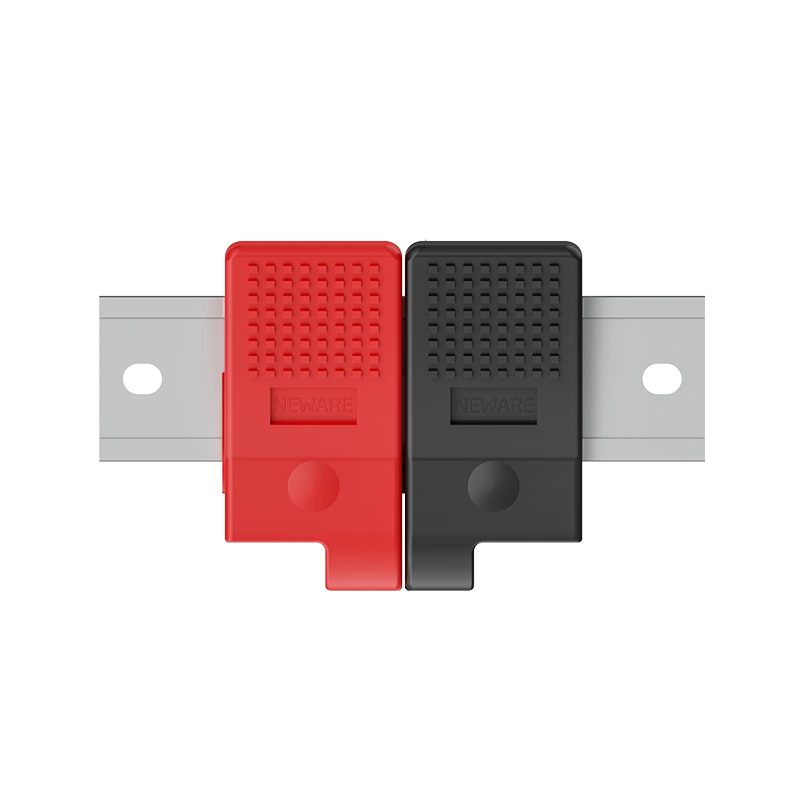

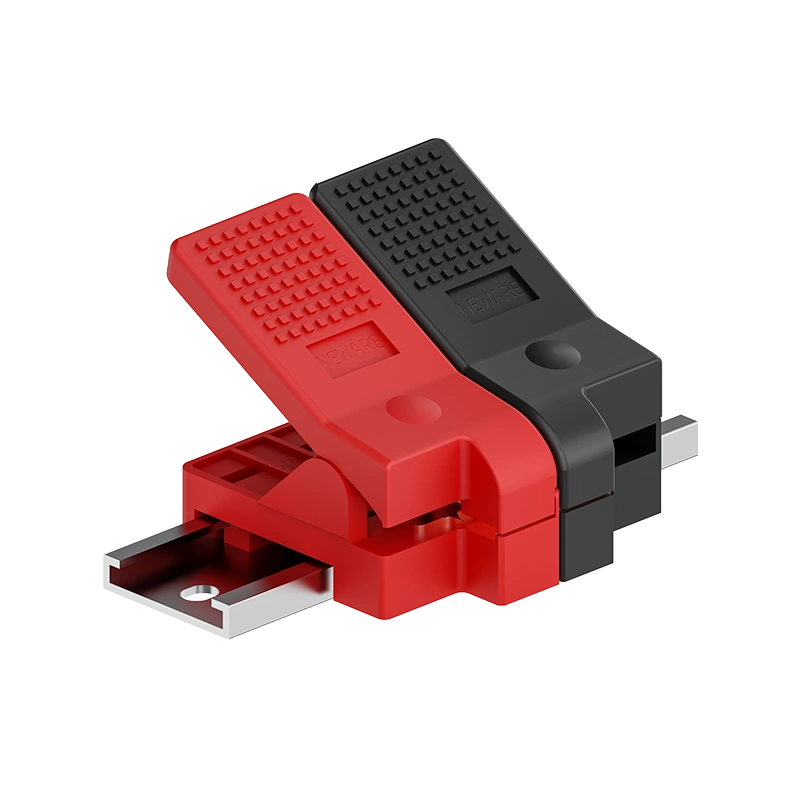

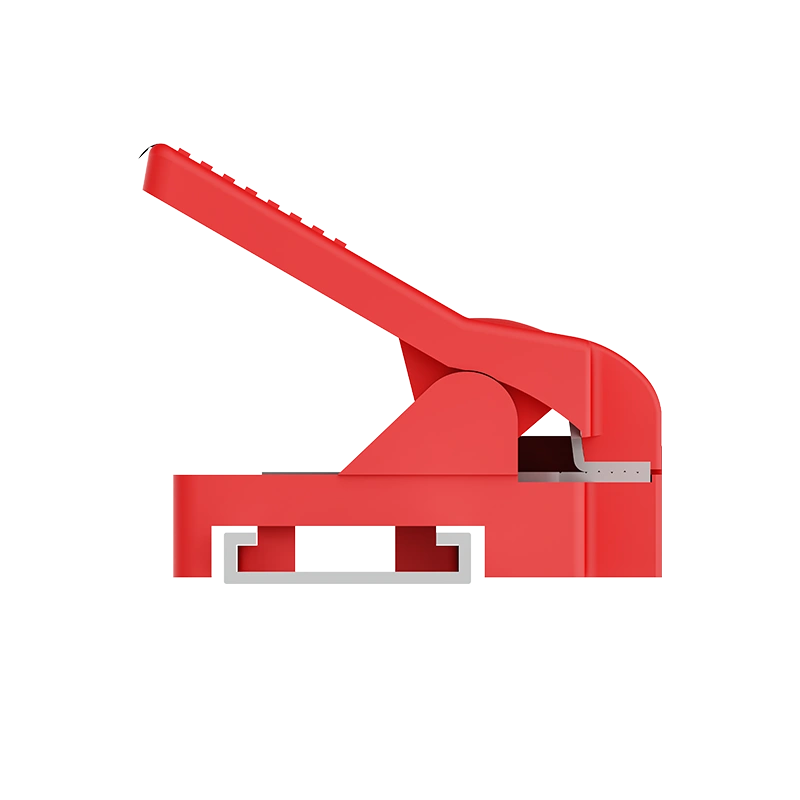

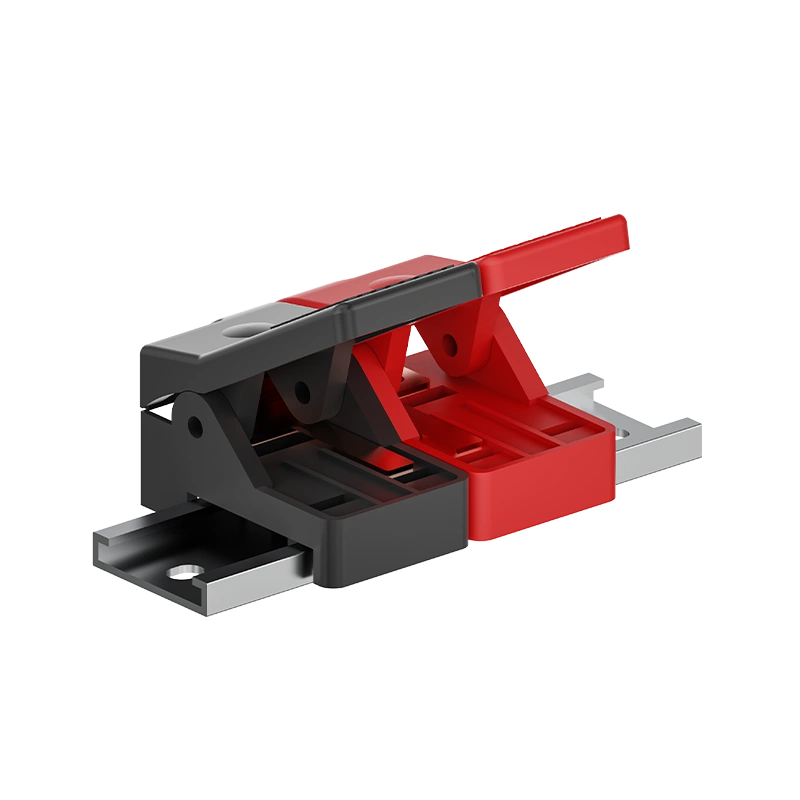

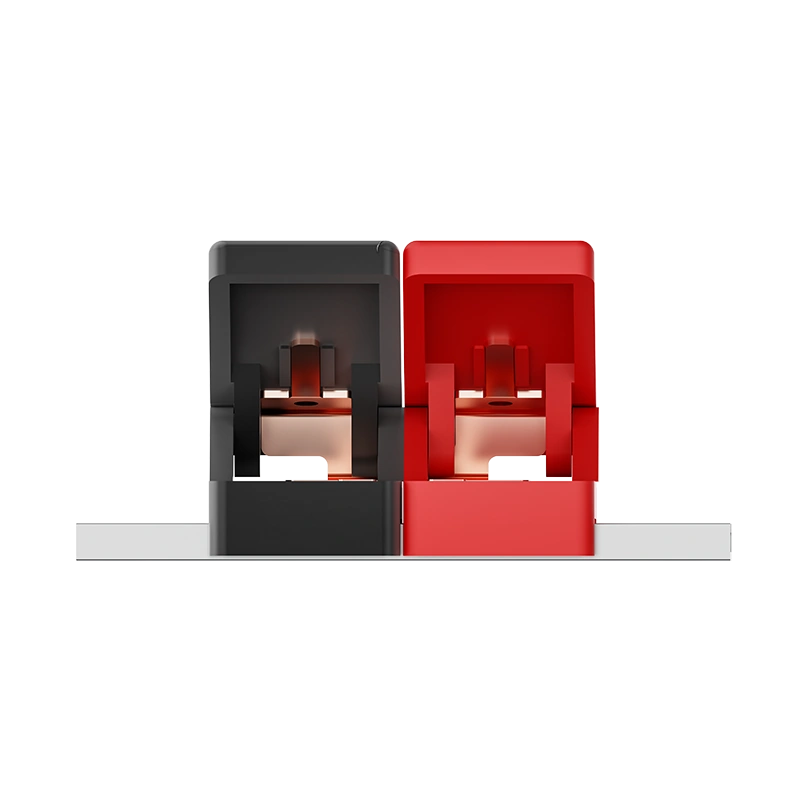

Compact pouch cell test fixture, compatible with cells for smart wearable devices, with a minimum tab spacing of 0.6 mm.
Features
Tech Specs
Resources
This special fixture for small-size pouch cells is custom-developed for cell testing scenarios of smart wearable devices, meeting the testing demands of micro cells. It supports a minimum ultra-narrow tab spacing of 0.6 mm.

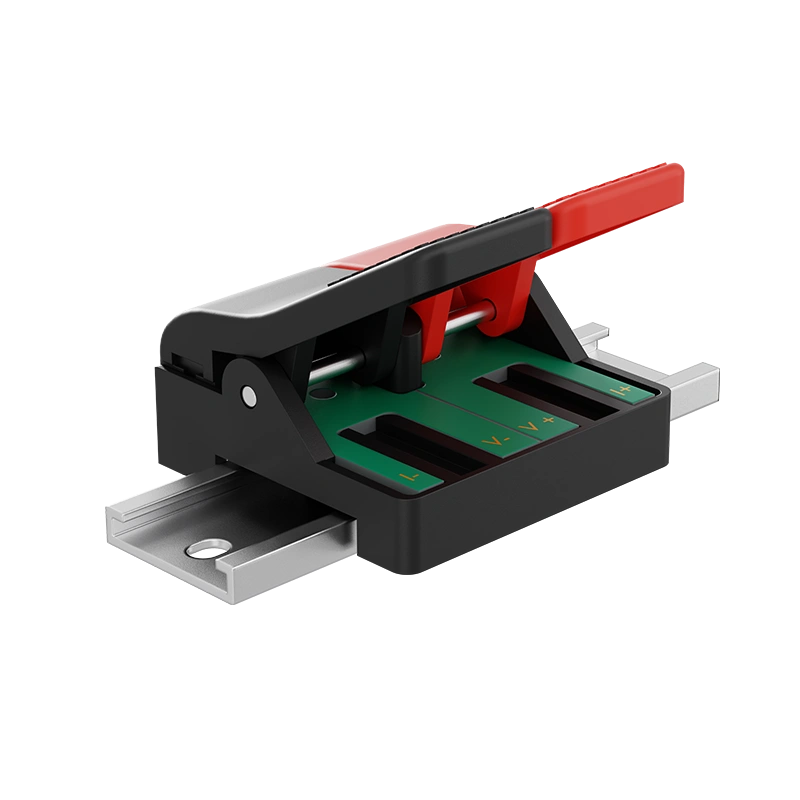

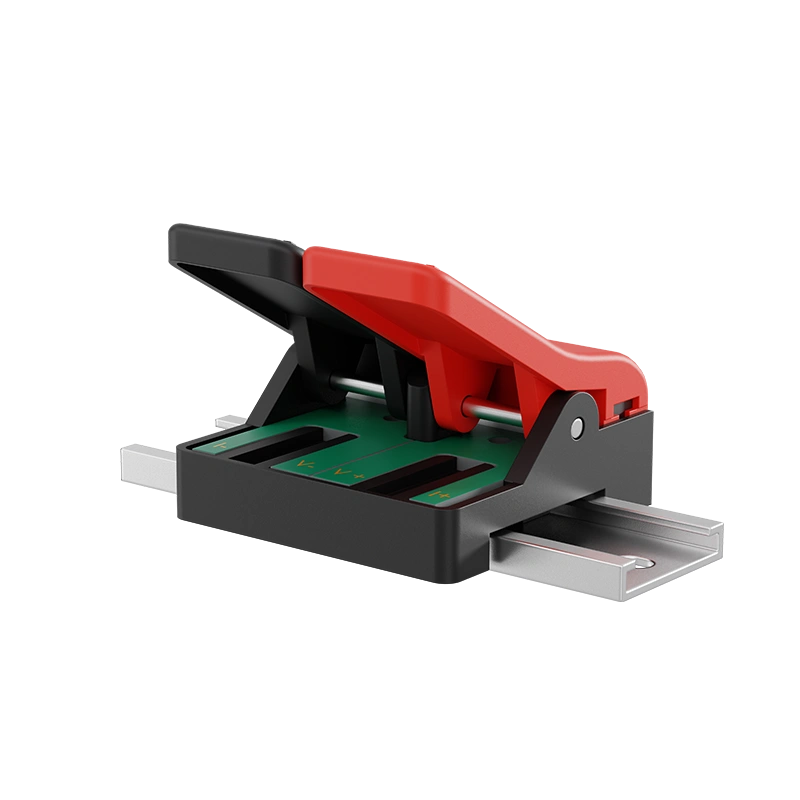

It features a rated maximum current of 6 A and contact internal resistance lower than 2 mΩ. The standard four-point connection structure effectively eliminates test interference caused by wire impedance and extra contact resistance, greatly improving the accuracy and stability of test data.
The fixture is integrally made of high-strength and high-temperature resistant materials with a temperature resistance of 150 ℃. With durable structure and strong environmental adaptability, it can be used with constant temperature test chambers to conduct integrated tests under high and low temperature conditions, satisfying the test requirements of multiple working conditions.
| Equipment name | Wearable Device Battery Test Fixture |
|---|---|
| Model | A705-P-6A-Mini |
| Current | Max. 6 A |
| Tab Spacing | Min. 0.6 mm |
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 1000Hz
Current Response Time: ≤20μs
CV Testing
Type-C Power Port
6-Range Current Measurement
Voltage & Current Accuracy: ±0.02% F.S.
High-Frequency Sampling: 200Hz
Current Conversion Time: ≤2ms
Current Response Time: ≤1ms
Minimum Pulse Width: 10ms
Feedback Efficiency (Max): 75%
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.05% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Energy Efficiency: >65%
Off-Line Test: 1GB
Voltage & Current Accuracy: ±0.01% F.S.
Recording Frequency: 10Hz
Sampling Time: 100ms
Current Response Time: ≤1ms
Minimum Pulse Width: 500ms
Off-Line Test: 1GB
Volume: 100L
Space for Test System: 5U
Temperature Fluctuation: ≤0.9℉ (0.5℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 68°F ~ 302°F≤60min
(20℃ ~ 150℃≤60min)
Cooling Time: 68°F ~ -94°F≤75min
(20℃ ~ -70℃≤75min)
Volume: 100L*2
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Time: 77°F ~ 140°F≤30min
(25℃ ~ 60℃≤30min)
Cooling Time: 77°F ~ 32°F≤50min
(25℃ ~ 0℃≤50min)
Volume: 200L
Number of Channels: 160CH
Temperature Fluctuation: ≤1.8℉ (1℃)
Temperature Deviation: ±3.6℉ (±2℃)
Heating Efficiency: 77℉ ~ 140℉≤30min
(25℃ ~ 60℃≤30min)
Cooling Efficiency: 77℉ ~ 32℉≤50min
(25℃ ~ 0 ℃≤50min)
