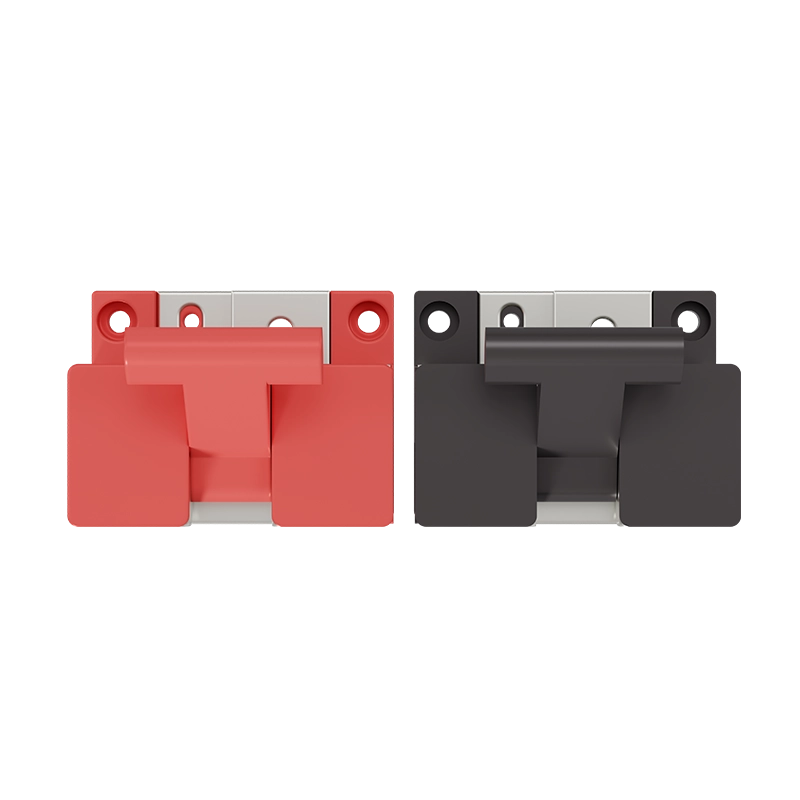

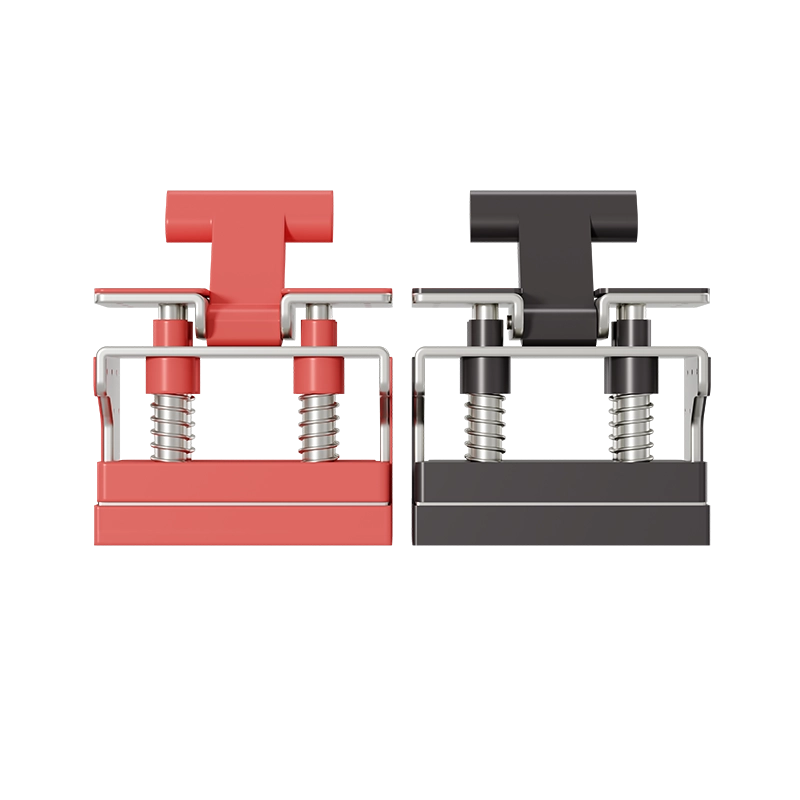

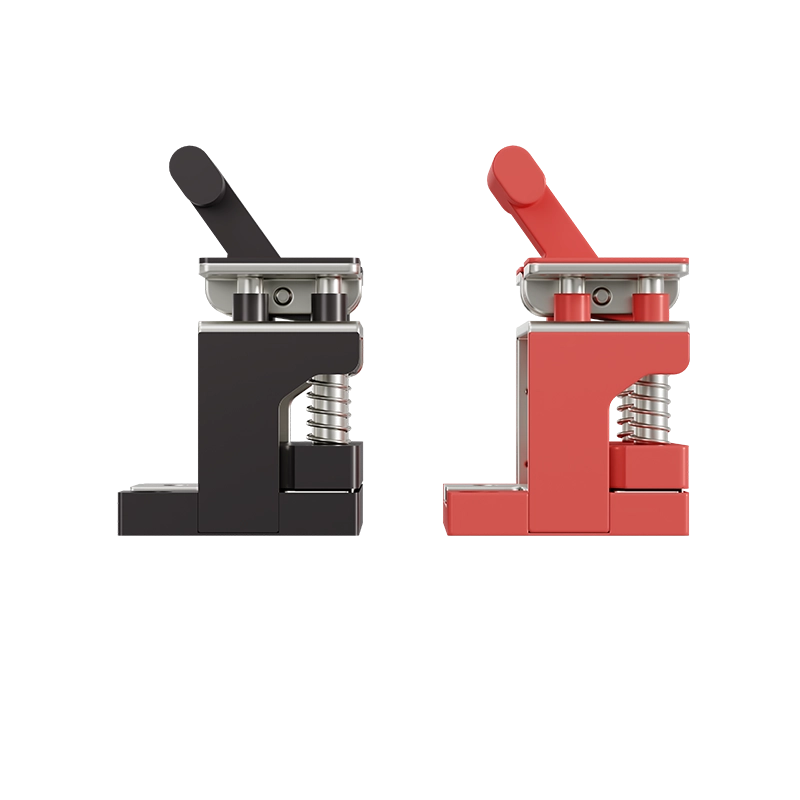

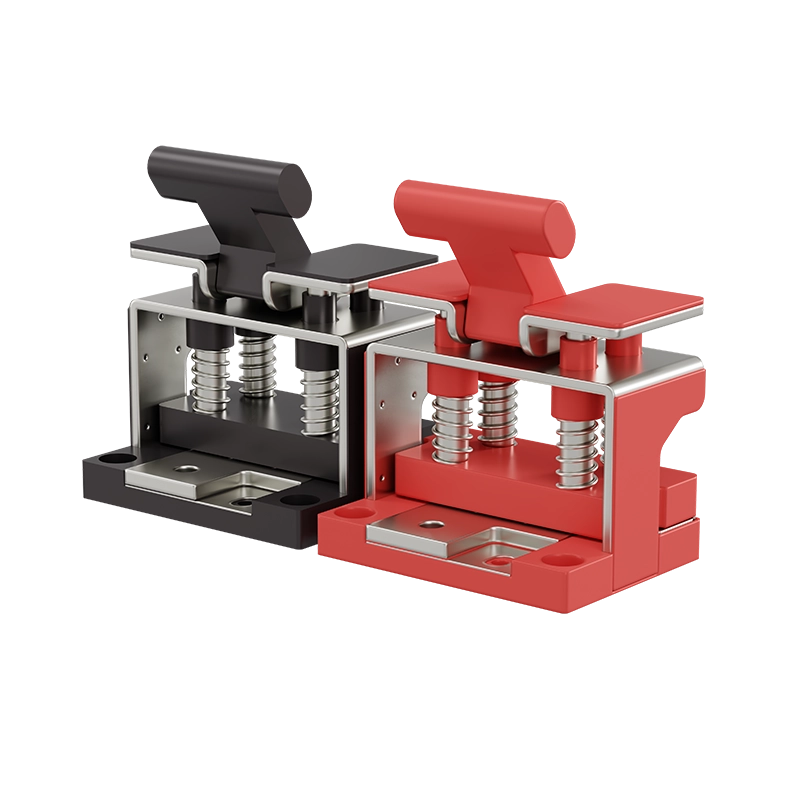

Designed for high-current testing of pouch cells, this fixture supports up to 100A continuous current and meets high-rate testing requirements.
It features gold-plated contacts for stable contact resistance below 1mΩ, improving measurement accuracy and consistency.
The quick-clamping mechanism enables efficient sample changes, while reinforced core components ensure a long service life of over 30,000 cycles, making it a reliable solution for high-intensity and high-precision testing.
| Equipment name | 100A Quick-Press Pouch Cell Fixture |
|---|---|
| Code | A705-P-100A+ (Red); A705-P-100A- (Black) |
| Current | ≤100A |
| Contact Resistance | <1mΩ |
| Gold Plating Thickness | 0.2μm |
| Service Life | >30,000 cycles |
