Pressure testing of laboratory pouch cells.
Features
Tech Specs
Resources

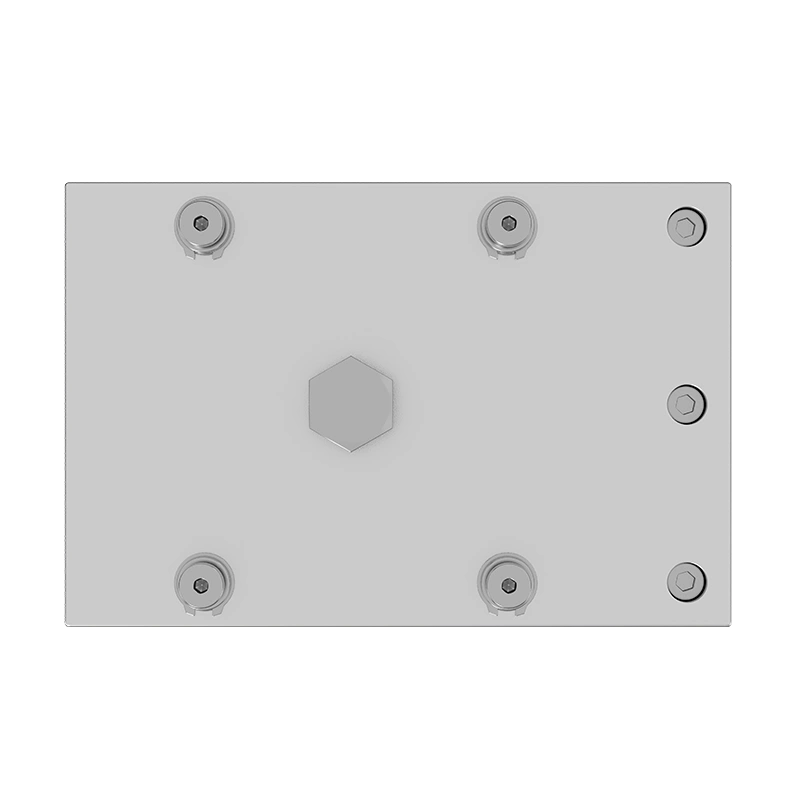

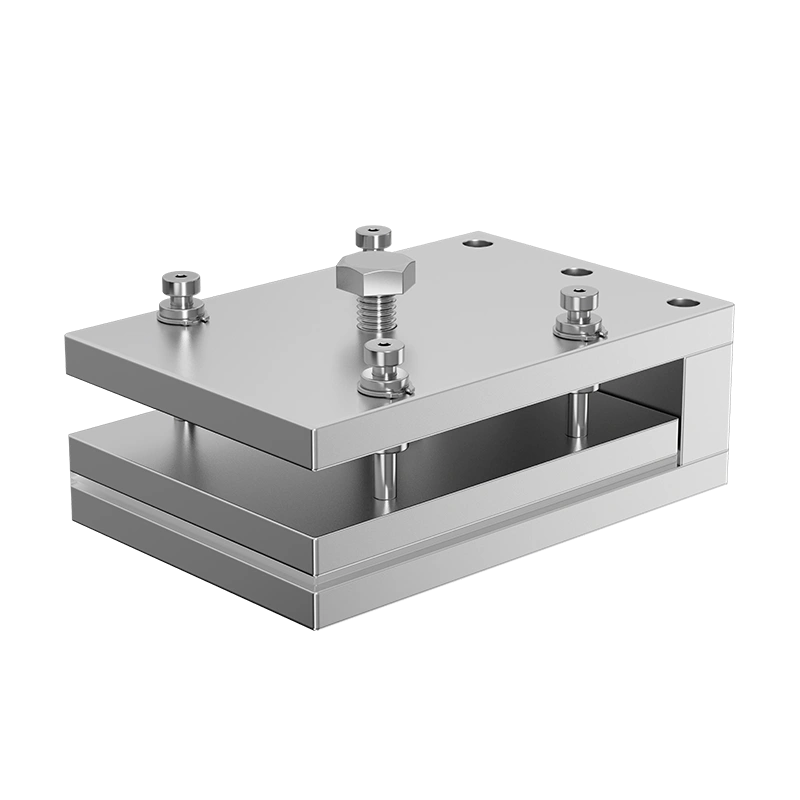

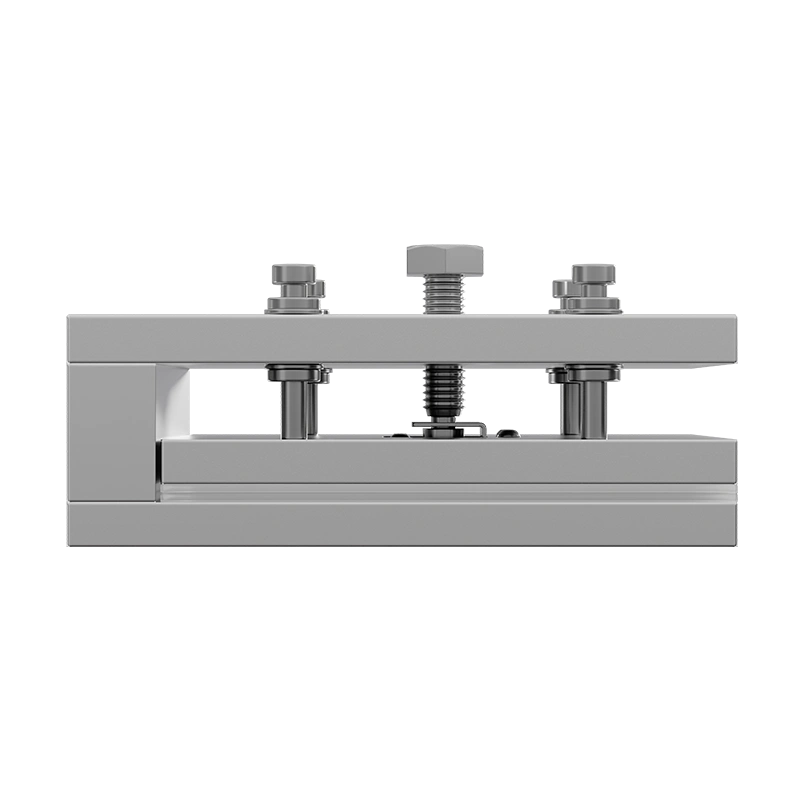

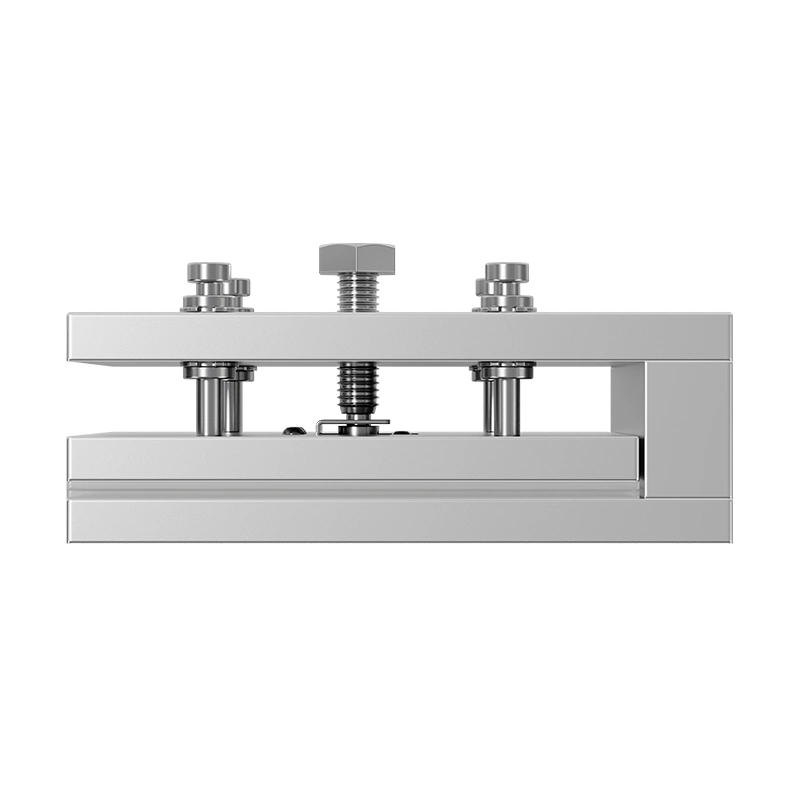

Designed specifically for laboratory cell testing, this fixture provides uniform mechanical pressure. With maximum compatibility with pouch cells up to 120×100mm in size, it is suitable for performance tests such as charge-discharge cycling, swelling characteristics, and interface contact, delivering a standardized and reliable pressure environment for battery R&D.
| Equipment name | Pressure Fixture |
|---|---|
| Model | PCJ-LS-R-120-100 |
| Battery Size | 4.7"×3.9" (120×100mm) |
| External Size | 3.9"×5.9"×2.0" (100×150×52mm) |
