Cylindrical cells testing rack supports simultaneous battery testing of 80 cylindrical cells.
* This product model has been updated. For details, please refer to Cylindrical Cell Racks, or consult a sales expert.
Features
Tech Specs
Resources

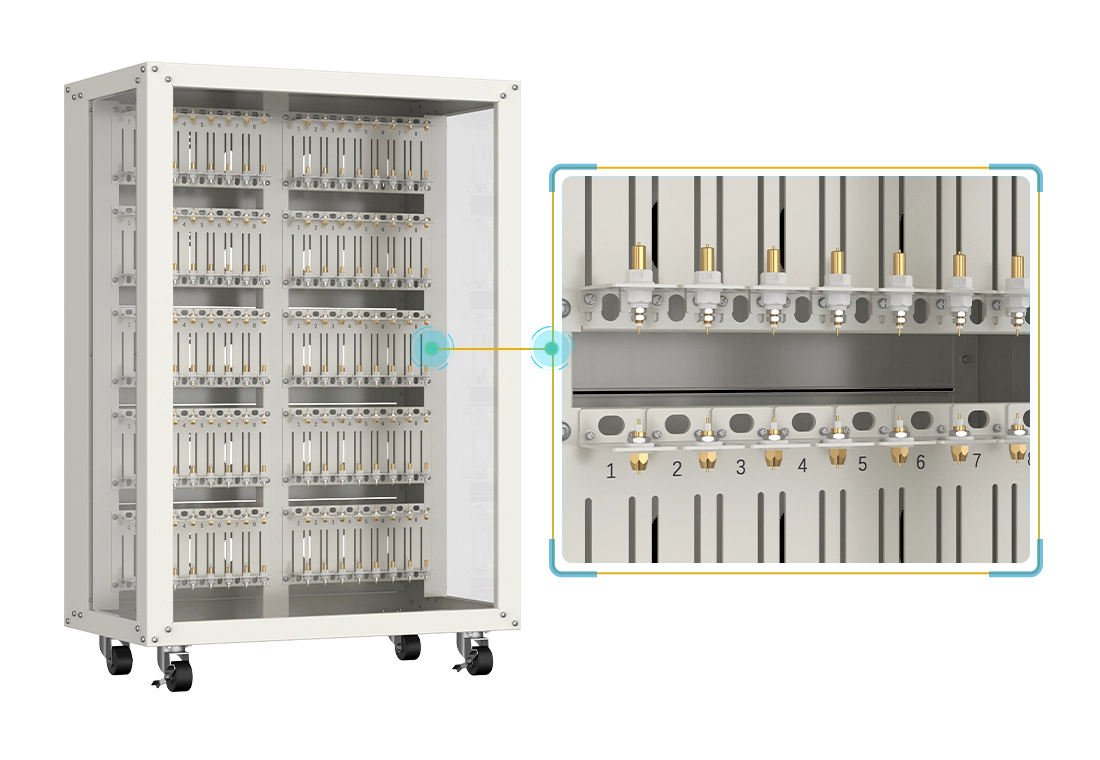

Each layer can accommodate 16 cylindrical batteries, and with a 5-layer design, it achieves a testing capacity of 80 batteries. Say no to limitations on the number of channels and keep your experiments moving forward.
The bottom probes are adjustable and secured with stainless steel screws, allowing for adjustment of cells accommodation space according to experimental needs. It can accommodate cylindrical cells with lengths ranging from 65mm to 80mm.

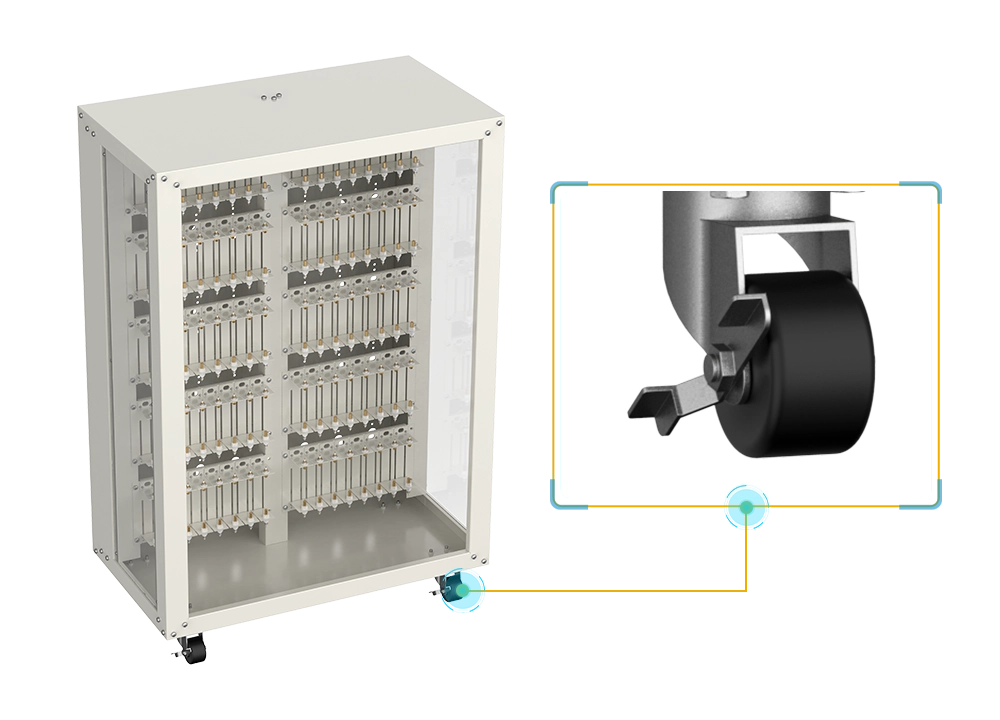

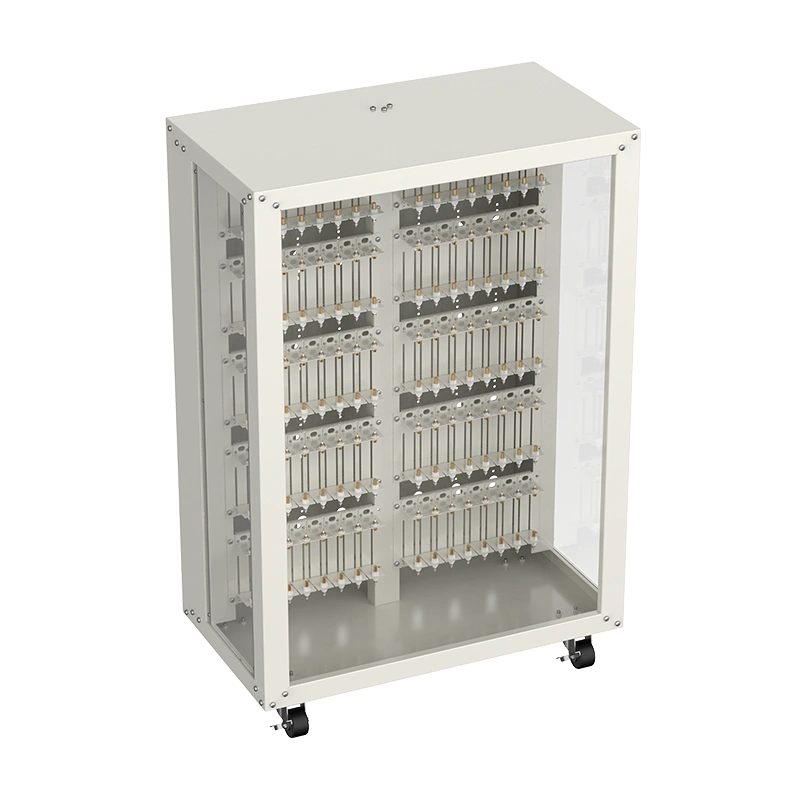

With a small footprint and equipped with 360° swivel casters, the battery rack is easily movable and can be securely locked in place using the locking mechanism on the tightening wheels.

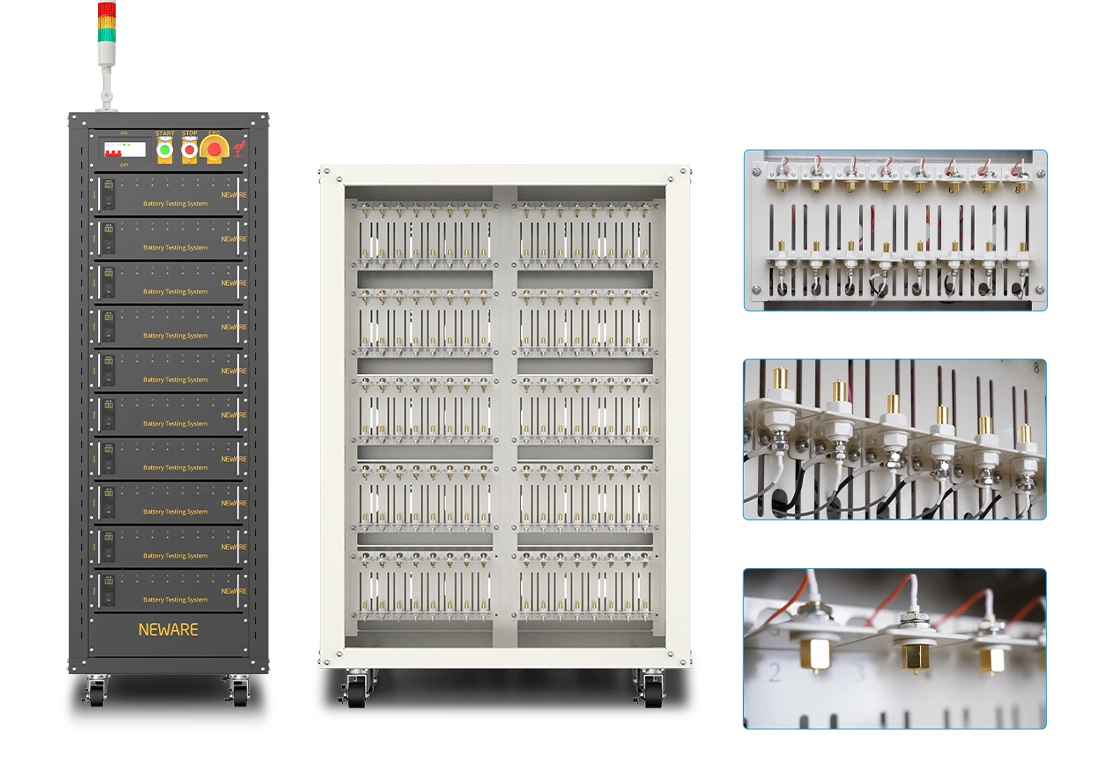

Designed for use with battery testing systems, specifically for cylindrical battery charge-discharge testing. The acrylic panels seal both sides, creating a semi-enclosed space that ensures a safe testing environment.
| Equipment name | 12A Cylindrical Cell Rack |
|---|---|
| Current | 12A |
| Number of Channels per Panel | 8 |
| Battery Rack Layout | 5 × 16 |
| Number of Channels | 80 |
| Battery Size | Diameter: 0.6"~0.8"(14~21mm)
Length: 2.6"~3.1"(65~80mm) |
| External Size | 35.3"× 19.7"× 52.0"
896mm×500mm×1320mm |
